Description
UNIWA D2000 Fingerprint Scanners
UNIWA D2000 combines Win7, Win10, 32 or 64bits;, 1.7GHz CPU, 1G RAM, USB 2.0 compliant ports at least. Additional features include Grayscale: 8-bit, 256 levels, Platen area: L0.65” x W0.83”, Resolution: 500dpi±1%. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
UNIWA D2000 features
UNIWA D2000 Single finger livesca

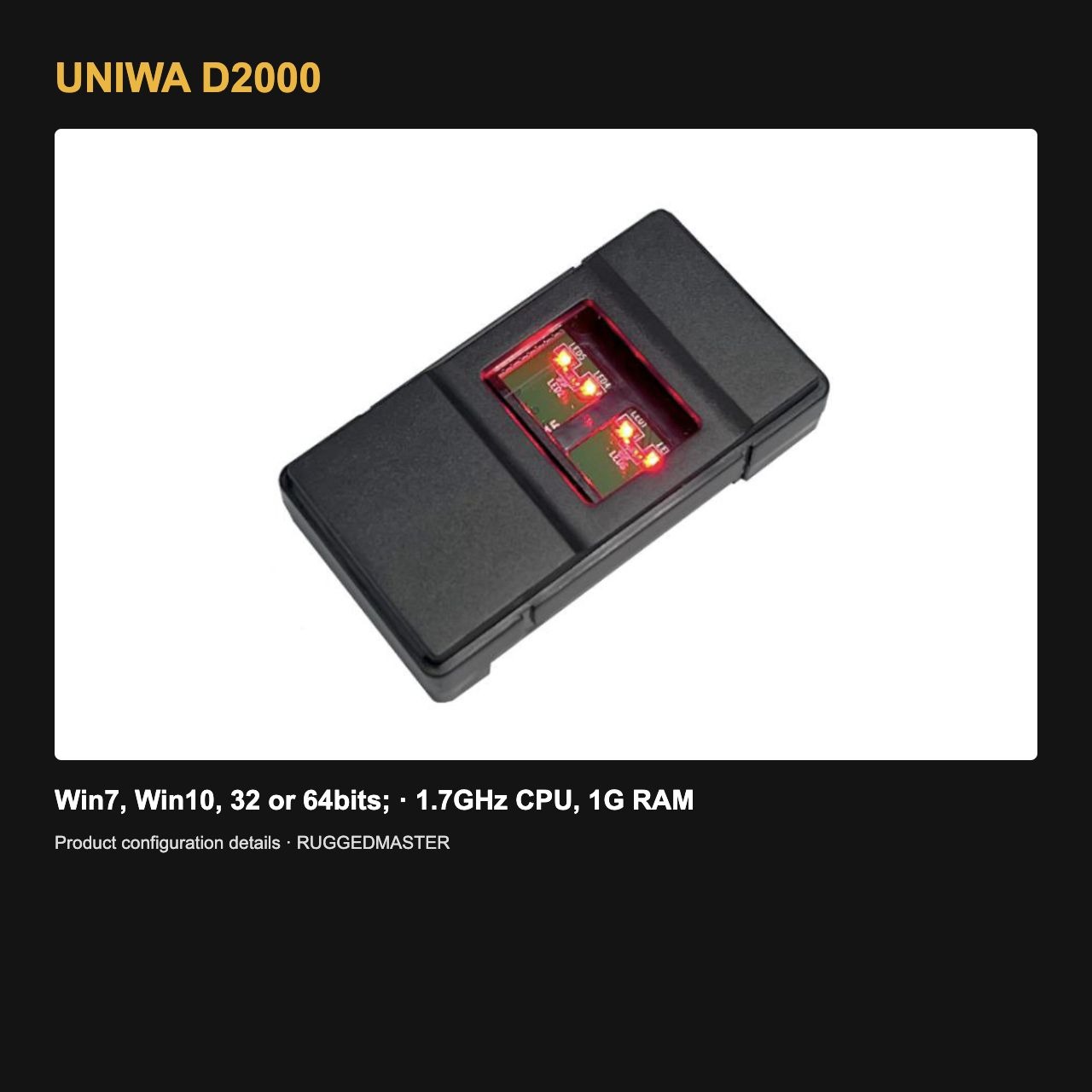

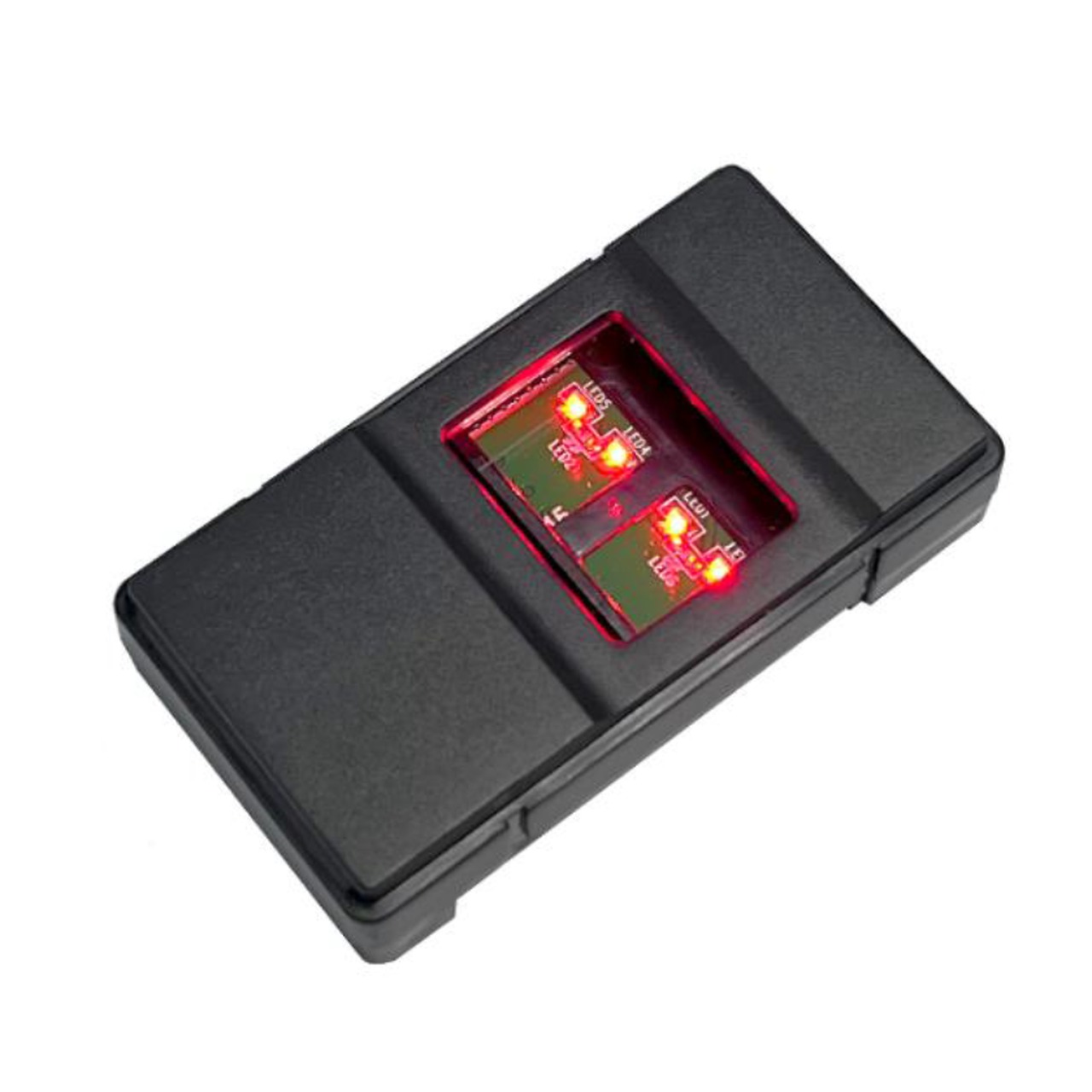

The D2000 Module is a lightweight,ultrathin, optical, single finger livescan capture device incorporating DTLiveScanner technology at 500ppi without membrane, when used for image transmission. The module itself is only a USB device, does not have processor to allow for minutiae transmission. But its corresponding SDK (DTLiveScanner) supports to minutiae extraction and transmission.
The D2000 Module has a standard USB2.0 port and is convenient to integrate with PC, Laptop, Tablet, Mobile and others applications. Its user-friendly interface is easy to learn and convenient for the third party to further develop and expand its application function.

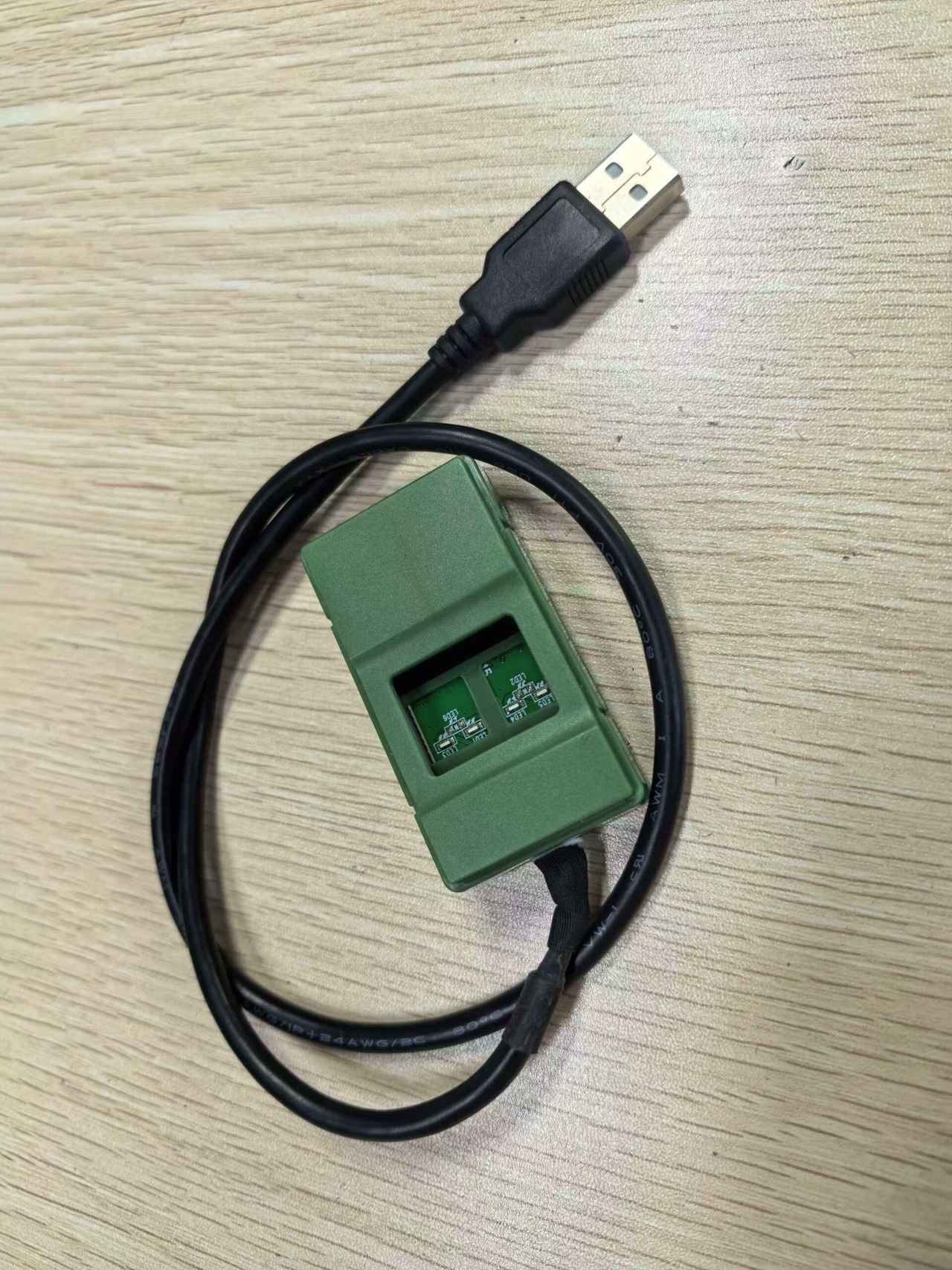

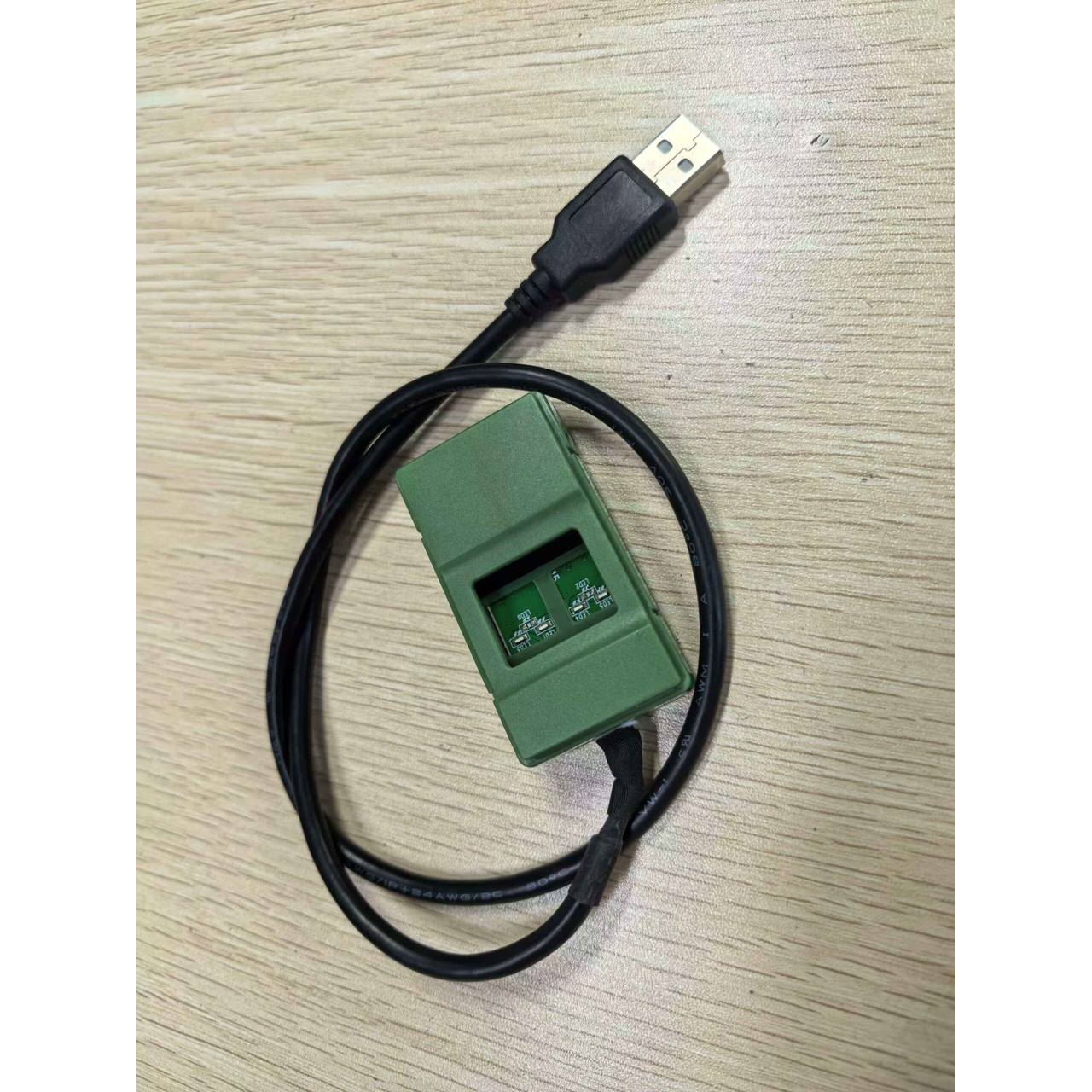

The DF200S is the DF200’s derived product which is an assembly with DF200 and a plastic house, is a single finger livescan with a USB 2.0 cable, incorporating with SDK software.
Design and technical configuration
The UNIWA D2000 technical information lists the following configuration details.
Platen area: 0.65 × 0.83 inches (16.4 × 21.1 mm). Active platen area: 0.6 × 0.8 inches (15.24 × 20.32 mm). Image size: 300 × 400 pixels. Resolution: 500 dpi ±1%.
Image distortion: ≤1%. Image gray range: ≥210 grayscales. Grayscale: 8-bit, 256 levels. Connector / Power: USB 2.0.
Module dimensions: 56 × 31.5 × 13.4 mm (D2000 module). Device dimensions: 59.1 × 48.5 × 18.5 mm (DF200S device). Environmental durability: IP65 dust and water resistance; -10°C to 50°C; source-listed humidity: 0.85%. Fingerprint template formats: ISO 19794-2, ANSI 378.
Optional template matching: On-chip fingerprint template matching for 1:1 verification (optional). PC requirements: Windows 7 or Windows 10, 32-bit or 64-bit; 1.7GHz CPU, 1GB RAM, 80GB disk, USB 2.0 compliant port. Android requirements: Android 4.1 or higher. Certifications listed by the source: FBI Standard CJIS IAFIS Image Quality Specifications (IQS) for Personal Identity Verification (PIV); Mobile ID FAP 20.
UNIWA D2000 wholesale enquiries
Explore the product photos and the separate Specs tab for UNIWA D2000. Browse our fingerprint scanners to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details. The original product information provides the technical reference.
UNIWA D2000 specifications
| UNIWA D2000 technical specifications | |
|---|---|
| Model | UNIWA D2000 |
| Platen area | 0.65 × 0.83 inches (16.4 × 21.1 mm) |
| Active platen area | 0.6 × 0.8 inches (15.24 × 20.32 mm) |
| Image size | 300 × 400 pixels |
| Resolution | 500 dpi ±1% |
| Image distortion | ≤1% |
| Image gray range | ≥210 grayscales |
| Grayscale | 8-bit, 256 levels |
| Connector / Power | USB 2.0 |
| Module dimensions | 56 × 31.5 × 13.4 mm (D2000 module) |
| Device dimensions | 59.1 × 48.5 × 18.5 mm (DF200S device) |
| Environmental durability | IP65 dust and water resistance; -10°C to 50°C; source-listed humidity: 0.85% |
| Fingerprint template formats | ISO 19794-2, ANSI 378 |
| Optional template matching | On-chip fingerprint template matching for 1:1 verification (optional) |
| PC requirements | Windows 7 or Windows 10, 32-bit or 64-bit; 1.7GHz CPU, 1GB RAM, 80GB disk, USB 2.0 compliant port |
| Android requirements | Android 4.1 or higher |
| Certifications listed by the source | FBI Standard CJIS IAFIS Image Quality Specifications (IQS) for Personal Identity Verification (PIV); Mobile ID FAP 20 |
