Ulefone Armor X16 Rugged Phones
Night Vision, 6GB+128GB, 10360mAh, 6.56-inch, Android 15, MediaTek Helio G91, Network: 4G, NFC
Ulefone Armor X16 features MediaTek Helio G91, 6GB+128GB memory and storage, 6.56‑inch (diagonal), 90Hz, 10360mAh battery, Android 15. 10360mAh Battery: The high-capacity 10360mAh battery delivers an unrivaled 555 hours of standby time and supports 33W PD fast charging for sustained professional field operations. Global 4G Connectivity: Equipped with a triple-slot tray and extensive global 4G LTE band support, this device ensures reliable high-speed network access across diverse international territories.
48MP Triple Camera
Supports 33W charging
6.56‑inch (diagonal), 90Hz
6GB+128GB physical memory and storage
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Ulefone Armor X16 Features
Ulefone Armor X16 features MediaTek Helio G91, 6GB+128GB memory and storage, 6.56‑inch (diagonal), 90Hz, 10360mAh battery, Android 15.

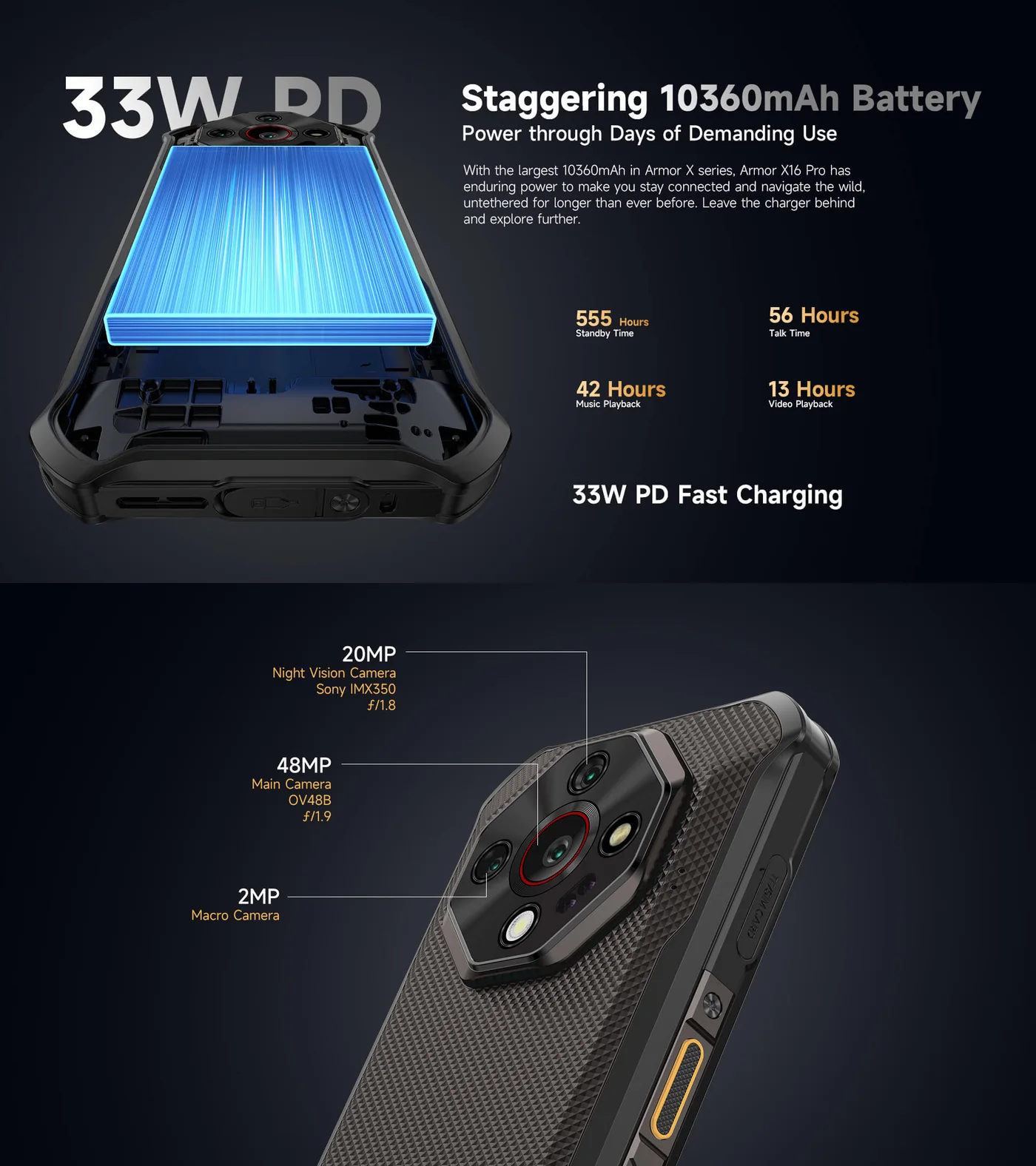

10360mAh Battery
The high-capacity 10360mAh battery delivers an unrivaled 555 hours of standby time and supports 33W PD fast charging for sustained professional field operations.
Global 4G Connectivity
Equipped with a triple-slot tray and extensive global 4G LTE band support, this device ensures reliable high-speed network access across diverse international territories.
High-Efficiency Performance
The MediaTek Helio G91 octa-core processor paired with up to 12GB RAM(6GB physical + 6GB virtual) and 128GB expandable storage provides lag-free multitasking and rapid data processing for demanding applications.
Google Gemini AI
Integrate advanced intelligence into your workflow with Google Gemini and an AI Recorder that provides instant transcripts and summaries for high-efficiency meeting management.
Advanced Quad-Camera System
Capture critical data in any environment using the 48MP main sensor and 20MP Sony IMX350 infrared night vision camera powered by the intelligent NightElf 2.0 algorithm.
Android 15 OS
The latest Android 15 architecture enhances professional security with advanced theft detection and optimizes productivity through smart app pairing and private data spaces.
90Hz Fluid Display
The 6.56-inch display features a 90Hz refresh rate and 910 nits peak brightness to ensure ultimate outdoor readability and smooth visual transitions in direct sunlight.
Widevine L1 Streaming
Widevine L1 certification enables high-definition video playback while the integrated 133-lumen flashlight provides high-intensity illumination for dark industrial environments.
Rugged Protection Rating
Engineered to MIL-STD-810H and IP68/IP69K standards, this chassis provides unrivaled resistance against high-pressure water jets, deep submersion, and severe mechanical impacts.
Multi-Functional Toolset
You can get on Ulefone Armor X16 smartphone, like Custom Key, 3.5mm Headphone Jack, Underwater Camera, Bluetooth 5.2, Face Unlock+Fingerprint ID, NFC-enabled, Gloves Mode, IR Blaster, Headset-free FM, GPS+GLONASS+BEIDOU+Galileo+QZSS etc.
Size and Weight
Height: 173.78 mm. Width: 83.4 mm. Depth: 17.95 mm. Weight: 394.5 grams.
Charging and battery
10360mAh Battery. Built-in lithium-ion polymer battery. USB Type-C port. Supports 33W charging. Supports wired reverse charging, 5W. Battery Life. Standby Time | Up to 555 Hours. Talk Time | Up to 56 Hours.
Rugged
Splash, Water and Dust Resistant. Rated IP68 (maximum depth of 2 metres up to 30 minutes) under IEC standard 60529. Rated IP69K under IEC standard 60529. MIL-STD-810H Certification.
Processor
MediaTek Helio G91. CPU: MT6835V/T. CPU architecture: 2x Cortex-A75 CPU, 2.0GHz+6 x Cortex-A55 CPU,1.8GHz. CPU frequency: Octa Core, up to 2.0GHz. GPU: Arm Mali-G52 MC2, 820MHz.
Ulefone Armor X16 Wholesale and Bulk Orders
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor X16 offers 6GB+128GB memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor X16 specifications.
Ulefone Armor X16 Manufacturer Notes
- The battery is non-removable, removing it may cause damage to the device.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor X16 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of
- 0 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor X16. Liquid damage not covered under warranty.
- Armor X16 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor X16 into water.
- The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.
- The micro SD card is not included, and need to be purchased separately. Maximum storage expansion can reach 2TB, though this may negatively impact device performance. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible. The max 8GB virtual memory can be activated in Settings at your will.
- 6.56 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local carriers support this function.
- Datas are from Ulefone lab, the actual performance may vary.
- Armor Mount is sold separately and used with Armor Case only.
- The Armor case mentioned above, combined with a back clip and a carabiner in one set is sold separately.
- Sports Armband is sold separately.
- Armor Mount Pro is sold separately.
- Due to differences of devices in different countries, Remote Control may not be applicable.
- While the platforms mentioned support HD streaming, the actual user experience can be affected by various factors, including software upgrades. Notes:
- The battery is non-removable, removing it may cause damage to the device.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor X16 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of
- 0 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor X16. Liquid damage not covered under warranty.
- Armor X16 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor X16 into water.
- The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.
- The micro SD card is not included, and need to be purchased separately. Maximum storage expansion can reach 2TB, though this may negatively impact device performance. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible. The max 8GB virtual memory can be activated in Settings at your will.
- 6.56 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local carriers support this function.
- Datas are from Ulefone lab, the actual performance may vary.
- Armor Mount is sold separately and used with Armor Case only.
- The Armor case mentioned above, combined with a back clip and a carabiner in one set is sold separately.
- Sports Armband is sold separately.
- Armor Mount Pro is sold separately.
- Due to differences of devices in different countries, Remote Control may not be applicable.
- While the platforms mentioned support HD streaming, the actual user experience can be affected by various factors, including software upgrades. Keywords: Night vision smartphone Low light camera phone Infrared night vision phone Nocturnal camera phone Dark environment phone Surveillance night vision phone Security camera phone for night use Infrared sensor phone Applicable User Groups: Security Professionals (for surveillance at night) Outdoor Adventurers (for nocturnal activities like hiking or wildlife observation) Hunters (for night hunting) Search and Rescue Teams (for nighttime operations) Law Enforcement and Military (for nighttime reconnaissance) Wildlife Researchers (for observing animals in the dark) Usage Scenarios: Nighttime Surveillance: Monitoring areas at night Outdoor Exploration: Hiking or wildlife observation in low light conditions Search and Rescue: Assisting rescue efforts in low visibility or dark conditions Hunting: Tracking animals in the dark
Ulefone Armor X16 Specifications

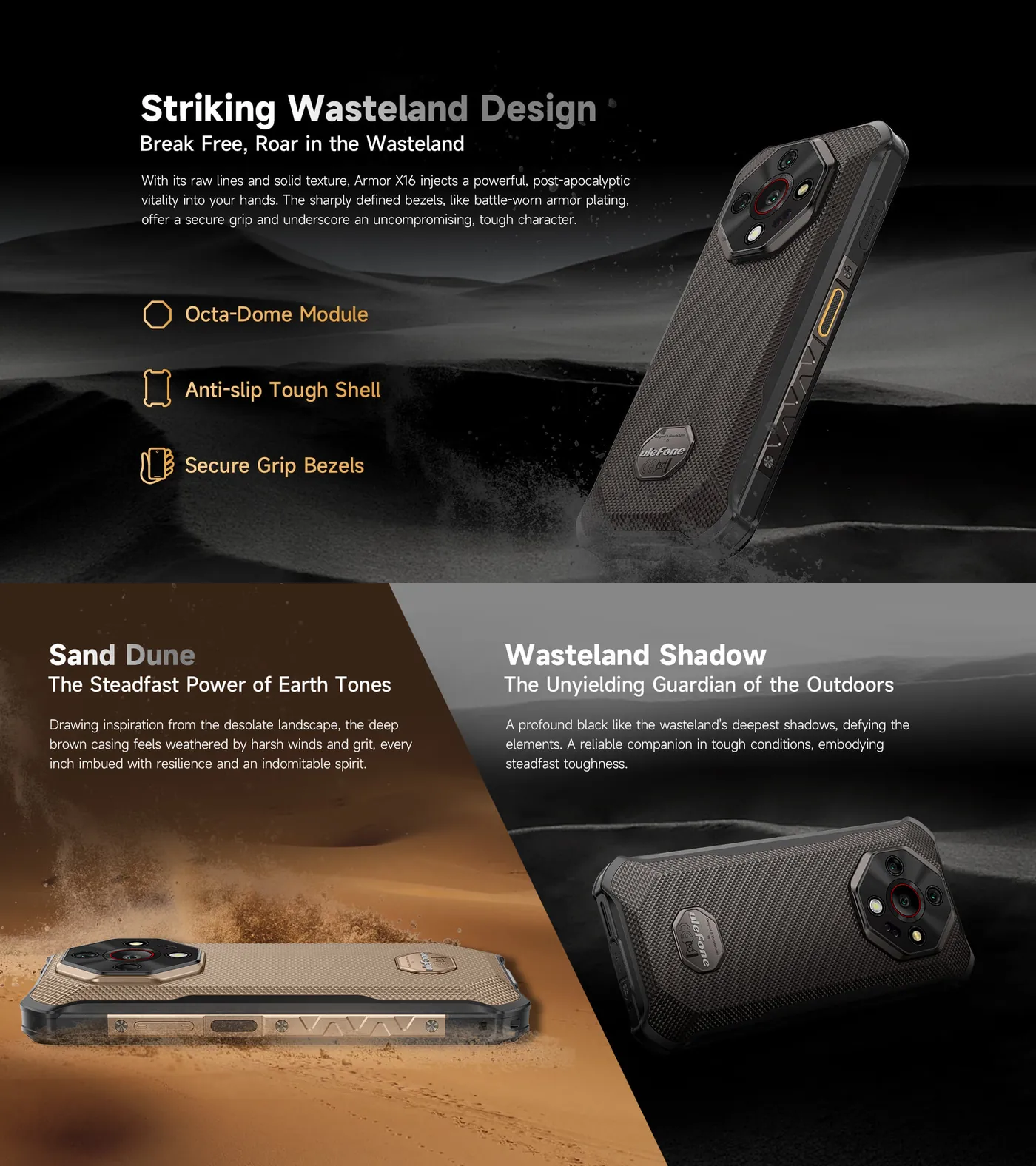

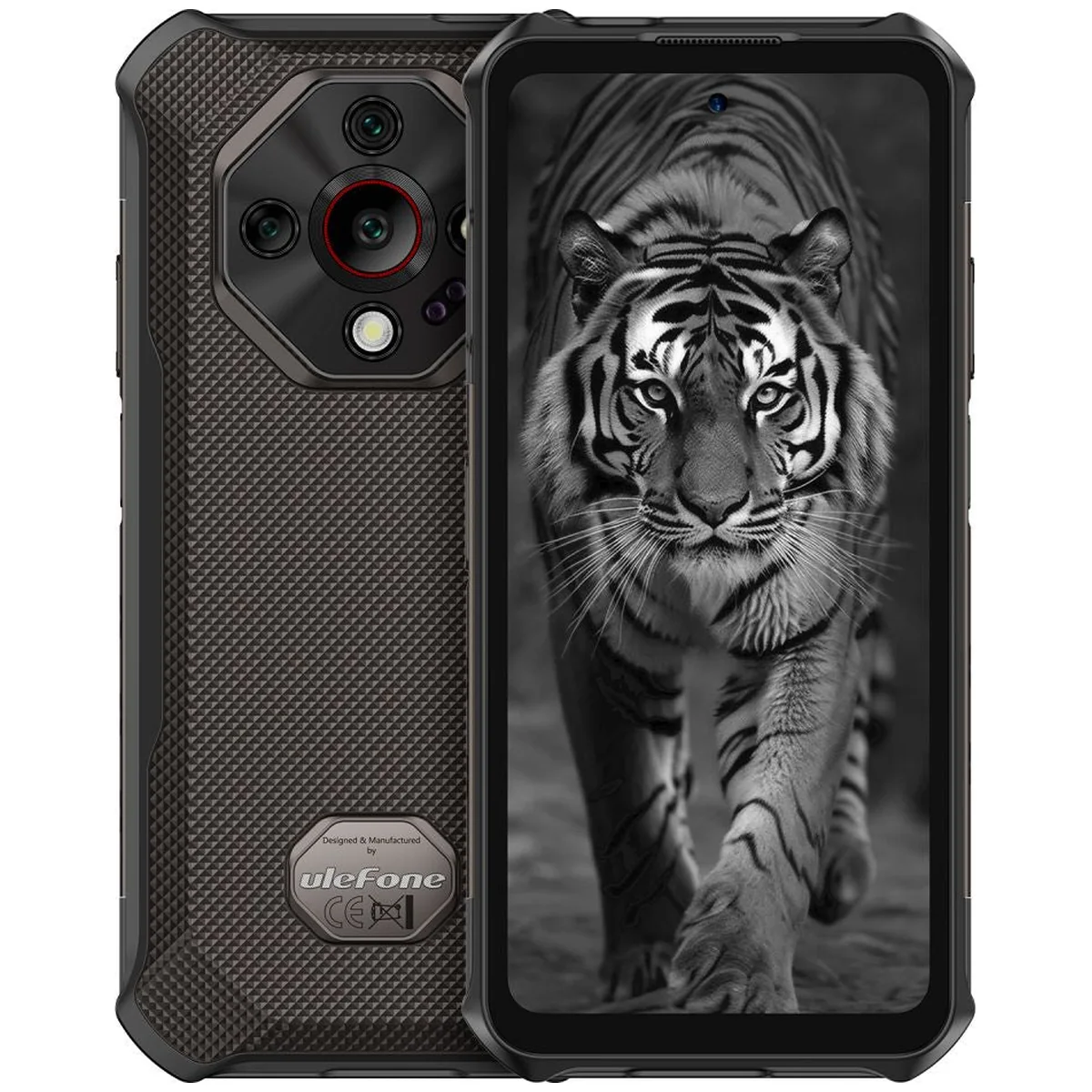

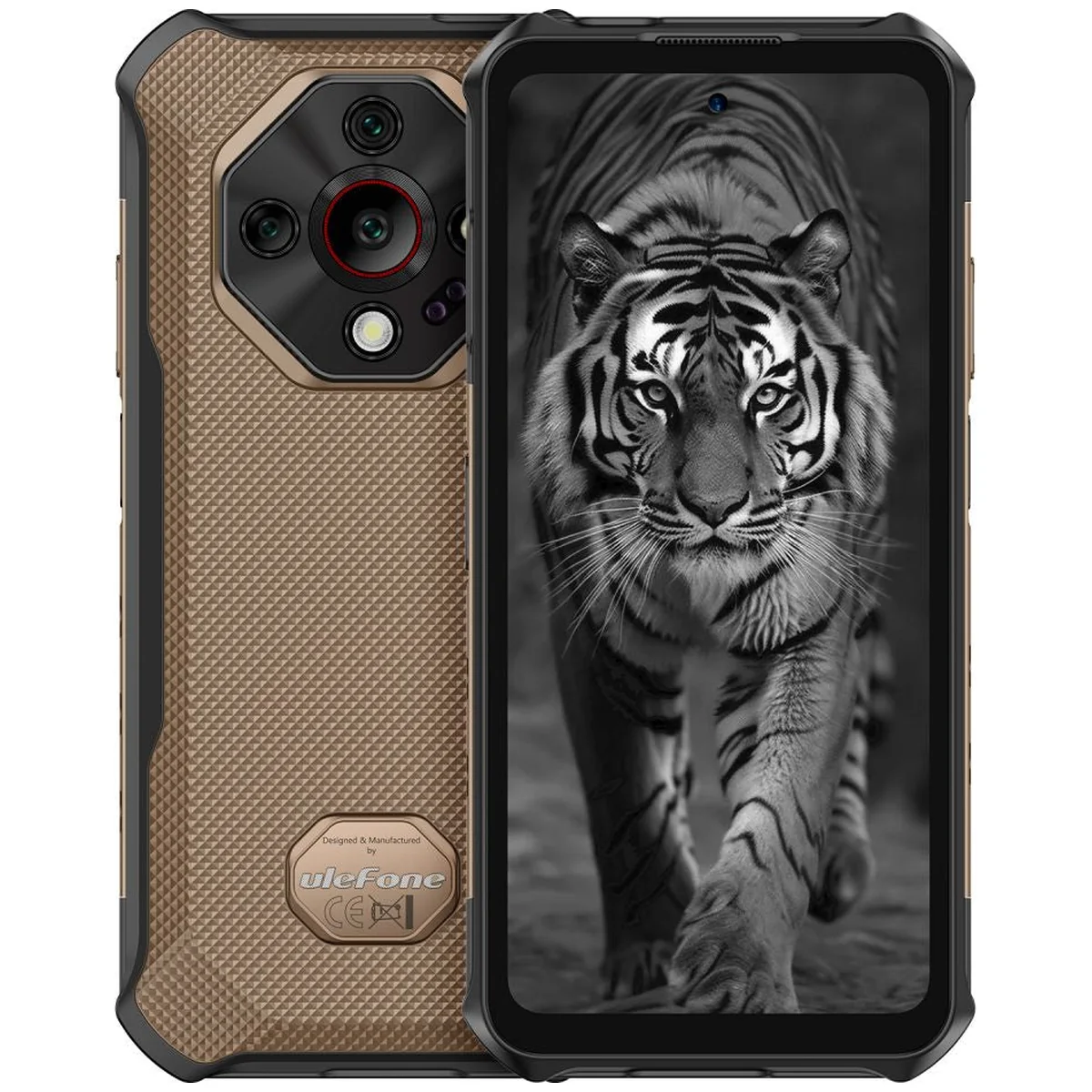

| Colours | Wasteland Shadow, Sand Dune |
|---|---|
| Size and Weight | |
| Height | 173.78 mm |
| Width | 83.4 mm |
| Depth | 17.95 mm |
| Weight | 394.5 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |
| Charging and battery | |
| 10360mAh Battery | |
| Built-in lithium-ion polymer battery | |
| USB Type-C port | |
| Supports 33W charging | |
| Supports wired reverse charging, 5W | |
| Battery Life | |
| Standby Time | Up to 555 Hours |
| Talk Time | Up to 56 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| *Non-removable battery. Removing the battery may cause damage to the device. | |
| *Use with original charger and data cable, the max charging power can reach 33W. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 2 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor X16 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor X16. Liquid damage not covered under warranty. | |
| Processor | |
| MediaTek Helio G91 | |
| CPU | MT6835V/T |
| CPU architecture | 2x Cortex-A75 CPU, 2.0GHz+6 x Cortex-A55 CPU,1.8GHz |
| CPU frequency | Octa Core, up to 2.0GHz |
| GPU | Arm Mali-G52 MC2, 820MHz |
| Storage and RAM | |
| 6GB+128GB | |
| RAM | 6GB large memory |
| ROM | 128GB phone storage |
| microSD memory card Up to 2TB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. *The Virtual Memory Expansion can be activated in Settings and adds up to 6GB of RAM. Some software may not be compatible with this feature. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Display | |
| 6.56‑inch (diagonal), 90Hz | |
| All-screen LCD Multi-Touch display with IPS technology | |
| Refresh：90Hz | |
| Brightness：Max 910 nits | |
| Resolution | 1612 x 720 HD+ |
| Corning® Gorilla® Glass 5 protection | |
| *With a rounded corners design on the display, the diagonal length of the screen is 6.56 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Rear Camera | |
| 48MP Triple Camera | |
| 48MP Main Camera | |
| OV48B CMOS sensor, 0.8μm, 6 piece lens, FOV 79.1°, ƒ/1.8 large aperture | |
| 20MP Night Vision Camera | |
| Sony IMX350 CMOS sensor, FOV 77.04°, ƒ/1.8 large aperture | |
| 2MP Macro Camera | |
| OV02B10 CMOS sensor, FOV 73°, ƒ/2.2 large aperture | |
| LED Flash | |
| Rear camera photography features | |
| Night Vision, Normal Mode, Film Mode, 48MP Mode, Macro Mode, Night Mode, Document Correction, Group Photo, Ai Emoji, Gif, Portrait, Sports, Pro Mode, Panorama, Slow Motion, Time Lapse, Intelligent Scanning | |
| HDR, AI, Filters, Location Info, Watermark, Camera Mute, Touch Shooting, Self Timer, Grid Line, Volume Key Feature, Anti Flicker, Long Press, Google Lens | |
| Rear camera video features | |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Front Camera | |
| 16MP selfie camera | |
| Samsung 3P8 CMOS sensor, 1.0μm, 5 piece lens, FOV 73.7°, ƒ/2.25 large aperture | |
| Front camera photography features | |
| Normal mode, Film mode, GroupPhoto, AI Emoji, Gif, Portrait | |
| Filters, Location info, Watermark, Mirror, Camera mute, Touch shooting, Self timer, Grid line, Volume key feature, Anti flicker | |
| Front camera video features | |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Underwater Photography | |
| Supports to take photos & video recording | |
| Supports to start/end operation underwater | |
| Supports to quickly switch shooting modes underwater | |
| Unlock Options | |
| Supports Face Unlock, Fingerprint ID | |
| Network | |
| Supports use of dual SIM cards from different carriers | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 4G/3G/2G | |
| Supports VoLTE HD calling | |
| Supported network bands | |
| 4G Network | |
| FDD-LTE | B1/2/3/4/5/7/8/12/13/17/18/19/20/25/ 26/28A/28B/32/66/71 TDD-LTE: B34/38/39/40/41 |
| 3G Network | |
| WCDMA | B1/2/4/5/6/8/19 |
| 2G Network | |
| GSM | B2/3/5/8 |
| CDMA | BC0/BC1/BC10 |
| *Only certain regions and telecom operators support VoLTE. | |
| Connectivity | |
| WLAN | |
| Supports protocols | 802.11ac/a/b/g/n |
| Supports 2.4G Wi-Fi / 5G Wi-Fi | |
| Bluetooth | |
| Supports Bluetooth 5.0 | |
| Navigation and positioning | |
| Supports multiple positioning systems | |
| GPS | |
| GLONASS | |
| Galileo | |
| BEIDOU | |
| Supports Digital Compass | |
| NFC | |
| Supports Google Pay | |
| Supports Transit, Loyalty Cards, Gift Cards and Plane tickets | |
| *Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer tohttps://pay.google.com/about. | |
| Operating System | |
| Android 15 | |
| Pure Android System | |
| No ads | |
| Buttons | |
| Sensors | |
| Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Infrared sensor, NFC | |
| Multimedia | |
| Music | MID/FLAC/MP3/M4A/AACAMR/OGG/MP2 |
| Video | MOV/MKV/3GP/MP4 |
| Image | GIF/JPEG/PNG/BMP |
| Ebook | TXT/HTML |
| Ports | |
| USB 2.0, Type-C | |
| 3.5 mm Headphone Jack | |
| Card slot | |
| Three(3), Nano SIM + Nano SIM + microSD | |
| SAR | |
| Maximum 10g SAR | |
| Head | W/kg Body: W/kg |
| Language support | |
| Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese | |
| In the box | |
| 1 x Armor X16 | |
| 1 x AC Power Charger, 33W | |
| 1 x Type-C to Type-C Data cable (100cm) | |
| 1 x Protective Film (Pre-installed) | |
| 1 x Tempered Glass Screen Protector | |
| 1 x SIM needle | |
| 1 x Lanyard | |
| 1 x Multi-language user manual | |
| 1 x Warranty card | |
| 1 x Charging Instruction card | |
| 1 x Safety Prompt card | |
| *EU plug, please confirm with the sellers. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The phone pictures and screen content on the above are for illustration only. The actual phone (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
0
Years Of Successful Business
0
Reviews Of 10000+ Satisfied Clients
0
Years Factory Warranty
0
Patents owned in global
0
Business Partners
0
Risk-Free Guarantee
NEED BULK ORDER ?
