8GB+256GB, 11800 mAh, 10.36-inch, Android 15, MediaTek Dimensity 6300, Network: 5G, NFC

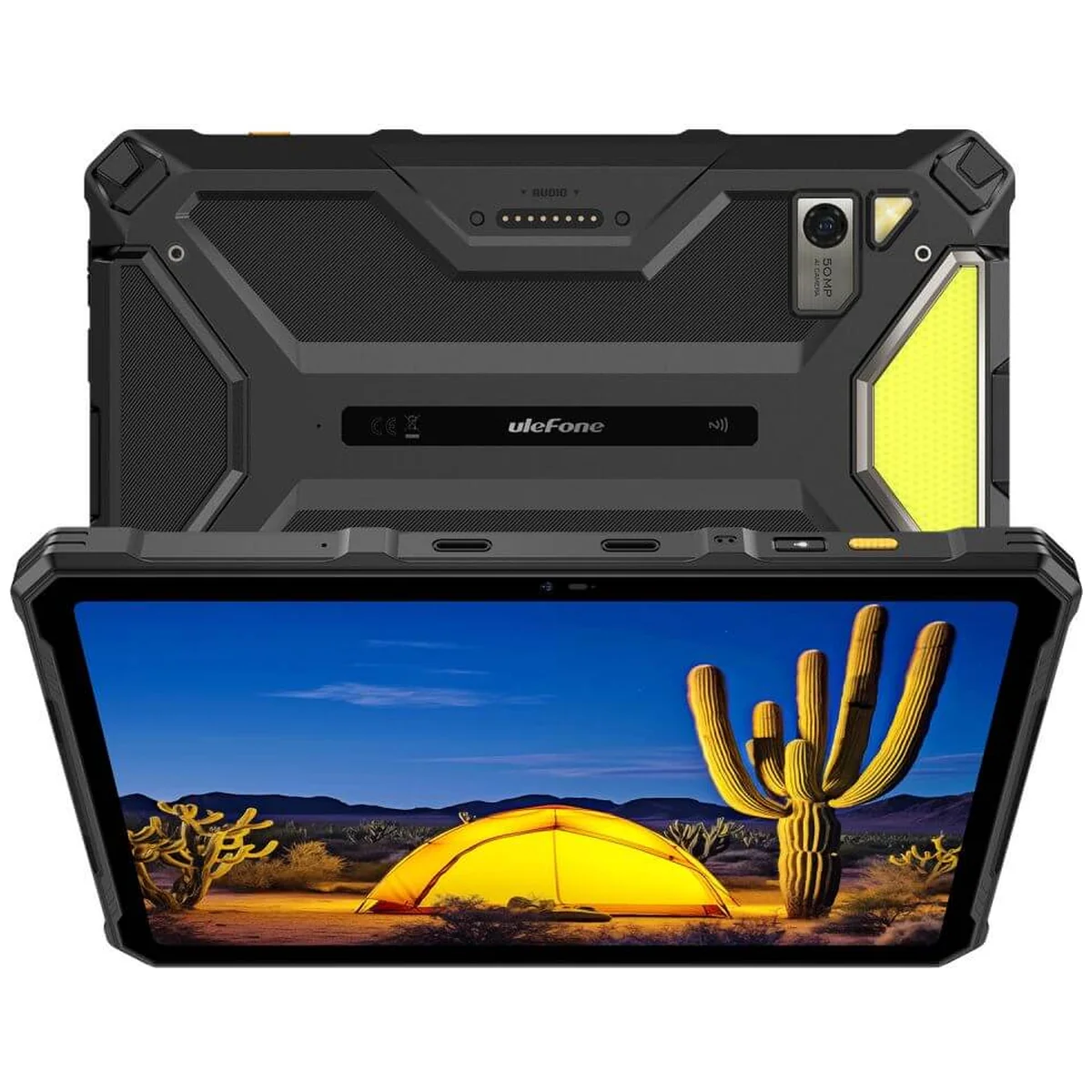

Ulefone Armor Pad 4 Ultra features MediaTek Dimensity 6300, 8GB+256GB memory and storage, 10.36-inch, 11800 mAh battery, Android 15. Global 5G Connectivity: Integrated 5G technology supports dual SIM dual standby to ensure high-efficiency communication and intelligent data speeds for professional field operations. Dimensity 6300 Performance: The 2.4GHz octa-core CPU paired with up to 16GB RAM (up to 8GB of virtual RAM) and 256GB storage delivers unrivaled multitasking power for memory-intensive applications and large-scale data management.
50MP Main Camera
Supports 33W fast charging
10.36-inch
8GB+256GB physical memory and storage

Reply Within 24hours for almost message!
Ulefone Armor Pad 4 Ultra features MediaTek Dimensity 6300, 8GB+256GB memory and storage, 10.36-inch, 11800 mAh battery, Android 15.
Integrated 5G technology supports dual SIM dual standby to ensure high-efficiency communication and intelligent data speeds for professional field operations.
The 2.4GHz octa-core CPU paired with up to 16GB RAM (up to 8GB of virtual RAM) and 256GB storage delivers unrivaled multitasking power for memory-intensive applications and large-scale data management.
The 10.36-inch 2K display features 500 nits of brightness and Corning Gorilla Glass 5 for superior outdoor readability and high-impact structural durability.
Certified to IP68, IP69K, and MIL-STD-810H standards, this rugged tablet utilizes a reinforced shell to provide unmatched protection in extreme environmental conditions.
The 11800mAh battery supports 33W fast charging and maintains reliable performance in subzero environments as low as -30°C for mission-critical reliability.
A 50MP Samsung S5KGN1SP rear sensor and 32MP front camera capture precise technical details and high-accuracy visual documentation for professional field reports.
The integrated 1100-lumen LED system utilizes 483 lighting beads and a dedicated physical button to provide high-intensity illumination for low-light work sites.
Powered by the latest Android 15, the system provides a high-efficiency interface with advanced security protocols and a smoother professional user experience.
The exclusive uSmart 8-pin connector enables plug-and-play integration with professional tools and high-output sound systems for versatile field utility.
NFC, Dual Stereo Speakers & Headset-free FM Radio, 3-Card Slot, 2.4G/5G WiFi, Fingerprint Sensor, Glove Mode, GPS + GLONASS + Galileo + BeiDou, Bluetooth 5.2, Custom key, PTT (Push-to-Talk), Digital Toolbox.
Height: 261.7 mm. Width: 166.8 mm. Depth: 14.3 mm. Weight: 834.5 grams.
11800 mAh. Built-in lithium-ion polymer battery. USB Type-C. Supports 33W fast charging. Battery Life:. Standby Time | 642 Hours. Talk Time | 64 Hours.
Splash, Water and Dust Resistant. Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529. Rated IP69K under IEC standard 60529. MIL-STD-810H Certification.
1100 Max Lumens. 483 LEDs. 5.5W Max Power. IPX8 Waterproof.
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor Pad 4 Ultra offers 8GB+256GB memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor Pad 4 Ultra specifications.















| Size and Weight | |
|---|---|
| Height | 261.7 mm |
| Width | 166.8 mm |
| Depth | 14.3 mm |
| Weight | 834.5 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |

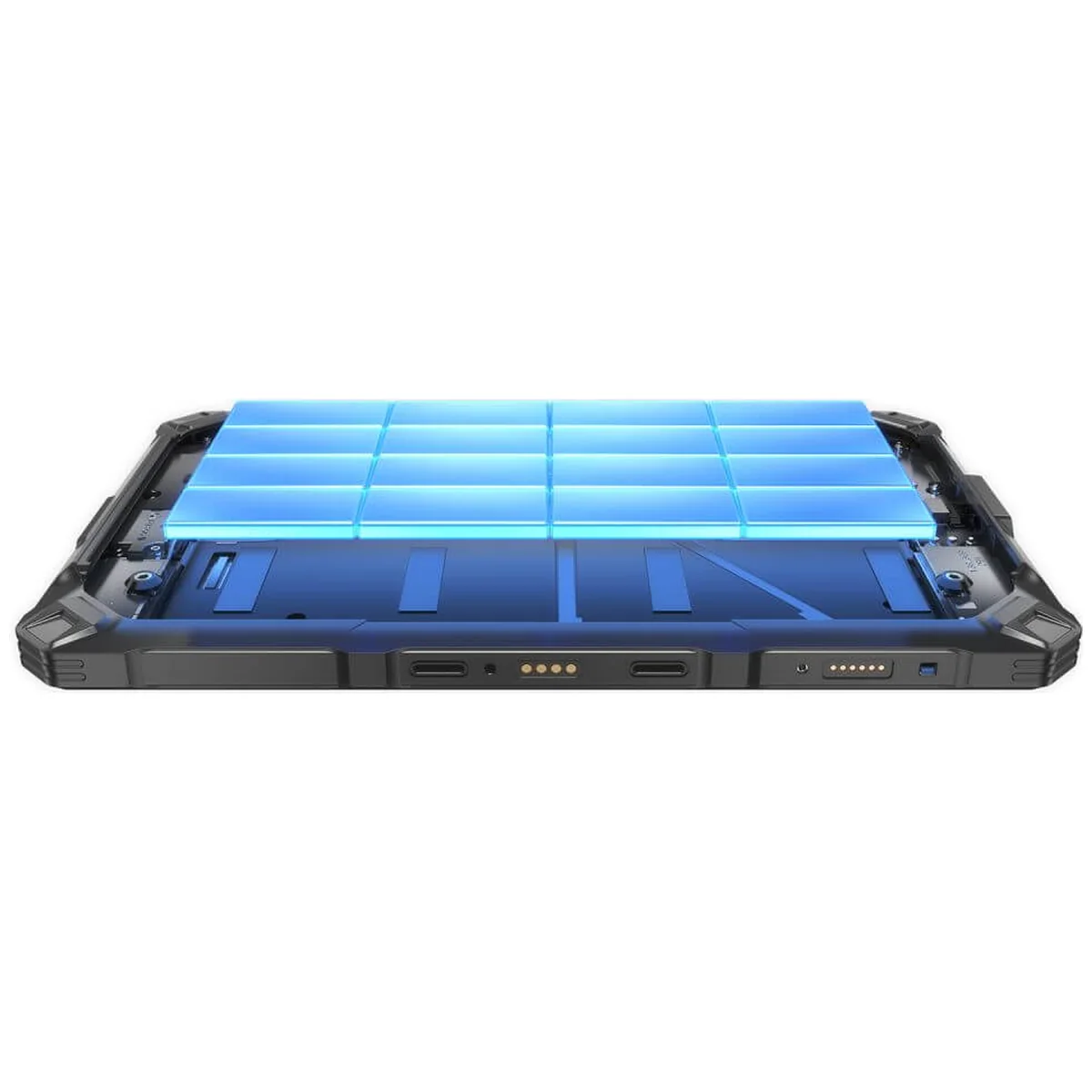

| Charging and battery | |
| 11800 mAh | |
| Built-in lithium-ion polymer battery | |
| USB Type-C | |
| Supports 33W fast charging | |
| Battery Life | |
| Standby Time | 642 Hours |
| Talk Time | 64 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| * Non-removable battery. Removing the battery may cause damage to the device. | |
| *Use with original charger and data cable, the max charging power can reach 66W. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor Pad 4 Ultra is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Pad 4 Ultra. Liquid damage not covered under warranty. | |
| Versatile Light | |
| 1100 Max Lumens | |
| 483 LEDs | |
| 5.5W Max Power | |
| IPX8 Waterproof | |
| Display | |
| 10.36-inch | |
| All-screen LCD Multi-Touch display with IPS technology | |
| Resolution | 1200 x 2000 FHD+ |
| Brightness | 500 nits |
| Corning Gorilla Glass 5 | |
| *With a rounded corners design on the display, the diagonal length of the screen is 10.36 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Processor | |
| MediaTek Dimensity 6300 | |
| CPU | MediaTek MT6835T |
| CPU architecture | 8, 4 x Arm Cortex-A76 2.4GHz, 4 x Arm Cortex-A55 2.0GHz |
| CPU frequency | 2.4GHz |
| GPU | Arm Mali-G57 MC2 |
| GPU frequency | up to 1068MHz |
| Storage and RAM | |
| 8GB+256GB | |
| RAM | 8GB memory |
| Flash storage | 256GB storage |
| microSD memory card Up to 2TB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. | |
| *The Virtual Memory Expansion can be activated in Settings and adds up to 8GB of RAM. Some software may not be compatible with this feature. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Rear Camera | |
| 50MP Main Camera | |
| SAMSUNG GN1 sensor | |
| FOV 85°, ƒ/1.95 | |
| Photo resolution | up to 6138x8152 pixel |
| Video resolution | up to 1080P |
| Flash | |
| Rear camera photography features | |
| Normal Mode, Mono Mode, Beauty Mode, 50MP Mode, Portrait, Pro Mode, Slow Motion, Night Shot, Scan | |
| AI Scene Detection, Grid line, Self Timer, Capture Mode, Scene Mode, Anti-shake, Geo-Tagging, ZSD, Sound Switch, Watermark, White Balance, ISO, Anti Flicker, Volume Key, Continuous Shot, Restore Defaults, Camping Light | |
| Rear camera video features | |
| 2K recording | 30fps |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Front Camera | |
| 32MP selfie camera | |
| SAMSUNG GD1 sensor, 1.12µm, 4P, FOV 80.4°, ƒ/2.45 | |
| Front camera photography features | |
| Normal Mode, Mono Mode, Beauty Mode | |
| Grid line, Self Timer, Capture Mode, Scene Mode, Anti-shake, Geo-Tagging, ZSD, Sound Switch, Mirror Switch, Watermark, White Balance, ISO, Anti Flicker, Volume Keys, Restore Defaults, Camping Light | |
| Front camera video features | |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| CIF recording | 30fps |
| *In different photo modes, the number of pixels may be slightly different, please refer to the actual situation. | |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Audio | |
| Dual-Speaker Sound System | |
| Unlock Options | |
| Supports Fingerprint Unlock | |
| Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together | |
| Capacitive Touch Sensor | |
| Response speed | Up to 0.1s |
| Supports the enrollment of 5 sets of fingerprint | |
| Supports Face Unlock | |
| Network | |
| Supports use of dual SIM cards from different carriers | |
| Both cards can access 5G connectivity | |
| Both cards can access 4G connectivity simultaneously | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 5G/4G/3G/2G | |
| Supports VoNR HD calling | |
| Supports VoLTE HD calling | |
| Supported network bands | |
| 5G Network | |
| Sub-6 | N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79 |
| 4G Network | |
| FDD-LTE | B1/2/3/4/5/7/8/12/13/17/18/19/20/26/28A/28B/66/71 |
| TDD-LTE | B34/38/39/40/41 |
| 3G Network | |
| WCDMA | B1/2/4/5/8 |
| 2G Network | |
| GSM | B2/3/5/8 |
| *The support for 5G depends on the local carriers' network; Dual 5G/4G requires the support of local carriers services, and may not be available in all regions. | |
| *Only supports single SIM for communication service, which means when one of the SIM cards is in calling, the other SIM card will not be able to connect. | |
| *Only certain regions and telecom operators support VoNR. | |
| *Only certain regions and telecom operators support VoLTE. | |
| *Single VoNR only, you can select one SIM to enable VoNR, in the meanwhile, VoLTE is enabled by default on the other SIM. You also can choose to turn off VoNR or VoLTE. | |
| Supports the following operators' 5G network bands | |
| Europe | |
| Austria | 3, A1 Telekom, Magenta Telekom |
| Andorra | STA (Andorra Telecom) |
| Belgium | BASE,Orange,Proximus |
| Bulgaria | Vivacom |
| Croatia | Hrvatski Telekom, Telemach Croatia, A1 Mobile |
| Czech Republic | O2, Vodafone,T-Mobile |
| Denmark | TDC |
| Estonia | Elisa, Telia Eesti, Tele2 |
| Finland | DNA, Elisa, Telia |
| France | Bouygues Télécom, Orange, SFR, Free |
| Germany | O2, Deutsche Telekom, Vodafone, 1&1 |
| Greece | Cosmote, Vodafone, Wind |
| Hungary | Telekom, Vodafone,Yettel |
| Ireland | Eir, Vodafone, 3 |
| Italy | TIM, Vodafone, Wind Tre, Iliad, Fastweb |
| Latvia | Tele2, Bite, LMT |
| Luxembourg | POST, Tango, Orange |
| Monaco | Monaco Telecom |
| Netherlands | Vodafone, KPN, Odido, T-Mobile |
| Norway | Telenor, Telia, Ice |
| Poland | Aero2, Orange, Play P4, T-Mobile, Plus+ |
| Romania | Orange, Vodafone, Digi.Mobil, Telekom |
| San Marino | TMS |
| Slovakia | O2, Slovak Telekom, SWAN 4KA |
| Slovenia | Telekom Slovenije, Telemach |
| Spain | Movistar, Orange, Vodafone, Yoigo |
| Sweden | Tele2, Telenor, 3, Telia |
| Switzerland | Salt Mobile, Sunrise, Swisscom |
| United Kingdom | EE, O2, Vodafone, 3, Virgin Mobile |
| Russia | MegaFon, MTS, Tele2 |
| Portugal | MEO, NOS, Vodafone, Nowo |
| Macedonia | Telekom, VIP |
| Lithuania | Telia, Bite, Tele2 |
| Malta | Go, Epic, Melita |
| North America | |
| Canada | Rogers Wireless, Bell Mobility, Telus, Videotron, Koodo, Public Mobile, Freedom Mobile, Virgin Plus Mobile |
| United States | Sprint, T-Mobile, C spire, AT&T, Google Fi, U.S. Cellular, Verizon Wireless, Cricket Wireless, GCI Wireless |
| South America | |
| Brazil | Vivo, TIM,Claro, Unifique, Algar, Brisanet |
| Chile | Entel, Movistar, WOM, Claro |
| Peru | Claro, Entel, Movistar |
| Trinidad and Tobago | Bmobile |
| Dominican Republic | Claro, Altice |
| Guatemala | Claro, Tigo |
| Argentina | Claro, Movistar, Personal |
| Colombia | Claro, Movistar, TigoUNE, ETB, WOM |
| Guyana | Digicel, Cellink Plus, E-Network |
| Uruguay | Claro, Movistar, Antel |
| Mexico | Telcell, AT&T, Movistar, Altan Redes |
| Asia | |
| Bahrain | stc Bahrain, Zain, Batelco |
| Brunei Darussalam | Progresif, DSTCom |
| Cyprus | Cyta, Epic MTN |
| Hong Kong, China | 3, China Mobile, CSL, SmarTone |
| Iran | Hamrahe Aval, MTN Irancell |
| Israel | Cellcom, Golan Telecom, Hot Mobile, Partner, We4G, 019 Mobile, Pelephone, Rami Levy |
| Indonesia | Indosat, Telkomsel,XL Axiata |
| India | Airtel, BSNL, MTNL, Vi, Jio |
| Japan | KDDI au, NTT Docomo, Softbank, Rakuten Movile |
| Jordan | Umniah, Orange, Zain |
| Korea | SK Telecom, LG U+, KT |
| Kuwait | Ooredoo, STC, Zain |
| Kazakhstan | Altel, Tele2, Kcell |
| Maldives | Dhiraagu |
| Malaysia | Telekom Malaysia, Celcom, Digi, Maxis, U Mobile, Yes |
| Macao, China | CTM, China Telecom |
| Singapore | M1, Singtel, StarHub, SIMBA |
| Sri Lanka | Airtel, Dialog |
| Oman | Omantel, Ooredoo, Vodafone |
| Philippines | Globe, Smart, Dito |
| Qatar | Ooredoo, Vodafone |
| Saudi Arabia | Mobily, STC, Zain |
| Tajikistan | Tcell |
| Thailand | AIS, TrueMove H |
| Taiwan, China | Chunghwa Telecom, FarEasTone, Taiwan Mobile, GT, Taiwan Star |
| Uzbekistan | Uztelecom, Ucell, Mobiuz |
| United Arab Emirates | du, Etisalat |
| Oceania | |
| Australia | Vodafone, Telstra, Optus |
| New Zealand | 2degrees, Spark, Vodafone |
| Africa | |
| Egypt | Etisalat, Orange, Vodafone |
| Gabon | Airtel, Gabon Telecom |
| Kenya | Safaricom |
| Lesotho | Vodafone |
| South Africa | MTN Group, Vodacom, Rain |
| Nigeria | Airtel, MTN |
| Mauritius | Emtel, Orange |
| Réunion | Orange, SRR (SFR), Telco OI |
| *This list will be continuously updated, if you have any questions, please consult the dealer. | |
| *Last updated on July 26, 2024. | |
| *Info collected from Kimovil.com. | |
| Connectivity | |
| WLAN | |
| Supports protocols | 802.11 a/b/g/n/ac |
| Supports 2.4G/5G | |
| Bluetooth | |
| Supports Bluetooth 5.2 | |
| Navigation and positioning | |
| Supports multiple positioning systems | |
| GPSGLONASSBeidouGalileoDigital Compass | |
| uSmart Expansion | |
| uSmart 2.0, Supports Endoscope and Microscope | |
| uSmart E01 | |
| Endoscope | |
| uSmart E02 | |
| Dual Camera Endoscope | |
| uSmart E03 | |
| 180° Endoscope | |
| uSmart C01 | |
| Super Microscope | |
| *For more devices that are compatible with uSmart Expansion Connector, you are recommended to refer to our accessories list. Expansion devices require additional purchases. | |
| NFC | |
| Supports Google Pay | |
| Supports Transit, Loyalty Cards, Gift Cards and Plane tickets | |
| *Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer to https://pay.google.com/about. | |
| Operating System | |
| Android 15 | |
| Pure Android System | |
| No ads | |
| Buttons | |
| Sensors | |
| NFC, Side-Mounted Fingerprint,Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter | |
| Multimedia | |
| Video | MKV/3GP/MP4 |
| Audio | MID/FLAC/MP3/M4AAAC/AMR/OGG |
| Image | GIF/JPEG/PNG/BMP |
| Ebook | TXT/HTML |
| Ports | |
| USB 2.0, Type-C | |
| 3.5 mm Headphone JackuSmart Expansion ConnectorHDMI Output | |
| Card slot | |
| Three(3), Nano SIM + Nano SIM + microSD | |
| Notification Light | |
| Support, tri-color light, red/green/blue | |
| Supports charging prompt | |
| Language support | |
| Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese | |
| In the box | |

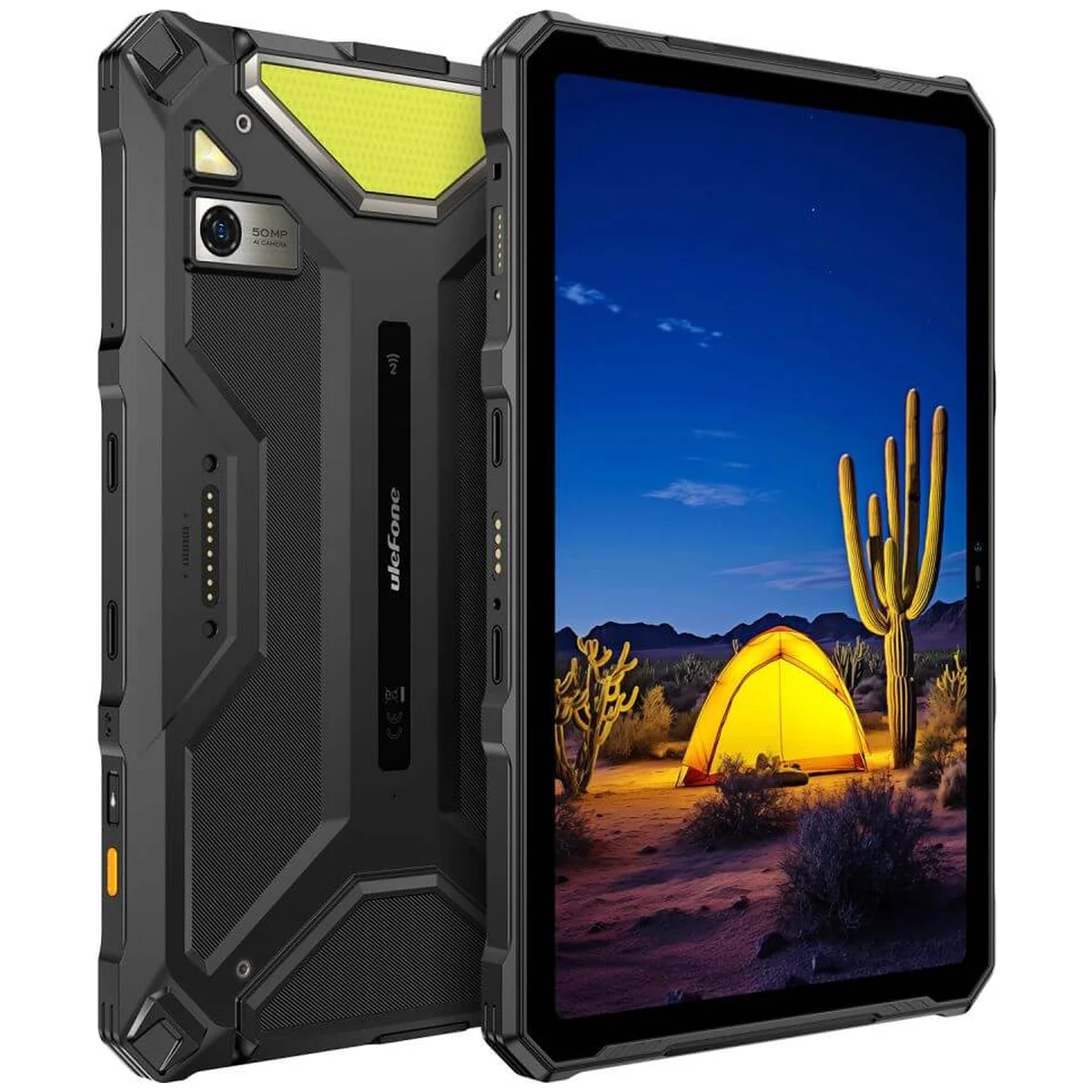

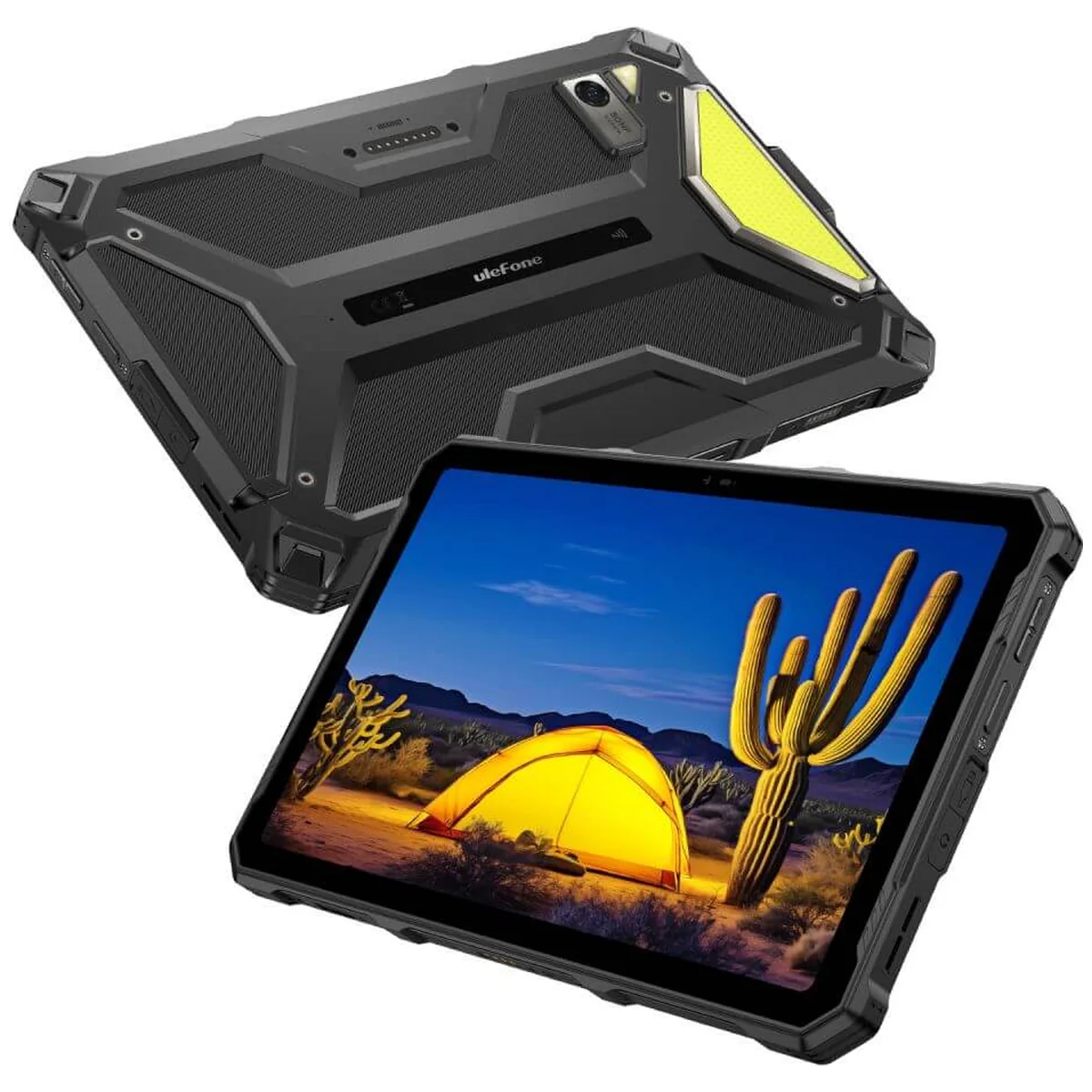

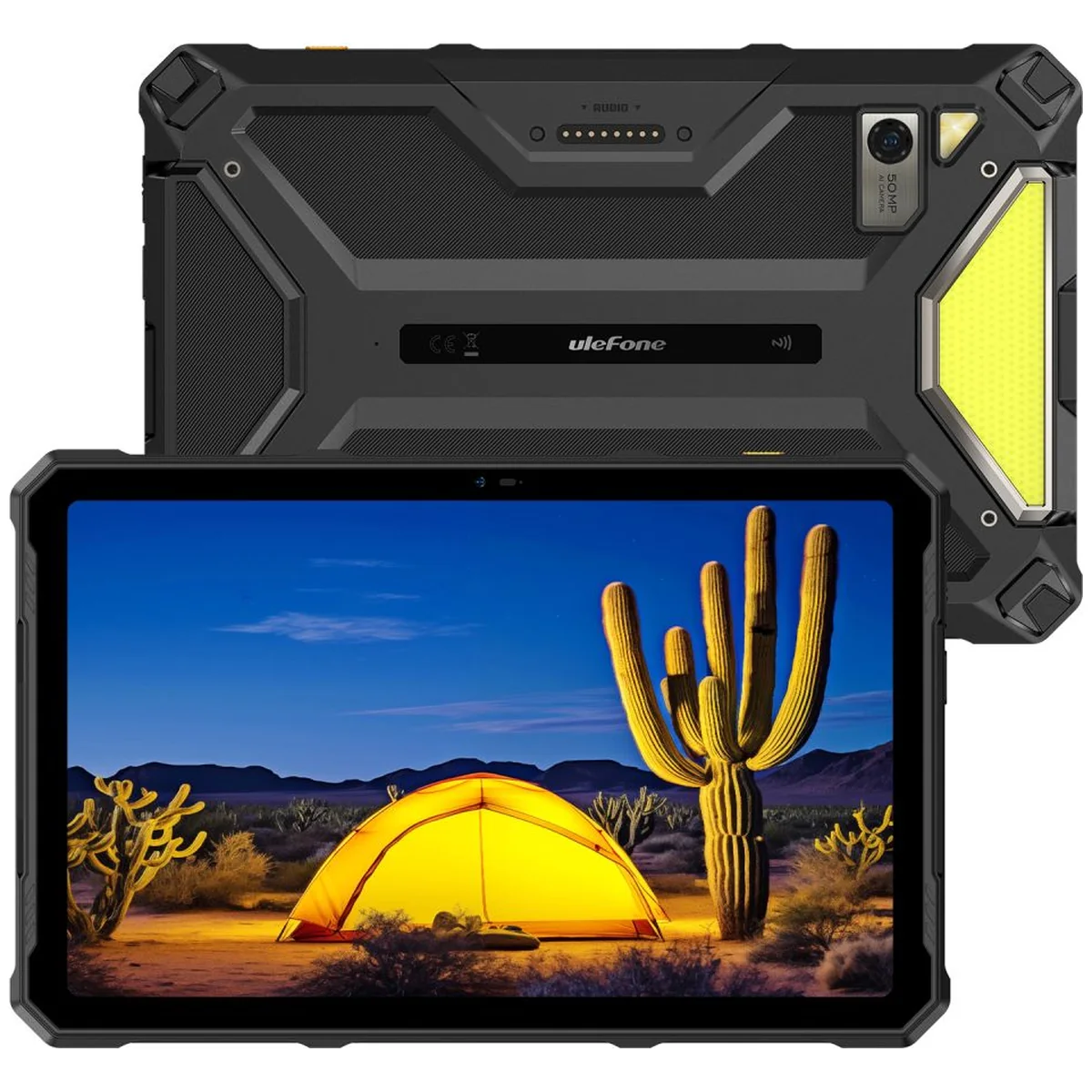

| 1x Ulefone Armor Pad 4 Ultra | |
| 1x AC Power Charger | |
| 1x Type-C to Type-C Data Cable (100cm) | |
| 1x Tablet Hand Strap (requires self-installation) | |
| 1x Screwdriver (used to install Hand Strap) | |
| 8x Screws (4 pre-installed on the tablet, 4 spare) | |
| 1x Protective Film (Pre-installed) | |
| 1x SIM Needle | |
| 1x Multi-language User Manual | |
| 1x Multi-function Instruction Card | |
| 1x Warranty Card | |
| 1x Charging Instruction Card | |
| 1x Safety Prompt Card | |
| 1x Service Center APP Instructions | |
| 1x Accessories Ecosystem Brochure | |
| *The AC power charger's plug type varies according to your region, with optional standard EU/AU/US plugs available. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The tablet pictures and screen content on the above are for illustration only. The actual tablet (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
view more >
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Yes,You can email us and we will send you our latest products catalogs to you
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
Takes about 30 days for 500pcs OEM order after sample confirmed.
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
