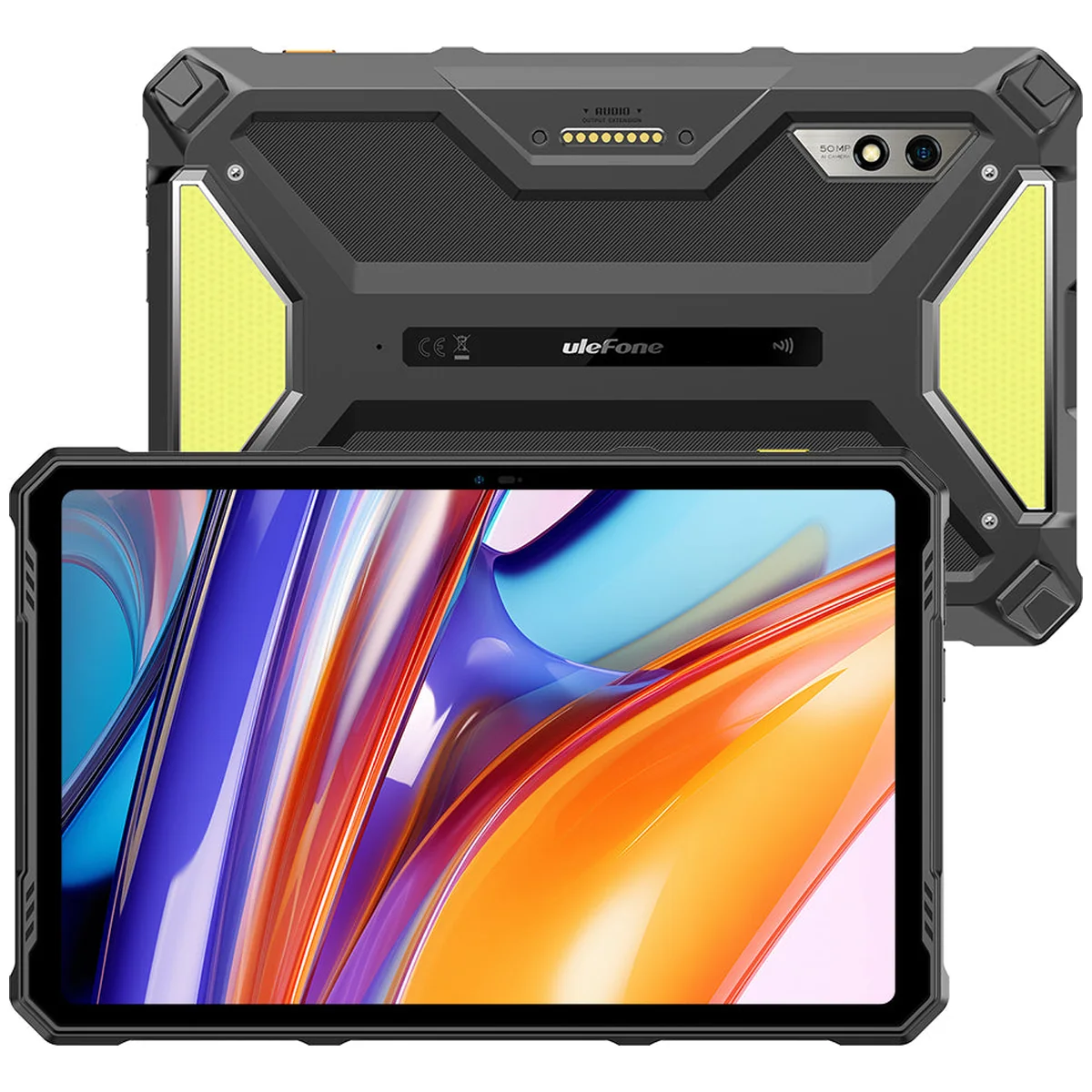

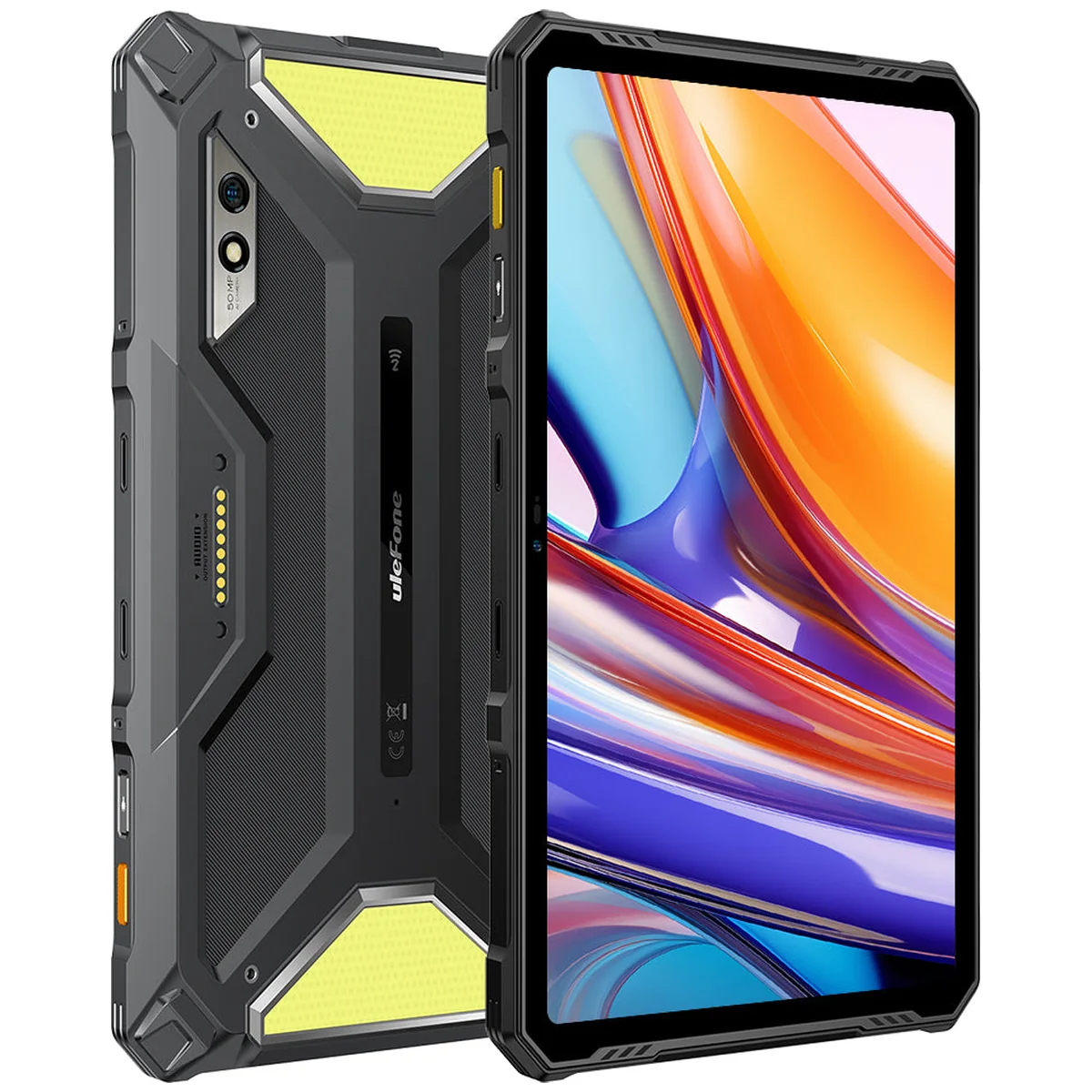

Ulefone Armor Pad 3 Pro Rugged Tablets
8GB + 256GB, 33280 mAh, 10.36-inch, Android 13, MediaTek MT8788, Network: 4G, NFC
Ulefone Armor Pad 3 Pro features MediaTek MT8788, 8GB + 256GB memory and storage, 10.36-inch, 33280 mAh battery, Android 13. 33280mAh Solid Battery: The ultra-high-capacity 33280mAh low-temperature solid battery supports 66W fast charging and 10W reverse OTG, ensuring reliable operation in extreme -30°C environments for uninterrupted field performance. Dual Camping Lights: Integrated dual 1100-lumen LED arrays featuring 966 lighting beads provide three adjustable brightness modes via a dedicated physical key for high-visibility professional illumination in dark environments.
50MP Main Camera
Supports 66W fast charging
10.36-inch
8GB + 256GB physical memory and storage
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Ulefone Armor Pad 3 Pro Features
Ulefone Armor Pad 3 Pro features MediaTek MT8788, 8GB + 256GB memory and storage, 10.36-inch, 33280 mAh battery, Android 13.
33280mAh Solid Battery
The ultra-high-capacity 33280mAh low-temperature solid battery supports 66W fast charging and 10W reverse OTG, ensuring reliable operation in extreme -30°C environments for uninterrupted field performance.

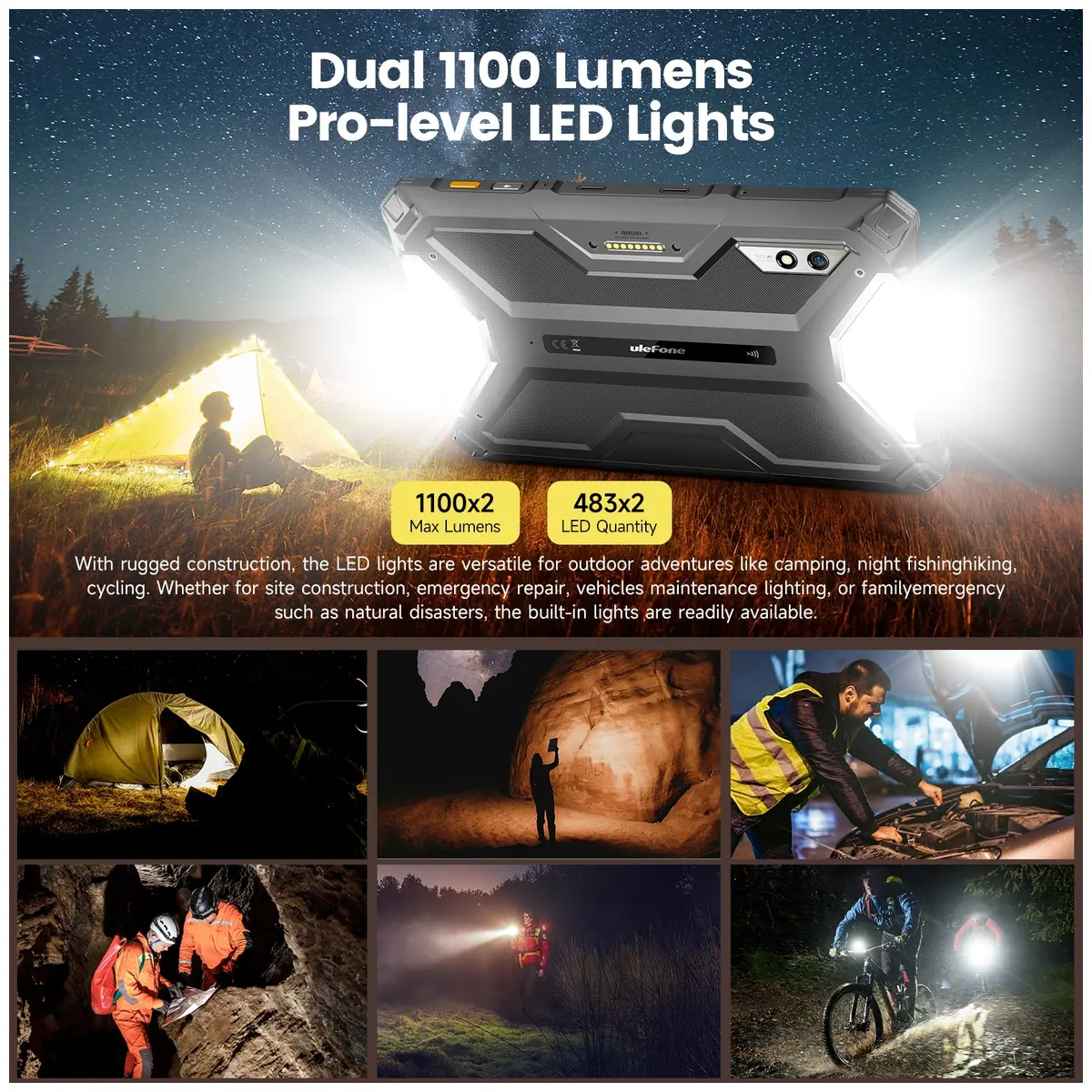

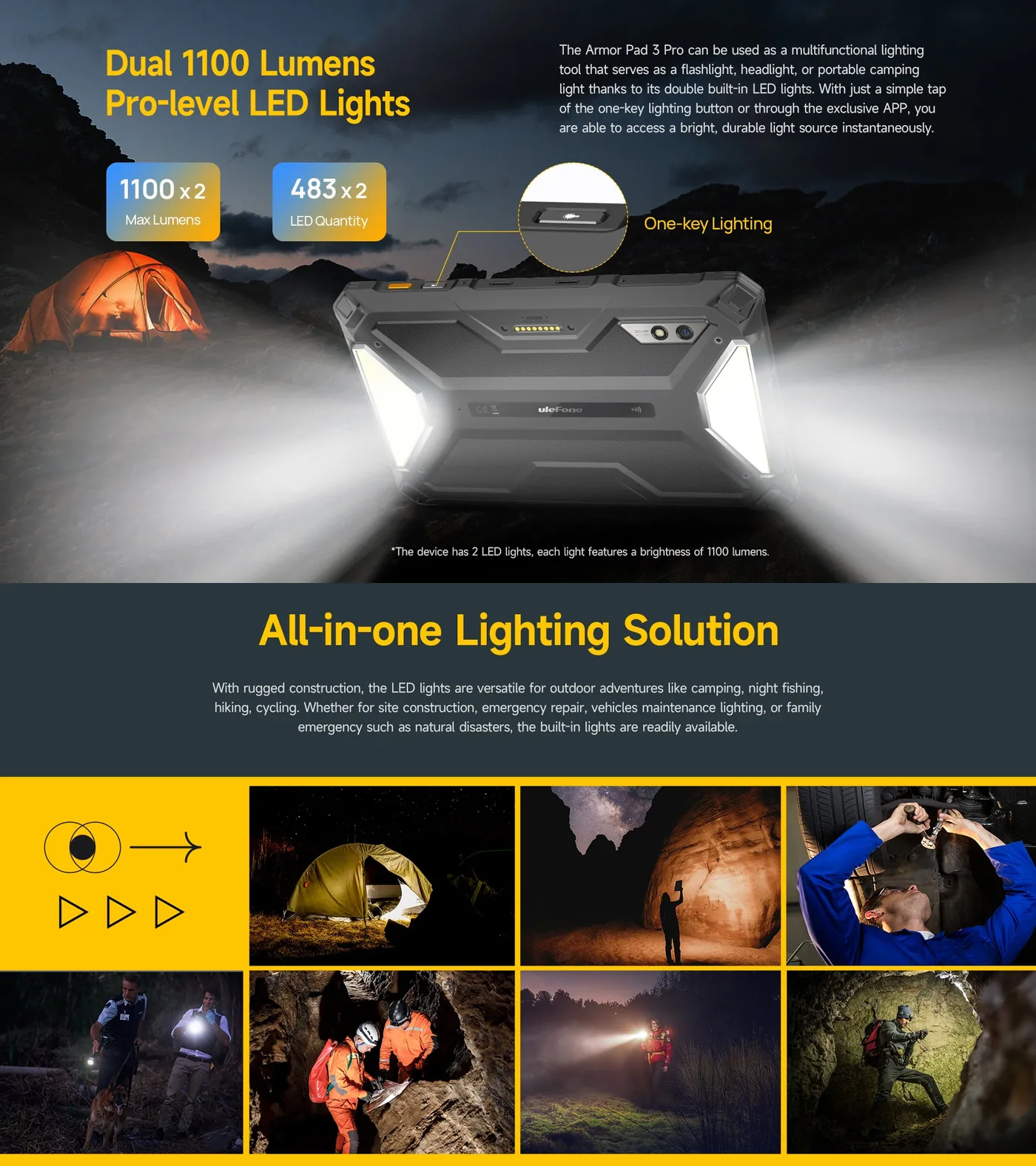

Dual Camping Lights
Integrated dual 1100-lumen LED arrays featuring 966 lighting beads provide three adjustable brightness modes via a dedicated physical key for high-visibility professional illumination in dark environments.

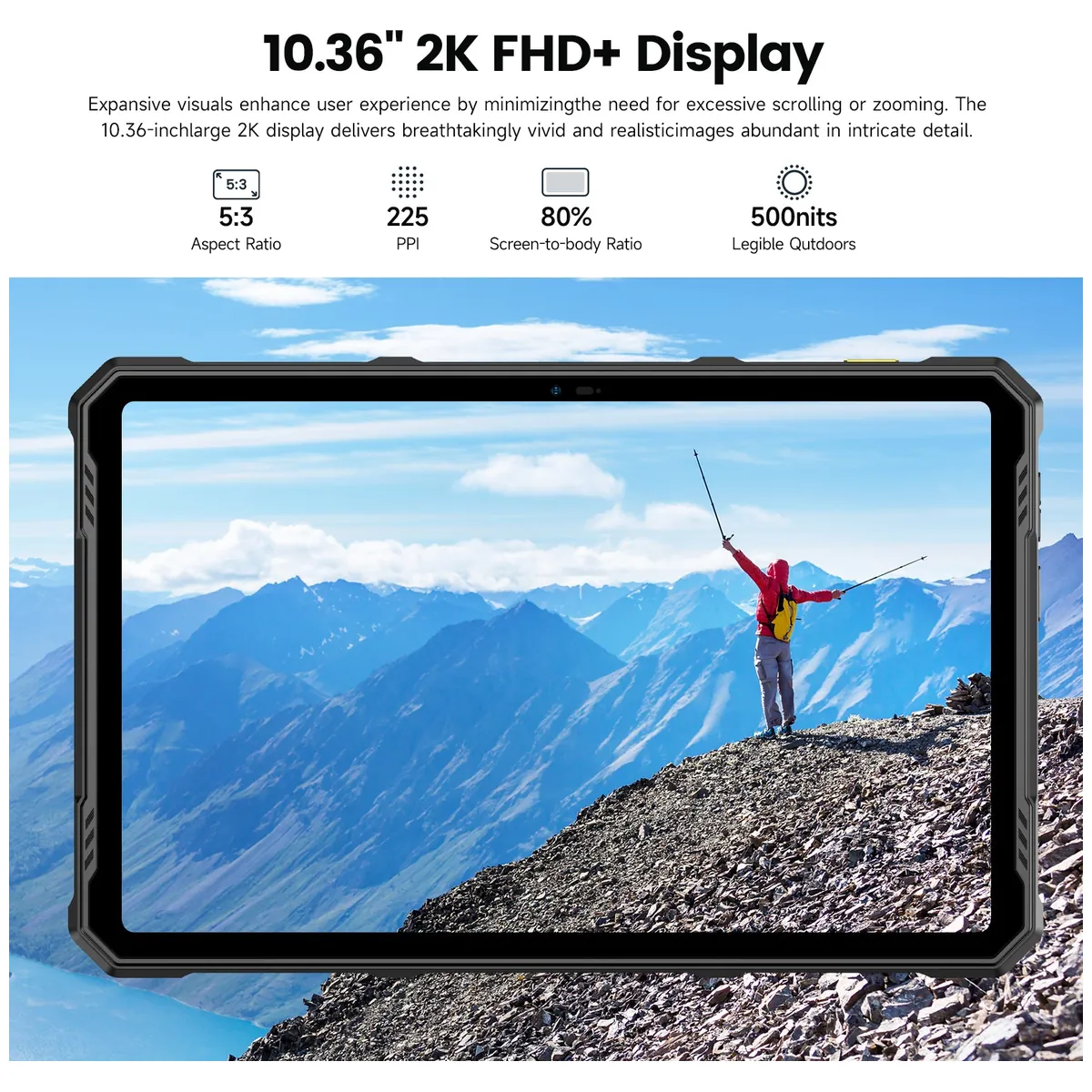

2K Gorilla Glass
The 10.36-inch 2K display with 500 nits brightness and Corning Gorilla Glass 5 delivers high-definition visual clarity and superior impact resistance for demanding outdoor job sites.

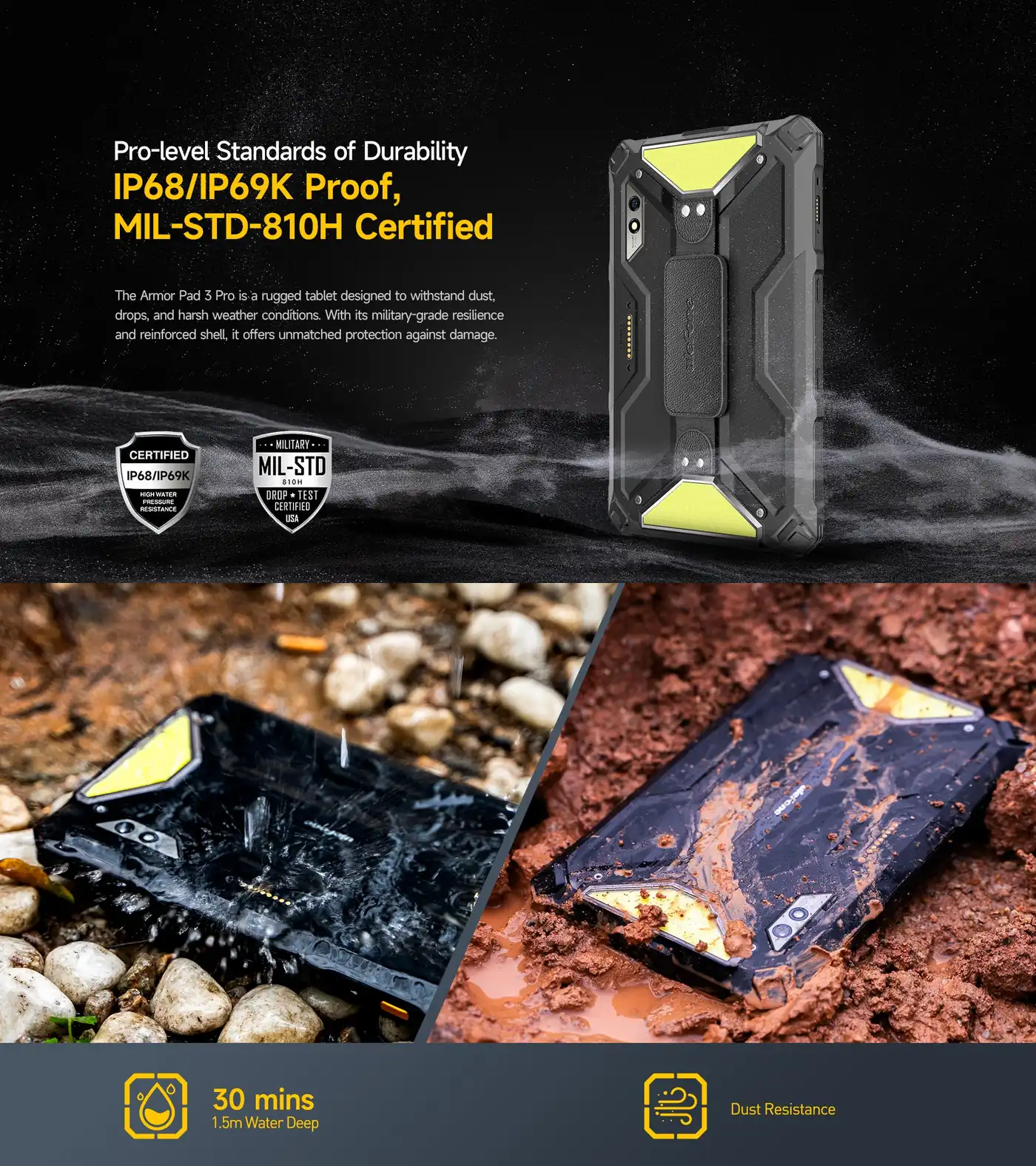

Military-Grade Certification
Engineered with IP68/IP69K and MIL-STD-810H standards, this reinforced chassis provides unrivaled protection against dust, water ingress, and high-velocity drops in harsh industrial conditions.
High-Efficiency Performance
The MediaTek MT8788 Octa-core processor paired with up to 16GB RAM(8GB RAM + 8GB Virtual RAM) and 256GB ROM (expandable to 2TB) ensures fluid multitasking and high-speed data processing on Android 13.

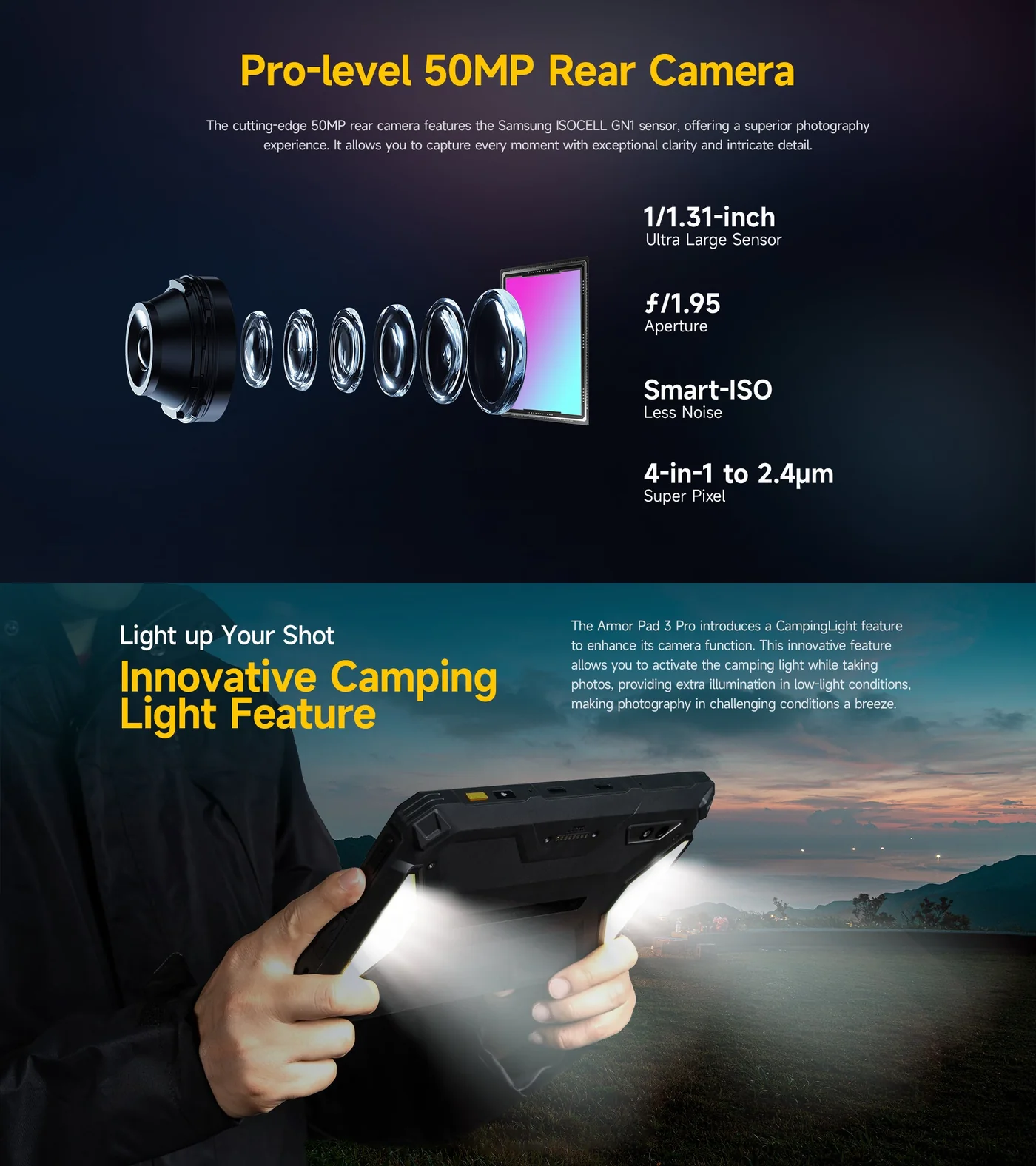

Advanced Imaging System
A 50MP Samsung ISOCELL GN1 rear sensor and 32MP front camera capture high-precision technical documentation and crystal-clear video conferencing with professional-grade accuracy.
Triple Slot Connectivity
The integrated three-card slot system supports dual 4G Nano SIMs and a TF card simultaneously, optimizing global communication and storage flexibility for mobile professionals.
Stereo Dual Speakers
Symmetrical front-facing dual speakers deliver balanced, high-clarity stereo audio, ensuring audible communication and precise sound reproduction in noisy work environments.

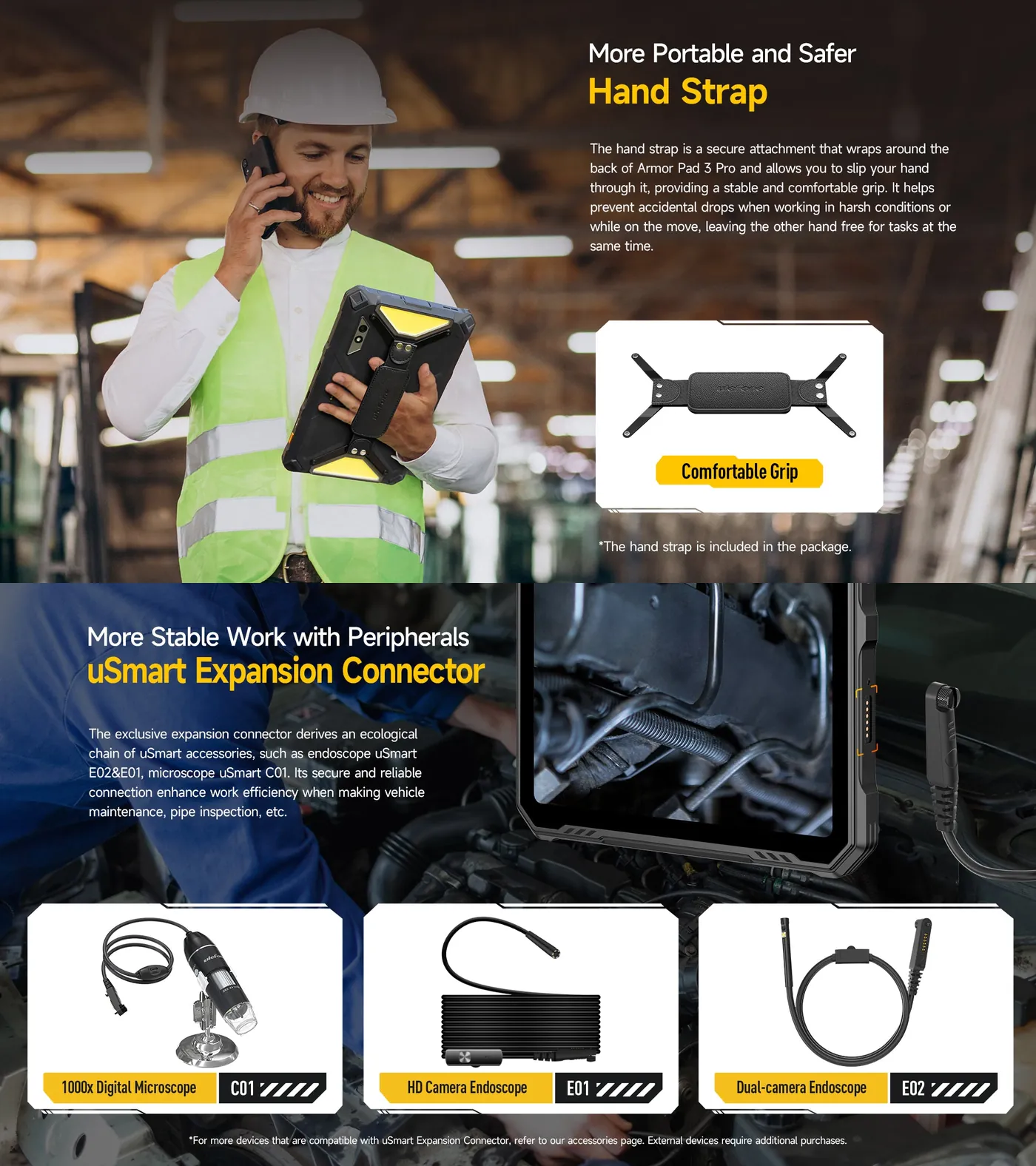

uSmart Expansion Connector
The exclusive uSmart interface enables high-speed, plug-and-play connectivity for professional-grade peripherals such as endoscopes and microscopes to facilitate specialized technical inspections.
Integrated Digital Toolbox
2.4G/5G WiFi, Fingerprint Sensor, Glove Mode, GPS + GLONASS + Galileo + BeiDou, Bluetooth 5.2, Custom key, PTT (Push-to-Talk), Digital Toolbox
Size and Weight
Height: 261.7 mm. Width: 166.8 mm. Depth: 21.2 mm. Weight: 1242.9 grams.
Charging and battery
33280 mAh. Built-in lithium-ion polymer battery. USB Type-C. Supports 66W fast charging. Battery Life:. Standby Time | 1812 Hours. Talk Time | 181 Hours.
Rugged
Splash, Water and Dust Resistant. Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529. Rated IP69K under IEC standard 60529. MIL-STD-810H Certification.
Versatile Light
1100 Max Lumens. 483 LEDs. 5.5W Max Power. IPX8 Waterproof.
Ulefone Armor Pad 3 Pro Wholesale and Bulk Orders
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor Pad 3 Pro offers 8GB + 256GB memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor Pad 3 Pro specifications.
Ulefone Armor Pad 3 Pro Manufacturer Notes
- The battery is non-removable, removing it may cause damage to the device.
- Power consumption data are from Ulefone lab, which will be varied by actual usage.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor Pad 3 Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of
- 5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Pad 3 Pro. Liquid damage not covered under warranty.
- Armor Pad 3 Pro has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor Pad 3 Pro into water.
- The Custom Key and its ability to quickly access different functions work only when the screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device. The maximum 8GB of virtual RAM can be activated in Settings at your will.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 10.36 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- For more devices that are compatible with uSmart Expansion Connector, refer to our accessories page. External devices require additional purchases.
- The hand strap is included in the package.
- The shoulder strap and handbag in one set sold separately.
- The Hand Strap with Kickstand sold separately.

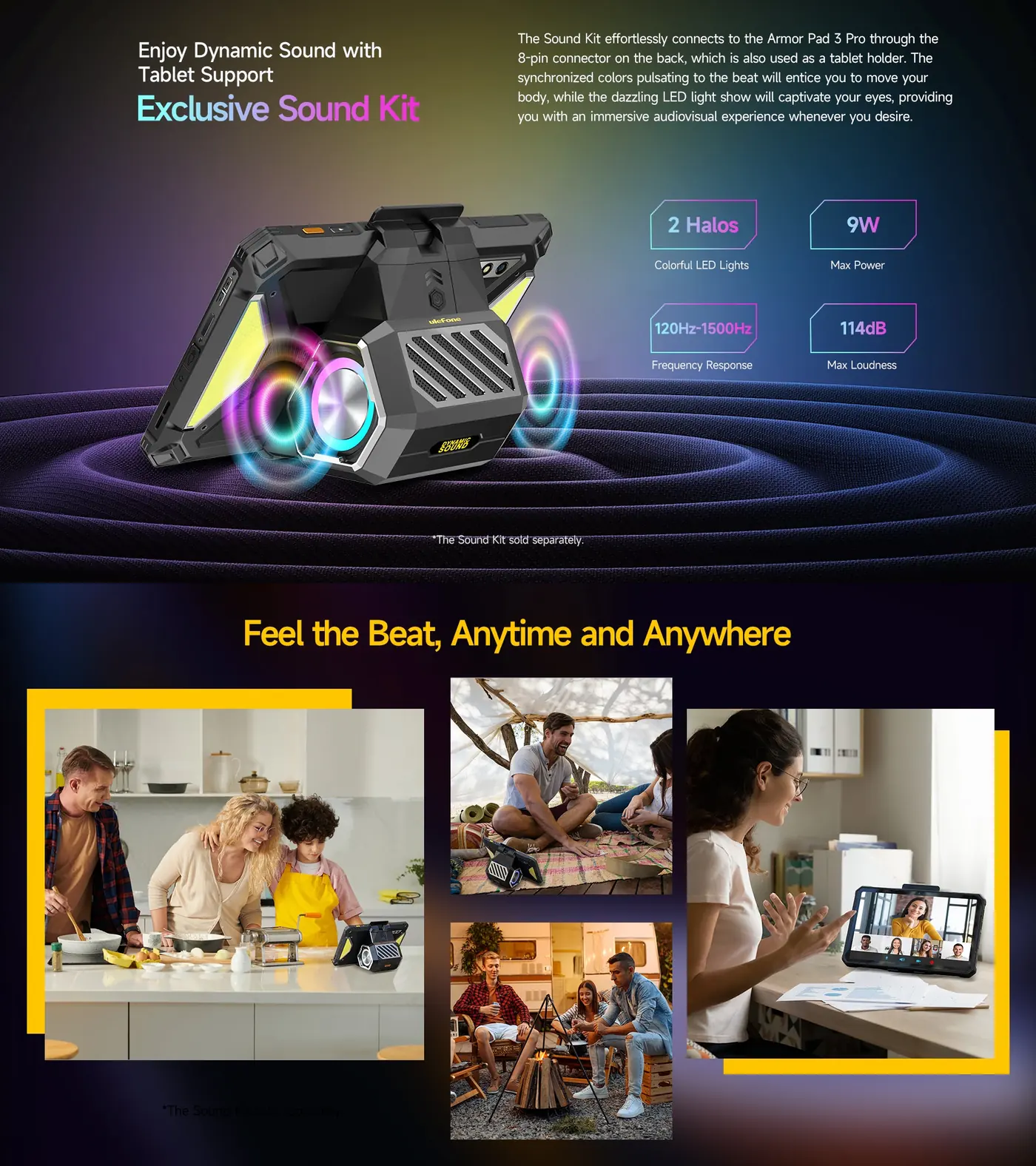

- The Sound Kit sold separately.
- Due to the difference of material and thickness, some leather gloves may be incompatible.
- Pictures for demonstration purpose only. The effectiveness and availability may vary for actual software.
- The device has 2 LED lights, each light features a brightness of 1100 lumens. Notes:
- The battery is non-removable, removing it may cause damage to the device.
- Power consumption data are from Ulefone lab, which will be varied by actual usage.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor Pad 3 Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of
- 5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Pad 3 Pro. Liquid damage not covered under warranty.
- Armor Pad 3 Pro has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor Pad 3 Pro into water.
- The Custom Key and its ability to quickly access different functions work only when the screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device. The maximum 8GB of virtual RAM can be activated in Settings at your will.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 10.36 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- For more devices that are compatible with uSmart Expansion Connector, refer to our accessories page. External devices require additional purchases.
- The hand strap is included in the package.
- The shoulder strap and handbag in one set sold separately.
- The Hand Strap with Kickstand sold separately.
- The Sound Kit sold separately.
- Due to the difference of material and thickness, some leather gloves may be incompatible.
- Pictures for demonstration purpose only. The effectiveness and availability may vary for actual software.
- The device has 2 LED lights, each light features a brightness of 1100 lumens. Keywords: Long battery life tablet High capacity battery tablet Tablet with large battery Extended battery tablet Rugged tablet with long battery Power tablet for outdoor use Tablet for long standby Tablet for field work Ultra endurance tablet Tablet for off-grid use Applicable User Groups: Field workers Outdoor adventurers Travelers Delivery and logistics workers Emergency responders Remote workers Military personnel Usage Scenarios: Long outdoor trips without charging access Field operations in remote areas Continuous work shifts Emergency situations with limited power Navigation and GPS tracking over long durations Media consumption during long travel
Ulefone Armor Pad 3 Pro Specifications
| Size and Weight | |
|---|---|
| Height | 261.7 mm |
| Width | 166.8 mm |
| Depth | 21.2 mm |
| Weight | 1242.9 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |
| Charging and battery | |
| 33280 mAh | |
| Built-in lithium-ion polymer battery | |
| USB Type-C | |
| Supports 66W fast charging | |
| Battery Life | |
| Standby Time | 1812 Hours |
| Talk Time | 181 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| * Non-removable battery. Removing the battery may cause damage to the device. | |
| *Use with original charger and data cable, the max charging power can reach 66W. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor Pad 3 Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Pad 3 Pro. Liquid damage not covered under warranty. | |
| Versatile Light | |
| 1100 Max Lumens | |
| 483 LEDs | |
| 5.5W Max Power | |
| IPX8 Waterproof | |
| Display | |
| 10.36-inch | |
| All-screen LCD Multi-Touch display with IPS technology | |
| Resolution | 1200 x 2000 FHD+ |
| Brightness | 500 nits |
| Corning Gorilla Glass 5 | |
| *With a rounded corners design on the display, the diagonal length of the screen is 10.36 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Processor | |
| MediaTek MT8788 | |
| CPU | MediaTek MT8788 |
| CPU architecture | 8, 4 x Arm Cortex-A73 2.0GHz, 4 x Arm Cortex-A53 2.0GHz |
| CPU frequency | 2.0GHz |
| GPU | Arm Mali-G72 MP3 |
| GPU frequency | up to 700MHz |
| Storage and RAM | |
| 8GB + 256GB | |
| RAM | 8GB memory |
| Flash storage | 256GB storage |
| microSD memory card Up to 2TB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. | |
| *The Virtual Memory Expansion can be activated in Settings and adds up to 8GB of RAM. Some software may not be compatible with this feature. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Rear Camera | |
| 50MP Main Camera | |
| SAMSUNG GN1 sensor | |
| FOV 85°, ƒ/1.95 | |
| Photo resolution | up to 6138x8152 pixel |
| Video resolution | up to 1080P |
| Flash | |
| Rear camera photography features | |
| Normal Mode, Mono Mode, Beauty Mode, 50MP Mode, Portrait, Pro Mode, Slow Motion, Night Shot, Scan | |
| AI Scene Detection, Grid line, Self Timer, Capture Mode, Scene Mode, Anti-shake, Geo-Tagging, ZSD, Sound Switch, Watermark, White Balance, ISO, Anti Flicker, Volume Key, Continuous Shot, Restore Defaults, Camping Light | |
| Rear camera video features | |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| CIF recording | 30fps |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Front Camera | |
| 32MP selfie camera | |
| SAMSUNG GD1 sensor, 1.12µm, 4P, FOV 80.4°, ƒ/2.45 | |
| Front camera photography features | |
| Normal Mode, Mono Mode, Beauty Mode | |
| Grid line, Self Timer, Capture Mode, Scene Mode, Anti-shake, Geo-Tagging, ZSD, Sound Switch, Mirror Switch, Watermark, White Balance, ISO, Anti Flicker, Volume Keys, Restore Defaults, Camping Light | |
| Front camera video features | |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| CIF recording | 30fps |
| *In different photo modes, the number of pixels may be slightly different, please refer to the actual situation. | |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Audio | |
| Dual-Speaker Sound System | |
| Unlock Options | |
| Supports Fingerprint Unlock | |
| Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together | |
| Capacitive Touch Sensor | |
| Response speed | Up to 0.1s |
| Supports the enrollment of 5 sets of fingerprint | |
| Supports Face Unlock | |
| Network | |
| Supports use of dual SIM cards from different carriers | |
| Both cards can access 4G/3G connectivity simultaneously | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 4G/3G/2G | |
| Supports VoLTE HD calling | |
| Supported network bands | |
| 4G Network | |
| FDD-LTE | B1/2/3/4/5/7/8/12/17/19/20/28A/28B/66 |
| TDD-LTE | B34/38/39/40/41 |
| 3G Network | |
| WCDMA | B1/2/4/5/8 |
| 2G Network | |
| GSM | B2/3/5/8 |
| *Dual 4G requires the support of local carriers services, and may not be available in all regions. | |
| *Only supports single SIM for communication service, which means when one of the SIM cards is in calling, the other SIM card will not be able to connect. | |
| *Only certain regions and telecom operators support VoLTE. | |
| Connectivity | |
| WLAN | |
| Supports protocols | 802.11 a/b/g/n/ac |
| Supports 2.4G/5G | |
| Bluetooth | |
| Supports Bluetooth 4.2 | |
| Navigation and positioning | |
| Supports multiple positioning systems | |
| GPS GLONASS Galileo Digital Compass | |
| uSmart Expansion | |
| uSmart E01 Endoscope | |
| uSmart E02 Endoscope uSmart C01 Supermicroscope | |
| *For more devices that are compatible with uSmart Expansion Connector, you are recommended to refer to our accessories list. Expansion devices require additional purchases. | |
| NFC | |
| Supports Google Pay | |
| Supports Transit, Loyalty Cards, Gift Cards and Plane tickets | |
| *Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer to https://pay.google.com/about. | |
| Operating System | |
| Android 13 | |
| Pure Android System | |
| No ads | |
| Buttons | |
| Sensors | |
| NFC, Side-Mounted Fingerprint，Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer | |
| Multimedia | |
| Video | MKV/3GP/MP4 |
| Audio | MID/FLAC/MP3/M4AAAC/AMR/OGG |
| Image | GIF/JPEG/PNG/BMP |
| Ebook | TXT/HTML |
| Ports | |
| USB 2.0, Type-C | |
| 3.5 mm Headphone Jack uSmart Expansion Connector HDMI Output | |
| Card slot | |
| Three(3), Nano SIM + Nano SIM + microSD | |
| Notification Light | |
| Support, tri-color light, red/green/blue | |
| Supports charging prompt | |
| Language support | |
| Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese | |
| In the box | |
| 1x Ulefone Armor Pad 3 Pro | |
| 1x AC Power Charger | |
| 1x Type-C to Type-C Data Cable (100cm) | |
| 1x Tablet Hand Strap (requires self-installation) | |
| 1x Screwdriver (used to install Hand Strap) | |
| 8x Screws (4 pre-installed on the tablet, 4 spare) | |
| 1x Protective Film (Pre-installed) | |
| 1x SIM Needle | |
| 1x Multi-language User Manual | |
| 1x Multi-function Instruction Card | |
| 1x Warranty Card | |
| 1x Charging Instruction Card | |
| 1x Safety Prompt Card | |
| 1x Service Center APP Instructions | |
| 1x Accessories Ecosystem Brochure | |
| *The AC power charger's plug type varies according to your region, with optional standard EU/AU/US plugs available. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The tablet pictures and screen content on the above are for illustration only. The actual tablet (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
0
Years Of Successful Business
0
Reviews Of 10000+ Satisfied Clients
0
Years Factory Warranty
0
Patents owned in global
0
Business Partners
0
Risk-Free Guarantee
NEED BULK ORDER ?
