Ulefone Armor Mini 5 Rugged Phones
1GB+8GB, 2500mAh, 2.8-inch QVGA, Android 11, MediaTek MT6739, Network: 4G
Ulefone Armor Mini 5 features MediaTek MT6739, 1GB+8GB memory and storage, 2.8‑inch QVGA, 2500mAh battery, Android 11. Hybrid Touch & Keypad Control: Featuring a 2.8-inch responsive touch display alongside a physical keyboard, this mini phone delivers the speed of tactile typing and the convenience of touch navigation for smarter, more intuitive operation. Rugged Military-Grade Durability: Certified IP68/IP69K and MIL-STD-810H, Armor Mini 5 withstands submersion in 2 meters of water for 30 minutes, high-pressure water jets, dust, drops from 2 meters, shocks, vibrations, and extreme temperatures.
0.3MP Rear Camera
Supports 5W fast charging
2.8‑inch QVGA
1GB+8GB physical memory and storage
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Ulefone Armor Mini 5 Features
Ulefone Armor Mini 5 features MediaTek MT6739, 1GB+8GB memory and storage, 2.8‑inch QVGA, 2500mAh battery, Android 11.

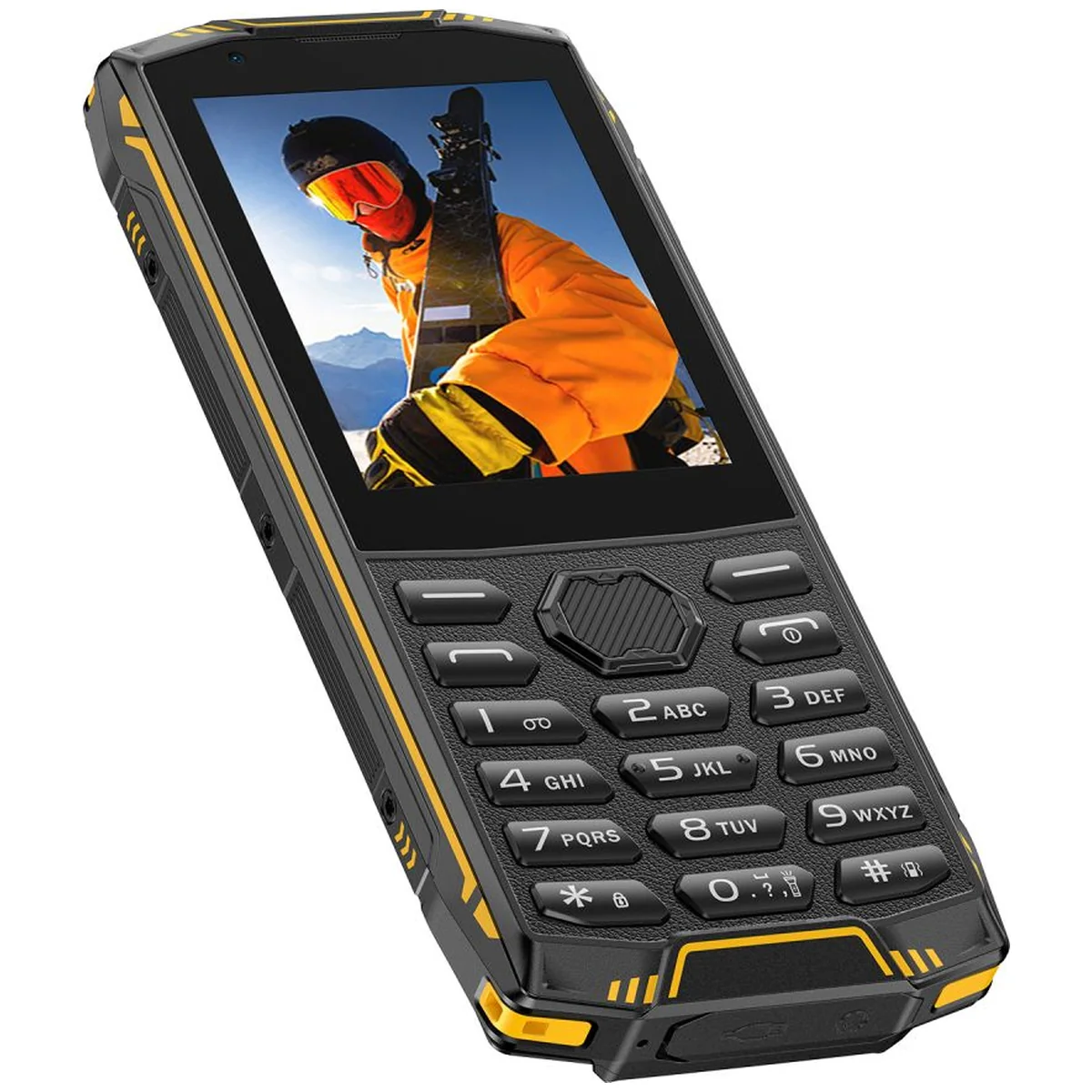

Hybrid Touch & Keypad Control
Featuring a 2.8-inch responsive touch display alongside a physical keyboard, this mini phone delivers the speed of tactile typing and the convenience of touch navigation for smarter, more intuitive operation.

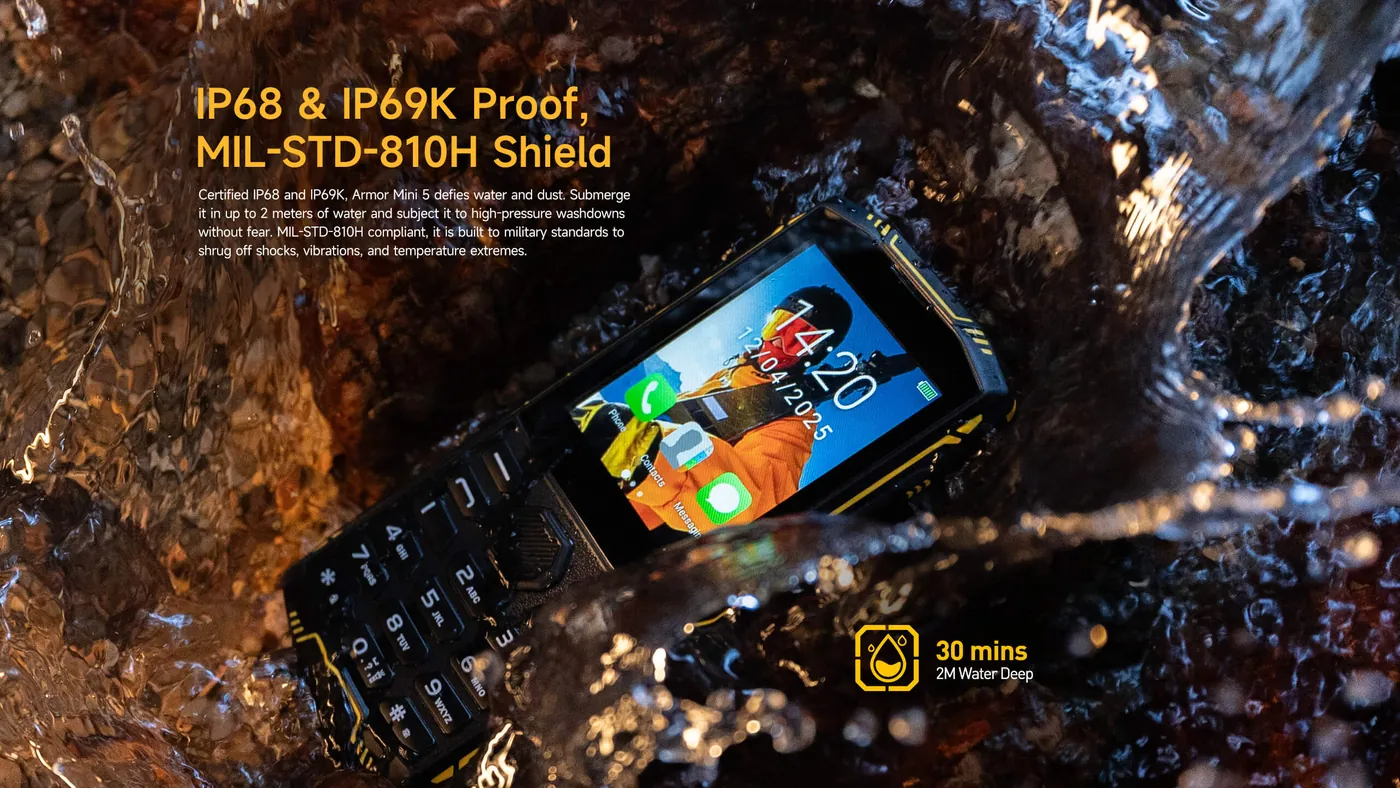

Rugged Military-Grade Durability
Certified IP68/IP69K and MIL-STD-810H, Armor Mini 5 withstands submersion in 2 meters of water for 30 minutes, high-pressure water jets, dust, drops from 2 meters, shocks, vibrations, and extreme temperatures.
Pre-loaded WhatsApp for Distraction-Free Communication
Comes with WhatsApp installed out of the box for texts, voice messages, and video calls—keeping you connected to those who matter while eliminating endless scrolling and constant distractions of a standard smartphone.

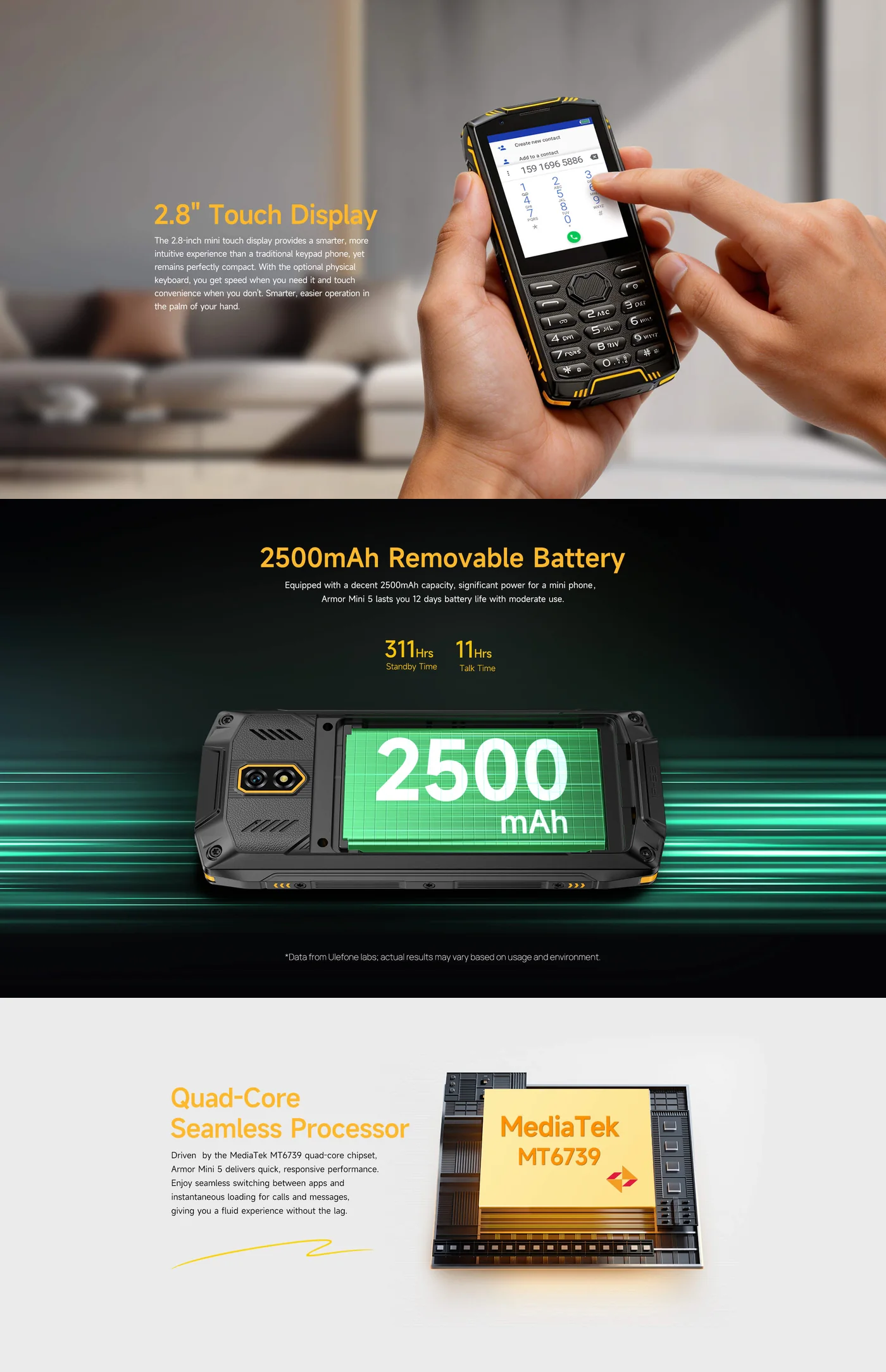

Removable 2500mAh Long-Life Battery
Equipped with a decent 2500mAh removable battery, this compact phone delivers up to 12 days of moderate use, 311 hours of standby time, and 11 hours of talk time, ensuring reliable power for extended periods.

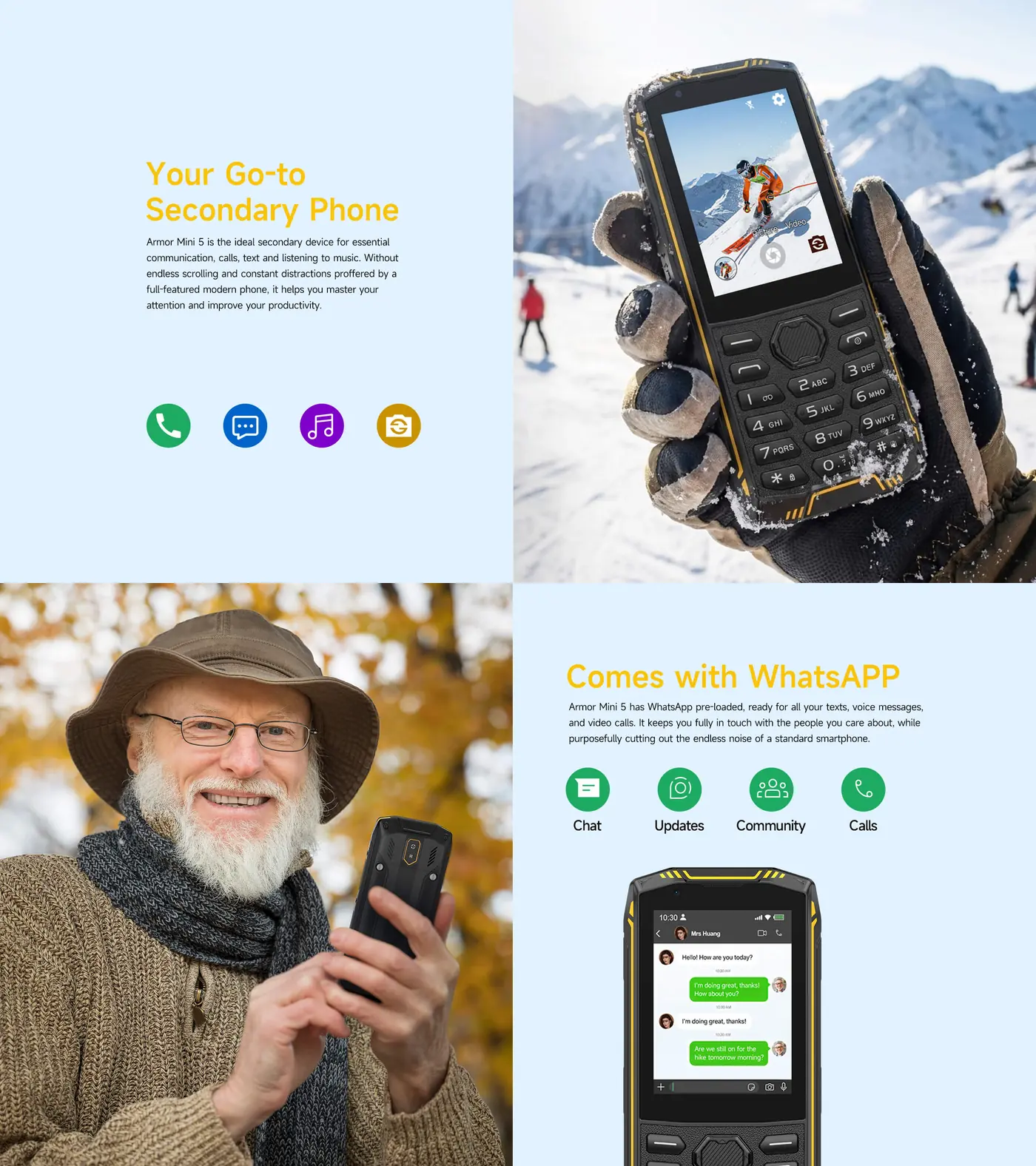

Compact & Focused Secondary Phone
Designed as the ideal go-to secondary device, it helps you master attention and boost productivity without the noise of a full-featured modern phone, perfect for low-social or field-use scenarios.
Size and Weight
Height: 142 mm. Width: 62 mm. Depth: 16.5 mm. Weight: 170 grams.
Rugged
Splash, Water and Dust Resistant. Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529. Rated IP69K under IEC standard 60529. MIL-STD-810H Certification.
Charging and Battery
2500mAh Battery (Typ) / 2520mAh (Typical). 4.2V Lithium Battery. USB Type-C port. Supports 5W fast charging. Battery Life. Standby Time | Up to 311 Hours. Talk Time | Up to 11 Hours.
Processor
MediaTek MT6739.
Ulefone Armor Mini 5 Wholesale and Bulk Orders
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor Mini 5 offers 1GB+8GB memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor Mini 5 specifications.
Ulefone Armor Mini 5 Manufacturer Notes
- Power consumption data are from Ulefone lab, which will be varied by actual usage.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor Mini 5 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Mini
- Liquid damage not covered under warranty.
- Armor Mini 5 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor Mini 5 into water.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 2.8 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Pictures for demonstration purpose only. The effectiveness and availability may vary for actual software. Remarks:
- Power consumption data are from Ulefone lab, which will be varied by actual usage.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor Mini 5 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Mini
- Liquid damage not covered under warranty.
- Armor Mini 5 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor Mini 5 into water.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 2.8 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Pictures for demonstration purpose only. The effectiveness and availability may vary for actual software.
Ulefone Armor Mini 5 Specifications
| Size and Weight | |
|---|---|
| Height | 142 mm |
| Width | 62 mm |
| Depth | 16.5 mm |
| Weight | 170 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor Mini 5 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Mini 5. Liquid damage not covered under warranty. | |
| Charging and Battery | |
| 2500mAh Battery (Typ) / 2520mAh (Typical) | |
| 4.2V Lithium Battery | |
| USB Type-C port | |
| Supports 5W fast charging | |
| Battery Life | |
| Standby Time | Up to 311 Hours |
| Talk Time | Up to 11 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| *Use with original charger and data cable, the max charging power can reach 5W. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| Processor | |
| MediaTek MT6739 | |
| Storage and RAM | |
| 1GB+8GB | |
| RAM | 1GB large memory |
| Flash storage | 8GB phone storage |
| microSD memory card Up to 64GB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Display | |
| 2.8‑inch QVGA | |
| Touch Display | |
| 240 x 320 | |
| *With a rounded corners design on the display, the diagonal length of the screen is 2.8 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Rear Camera | |
| 0.3MP Rear Camera | |
| Rear camera video features | |
| 1080P recording | |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| Front Camera | |
| 0.3MP Selfie Camera | |
| Front camera video features | |
| 720P recording | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Network | |
| Supports use of dual SIM cards from different carriers | |
| Both cards can access 4G connectivity simultaneously | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 4G/3G/2G | |
| Supported network bands | |
| 4G Network | |
| LTE-FDD | B1/2/3/4/5/7/8/12/17/20/28/66 |
| LTE-TDD | B38/41 |
| 3G Network | |
| WCDMA | B1/2/4/5/8 |
| 2G Network | |
| GSM | B2/3/5/8 |
| *Dual 4G requires the support of local carriers services, and may not be available in all regions. | |
| * Only supports single SIM for communication service, which means when one of the SIM cards is in calling, the other SIM card will not be able to connect. | |
| * Only certain regions and telecom operators support VoLTE. | |
| Connectivity | |
| Bluetooth | |
| Supports Bluetooth 2.1 | |
| Operating System | |
| Android 11 | |
| Buttons | |
| Multimedia | |
| Video | 3GP,MP4 |
| Audio | MP3,AAC,MID,MIDI,WAV,AMR,M4A |
| Ebook | TXT |
| Radio Tuner | FM Radio |
| Ports | |
| Type-C | |
| 3.5 mm Headphone Jack | |
| SIM Card | |

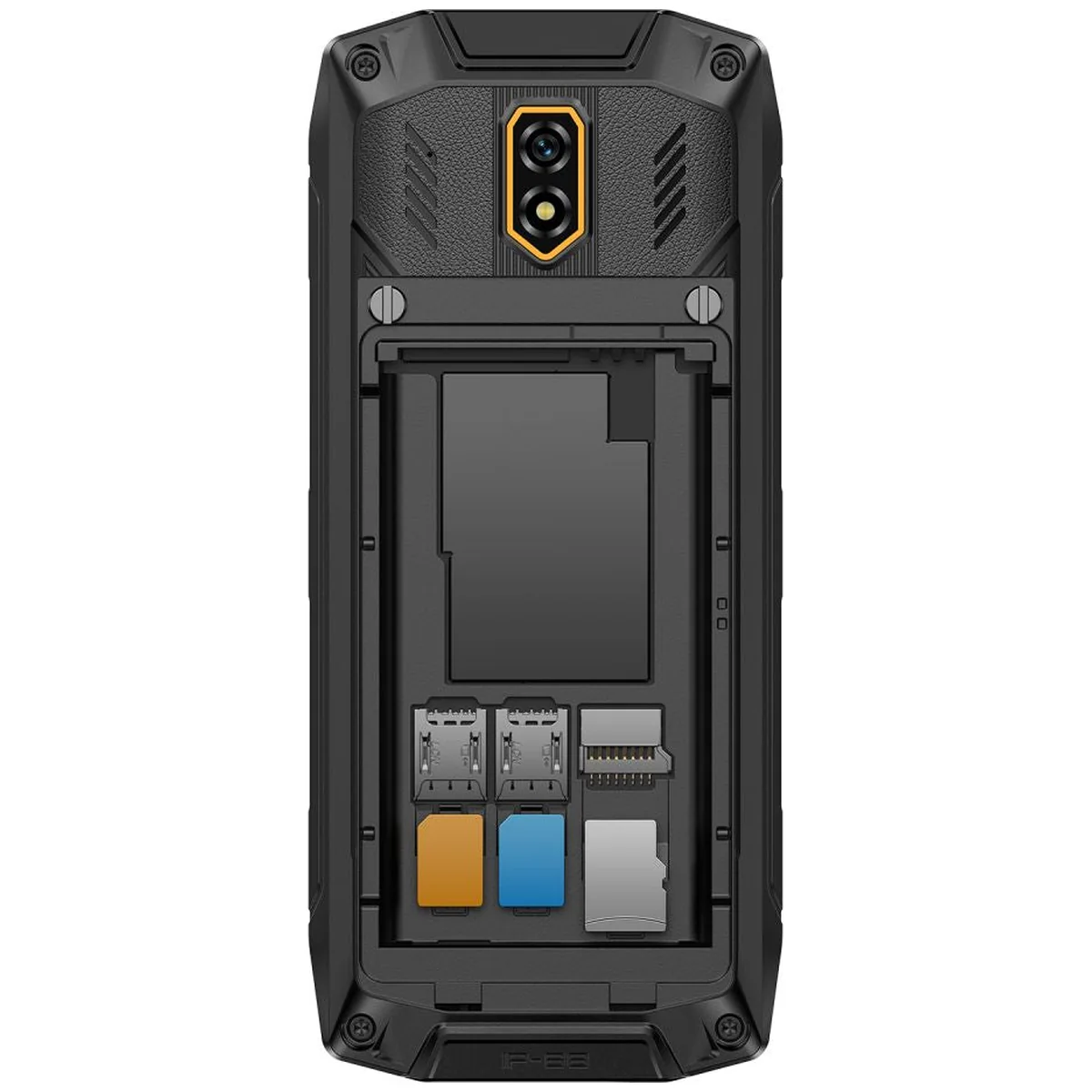

| Three(3), Nano SIM + Nano SIM + microSD | |
| SAR | |
| Maximum 10g SAR | |
| Head | 0.72W/KG Body: 1.39W/KG |
| Language support | |
| English (default), Spanish, German, French, Ukrainian, Greek, Polish, Czech, Portuguese, Russian, Italian, Turkish, Dutch, Finnish, Swedish, Arabic, Norwegian, Danish, Hungarian, Bulgarian | |
| In the box | |
| Armor Mini 5 | |
| 1 x USB-A to USB-C Cable (100cm) | |
| 1 x Screwdriver | |
| 1 x Warranty Card | |
| 1 x Multi-language User Manual | |
| 1 X Safety Prompt Statement | |
| *The AC power charger's plug type varies according to your region, with optional standard EU/AU/US plugs available. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The device pictures and screen content on the above are for illustration only. The actual device (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
