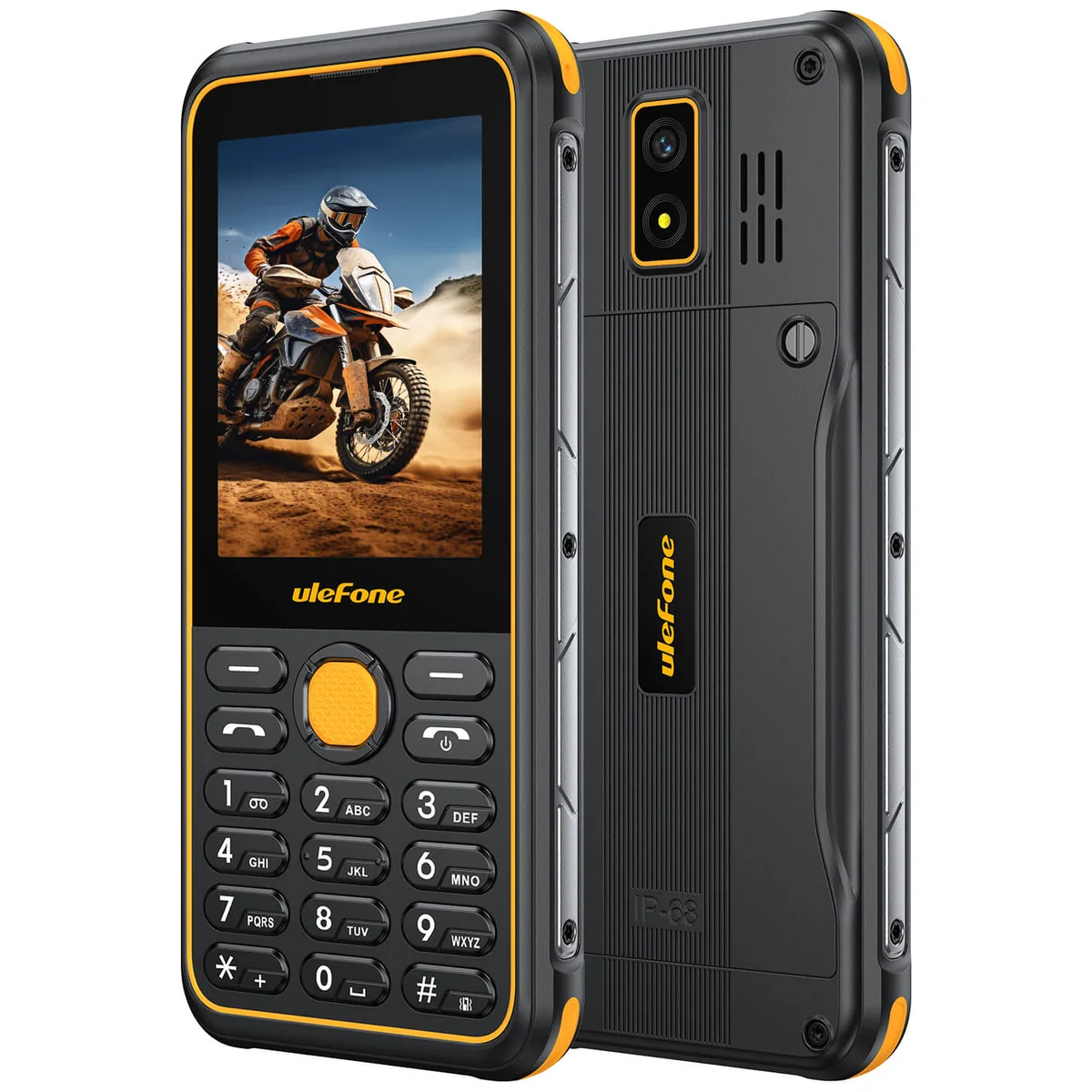

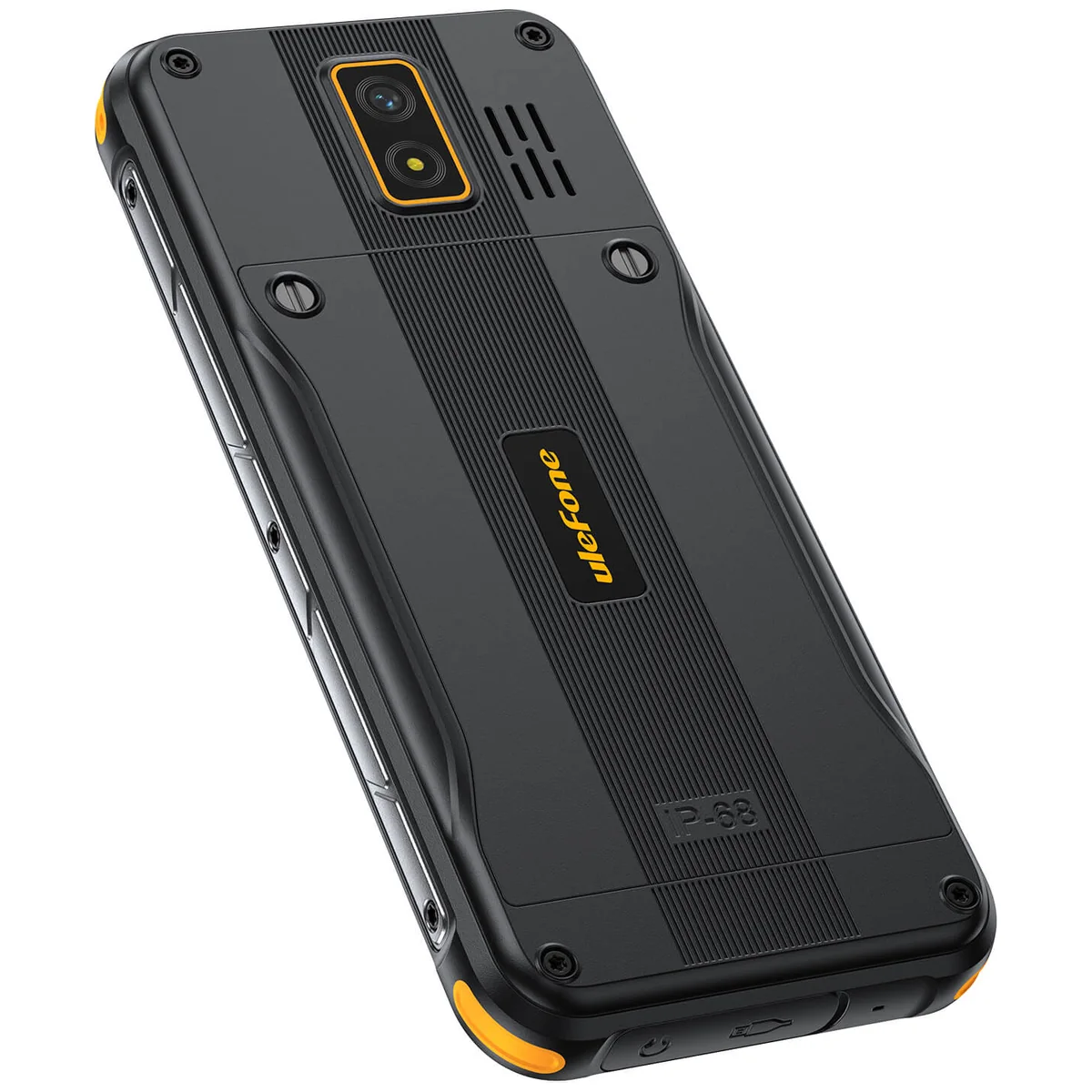

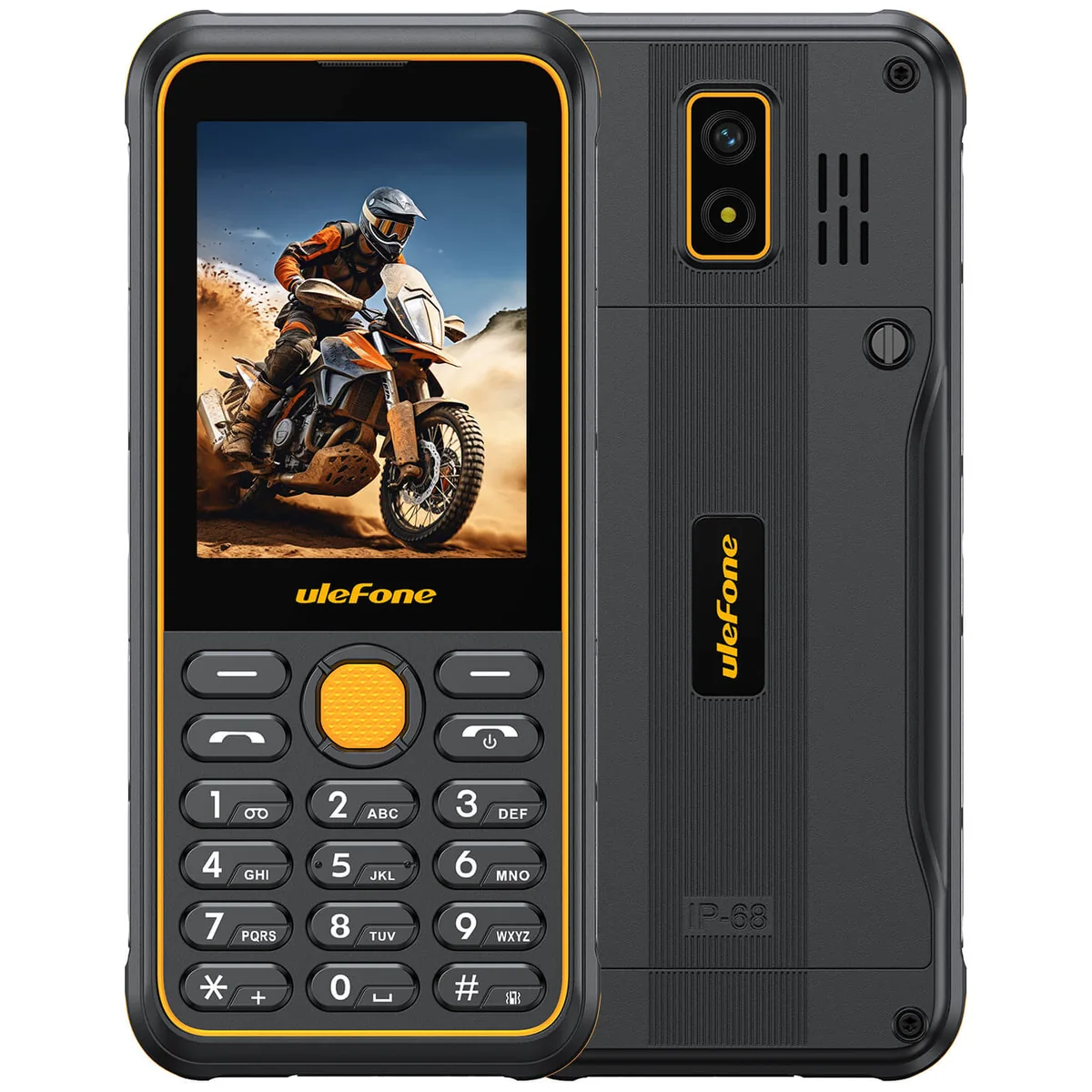

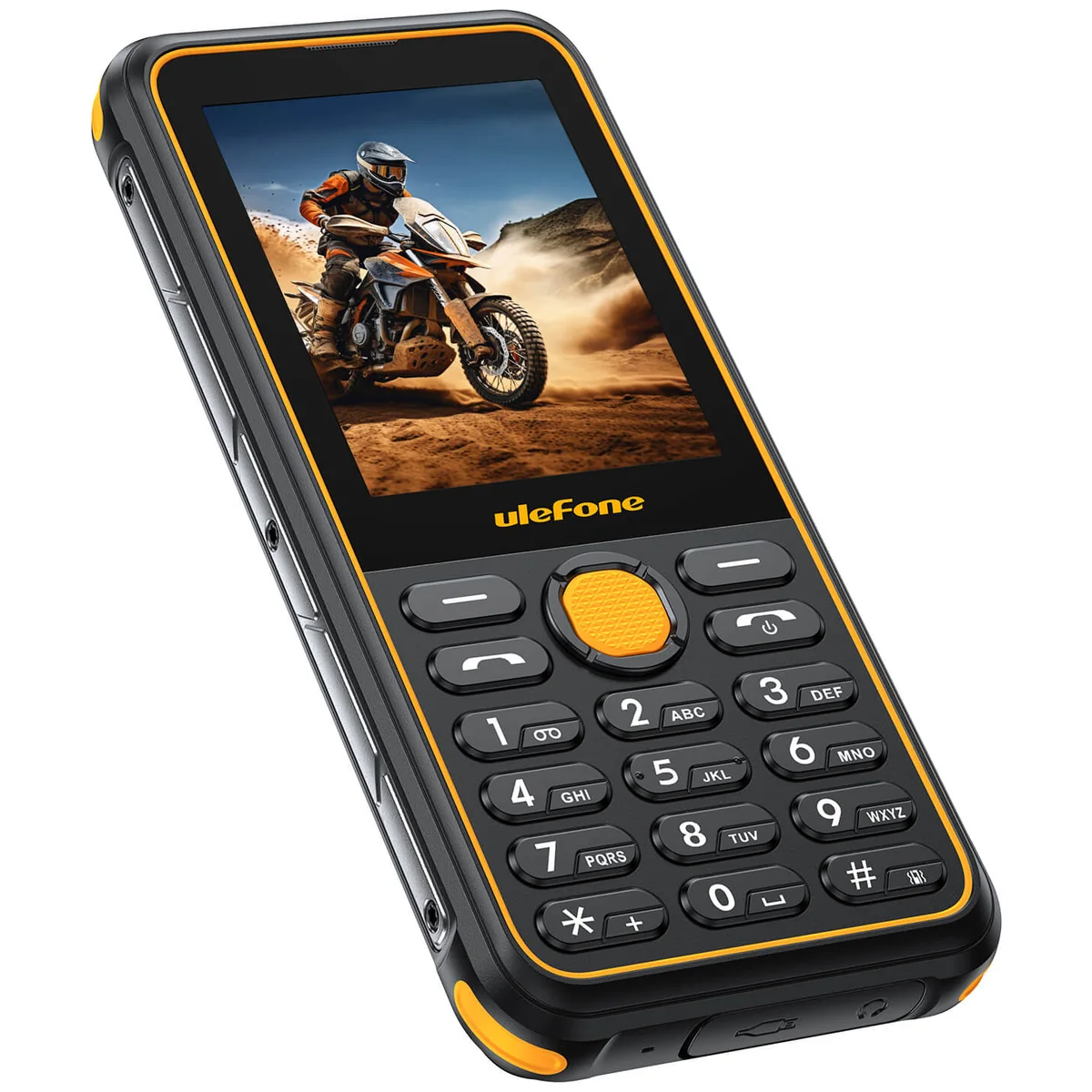

Ulefone Armor Mini 4 Rugged Phones
2100mAh, 2.8-inch QVGA, Unisoc T117, Network: 4G
Ulefone Armor Mini 4 features Unisoc T117, 2.8-inch QVGA, 2100mAh battery. IP68 & IP69K MIL-STD-810H | Dual SIM + MicroSD Card Slots | FM Radio
2MP Rear Camera
2.8-inch QVGA
Connectivity: 4G
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Ulefone Armor Mini 4 Features
Ulefone Armor Mini 4 features Unisoc T117, 2.8-inch QVGA, 2100mAh battery.
Product features
IP68 & IP69K MIL-STD-810H | Dual SIM + MicroSD Card Slots | FM Radio
Size and Weight
Height: 142.9 mm. Width: 63 mm. Depth: 15 mm. Weight: 150 grams.
Charging and battery
2100mAh Battery. 4.2V Lithium Battery. USB Type-C port. Battery Life. Standby Time | Up to 450 Hours. Talk Time | Up to 20 Hours.
Rugged

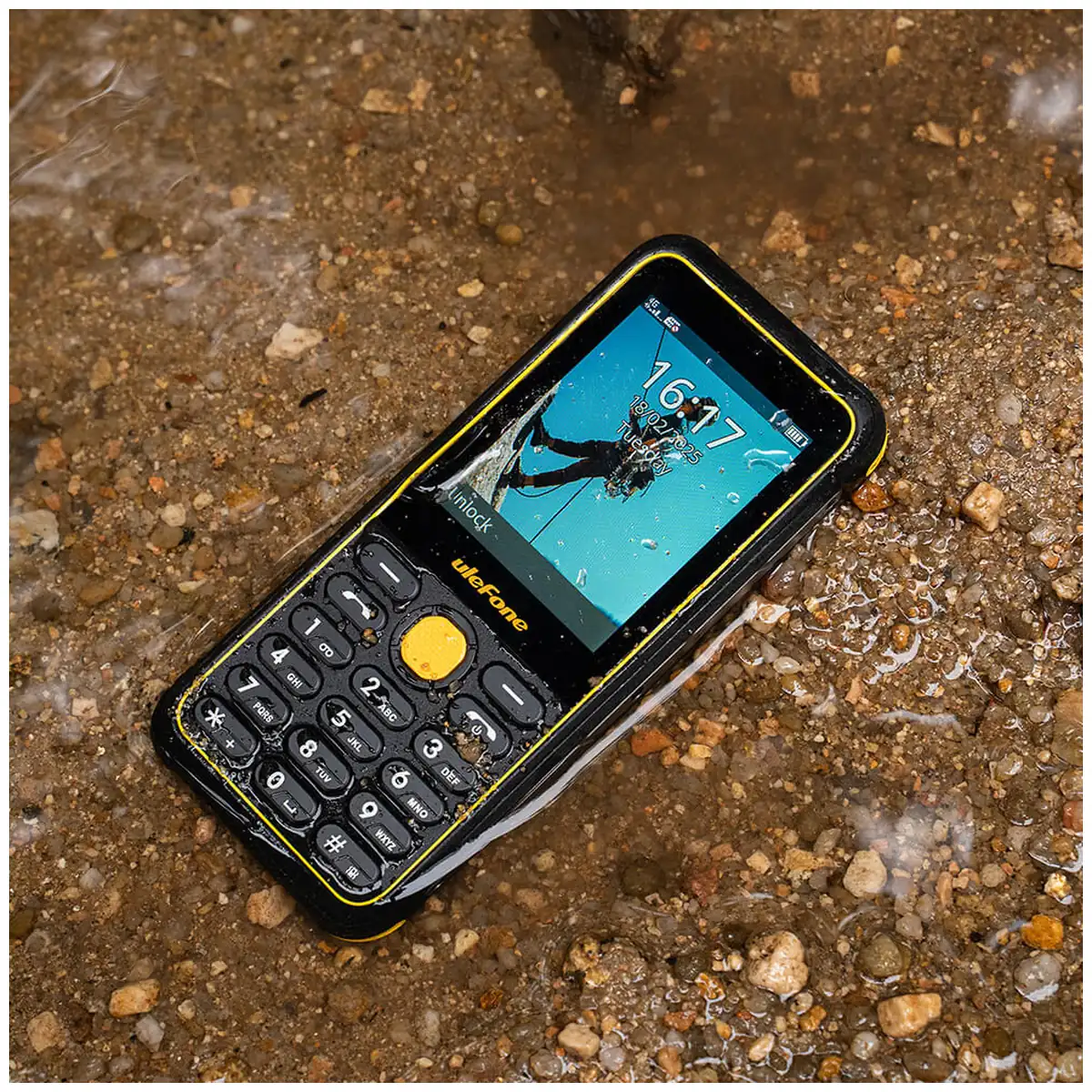

Splash, Water and Dust Resistant. Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529. Rated IP69K under IEC standard 60529. MIL-STD-810H Certification.
Processor
Unisoc T117.
Ulefone Armor Mini 4 Wholesale and Bulk Orders
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor Mini 4 offers memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor Mini 4 specifications.
Ulefone Armor Mini 4 Manufacturer Notes
- All specifications, features, and other product information provided are subject to change withoutnotice.lmages are for illustrative purposes only.
- Power consumption data are from Ulefone lab, which will be varied by actual usage.
- The microSD card is not included and needs to be purchased separately.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local4carriers support this function. Notes:
- All specifications, features, and other product information provided are subject to change withoutnotice.lmages are for illustrative purposes only.
- Power consumption data are from Ulefone lab, which will be varied by actual usage.
- The microSD card is not included and needs to be purchased separately.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local4carriers support this function.
Ulefone Armor Mini 4 Specifications
| Size and Weight | |
|---|---|
| Height | 142.9 mm |
| Width | 63 mm |
| Depth | 15 mm |
| Weight | 150 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |
| Charging and battery | |

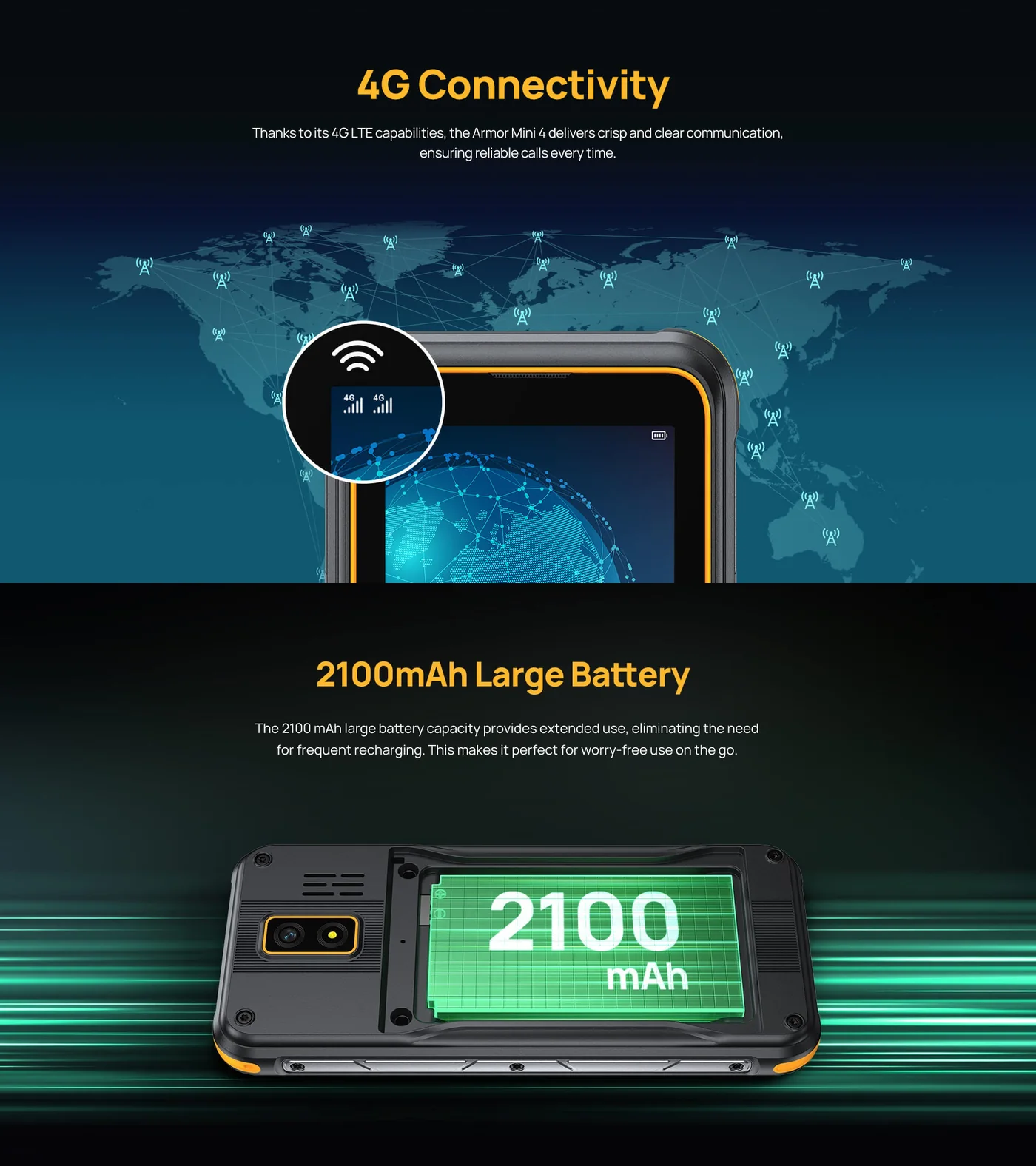

| 2100mAh Battery | |
| 4.2V Lithium Battery | |
| USB Type-C port | |
| Battery Life | |
| Standby Time | Up to 450 Hours |
| Talk Time | Up to 20 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| *Non-removable battery. Removing the battery may cause damage to the device. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor Mini 4 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes). | |
| *Charger and accessories are not water-resistant. | |
| *Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. | |
| *Do not attempt to charge a wet Armor Mini 4. | |
| *Liquid damage not covered under warranty. | |
| Processor | |
| Unisoc T117 | |
| Storage and RAM | |
| 64MB+128MB | |
| RAM | 64MB large memory |
| Flash storage | 128MB phone storage |
| microSD memory card Up to 64GB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Display | |
| 2.8-inch QVGA | |
| Screen Resolution：240*320 | |
| *With a rounded corners design on the display, the diagonal length of the screen is 2.8 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Rear Camera | |
| 2MP Rear Camera | |
| Photo resolution | up to 640 x 480 pixels |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Network | |

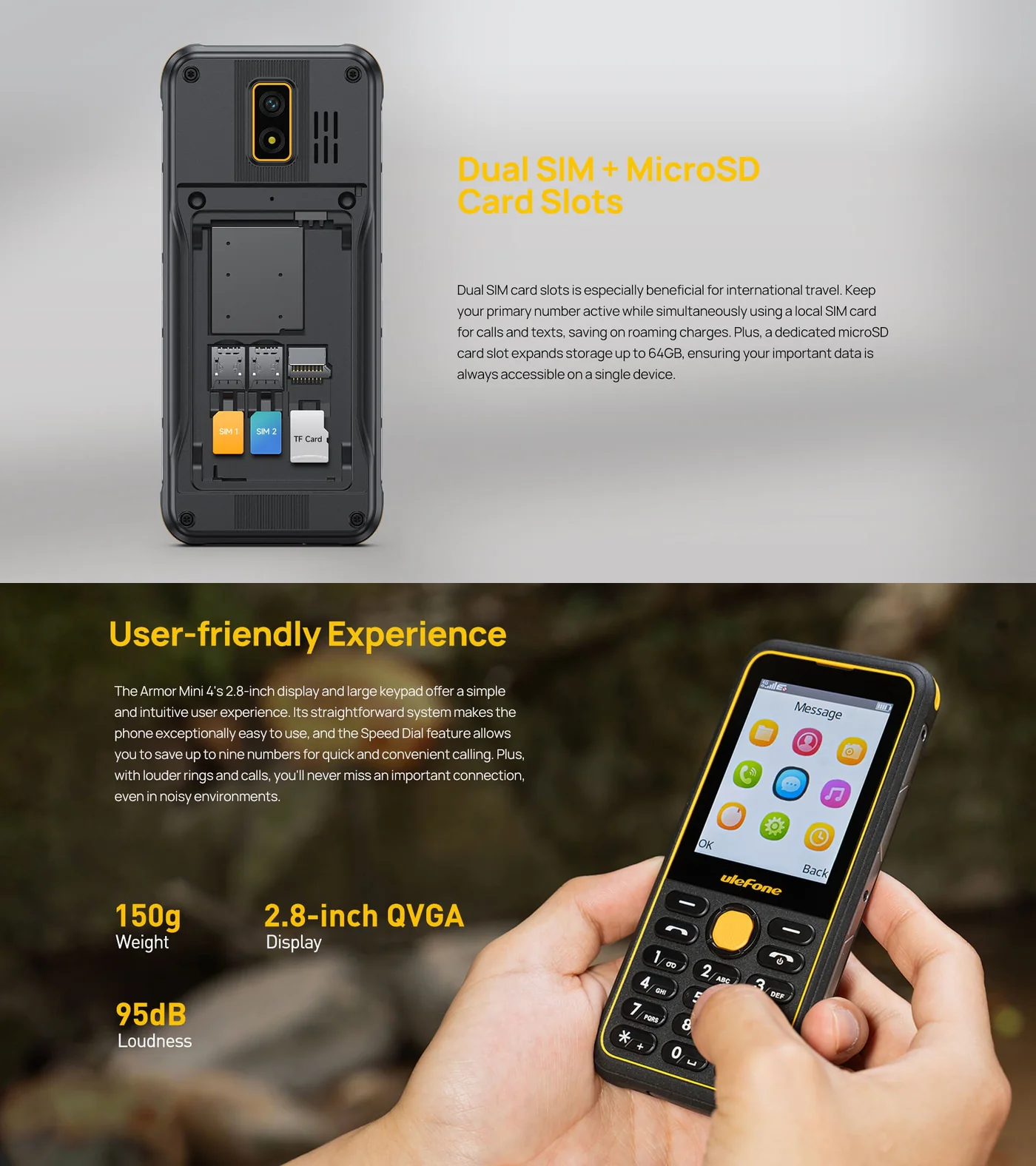

| Supports use of dual SIM cards from different carriers | |
| Two(2), Standard sim1 + Standard sim2 + microSD | |
| Both cards can access 4G connectivity simultaneously | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 4G/3G/2G | |
| Supported network bands | |
| 4G Network | |
| LTE-FDD | B1/3/7/8/20/28A/28B |
| 3G Network | |
| WCDMA | B1/8 |
| 2G Network | |
| GSM | B2/3/8 |
| *Dual 4G SIM requires the support of local telecom operator services, and may not be available in all regions. | |
| Bluetooth | |
| Supports Bluetooth 2.4 | |
| Multimedia | |
| Video | 3GP, MP4, AVI, MJPG |
| Music | MP3, MIDI, AMR, AAC, WAV |
| Ebook | TXT |
| Radio Tuner | Headset-free FM Radio |
| Ports | |
| Type C, Micro USB 5pin | |
| 3.5 mm Headphone Jack | |
| Language support | |
| English (default), Spanish, German, French, Ukrainian, Greek, Polish, Czech, Portuguese, Russian, Italian, Turkish, Dutch, Finnish, Swedish, Arabic | |
| In the box | |
| 1 x Armor Mini 4 | |
| 1 x USB-Type C Data Cable (100cm) | |
| 1 x Screwdriver | |
| 1 x Warranty Card | |
| 1 x Multi-language User Manual | |
| *The AC power charger's plug type varies according to your region, with optional standard EU/AU/US plugs available. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The phone pictures and screen content on the above are for illustration only. The actual phone (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
