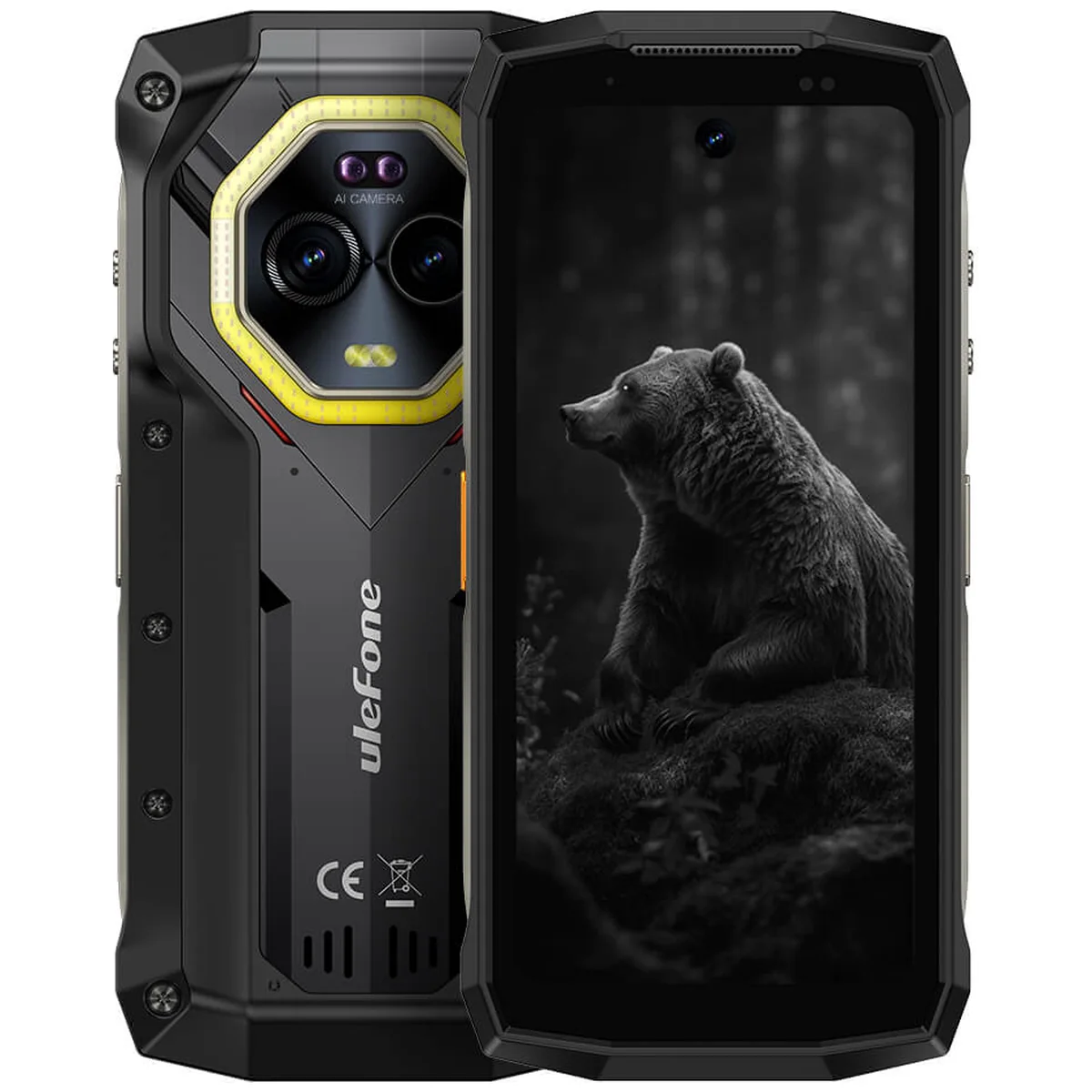

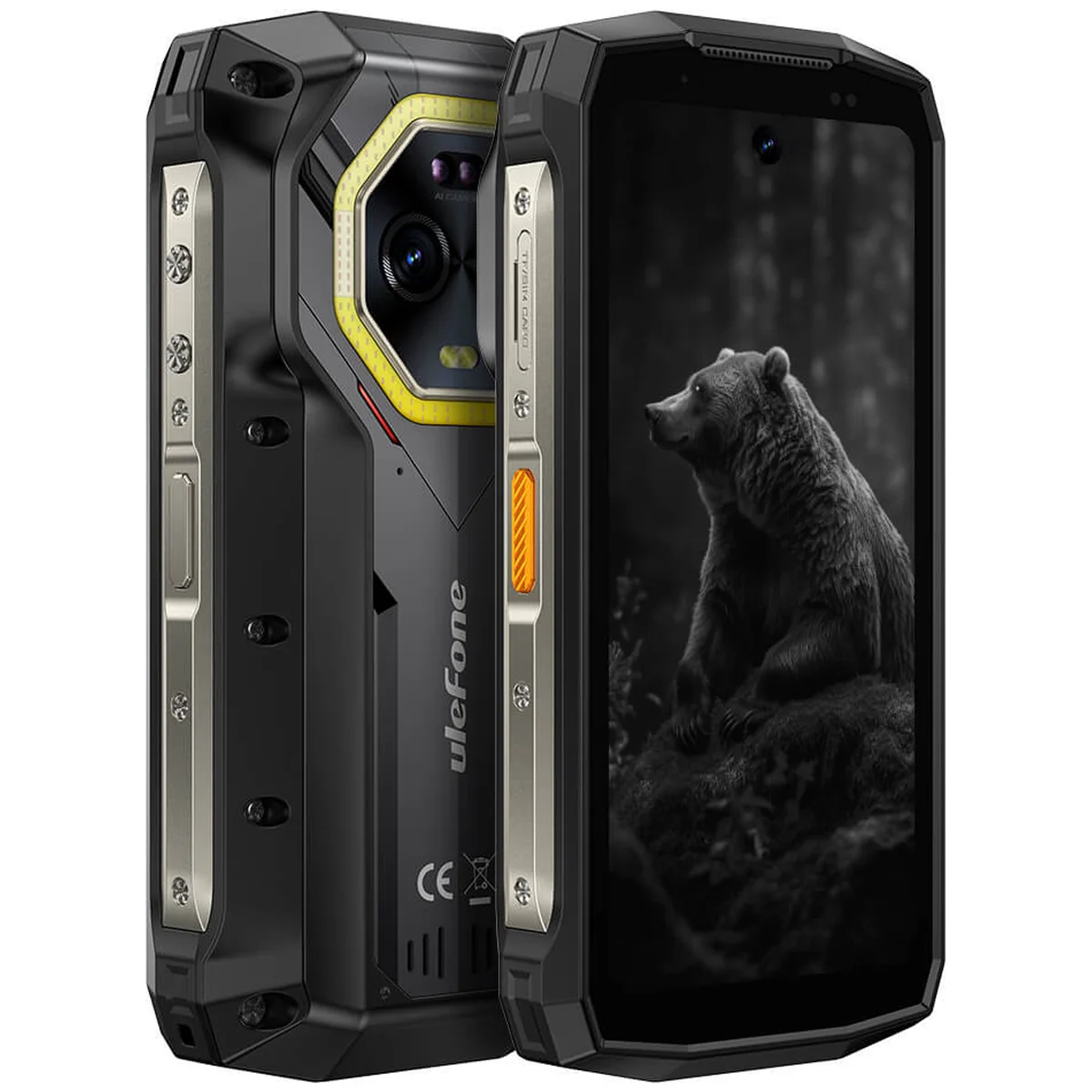

Ulefone Armor Mini 20 Rugged Phones
Night Vision, 6GB+256GB, 6200mAh, 4.7-inch, Android 15, MediaTek Helio G99, Network: 4G, NFC
Ulefone Armor Mini 20 features MediaTek Helio G99, 6GB+256GB memory and storage, 4.7‑inch (diagonal), 6200mAh battery, Android 15. Compact Ergonomic Design: Engineered with a credit card-width profile and a lightweight 10.6-ounce chassis, this device ensures high-efficiency one-handed operation and effortless portability in professional field environments. Helio G99 Performance: The 6nm 8-core CPU paired with up to 16GB RAM(8GB RAM + 8GB Virtual RAM) and 256GB expandable storage provides unrivaled processing power for memory-intensive applications and high-speed data management.
50MP+64MP Dual Camera
Supports 33W fast charging
4.7‑inch (diagonal)
6GB+256GB physical memory and storage
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Ulefone Armor Mini 20 Features
Ulefone Armor Mini 20 features MediaTek Helio G99, 6GB+256GB memory and storage, 4.7‑inch (diagonal), 6200mAh battery, Android 15.
Compact Ergonomic Design
Engineered with a credit card-width profile and a lightweight 10.6-ounce chassis, this device ensures high-efficiency one-handed operation and effortless portability in professional field environments.
Helio G99 Performance
The 6nm 8-core CPU paired with up to 16GB RAM(8GB RAM + 8GB Virtual RAM) and 256GB expandable storage provides unrivaled processing power for memory-intensive applications and high-speed data management.

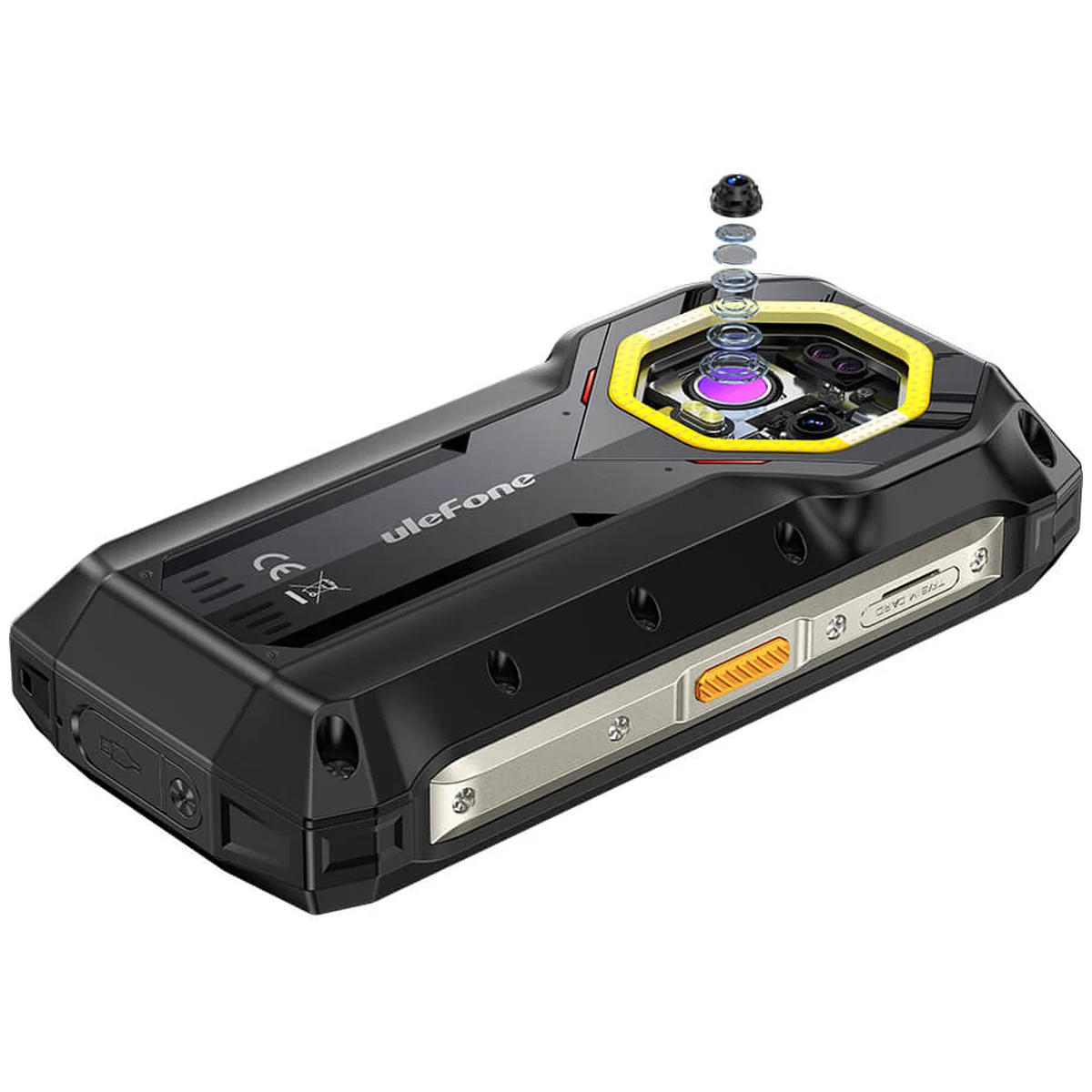

Advanced Triple Camera
Featuring a 50MP Samsung GN1 primary sensor and a 64MP NightElf Ultra 3.0 night vision lens, this system delivers ultimate imaging precision in both low-light and high-dynamic-range scenarios.
Solid-State Battery Technology
The 6200mAh sub-zero battery ensures reliable operation in extreme -20°C environments while supporting 33W fast charging and 15W wireless charging for continuous field uptime.
Military-Grade Durability
Constructed with Corning Gorilla Glass and certified to MIL-STD-810H and IP68/IP69K standards, this device offers supreme protection against water, dust, and high-impact drops.
High-Brightness 90Hz Display
The 4.7-inch 700-nit display with a 90Hz refresh rate provides sharp, vibrant visuals and fluid navigation, ensuring readability in bright outdoor conditions.
Versatile LED System
Integrated with 130 LEDs producing 500 lumens, this multi-mode lighting system includes red-blue warning signals to provide essential illumination and signaling for emergency professional use.
Integrated Professional Toolbox
Android 15, IR Remote, Fingerprint Unlock, NFC, Headset-Free FM Radio, Custom Key, Gloves Mode, Underwater Camera, Outdoor Toolbox, GPS+Glonass+QZSS+Galileo+BeiDou, etc.
Size and Weight
Height: 133.5 mm. Width: 63.3 mm. Depth: 24.9 mm. Weight: 301 grams.
Warning Light
Red light, blue Light, red-blue light. Simulated warning sound: fire, ambulance, police car, and other first responding warning sound. Lighting modes: 2, constant or blink.
Versatile Light
500 Max Lumens. 130 LEDs. 5W Max Power. IPX8 Waterproof.

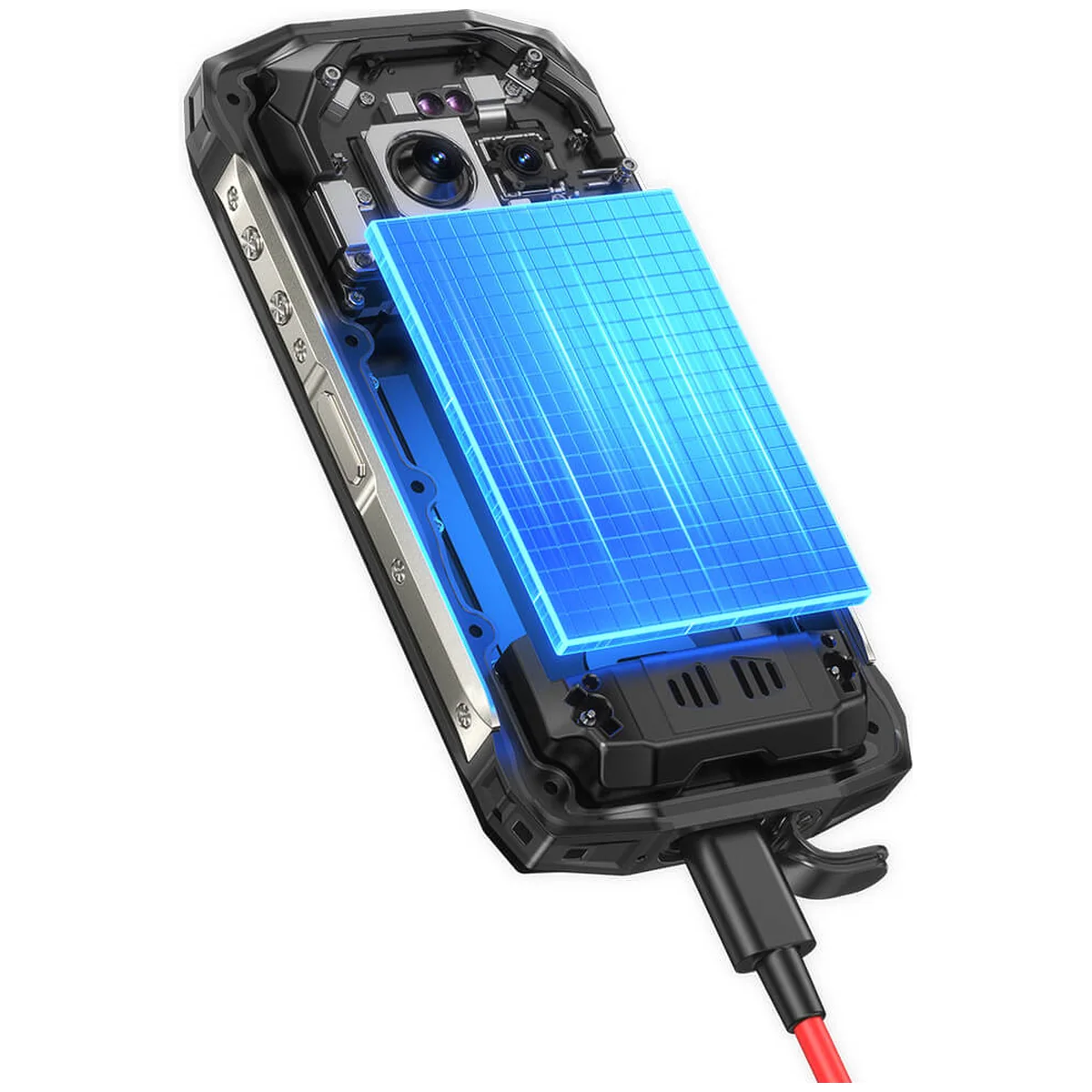

Charging and battery
6200mAh Battery. Built-in lithium-ion polymer battery. USB Type-C port. Supports 33W fast charging. Supports 15W wireless charging. Supports wireless reverse charging. Battery Life. Standby Time | Up to 336 Hours. Talk Time | Up to 34 Hours.
Ulefone Armor Mini 20 Wholesale and Bulk Orders
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor Mini 20 offers 6GB+256GB memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor Mini 20 specifications.
Ulefone Armor Mini 20 Manufacturer Notes
- The battery is non-removable, removing it may cause damage to the device.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor Mini 20 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard
- Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Mini
- Liquid damage not covered under warranty.
- Armor Mini 20 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor Mini 20 into water.
- The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 4.7 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local carriers support this function.
- The virtual memory can be activated in Settings at your will.
- Datas are from Ulefone lab, the actual performance may vary.
- Sports Armband is sold separately.
- The Case Kit is sold separately.
- The Versatile LED Light is too bright to stare at directly. Notes:
- The battery is non-removable, removing it may cause damage to the device.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor Mini 20 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard
- Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Mini
- Liquid damage not covered under warranty.
- Armor Mini 20 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor Mini 20 into water.
- The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 4.7 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local carriers support this function.
- The virtual memory can be activated in Settings at your will.
- Datas are from Ulefone lab, the actual performance may vary.
- Sports Armband is sold separately.
- The Case Kit is sold separately.
- The Versatile LED Light is too bright to stare at directly. Keywords: Night vision smartphone Low light camera phone Infrared night vision phone Nocturnal camera phone Dark environment phone Surveillance night vision phone Security camera phone for night use Infrared sensor phone Applicable User Groups: Security Professionals (for surveillance at night) Outdoor Adventurers (for nocturnal activities like hiking or wildlife observation) Hunters (for night hunting) Search and Rescue Teams (for nighttime operations) Law Enforcement and Military (for nighttime reconnaissance) Wildlife Researchers (for observing animals in the dark) Usage Scenarios: Nighttime Surveillance: Monitoring areas at night Outdoor Exploration: Hiking or wildlife observation in low light conditions Search and Rescue: Assisting rescue efforts in low visibility or dark conditions Hunting: Tracking animals in the dark Keywords: Small rugged phone Pocket-sized smartphone Miniature rugged phone Portable small phone Compact form factor phone Ultra-portable phone Lightweight rugged phone Applicable User Groups: People with Small Hands (who prefer easy-to-hold devices) Elderly or Kids (who need a small, simple phone) Outdoor Adventurers (for easy portability in tight spaces) Minimalists (those who want a compact, no-frills phone) Usage Scenarios: Portability: Easy carrying in a small bag or pocket Simple Use: Easy-to-operate phone for basic functions Travel: Ideal for quick access in tight spaces during adventures Emergency: Compact enough for an emergency backup device Keywords: Outdoor phone with flashlight Rugged phone with built-in LED light Camping smartphone with flashlight Multi-functional camping phone Phone with emergency light feature Outdoor adventure phone with light Phone for night camping Applicable User Groups: Camping Enthusiasts (who need reliable light sources during their trips) Hikers and Backpackers (who require portable light sources in the wilderness) Survivalists (who prepare for emergency situations) Outdoor Photographers (needing light for nighttime photography) Usage Scenarios: Nighttime Outdoor Activities: Providing light during camping or hiking Emergency Situations: Offering lighting when there’s no other source Field Work: Using the light for basic tasks in the dark Keywords: Wireless charging smartphone Qi-compatible phone Wireless charging rugged phone Phone with wireless power Cordless charging phone Phone with wireless charging capability Applicable User Groups: Tech-Savvy Users (who prefer wireless charging convenience) Office Workers (who want to keep their desks free of cables) Travelers (who want hassle-free charging during trips) Usage Scenarios: Home or Office Charging: Placing the phone on a wireless charging pad Traveling: Charging without needing cables Quick Charge: Charging without having to plug in the device
Ulefone Armor Mini 20 Specifications
| Size and Weight | |
|---|---|
| Height | 133.5 mm |
| Width | 63.3 mm |
| Depth | 24.9 mm |
| Weight | 301 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |
| Warning Light | |
| Red light, blue Light, red-blue light | |
| Simulated warning sound | fire, ambulance, police car, and other first responding warning sound |
| Lighting modes | 2, constant or blink |
| Versatile Light | |
| 500 Max Lumens | |
| 130 LEDs | |
| 5W Max Power | |
| IPX8 Waterproof | |
| Charging and battery | |
| 6200mAh Battery | |
| Built-in lithium-ion polymer battery | |
| USB Type-C port | |
| Supports 33W fast charging | |
| Supports 15W wireless charging | |
| Supports wireless reverse charging | |
| Battery Life | |
| Standby Time | Up to 336 Hours |
| Talk Time | Up to 34 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| *Non-removable battery. Removing the battery may cause damage to the device. | |
| *Use with original charger and data cable, the max charging power can reach 33W. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| *Under the Ulefone private protocol, the max wireless charging power is 15W, also compatible with Qi protocol with max 15W wireless charging. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor Mini 20 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes). | |
| *Charger and accessories are not water-resistant. | |
| *Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. | |
| *Do not attempt to charge a wet Armor Mini 20. | |
| *Liquid damage not covered under warranty. | |
| Processor | |
| MediaTek Helio G99 | |
| CPU | MTK6789 |
| CPU architecture | 2*Cortex-A76+6*Cortex-A55, 6nm process |
| CPU frequency | Octa Core, up to 2.2GHz |
| GPU | Arm Mali-G57 MC2 |
| Storage and RAM | |
| 6GB+256GB | |
| RAM | 6GB large memory，LPDDR4X |
| Flash storage | 256GB phone storage, UFS 2.2 |
| microSD memory card Up to 2TB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. | |
| *The Virtual Memory Expansion can be activated in Settings and adds up to 6GB of RAM. Some software may not be compatible with this feature. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Display | |
| 4.7‑inch (diagonal) | |
| Punch-hole Display | |
| All-screen LCD Multi-Touch display with IPS technology | |
| 20 | 9, 720 x 1600 HD+ |
| 373 ppi | |
| Refresh rate | 90 Hz |
| Corning Gorilla Glass Victus | |
| Fingerprint-resistant oleophobic coating | |
| *With a rounded corners design on the display, the diagonal length of the screen is 4.7 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Rear Camera | |
| 50MP+64MP Dual Camera | |

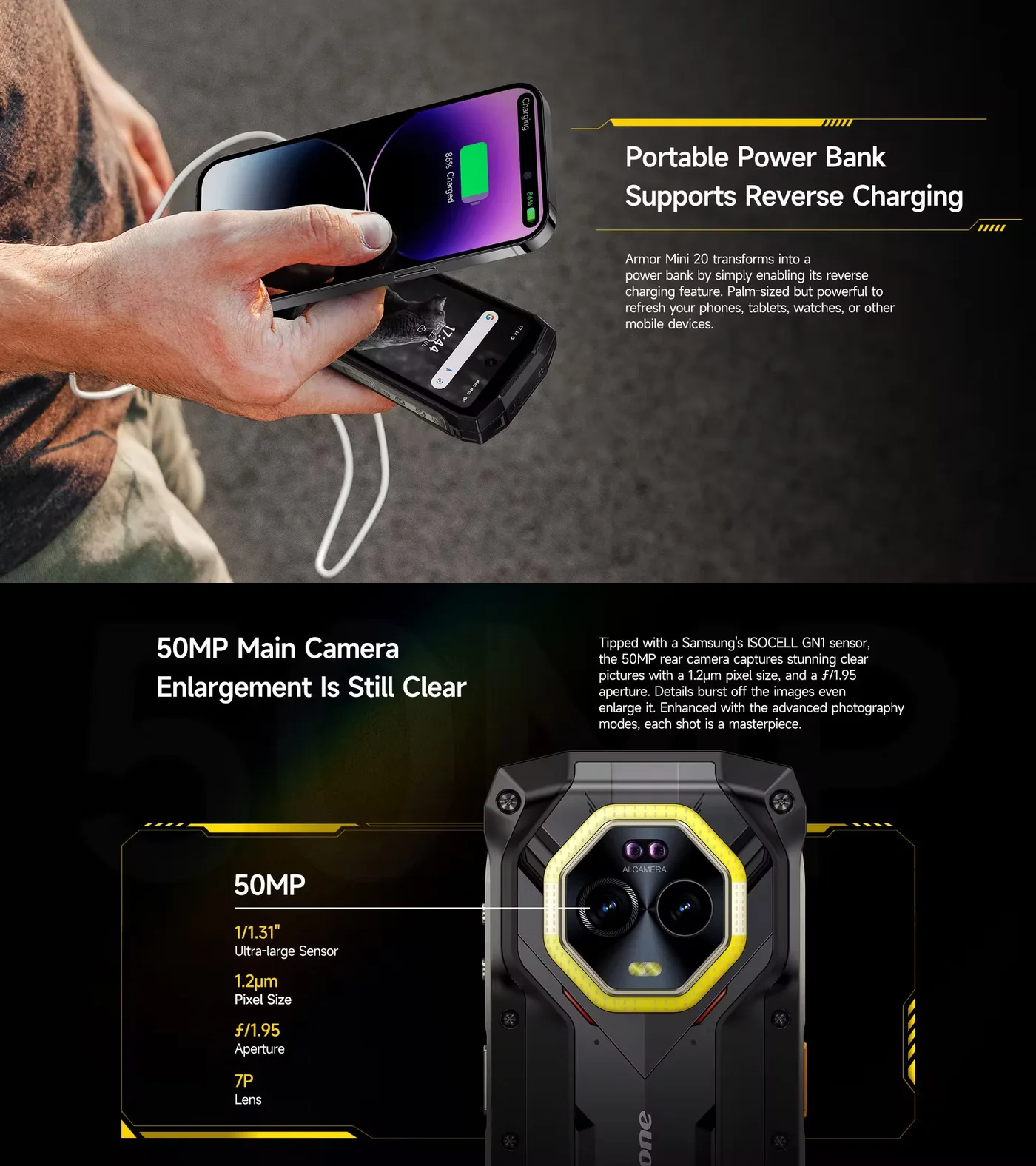

| 50MP Main Camera, 1/1.31'' Ultra-large Lens | |
| Samsung GN1 sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture | |

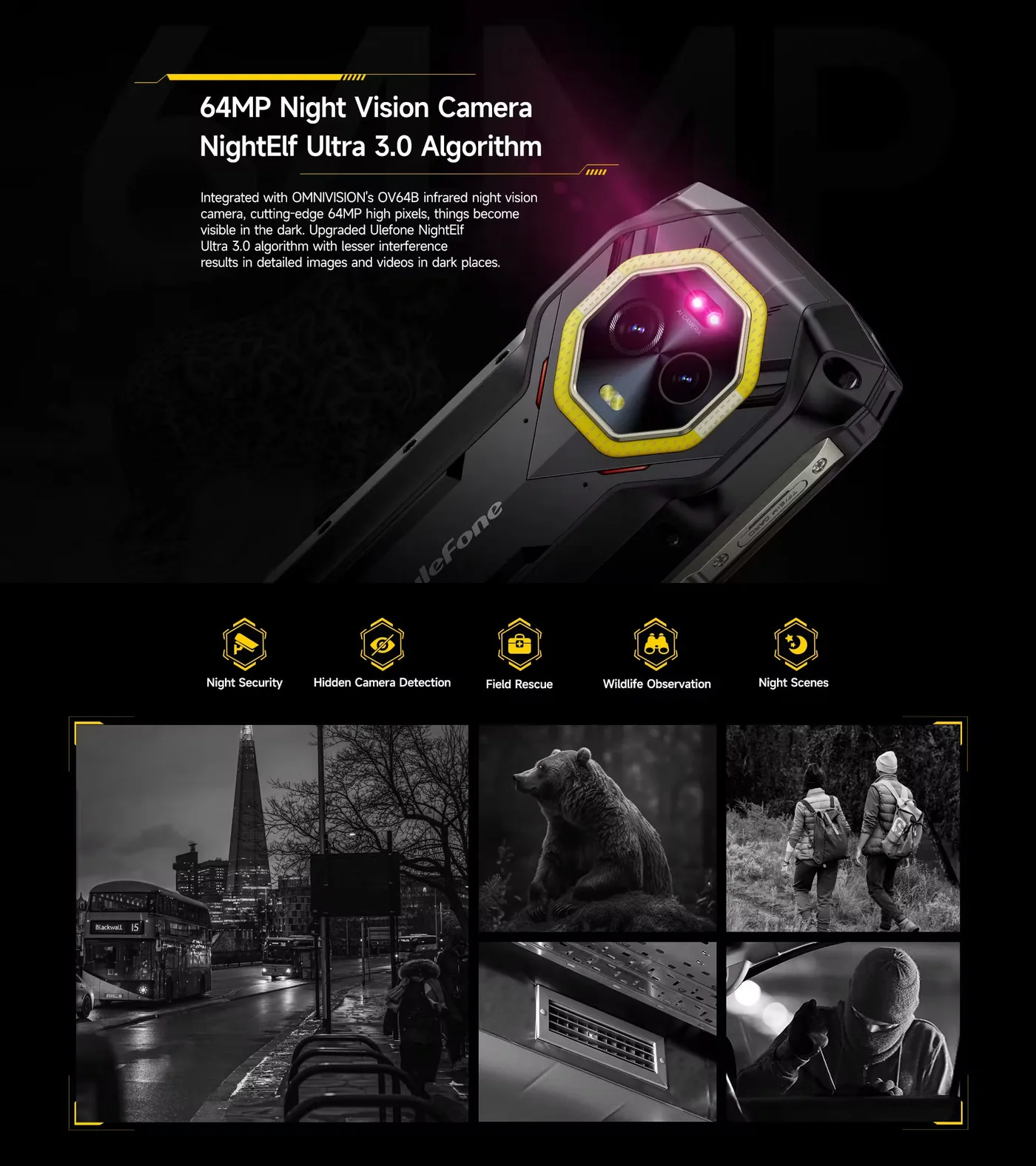

| 64MP Night Vision Camera | |
| OV64B sensor, FOV 79.8°, ƒ/1.79 large aperture | |
| Photo resolution | up to 6144 x 8192 pixels |
| Video resolution | up to 2K |
| Dual LED Flash | |
| Rear camera photography features | |
| Normal mode, Film mode, 50MP mode, Night mode, Document correction, GroupPhoto, AI Emoji, Gif, Portrait, Sports, Pro mode, Panorama, Slow motion, Time lapse, Intelligent acanning | |
| HDR, AI scene detection, Filters, Location info, Brand watermark, Camera mute, Touch shooting, Time-lapse, Grid line, Volume key feature, Anti flicker, Long Press | |
| Rear camera video features | |
| 2K recording | 30fps |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Front Camera | |
| 32MP selfie camera | |
| Samsung GD1 Sensor | |
| 0.8µm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture | |
| Front camera photography features | |
| Normal mode, Film mode, GroupPhoto, AI Emoji, Gif, Portrait | |
| Filters, Location info, Watermark, Mirror, Camera mute, Touch shooting, Time-lapse, Grid line, Volume key feature, Anti flicker | |
| Front camera video features | |
| 2K recording | 30fps |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Underwater Photography | |
| Supports to take photos & video recording | |
| Supports to start/end operation underwater | |
| Supports to quickly switch shooting modes underwater | |
| Unlock Options | |
| Supports Fingerprint Unlock | |
| Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together | |
| Capacitive Touch Sensor | |
| Response speed | Up to 0.1s |
| Supports the enrollment of 5 sets of fingerprint | |
| Supports Face Unlock | |
| Network | |
| Supports use of dual SIM cards from different carriers | |
| Both cards can access 4G connectivity simultaneously | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 4G/3G/2G | |
| Supports VoLTE HD calling | |
| Supported network bands | |
| 4G Network | |
| LTE-FDD | B1/2/3/4/5/7/8/12/13/17/18/19/2025/ 26/28A/28B/32/66/71 |
| 4G Network | |
| LTE-FDD | B1/2/3/4/5/7/8/12/13/17/18/1920/25/26/28A/28B/66/71 |
| LTE-TDD | 34/38/39/40/41 |
| 3G Network | |
| WCDMA | B1/2/4/5/6/8/19 |
| 2G Network | |
| GSM | B2/3/5/8 |
| CDMA | BC0/BC1/BC10 |
| *Dual 4G SIM requires the support of local telecom operator services, and may not be available in all regions. | |
| * Only certain regions and telecom operators support VoLTE. | |
| Connectivity | |
| WLAN | |
| Supports protocols | 802.11 a/ac/b/g/n |
| Supports 2.4G/5G | |
| Bluetooth | |
| Supports Bluetooth 5.2 | |
| Navigation and positioning | |
| Supports multiple positioning systems | |
| GPS | |
| GLONASS | |
| Galileo | |
| BEIDOU | |
| QZSS | |
| Supports Digital Compass | |
| NFC | |
| Supports Google Pay | |
| Supports Transit, Loyalty Cards, Gift Cards and Plane tickets | |
| *Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer to https://pay.google.com/about. | |
| Operating System | |
| Android 15 | |
| Pure Android System | |
| No ads | |
| Buttons | |
| Sensors | |
| Infrared sensor, NFC, Proximity sensor, Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor | |
| Multimedia | |
| Video | MOV/MKV/3GP/MP4 |
| Audio | MID/FLAC/MKA/MP3/M4AAAC/AMR/OGG/MP2 |
| Image | GIF/JPEG/PNG/BMP |
| Ebook | TXT/HTML |
| Ports | |
| USB 2.0, Type-C | |
| 3.5 mm Headphone Jack | |
| Card slot | |
| Two(2), Nano SIM + Nano SIM / microSD | |
| Notification Light | |
| Support, tri-color light, red/green/blue | |
| Supports charging prompt | |
| Language support | |
| Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese | |
| In the box | |

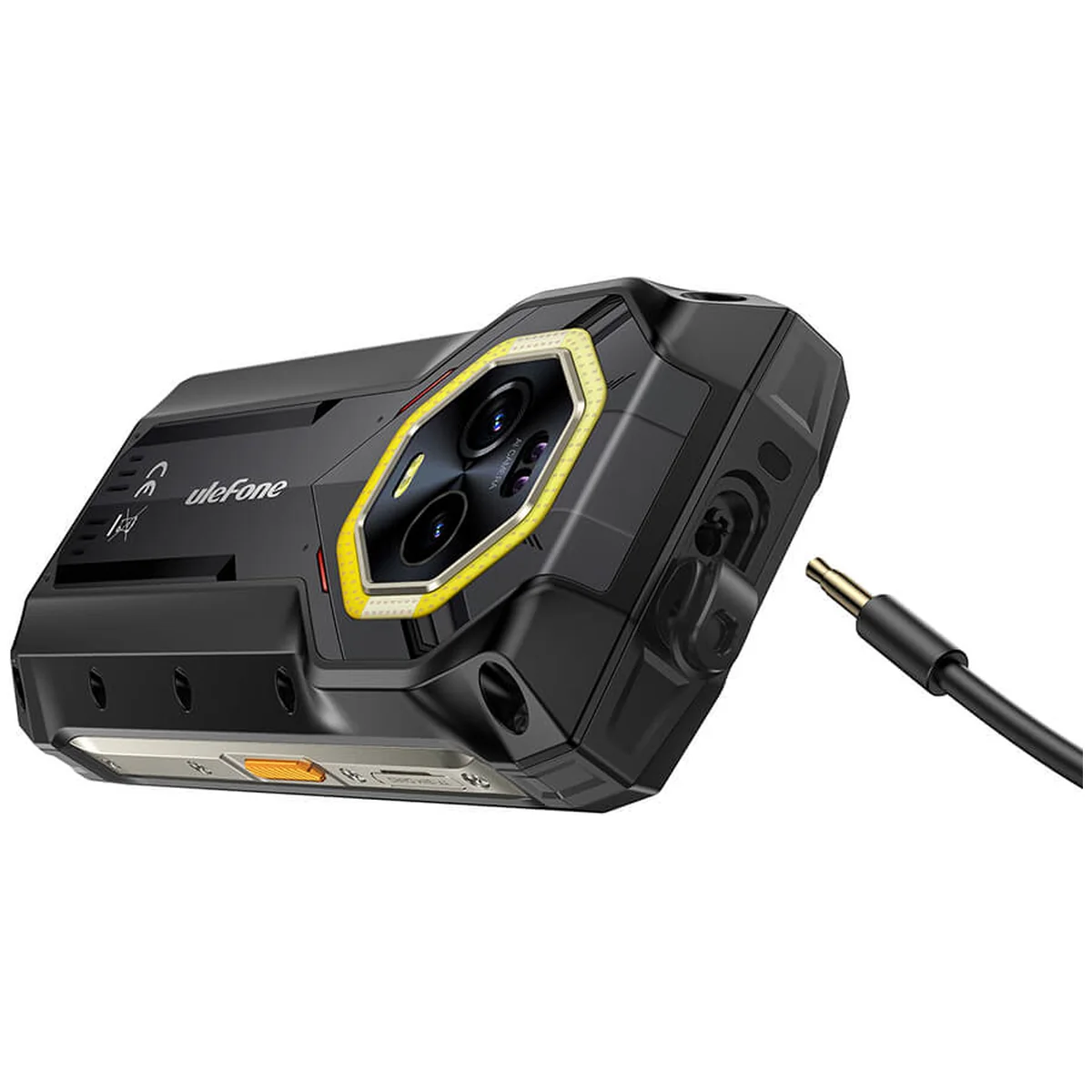

| 1 x Armor Mini 20 | |
| 1 x AC power charger (100~240V) | |
| 1 x Type-C to Type-C Data cable (100cm) | |
| 1 x Protective Film (Pre-installed) | |
| 1 x Tempered Glass Screen Protector | |
| 1 x SIM needle | |
| 1 x Lanyard | |
| 1 x Multi-language user manual | |
| 1 x Multi Function Instruction card | |
| 1 x Warranty card | |
| 1 x Charging Instruction card | |
| 1 x Safety Prompt card | |
| 1 x Accesories Ecosystem Brochure | |
| 1 x Service Center APP Instructions | |
| *The AC power charger's plug type varies according to your region, with optional standard EU/AU/US plugs available. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The phone pictures and screen content on the above are for illustration only. The actual phone (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
0
Years Of Successful Business
0
Reviews Of 10000+ Satisfied Clients
0
Years Factory Warranty
0
Patents owned in global
0
Business Partners
0
Risk-Free Guarantee
NEED BULK ORDER ?
