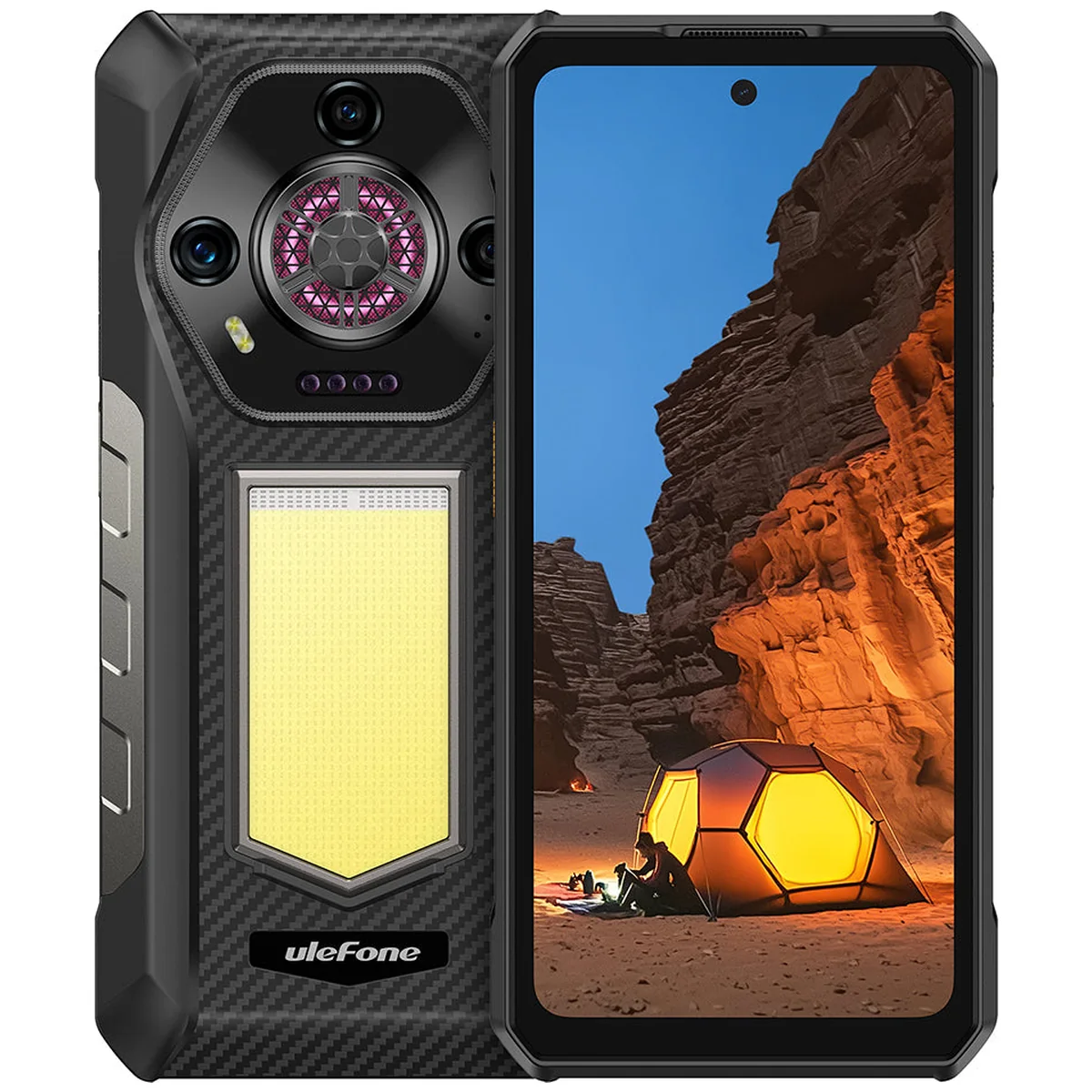

Ulefone Armor 30 Rugged Phones
Night Vision, 12GB + 512GB, 12800mAh, 6.95-inch, Android 15, MediaTek Helio G100, Network: 4G, NFC
Ulefone Armor 30 features MediaTek Helio G100, 12GB + 512GB memory and storage, 6.95‑inch (diagonal), 12800mAh battery, Android 15. Android 15 Display: The 6.95-inch FHD+ display features a 120Hz refresh rate and Corning Gorilla Glass 5, providing high-efficiency visual fluidity and 700-nit peak brightness for unrivaled outdoor readability. Integrated LED Lighting: A high-intensity 1236-lumen long-range beam and integrated emergency warning lights provide critical illumination and signaling capabilities for professional field operations and emergency scenarios.
50MP+64MP+50MP Triple Camera System
Supports 66W fast charging
6.95‑inch (diagonal)
12GB + 512GB physical memory and storage
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Ulefone Armor 30 Features
Ulefone Armor 30 features MediaTek Helio G100, 12GB + 512GB memory and storage, 6.95‑inch (diagonal), 12800mAh battery, Android 15.

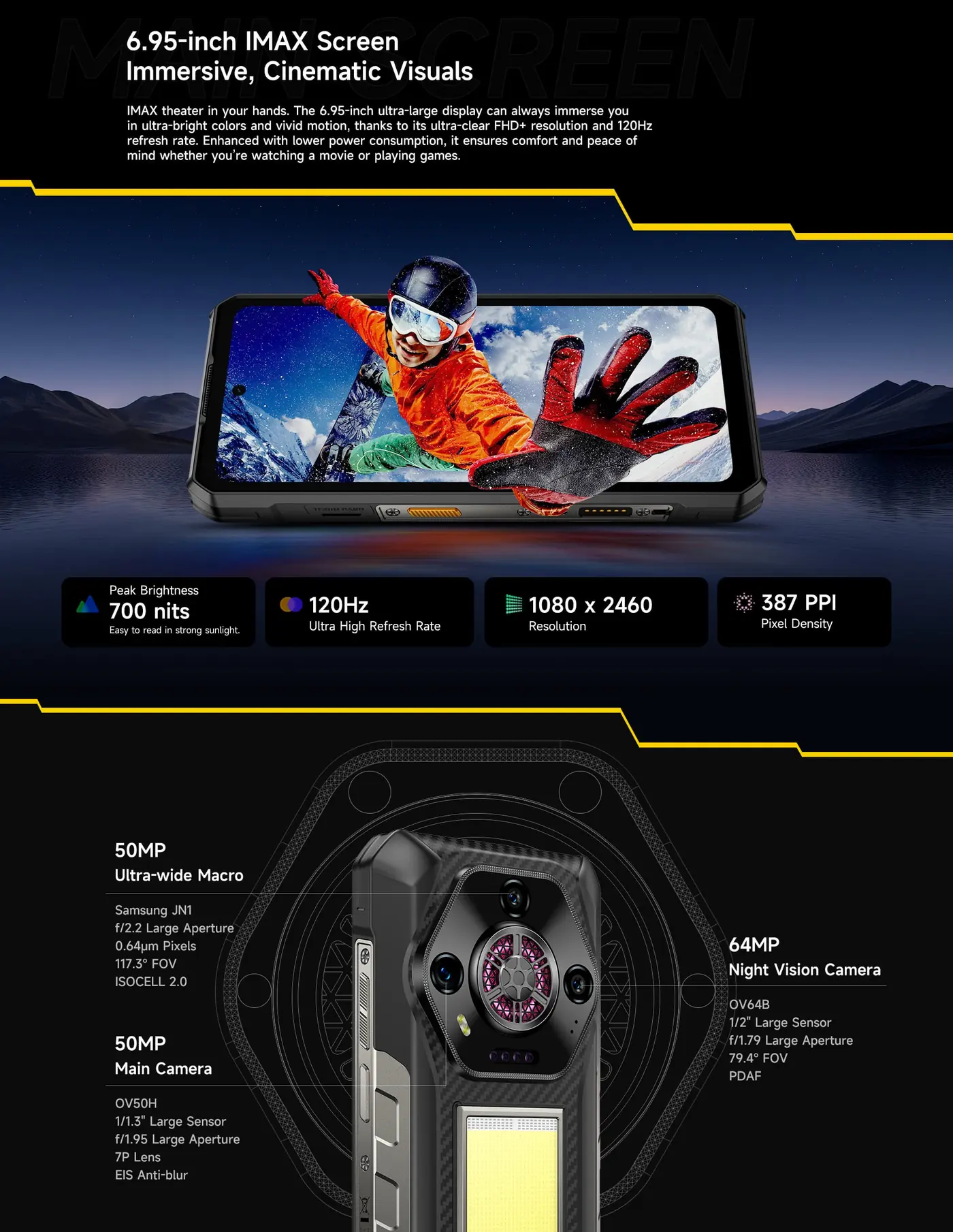

Android 15 Display
The 6.95-inch FHD+ display features a 120Hz refresh rate and Corning Gorilla Glass 5, providing high-efficiency visual fluidity and 700-nit peak brightness for unrivaled outdoor readability.
Integrated LED Lighting
A high-intensity 1236-lumen long-range beam and integrated emergency warning lights provide critical illumination and signaling capabilities for professional field operations and emergency scenarios.
High-Performance Hardware
The MediaTek Helio G100 processor paired with up to 24GB RAM(12GB+12GB entended) and 512GB internal storage ensures smooth multitasking and high-capacity data management for complex professional workflows.

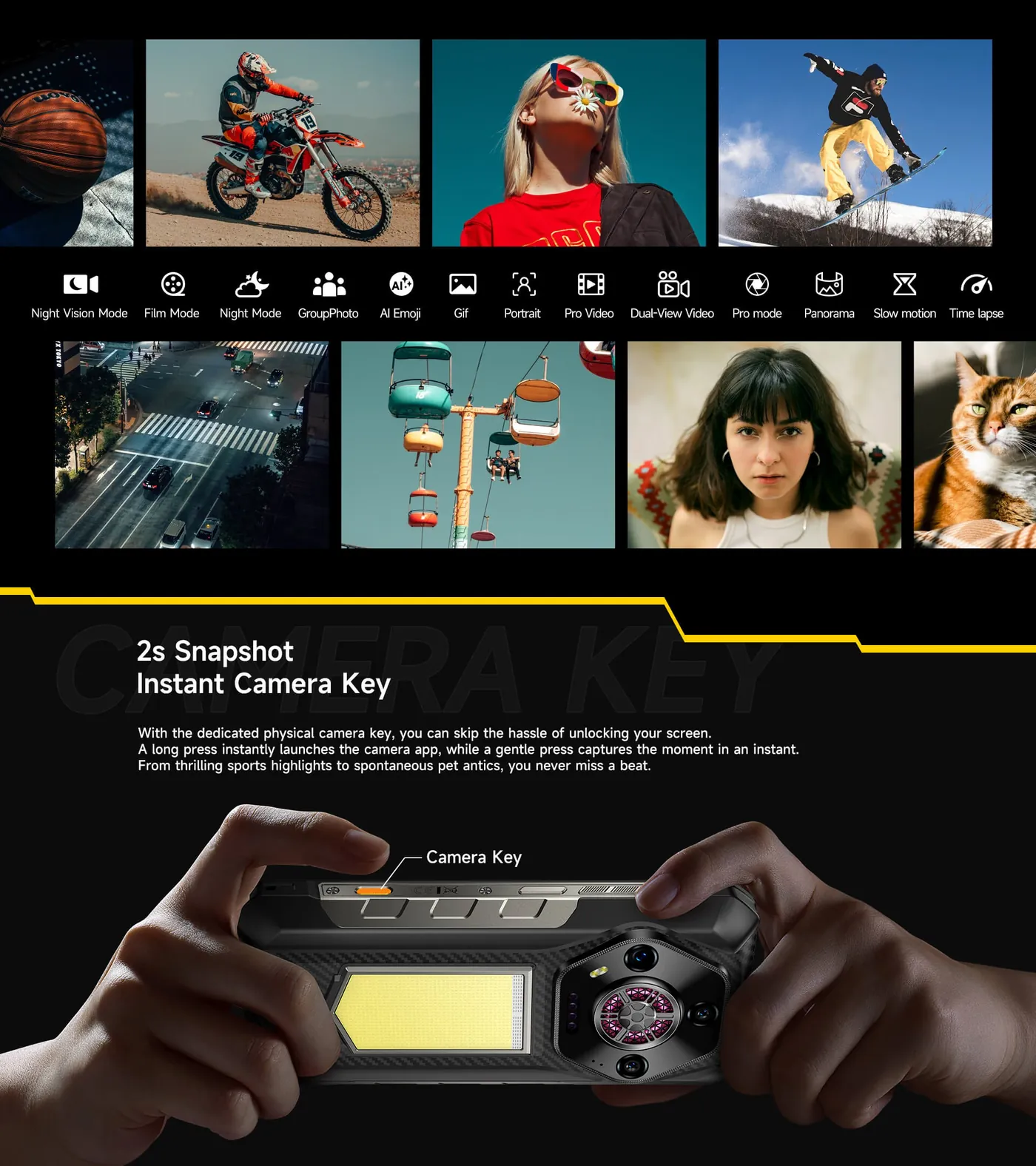

Advanced Quad-Camera System
A professional-grade imaging suite featuring 50MP main, 50MP ultra-wide, and 64MP infrared night vision sensors allows for precise documentation in any lighting condition via a dedicated physical shutter key.

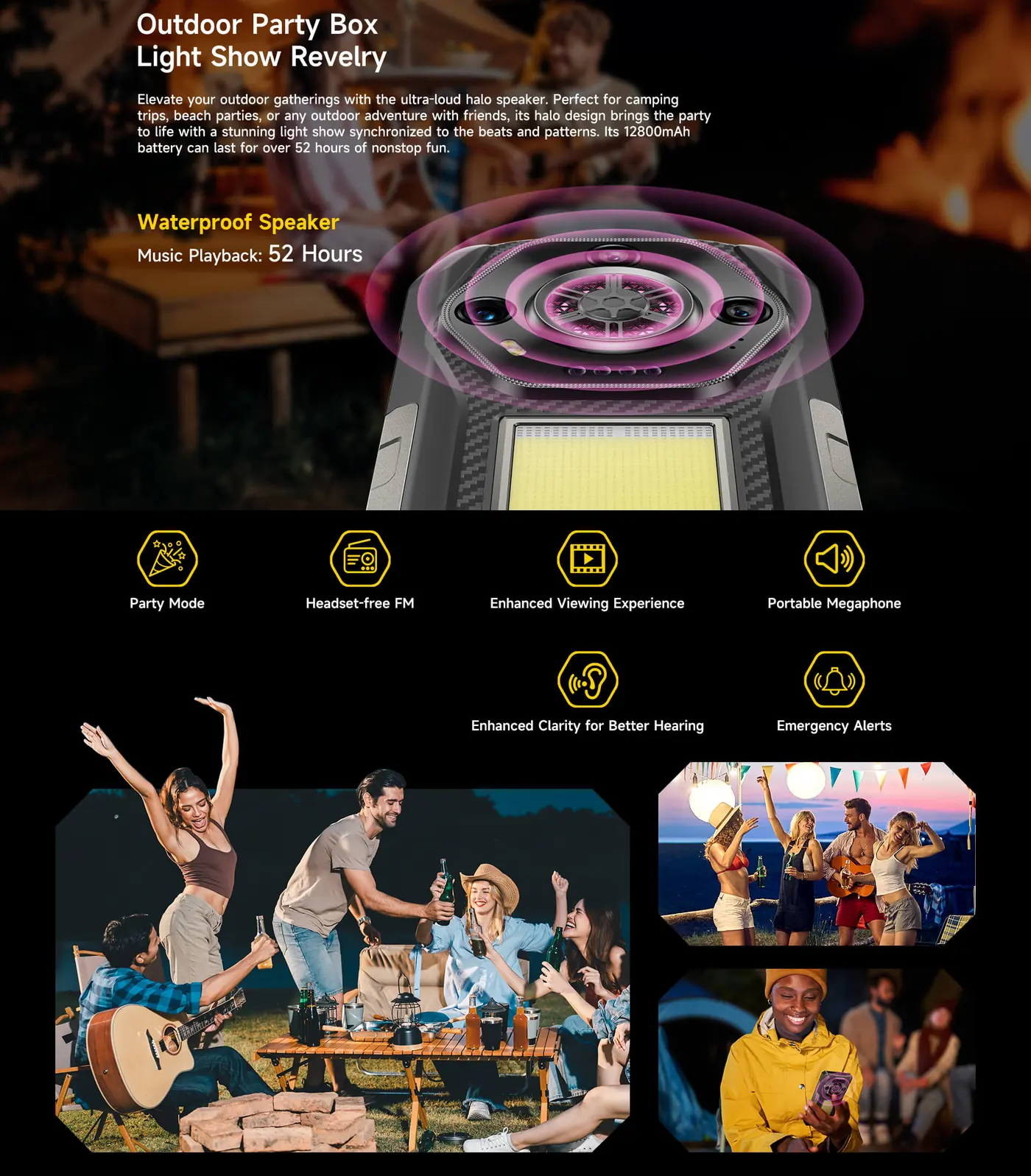

HiFi Audio System
The 118dB 4W powerful speaker with a 9cc sound cavity delivers high-fidelity audio performance, complemented by the customizable Infinite Halo 2.0 lighting for adaptive visual feedback.
High-Capacity Battery
The 12800mAh power cell supports 66W fast charging and 10W reverse charging, providing a multi-day energy reserve and the ability to fuel external devices in remote locations.
Ruggedized Certification
Engineered to IP68/IP69K and MIL-STD-810H standards, this device offers ultimate protection against water, dust, and high-impact drops in extreme industrial environments.

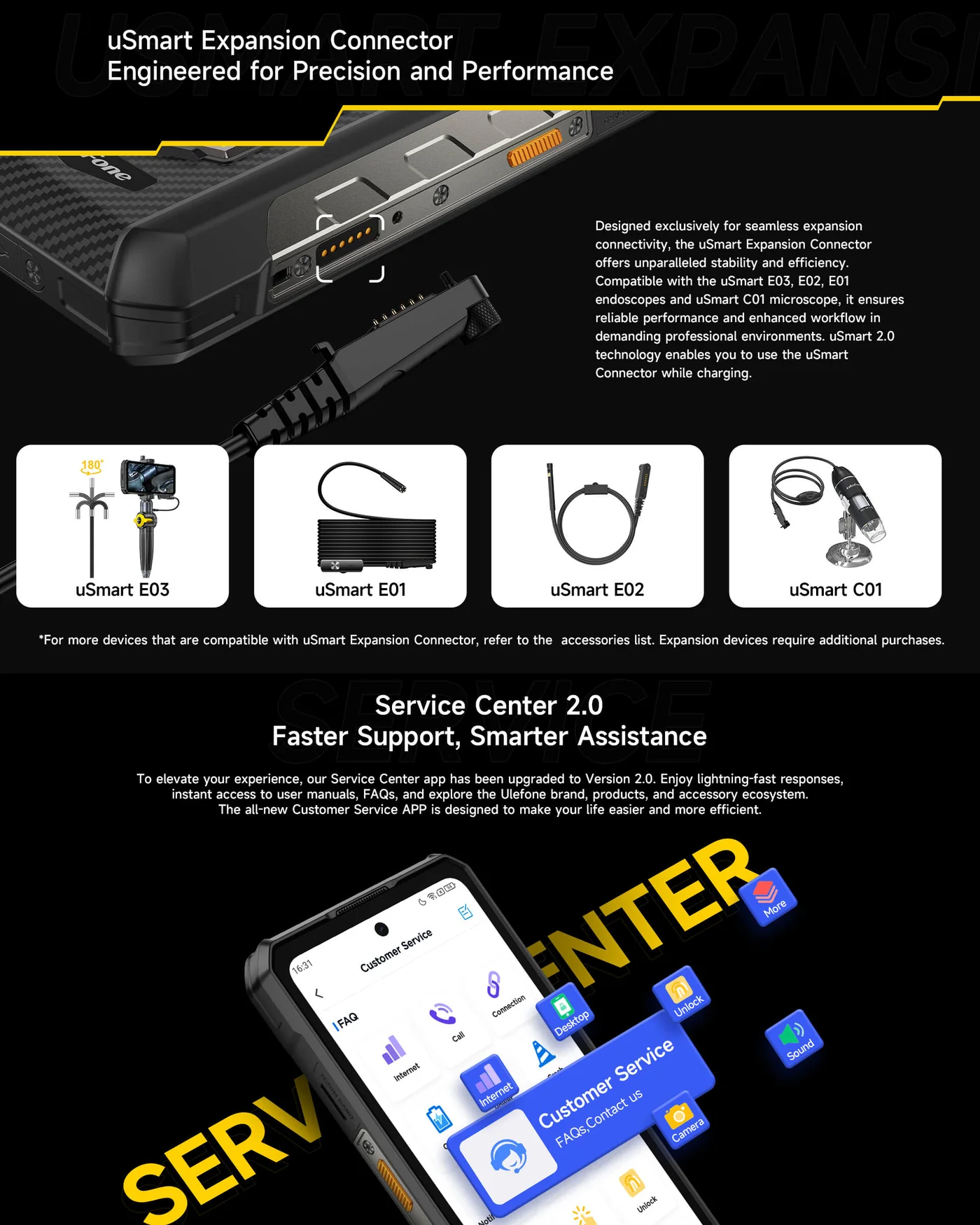

uSmart Expansion Connector
The specialized uSmart interface enables seamless integration with professional diagnostic tools including endoscopes and microscopes for advanced technical inspections.

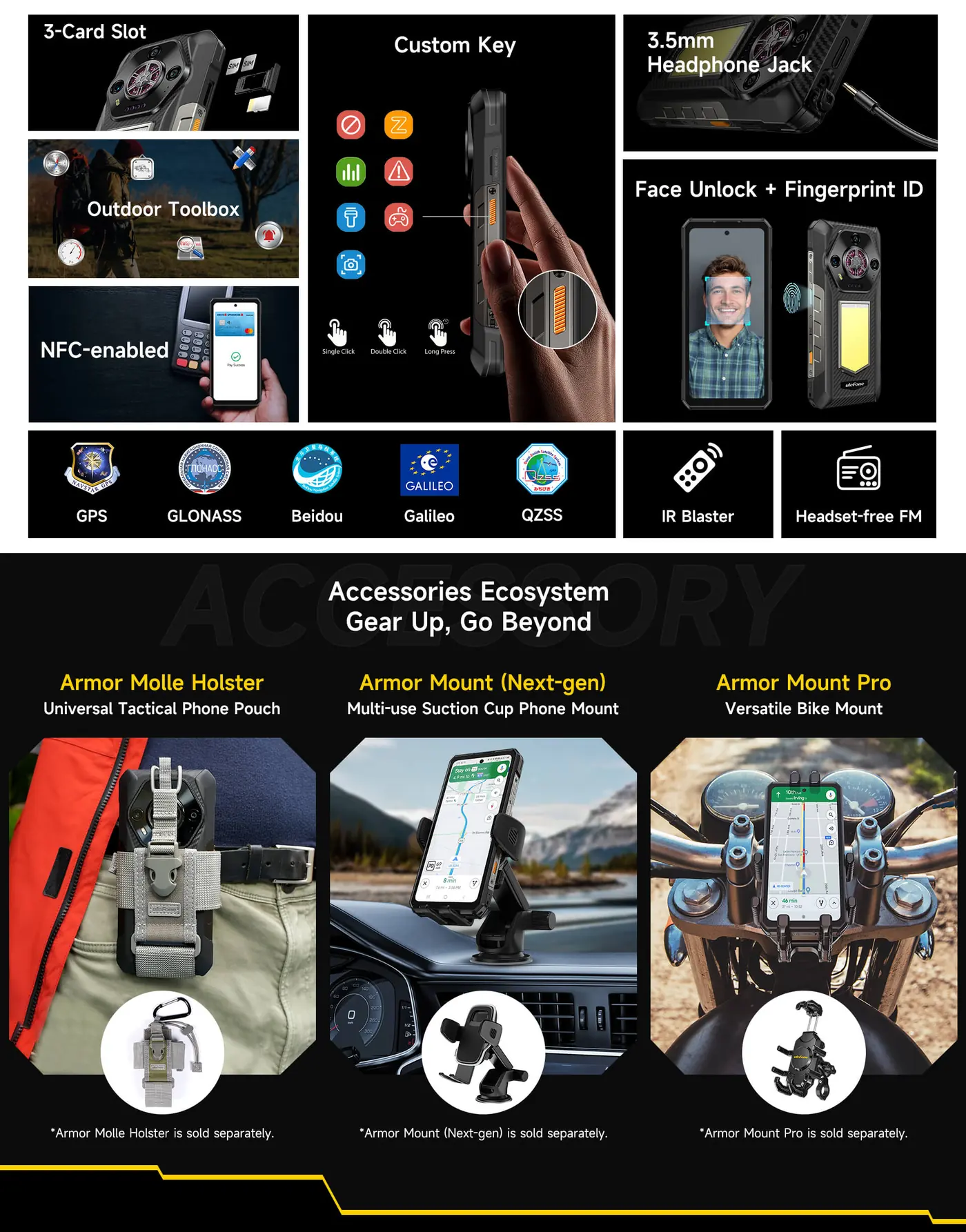

Professional Utility Suite
This mobile phone equipped with 3 card slots (2 nano-SIM+1 microSD), NFC, fingerprint recognition, face unlock, GPS+GLONASS+Beidou+Galileo+QZSS, customizable key, IR transmitter, FM radio, 3.5mm jack, and digital toolbox.
Size and Weight
Height: 181.3 mm. Width: 84.9 mm. Depth: 21.2 mm. Weight: 506 grams.
Charging and battery
12800mAh Battery. Built-in lithium-ion polymer battery. USB Type-C port. Supports 66W fast charging. Supports 10W wired reverse charging. Battery Life. Standby Time | Up to 690 Hours. Talk Time | Up to 69 Hours.
Rugged
Splash, Water and Dust Resistant. Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529. Rated IP69K under IEC standard 60529. MIL-STD-810H Certification.
Processor
MediaTek Helio G100. CPU: MediaTek MT6789. CPU architecture: 8, 2x Arm Cortex-A76 up to 2.2GHz, 6x Arm Cortex-A55 up to 2GHz. CPU frequency: Octa Core, up to 2.2GHz. GPU: Arm Mali-G57 MC2, up to 1.0GHz.
Ulefone Armor 30 Wholesale and Bulk Orders
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor 30 offers 12GB + 512GB memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor 30 specifications.
Ulefone Armor 30 Manufacturer Notes
- The battery is non-removable, removing it may cause damage to the device.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor 30 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of
- 8 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor
- Liquid damage not covered under warranty.
- Armor 30 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor 30 into water.
- The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 6.95 inches is the diagonal length of the displays when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local carriers support this function.
- The dynamic RAM can be activated in Settings at your will.
- Datas are from Ulefone lab, the actual performance may vary.
- Sports Armband is sold separately.
- Armor Mount Pro is sold separately.
- Armor Mount (Next-gen) is sold separately.
- Armor Molle Holster is sold separately.
- For more devices that are compatible with uSmart Expansion Connector, refer to the accessories list. Expansion devices require additional purchases. Notes:
- The battery is non-removable, removing it may cause damage to the device.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor 30 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of
- 8 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor
- Liquid damage not covered under warranty.
- Armor 30 has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor 30 into water.
- The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 6.95 inches is the diagonal length of the displays when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local carriers support this function.
- The dynamic RAM can be activated in Settings at your will.
- Datas are from Ulefone lab, the actual performance may vary.
- Sports Armband is sold separately.
- Armor Mount Pro is sold separately.
- Armor Mount (Next-gen) is sold separately.
- Armor Molle Holster is sold separately.
- For more devices that are compatible with uSmart Expansion Connector, refer to the accessories list. Expansion devices require additional purchases.
Ulefone Armor 30 Specifications
| Size and Weight | |
|---|---|
| Height | 181.3 mm |
| Width | 84.9 mm |
| Depth | 21.2 mm |
| Weight | 506 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |
| Charging and battery | |
| 12800mAh Battery | |
| Built-in lithium-ion polymer battery | |
| USB Type-C port | |
| Supports 66W fast charging | |
| Supports 10W wired reverse charging | |
| Battery Life | |
| Standby Time | Up to 690 Hours |
| Talk Time | Up to 69 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| *Non-removable battery. Removing the battery may cause damage to the device. | |
| *Use with original charger and data cable, the max charging power can reach 66W. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor 30 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 30. Liquid damage not covered under warranty. | |
| Processor | |
| MediaTek Helio G100 | |
| CPU | MediaTek MT6789 |
| CPU architecture | 8, 2x Arm Cortex-A76 up to 2.2GHz, 6x Arm Cortex-A55 up to 2GHz |
| CPU frequency | Octa Core, up to 2.2GHz |
| GPU | Arm Mali-G57 MC2, up to 1.0GHz |
| Storage and RAM | |
| 12GB + 512GB | |
| RAM | 12GB large memory, LPDDR4X |
| Flash storage | 512GB phone storage, UFS2.2 |
| microSD memory card Up to 2TB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. | |
| *The Virtual Memory Expansion can be activated in Settings and adds up to 12GB of RAM. Some software may not be compatible with this feature. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Display | |
| 6.95‑inch (diagonal) | |
| Punch-hole Display | |
| 1080 x 2460 FHD+ | |
| Refresh rate | 120 Hz |
| Corning® Gorilla® Glass 5 | |
| Peak Brightness：700 nits | |
| *With a rounded corners design on the display, the diagonal length of the screen is 6.95 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Rear Camera | |
| 50MP+64MP+50MP Triple Camera System | |
| 50MP Main Camera | |
| OV50H sensor, 1.197μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture | |
| 64MP Night Vision Camera | |
| OV64B sensor, FOV 79.4°, ƒ/1.79 large aperture | |
| 50MP Ultra Wide-angle Camera | |
| Samsung JN1 sensor, FOV 117.3°, ƒ/2.2 large aperture | |
| Rear camera photography features | |
| Normal mode, Night vision mode, Film mode, 50MP mode, Night mode, Document correction, Beauty, GroupPhoto, AI Emoji, Gif, Portrait, Pro Video, Sports, Dual-View Video, Pro mode, Panorama, Slow motion, Time lapse, Intelligent scanning | |
| HDR, AI scene detection, Filters, Level, Location info, Brand watermark, Camera mute, Touch shooting, Self timer, Grid line, Volume key feature, Anti flicker, Long Press | |
| Rear camera video features | |
| 2K recording | 30fps |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The depth sensor can only be used as a photography assistant to improve the photo effect and needs to be used with other cameras for imaging. | |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Front Camera | |
| 32MP selfie camera | |
| Samsung GD2 sensor, 0.8µm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture | |
| Front camera photography features | |
| Normal mode, Film mode, Beauty, GroupPhoto, AI Emoji, Gif, Portrait | |
| Filters, Level, Location info, Watermark, Mirror, Camera mute, Touch shooting, Self timer, Grid line, Volume key feature, Anti flicker | |
| Front camera video features | |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Halo | |
| Infinite Halo 2.0 | |
| Color | RGB |
| Mode | Music, Calling, Notification, Charging |
| Audio | |
| 118dB HiFi Quality Speaker | |
| 4W peak wattage | |
| Smart PA high volume boost | |
| 9cc-equivalent large sound cavity design | |
| * The data are theoretical values from Ulefone lab based on specific test environment. | |
| Warning Light | |
| Red Light, Blue Light, Red-Blue light | |
| Simulated warning sound | fire, ambulance, police car, and other first responding warning sound |
| Lighting modes | 2, constant or blink |
| Versatile Light | |
| 1236 Max Lumens | |
| 828 LEDs | |
| 6.84W Max Power | |
| IP68 Waterproof | |
| Underwater Photography | |
| Supports to take photos & video recording | |
| Supports to start/end operation underwater | |
| Supports to quickly switch shooting modes underwater | |
| Unlock Options | |
| Supports Fingerprint Unlock | |
| Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together | |
| Capacitive Touch Sensor | |
| Response speed | Up to 0.1s |
| Supports the enrollment of 5 sets of fingerprint | |
| Supports Face Unlock | |
| Network | |
| Supports use of dual SIM cards from different carriers | |
| Both cards can access 4G connectivity simultaneously | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 4G/3G/2G | |
| Supports VoLTE HD calling | |
| Supported network bands | |
| 4G Network | |
| LTE-FDD | B1/2/3/4/5/7/8/12/13/17/18/1920/25/26/28A/28B/32/66/71 |
| LTE-TDD | B34/38/39/40/41 |
| 3G Network | |
| WCDMA | B1/2/4/5/6/8/19 |
| 2G Network | |
| GSM | B2/3/5/8 |
| CDMA | BC0/BC1/BC10 |
| * The support for 4G depends on the local carriers' network; Dual 4G requires the support of local carriers services, and may not be available in all regions. | |
| * Only supports single SIM for communication service, which means when one of the SIM cards is in calling, the other SIM card will not be able to connect. | |
| * Only certain regions and telecom operators support VoNR. | |
| * Only certain regions and telecom operators support VoLTE. | |
| * Single VoNR only, you can select one SIM to enable VoNR, in the meanwhile, VoLTE is enabled by default on the other SIM. You also can choose to turn off VoNR or VoLTE. | |
| Connectivity | |
| WLAN | |
| Supports protocols | 802.11a/b/g/n/ac |
| Supports 2.4/5GHz | |
| Bluetooth | |
| Supports Bluetooth 5.2 | |
| Navigation and positioning | |
| Supports multiple positioning systems | |
| GPS | |
| GLONASS | |
| Galileo | |
| BEIDOU | |
| QZSS | |
| Digital Compass | |
| NFC | |
| Supports Google Pay | |
| Supports Transit, Loyalty Cards, Gift Cards and Plane tickets | |
| *Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer tohttps://pay.google.com/about | |
| Operating System | |
| Android 15 | |
| Pure Android System | |
| No ads | |
| Buttons | |
| Sensors | |
| Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Infrared sensor | |
| Multimedia | |
| Video | MOV/MKV/3GP/MP4 |
| Audio | MID/FLAC/MKA/MP3/M4AAAC/AMR/OGG/MP2 |
| Image | GIF/JPEG/PNG/BMP |
| Ebook | TXT/HTML |
| Ports | |
| USB 2.0, Type-C | |
| 3.5 mm Headphone Jack | |
| Card slot | |
| Three(3), Nano SIM + Nano SIM + microSD | |
| Notification Light | |
| Support, tri-color light, red/green/blue | |
| Supports charging prompt | |
| Language support | |
| Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese | |
| In the box | |

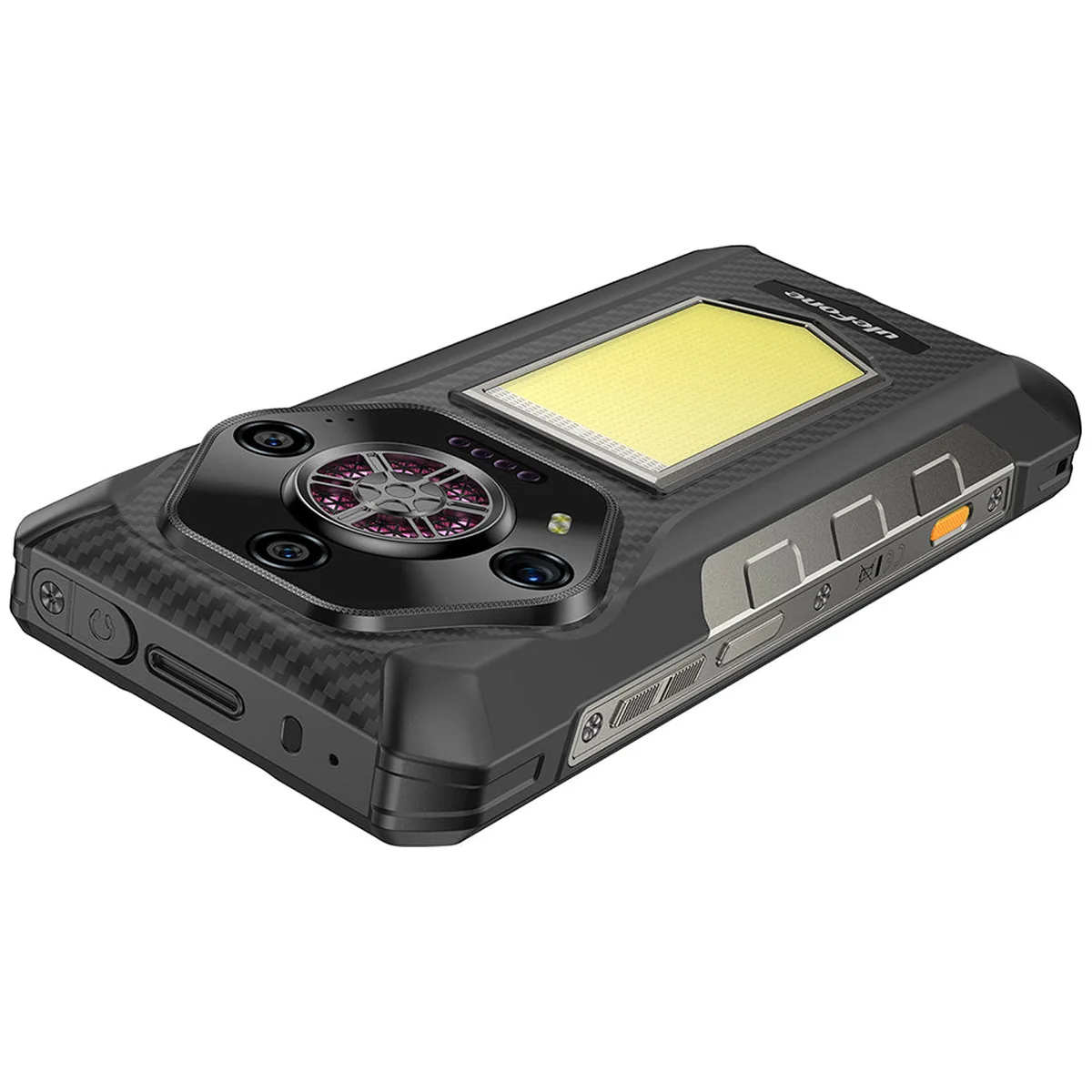

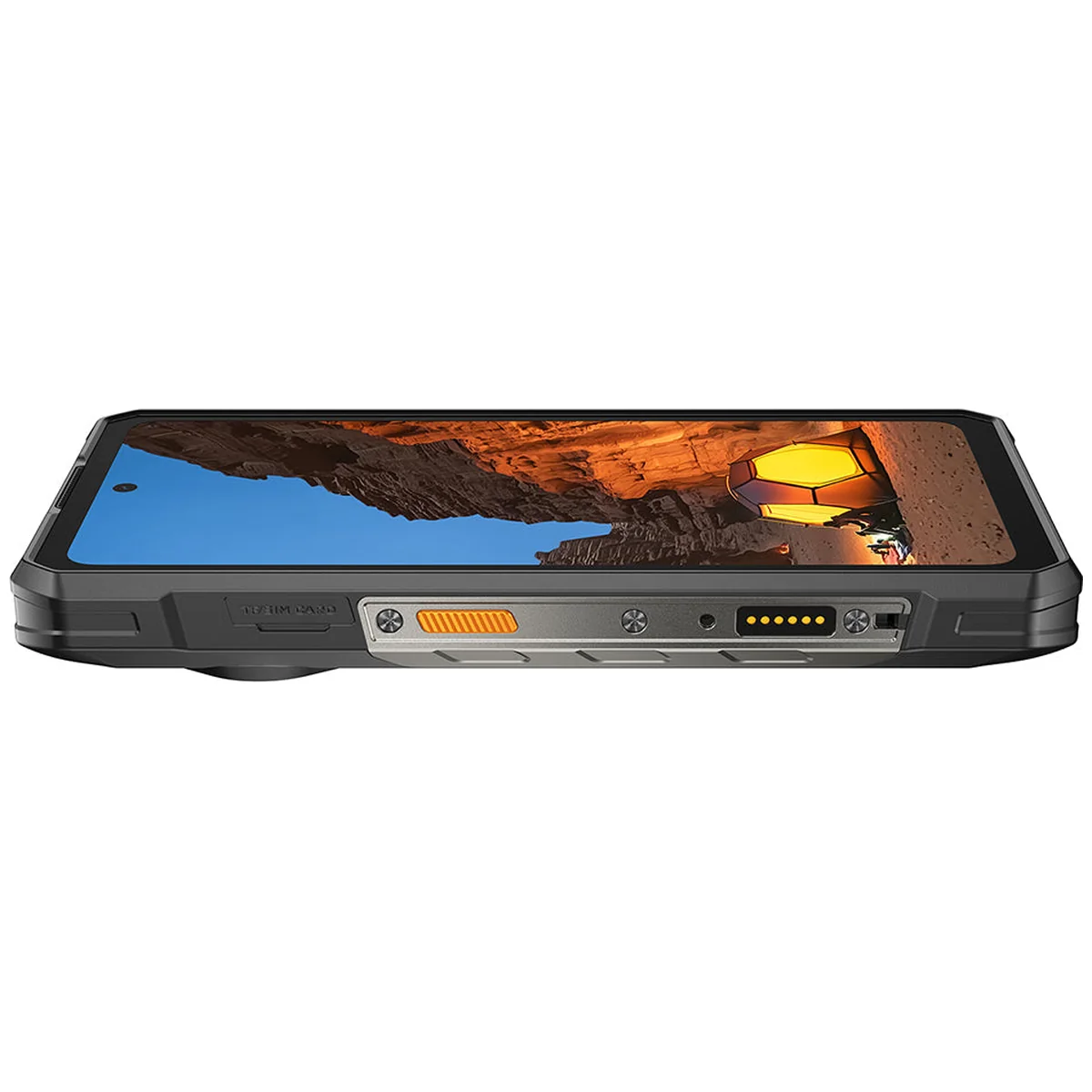

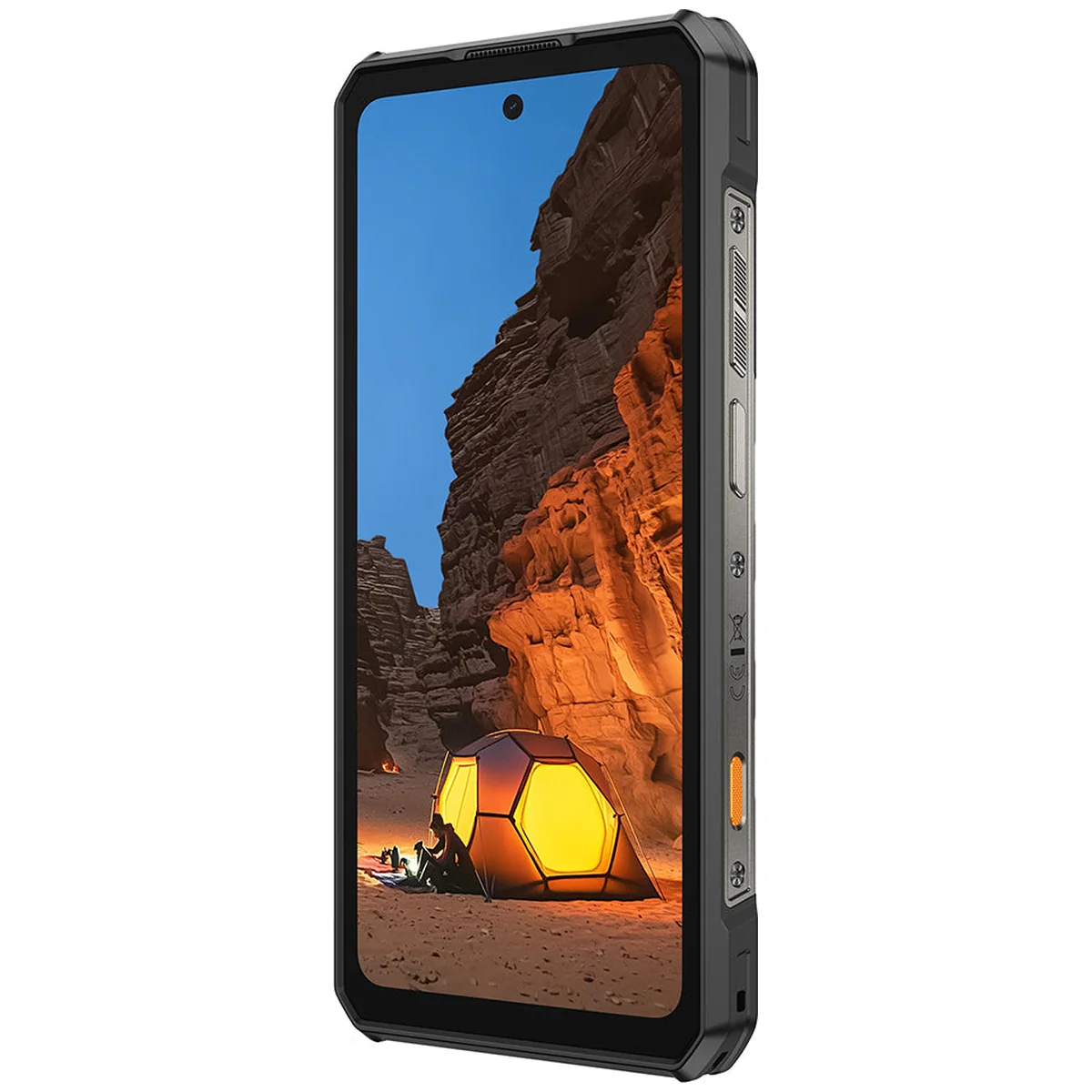

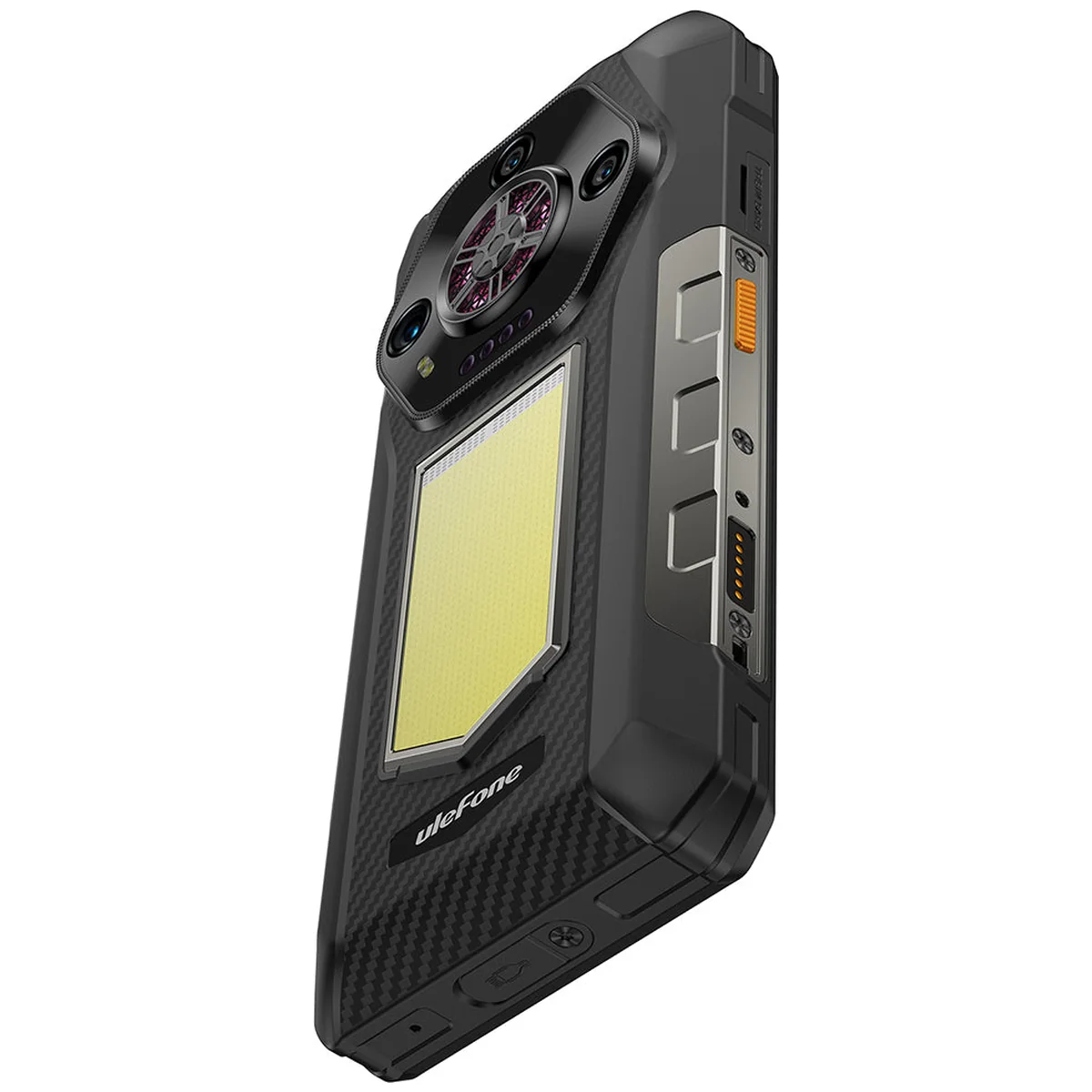

| Armor 30 | |
| AC power charger (100~240V) | |
| Type-C to Type-C Data cable (100cm) | |
| Protective Film (Pre-installed) | |
| Tempered Glass Screen Protector | |
| SIM needle | |
| Lanyard | |
| Multi-language user manual | |
| Warranty card | |
| Charging Instruction card | |
| Safety Prompt card | |
| *The AC power charger's plug type varies according to your region, with optional standard EU/AU/US plugs available. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The phone pictures and screen content on the above are for illustration only. The actual phone (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
0
Years Of Successful Business
0
Reviews Of 10000+ Satisfied Clients
0
Years Factory Warranty
0
Patents owned in global
0
Business Partners
0
Risk-Free Guarantee
NEED BULK ORDER ?
