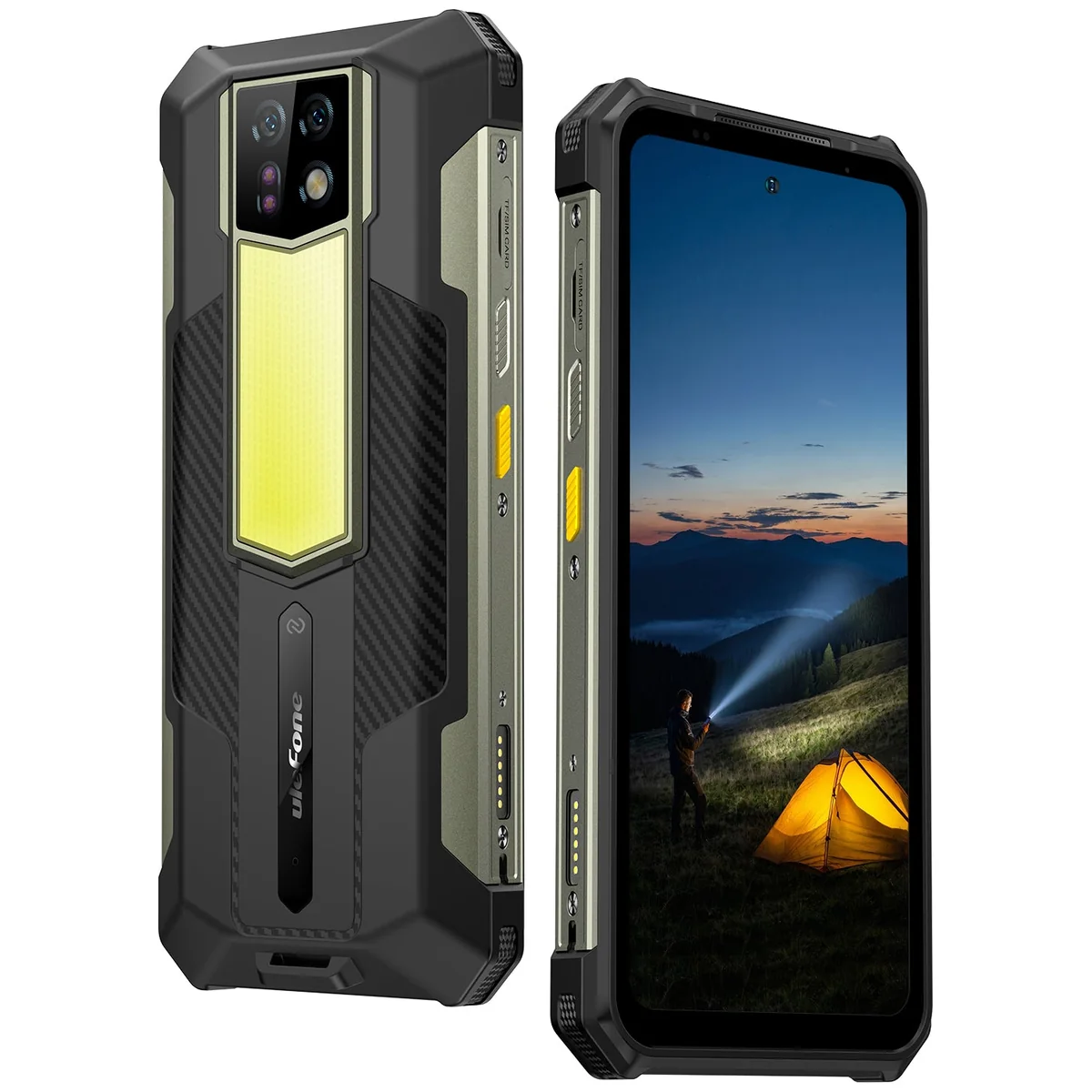

Ulefone Armor 24 Pro Rugged Phones
Night Vision, 12GB + 256GB, 22000mAh, 6.78-inch, Android 16, MediaTek Helio G200, Network: 4G, NFC
Ulefone Armor 24 Pro features MediaTek Helio G200, 12GB + 256GB memory and storage, 6.78‑inch (diagonal), 22000mAh battery, Android 16. 22000mAh Power System: This high-capacity 22000mAh battery provides multi-day endurance with 66W rapid charging and 10W wired reverse charging for mission-critical field reliability. High-Efficiency Performance: The MediaTek Helio G200 6nm processor with 12GB RAM + 256GB ROM (Dynamic memory expandable to 2TB) and Android 16 ensures fluid multitasking and high-speed data processing for professional applications.
64MP main camera + 64MP night vision camera
Supports 66W charging
6.78‑inch (diagonal)
12GB + 256GB physical memory and storage
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Ulefone Armor 24 Pro Features
Ulefone Armor 24 Pro features MediaTek Helio G200, 12GB + 256GB memory and storage, 6.78‑inch (diagonal), 22000mAh battery, Android 16.
22000mAh Power System
This high-capacity 22000mAh battery provides multi-day endurance with 66W rapid charging and 10W wired reverse charging for mission-critical field reliability.
High-Efficiency Performance
The MediaTek Helio G200 6nm processor with 12GB RAM + 256GB ROM (Dynamic memory expandable to 2TB) and Android 16 ensures fluid multitasking and high-speed data processing for professional applications.
Ultimate Rugged Construction
Engineered with Corning® Gorilla® Glass 5 and IP68/IP69K/MIL-STD-810H certification, this device delivers unrivaled protection against extreme environmental hazards and impacts.

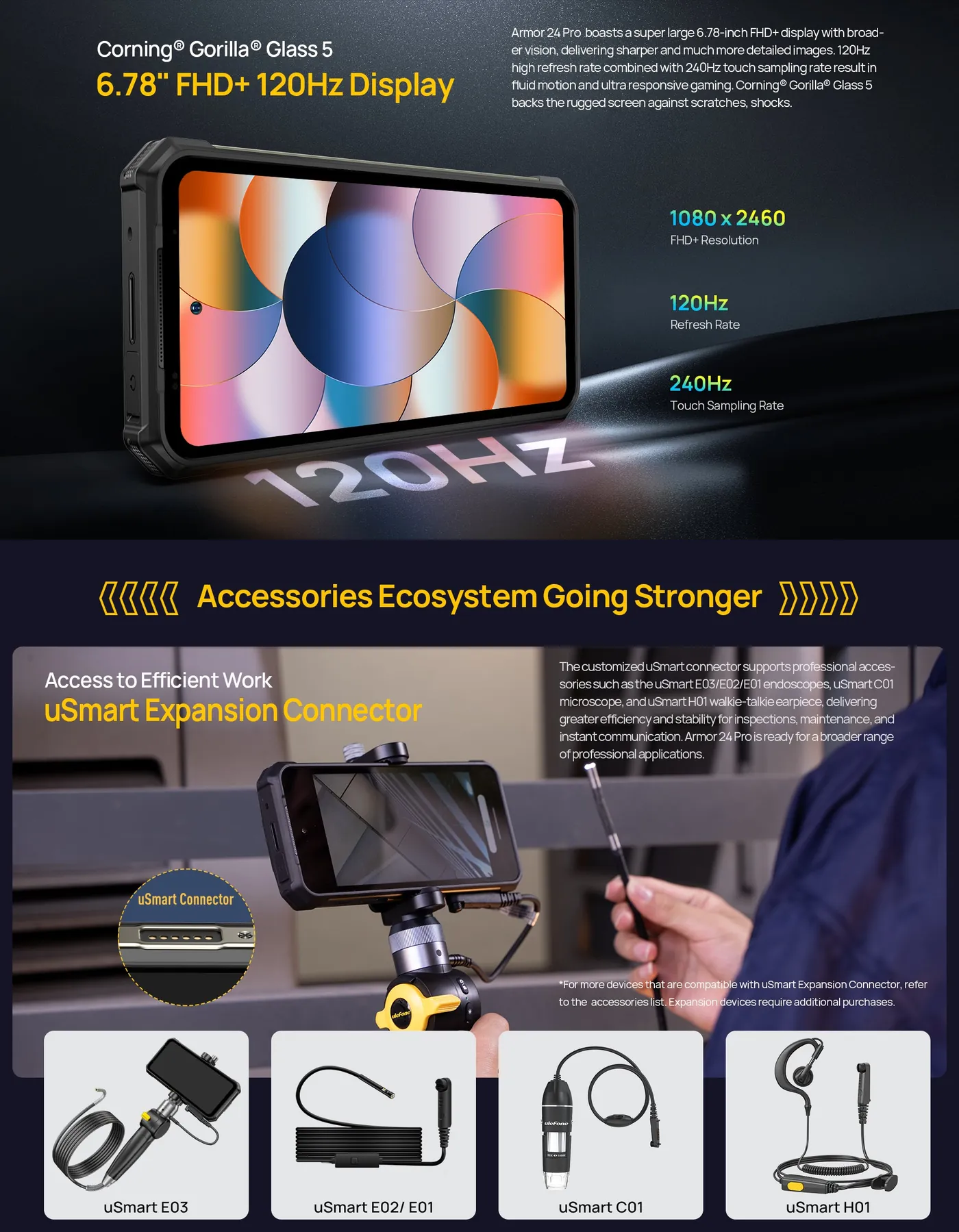

120Hz FHD+ Display
The 6.78-inch FHD+ panel features a 120Hz refresh rate and 240Hz touch sampling for precise visual clarity and responsive interface navigation.

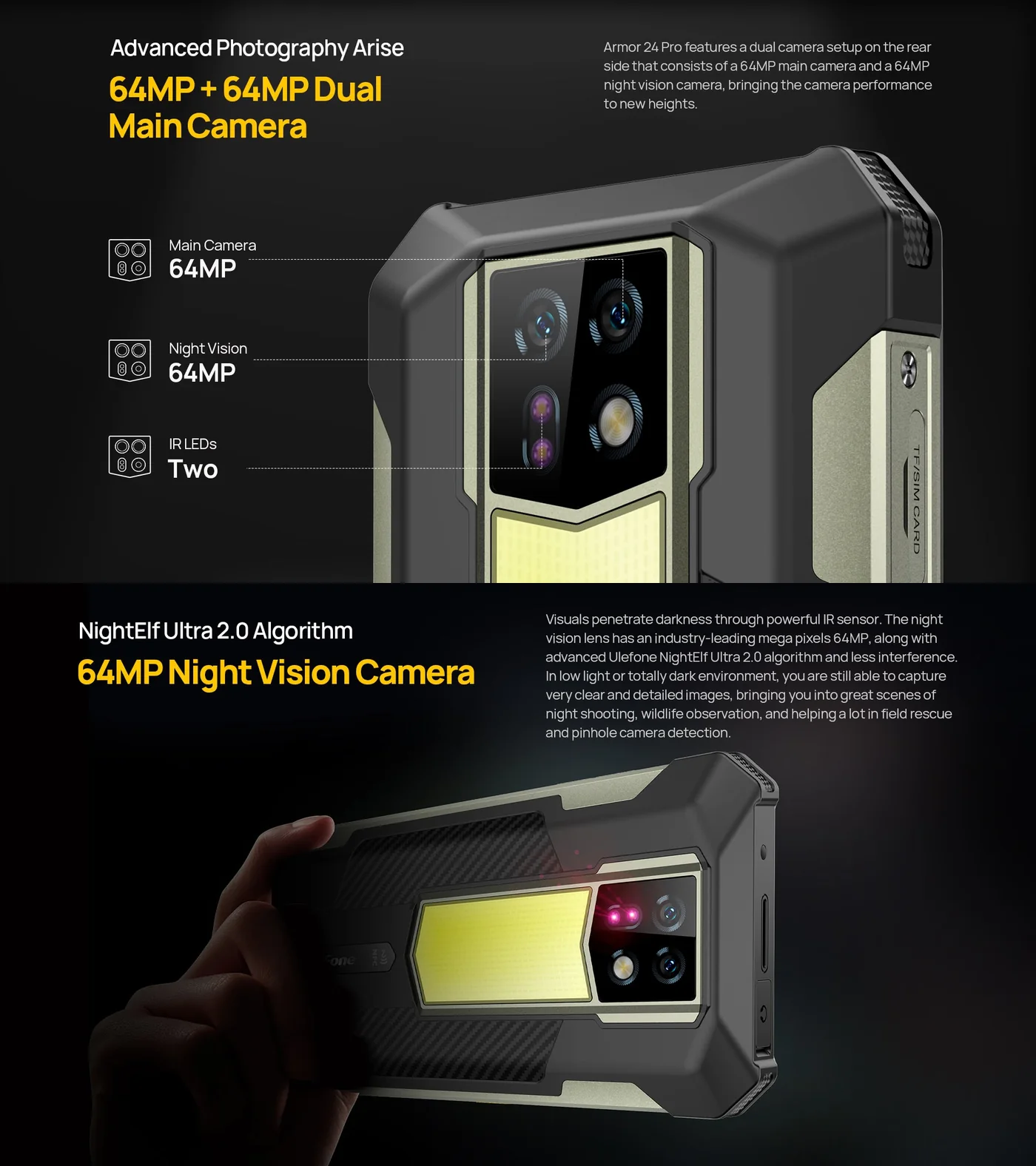

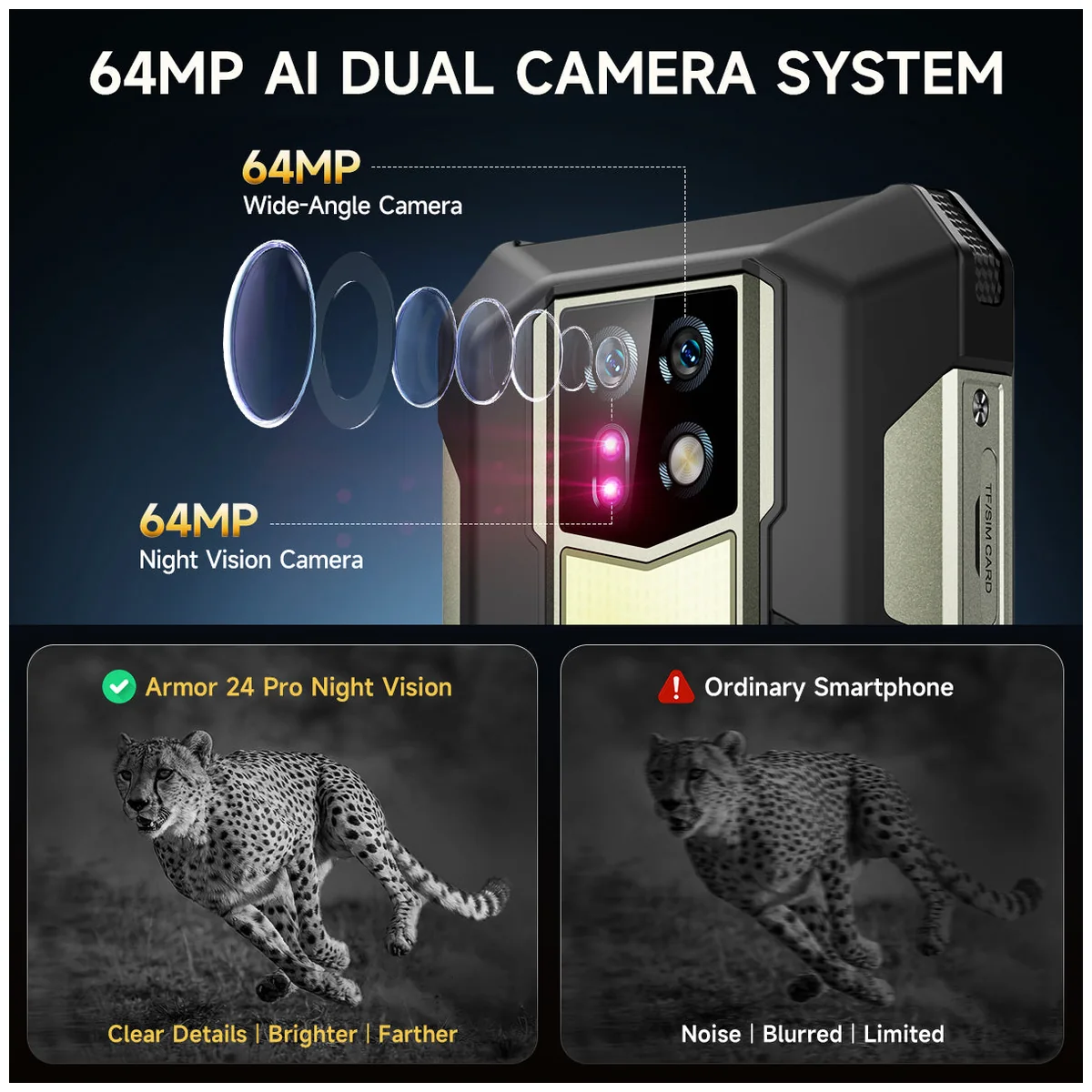

Dual 64MP Imaging
Equipped with a Sony IMX682 64MP main sensor and a 64MP NightElf Ultra 2.0 night vision camera, it captures high-resolution data in any lighting condition.
1000LM Professional Lighting
An integrated 1000-lumen LED array with up to 512 beads provides high-intensity illumination for industrial inspections and emergency search-and-rescue scenarios.
uSmart Expansion Interface
The dedicated uSmart connector enables seamless integration with professional-grade peripherals like endoscopes, microscopes, and walkie-talkie earpieces for specialized technical diagnostics.
Infrared Remote Control
The built-in IR blaster allows for the intelligent centralized management of hardware such as TVs, HVAC systems, and other IR-compatible devices via compatible applications.
Advanced Utility Suite
Side Fingerprint Unlock, NFC + Google Pay, eSIM, Custom Key, Underwater Camera, Practical Toolkit, Dual Nano-SIM + microSD, GPS+Glonass+Galileo+BeiDou, etc.
Size and Weight
Height: 181.2mm. Width: 87 mm. Depth: 27.5 mm. Weight: 647 grams.
Charging and Battery
22000mAh (Typ) / 19500mAh Battery (Rated). Built-in lithium-ion polymer battery. USB Type-C port. Supports 66W charging. Supports wired reverse charging, 10W. Battery Life. Standby Time | Up to 1300 Hours. Talk Time | Up to 100 Hours.
Rugged
Splash, Water and Dust Resistant. Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529. Rated IP69K under IEC standard 60529. MIL-STD-810H Certification.
Processor
MediaTek Helio G200. CPU: MT6789V/TZA. CPU architecture: 2*Cortex-A76 2.2GHz + 6*Cortex-A55 2.0GHz, 6nm process. CPU frequency: Octa Core, up to 2.2GHz. GPU: Arm Mali-G57. GPU frequency: 1.0GHz.
Ulefone Armor 24 Pro Wholesale and Bulk Orders
Review the detailed technical specifications and product photographs before selecting this model for your order. Ulefone Armor 24 Pro offers 12GB + 256GB memory and storage. View the colour finishes and device angles in the gallery. Accessories shown in feature illustrations are optional unless listed in the package contents. Contact RuggedMaster to discuss wholesale quantities and the configuration required for your order.
Explore the Ulefone Armor 27T Pro+ rugged phone and review the official Ulefone Armor 24 Pro specifications.
Ulefone Armor 24 Pro Manufacturer Notes
- The battery is non-removable, removing it may cause damage to the device.
- Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
- Armor 24 Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of
- 5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 24 Pro. Liquid damage not covered under warranty.
- Armor 24 Pro has waterproof plugs for its charging port and audio jack, please tightly put the plugs into the holes before you put an Armor 24 Pro into water.
- The Custom Key and its ability to quickly access different functions work only when the phone screen is unlocked.
- The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.
- The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.
- 6.78 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.
- The resolution is measured as a standard rectangle with a rounded corners design, the effective pixels are slightly less.
- The camera software functions are subject to the actual presence, some of functions and names may vary depending on the software version.
- The actual photo and video resolution may vary depending on the shooting mode.
- NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.
- The product, accessories, and package may vary in different markets. Pictures are for reference only. Please refer to the actual products.
- Dual 4G SIM requires the support of local telecom operator services, it may not be available in all regions.
- Whether you can use VoLTE depends on the local carriers, please note that not all of your local carriers support this function.
- The light is too bright to stare at directly.
- Power consumption data are from Ulefone lab, which will be varied by actual usage.
- The micro SD card is not included, and need to be purchased separately. The Dynamic memory can be activated in Settings at your
Ulefone Armor 24 Pro Specifications
| Size and Weight | |
|---|---|
| Height | 181.2mm |
| Width | 87 mm |
| Depth | 27.5 mm |
| Weight | 647 grams |
| *Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product. | |
| Charging and Battery | |
| 22000mAh (Typ) / 19500mAh Battery (Rated) | |
| Built-in lithium-ion polymer battery | |
| USB Type-C port | |
| Supports 66W charging | |
| Supports wired reverse charging, 10W | |
| Battery Life | |
| Standby Time | Up to 1300 Hours |
| Talk Time | Up to 100 Hours |
| *Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity. | |
| *Non-removable battery. Removing the battery may cause damage to the device. | |
| *Use with original charger and data cable, the max charging power can reach 66W. The actual charging power will intelligently change with different scenarios, please refer to the actual use. | |
| Rugged | |
| Splash, Water and Dust Resistant | |
| Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529 | |
| Rated IP69K under IEC standard 60529 | |
| MIL-STD-810H Certification | |
| *Armor 24 Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 24 Pro. Liquid damage not covered under warranty. | |
| Processor | |
| MediaTek Helio G200 | |
| CPU | MT6789V/TZA |
| CPU architecture | 2*Cortex-A76 2.2GHz + 6*Cortex-A55 2.0GHz, 6nm process |
| CPU frequency | Octa Core, up to 2.2GHz |
| GPU | Arm Mali-G57 |
| GPU frequency | 1.0GHz |
| Storage and RAM | |
| 12GB + 256GB | |
| RAM | 12GB memory LPDDR4X |
| Flash storage | 256GB phone storage UFS2.2 |
| microSD memory card Up to 2TB | |
| *Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device. | |
| *microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible. | |
| Display | |
| 6.78‑inch (diagonal) | |
| Punch-hole Display | |
| Brightness：Max 460 nits | |
| Resolution | 1080 x 2460 FHD+ |
| Refresh Rate | 120Hz |
| Corning庐 Gorilla庐 Glass 5 | |
| Fingerprint-resistant oleophobic coating | |
| *With a rounded corners design on the display, the diagonal length of the screen is 6.78 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller). | |
| *The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less. | |
| Rear Camera | |
| 64MP main camera + 64MP night vision camera | |
| 64MP main camera | |
| Sony IMX682 CMOS sensor | |
| 0.8μm, FOV79.8° | |
| ƒ/1.89 large aperture, 6 piece lens | |
| LED Flash | |
| 64MP night vision camera | |
| SOV64B1B CMOS sensor | |
| FOV79.8° | |
| ƒ/1.79 large aperture | |
| Rear camera photography features | |
| Normal mode, Night Vision Mode, Film Mode, 64MP Mode, Night Mode, Document Correction, Beauty, Group Photo, AI Emoji, Motion Photo, GIF, Portrait, Sports, Pro Mode | |
| HDR, Filters, AI Scene Detection,Level, Location Info, Watermark, Camera Mute, Touch Shooting, Self Timer, Grid Line, Volume Key Feature, Anti Flicker, Long Press | |
| Rear camera video features | |
| 2K recording | 30fps |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The actual photo and video resolution may vary depending on the shooting mode. | |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Front Camera | |
| 16MP selfie camera | |
| Samsung S5K3P8 CMOS sensor | |
| 1.0 μm, 6 piece lens, FOV76.3 °, ƒ/2.2 aperture | |
| Front camera photography features | |
| Normal Mode, Beauty, Group Photo, AI Emoji, Motion Photo, Film, GIF, Portrait | |
| Filters, Level, Location Info, Watermark, Mirror, Camera Mute, Touch Shooting, Self Timer, Grid Line, Volume Key Feature, Anti Flicker | |
| Front camera video features | |
| 1080P recording | 30fps |
| 720P recording | 30fps |
| 480P recording | 30fps |
| *The camera software functions are subject to actual presence, some functions and names may vary depending on the software version. | |
| Versatile LED Light | |
| 1000 Max Lumens | |
| LED Beads | 512 |
| Light Power | Max 6W |
| APP | Camping Light |
| Modes | Lighting, adjustable brightness settings; duration settings of 5-30mins. Sharp Light, duration settings of 5-30mins. SOS AlwaysLighting |
| Supports Safety Protection | |
| Underwater Photography | |
| Supports to take photos & video recording | |
| Supports to start/end operation underwater | |
| Supports to quickly switch shooting modes underwater | |
| Unlock Options | |
| Supports Fingerprint Unlock | |
| Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together | |
| Capacitive Touch Sensor | |
| Response speed | Up to 0.1s |
| Supports the enrollment of 5 sets of fingerprint | |
| Supports Face Unlock | |
| Network | |
| Supports use of dual SIM cards from different carriers | |
| Built-in eSIM | |
| Both cards can access 4G connectivity simultaneously | |
| Dual Nano SIM; either card can be set as the primary card | |
| Supports 4G/3G/2G | |
| Supports VoLTE HD calling | |
| Supported network bands | |
| 4G Network | |
| FDD-LTE | B1/2/3/4/5/7/8/12/13/17/18/1920/25/26/28A/28B/66 |
| TDD-LTE | B34/38/39/40/41 |
| 3G Network | |
| WCDMA | B1/2/4/5/8 |
| 2G Network | |
| GSM | B2/3/5/8 |
| *When eSIM is enabled, SIM card slot 2 will be disabled；eSIM support varies by carrier and region. Please check with your local provider for details. | |
| *Dual 4G SIM requires the support of local telecom operator services, and may not be available in all regions. | |
| *Only certain regions and telecom operators support VoLTE. | |
| Connectivity | |
| WLAN | |
| Supports protocols | 802.11 a/ac/b/g/n |
| Supports 2.4G Wi-Fi / 5G Wi-Fi | |
| Bluetooth | |
| Supports Bluetooth 5.2 | |
| Navigation and Positioning | |
| Supports multiple positioning systems | |
| GPS | |
| GLONASS | |
| Galileo | |
| BEIDOU | |
| QZSS | |
| Supports Digital Compass | |
| NFC | |
| Supports Google Pay | |
| Supports Transit, Loyalty Cards, Gift Cards and Plane tickets | |
| *Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer to https://pay.google.com/about | |
| Operating System | |
| Android 16 | |
| Pure Android System | |
| No ads | |
| Buttons | |
| Sensors | |
| Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Infrared sensor, NFC | |
| Multimedia | |
| Video | MOV/MKV/3GP/MP4 |
| Audio | MID/FLAC/MP3/M4AAAC/AMR/OGG |
| Image | GIF/JPEG/PNG/BMP |
| Ebook | TXT/HTML |
| Ports | |
| USB 2.0, Type-C | |
| 3.5mm headphone jack | |
| Card Slot | |
| Built-in eSIM | |
| Physical SIM cards | three(3), Nano SIM + Nano SIM+microSD |
| Notification Light | |
| Support, tri-color light | |
| Supports charging prompt | |
| SAR | |
| Maximum 10g SAR | |
| Head | 0.486W/kg Body: 1.145W/kg |
| Language Support | |
| Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese | |
| In the Box | |
| Armor 24 Pro | |
| AC power charger (100~240V) | |
| Type-C to Type-C Data cable (100cm) | |
| Protective Film (Pre-installed) | |
| Tempered Glass Screen Protector | |
| SIM needle | |
| Lanyard | |
| Multi-language user manual | |
| Warranty card | |
| Safety prompt statement | |
| *The AC power adapter's plug is chosen to match your country's standard (EU/AU/US). If you have a specific need for a different type of charger, please confirm with sellers before you place your order. | |
| *May vary in different market. Subject to the actual product. | |
| *The apperance of package and accessories may be different, but the function remain the same, please refer to the actual. | |
| Specifications | |
| The phone pictures and screen content on the above are for illustration only. The actual phone (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. | |
| The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. | |
| The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, Ulefone may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. | |
| The Android® word mark and logos are registered trademarks owned by Google. | |
| The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. | |
| USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum. | |
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
0
Years Of Successful Business
0
Reviews Of 10000+ Satisfied Clients
0
Years Factory Warranty
0
Patents owned in global
0
Business Partners
0
Risk-Free Guarantee
NEED BULK ORDER ?
