RUGGEDMASTER W80NX Rugged Tablets

RUGGEDMASTER W80NX Rugged Tablets

RUGGEDMASTER W80NX Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

W80NX 8 Inch Removable Battery Details:

Frequently Asked Questions About the W80NX Rugged Tablet

1. Which processor and operating system does the W80NX use?

The W80NX is powered by the Intel Celeron N5100 Jasper Lake processor, featuring four cores, four threads, a 1.1GHz base frequency and a maximum burst frequency of 2.8GHz.Windows 10 is the standard OS; Windows 11 and Ubuntu 22.04 are available as validated project options.

2. Is the W80NX suitable for industrial Windows applications?

Yes. The W80NX is suitable for warehouse management, field inspection, vehicle dispatch, equipment maintenance, browser-based systems and mobile data-collection applications. Its Intel N5100 processor is designed for low-power computing rather than heavy CAD, video editing or complex workstation workloads.

3. Is the W80NX waterproof and dust-resistant?

The W80NX is rated IP67, providing enclosure protection against dust and liquid exposure under the applicable IEC 60529 test conditions. It is suitable for industrial and semi-outdoor environments, but it should not be described as submersible unless a separate higher IP rating has been tested and certified.

4. What display configurations are available?

The W80NX has an 8-inch IPS touchscreen with 700-nit brightness. 1280×800 is standard; 1920×1200 is an optional project configuration. Glove touch is supported, while wet-hand operation can be customized.

5. Does the W80NX have a removable battery?

Yes. The W80NX uses a removable 7.6V 4,700mAh high-voltage lithium-ion battery. Spare batteries may help support longer work shifts, but customers should confirm the tested operating time, charging duration, standalone battery charger availability and whether the battery can be replaced while the tablet is running.

6. Does the W80NX support 4G or 5G connectivity?

The W80NX can be customized with mobile-network modules. Customers should confirm whether the selected configuration supports 4G LTE or 5G, together with the module model, SA/NSA capability, frequency bands, SIM specification and local carrier compatibility. Note: the 4G/5G module and NFC are mutually exclusive — choose one at order time.

7. Which positioning systems does the W80NX support?

The standard positioning configuration is listed with GPS and GLONASS. A BeiDou-enabled positioning option is also referenced for project orders. Customers should confirm the selected GNSS module, supported constellations, antenna design and expected positioning accuracy.

8. Which industrial interfaces are available?

The W80NX can provide USB Type-C 3.0 with PD charging, USB Type-A 3.0, Micro HDMI, RJ45 Ethernet, a 3.5mm audio jack, DC input, Micro SIM, TF card expansion and a 12-pin POGO connector for USB and charging. The Ethernet speed and exact POGO expansion functions should be confirmed for each configuration.

9. Can a barcode scanner be integrated?

Yes. Optional 1D and 2D barcode-scanning modules are available for warehouse, logistics, retail inventory and asset-management applications. Customers should confirm the scanner engine, supported barcode formats, scanning distance, physical scan keys and Windows or Ubuntu SDK support before sample production.

10. Is an explosion-proof version of the W80NX available?

The product introduction references explosion-proof certification, but customers should request the exact Ex marking, certificate number, certification body, applicable hazardous zone, operating-temperature range and permitted hardware modules before ordering. The standard IP67 version should not be assumed to have the same certification as a dedicated explosion-proof version.

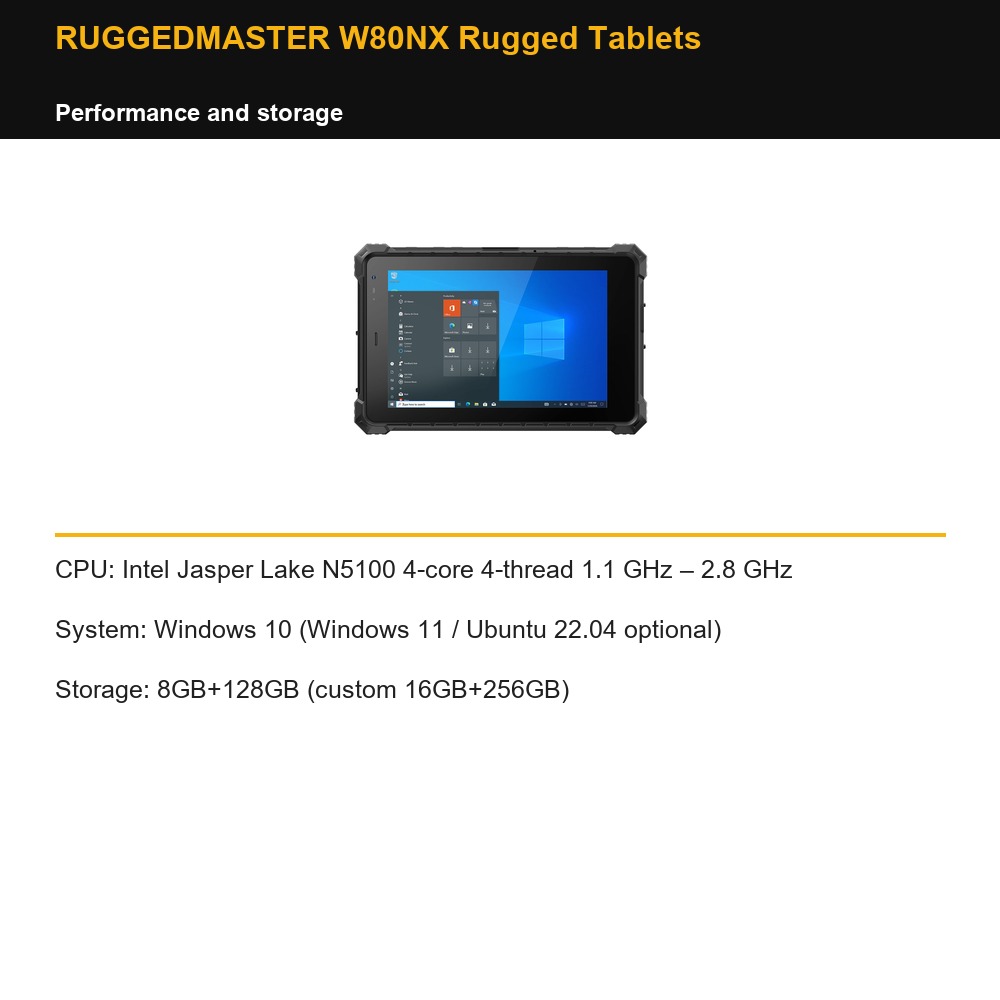

RUGGEDMASTER W80NX Rugged Tablets — performance and storage

CPU: Intel Jasper Lake N5100 4-core 4-thread 1.1 GHz – 2.8 GHz

System: Windows 10 (Windows 11 / Ubuntu 22.04 optional)

Storage: 8GB+128GB (custom 16GB+256GB)

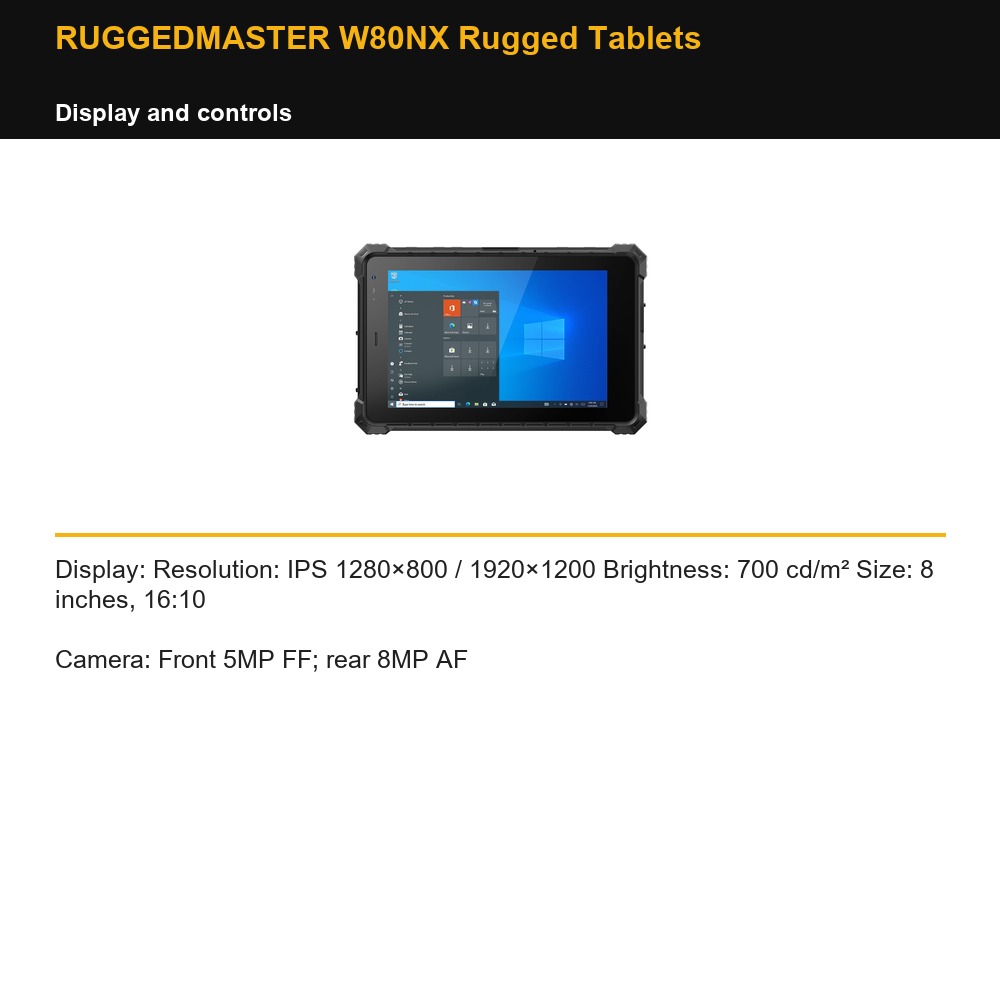

RUGGEDMASTER W80NX Rugged Tablets — display and controls

Display: Resolution: IPS 1280×800 / 1920×1200 Brightness: 700 cd/m² Size: 8 inches, 16:10

Camera: Front 5MP FF; rear 8MP AF

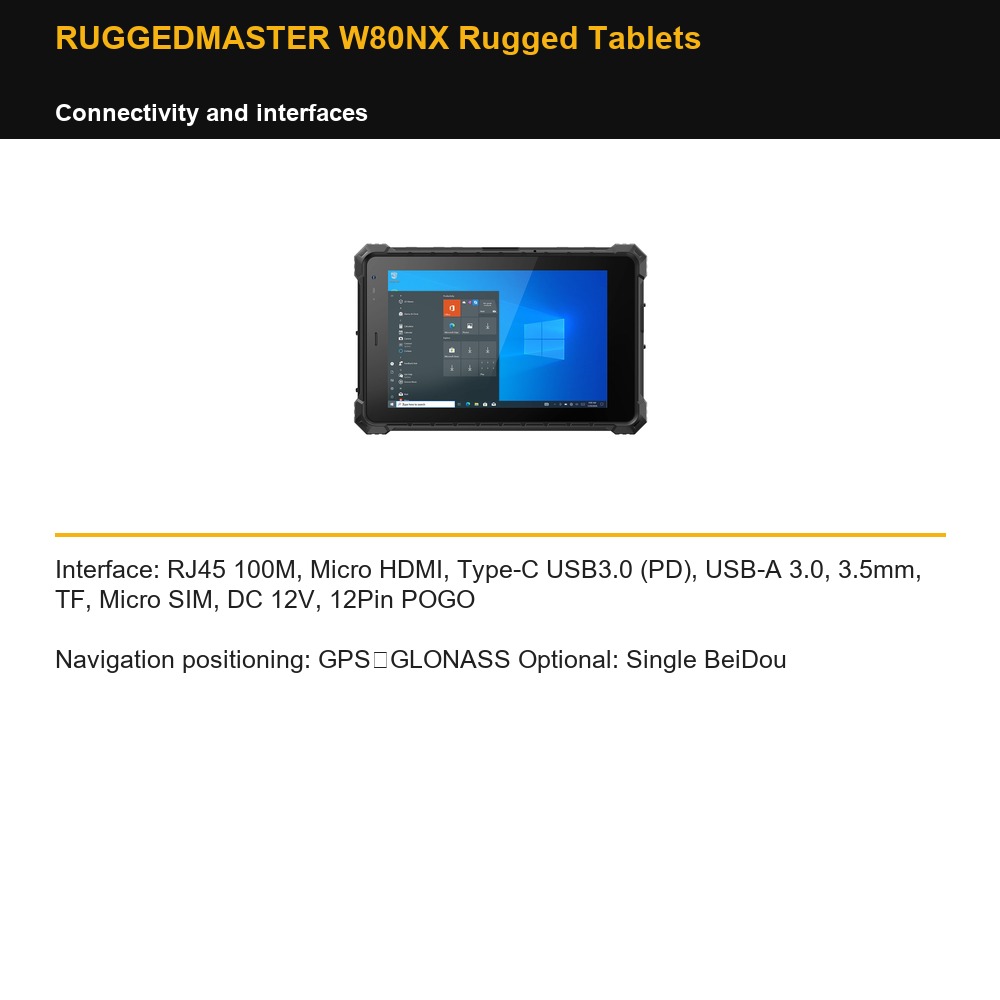

RUGGEDMASTER W80NX Rugged Tablets — connectivity and interfaces

Interface: RJ45 100M, Micro HDMI, Type-C USB3.0 (PD), USB-A 3.0, 3.5mm, TF, Micro SIM, DC 12V, 12Pin POGO

Navigation positioning: GPS、GLONASS Optional: Single BeiDou

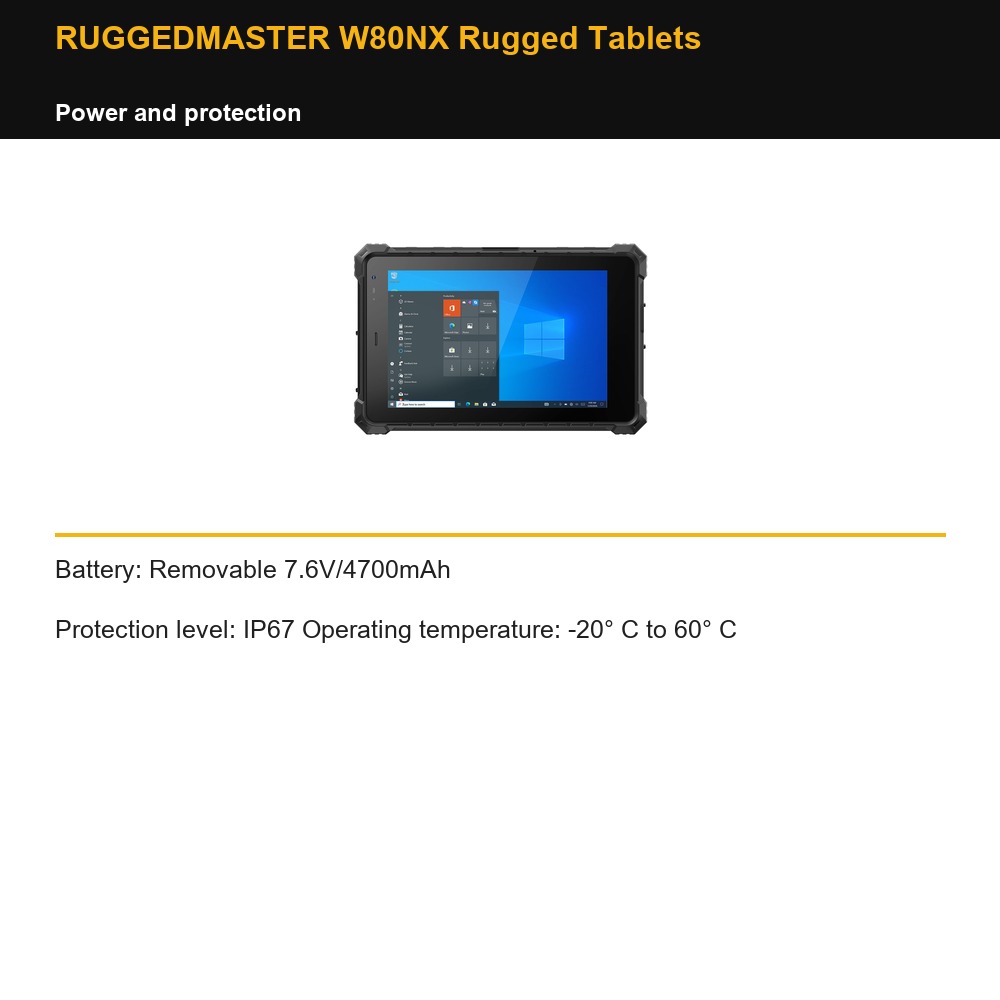

RUGGEDMASTER W80NX Rugged Tablets — power and protection

Battery: Removable 7.6V/4700mAh

Protection level: IP67 Operating temperature: -20° C to 60° C

RUGGEDMASTER W80NX Rugged Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
