RUGGEDMASTER W65G Rugged Handhelds
N4020 Processor; 8GB+128GB; 6.5 inch IPS high-definition full screen 1600*720 IPS Corning Gorilla Glass; Windows 11
The W65G is suitable for warehouse inventory, logistics, mobile inspection, asset management, field data entry and other Windows workflows. Its Intel Celeron N4020 processor is intended for browser-based systems, forms, barcode software and basic enterprise applications.
Battery: 7.4V/4000mAh
Interface: TYPE-C, POGO PIN
Protection level: IP67 MIL-STD -810H certification
Camera: Front 5.0MP Rear 12.0MP
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

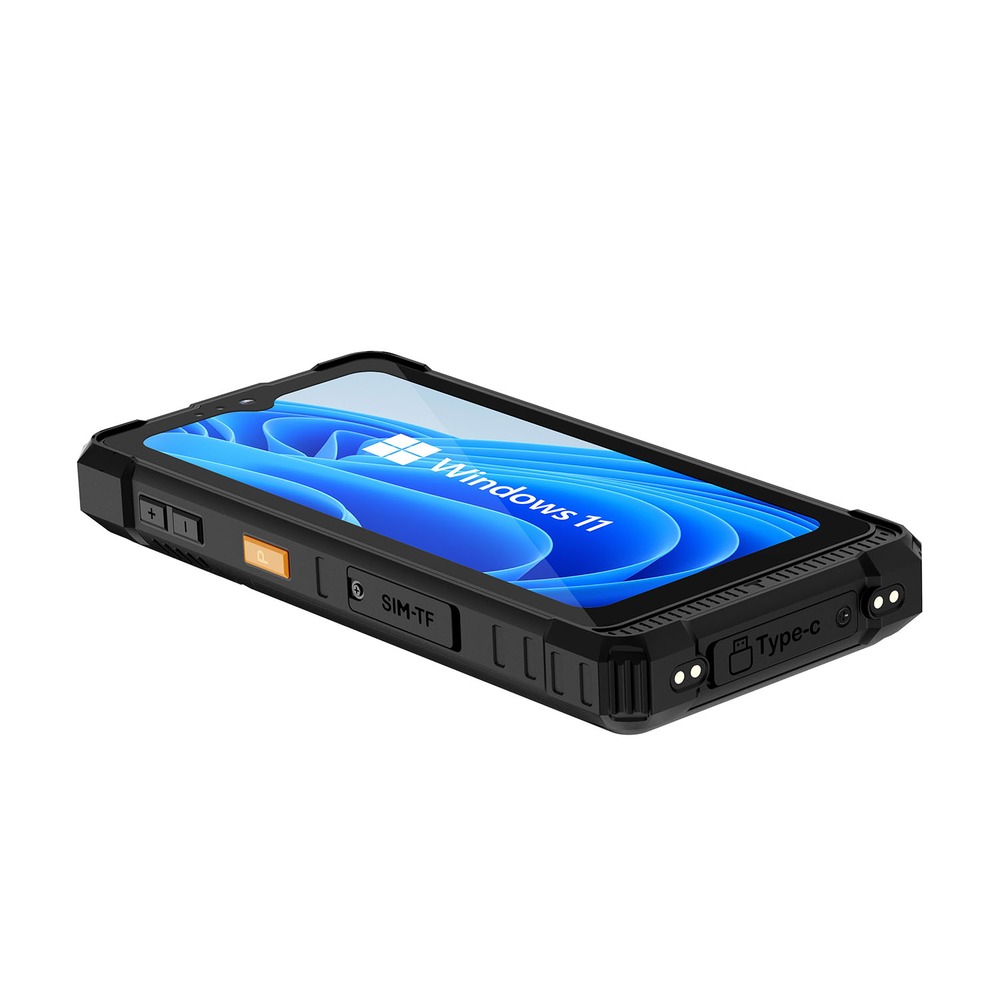

RUGGEDMASTER W65G Rugged Handhelds
RUGGEDMASTER W65G Rugged Handhelds supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
W65G Windows Rugged Handheld Details:
Frequently Asked Questions About the W65G Windows Rugged Handheld
1. What types of applications is the W65G suitable for?
The W65G is suitable for warehouse inventory, logistics, mobile inspection, asset management, field data entry and other Windows workflows. Its Intel Celeron N4020 processor is intended for browser-based systems, forms, barcode software and basic enterprise applications.
2. Does the W65G officially support Windows 11?
Yes,The Intel Celeron N4020 belongs to a processor series supported for Windows 11 systems.
3. Is the W65G rated IP65 or IP67?
IP65
4. How long does the removable battery last?
The W65G uses a removable 7.4V/4000mAhExternal polymer lithium ion battery About 6 hours
5. Can the W65G use 4G or 5G mobile networks?
4G and 5G configurations are listed for different regional markets.
6. Which satellite positioning systems are supported?
Support GPS, GLONASS, Galileo
7. What barcodes can the optional scanner read?
The optional Honeywell N4680 scanner supports common 1D and 2D symbologies, including QR Code, Data Matrix, PDF417, Aztec and Han Xin Code.
8. Can the W65G connect to external equipment?
The W65G includes USB Type-C, USB Type-A and a four-pin POGO connector.
9. What should buyers confirm before placing a volume order?
Buyers should confirm the IP rating, drop-test height, Windows edition, TPM and Secure Boot, CPU supply, cellular modem, GNSS module, NFC inclusion, barcode engine, battery runtime, POGO functions and available accessories.

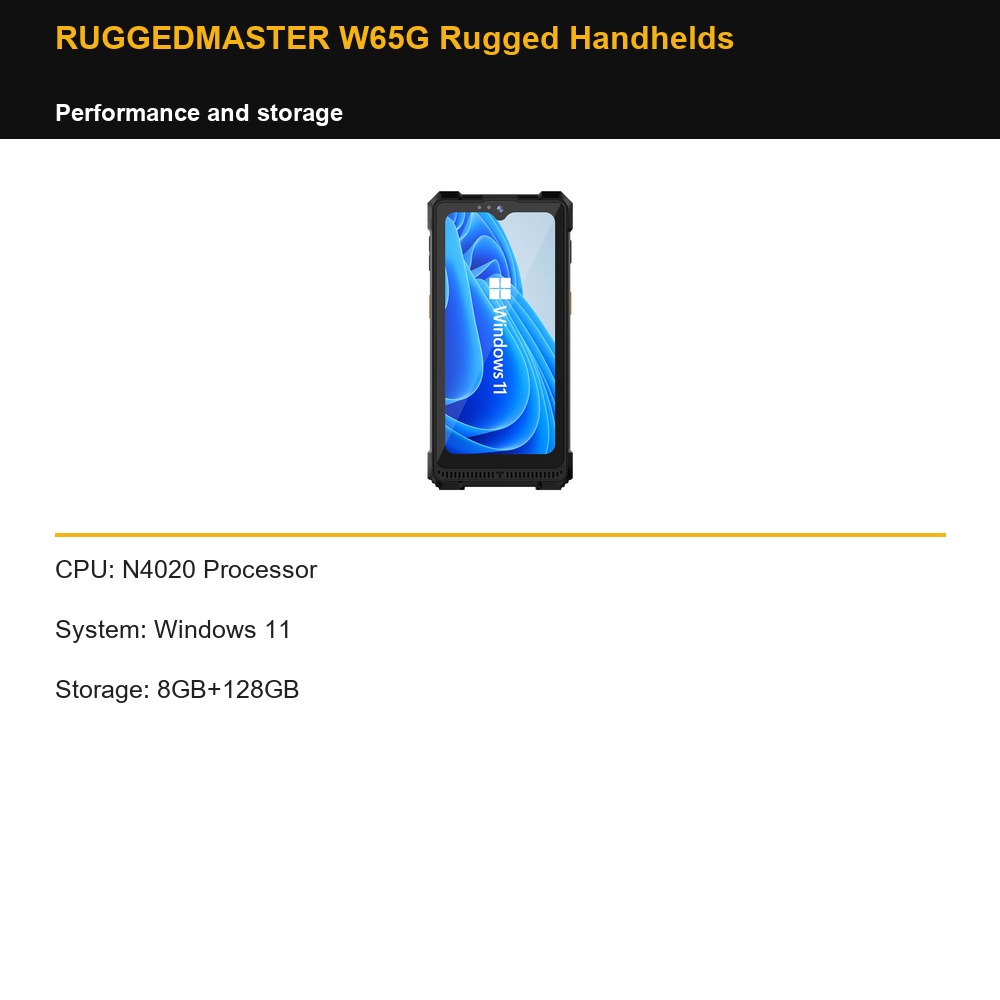

RUGGEDMASTER W65G Rugged Handhelds — performance and storage
CPU: N4020 Processor
System: Windows 11
Storage: 8GB+128GB

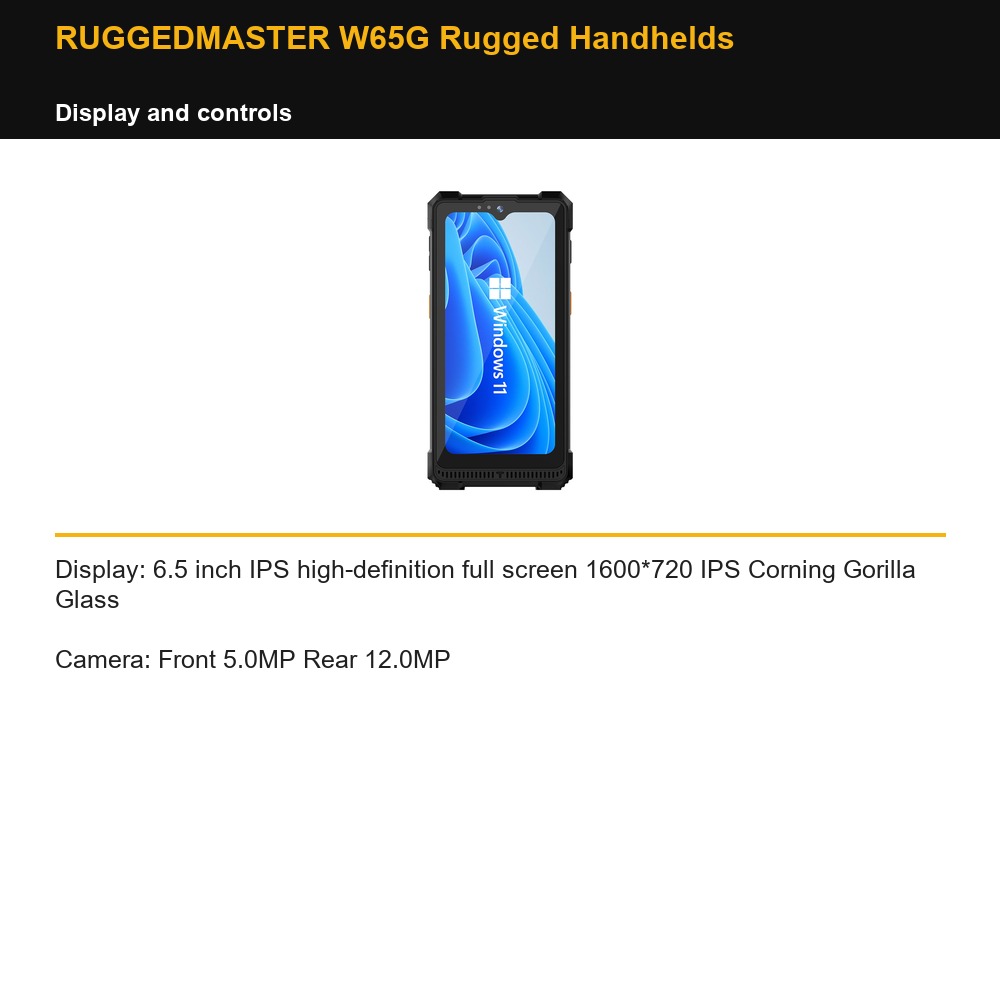

RUGGEDMASTER W65G Rugged Handhelds — display and controls
Display: 6.5 inch IPS high-definition full screen 1600*720 IPS Corning Gorilla Glass
Camera: Front 5.0MP Rear 12.0MP

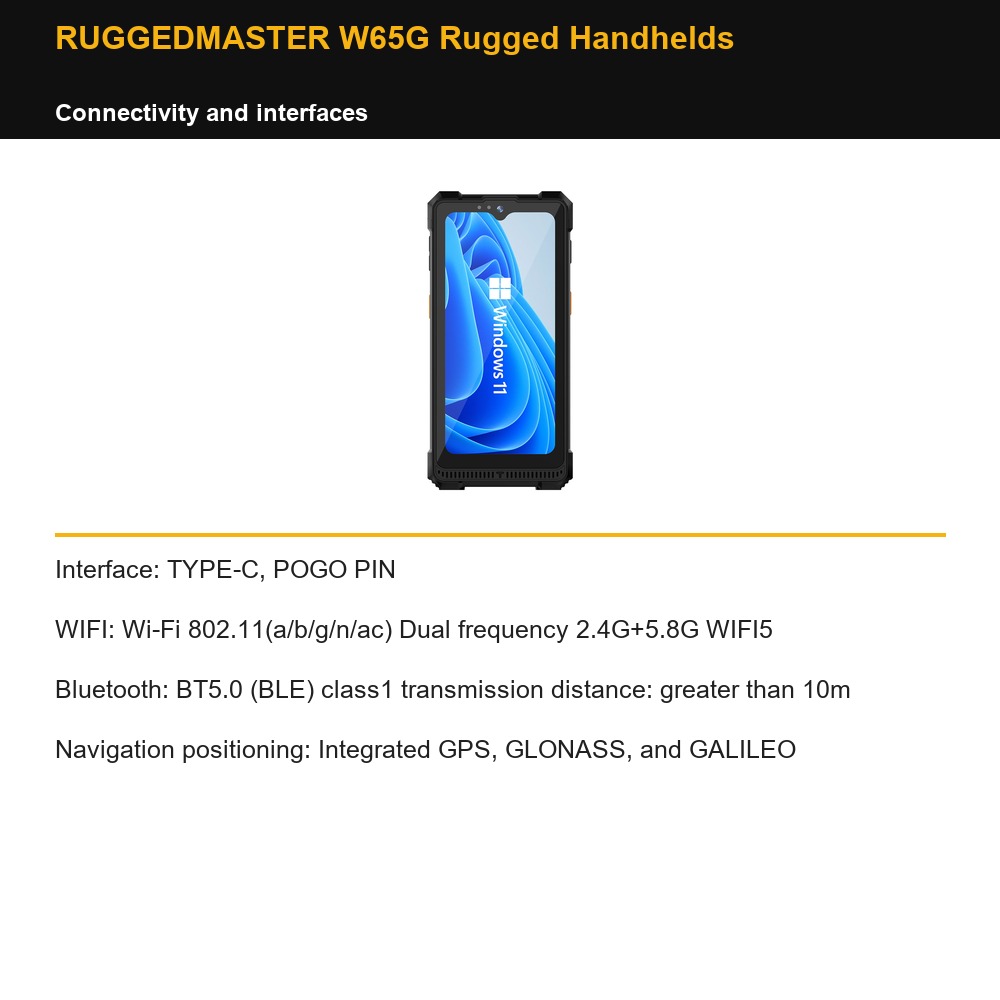

RUGGEDMASTER W65G Rugged Handhelds — connectivity and interfaces
Interface: TYPE-C, POGO PIN
WIFI: Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI5
Bluetooth: BT5.0 (BLE) class1 transmission distance: greater than 10m
Navigation positioning: Integrated GPS, GLONASS, and GALILEO

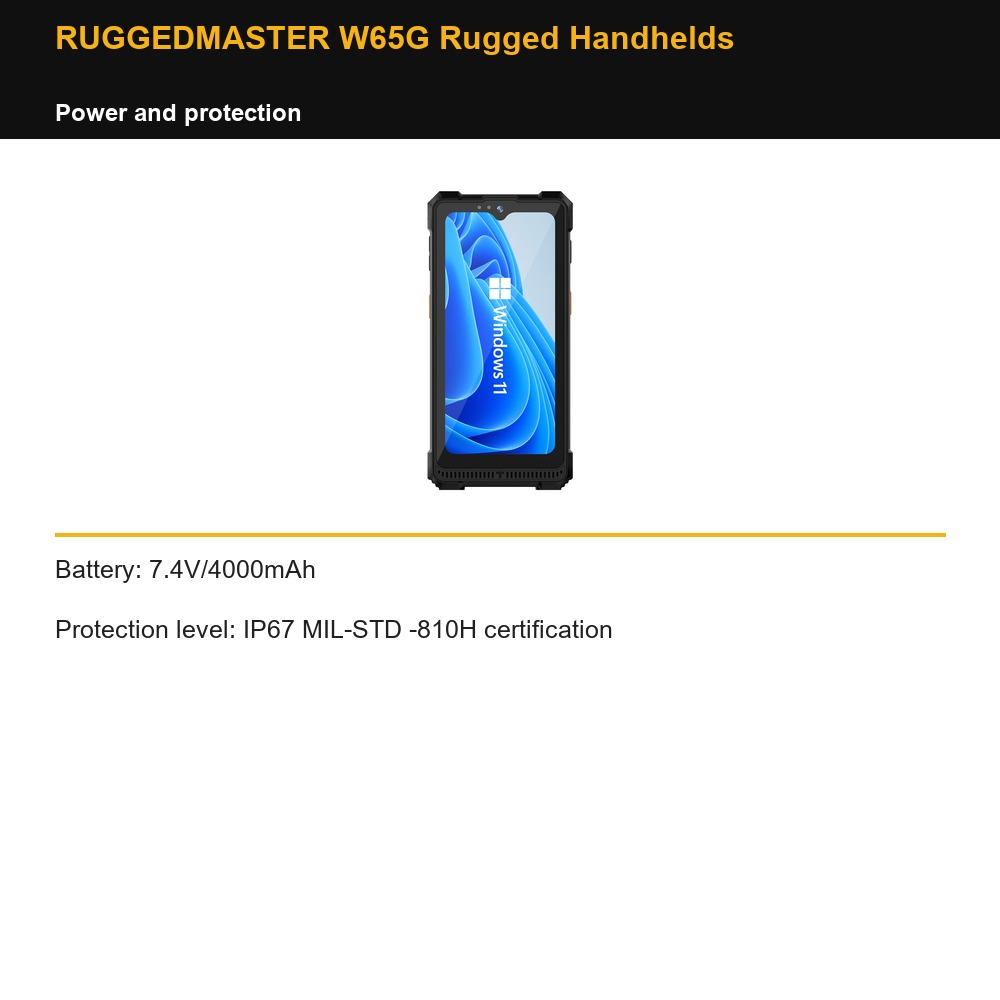

RUGGEDMASTER W65G Rugged Handhelds — power and protection
Battery: 7.4V/4000mAh
Protection level: IP67 MIL-STD -810H certification
RUGGEDMASTER W65G Rugged Handhelds technical specifications
| CPU | N4020 Processor |
|---|---|
| System | Windows 11 |
| Storage | 8GB+128GB |
| Display | 6.5 inch IPS high-definition full screen 1600*720 IPS Corning Gorilla Glass |
| NFC | Support |
| 2D Barcode Scanner | Optional |
| Battery | 7.4V/4000mAh |
| Speaker | one speaker |
| Navigation positioning | Integrated GPS, GLONASS, and GALILEO |
| Protection level | IP67 MIL-STD -810H certification |
| Interface | TYPE-C, POGO PIN |
| Weight | 510g |
| Card slot | SIM / TF （512G） |
| Work environment | working temperature: -20 °C – 60 °C storage temperature: -30 °C – 70 °C |
| Key | 1 power button 2 Volume Adjustment Key 2 Bar code scanning (left and right) |
| G_sensor | Support |
| Type | 6.5 inch Windows Rugged Handheld |
| Size | 186.2*90.7*25.6mm |
| Screen size | 6.5 inch,full laminated TFT color full screen Dropnotch 20:9 |
| Screen brightness | 500cd/㎡ |
| TP Touch screen | 10 points Capacitive, G+FF hardness ≥ 7H |
| Camera | Front 5.0MP Rear 12.0MP |
| Speaker | Embedded 1Ω/1W speaker* 1 95dB@0.1m |
| MIC | single microphone |
| Button | Power *1 |
| CPU | Gemini Lake N4020 processor, 2 cores and 2 threads, embedded 4 MB SmartCache, TDP 6W The maximum frequency is 2.8GHz |
| G_sensor | Support |
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI5 |
| Bluetooth | BT5.0 (BLE) class1 transmission distance: greater than 10m |
| GPS | GPS, Galileo GLONASS |
| NFC | 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare reading distance: 3-5cm |
| TYPE-C | TYPE-C 2.0*1 (Charge、OTG 、(Data transmission） |
| USB | USB3.0*1 |
| TF | *1（Max: 512GB） |
| SIM | *1（Nano-SIM） |
| POGO PIN | *1（4pin） |
| Certification | IP65,CE,FCC，MIL-STD-810H,UN38.3, MSDS, IEC62133 |
| Drop height | MIL-STD-810H 1.22-meter drop test |
| Power supply | Input 100-240V AC 1.5A 50/60Hz |
| Accessories | 30W Fast charge adapter、C to C data cable |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
Browse related rugged handhelds from RuggedMaster for your product comparison.
| CPU | N4020 Processor |
|---|---|
| System | Windows 11 |
| Storage | 8GB+128GB |
| Display | 6.5 inch IPS high-definition full screen 1600*720 IPS Corning Gorilla Glass |
| NFC | Support |
| 2D Barcode Scanner | Optional |
| Battery | 7.4V/4000mAh |
| Speaker | one speaker |
| Navigation positioning | Integrated GPS, GLONASS, and GALILEO |
| Protection level | IP67 MIL-STD -810H certification |
| Interface | TYPE-C, POGO PIN |
| Weight | 510g |
| Card slot | SIM / TF （512G） |
| Work environment | working temperature: -20 °C - 60 °C storage temperature: -30 °C - 70 °C |
| Key | 1 power button 2 Volume Adjustment Key 2 Bar code scanning (left and right) |
| G_sensor | Support |
| Type | 6.5 inch Windows Rugged Handheld |
| Size | 186.2*90.7*25.6mm |
| Screen size | 6.5 inch,full laminated TFT color full screen Dropnotch 20:9 |
| Screen brightness | 500cd/㎡ |
| TP Touch screen | 10 points Capacitive, G+FF hardness ≥ 7H |
| Camera | Front 5.0MP Rear 12.0MP |
| Speaker | Embedded 1Ω/1W speaker* 1 95dB@0.1m |
| MIC | single microphone |
| Button | Power *1 |
| CPU | Gemini Lake N4020 processor, 2 cores and 2 threads, embedded 4 MB SmartCache, TDP 6W The maximum frequency is 2.8GHz |
| G_sensor | Support |
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI5 |
| Bluetooth | BT5.0 (BLE) class1 transmission distance: greater than 10m |
| GPS | GPS, Galileo GLONASS |
| NFC | 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare reading distance: 3-5cm |
| TYPE-C | TYPE-C 2.0*1 (Charge、OTG 、(Data transmission） |
| USB | USB3.0*1 |
| TF | *1（Max: 512GB） |
| SIM | *1（Nano-SIM） |
| POGO PIN | *1（4pin） |
| Certification | IP65,CE,FCC，MIL-STD-810H,UN38.3, MSDS, IEC62133 |
| Drop height | MIL-STD-810H 1.22-meter drop test |
| Power supply | Input 100-240V AC 1.5A 50/60Hz |
| Accessories | 30W Fast charge adapter、C to C data cable |
