RUGGEDMASTER W30U Rugged Tablets

RUGGEDMASTER W30U Rugged Tablets

RUGGEDMASTER W30U Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

Built for Engineers Who Read Drawings and Dashboards in the Field

The W30U's 13.3-inch FHD display shows a full SCADA overview or an A3 drawing without constant pinch-zooming — that is the main reason crews step up from a 10-inch tablet. The DB9 RS232 port (optional 422/485) talks to legacy PLCs, RTUs and relay test sets that consumer tablets abandoned years ago, and the three reserved aviation plugs let your integrator wire in custom peripherals without opening the enclosure. When a shift runs long, the dual-battery hot-swap changes the main pack in seconds — the 300 mAh backup keeps the session alive, so nobody loses an unfinished inspection form.

The W30U i5 version is intended for organizations that need desktop-class Windows software in a portable industrial terminal.

It is suitable for applications such as:

Factory Equipment Maintenance

Run approved Windows diagnostic software, connect to controllers through RS232/RS485 or Ethernet, view equipment records and upload maintenance results from the production floor.

Utility and Field Inspection

Use GNSS positioning, optional 4G/5G and the high-brightness display to locate assets, record inspection results, capture images and synchronize field reports.

Warehouse and Asset Verification

Configure the tablet with a 2D scanner, NFC or UHF RFID for inventory checking, equipment identification and asset-status updates. Module combinations must be confirmed before ordering.

Vehicle Service and Mobile Workshops

Connect approved diagnostic equipment through Ethernet, USB or serial interfaces and use the optional vehicle charger for mobile maintenance deployments.

Frequently Asked Questions about W30U 13.3 Inch Windows Rugged Tablet

1. What is the W30U i5 rugged tablet designed for?

The W30U i5 is designed for field service, industrial maintenance, equipment diagnostics, factory operations, vehicle work and other applications that require Windows software together with industrial interfaces.

2. How is the W30U different from a consumer Windows tablet?

The W30U provides features that are uncommon on consumer tablets, including RS232, RJ45 Ethernet, a removable battery, an internal backup battery, wet-hand touch, glove operation and configurable barcode, NFC, RFID and fingerprint modules.

3. Can the W30U battery be replaced without shutting down Windows?

The tablet includes an internal 300mAh backup battery designed to provide temporary power while the main 8300mAh battery is replaced.

4. Can the screen be used outdoors?

The standard screen is rated at 400cd/m². A customized 1000cd/m² high-brightness display is available for projects requiring improved outdoor visibility.

5. Does the tablet support RS485?

The standard interface is listed as RS232. RS422 or RS485 can be configured for qualified projects.

6. Can barcode scanning, NFC and UHF be installed together?

Several data-capture modules are available, but not every module combination will fit every mechanical configuration.

7. Why does a top-mounted scanner affect GPS or 5G?

The top-mounted scanner occupies the same antenna bay as the cellular/GPS option — with the scanner fitted, the build must choose between GPS and 4G/5G. Tell us your priority and we will lay out the modules accordingly.

8. Which operating systems can be installed?

Windows 11 is the standard system. Windows 10 and Ubuntu 22.04.5 are listed as optional.

9. Does the hot-swap battery really swap without shutdown?

Yes. The 300 mAh backup battery bridges the swap — remove the main 8,300 mAh pack, insert a charged one, and your session, apps and network connection stay up 10 min.

10. Can the W30U be mounted in a vehicle or forklift?

The 14-pin POGO connector on the unit is designed for docking. Vehicle docks and mounting brackets are available — tell us your vehicle model and whether you need power pass-through, and we will confirm the right dock.

11. What is the difference between the W30U and the W30U Pro?

The Pro steps up to a Core Ultra 7 155U with an integrated NPU for on-device AI workloads — edge inference, image-assisted inspection and similar tasks. If your workflow is SCADA, CAD and data collection, the standard W30U's i5-1235U is the better value; if your software roadmap includes local AI, buy the Pro.

12. Which should I choose: 400 or 1000 cd/m² display?

Indoor plant floors and vehicles: 400 is fine. Outdoor work in direct sunlight — utilities, construction, open-pit sites: take the 1000. This is the single most common post-purchase regret we hear about; decide based on where the tablet will actually be used, not the datasheet.

13. Is the W30U suitable for hazardous (explosive) atmospheres?

No. The W30U is a rugged tablet, not an explosion-proof one — IP65 and MIL-STD-810H do not qualify a device for classified hazardous areas. If your site has a Zone or Class/Division rating, see our explosion-proof tablet range .

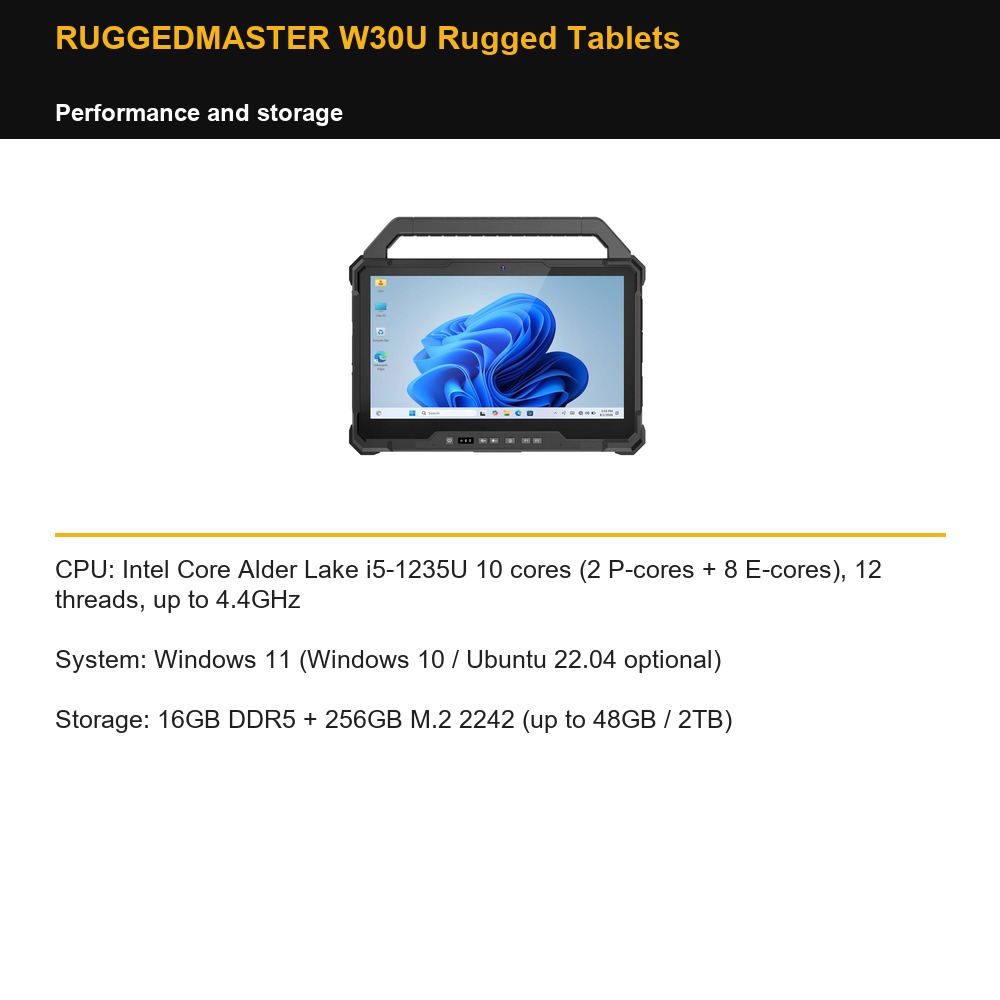

RUGGEDMASTER W30U Rugged Tablets — performance and storage

CPU: Intel Core Alder Lake i5-1235U 10 cores (2 P-cores + 8 E-cores), 12 threads, up to 4.4GHz

System: Windows 11 (Windows 10 / Ubuntu 22.04 optional)

Storage: 16GB DDR5 + 256GB M.2 2242 (up to 48GB / 2TB)

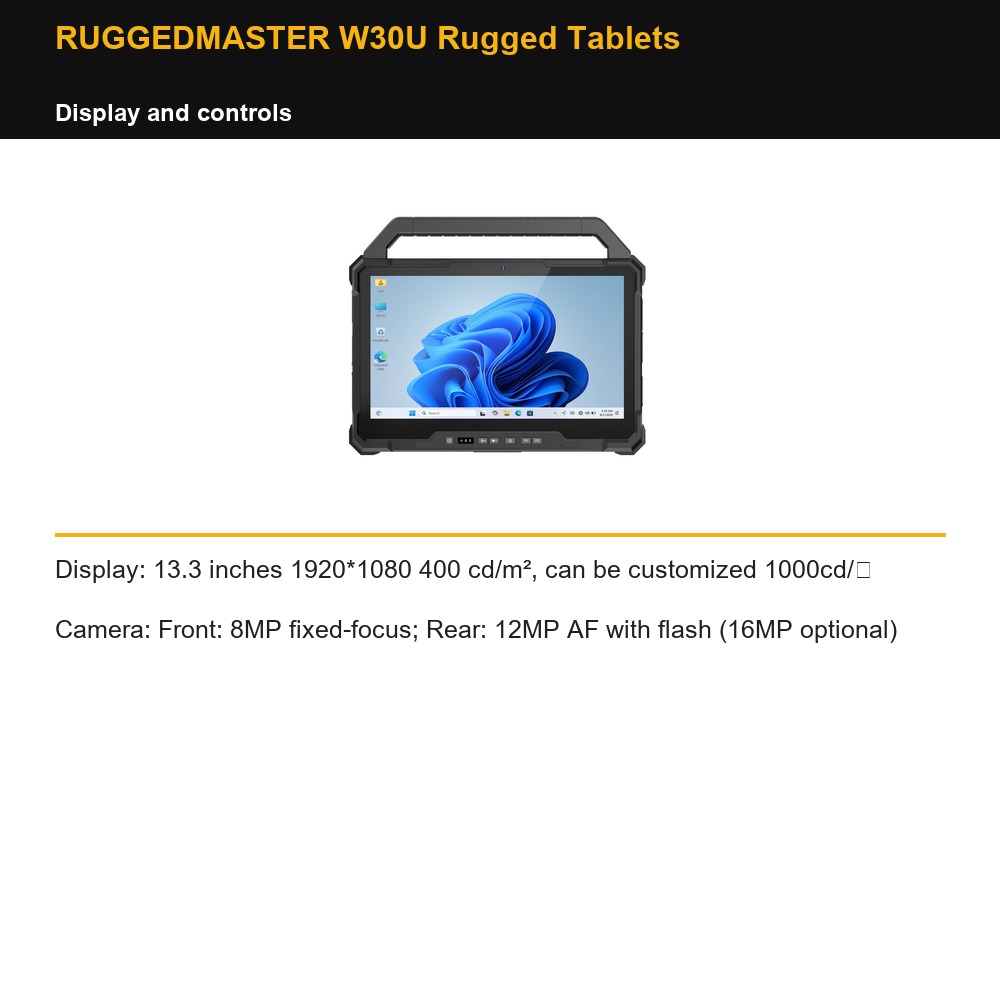

RUGGEDMASTER W30U Rugged Tablets — display and controls

Display: 13.3 inches 1920*1080 400 cd/m², can be customized 1000cd/㎡

Camera: Front: 8MP fixed-focus; Rear: 12MP AF with flash (16MP optional)

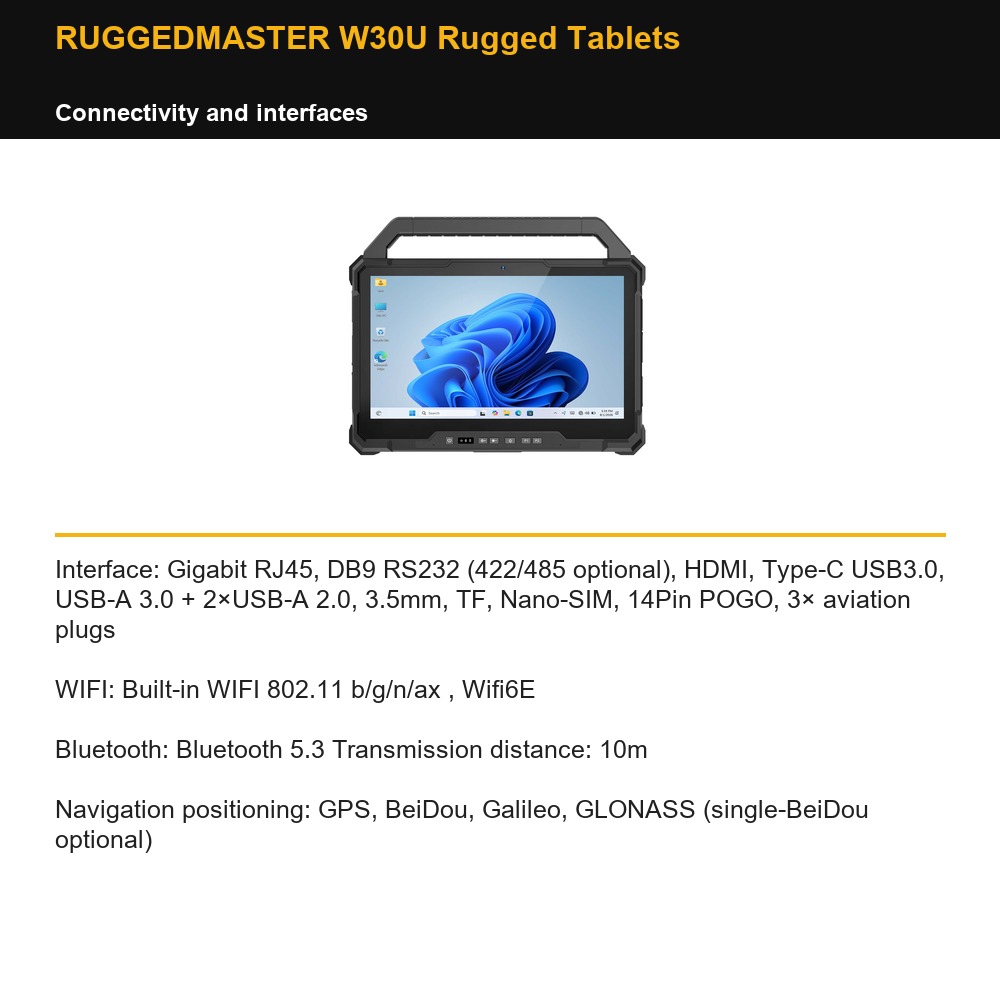

RUGGEDMASTER W30U Rugged Tablets — connectivity and interfaces

Interface: Gigabit RJ45, DB9 RS232 (422/485 optional), HDMI, Type-C USB3.0, USB-A 3.0 + 2×USB-A 2.0, 3.5mm, TF, Nano-SIM, 14Pin POGO, 3× aviation plugs

WIFI: Built-in WIFI 802.11 b/g/n/ax , Wifi6E

Bluetooth: Bluetooth 5.3 Transmission distance: 10m

Navigation positioning: GPS, BeiDou, Galileo, GLONASS (single-BeiDou optional)

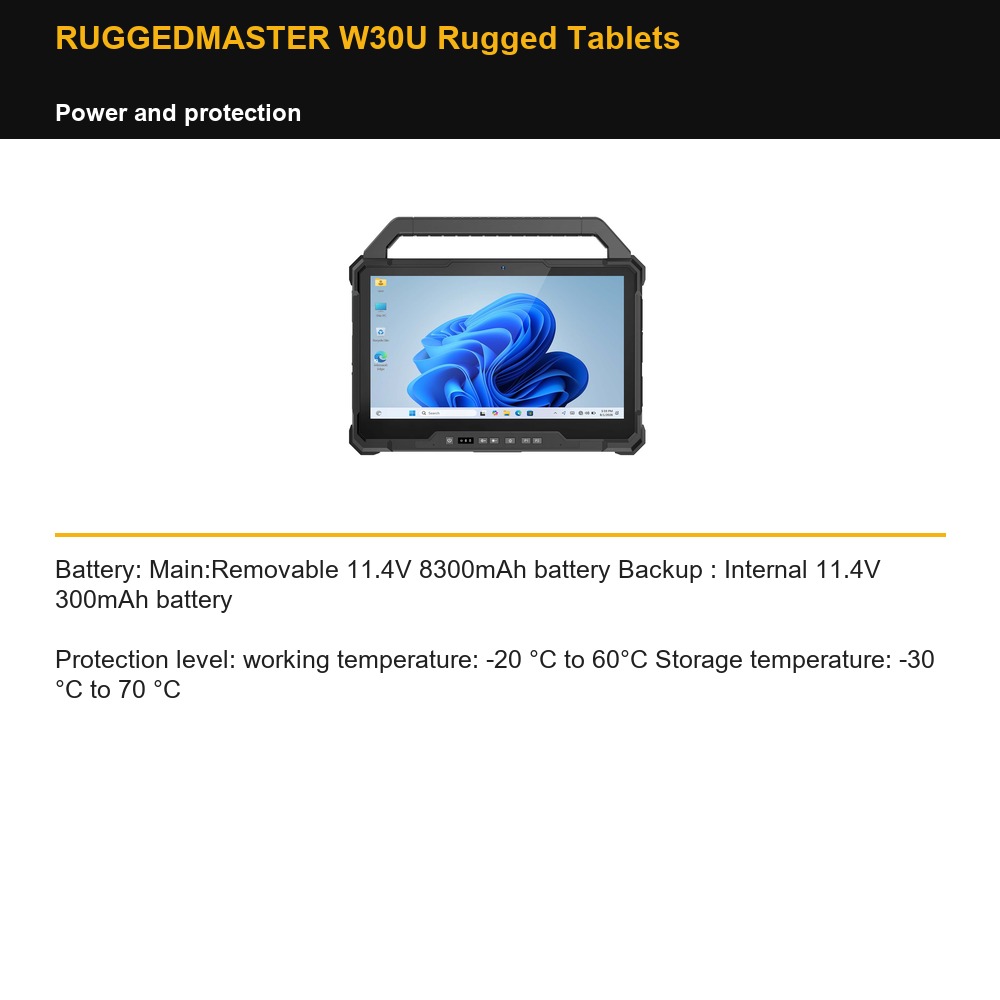

RUGGEDMASTER W30U Rugged Tablets — power and protection

Battery: Main:Removable 11.4V 8300mAh battery Backup : Internal 11.4V 300mAh battery

Protection level: working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C

RUGGEDMASTER W30U Rugged Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
