RUGGEDMASTER W15US Rugged Laptops
Intel Core 3 processor 304. It has 5 cores and 5 threads. Maximum turbo frequency reaches 4.3GHz.; 16GB DDR5 256GB M.2 SSD Storage; 15.6 inches. 1920 × 1080 Resolution. 550 cd/m² Brightness; Windows 11 Pro standard; Ubuntu 22.04.5 belongs to a project build
The optional 320 has 6 cores and 6 threads. Maximum turbo frequency reaches 4.6GHz. We use a repeated application test to judge the practical difference.
Battery: Main battery: 5100mAh smart battery Secondary battery: 2200mAh smart battery
Interface: HDMI, Serial port interface type C, USB3.0, RJ45 interface USB 2.0, left-side docking connector
Protection level: working temperature: -20 °C to 60 °C protection level: IP65
Camera: Front 8MP Autofocus Camera with Privacy Shutter
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER W15US Rugged Laptops
RUGGEDMASTER W15US Rugged Laptops supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
Frequently Asked Questions About the W15US IP65 Rugged Laptop
1. What work is W15US designed to handle?
The W15US is a 15.6-inch IP65 field laptop for Windows data entry and drawing review, built on Intel's Core 3 304 (Core 5 320 optional).
2. How are the Core 3 304 cores arranged?
Intel defines 1 P-core and 4 Low Power E-cores. The total is 5 cores with 5 threads. Intel Smart Cache is 6MB.
3. Does every core run at 4.3GHz?
No. 4.3GHz is the P-core's maximum turbo; the four efficiency cores reach 3.3GHz. Neither figure is a constant all-core speed.
4. What changes with the Core 5 320 option?
The optional 320 has 6 cores and 6 threads. Maximum turbo frequency reaches 4.6GHz. We use a repeated application test to judge the practical difference.
5. Which memory and storage configurations are available?
8GB or 16GB RAM; 128GB or 256GB M.2 PCIe Gen4 SSD standard, expandable to 2TB on approved builds.
6. Is Ubuntu 22.04.5 a standard operating system?
Windows 11 Pro is the standard image. Ubuntu 25.04 is available as a project build with its own validated driver set.
7. Is the USB-C port Thunderbolt 4?
No. The port provides 10Gbps data, DisplayPort video and 100W PD input. The spec sheet's "Thunderbolt" wording refers to connector class only; Thunderbolt 4 certification (40Gbps) is not claimed.
8. Which network connections are built in?
Two adaptive 2.5GbE ports are built into W15US. Wi-Fi 6 and Bluetooth 5.2 handle local wireless links. Cellular hardware is optional.
9. Are RS422 and RS485 standard?
No. DB9 RS232 is the standard description. RS422 or RS485 requires a project wiring definition with its own pinout.
10. Which battery is user-removable?
The 5100mAh main pack swaps out; the 2100mAh bridge battery is built in and keeps the system alive during the swap.
11. Does one 4G or 5G module work worldwide?
No universal modem configuration is assumed. We choose hardware for the destination country and attach its Band table to the order.
12. What does IP65 cover?
IP65 addresses dust ingress and water jets under a defined enclosure test. It does not establish drop resistance or explosion protection.
RUGGEDMASTER W15US Rugged Laptops — performance and storage
CPU: Intel Core 3 processor 304. It has 5 cores and 5 threads. Maximum turbo frequency reaches 4.3GHz.
System: Windows 11 Pro standard; Ubuntu 22.04.5 belongs to a project build
Storage: 16GB DDR5 256GB M.2 SSD Storage

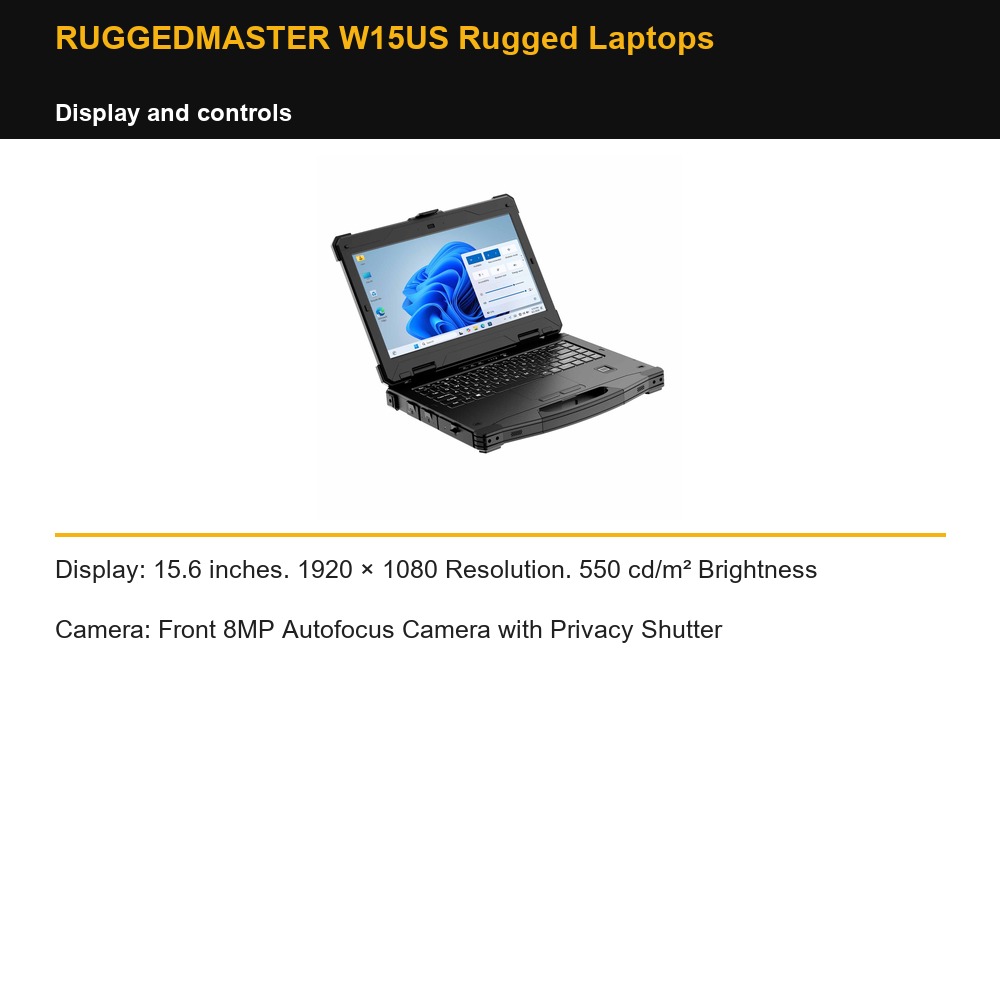

RUGGEDMASTER W15US Rugged Laptops — display and controls
Display: 15.6 inches. 1920 × 1080 Resolution. 550 cd/m² Brightness
Camera: Front 8MP Autofocus Camera with Privacy Shutter

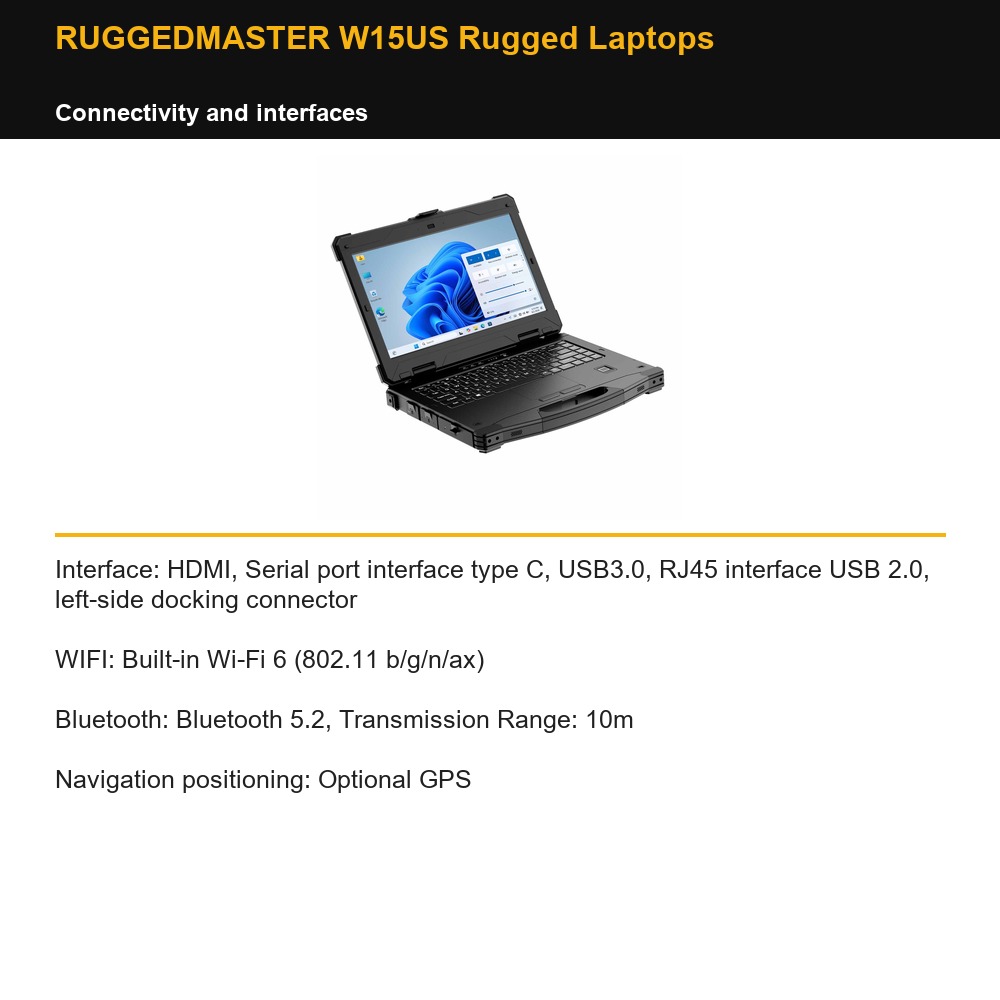

RUGGEDMASTER W15US Rugged Laptops — connectivity and interfaces
Interface: HDMI, Serial port interface type C, USB3.0, RJ45 interface USB 2.0, left-side docking connector
WIFI: Built-in Wi-Fi 6 (802.11 b/g/n/ax)
Bluetooth: Bluetooth 5.2, Transmission Range: 10m
Navigation positioning: Optional GPS

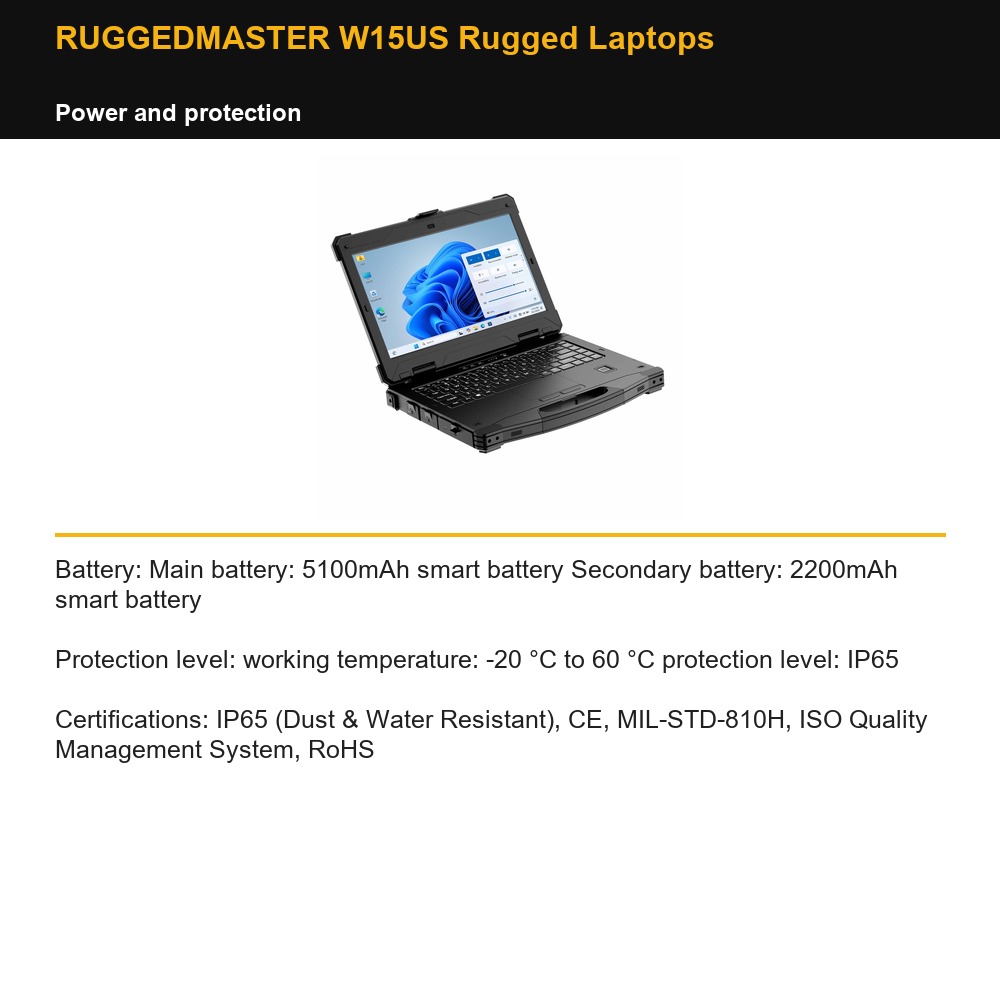

RUGGEDMASTER W15US Rugged Laptops — power and protection
Battery: Main battery: 5100mAh smart battery Secondary battery: 2200mAh smart battery
Protection level: working temperature: -20 °C to 60 °C protection level: IP65
Certifications: IP65 (Dust & Water Resistant), CE, MIL-STD-810H, ISO Quality Management System, RoHS
RUGGEDMASTER W15US Rugged Laptops technical specifications
| CPU | Intel Core 3 processor 304. It has 5 cores and 5 threads. Maximum turbo frequency reaches 4.3GHz. |
|---|---|
| System | Windows 11 Pro standard; Ubuntu 22.04.5 belongs to a project build |
| Storage | 16GB DDR5 256GB M.2 SSD Storage |
| Display | 15.6 inches. 1920 × 1080 Resolution. 550 cd/m² Brightness |
| NFC Reading and Writing | Optional |
| Ingress protection | IP65 |
| Battery | Main battery: 5100mAh smart battery Secondary battery: 2200mAh smart battery |
| Pilot lamp | Power indicator light, 1 charging indicator light, 1 hard drive indicator light |
| Navigation positioning | Optional GPS |
| Key | Power Button, P1, P2, P3 Programmable Function Keys |
| Interface | HDMI, Serial port interface type C, USB3.0, RJ45 interface USB 2.0, left-side docking connector |
| Security | TPM 2.0 |
| Card slot | TF card capacity up to 1TB |
| Protection level | working temperature: -20 °C to 60 °C protection level: IP65 |
| Camera | Front 8MP Autofocus Camera with Privacy Shutter |
| Keyboard | 86-key membrane keyboard with backlighting |
| Product formats | 15.6 Inch Rugged Portable Terminal Laptop |
| Target Applications | Command & Control, Communication Support, Data Reconnaissance, Equipment Maintenance, Surveying & Mapping, and other industrial scenarios. |
| Enclosure Material | Plastic + Metal Molded Enclosure, Protective Bumpers, Waterproof Sealing Gaskets |
| Display | 15.6" FHD LCD, 1920×1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display |
| Touchscreen(Custom) | Customisable USB TP 10-point touch |
| Battery | Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2200mAh 15.2V. Battery Life ≥6 Hours (TBD); Tested in simulated office environment at 50% brightness and 50% volume. |
| Camera | Front: 8MP Autofocus Camera with Privacy Shutter |
| Keys | Power Button P1, P2, P3 Programmable Function Keys |
| Keyboard | Built-in 86-Key Keyboard with Backlight |
| Touchpad | Support |
| Login fingerprint | *1 SPI Interface Fingerprint Sensor |
| RAM | 8GB/16GB |
| ROM | 128GB/256GB M.2 SSD Slots, Max Capacity: 2TB. Supports PCIe Gen 4 SSD |
| TPM | Built-in TPM Security Chip |
| Operating System | Windows 11 Pro, Optional:Ubuntu 22.04.5, Kylin OS |
| WIFI | Built-in Wi-Fi 6 (802.11 b/g/n/ax) |
| Bluetooth | Bluetooth 5.2, Transmission Range: 10m |
| USB Type-A | *4 USB3.0 |
| USB Type-C | *1 USB 3.0 (Data Transfer) |
| Thunderbolt Port | *1 TBT |
| Audio Jack | *1 3.5mm Standard Audio Combo Jack |
| TF Card | *1 Supports up to 1TB Expansion |
| SIM Card | *1 Standard Micro SIM Slot |
| DC Power Jack | *1 DC Input, 19V-7.8A (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| RJ45 Ethernet | *2 RJ45 LAN Ports, Auto-negotiating 2.5G/1G/100M/10Mbps |
| Serial Port (COM) | *1 DB9 Serial Port (RS232 Standard; RS422/RS485 Optional) |
| Expansion Features | SATA hard drive (or secondary battery – choose one) |
| Integrability | Highly Expandable. Supports Customer Module Integration, Custom Functional Interfaces, and Internal Reserved Multi-USB Headers |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certifications | IP65 (Dust & Water Resistant), CE, MIL-STD-810H, ISO Quality Management System, RoHS |
| Power Adapter | 19V-3.42A DC Power Adapter (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| Packaging | Standard Product Carton Box; Custom Packaging Boxes Available |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
Browse related rugged laptops from RuggedMaster for your product comparison.
| CPU | Intel Core 3 processor 304. It has 5 cores and 5 threads. Maximum turbo frequency reaches 4.3GHz. |
|---|---|
| System | Windows 11 Pro standard; Ubuntu 22.04.5 belongs to a project build |
| Storage | 16GB DDR5 256GB M.2 SSD Storage |
| Display | 15.6 inches. 1920 × 1080 Resolution. 550 cd/m² Brightness |
| NFC Reading and Writing | Optional |
| Ingress protection | IP65 |
| Battery | Main battery: 5100mAh smart battery Secondary battery: 2200mAh smart battery |
| Pilot lamp | Power indicator light, 1 charging indicator light, 1 hard drive indicator light |
| Navigation positioning | Optional GPS |
| Key | Power Button, P1, P2, P3 Programmable Function Keys |
| Interface | HDMI, Serial port interface type C, USB3.0, RJ45 interface USB 2.0, left-side docking connector |
| Security | TPM 2.0 |
| Card slot | TF card capacity up to 1TB |
| Protection level | working temperature: -20 °C to 60 °C protection level: IP65 |
| Camera | Front 8MP Autofocus Camera with Privacy Shutter |
| Keyboard | 86-key membrane keyboard with backlighting |
| Product formats | 15.6 Inch Rugged Portable Terminal Laptop |
| Target Applications | Command & Control, Communication Support, Data Reconnaissance, Equipment Maintenance, Surveying & Mapping, and other industrial scenarios. |
| Enclosure Material | Plastic + Metal Molded Enclosure, Protective Bumpers, Waterproof Sealing Gaskets |
| Display | 15.6" FHD LCD, 1920x1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display |
| Touchscreen(Custom) | Customisable USB TP 10-point touch |
| Battery | Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2200mAh 15.2V. Battery Life ≥6 Hours (TBD); Tested in simulated office environment at 50% brightness and 50% volume. |
| Camera | Front: 8MP Autofocus Camera with Privacy Shutter |
| Keys | Power Button P1, P2, P3 Programmable Function Keys |
| Keyboard | Built-in 86-Key Keyboard with Backlight |
| Touchpad | Support |
| Login fingerprint | *1 SPI Interface Fingerprint Sensor |
| RAM | 8GB/16GB |
| ROM | 128GB/256GB M.2 SSD Slots, Max Capacity: 2TB. Supports PCIe Gen 4 SSD |
| TPM | Built-in TPM Security Chip |
| Operating System | Windows 11 Pro, Optional:Ubuntu 22.04.5, Kylin OS |
| WIFI | Built-in Wi-Fi 6 (802.11 b/g/n/ax) |
| Bluetooth | Bluetooth 5.2, Transmission Range: 10m |
| USB Type-A | *4 USB3.0 |
| USB Type-C | *1 USB 3.0 (Data Transfer) |
| Thunderbolt Port | *1 TBT |
| Audio Jack | *1 3.5mm Standard Audio Combo Jack |
| TF Card | *1 Supports up to 1TB Expansion |
| SIM Card | *1 Standard Micro SIM Slot |
| DC Power Jack | *1 DC Input, 19V-7.8A (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| RJ45 Ethernet | *2 RJ45 LAN Ports, Auto-negotiating 2.5G/1G/100M/10Mbps |
| Serial Port (COM) | *1 DB9 Serial Port (RS232 Standard; RS422/RS485 Optional) |
| Expansion Features | SATA hard drive (or secondary battery – choose one) |
| Integrability | Highly Expandable. Supports Customer Module Integration, Custom Functional Interfaces, and Internal Reserved Multi-USB Headers |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certifications | IP65 (Dust & Water Resistant), CE, MIL-STD-810H, ISO Quality Management System, RoHS |
| Power Adapter | 19V-3.42A DC Power Adapter (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| Packaging | Standard Product Carton Box; Custom Packaging Boxes Available |
