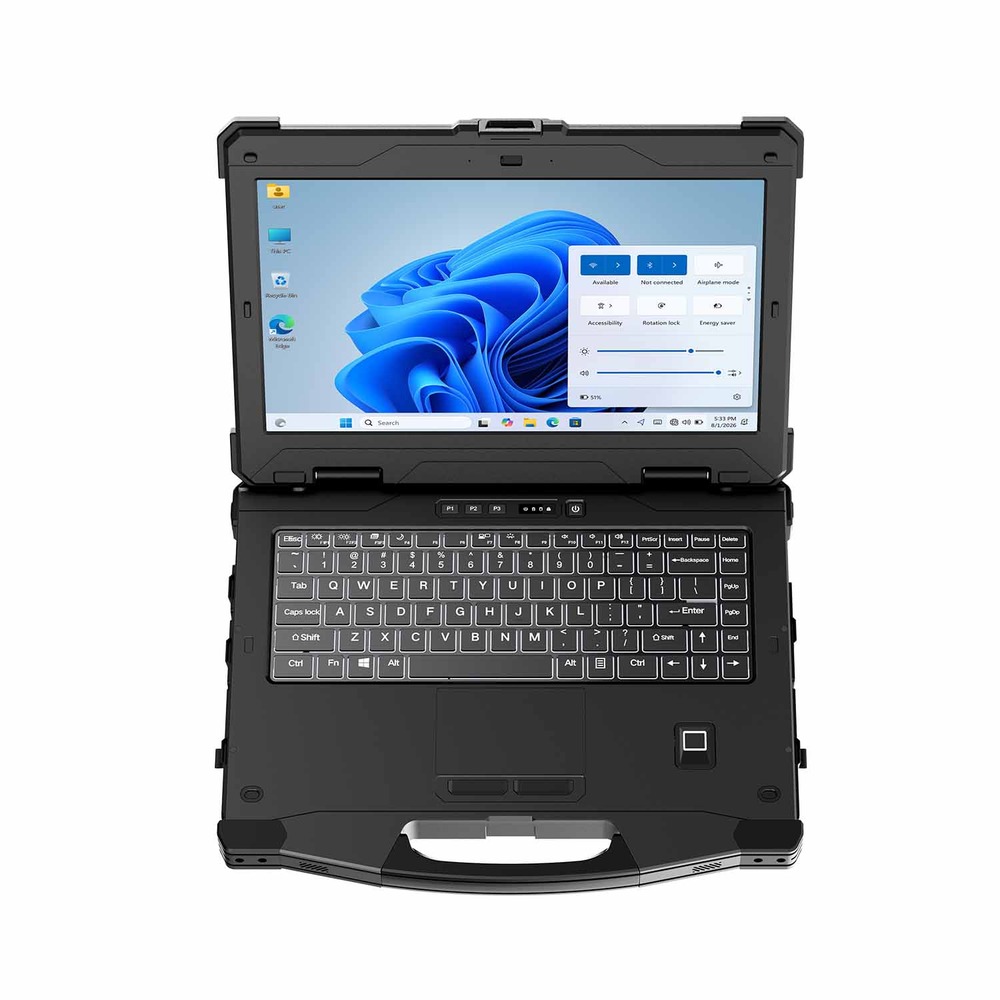

RUGGEDMASTER W15UPro Rugged Laptops
Intel Core Ultra 5 125U. It has 12 cores and 14 threads. Maximum turbo frequency reaches 4.3GHz.; 16GB DDR5 256GB M.2 SSD Storage; 15.6 inches. 1920 × 1080 Resolution. 550 cd/m² Brightness; Windows 11 Pro standard; Ubuntu 25.04 project image
The W15Pro is a 15.6-inch rugged Windows laptop for field software and direct equipment connection, built on the Core Ultra 5 125U with onboard serial, LAN and docking interfaces.
Battery: Main battery: 5100mAh smart battery Secondary battery: 2100mAh smart battery
Interface: HDMI, Serial port interface type C, USB3.0, RJ45 interface USB 2.0, left-side docking connector
Protection level: working temperature: -20 °C to 60 °C protection level: IP65
Camera: Front 8MP Autofocus Camera with Privacy Shutter
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER W15UPro Rugged Laptops
RUGGEDMASTER W15UPro Rugged Laptops supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
Frequently Asked Questions About the W15UPro IP65 Rugged Laptop
1. What is W15Pro designed for?
The W15Pro is a 15.6-inch rugged Windows laptop for field software and direct equipment connection, built on the Core Ultra 5 125U with onboard serial, LAN and docking interfaces.
2. How are the Core Ultra 5 125U cores arranged?
Intel defines 12 cores: 2 P-cores plus 8 E-cores and 2 Low Power E-cores. The processor has 14 threads and reaches a 4.3GHz maximum turbo frequency.
3. Does the base W15Pro include an RTX 4060 8GB GPU?
No. The standard 125U build uses Intel integrated graphics. An RTX 4060 (8GB) configuration is available as a project build; its power profile and driver branch are confirmed at order time.
4. Which specifications change with Core Ultra 7 155H?
The optional 155H moves to 16 cores and 22 threads with a 4.8GHz maximum turbo frequency. Intel’s 28W processor base-power figure also makes thermal implementation part of the decision.
5. How far do memory and storage expand?
Two SO-DIMM slots support up to 96GB RAM; two M.2 slots support up to 4TB total storage. Configuration is fixed to the production bill of materials at order time.
6. Will Ubuntu 25.04 work with every option?
Yes for the standard build. Ubuntu 25.04 ships as a project image; display and modem drivers are validated per configuration, and RTX builds use a dedicated NVIDIA driver branch.
7. How do the two batteries work?
A removable 5100mAh main battery pairs with a built-in 2100mAh bridge battery, so the main pack can be swapped without shutting down.
8. Under what conditions is the 5-hour runtime measured?
At least 5 hours. A repeatable report adds panel brightness and processor load. Radio state gets recorded separately.
9. Will a battery swap interrupt open applications?
No. The bridge battery covers the swap window; we validate the exchange with your actual Windows workload before delivery.
10. Which display comes with the standard build?
The base panel measures 15.6 inches. Resolution is 1920 × 1080, and stated brightness is 550 cd/m².
11. Which routes form the triple-display layout?
External video uses HDMI 2.0b or Type-C DisplayPort.
12. Does the standard build include touch?
No. Touch belongs to an optional USB-controlled display build.
13. What network hardware is built in?
W15Pro has 2 adaptive 2.5GbE ports. Wi-Fi 6 and Bluetooth 5.2 cover wireless connections. A cellular modem is optional.
14. Are RS422 and RS485 standard?
RS232 is the described DB9 mode. RS422 or RS485 requires project wiring. Our cable drawing identifies pinout and termination.
15. Which functions use the Type-C port?
Type-C reaches 10Gbps data speed and carries DisplayPort video.
16. What does IP65 cover?
IP65 covers the enclosure against dust ingress and water jets under its report conditions. It does not establish an Ex rating. Our ruggedness file treats MIL-STD-810H separately.

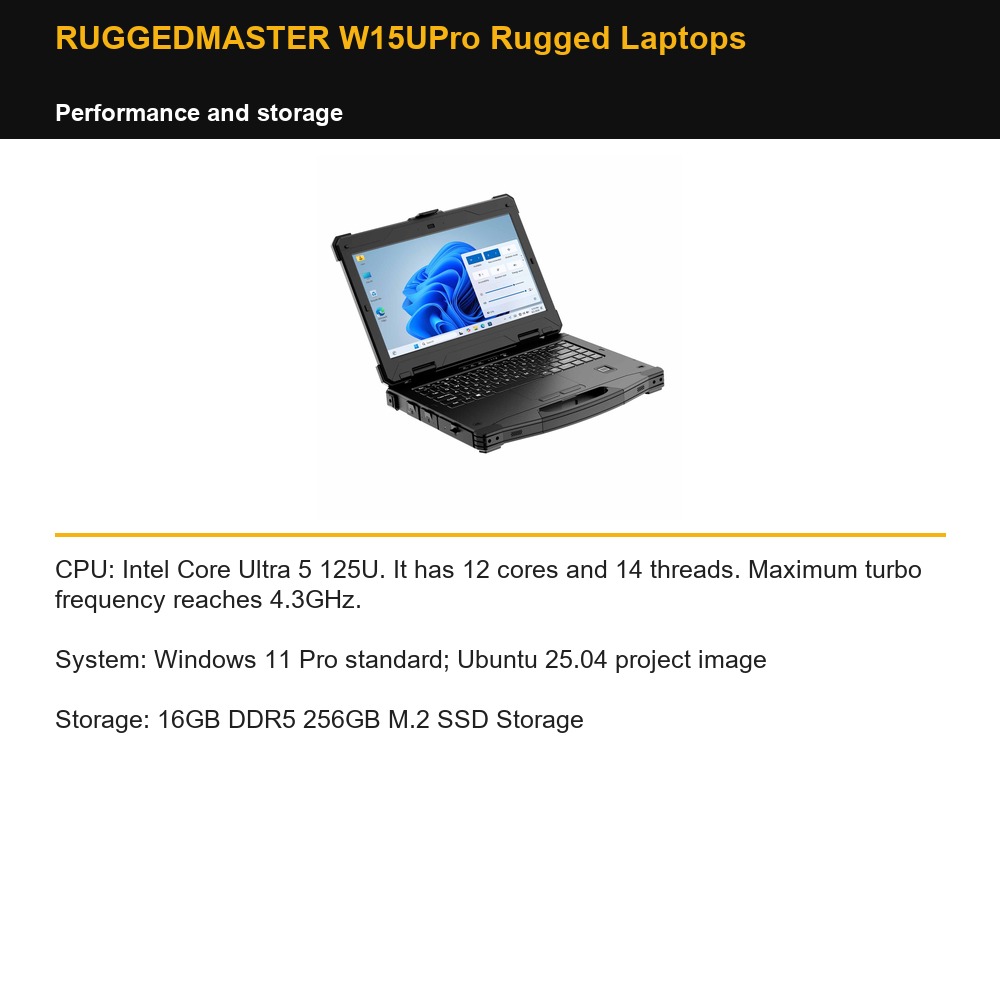

RUGGEDMASTER W15UPro Rugged Laptops — performance and storage
CPU: Intel Core Ultra 5 125U. It has 12 cores and 14 threads. Maximum turbo frequency reaches 4.3GHz.
System: Windows 11 Pro standard; Ubuntu 25.04 project image
Storage: 16GB DDR5 256GB M.2 SSD Storage

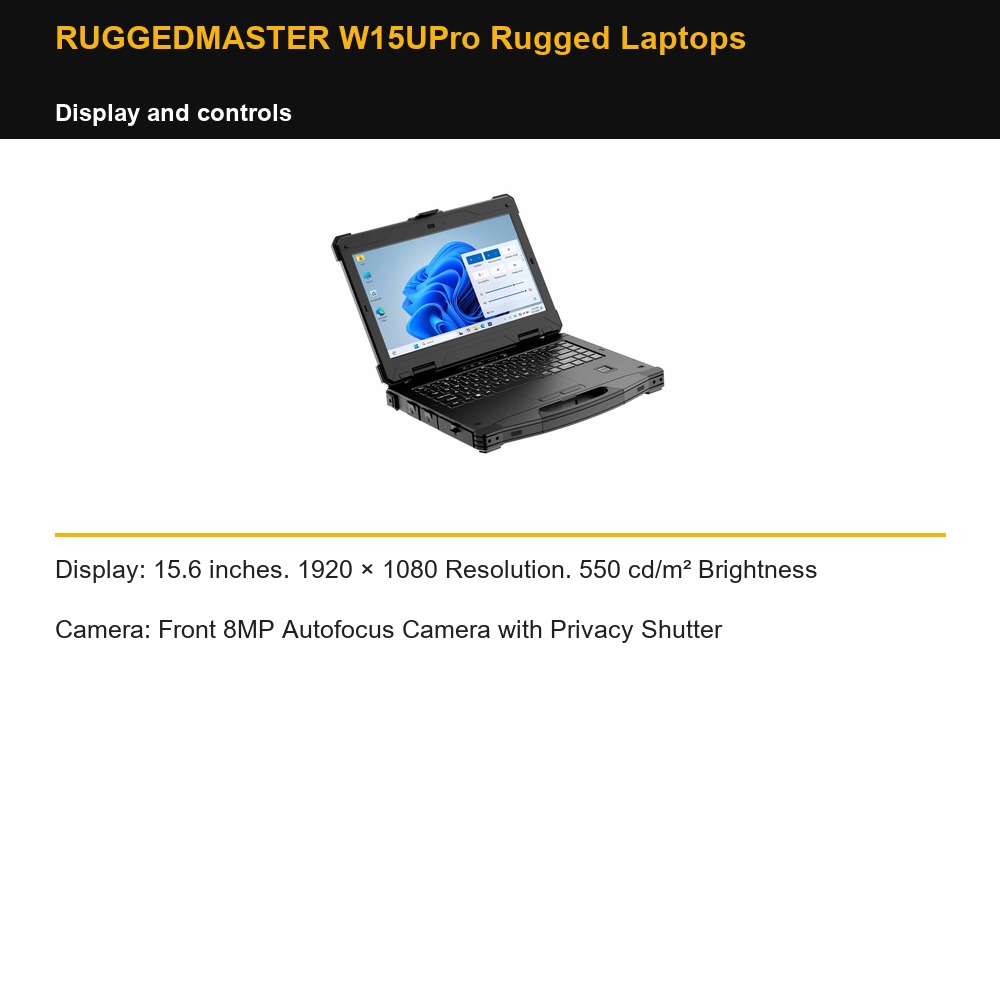

RUGGEDMASTER W15UPro Rugged Laptops — display and controls
Display: 15.6 inches. 1920 × 1080 Resolution. 550 cd/m² Brightness
Camera: Front 8MP Autofocus Camera with Privacy Shutter

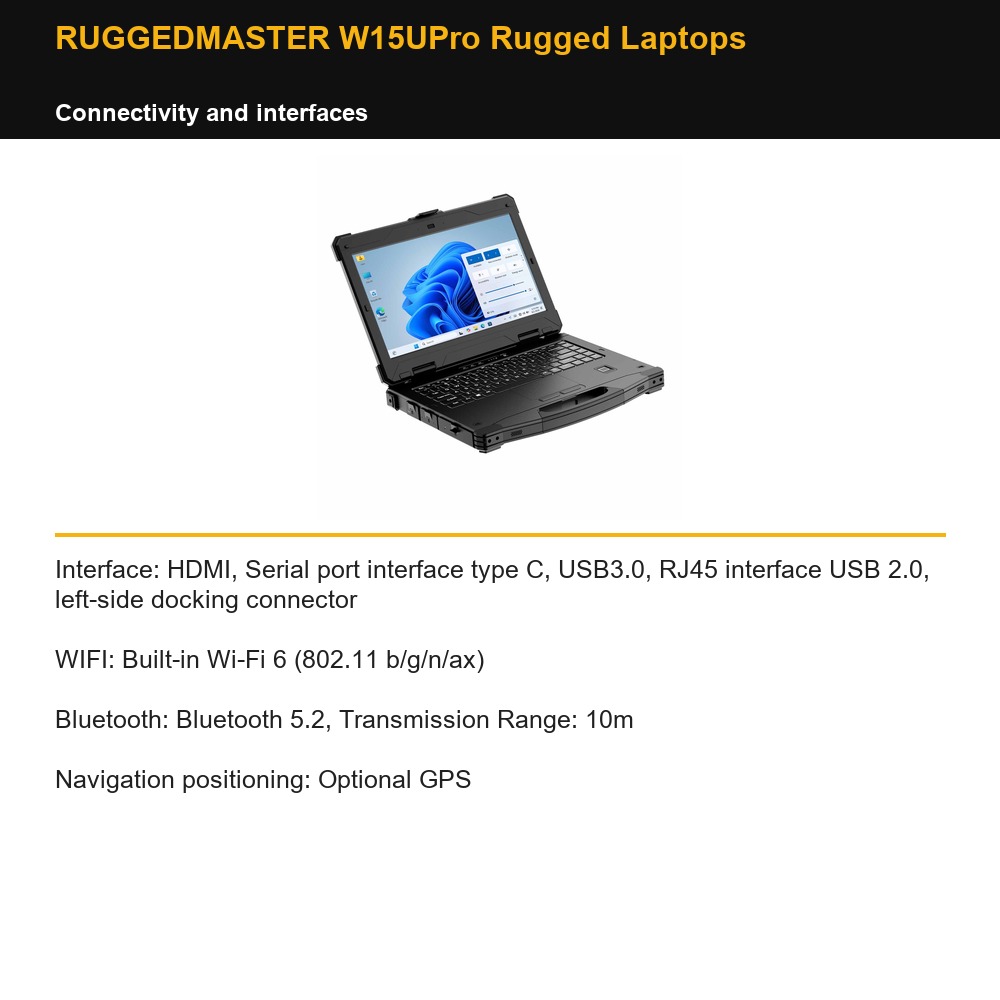

RUGGEDMASTER W15UPro Rugged Laptops — connectivity and interfaces
Interface: HDMI, Serial port interface type C, USB3.0, RJ45 interface USB 2.0, left-side docking connector
WIFI: Built-in Wi-Fi 6 (802.11 b/g/n/ax)
Bluetooth: Bluetooth 5.2, Transmission Range: 10m
Navigation positioning: Optional GPS

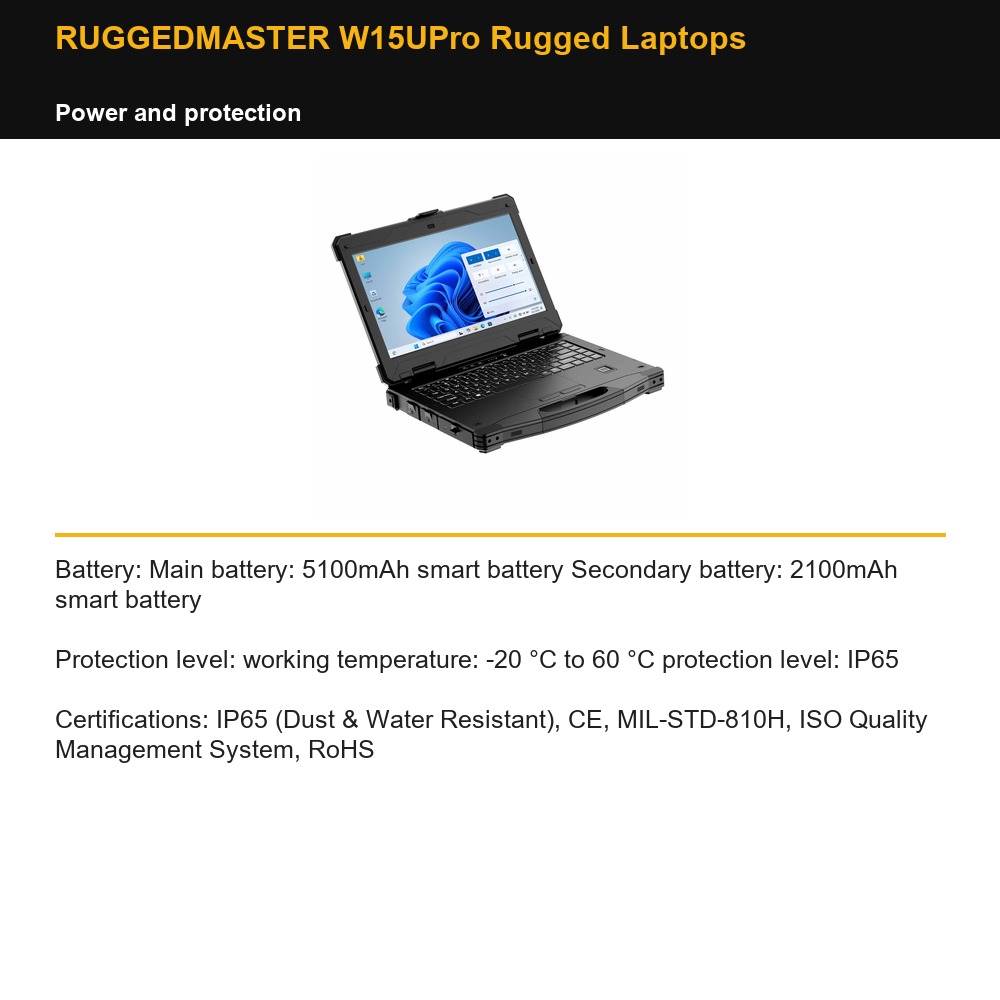

RUGGEDMASTER W15UPro Rugged Laptops — power and protection
Battery: Main battery: 5100mAh smart battery Secondary battery: 2100mAh smart battery
Protection level: working temperature: -20 °C to 60 °C protection level: IP65
Certifications: IP65 (Dust & Water Resistant), CE, MIL-STD-810H, ISO Quality Management System, RoHS
RUGGEDMASTER W15UPro Rugged Laptops technical specifications
| CPU | Intel Core Ultra 5 125U. It has 12 cores and 14 threads. Maximum turbo frequency reaches 4.3GHz. |
|---|---|
| System | Windows 11 Pro standard; Ubuntu 25.04 project image |
| Storage | 16GB DDR5 256GB M.2 SSD Storage |
| Display | 15.6 inches. 1920 × 1080 Resolution. 550 cd/m² Brightness |
| NFC Reading and Writing | Optional |
| Ingress protection | IP65 |
| Battery | Main battery: 5100mAh smart battery Secondary battery: 2100mAh smart battery |
| Pilot lamp | Power indicator light, 1 charging indicator light, 1 hard drive indicator light |
| Navigation positioning | Optional GPS |
| Key | Power Button, P1, P2, P3 Programmable Function Keys |
| Interface | HDMI, Serial port interface type C, USB3.0, RJ45 interface USB 2.0, left-side docking connector |
| Security | TPM 2.0 |
| Card slot | TF card capacity up to 1TB |
| Protection level | working temperature: -20 °C to 60 °C protection level: IP65 |
| Camera | Front 8MP Autofocus Camera with Privacy Shutter |
| Keyboard | 86-key membrane keyboard with backlighting |
| Product formats | 15.6 Inch Rugged Portable Terminal Laptop |
| Display | 15.6" FHD LCD, 1920×1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display; Tri-display configuration available. |
| Touchscreen(Custom) | Customisable USB TP 10-point touch |
| Battery | Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2100mAh 15.2V. Battery Life ≥5 Hours (TBD); Tested in simulated office environment at 50% brightness and 50% volume. |
| Camera | Front: 8MP Autofocus Camera with Privacy Shutter |
| Keys | Power Button, P1, P2, P3 Programmable Function Keys |
| Keyboard | Built-in 86-Key Keyboard with Backlight |
| Touchpad | Support |
| Login fingerprint | *1，SPI Interface Fingerprint Sensor |
| CPU | Intel Core Ultra 5 125U (12 Cores / 14 Threads, 1.3GHz – 4.3GHz) Optional: Intel Core Ultra 7 155H (16 Cores / 22 Threads, 1.4GHz – 4.8GHz) |
| GPU | Optional MXM RTX4060 8G |
| RAM | Standard: 16GB DDR5, 2×SO-DIMM Slots, Max Capacity: 96GB |
| ROM | Standard: 256GB M.2 SSD. 2×M.2 SSD Slots, Max Capacity: 4TB. Supports SATA / PCIe Gen 4 SSD |
| TPM | Built-in TPM Security Chip |
| Operating System | Windows 11 Pro, Optional：Ubuntu 25.04, Kylin OS |
| WIFI | Built-in Wi-Fi 6 (802.11 b/g/n/ax) |
| Bluetooth | Bluetooth 5.2, Transmission Range: 10m |
| Fingerprint capture (Custom) | 1. Standard Industrial Fingerprint 2. MPS-Certified Fingerprint (Ministry of Public Security) 3. FBI-Certified Fingerprint |
| USB Type-A | *5 USB3.0 |
| USB Type-C | *1 USB 3.0(10Gbps, Supports DP Alt Mode & 100W PD Fast Charging Input) |
| Audio Jack | *1 3.5mm Standard Audio Combo Jack |
| TF Card | *1 Supports up to 1TB Expansion |
| SIM Card | *1 Standard Micro SIM Slot |
| HDMI Port | *1 HDMI 2.0b Output (Shared/Multiplexed with MXM Graphics) |
| DC Power Jack | *1 DC Input, 19V-7.8A (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| RJ45 Ethernet | *2 RJ45 LAN Ports, Auto-negotiating 2.5G/1G/100M/10Mbps |
| Serial Port (COM) | *1 DB9 Serial Port (RS232 Standard; RS422/RS485 Optional) |
| Expansion Features | SATA hard drive (or secondary battery – choose one) |
| Integrability | Highly Expandable. Supports Customer Module Integration, Custom Functional Interfaces, and Internal Reserved Multi-USB Headers |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certifications | IP65 (Dust & Water Resistant), CE, MIL-STD-810H, ISO Quality Management System, RoHS |
| Power Adapter | 19V-7.8A DC Power Adapter (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| Optional Accessories | Stylus (Custom TP Touch Function Required) |
| Packaging | Standard Product Carton Box; Custom Packaging Boxes Available |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
