RUGGEDMASTER W14US Rugged Laptops supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

Frequently Asked Questions About the W14US IP65 Rugged Laptop

1.What's the difference between the Core 3-304 and Core 5-320 versions?

The Core 3-304 has five cores and suits routine field reporting, equipment diagnostics and communications work. The Core 5-320 has six cores, including two performance cores, and is the better choice for heavier multitasking, larger mapping files and more demanding Windows software.

2. Does the W14US come with a touchscreen?

Not as standard — the base configuration has a non-touch 14-inch Full HD display. A USB-connected touchscreen is available as a project option; please confirm touchscreen and stylus compatibility at the time of order.

3. Is the 1,000-nit sunlight-readable display standard?

No, the standard panel is 550 nits. The 1,000-nit option is available for projects with frequent outdoor use and can be configured on request.

4. Can the battery be swapped without shutting the laptop down?

Yes — the dual smart-battery design allows one battery to keep the system running while the other is swapped. Please follow the swap procedure in the user manual to ensure the active battery is not removed first.

5. Can I use the secondary battery slot for a SATA drive instead?

No — the internal expansion bay holds either the secondary battery or a SATA drive, not both at the same time. Choose one at the time of order based on whether extended runtime or extra storage matters more for your use case.

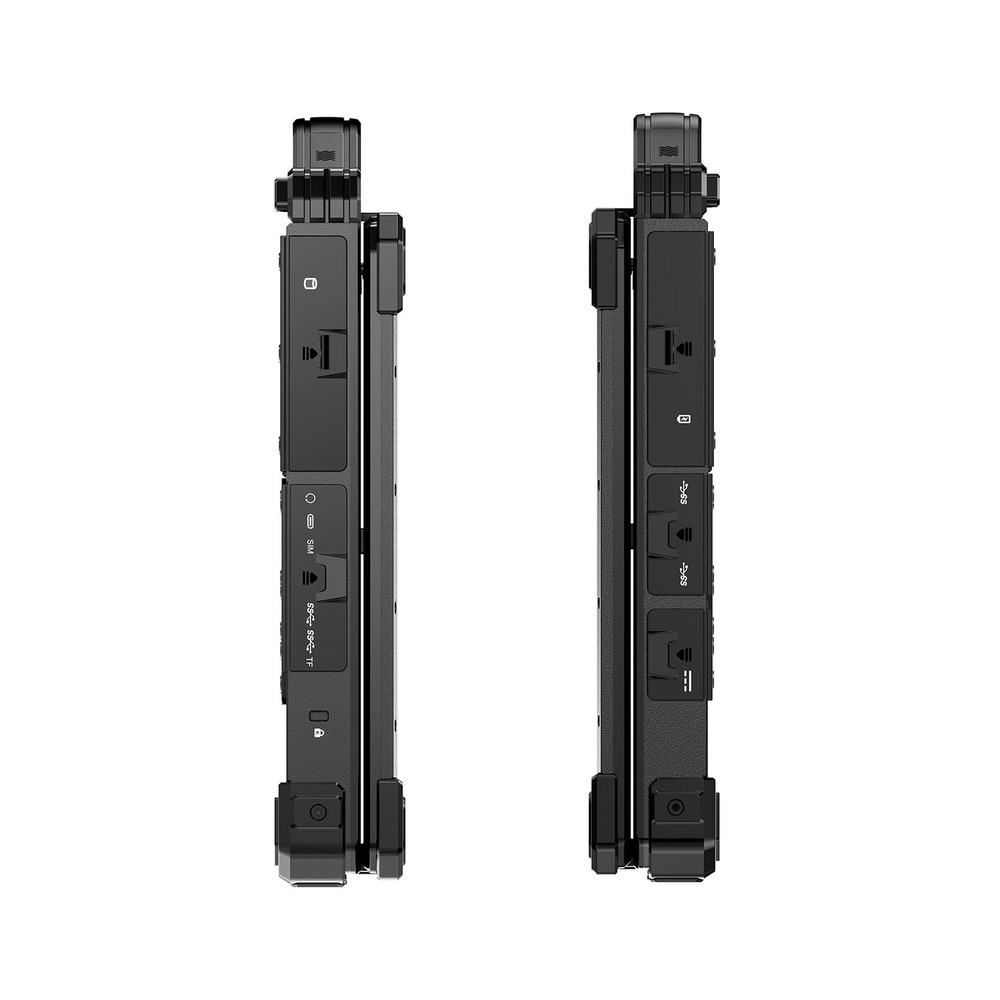

6. What ports does the W14US have?

Four USB-A 3.0 ports, one USB-C 3.0 port, one Thunderbolt port (10Gbps, DisplayPort output, 100W PD input), two 2.5GbE RJ45 ports, one DB9 RS232 serial port (RS422/485 optional), a 3.5mm audio jack, a TF card slot (up to 1TB) and a Micro-SIM slot.

7. Does the W14US support 5G?

Cellular connectivity is optional. Available 4G/5G bands depend on the modem module selected, destination country, carrier requirements and regional certification — contact our sales team to confirm coverage for your region.

8. Is GNSS positioning built in?

Not on the standard model. GPS, Galileo and GLONASS positioning (via a U-blox NEO-M8N module) are available as bulk-order customization options.Q9. What's the maximum storage capacity?

The main M.2 PCIe Gen4 SSD supports up to 2TB. Separately, the TF card slot supports up to 1TB of additional removable storage — these are two independent storage paths, not combined capacity.

9. Is the W14US waterproof and dustproof?

It's rated IP65, meaning protection against dust ingress and low-pressure water jets under defined test conditions — it is not designed for submersion. All port covers must be fully closed to maintain the rating.

10. What certifications does the W14US carry?

IP65, CE, MIL-STD-810H (1.22m drop test, per GJB 150.18A-2009 and GJB 150.1A-2009), ISO quality management system certification, and RoHS.

11. What accessories come with the W14US?

A carrying bag and a stylus pen are available as optional accessories.

RUGGEDMASTER W14US Rugged Laptops — performance and storage

CPU: Intel Core 3 processor 304, 5 cores, up to 4.3GHz

System: Windows 11 Pro

Storage: 8/16GB + 128/256GB M.2 PCIe Gen4 SSD, up to 2TB

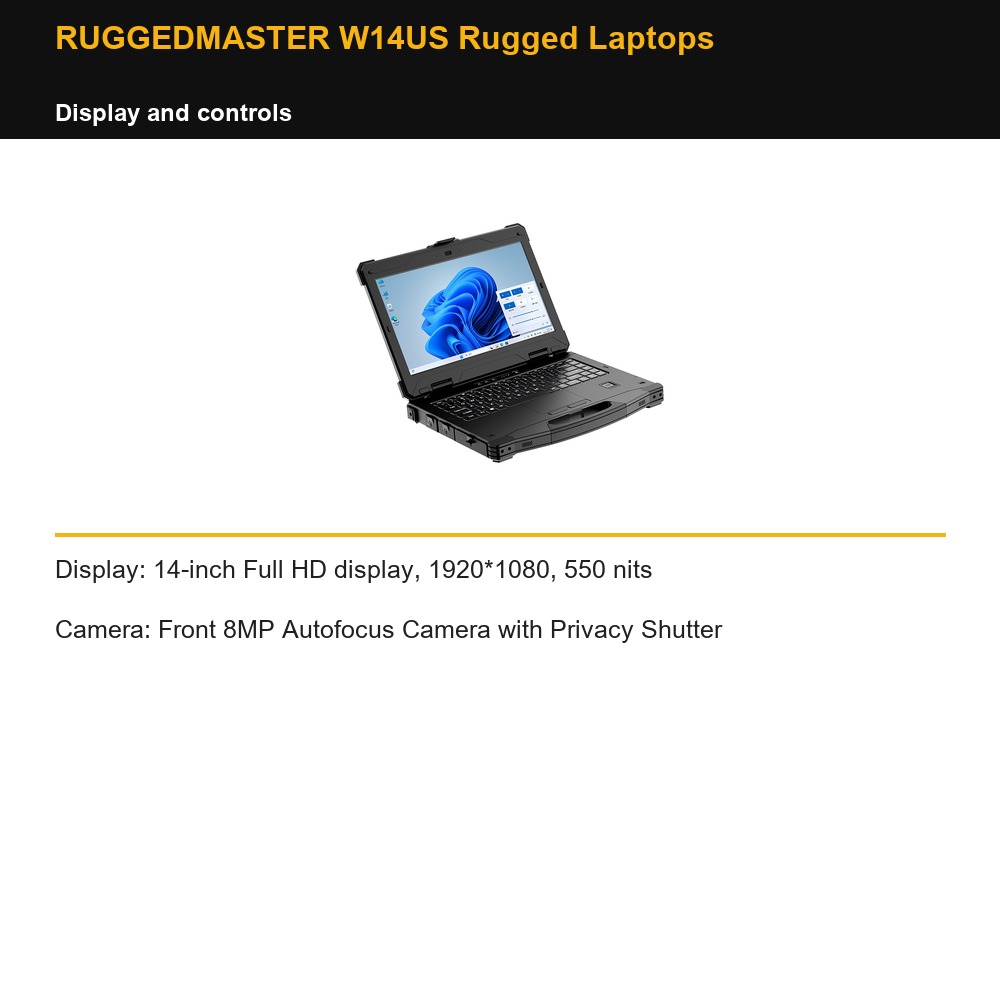

RUGGEDMASTER W14US Rugged Laptops — display and controls

Display: 14-inch Full HD display, 1920*1080, 550 nits

Camera: Front 8MP Autofocus Camera with Privacy Shutter

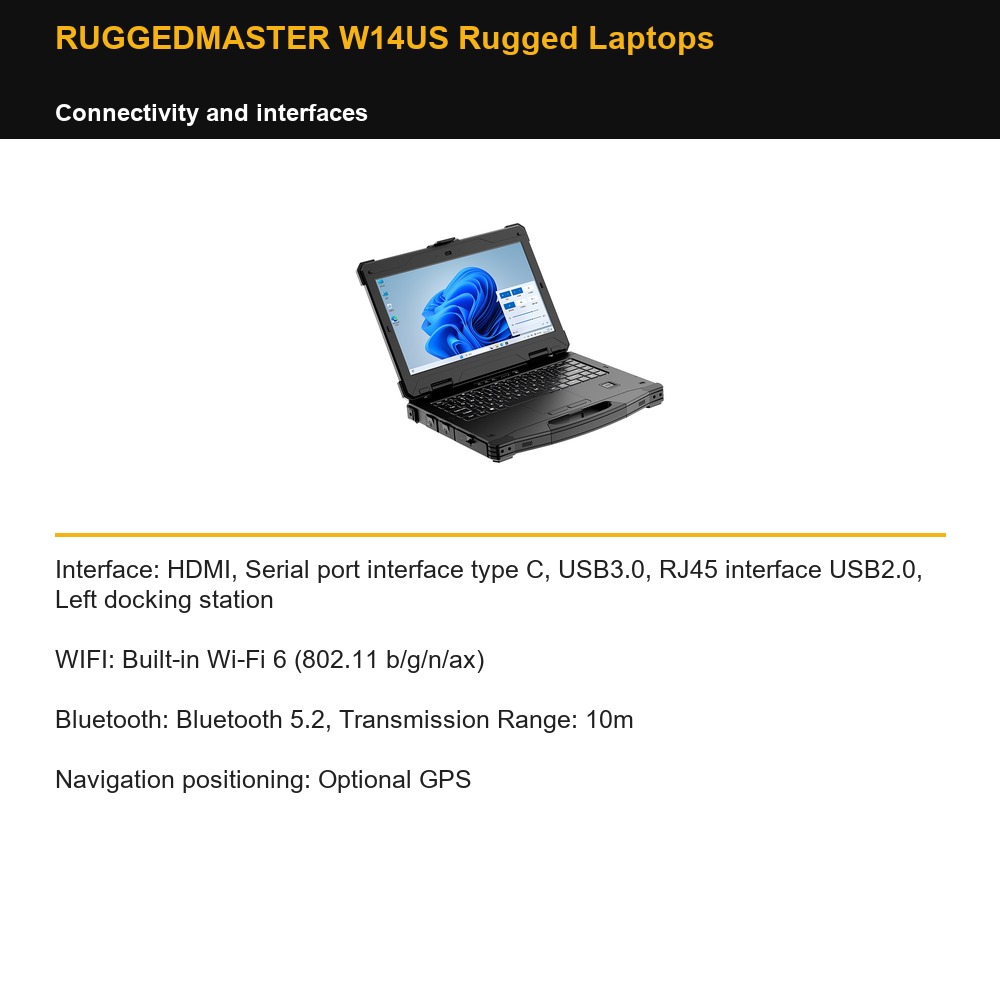

RUGGEDMASTER W14US Rugged Laptops — connectivity and interfaces

Interface: HDMI, Serial port interface type C, USB3.0, RJ45 interface USB2.0, Left docking station

WIFI: Built-in Wi-Fi 6 (802.11 b/g/n/ax)

Bluetooth: Bluetooth 5.2, Transmission Range: 10m

Navigation positioning: Optional GPS

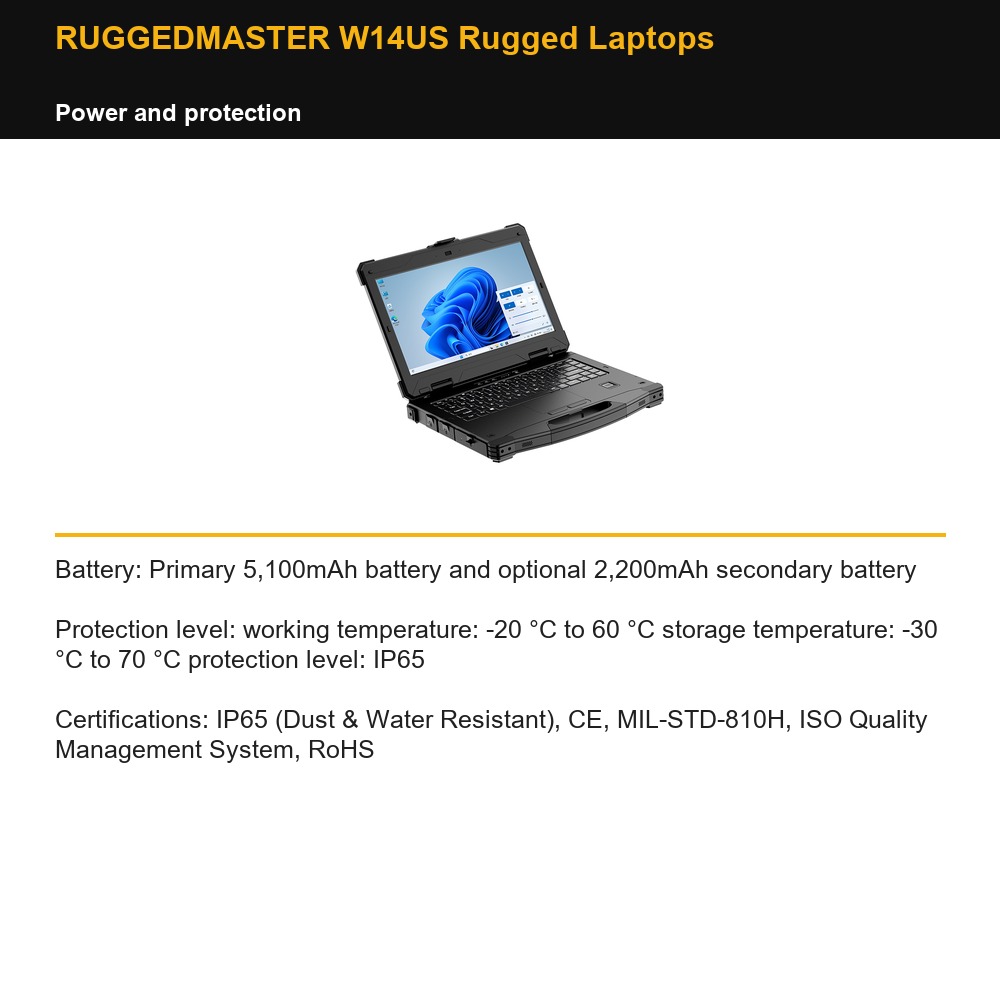

RUGGEDMASTER W14US Rugged Laptops — power and protection

Battery: Primary 5,100mAh battery and optional 2,200mAh secondary battery

Protection level: working temperature: -20 °C to 60 °C storage temperature: -30 °C to 70 °C protection level: IP65

Certifications: IP65 (Dust & Water Resistant), CE, MIL-STD-810H, ISO Quality Management System, RoHS

RUGGEDMASTER W14US Rugged Laptops technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
