RUGGEDMASTER W14UPRO Rugged Laptops
Intel Core Ultra 5 125U; 16GB DDR5, 2×SO-DIMM Slots; 14" FHD LCD, 1920×1080 Resolution; Windows 11 Pro
The W14UPRO is designed for field command, equipment maintenance, surveying, industrial software, mobile workstations, communication support and edge-computing projects. Software performance depends on the selected processor, memory, storage, graphics and thermal configuration.
Battery: Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2100mAh 15.2V. Battery Life ≥5 Hours;
Interface: Type -A,Type -C HDMI,POGO PIN Network port, serial port
Protection level: working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C
Camera: Front: 8MP Autofocus Camera with Privacy Shutter
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER W14UPRO Rugged Laptops
RUGGEDMASTER W14UPRO Rugged Laptops supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
W14UPRO Ultra Rugged Laptop Details:
Frequently Asked Questions About the W14UPRO Rugged Laptop
1. What types of applications is the W14UPRO designed for?
The W14UPRO is designed for field command, equipment maintenance, surveying, industrial software, mobile workstations, communication support and edge-computing projects. Software performance depends on the selected processor, memory, storage, graphics and thermal configuration.
2. What practical functions can use the built-in NPU?
The Intel Core Ultra platform includes an NPU for compatible AI-assisted workloads such as image classification, OCR, background effects, speech processing and selected local inference applications. Actual acceleration depends on the software framework, model, driver and operating-system configuration.
3. Can the W14UPRO connect to three displays?
A tri-display configuration is available. A typical setup may use the internal display, HDMI output and USB-C DisplayPort output. The exact number of simultaneous displays, maximum resolution and available ports depend on whether integrated graphics or the optional discrete GPU is selected.
4. How much memory and storage can be installed?
The W14UPRO includes two DDR5 SO-DIMM slots and two M.2 storage slots. The page lists support for up to 96GB RAM and up to 4TB of storage. Customers should confirm the validated memory modules, SSD size, SATA or NVMe interface and whether both storage slots support PCIe Gen 4.
5. Does the W14UPRO support 4G, 5G and GNSS?
Optional cellular and GNSS modules are available for project configurations. Customers should confirm the modem model, 4G or 5G frequency bands, SA/NSA support, SIM format, destination carrier compatibility, antenna configuration and supported GNSS constellations before ordering.
6. Can barcode, NFC, fingerprint and ID card modules be integrated?
Project-specific data-capture and identity modules may be integrated, including barcode scanning, NFC, industrial fingerprint readers and certified fingerprint or ID card modules. Module location, software drivers, SDK availability, operating-system compatibility and effects on IP65 protection should be confirmed during project evaluation.
7. What should buyers confirm before ordering the W14UPRO?
Buyers should confirm the processor, GPU, RAM, SSD, screen brightness, touchscreen requirement, battery arrangement, operating system, cellular bands, GNSS, industrial interfaces, certification reports and required accessories.

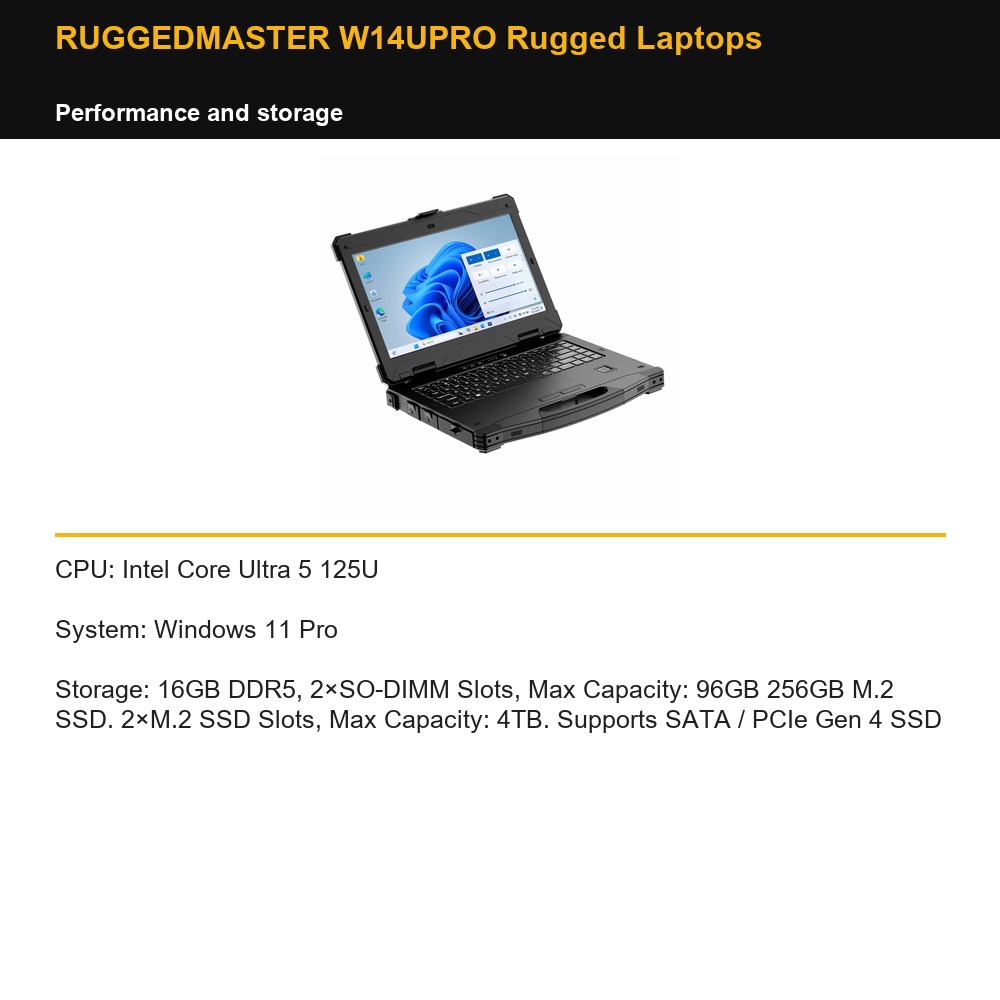

RUGGEDMASTER W14UPRO Rugged Laptops — performance and storage
CPU: Intel Core Ultra 5 125U
System: Windows 11 Pro
Storage: 16GB DDR5, 2×SO-DIMM Slots, Max Capacity: 96GB 256GB M.2 SSD. 2×M.2 SSD Slots, Max Capacity: 4TB. Supports SATA / PCIe Gen 4 SSD

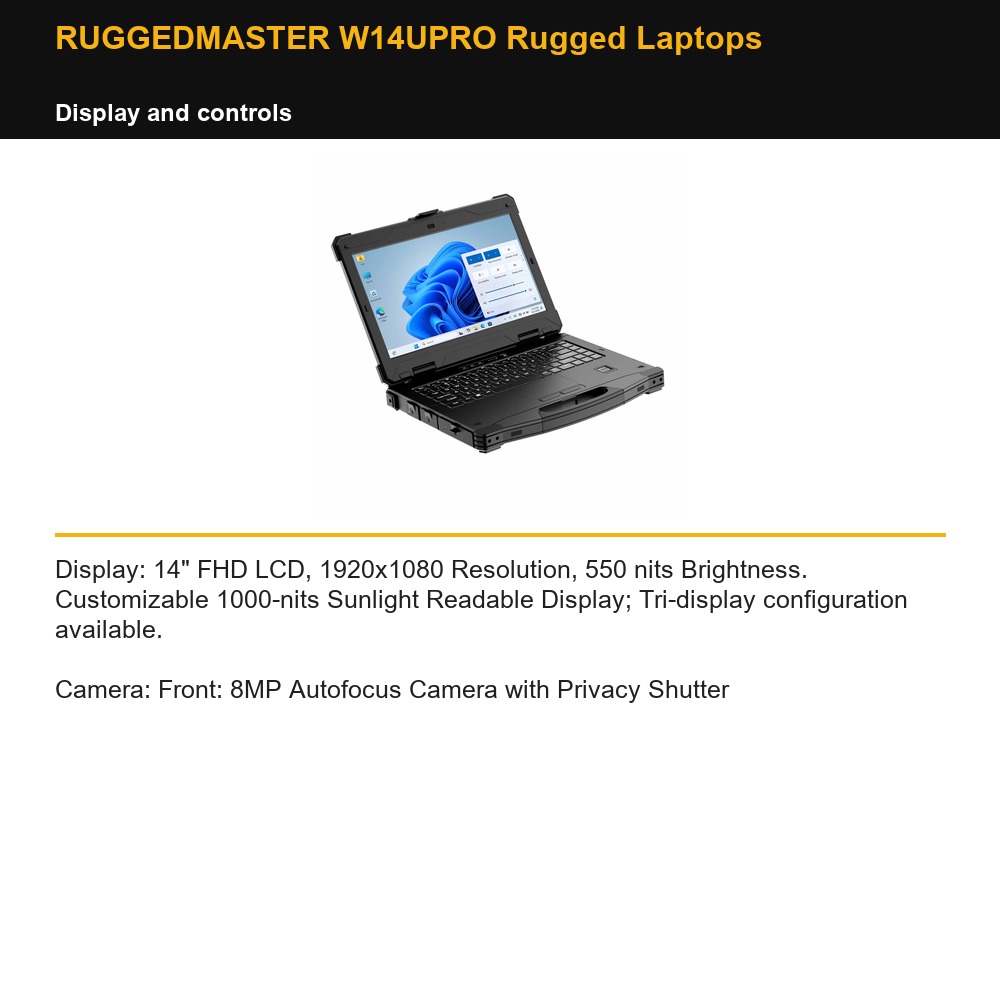

RUGGEDMASTER W14UPRO Rugged Laptops — display and controls
Display: 14" FHD LCD, 1920×1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display; Tri-display configuration available.
Camera: Front: 8MP Autofocus Camera with Privacy Shutter

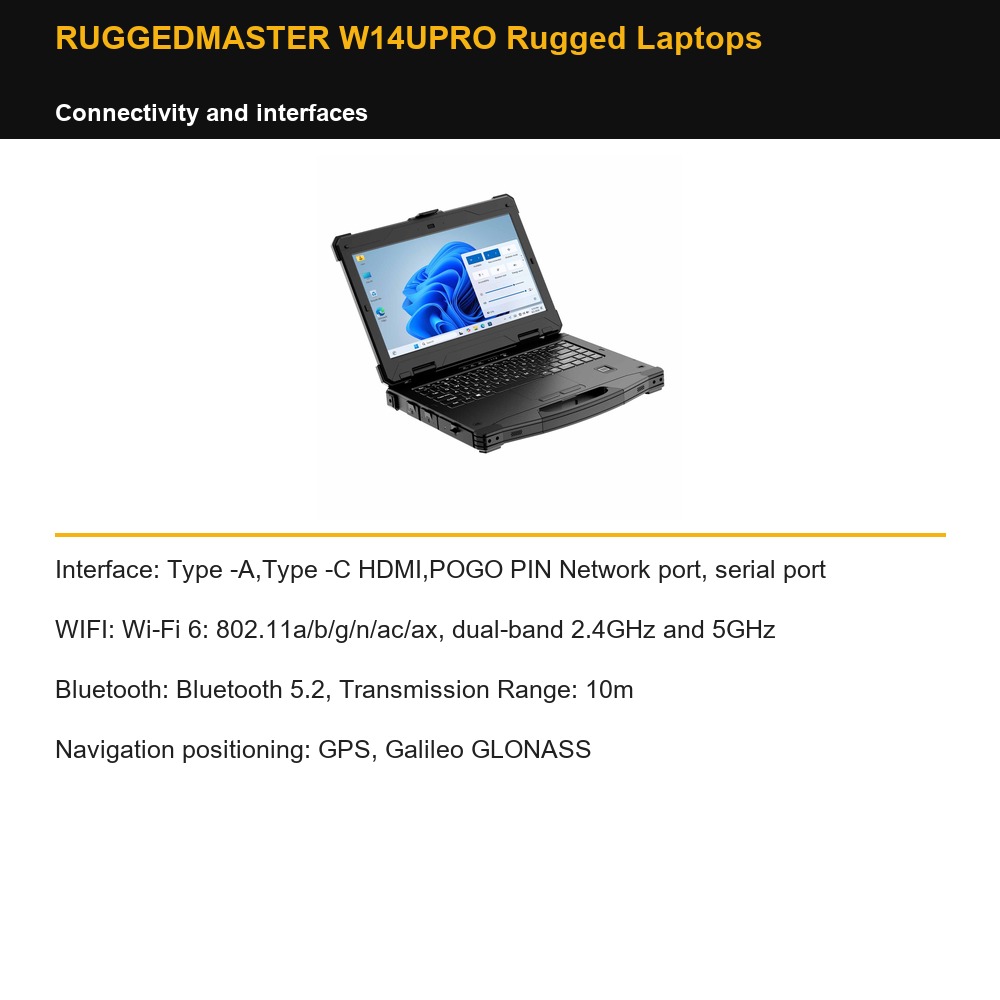

RUGGEDMASTER W14UPRO Rugged Laptops — connectivity and interfaces
Interface: Type -A,Type -C HDMI,POGO PIN Network port, serial port
WIFI: Wi-Fi 6: 802.11a/b/g/n/ac/ax, dual-band 2.4GHz and 5GHz
Bluetooth: Bluetooth 5.2, Transmission Range: 10m
Navigation positioning: GPS, Galileo GLONASS
RUGGEDMASTER W14UPRO Rugged Laptops — power and protection
Battery: Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2100mAh 15.2V. Battery Life ≥5 Hours;
Protection level: working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C
Certifications: IP65 (Dust & Water Resistant), CCC, CE, MIL-STD-810H, ISO Quality Management System, RoHS
RUGGEDMASTER W14UPRO Rugged Laptops technical specifications
| CPU | Intel Core Ultra 5 125U |
|---|---|
| System | Windows 11 Pro |
| Storage | 16GB DDR5, 2×SO-DIMM Slots, Max Capacity: 96GB 256GB M.2 SSD. 2×M.2 SSD Slots, Max Capacity: 4TB. Supports SATA / PCIe Gen 4 SSD |
| Display | 14" FHD LCD, 1920×1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display; Tri-display configuration available. |
| NFC | Optional Default back of the body for card reading, customizable to the front |
| One/Two dimensional code | Optional Able to identify dirty 1/2 dimensional codes |
| Battery | Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2100mAh 15.2V. Battery Life ≥5 Hours; |
| High frequency/ultra-high frequency module | Optional Ultra thin integrated module |
| Navigation positioning | GPS, Galileo GLONASS |
| ID card identification | Optional |
| Interface | Type -A,Type -C HDMI,POGO PIN Network port, serial port |
| Size | 358.50mm*293mm*41mm |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Protection level | working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |
| Camera | Front: 8MP Autofocus Camera with Privacy Shutter |
| Sensor | Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product | 14" Rugged Portable Terminal Laptop |
| Target Applications | Command & Control, Communication Support, Data Reconnaissance, Equipment Maintenance, Surveying & Mapping, and other industrial scenarios. |
| Enclosure Material | Plastic + Metal Molded Enclosure, Protective Bumpers, Waterproof Sealing Gaskets |
| Dimensions | 358.50mm x 293mm x 41mm |
| Color | Black |
| Display | 14" FHD LCD, 1920×1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display; Tri-display configuration available. |
| Audio | *2 Speakers: 2W / 4Ω *2 MIC |
| Battery | Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2100mAh 15.2V. Battery Life ≥5 Hours |
| Camera | Front: 8MP Autofocus Camera with Privacy Shutter |
| Keys | Power Button P1, P2, P3 Programmable Function Keys |
| Keyboard | Built-in 86-Key Keyboard with Backlight |
| Touchpad | Support |
| Login fingerprint | *1 SPI Interface Fingerprint Sensor |
| Touchscreen(Custom) | Customisable USB TP |
| CPU | Intel Core Ultra 5 125U (12 Cores / 14 Threads, 1.3GHz – 4.3GHz) Optional: Intel Core Ultra 7 155H (16 Cores / 22 Threads, 1.4GHz – 4.8GHz) |
| GPU | Optional MXM RTX4060 8G |
| RAM | Standard: 16GB DDR5, 2×SO-DIMM Slots, Max Capacity: 96GB |
| ROM | Standard: 256GB M.2 SSD. 2×M.2 SSD Slots, Max Capacity: 4TB. Supports SATA / PCIe Gen 4 SSD |
| TPM | Built-in TPM Security Chip |
| Operating System | Windows 11 Pro, Optional：Ubuntu 25.04, Kylin OS |
| WIFI | Wi-Fi 6: 802.11a/b/g/n/ac/ax, dual-band 2.4GHz and 5GHz |
| Bluetooth | Bluetooth 5.2, Transmission Range: 10m |
| USB Type-A | *5 USB3.0 |
| USB Type-C | *1 USB 3.0(10Gbps, Supports DP Alt Mode & 100W PD Fast Charging Input) |
| Audio Jack | *1 3.5mm Standard Audio Combo Jack |
| TF Card | *1 Supports up to 1TB Expansion |
| SIM Card | *1 Standard Micro SIM Slot |
| HDMI Port | *1 HDMI 2.0b Output (Shared/Multiplexed with MXM Graphics) |
| DC Power Jack | *1 DC Input, 19V-7.8A (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| RJ45 Ethernet | *2 RJ45 LAN Ports, Auto-negotiating 2.5G/1G/100M/10Mbps |
| Serial Port (COM) | *1 DB9 Serial Port (RS232 Standard; RS422/RS485 Optional) |
| Expansion Features | SATA hard drive (or secondary battery – choose one) |
| Integrability | Highly Expandable. Supports Customer Module Integration, Custom Functional Interfaces, and Internal Reserved Multi-USB Headers |
| Certifications | IP65 (Dust & Water Resistant), CCC, CE, MIL-STD-810H, ISO Quality Management System, RoHS |
| Power Adapter | 19V-7.8A DC Power Adapter (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| Optional Accessories | Carrying Bag, Stylus Pen |
| Packaging | Standard Product Carton Box; Custom Packaging Boxes Available |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
