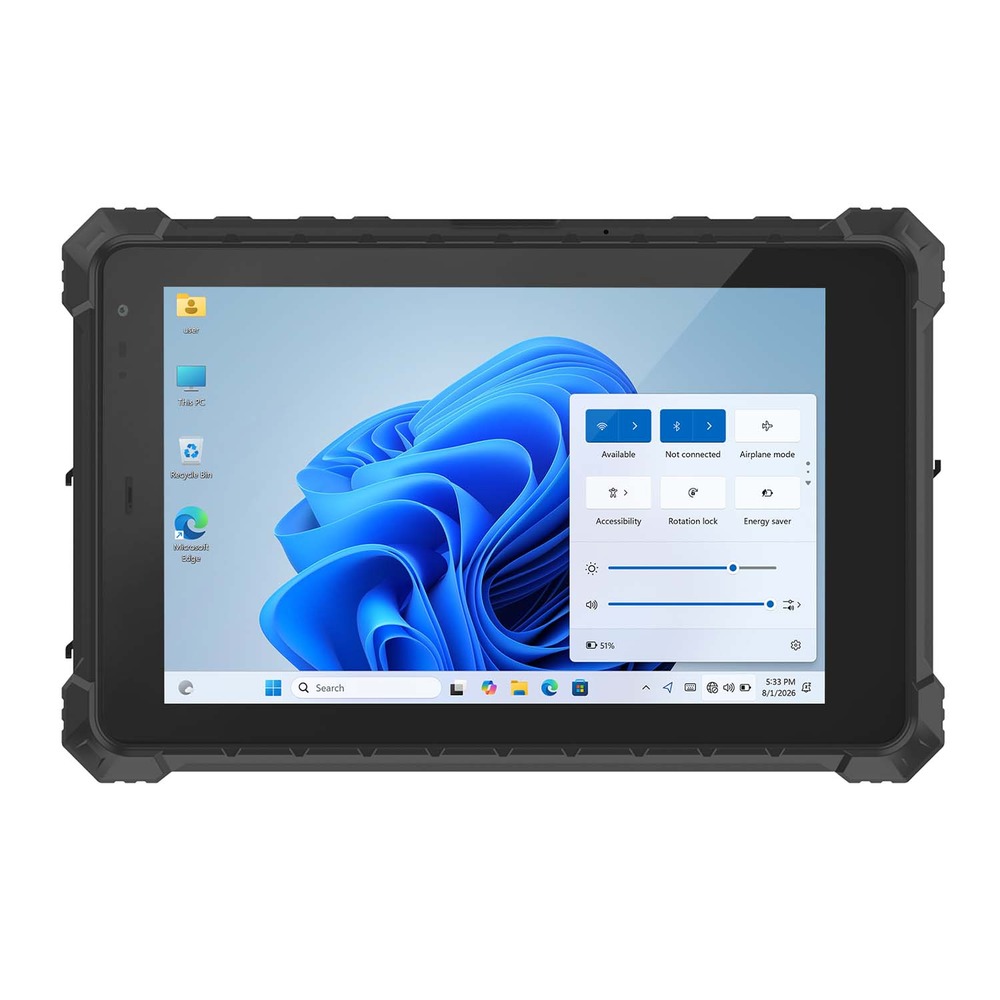

RUGGEDMASTER W10N Rugged Tablets

RUGGEDMASTER W10N Rugged Tablets

RUGGEDMASTER W10N Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

W10N Windows Rugged Tablet Details:

Frequently Asked Questions About the W10N Windows Rugged Tablet

1. Which processor and operating system does the W10N use?

The W10N is powered by the Intel Celeron N5100 Jasper Lake processor with four cores, four threads, a 1.1GHz base frequency and a maximum burst frequency of 2.8GHz. Windows 11 is the recommended standard operating system, while selected Windows IoT and Linux versions may be available for project orders.

2. Does the W10N support TPM 2.0 and Windows 11 security features?

Yes. The W10N page lists a built-in TPM 2.0 security chip. For Windows 11 projects, customers should also confirm that UEFI and Secure Boot are enabled in the selected firmware configuration. TPM 2.0 can support features such as device encryption, credential protection and BitLocker when used with a compatible Windows edition.

3. Is the W10N waterproof, dustproof and drop-resistant?

The W10N is listed with IP68 protection and is designed to meet the requirements of a 1.22-meter MIL-STD-810H drop test. The stated standard operating-temperature range is -20°C to 60°C. Customers should request the applicable test reports and exact test conditions for their selected configuration.

4. Can the W10N display be used outdoors and with gloves?

Yes. The standard W10N display is listed as a 10.1-inch IPS touchscreen with 1280×800 resolution and 700-nit brightness. A 1920×1200, 1000-nit sunlight-readable display is available as an optional project configuration. The capacitive touchscreen supports medical rubber gloves, and wet-hand touch can be customized.

5. How long does the W10N battery last?

The standard W10N uses a built-in 7.6V 5550mAh battery and provides at least seven hours of runtime under the stated video-playback test conditions. An optional 7.6V 10000mAh battery is available for longer operating shifts. Actual runtime depends on display brightness, Windows power settings, wireless connectivity and connected data-capture modules.

6. Does the W10N support Wi-Fi, Bluetooth, 4G LTE and GNSS?

Yes. The W10N supports dual-band Wi-Fi, Bluetooth 5.2 and satellite positioning. Optional 4G LTE connectivity is available for mobile applications. The exact Wi-Fi standard, GNSS constellations and LTE frequency bands should be confirmed according to the selected wireless module and destination country.

7. Which industrial interfaces are available on the W10N?

The W10N can provide USB Type-C with PD charging, USB Type-A 3.0, DB9 RS232, Micro HDMI, Gigabit RJ45 Ethernet, a 3.5mm audio jack, Micro SIM, MicroSD expansion, a DC charging port and a 12-pin POGO connector. CAN Bus may require a customized expansion interface or docking solution.

8. Can barcode, NFC, RFID and fingerprint modules be integrated?

Yes. Optional data-capture modules include 1D/2D barcode scanning, NFC, LF RFID, UHF RFID, fingerprint recognition and ID card reading. Available module combinations should be confirmed before sample production because some modules may affect the enclosure, antennas, interfaces or IP protection.

9. Is RTK high-precision positioning available?

Yes. RTK positioning is listed as a custom option for projects requiring higher positioning accuracy. Customers should confirm the RTK module, supported satellite bands, antenna requirements, NTRIP compatibility and expected accuracy under the intended operating environment.

10. Can RUGGEDMASTER customize the W10N for OEM and industrial projects?

Yes. RUGGEDMASTER can customize the operating system, RAM, storage, screen brightness, battery capacity, cellular module, GNSS, barcode scanner, RFID reader, fingerprint module, industrial interfaces, housing color, logo and mounting accessories. Customers should provide their software, interface, certification and operating-environment requirements before sample production.

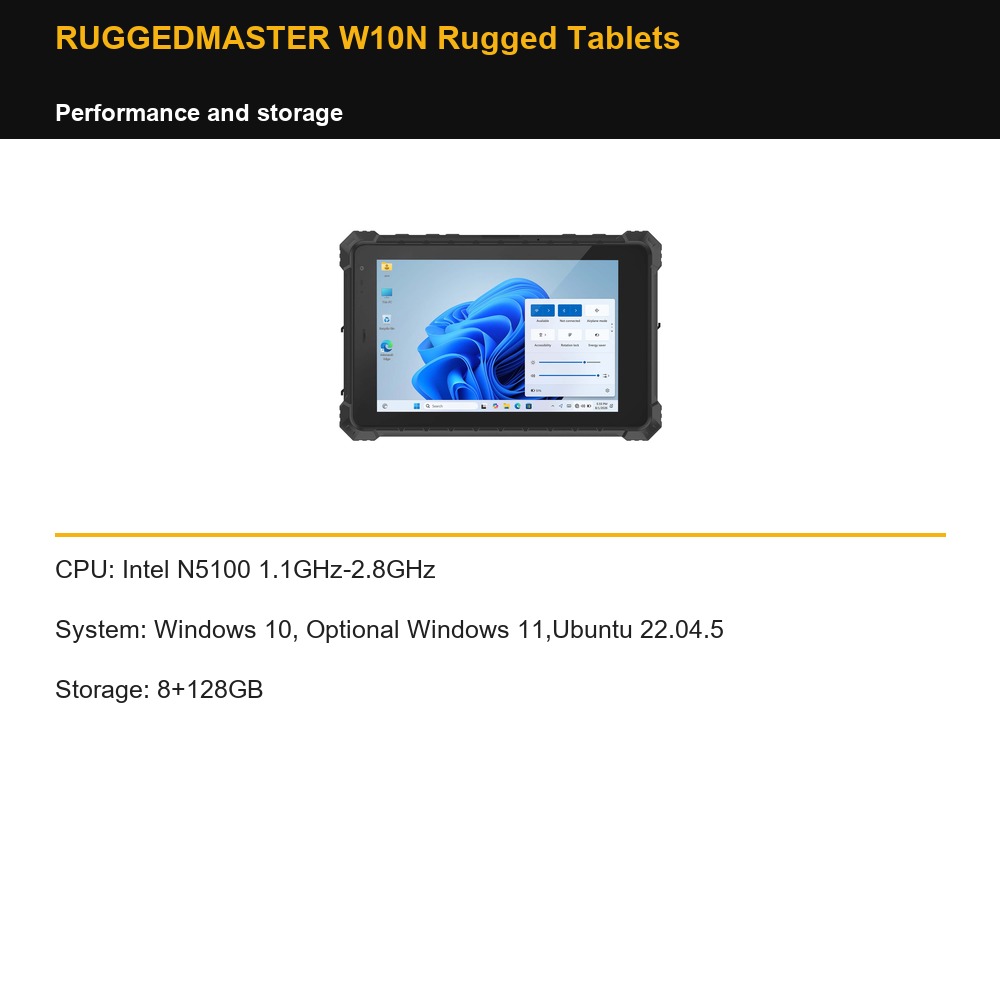

RUGGEDMASTER W10N Rugged Tablets — performance and storage

CPU: Intel N5100 1.1GHz-2.8GHz

System: Windows 10, Optional Windows 11,Ubuntu 22.04.5

Storage: 8+128GB

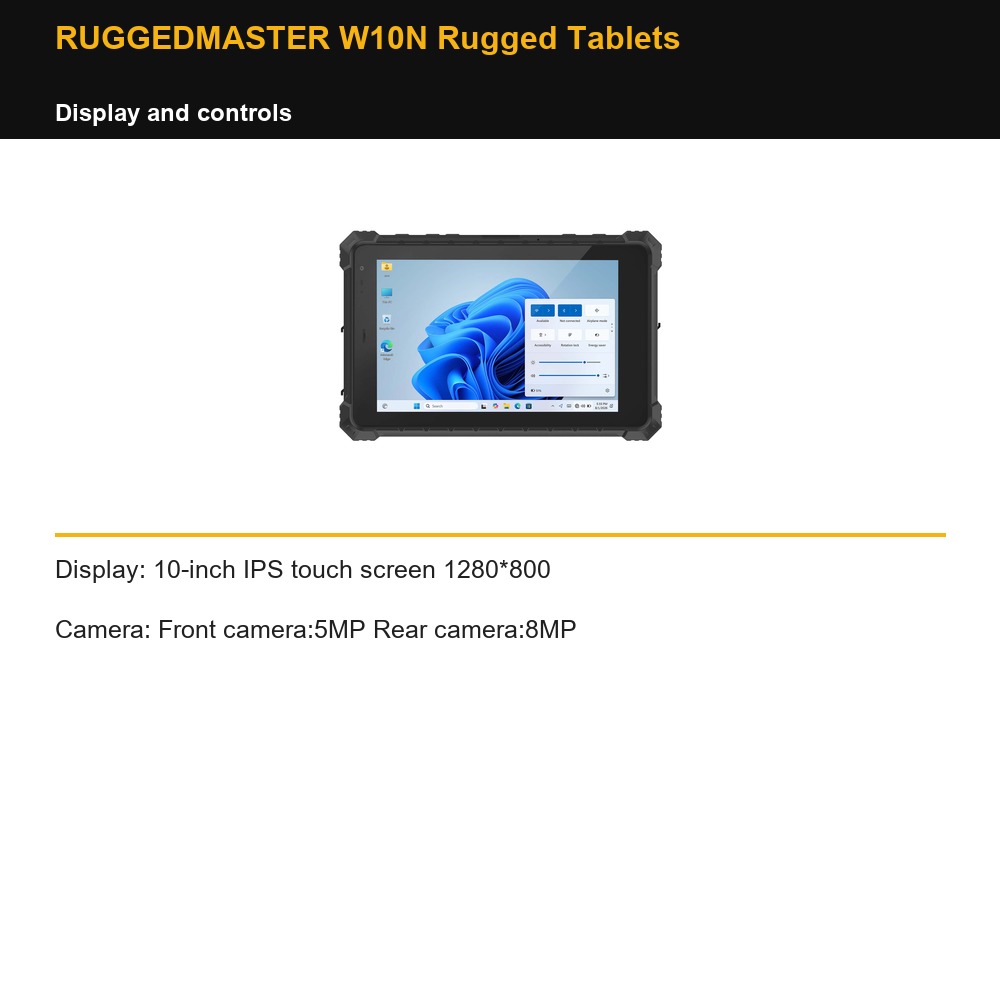

RUGGEDMASTER W10N Rugged Tablets — display and controls

Display: 10-inch IPS touch screen 1280*800

Camera: Front camera:5MP Rear camera:8MP

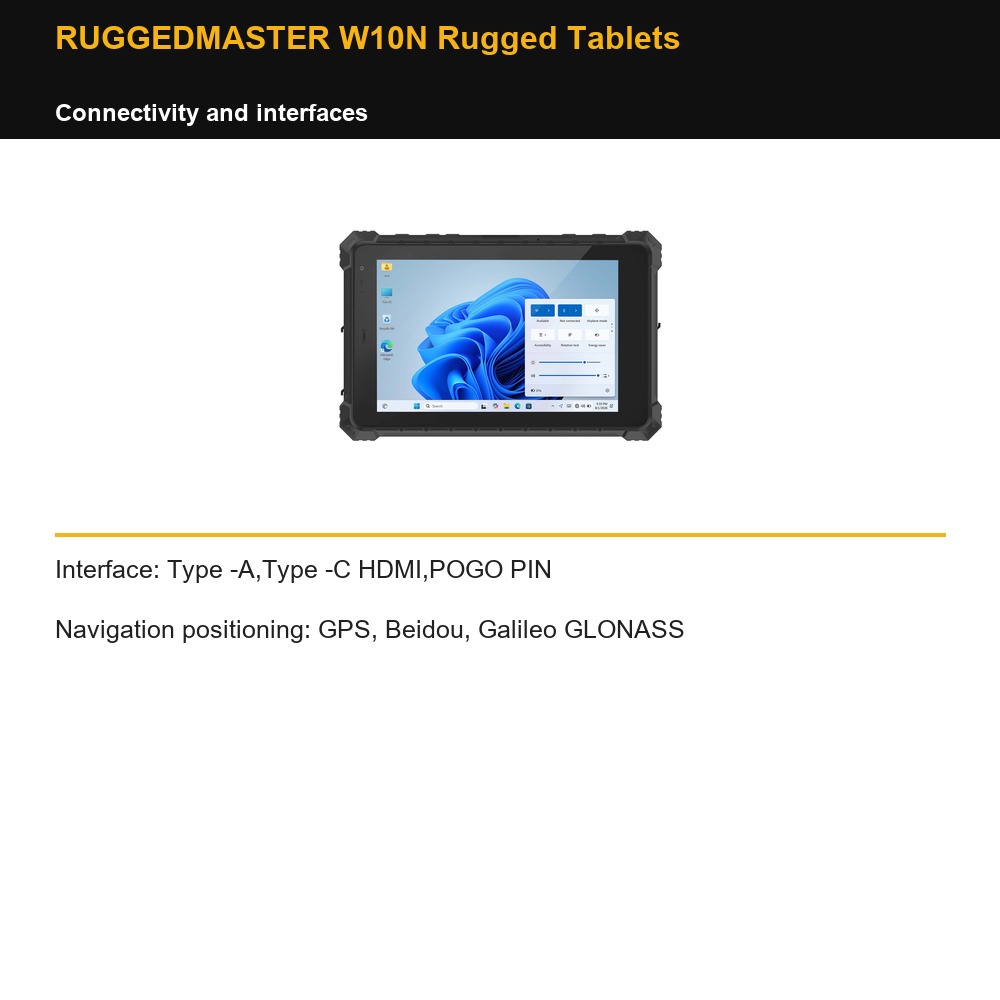

RUGGEDMASTER W10N Rugged Tablets — connectivity and interfaces

Interface: Type -A,Type -C HDMI,POGO PIN

Navigation positioning: GPS, Beidou, Galileo GLONASS

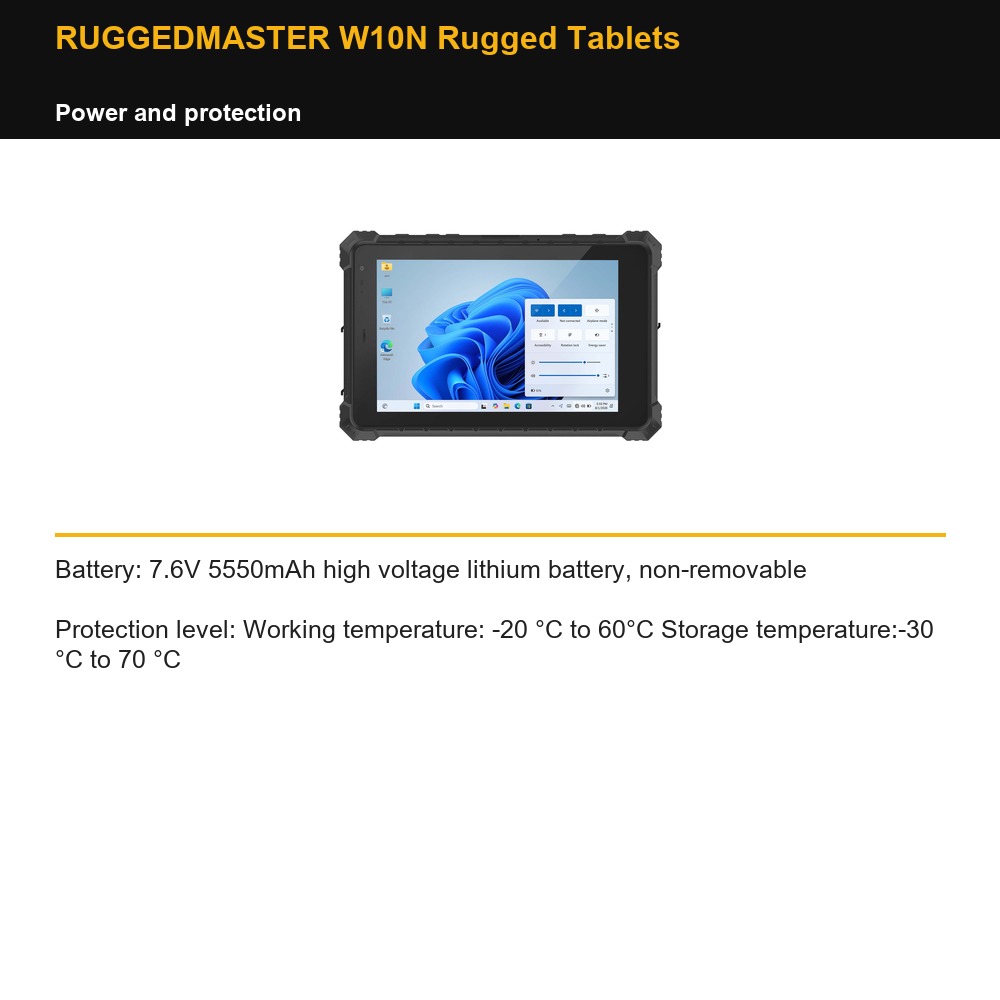

RUGGEDMASTER W10N Rugged Tablets — power and protection

Battery: 7.6V 5550mAh high voltage lithium battery, non-removable

Protection level: Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C

RUGGEDMASTER W10N Rugged Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
