RUGGEDMASTER W109NS Rugged Tablets

RUGGEDMASTER W109NS Rugged Tablets

RUGGEDMASTER W109NS Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

The W109NS runs Intel's N150 — four efficiency cores, 4 threads, up to 3.60GHz, on a 6W power budget with up to 16GB of memory. Within our own lineup it sits below the i5-1235U in the W109U: you give up roughly half the multi-thread performance and get a lower price and less heat in return. That trade-off works when the workload is single-purpose — inspection apps, work-order systems, browser-based enterprise platforms, serial-device communication, remote desktop sessions. It does not work for CAD viewers, local SQL databases, or three heavyweight applications at once; buyers with those workloads should be looking at the W109U instead, and we'll say so on the inquiry.

Frequently Asked Questions about W109NS IP67 Rugged Tablet

1. What is the W109NS best suited for?

A large-screen Windows field-service tablet built for equipment maintenance, inspection work, serial-device communication, network commissioning and mobile workstation use.

2. What memory/storage configurations are available?

8GB+128GB or 16GB+256GB (M.2 2242 SSD, removable, up to 2TB).

3. Can the SSD be replaced?

Yes, via the removable M.2 2242 slot.

4. Does the standard tablet include the 2.5K screen?

No, the standard display is 1920×1200; the 2560×1600 panel is available as a bulk-order customization.

5. Is the 700-nit screen sunlight-readable?

700 nits handles bright indoor light and overcast outdoor work. If the tablet will live in direct sunlight — yard trucks, outdoor inspection at midday — order the 1000-nit panel from the start; retrofitting a screen into an IP67-sealed unit isn't practical.

6. Is the battery removable?

Yes, the 8300mAh battery is user-removable, and an optional charging dock is available for spare-battery charging.

7. Does it include a fingerprint reader?

Yes, a login fingerprint reader is standard; higher-grade industrial/certified fingerprint modules are available separately.

8. Does the tablet include RS232?

Yes, one DB9 RS232 port. Before ordering, send us your equipment's pin definition and baud rate — RS232 wiring isn't fully standardized across instruments, and we'd rather confirm compatibility on paper than have you discover a mismatch on site.

9. Does it support RS485?

Not on the standard unit. Two ways to get it: an external RS232-to-RS485 converter, or a factory-configured 422/485 serial option on project orders. Tell us which protocol your equipment speaks and we'll quote the right one.

10. Does it have Gigabit Ethernet?

Yes, the built-in RJ45 port supports 100/1000Mbps.

11. Can the Type-C port charge the tablet?

Yes, it supports PD charging — confirm supported voltage profiles with us before using a third-party charger.

12. Is 4G/5G standard?

No, cellular is optional and depends on your destination country/carrier.

13. Does it support multi-constellation GNSS?

GPS is standard; Galileo and GLONASS support is available as an optional positioning configuration.

14. Can UHF RFID really read from 15 meters?

15m is the module's laboratory maximum with an ideal tag in open air. In the field, expect roughly half to two-thirds of that, less if the tag sits on metal or liquid. If read distance is the deciding factor for your project, mail us your tags and we'll send back a measured test video before you commit.

15. Is the W109NS IP67 or IP68?

IP67.

16. Is it MIL-STD-810H certified?

17. Is it suitable for continuous one-handed use?

At around 1.8kg, it's better suited to two-handed, stand-mounted or vehicle-mounted use; a smaller rugged handheld is more comfortable for continuous one-handed scanning.

18. Is it explosion-proof?

The standard W109NS is not explosion-proof, and an IP67 seal does not make any device safe for hazardous locations — the two certifications test completely different things. For Zone 1 or mining atmospheres, ask about our Ex-certified models (Ex ib ⅡC T4 Gb / Ex ib I Mb) at inquiry stage.

19.What optional accessories are available?

The two most-ordered accessories are the vehicle charger (9–36V input, 19V/3A output — it tolerates truck voltage spikes) and the spare-battery charging dock, which lets a two-shift fleet rotate batteries without plugging in the tablet itself. Hand straps, shoulder straps and tempered screen films are also stocked; vehicle mounts are quoted per install.

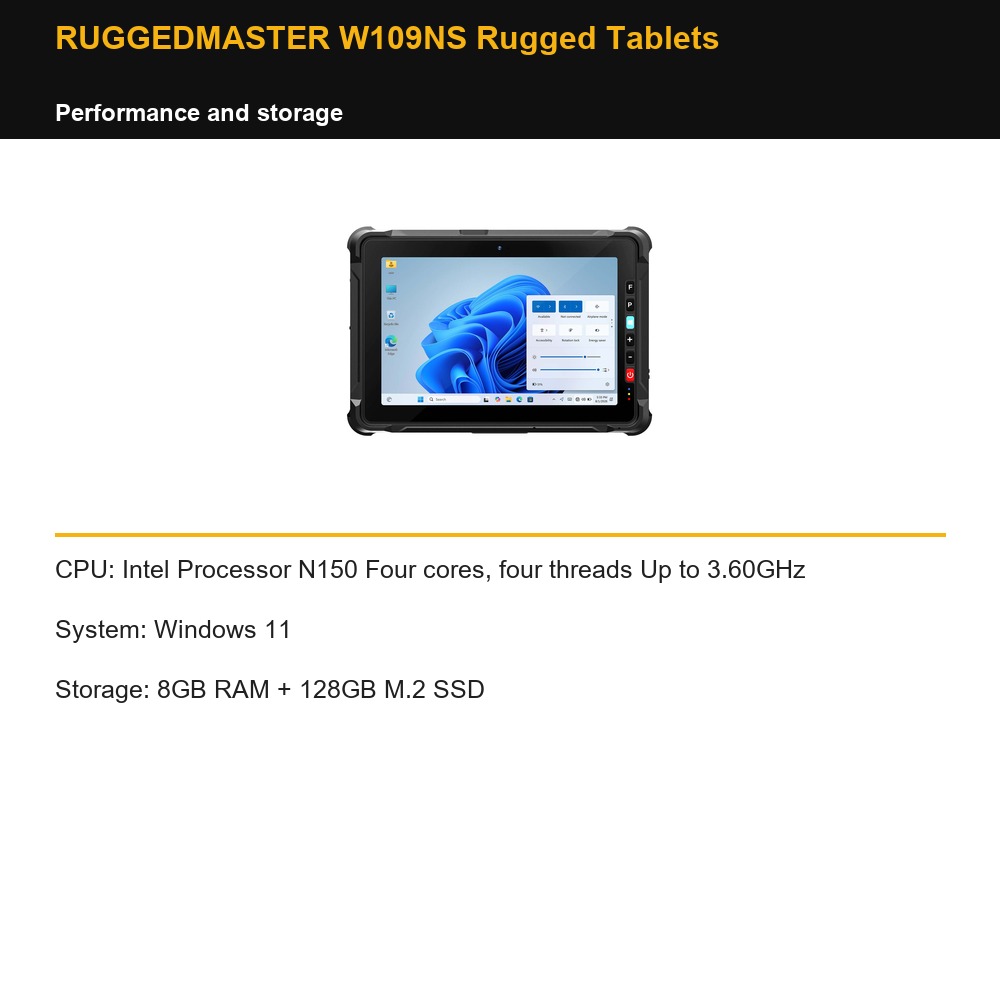

RUGGEDMASTER W109NS Rugged Tablets — performance and storage

CPU: Intel Processor N150 Four cores, four threads Up to 3.60GHz

System: Windows 11

Storage: 8GB RAM + 128GB M.2 SSD

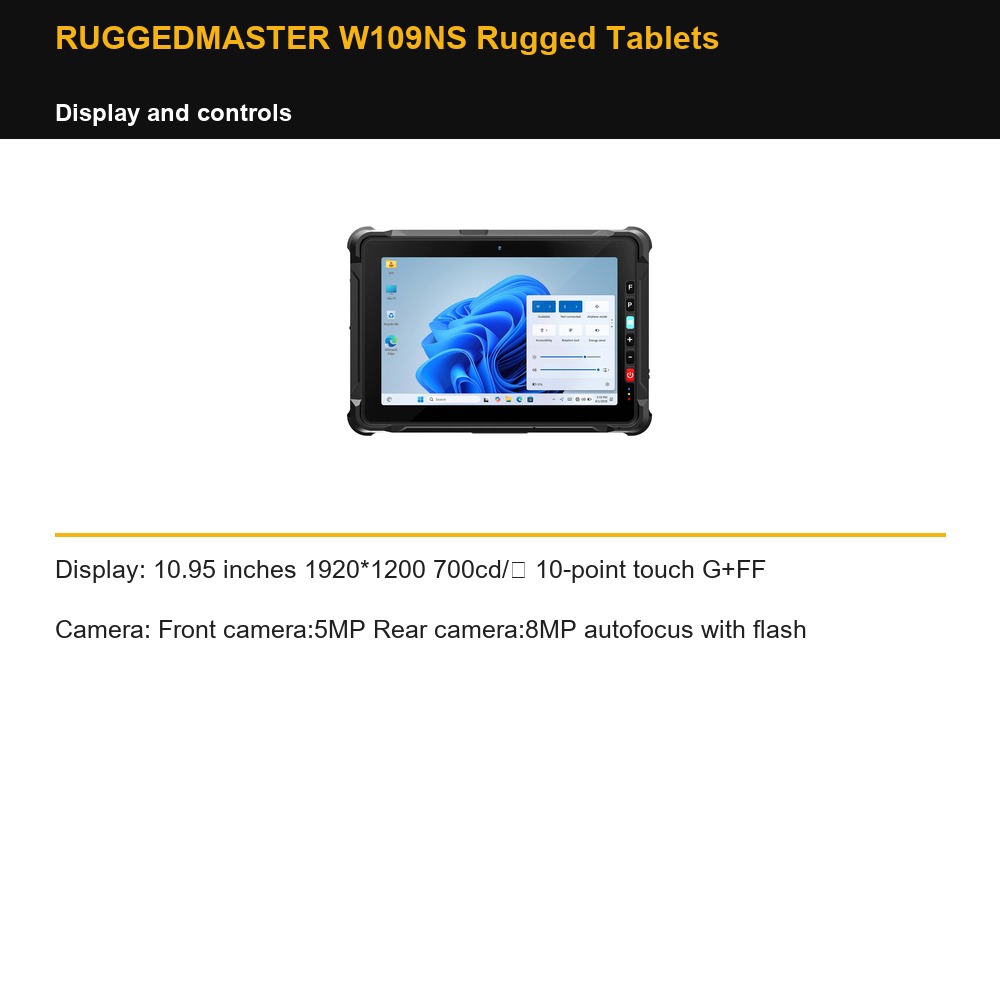

RUGGEDMASTER W109NS Rugged Tablets — display and controls

Display: 10.95 inches 1920*1200 700cd/㎡ 10-point touch G+FF

Camera: Front camera:5MP Rear camera:8MP autofocus with flash

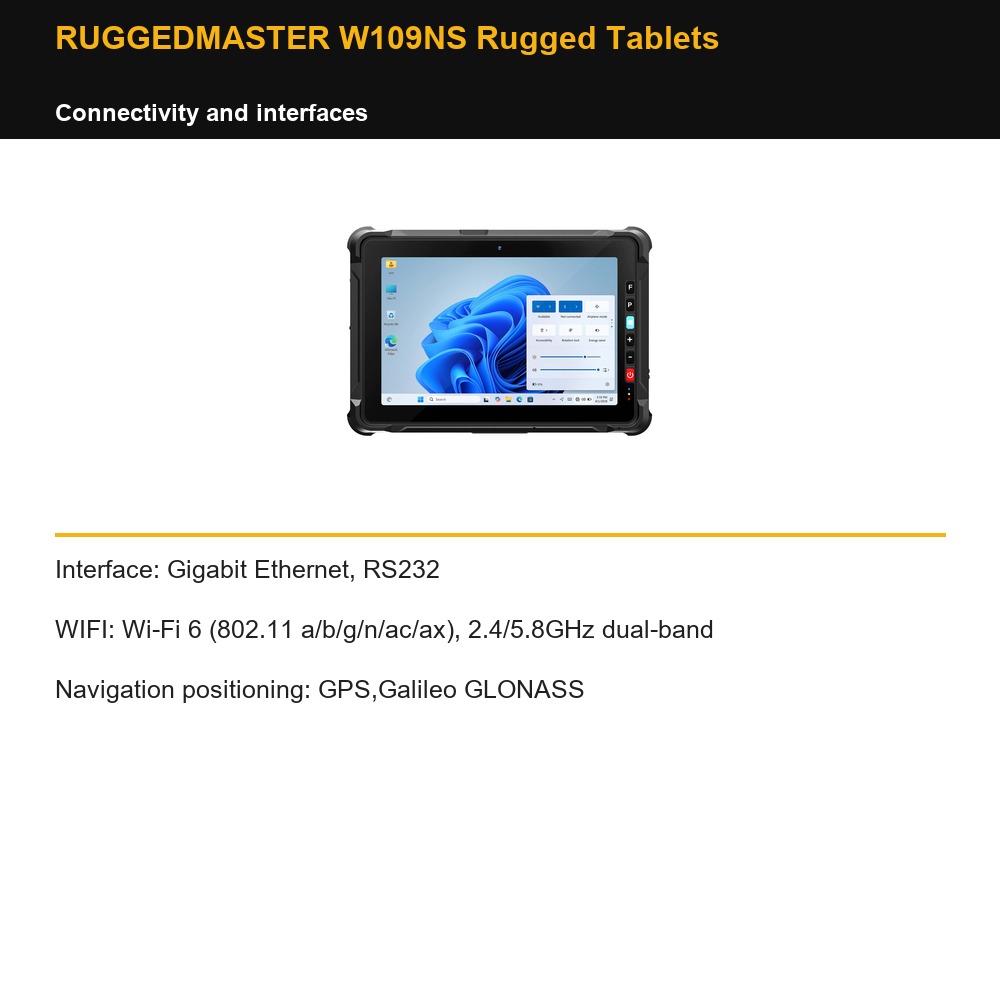

RUGGEDMASTER W109NS Rugged Tablets — connectivity and interfaces

Interface: Gigabit Ethernet, RS232

WIFI: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5.8GHz dual-band

Navigation positioning: GPS,Galileo GLONASS

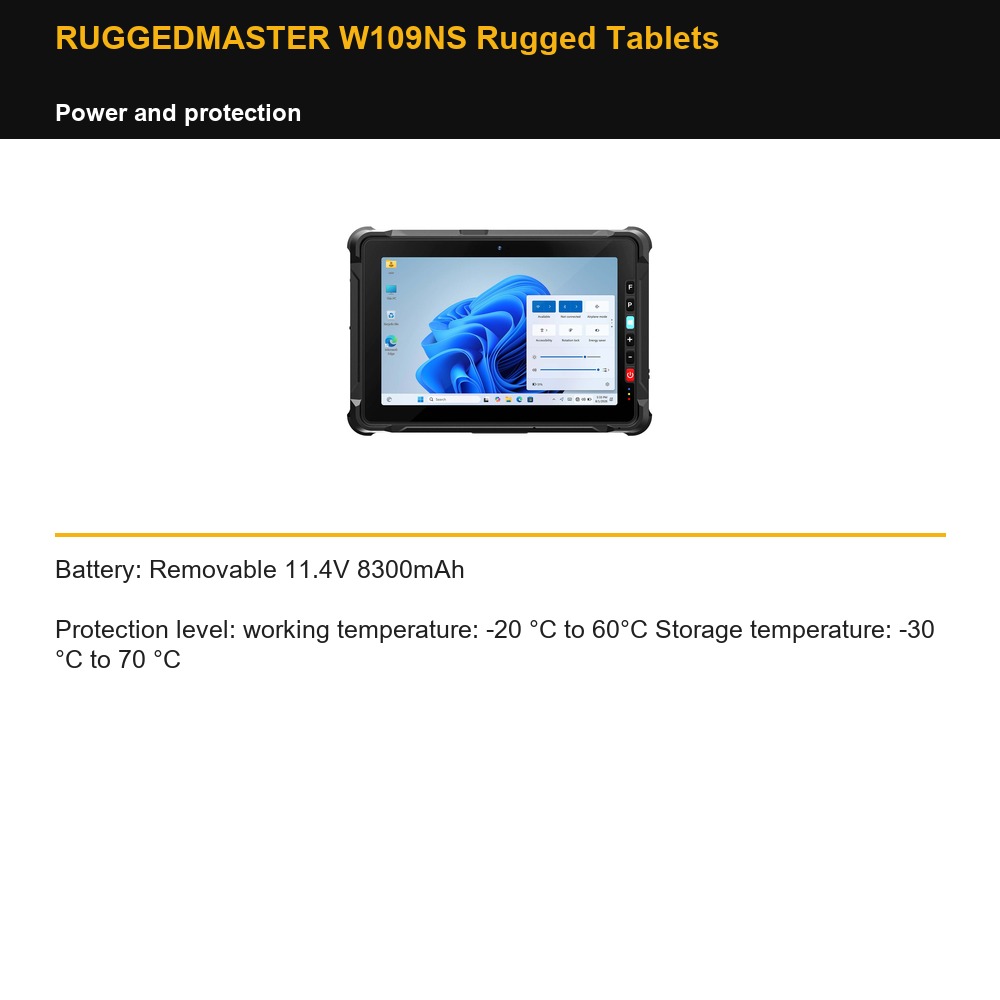

RUGGEDMASTER W109NS Rugged Tablets — power and protection

Battery: Removable 11.4V 8300mAh

Protection level: working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C

RUGGEDMASTER W109NS Rugged Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
