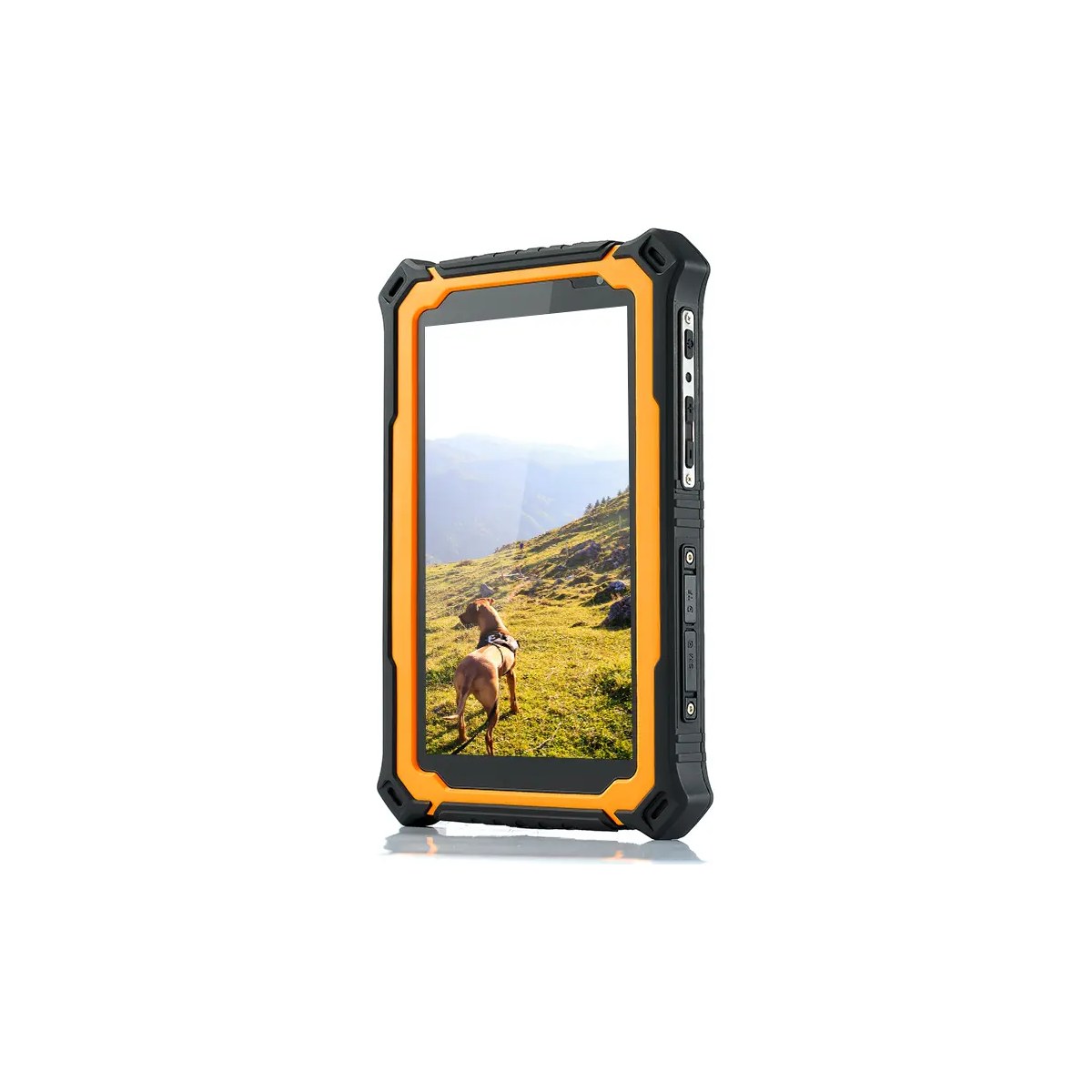

RUGGEDMASTER T71 Rugged Tablets

OS: Android 13, CPU: 2.0 Ghz,MTK Octa-Core processor, Screen Size: 7 inch color (1080*1920) display with 2200nits brightness, Memory: 8 GB RAM / 128 GB Flash

The forerunner 7 inch fully rugged tablet in the market that runs Android 13 and supports Google Mobile Services (GMS) on MTK octa-core processor, RUGGEDMASTER T71 delivers paramount performance with strong processing power for your utmost user experience. This 7-inch tablet is IP67 rated for dust and waterproofing and comes equipped with stable wireless connectivity options.

Screen Size: 7 inch color (1080*1920) display with 2200nits brightness

Memory: 8 GB RAM / 128 GB Flash

Battery: Rechargeable li-ion polymer, 10000mAh

Sealing: IP67

SEND US A MESSAGE

Just Email Us :

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

CONTACT INFORMATION

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

Reply Within 24hours for almost message!

Description

RUGGEDMASTER T71 product details

RUGGEDMASTER T71 rugged tablets. 7 Inch Android Outdoor Tablet with 1000nits touch screen.

RUGGEDMASTER T71 key specifications

  • OS: Android 13
  • CPU: 2.0 Ghz,MTK Octa-Core processor
  • Screen Size: 7 inch color (1080*1920) display with 2200nits brightness
  • Memory: 8 GB RAM / 128 GB Flash
  • Battery: Rechargeable li-ion polymer, 10000mAh
  • Sealing: IP67

Introduction

The forerunner 7 inch fully rugged tablet in the market that runs Android 13 and supports Google Mobile Services (GMS) on MTK octa-core processor, RUGGEDMASTER T71 delivers paramount performance with strong processing power for your utmost user experience. This 7-inch tablet is IP67 rated for dust and waterproofing and comes equipped with stable wireless connectivity options. The device features a brilliant touchscreen display with 1080 x 1920-pixel resolution and an optional full frequency RFID reader. The T71 rugged PC has been tested for MIL-STD-810G shock, drop, and vibration resistance, making it ideal for harsh environments.

With a wide range of connectivity capabilities including 802.11 ac, Bluetooth 5.0, and 4G LTE, T71 guarantees seamless connection throughout your entire shift. The SIM design allows field workers to receive reliable connectivity and thus much reduce downtime and increase performance.This 7" rugged Android tablet is perfect for everyday tasks in the most demanding environments. If you're running a warehouse, taking orders, or checking on patients, this rugged tablet is IP67 rated, making it tough and resilient to survive rough handling, extreme heat, and dirty environments.

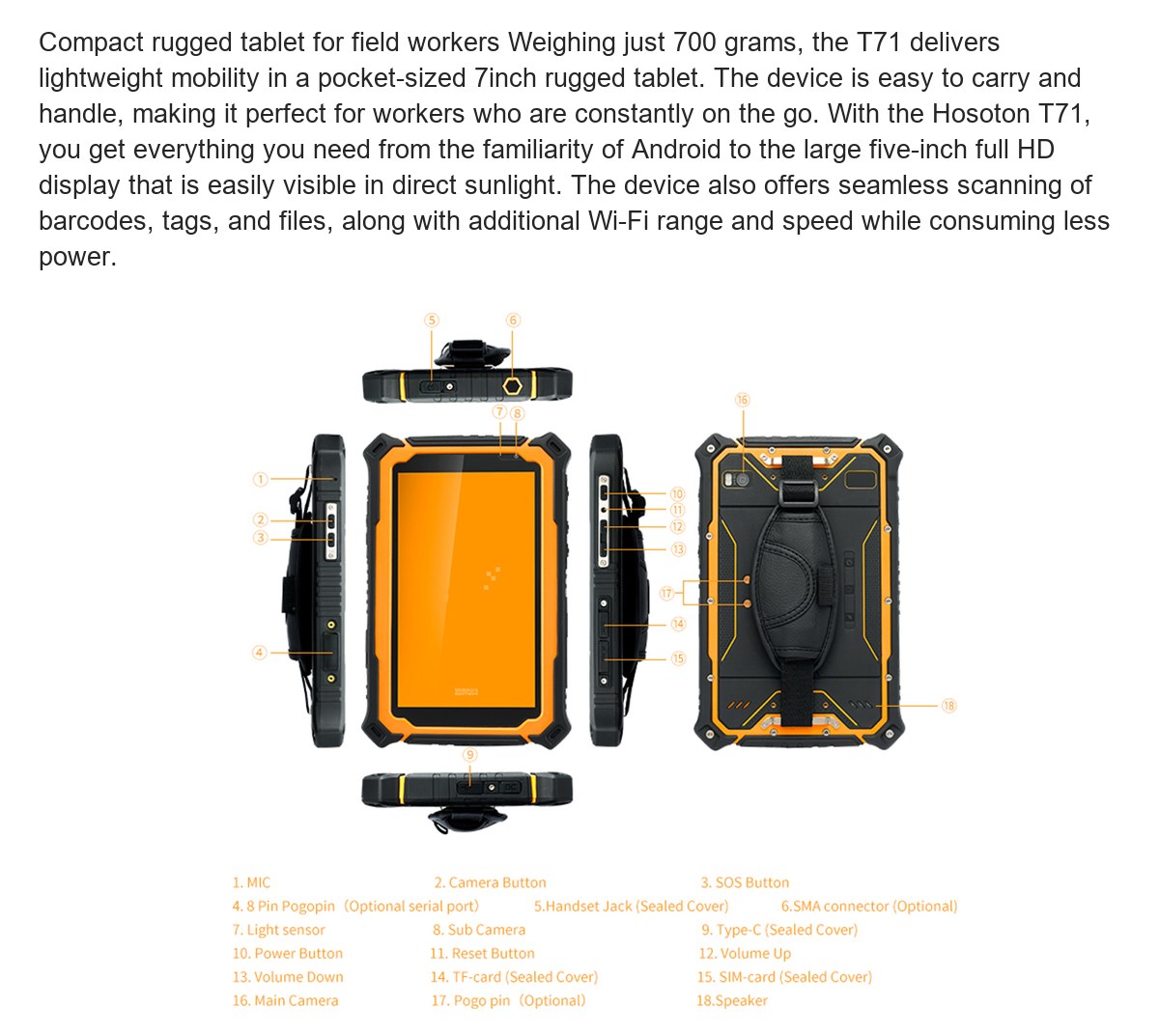

Compact rugged tablet for field workers

Weighing just 700 grams, the T71 delivers lightweight mobility in a pocket-sized 7inch rugged tablet. The device is easy to carry and handle, making it perfect for workers who are constantly on the go. With the RUGGEDMASTER T71, you get everything you need from the familiarity of Android to the large five-inch full HD display that is easily visible in direct sunlight. The device also offers seamless scanning of barcodes, tags, and files, along with additional Wi-Fi range and speed while consuming less power.

RUGGEDMASTER T71 rugged tablets feature illustration

Ultra-Rugged Design Built to Survive

The Defence Ultra Rugged Tablets are built to survive in the most demanding conditions and harshest environments. Tailored for defence applications and packed in an ultra-rugged housing with up to IP65 rating passed the MIL-STD-810 test and withstand the rigors of outdoor environments – water, dust, weather changes, strong vibration and drop up to 4 ft. – that may be necessary for defence personal.The T71 is also IP67 rated for dust and waterproofing, making it ideal for use in outdoor settings. Whether you need seamless connectivity, a high-brightness display, or a durable device that can withstand the toughest conditions, the T71 has you covered.

RUGGEDMASTER T71 rugged tablets feature illustration

Sunlight Readable Display with Touchscreen

The sunlight-readable display screen gives a premium outdoor viewing experience for those in the field. Touchscreen add extra convenience for data input and operations even when wearing gloves. The T71 industrial tablet features an 7” LCD (1920 x 1080) display which up to 2200 nits for exceptional viewing even in direct sunlight. It can be used in landscape and portrait modes so users can view applications in an orientation that best suits their needs. Equipped with a 10-point capacitive multi-touch panel , workers can choose their preferred data input mode: a finger, with glove or a stylus for more precision.

RUGGEDMASTER T71 rugged tablets feature illustration

Flexible Design for versatile Accessories

Thanks to its unique design for diverse applications and scenarios, the T71 offers ultimate functionality with its boundless customization capabilities. It features numerous integrated expansion modules for multiple ways to retrieve and transmit information on the move. Optional add-ons include LF&HF&UHF RFID reader, serial port module, and additional High-precision GPS. A 5MP front camera, 13MP rear camera ,GPS and 4G LTE multi-carrier mobile broadband also are features for this versatile tablet.

RUGGEDMASTER T71 rugged tablets feature illustration

RUGGEDMASTER T71 bulk purchasing enquiries

For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.

Operation System
OS Android 13
CPU 2.0 Ghz,MTK Octa-Core processor
Memory 8 GB RAM / 128 GB Flash
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size 7 inch color (1080*1920) display with 2200nits brightness
Touch Panel multi-touch Capacitive Touch Screen
Camera Front 5 megapixels, rear 13 megapixels, with flash and auto focus function
Indicator Type LED, Speaker, Vibrator
Battery Rechargeable li-ion polymer, 10000mAh
Symbologies
125Khz RFID reader Support 125khz RFID Reader Support: ID card ( 8HEX-10D ) EM4100 , 4001 , TK4100 , EM4305 Distance: 2-5cm ,HID card optional
134Khz RFID reader 134.2kHz card protocol support ISO11784/5 Distance: 2-5cm Work mode : FDX-B
UHF RFID Reader A ir interface protocol : EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C Frequency range: 902Mhz ‒ 928Mhz / 865MHz ‒ 868MHz ( Optional ) Output power range : 0-26 dBm
13.56Mhz RFID reader Support ISO14443A/B/ISO15693 Reading distance 2-5cm
Customed module Need to comply with following standard : 3.3V-1.5A/5V-1.5A power supply , UART interface , interface voltage 3.3V/5V , GPIO 1 voltage 3.3V/5V
Communication
Bluetooth® Bluetooth®5
WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN GSM: ( B2/3/5/8 ) WCDMA: (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28)
GPS GPS/BDS/Glonass + AGPS +SBAS ( EPO 2.5m )
I/O Interfaces
USB USB TYPE-C *1
POGO PIN PogoPin bottom: Charging via cradle
SIM Slot Single SIM Slot
Expansion Slot MicroSD, up to 128GB
RS232 (optional) Convert into 9pin via M8 5pin aviation plug
Serial port UART (optional) motherboard has two serial ports TTL3.3V and one GPIO port, support connect serial port modules.
Audio One speaker with Smart PA (95 ± 3dB @ 10cm), One receiver, Dual noise-cancelling microphones
Enclosure
Dimensions ( W x H x D ) 202 x 138 x 22mm
Weight 700g (with battery)
Durability
Drop Specification 1.2m,MIL-STD 810G
Sealing IP67
Environmental
Operating temperature -20 ℃ to 55 ℃
Storage temperature - 40 ℃ to 80 ℃ (without battery)
Relative Humidity 5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents T71 Device USB Cable Adaptor (Europe) User manual
Optional Accessory Hand Strap Charging docking
