RUGGEDMASTER T13S Rugged Tablets
13.3 inch; 1080*1920; IPS 260nits (MIN),450nits (TYP)10 Point Touch, Support stylus · 8000mAh / voltage 7.6Vdc (60.80Wh)Optional:(EU, US, UK, AU) Choose one of four · Intel Celeron N5100 · Windows 11 Pro(Optional:Home/IOT) · RAM：8GB，ROM:256GBRAM：4GB Optional，ROM：128GB / 512GB Optional · -25℃ to 80℃ · 4.2 Version
Hot sale & Classical 13.3 inch Rugged Tablet Full-Features to Deliver the Best Service Easy to carry 2 in 1 Rugged Tablet PC, switch between tablet or laptop at any time. T13S support for Windows 11 system and 1920×1200 FHD high score screen, Intel I5/I7 CPU with Corning gorilla TP and sunshine visual screen. Removable 16000mAh battery, 8-10 hours of machine endurance and standby is not a problem. With multilingual (waterproof) detachable keyboard, it can easily deal with various possibilities. Support 1D/2D, NFC and other functional modules for free selection and up to IP65 high protection level, in accordance with 5G Global Communication LTE.
Dimension: 330*205*19.5mm
Weight: 1450±50g
Display / Touch Panel: 13.3 inch; 1080*1920; IPS 260nits (MIN),450nits (TYP)10 Point Touch, Support stylus
Battery: 8000mAh / voltage 7.6Vdc (60.80Wh)Optional:(EU, US, UK, AU) Choose one of four
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

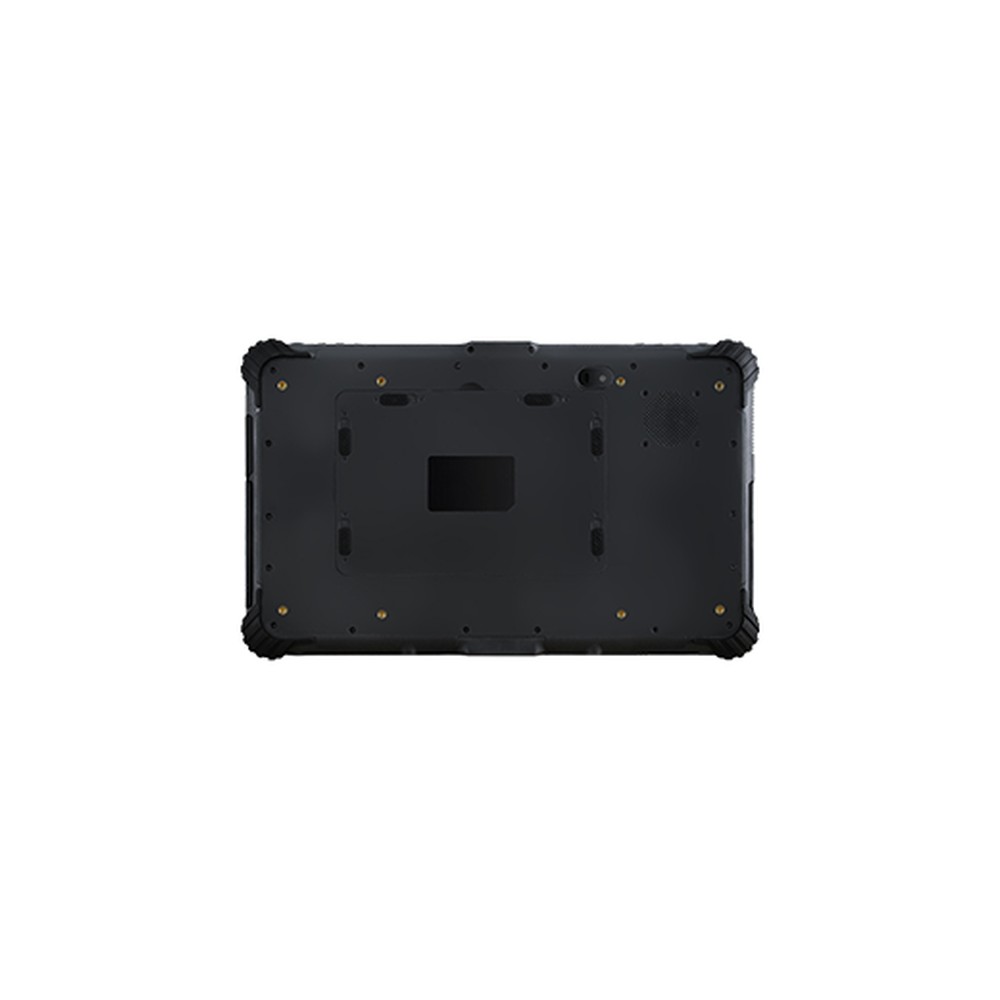

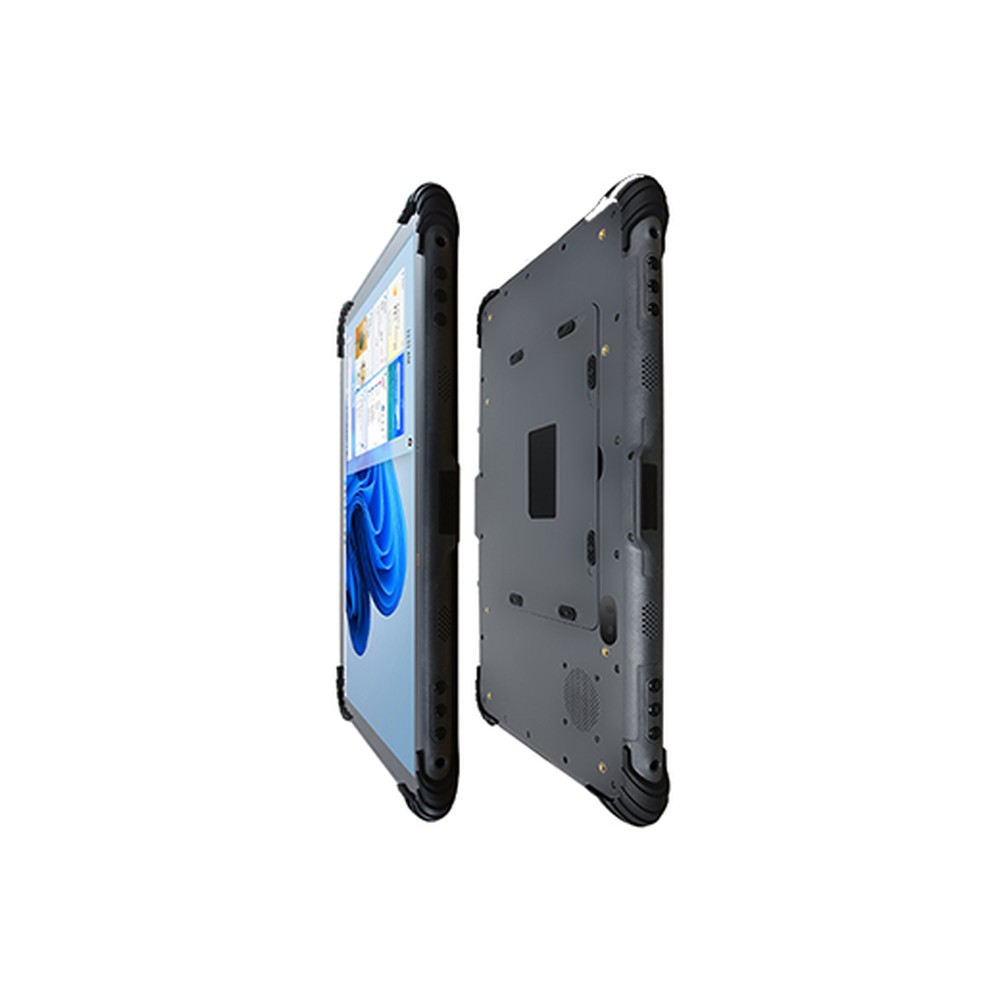

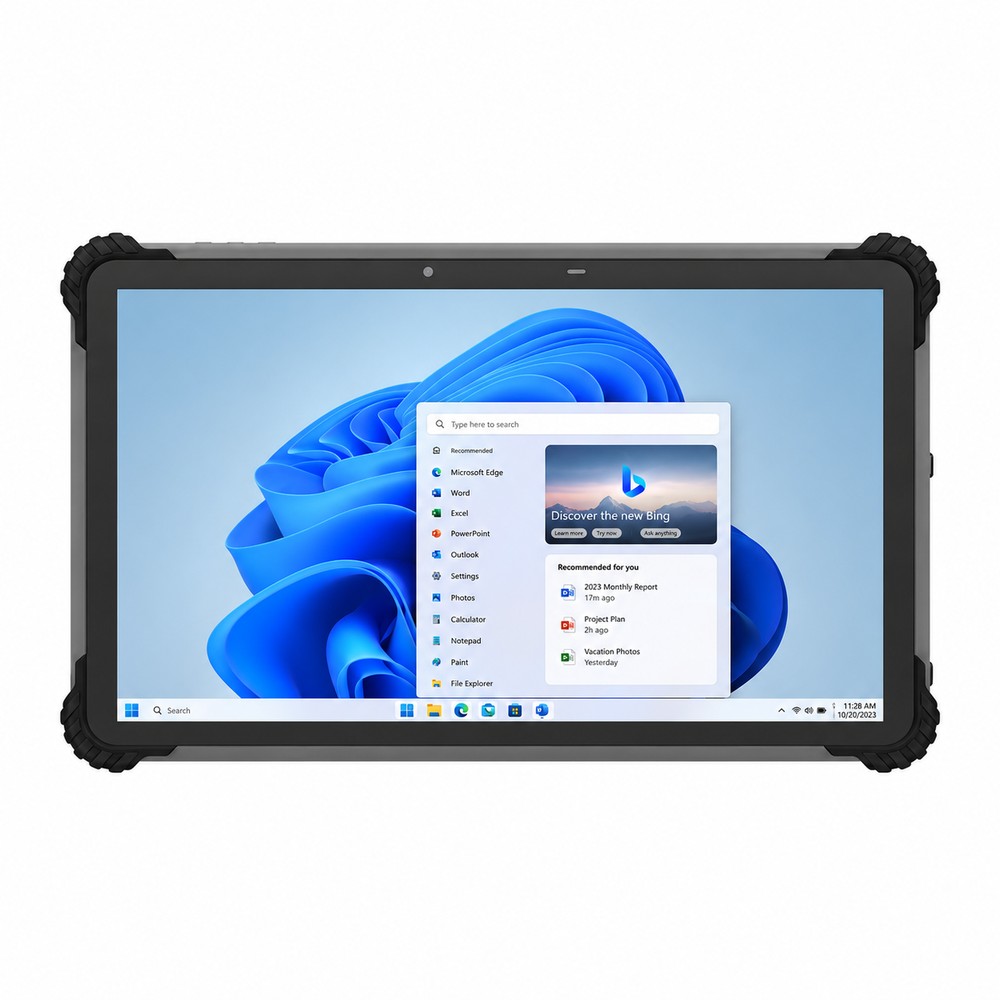

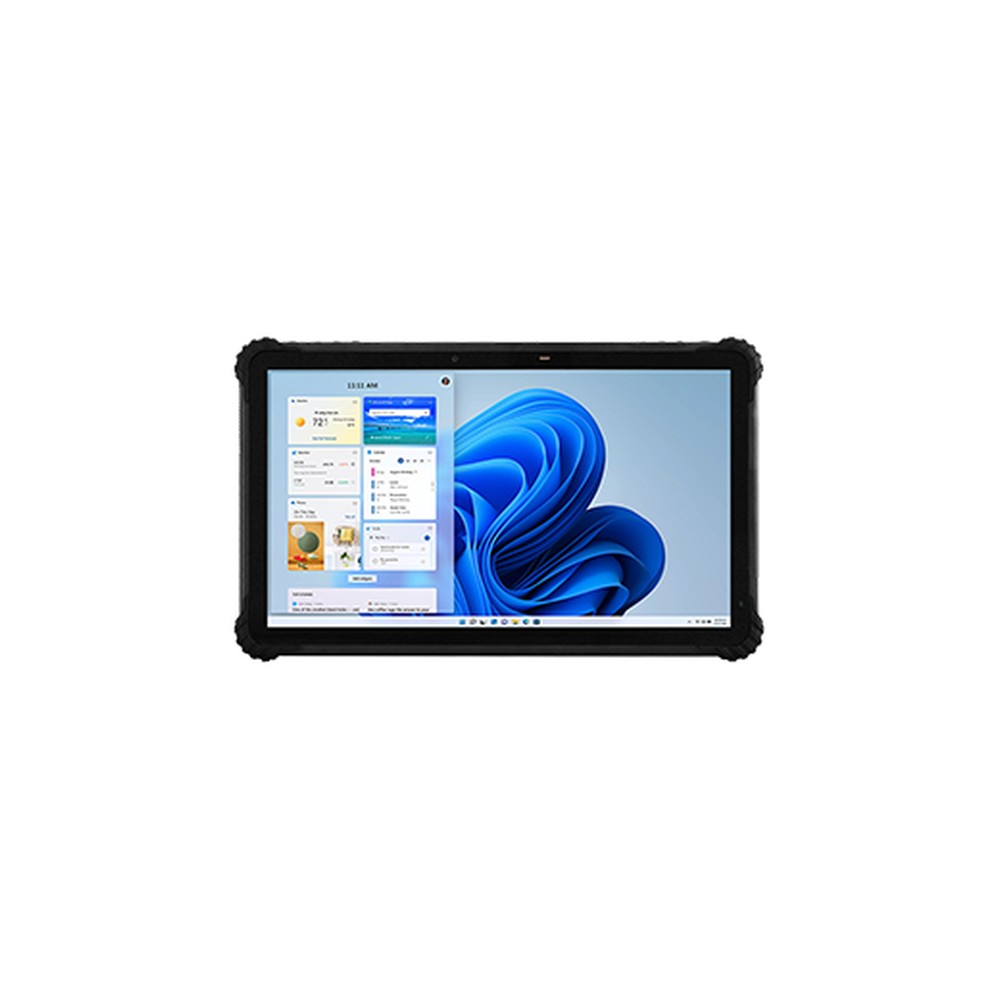

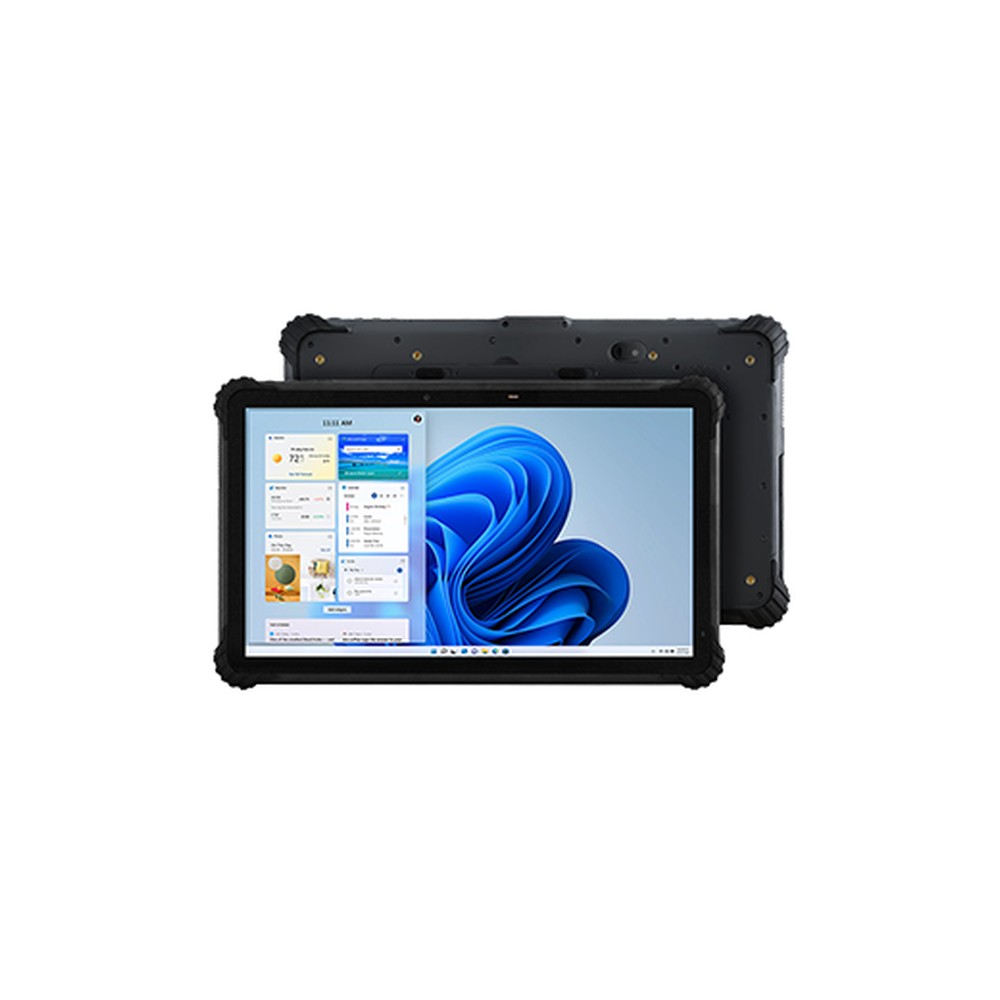

RUGGEDMASTER T13S Rugged Tablets
RUGGEDMASTER T13S combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Hot sale & Classical 13.3 inch Rugged Tablet
Full-Features to Deliver the Best Service
Easy to carry 2 in 1 Rugged Tablet PC, switch between tablet or laptop at any time. T13S support for Windows 11 system and 1920×1200 FHD high score screen, Intel I5/I7 CPU with Corning gorilla TP and sunshine visual screen. Removable 16000mAh battery, 8-10 hours of machine endurance and standby is not a problem. With multilingual (waterproof) detachable keyboard, it can easily deal with various possibilities. Support 1D/2D, NFC and other functional modules for free selection and up to IP65 high protection level, in accordance with 5G Global Communication LTE.
Configuration overview
Technical specifications include Dimension: 330*205*19.5mm. Weight: 1450±50g. Display / Touch Panel: 13.3 inch; 1080*1920; IPS 260nits (MIN),450nits (TYP)10 Point Touch, Support stylus. Battery: 8000mAh / voltage 7.6Vdc (60.80Wh)Optional:(EU, US, UK, AU) Choose one of four.
Technical specifications include Power Adapter: DC Charger (12V 4A). Speaker: 8Ω 0.8 Watt *2. I/O Interfaces: 1. HDMI Type A*12. USB3.0*23. Anti-theft lock hole4. Aviation interface x2: customized interface & RS232 (RS232 not fully functional, only TX RX GND)5. Card slot: SIM card slot+TF card slot6. Headphone Jack：∮3.5mm Standard headphone interface7. Ethernet RJ45：10/100/1000M8. DC power interface：DC ∮4.0mm power interfaceBottom pogopin: USB 2.0; RS232; Charging. Buttons: V+ -, Power, "F" for Barcode Scan，Customized Button: P, H(Default No Functionality).
Technical specifications include Camera: Front: 5MP; Rear: 8MP. Multi-Media(Hardware Decoding): 1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license). CPU: Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz, Trubo can reach 2.80GHz). Operating System: Windows 11 Pro(Optional:Home/IOT).
Technical specifications include Storage: RAM：8GB，ROM:256GBRAM：4GB Optional，ROM：128GB / 512GB Optional. Operating Temp.: -20℃ to 55℃. Storage Temp.: -25℃ to 80℃. Humidity: Relative Humidity (93±3)% RH.
Technical specifications include Drop Specifications: Dropping Resistance 1.2 meters. IP Protective Level: Anti-dust & Waterproof IP65, MIL-STD-810G,ISO-9001,CE, FCC, 3C. WWAN: 4G Fre:FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28TDD_LTE: B40WCDMA: B1/B2/B4/B5/B8GSM/EDGE: B2/B3/B5/B8Module: SLM770A(EC25-AUX in North America)Optional EU 4G Module. WIFI: 802.11a/b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5GSupport WIFI 6.
Technical specifications include Bluetooth: 4.2 Version. GPS: BDS, GPS, GLONASS. Barcode Scanning (optional): Honeywell N4680Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse". RFID HF/ NFC: 13.56 MHz, Distance: 1-3cm, ISO14443 TYPE A.
Wholesale purchasing information
For RUGGEDMASTER T13S, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

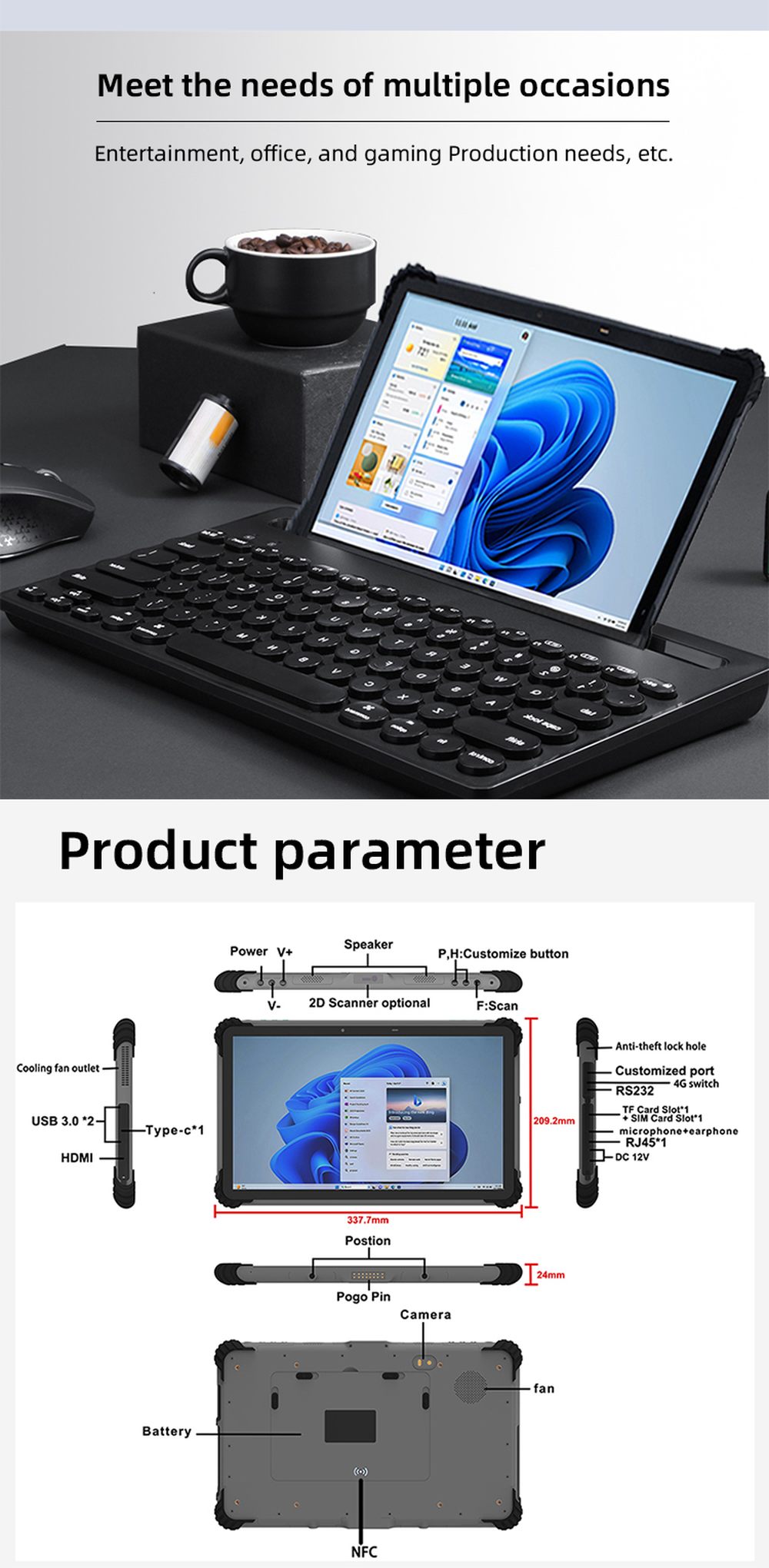

Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 330*205*19.5mm | |
| Weight | 1450±50g | |
| Display / Touch Panel | 13.3 inch; 1080*1920; IPS 260nits (MIN),450nits (TYP)10 Point Touch, Support stylus | |
| Battery | 8000mAh / voltage 7.6Vdc (60.80Wh)Optional:(EU, US, UK, AU) Choose one of four | |
| Power Adapter | DC Charger (12V 4A) | |
| Speaker | 8Ω 0.8 Watt *2 | |
| I/O Interfaces | 1. HDMI Type A*12. USB3.0*23. Anti-theft lock hole4. Aviation interface x2: customized interface & RS232 (RS232 not fully functional, only TX RX GND)5. Card slot: SIM card slot+TF card slot6. Headphone Jack：∮3.5mm Standard headphone interface7. Ethernet RJ45：10/100/1000M8. DC power interface：DC ∮4.0mm power interfaceBottom pogopin: USB 2.0; RS232; Charging | |
| Buttons | V+ -, Power, "F" for Barcode Scan，Customized Button: P, H(Default No Functionality) | |
| Camera | Front: 5MP; Rear: 8MP | |
| Multi-Media(Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz, Trubo can reach 2.80GHz) | |
| Operating System | Windows 11 Pro(Optional:Home/IOT) | |
| Storage | RAM：8GB，ROM:256GBRAM：4GB Optional，ROM：128GB / 512GB Optional | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 55℃ | |
| Storage Temp. | -25℃ to 80℃ | |
| Humidity | Relative Humidity (93±3)% RH | |
| Drop Specifications | Dropping Resistance 1.2 meters | |
| IP Protective Level | Anti-dust & Waterproof IP65, MIL-STD-810G,ISO-9001,CE, FCC, 3C | |
| DATA COMMUNICATION | ||
| WWAN | 4G Fre:FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28TDD_LTE: B40WCDMA: B1/B2/B4/B5/B8GSM/EDGE: B2/B3/B5/B8Module: SLM770A(EC25-AUX in North America)Optional EU 4G Module | |
| WIFI | 802.11a/b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5GSupport WIFI 6 | |
| Bluetooth | 4.2 Version | |
| GPS | BDS, GPS, GLONASS | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | Honeywell N4680Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse" | |
| RFID HF/ NFC | 13.56 MHz, Distance: 1-3cm, ISO14443 TYPE A | |
| ACCESSORIES | ||
| Standard | 1xStandard Adaptor,1xHand-strap,1xCarry handle | |
| Optional | Active capacitive pen, Car Charger, Car Docking,Hand writing pen,Removable keyboard, Shoulder girdle, Car hold mount. | |
