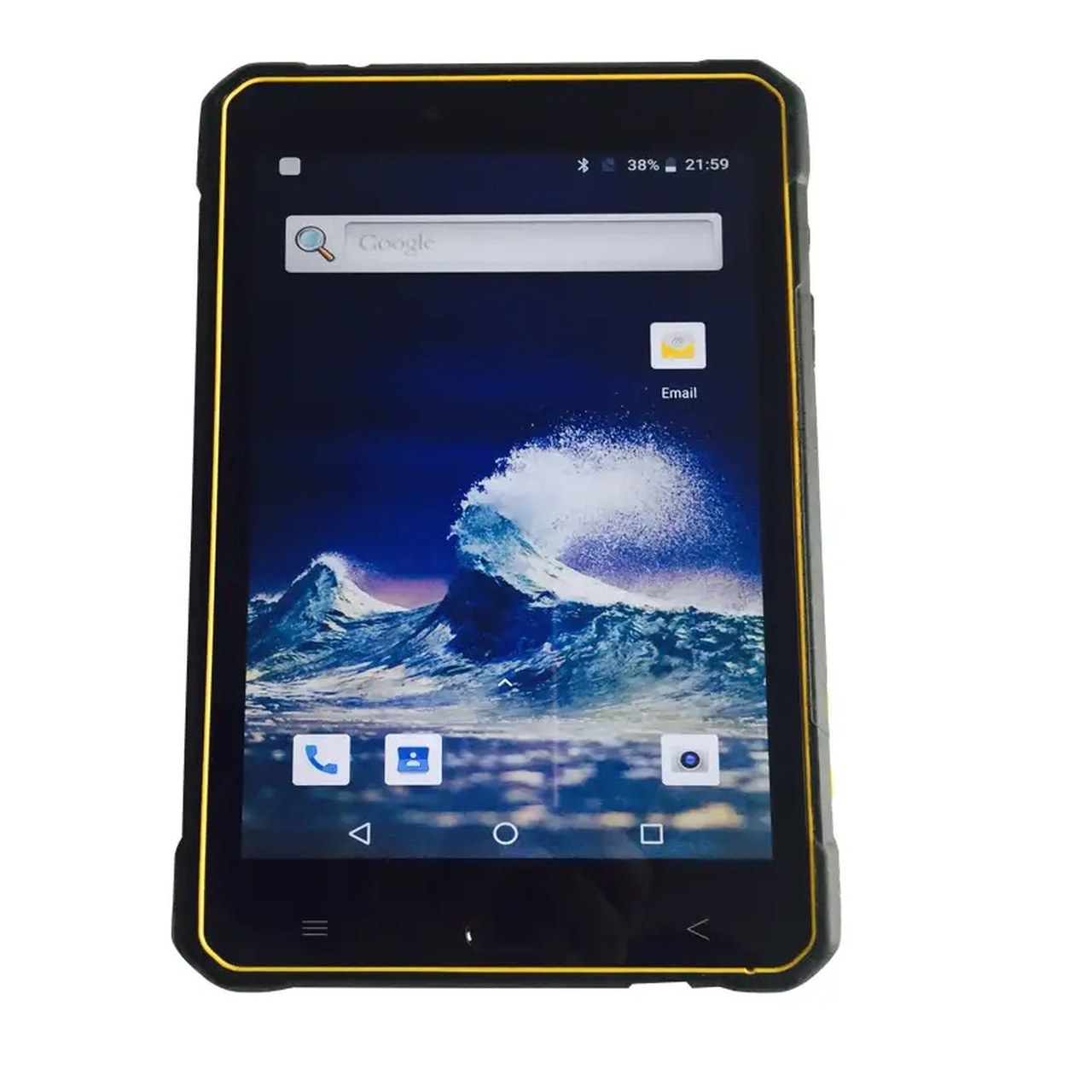

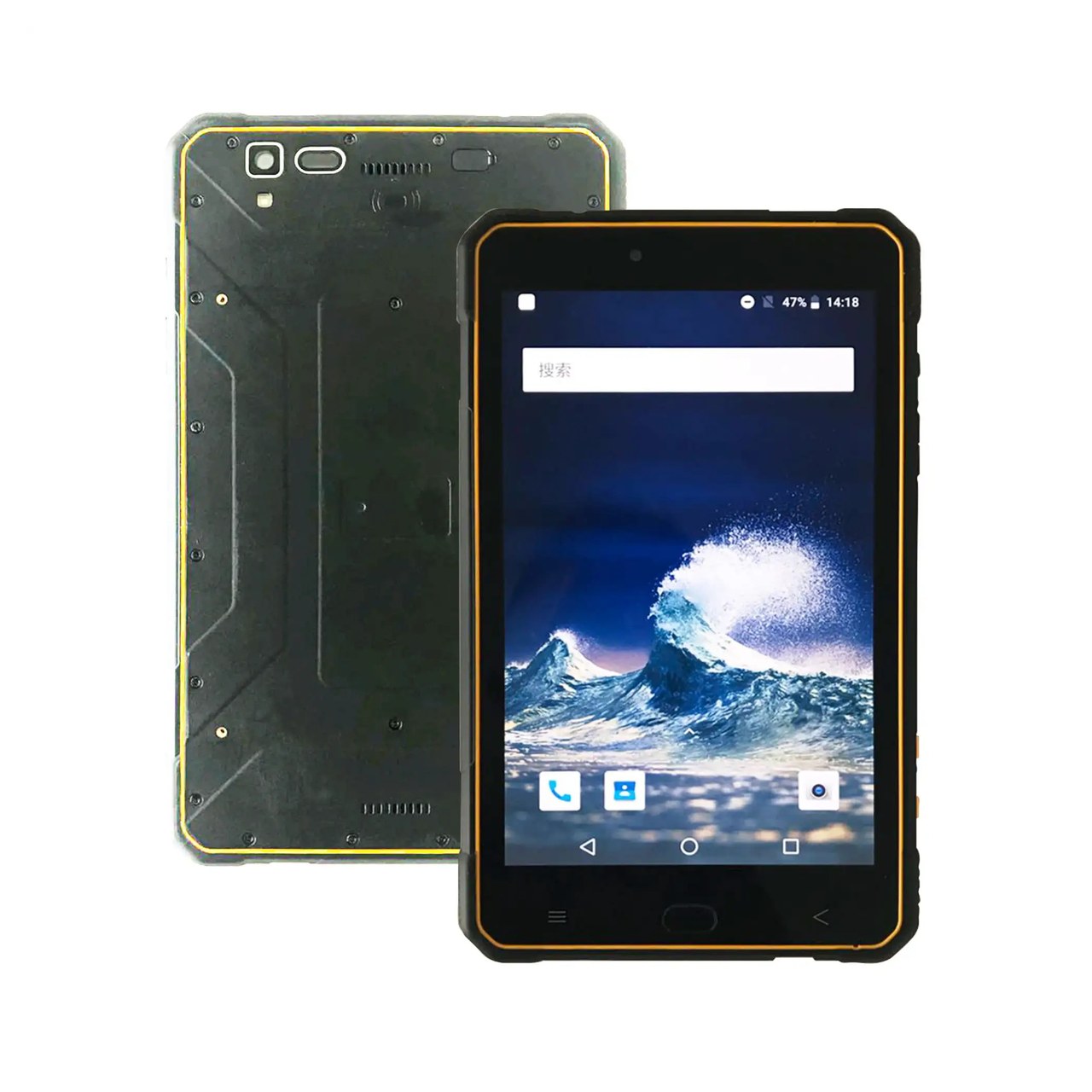

RUGGEDMASTER ST917 Rugged Tablets
Android 8.1 operating system; Qualcomm, 8 core, 1.8GHz CPU/A53; RAM:3G FLASH:32G, Micro SD, Maximum 128G, u Visible under strong light, 8 inch LCD screen, 1920×1200 IPS capacitive touch screen, Multifunction1D/2D bar code scanning, u Multi communication modes, 3G/4G, WIFI, Bluetooth, dual SIM card, Satisfy custom applications from customers
RUGGEDMASTER ST917 combines Android 8.1 operating system; Qualcomm, 8 core, 1.8GHz CPU/A53; RAM:3G FLASH:32G, Micro SD, Maximum 128G, u Visible under strong light, 8 inch LCD screen, 1920×1200 IPS capacitive touch screen. Additional features include Multifunction1D/2D bar code scanning, u Multi communication modes, 3G/4G, WIFI, Bluetooth, dual SIM card. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
Android 8.1 operating system; Qualcomm, 8 core, 1.8GHz CPU/A53; RAM:3G FLASH:32G, Micro SD, Maximum 128G
u Visible under strong light
8 inch LCD screen, 1920×1200 IPS capacitive touch screen
Multifunction1D/2D bar code scanning
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER ST917 Rugged Tablets
RUGGEDMASTER ST917 combines Android 8.1 operating system; Qualcomm, 8 core, 1.8GHz CPU/A53; RAM:3G FLASH:32G, Micro SD, Maximum 128G, u Visible under strong light, 8 inch LCD screen, 1920×1200 IPS capacitive touch screen. Additional features include Multifunction1D/2D bar code scanning, u Multi communication modes, 3G/4G, WIFI, Bluetooth, dual SIM card. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.

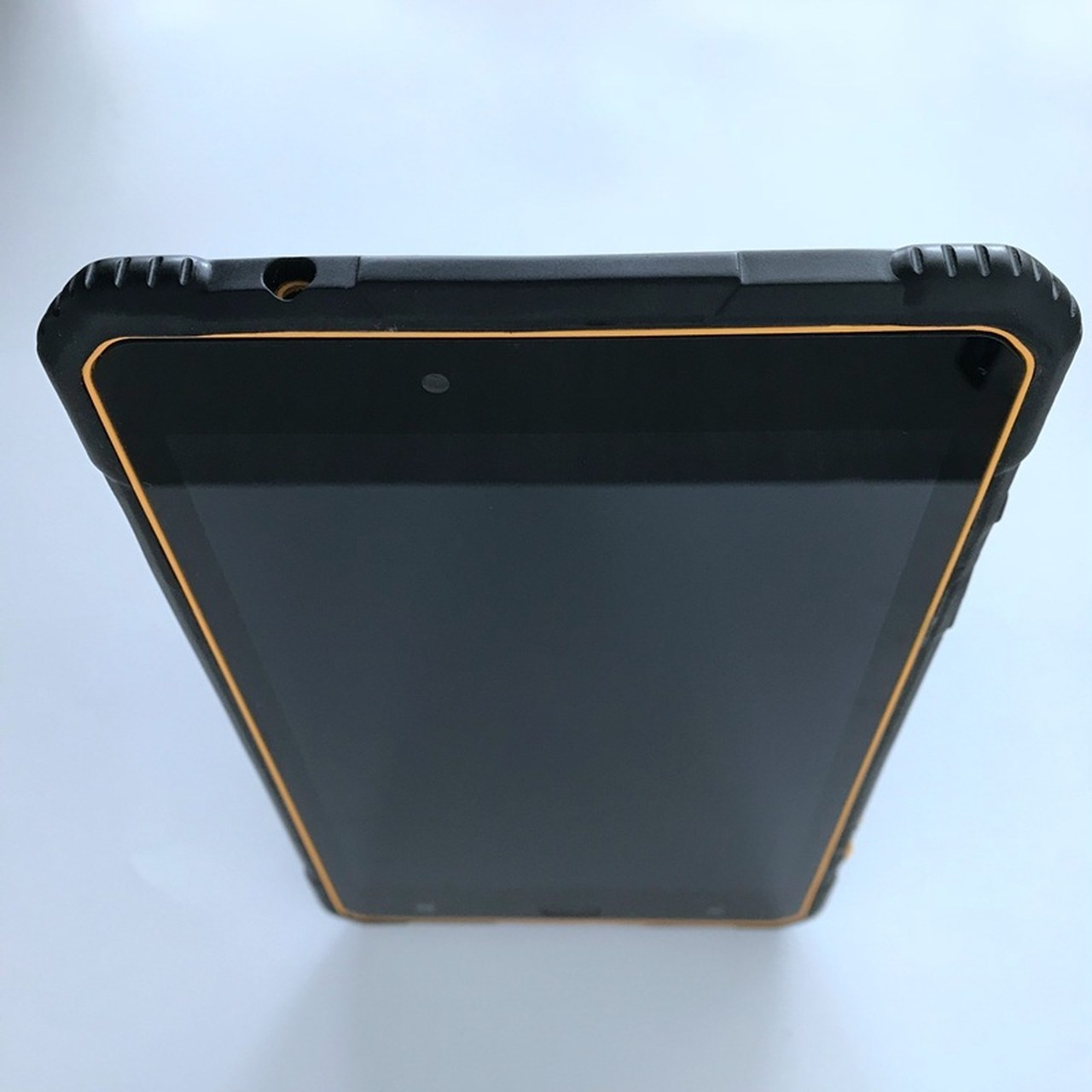

RUGGEDMASTER ST917 features
Product Introduction
FEATURES(Ultra-thin Rugged tablet)
u Advanced system
Android 8.1 operating system; Qualcomm, 8 core, 1.8GHz CPU/A53; RAM:3G FLASH:32G, Micro SD, Maximum 128G
u Visible under strong light
8 inch LCD screen, 1920×1200 IPS capacitive touch screen
u Optional functions
Multifunction1D/2D bar code scanning
-HF/UHF RFID reader
-Fingerprint identification(Front)
-High precise GPS
Wireless Charging
u Multi communication modes
3G/4G, WIFI, Bluetooth, dual SIM card
u
Support jacket extension
Satisfy custom applications from customers
u Certification
CCC/CE/ROSH/FCC/IP67/MIL-STD-810
SPECIFICATIONS
Design and technical configuration
The RUGGEDMASTER ST917 technical information lists the following configuration details.
Operating System: Android 8.1 operating system. CPU: Qualcomm SD630,CPU 1.8GHz/A53 Qcta core. Memory: RAM: 3GB FLASH: 32GB. Extended Storage: Micro SD, Maximum 128G.
USB port: 5 pin MicroUSB; Support to connect U-disk/Mouse/Keyboard/OTG line. OTG: OTG extend RS232 serial port/485 serial port/RJ45 Serial port. External port: Charge port, headphone port. Industrial Protection Grade: IP65.
Drop Grade: Drop resistance from 1.2m. Bluetooth: Support 4.0. GPS: –GPS+BDS+A-GPS+GLONASS,10m. WIFI: –802.11a/b/g/n/ac (2.4G and 5G bands).
2G/3G/4G: 4G LTE: LTEB1/B3/B5/B7/B8/B20/B26/B34/B38/B39/B40/B41 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 TD-SDMA: 34/39 CDMA 1X/EVDO:BC0 Band38:2570 MHz – 2620 MHz Band39: 1880 MHz – 1920 MHz B41:2555-2655MHz B40/:2300-2400MHz B38/B39/B41/B40/ B38/B39/B40/B41. Display Screen: 8 inch LCD screen，1920*1200 IPS screen, capacitive touch screen. Keyboard: Android menu, Homepage, Return, Volume+/-, Barcode, ON/OFF. Camera: 5 million pixels front camera, 13 million pixels rear camera with automatic focus and lighting function.
Headset: 3.5mm audio Interface, has MIC and Single loudspeaker. LED indicator light: Support (ordinary flicker, Call fast flicker, missed calls, charge indicator). Flashlight Function: S Support, can be used for emergency lighting. Googleplay store: S Support.
Gravity sensor: Support. Compass: Support. Gyroscopes: NOT Support. Acceleration sensors: Support.
Configuration and compatibility
Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.
RUGGEDMASTER ST917 wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER ST917. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER ST917 Rugged Tablets specifications
| RUGGEDMASTER ST917 Rugged Tablets technical specifications |
|---|
|
|
| RUGGEDMASTER ST917 Rugged Tablets technical specifications | ||
|---|---|---|
|
Standard |
||
|
Operating System |
Android 8.1 operating system |
|
|
CPU |
Qualcomm SD630,CPU 1.8GHz/A53 Qcta core |
|
|
Memory |
RAM: 3GB |
|
|
Extended Storage |
Micro SD, Maximum 128G |
|
|
USB port |
5 pin MicroUSB; Support to connect |
|
|
OTG |
OTG extend RS232 serial port/485 serial port/RJ45 |
|
|
External port |
Charge port, headphone port |
|
|
Protection Grade |
||
|
Industrial Protection Grade |
IP65 |
|
|
Drop Grade |
Drop resistance from 1.2m |
|
|
Wireless Communication |
||
|
Bluetooth |
Support 4.0 |
|
|
GPS |
--GPS+BDS+A-GPS+GLONASS,10m |
|
|
WIFI |
--802.11a/b/g/n/ac (2.4G and 5G bands) |
|
|
2G/3G/4G |
4G LTE:
WCDMA:
GSM: TD-SDMA: 34/39
CDMA
Band38:2570 MHz
Band39: 1880 B41:2555-2655MHz
B40/:2300-2400MHz |
|
|
Physical Parameters |
||
|
Display Screen |
8 inch LCD screen，1920*1200 IPS screen, capacitive touch screen |
|
|
Keyboard |
Android menu, Homepage, Return, Volume+/-, Barcode, |
|
|
Camera |
5 |
|
|
Headset |
3.5mm audio |
|
|
LED indicator |
Support (ordinary flicker, Call fast |
|
|
Flashlight Function |
S |
|
|
Googleplay store |
S |
|
|
Gravity sensor |
Support |
|
|
Compass |
Support |
|
|
Gyroscopes |
NOT Support |
|
|
Acceleration |
Support |
|
|
Light and |
Support |
|
|
Vibrating motor |
Support |
|
|
FM |
Support |
|
|
Rechargeable Lithium Battery |
3.8V, 6000mAh; Standby about 500 hours
Support Qi protocol wireless charging and USB QC3.0 |
|
|
Dimension |
229.4*136.2*11.5mm |
|
|
Weight |
510g |
|
|
Environmental Characteristics |
||
|
Working Temperature |
-20℃ ~ +55℃ |
|
|
Storage Temperature |
-40℃ ~ +60℃ |
|
|
Humidity |
5%-95% relative humidity; no condensation |
|
|
Optional |
||
|
Fingerprint identification |
Front fingerprint identification Type: AuthenTec TCSIST semiconductor sensor Acquisition window size: 24.5*19mm Effective image size:15.5*18.5mm Sensor type: capacitive Image size: 256*360 pixel Resolution: 500 DPI Matching mode: contrast mode(1:1); search mode(1:N) |
|
|
Barcode Scanning |
1D Laser Scanner Index(In Jacket):
Honeywell N4313
Scanning speed:
Scanning
Scanning angle: |
|
|
2D Barcode Scanner Index(In Newlands EM3096 Or Honeywell N3680 Identification ability: 1D, 2D, OCR Scanning angle: rotate 360°, incline±50°, deflection ±50° Field of View: Horizontal 36°, vertical 23° Depth of field: 4cm-23.5cm Environmental luminance: 0~100,000 LUX |
||
|
2D Barcode Scanner Index(In Host): Zebra SE2100 |
||
|
RFID |
HF
Support |
|
|
UHF RFID(In
Supports EPC C1
Reading
Frenquency:865-868Mhz
Ceramic |
||
| RUGGEDMASTER ST917 Rugged Tablets technical specifications | |
|---|---|
|
High Precise GPS |
High Precise GPS Locating |
|
Infrared Communication |
Infrared Communication， Working frequency 37.9K |
