Description
RUGGEDMASTER SR160 Handheld RFID Readers
RUGGEDMASTER SR160 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Powerful UHF and 1D/2D PerformanceFeaturesSupport Windows / Linux / MacOSMultiple Comm Methods:USB / RS-232 / BluetoothThree Modes:Single Barcode ScanningSingle UHF RFID ScanningHybrid ScanningFunctionsUHF RFID (Impinj E310 Chip) Barcode Scanning
Configuration overview
Technical specifications include Ergonomic Design for Optimal Comfort and Efficiency: 3 Scan Modes: Barcode / UHF / Hybrid. USB / RS-232 / Bluetooth: Compatible with Windows / Linux / Mac. Self-Developed UHF Module Based on Impinj E Series chips: Impinj Gen2X for Enhanced UHF Performance. 7-100cm Read Range: High-Performance 1D/2D Barcode Scanning.
Technical specifications include Dimensions: 154.0 x 87.8 x 65.0mm / 6.46 x 3.43 x 2.56in.. Battery: 2600mAh (Wireless Version). Material: Plastic. Buzzer: Voice prompt.
Technical specifications include Keypad: Power key / scan key. Button: UHF、2D、UHF or 2D. Indicator LED: Function: 1 for UHF, 1 for 2DStatus: 1 for UHF, 1 for 2DPower: 1Bluetooth: 1. Comm Interface: RJ45 interface，HID USB.
Technical specifications include Bluetooth: Bluetooth Low Energy (BLE) 5.0 (Wireless Version). Operating Temp.: -4°F to 122°F / -20°C to +50°C. Storage Temp.: -40°F to 158°F / -40°C to +70°C. Humidity: 5% RH – 95% RH non condensing.
Technical specifications include Drop Specification: 1.5m. Scan engine: 2D Scanner. Min.Resolution: Code 39 – 4mil、UPC – 7.8mil (60%)、 PDF417 – 5mil、Datamatrix – 5mil. Engine: Based on Impinj E Series chips.
Technical specifications include Frequency: 920-925MHz / 902-928MHz / 865-868MHz. Impinj Gen2X: Supported. Protocol: EPCglobal C1G2 (ISO18000-6C). Antenna: Circular Polarized Antenna.
Wholesale purchasing information
For RUGGEDMASTER SR160, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

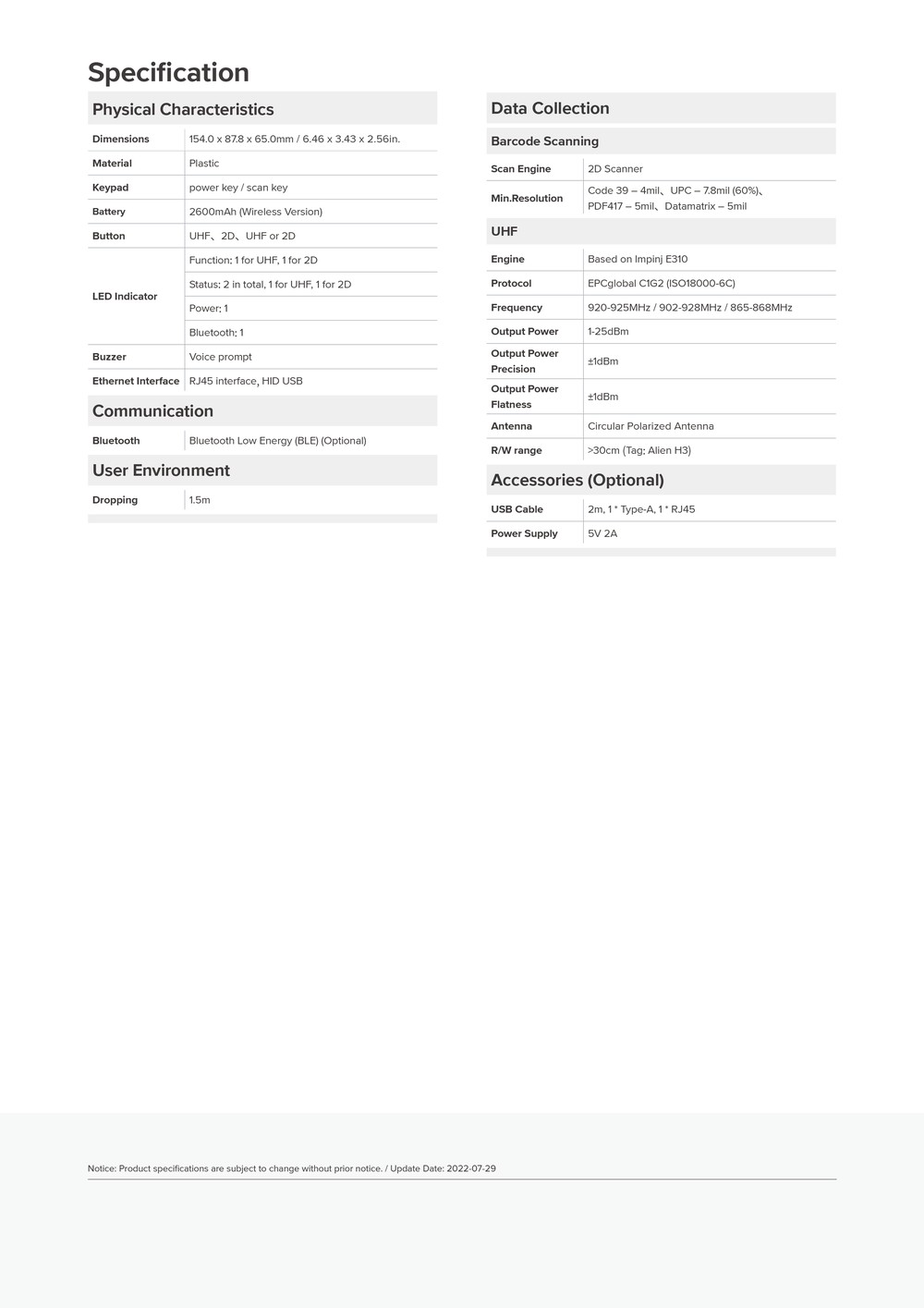

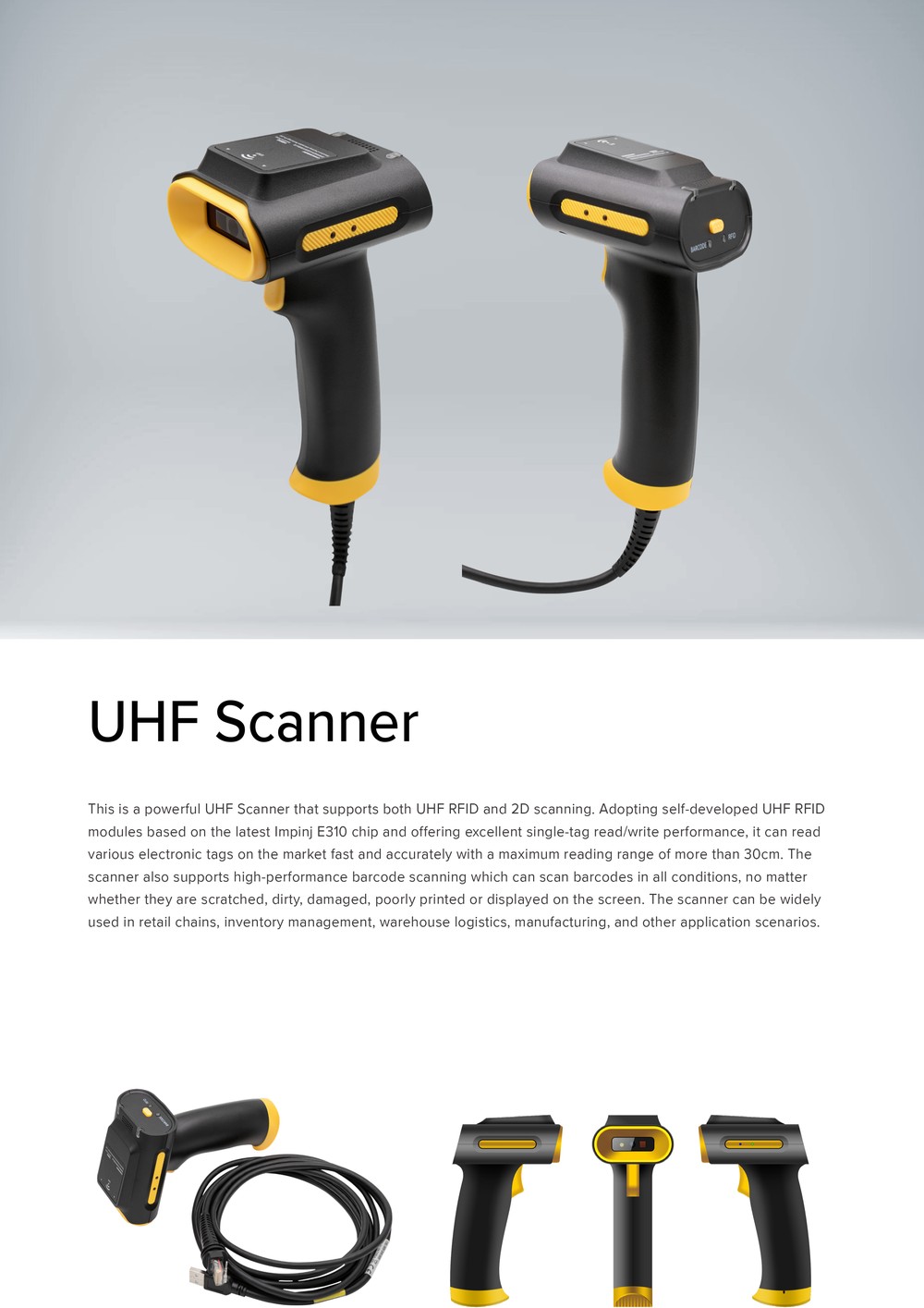

Manufacturer feature details
| Ergonomic Design for Optimal Comfort and Efficiency | 3 Scan Modes: Barcode / UHF / Hybrid |
| USB / RS-232 / Bluetooth | Compatible with Windows / Linux / Mac |
| Self-Developed UHF Module Based on Impinj E Series chips | Impinj Gen2X for Enhanced UHF Performance |
| 7-100cm Read Range | High-Performance 1D/2D Barcode Scanning |
| Dimensions | 154.0 x 87.8 x 65.0mm / 6.46 x 3.43 x 2.56in. |
| Battery | 2600mAh (Wireless Version) |
| Material | Plastic |
| Buzzer | Voice prompt |
| Keypad | Power key / scan key |
| Button | UHF、2D、UHF or 2D |
| Indicator LED | Function: 1 for UHF, 1 for 2DStatus: 1 for UHF, 1 for 2DPower: 1Bluetooth: 1 |
| Comm Interface | RJ45 interface，HID USB |
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 (Wireless Version) |
| Operating Temp. | -4°F to 122°F / -20°C to +50°C |
| Storage Temp. | -40°F to 158°F / -40°C to +70°C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | 1.5m |
| Scan engine | 2D Scanner |
| Min.Resolution | Code 39 – 4mil、UPC – 7.8mil (60%)、 PDF417 – 5mil、Datamatrix – 5mil |
| Engine | Based on Impinj E Series chips |
| Frequency | 920-925MHz / 902-928MHz / 865-868MHz |
| Impinj Gen2X | Supported |
| Protocol | EPCglobal C1G2 (ISO18000-6C) |
| Antenna | Circular Polarized Antenna |
| Output Power | 1-25dBm |
| Output Power Precision | ±1dBm |
| Output Power Flatness | ±1dBm |
| Max Read Range | 7-100cm (30cm is recommended) |
| Accessories | 1 * USB-RJ45, 2MPower Supply: 5V 2A |
