RUGGEDMASTER SP605 Industrial Panel PCs

RUGGEDMASTER SP605 Industrial Panel PCs

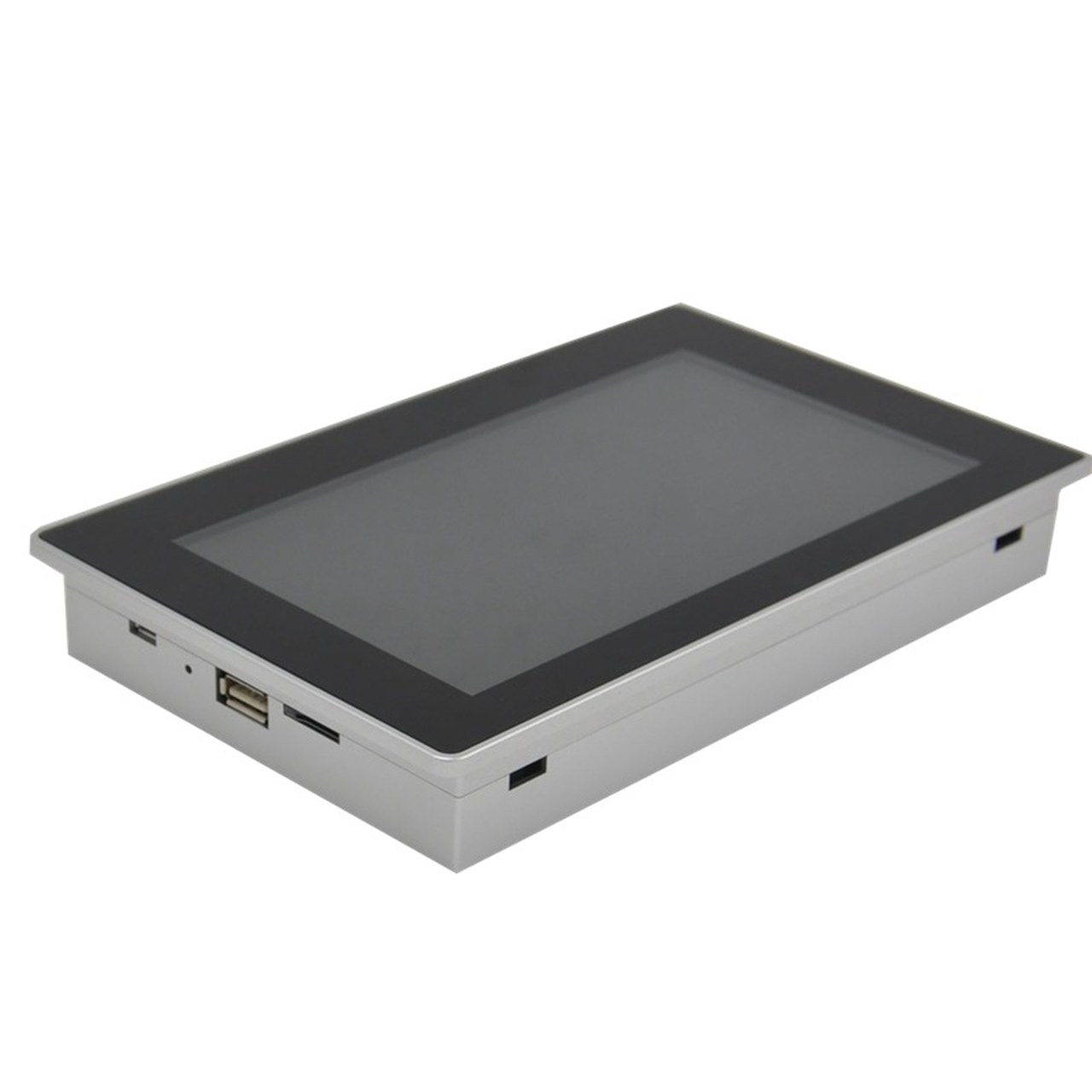

RUGGEDMASTER SP605 combines CPU: NXP i.MX6 1GHz | LCD life | 15000hours, CPU: Cortex A9 qual core | Touch Panel | 5 point, RAM: 1GByte DDR3 | TP structure | G+G thickness 1.8MM. Additional features include ROM: 8GByte eMMC（MLC） | Power | DC 9V～36V（12V）, display: 7inch TFT LED. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.

RUGGEDMASTER SP605 features

Product Introduction

Design and technical configuration

The RUGGEDMASTER SP605 technical information lists the following configuration details.

CPU: NXP i.MX6 1GHz | LCD life | 15000hours. CPU: Cortex A9 qual core | Touch Panel | 5 point. RAM: 1GByte DDR3 | TP structure | G+G thickness 1.8MM. ROM: 8GByte eMMC（MLC） | Power | DC 9V～36V（12V）.

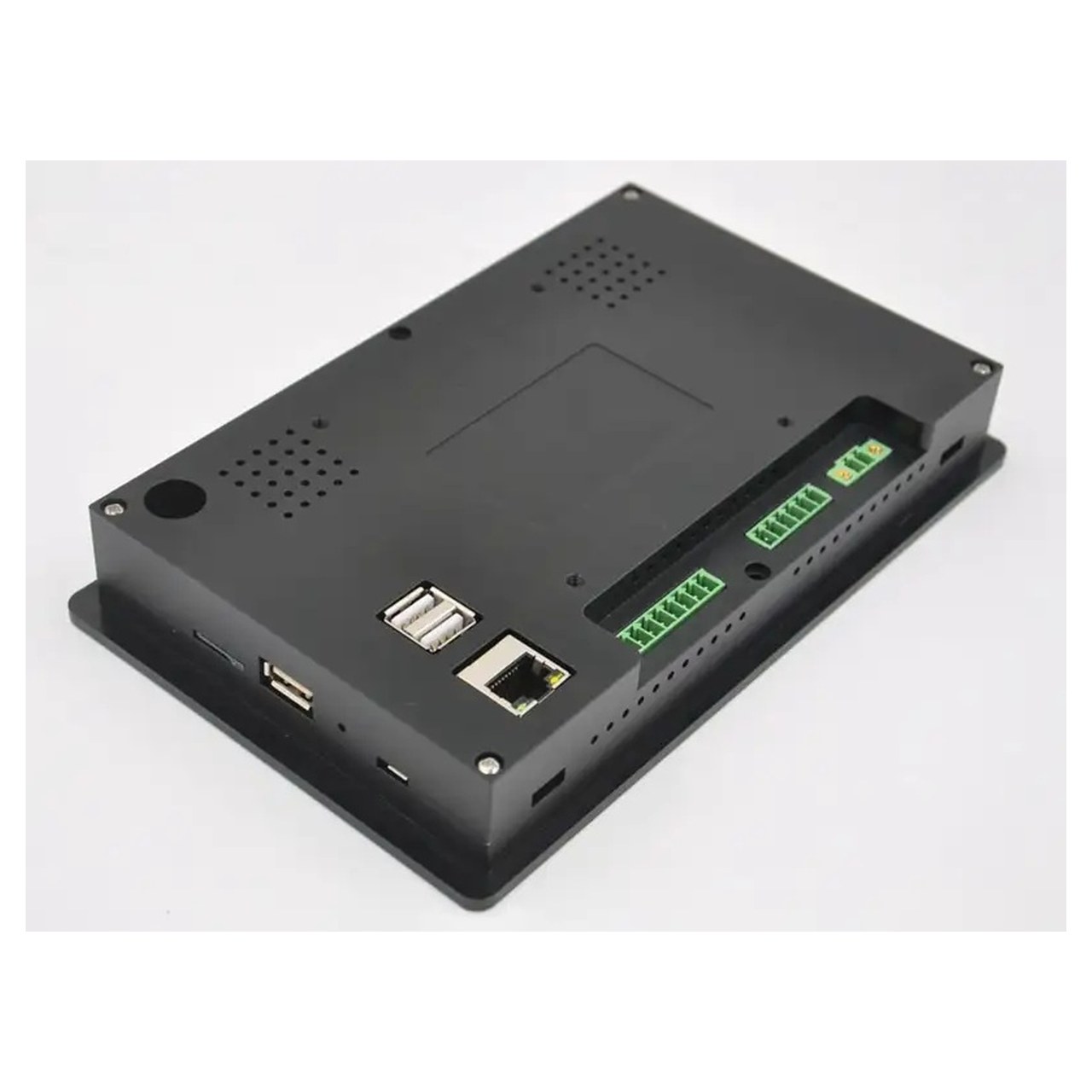

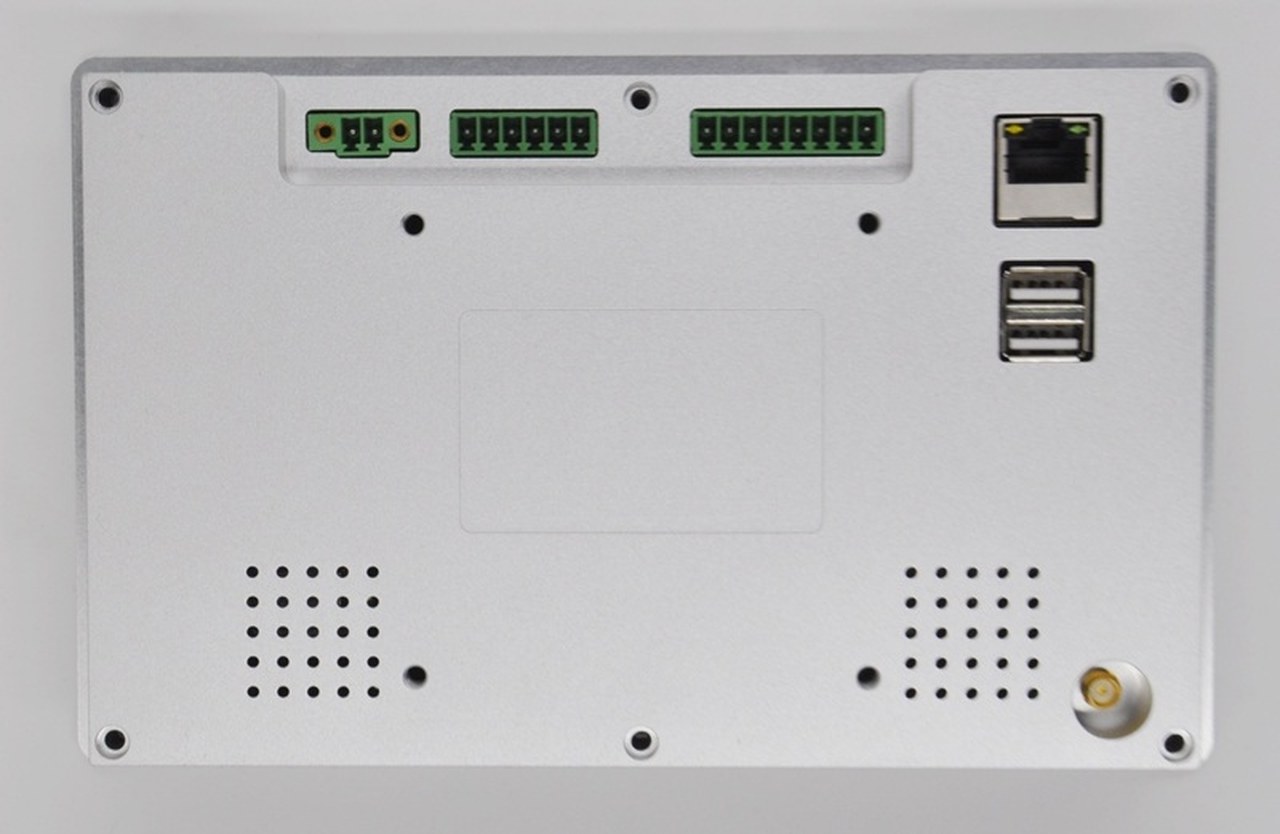

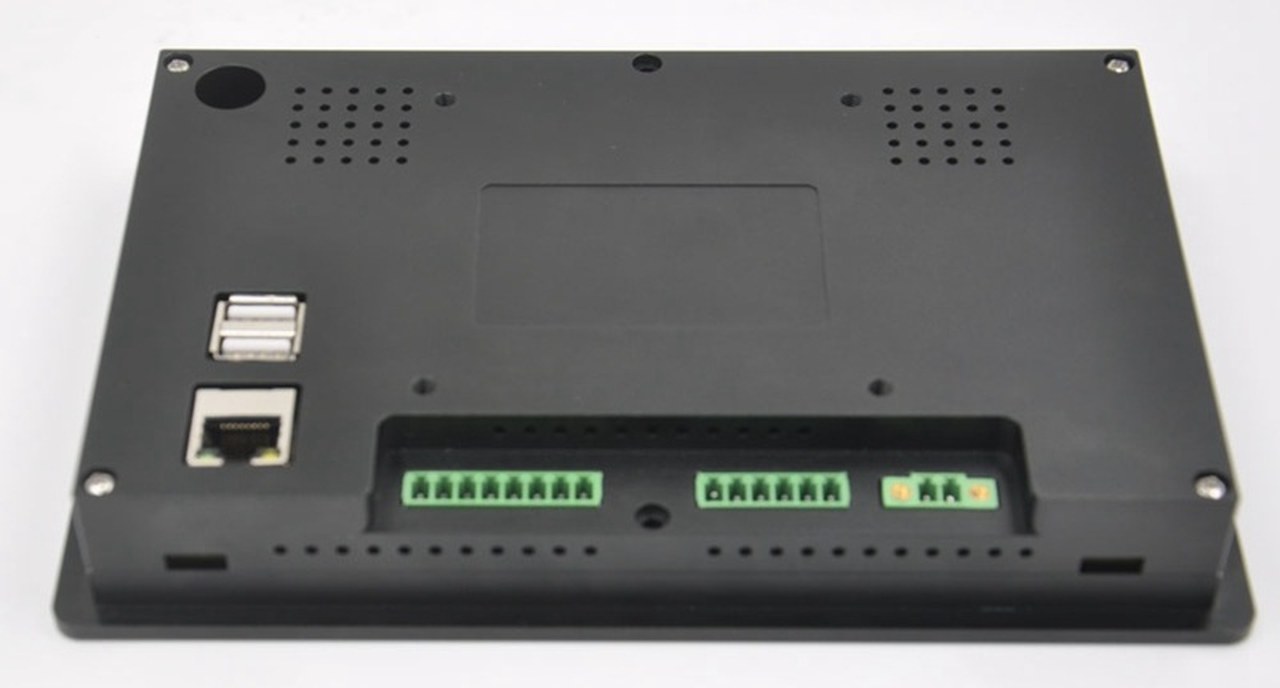

WIFI&BT4.0: WIFI&BT4.0，WIFI 2.4G/5G optional | working | -20 to +60. RJ45: 1 x 10/100M RJ45 | storage | -40 to +85. Other port: 3x RS-232 1 x CAN Bus 3 x USB 2.0 Host 1 x USB 2.0 Device 4 x internal digital I/O | Humidity | 10 to 95%. Other port: 3x RS-232 1 x CAN Bus 3 x USB 2.0 Host 1 x USB 2.0 Device 4 x internal digital I/O | Casing | Aluminium.

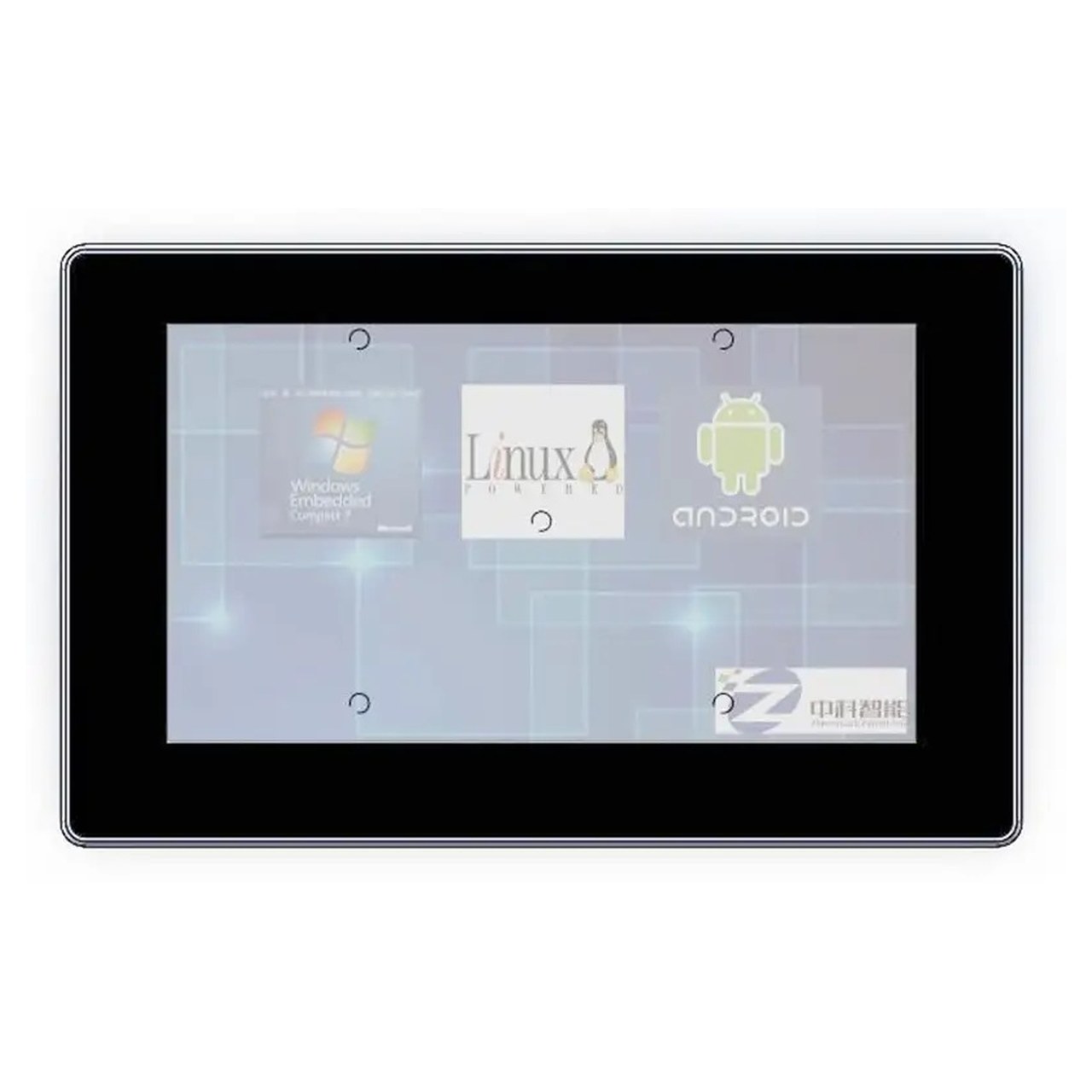

Other port: 3x RS-232 1 x CAN Bus 3 x USB 2.0 Host 1 x USB 2.0 Device 4 x internal digital I/O | Siz | 198 x 124 x 30.5 mm. speaker: 1.4 watt 8 ou. RTC: yes | OS | Android、Linux、Wince. Door dog: yes.

display: 7inch TFT LED. Resolution: 1024X600. lights: 500 nits. Contrast: 800.

Visual angle: 75.

Configuration and compatibility

Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.

Preparing a deployment enquiry

To compare this industrial panel pcs configuration with your existing equipment, start with the tasks your team performs and the software it uses. Check the operating system and application requirements against the listed processor, memory and storage. For connected workflows, compare the specified communication methods and interfaces with your network and peripherals. If scanning or identification is part of the job, identify the barcode types or card standards required before choosing optional hardware. Review the source photos alongside the dimensions to assess handling, mounting and access to connections. Include these requirements with your requested quantity so the proposed configuration can be checked before supply. Listed options need confirmation; the gallery may illustrate several configurations.

RUGGEDMASTER SP605 wholesale enquiries

Explore the product photos and the separate Specs tab for RUGGEDMASTER SP605. Browse our industrial panel pcs to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
