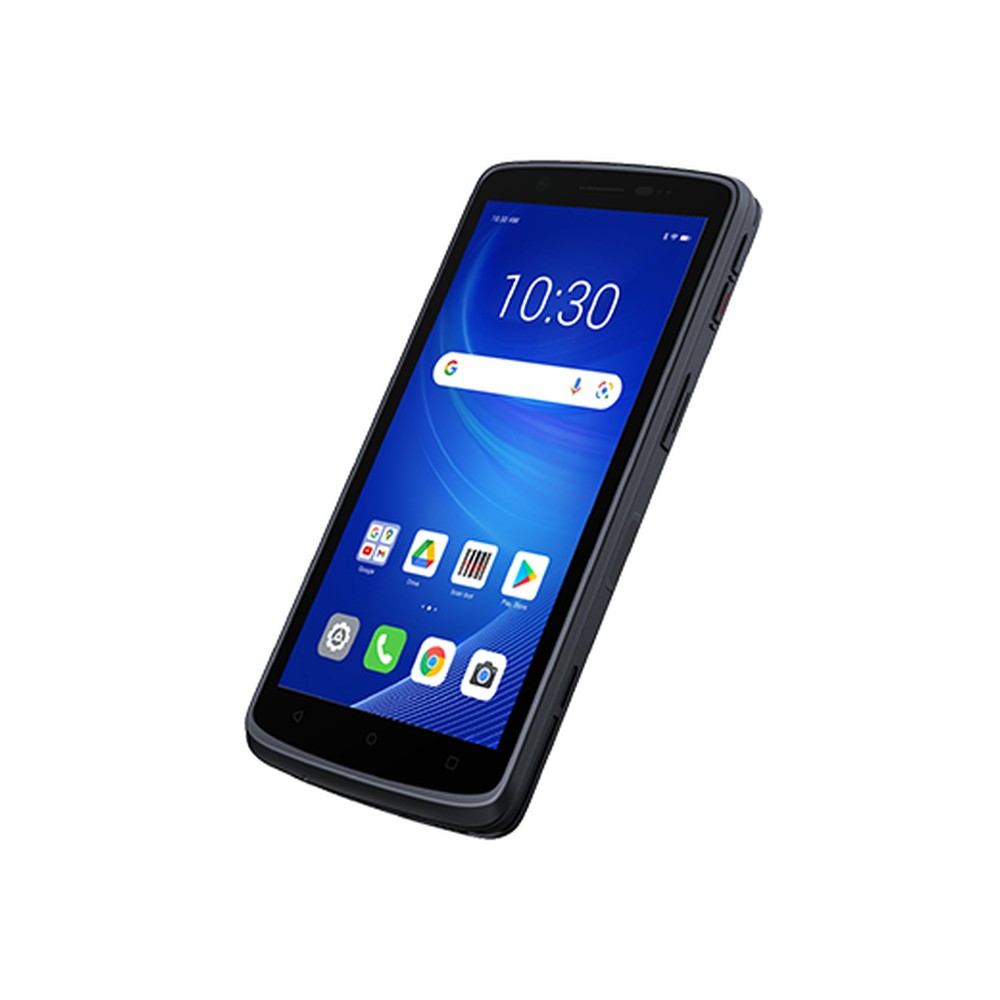

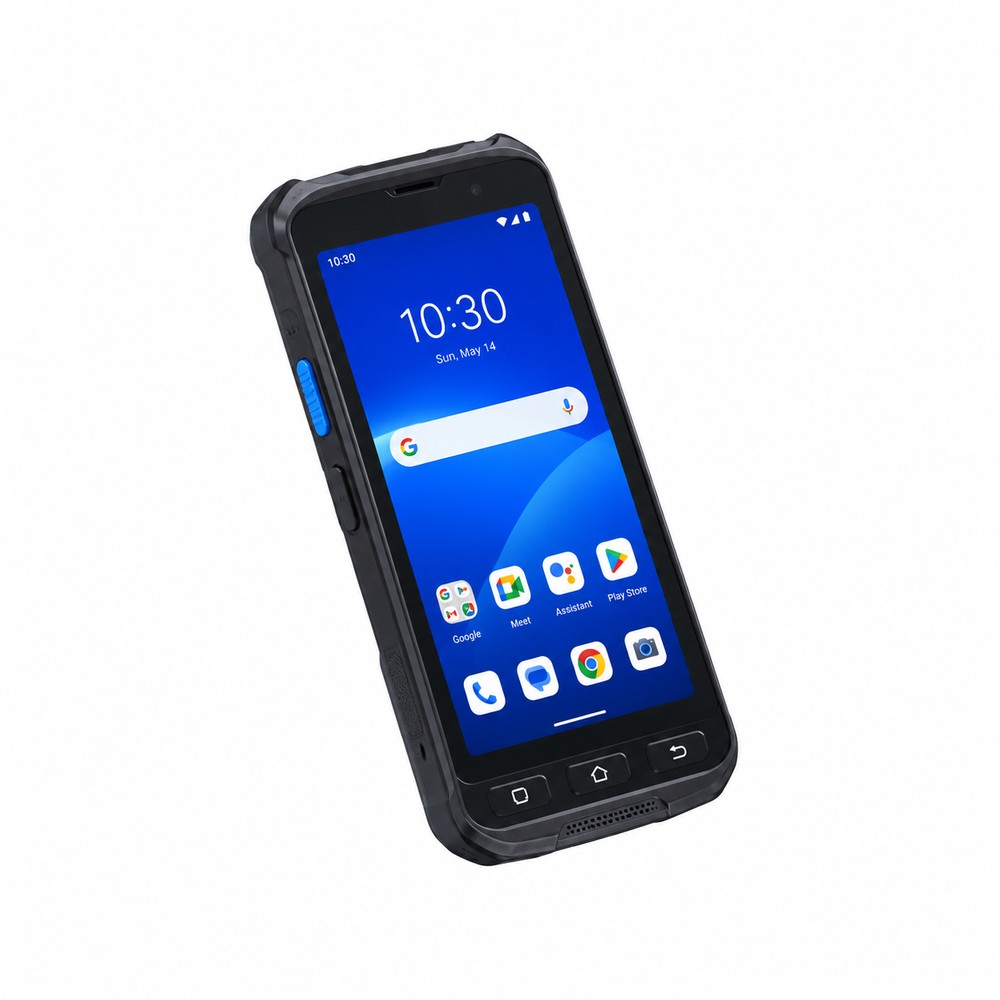

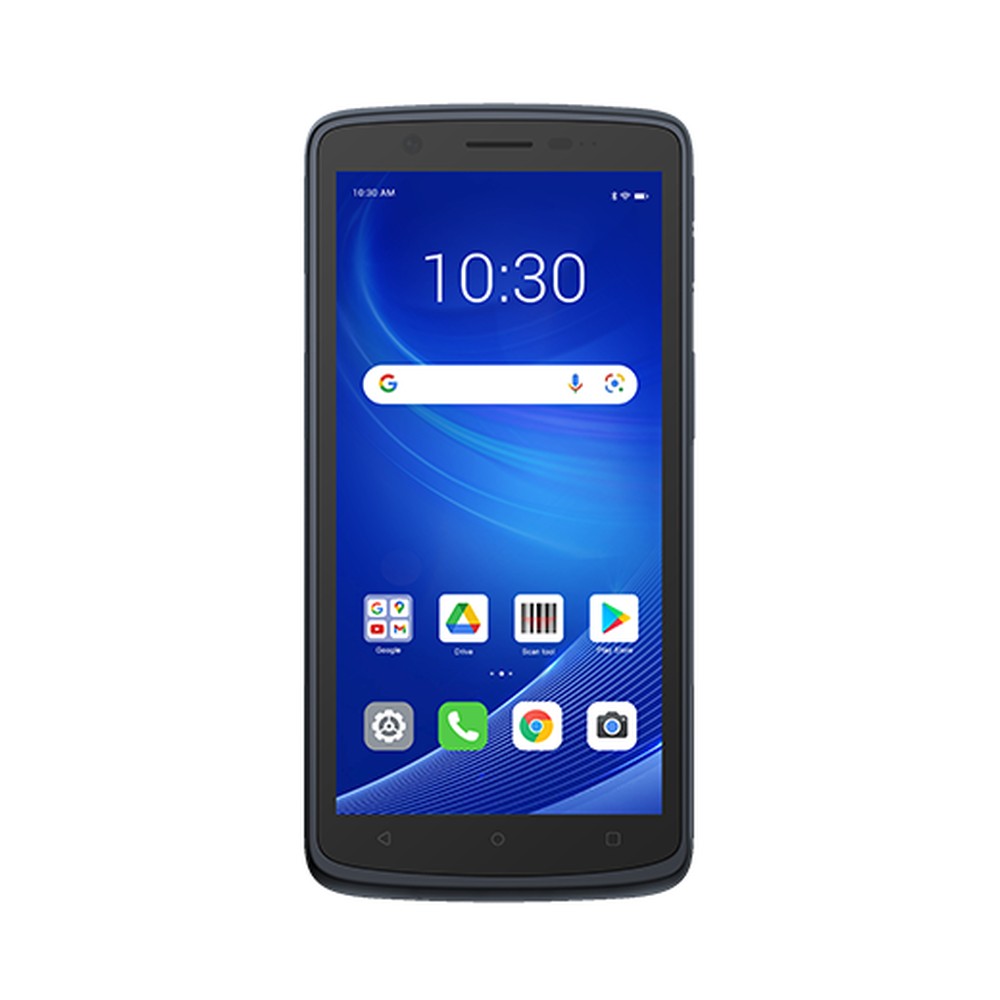

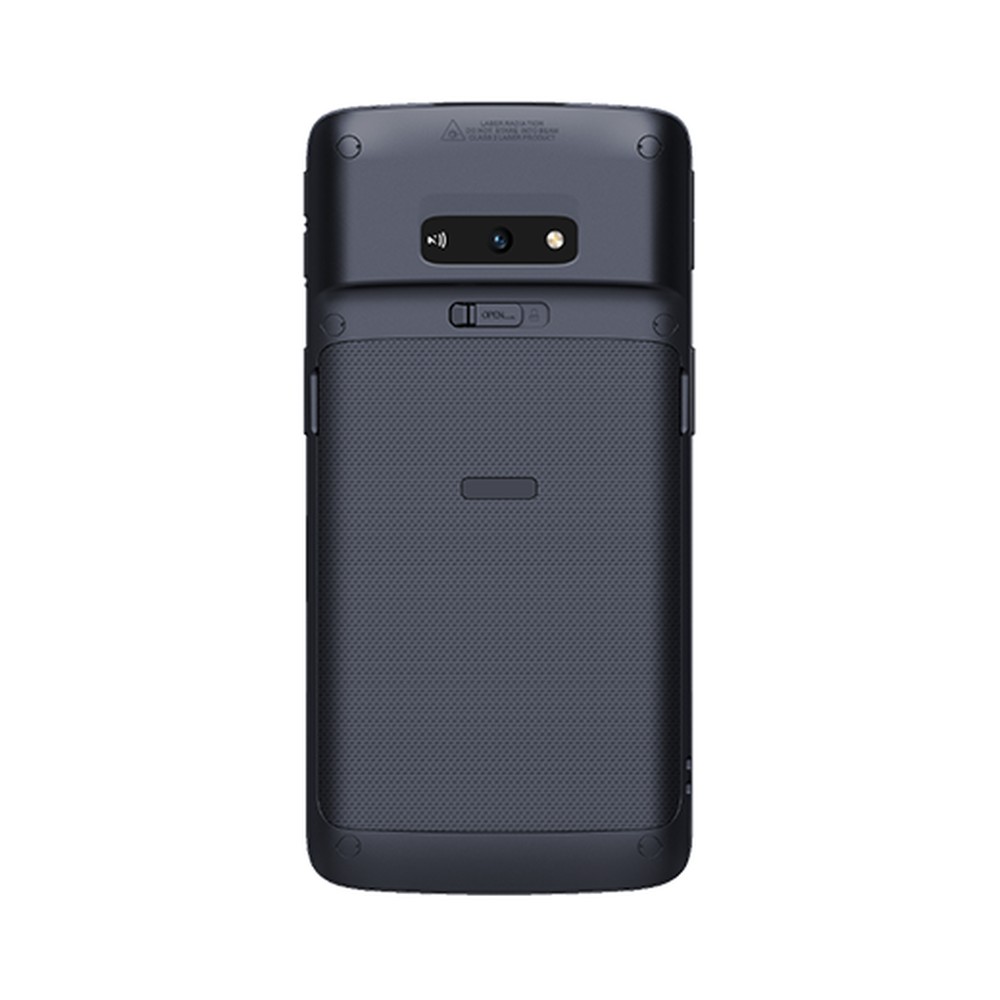

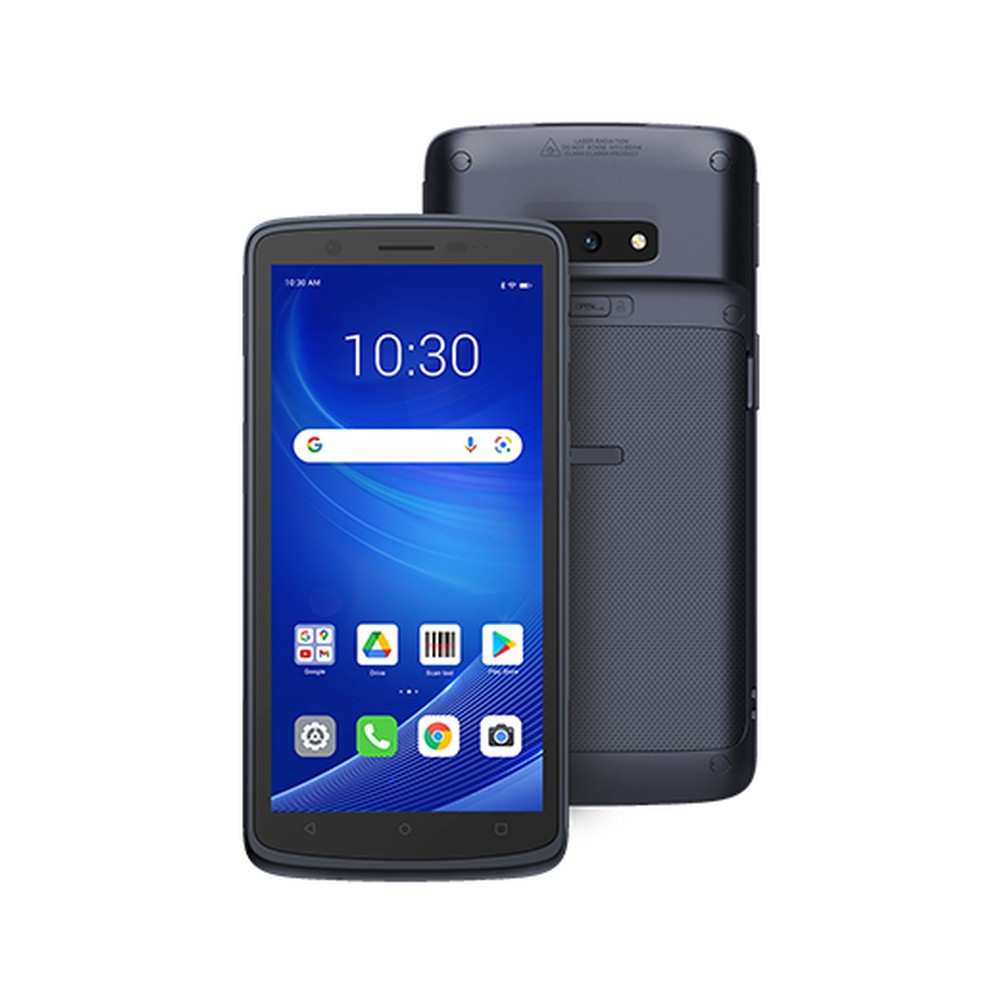

RUGGEDMASTER S50B Mobile Computers
5.5-inch. color HD (720 x 1440) Capacitive touch, supporting wet hand mode and glove mode · Detachable 5000mAh Li-ion rechargeable battery with hot-swap, optional 6000mAh40mAh Li-ion spare battery · Qualcomm Octa-core 2.0GHz · Android 11/14, GMS · 4GB RAM/64 GB Flash memory.8GB RAM/128 GB Flash memory (Optional) · -40℃ to 70℃ · Bluetooth 5.1 (supports BLE)
Design for retail industry，the latest Wi-Fi 6 of mobile computer Full-Features to Deliver the Best Service A new generation of S50B equipment has been introduced by Dingdata, based on its strong R&D technology. Android 14 OS with Qualcomm Snapdragon octa-core 2.0 GHz processor, running performance is 100% higher than the first generation equipment so that a variety of applications can be used smoothly. The latest Wi-Fi 6 ready technology, compared to the first generation, has significantly improved connection stability and transmission distance. Additional optional ex-range scanner which can reach 10m reading can enlarge the feasibility in warehouse and outdoor.
Dimension: 5000mAh Standard battery model:156 mm L x 76 mm W x 13.9 mm H6000mAh battery model:156 mm L x 76 mm W x 16.4 mm H
Weight: 255 g (5000mAh model)279 g (6000mAh model)
Display / Touch Panel: 5.5-inch. color HD (720 x 1440) Capacitive touch, supporting wet hand mode and glove mode
Battery: Detachable 5000mAh Li-ion rechargeable battery with hot-swap, optional 6000mAh40mAh Li-ion spare battery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER S50B Mobile Computers
RUGGEDMASTER S50B combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Design for retail industry，the latest Wi-Fi 6 of mobile computer
Full-Features to Deliver the Best Service
A new generation of S50B equipment has been introduced by Dingdata, based on its strong R&D technology. Android 14 OS with Qualcomm Snapdragon octa-core 2.0 GHz processor, running performance is 100% higher than the first generation equipment so that a variety of applications can be used smoothly. The latest Wi-Fi 6 ready technology, compared to the first generation, has significantly improved connection stability and transmission distance. Additional optional ex-range scanner which can reach 10m reading can enlarge the feasibility in warehouse and outdoor.
Configuration overview
Technical specifications include Dimension: 5000mAh Standard battery model:156 mm L x 76 mm W x 13.9 mm H6000mAh battery model:156 mm L x 76 mm W x 16.4 mm H. Weight: 255 g (5000mAh model)279 g (6000mAh model). Display / Touch Panel: 5.5-inch. color HD (720 x 1440) Capacitive touch, supporting wet hand mode and glove mode. Battery: Detachable 5000mAh Li-ion rechargeable battery with hot-swap, optional 6000mAh40mAh Li-ion spare battery.
Technical specifications include Power Adapter: Power Adapter(18W), DC Charger (5V 2A)Optional:(EU, US, UK, AU) Choose one of four. Audio: Speaker, dual microphones, PTT voice (Internal speaker and Bluetooth wireless headset support). I/O Interfaces: Waterproof Type-C USB interface, supporting Type-C earphone, USB2.0 Highspeed, OTG and fast chargeNano/TF card, card slot with two out of three. Buttons/Keys: Volume +/ – button, Power ON/OFF button, Left Scan button, Right Scan button, Custom button, Virtual On-Screen button (Return button, Home button, Menu button).
Technical specifications include Camera: Front: 5 MPRear: 13 MP autofocus, flash LED with flashlight mode. CPU: Qualcomm Octa-core 2.0GHz. Operating System: Android 11/14, GMS. Storage: 4GB RAM/64 GB Flash memory.8GB RAM/128 GB Flash memory (Optional).
Technical specifications include Operating Temp.: -20℃ to 55℃. Storage Temp.: -40℃ to 70℃. Humidity: 5%RH to 95%RH(non-condensing). Drop Specifications: 4.9 ft./1.5 m drops to concrete at room temperature.
Technical specifications include IP Protective Level: IP68. SDK: Software Development Kit. Language: Java. Environment: Android Studio or Eclipse.
Technical specifications include WWAN: GSM:Qual Band(850/900/1800/1900Mhz)TD-SCDMA: Band34, Band39WCDMA: Band1, Band2, Band5, Band8CDMA 1x /EVDO: BC0TDD-LTE: Band34, Band38, Band39, Band40, Band41FDD-LTE: Band1, Band3, Band5, Band7, Band8, Band20, Band28. WIFI: WLAN Radio: IEEE 802.11 a/b/g/n/ac/ax ready /d/e/h/i/k/r/v/w (2.4G/5G dual-band WIFI 6) protocolWorking Channel: CH1~CH13, CH36-CH140, CH149~CH165Security of WLAN: Supports WPA2 –Personal, WPA2 –Enterprise, EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-AKA Prime. Bluetooth: Bluetooth 5.1 (supports BLE). GPS: GPS+GLONASS+ Beidou, Supporting AGPSGPS:L1(1.575GHz)+L5(1.176GHz); Beidou:B1(1.561GHz); GLONASS: L1(1.602GHZ).
Wholesale purchasing information
For RUGGEDMASTER S50B, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

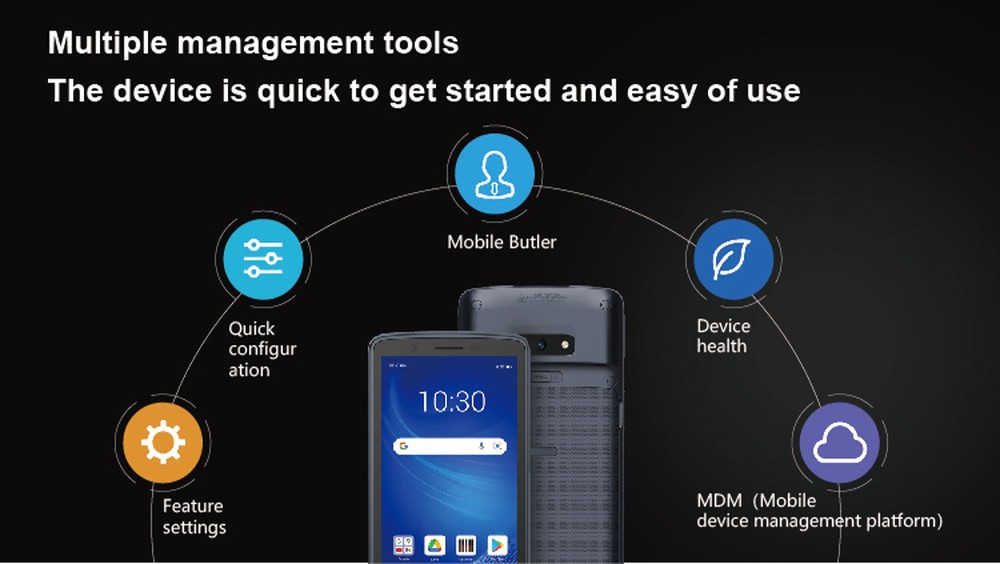

Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 5000mAh Standard battery model:156 mm L x 76 mm W x 13.9 mm H6000mAh battery model:156 mm L x 76 mm W x 16.4 mm H | |
| Weight | 255 g (5000mAh model)279 g (6000mAh model) | |
| Display / Touch Panel | 5.5-inch. color HD (720 x 1440) Capacitive touch, supporting wet hand mode and glove mode | |
| Battery | Detachable 5000mAh Li-ion rechargeable battery with hot-swap, optional 6000mAh40mAh Li-ion spare battery | |
| Power Adapter | Power Adapter(18W), DC Charger (5V 2A)Optional:(EU, US, UK, AU) Choose one of four | |
| Audio | Speaker, dual microphones, PTT voice (Internal speaker and Bluetooth wireless headset support) | |
| I/O Interfaces | Waterproof Type-C USB interface, supporting Type-C earphone, USB2.0 Highspeed, OTG and fast chargeNano/TF card, card slot with two out of three | |
| Buttons/Keys | Volume +/ - button, Power ON/OFF button, Left Scan button, Right Scan button, Custom button, Virtual On-Screen button (Return button, Home button, Menu button) | |
| Camera | Front: 5 MPRear: 13 MP autofocus, flash LED with flashlight mode | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Qualcomm Octa-core 2.0GHz | |
| Operating System | Android 11/14, GMS | |
| Storage | 4GB RAM/64 GB Flash memory.8GB RAM/128 GB Flash memory (Optional) | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 55℃ | |
| Storage Temp. | -40℃ to 70℃ | |
| Humidity | 5%RH to 95%RH(non-condensing) | |
| Drop Specifications | 4.9 ft./1.5 m drops to concrete at room temperature | |
| IP Protective Level | IP68 | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | GSM:Qual Band(850/900/1800/1900Mhz)TD-SCDMA: Band34, Band39WCDMA: Band1, Band2, Band5, Band8CDMA 1x /EVDO: BC0TDD-LTE: Band34, Band38, Band39, Band40, Band41FDD-LTE: Band1, Band3, Band5, Band7, Band8, Band20, Band28 | |
| WIFI | WLAN Radio: IEEE 802.11 a/b/g/n/ac/ax ready /d/e/h/i/k/r/v/w (2.4G/5G dual-band WIFI 6) protocolWorking Channel: CH1~CH13, CH36-CH140, CH149~CH165Security of WLAN: Supports WPA2 –Personal, WPA2 –Enterprise, EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-AKA Prime | |
| Bluetooth | Bluetooth 5.1 (supports BLE) | |
| GPS | GPS+GLONASS+ Beidou, Supporting AGPSGPS:L1(1.575GHz)+L5(1.176GHz); Beidou:B1(1.561GHz); GLONASS: L1(1.602GHZ) | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | X3 2D Barcode scannerHoneywell N6803-FR | |
| RFID HF（NFC） | Supports tags ISO15693, ISO14443A/B (without encryption protocol), ISO14443A with encryption protocol (Mifare One S50,S70 and compatible cards); supports NFC Protocol | |
| ACCESSORIES | ||
| Standard | 1xAdapter，1xHand-strap，1xUSB Cable，1xscreen protector | |
| Optional | Battery， Single slot charging cradle，Battery，Five slot charging cradle，Docking Charger，Pistol Grip，Rubber Bumper | |
