RUGGEDMASTER S50A Handheld Terminals
5.7 inch; 720*1520; 450nits10 Point Touch, Support stylus · 4000mAh; 3.8V, · Unisoc T616 · Android 13 · 4GB+64GB, (8GB+128GB Optional) · -40℃ to 60℃ · 5.0 Version
Industrial Rugged Handheld PDA Extremely Fast, Full-Features to Deliver the Best Service The S50A with multiple features such as high configuration,shortcut keys, barcode scanning, long-lasting battery life, etc.The excellent performance makes it ideally deployed in diverse scenarios. S50A creates the ultimate ultra-rugged full-touch computer for all workers inside and outside the four walls-smartphone experience for maximum simplicity and the ultimate in rugged construction. Its lightweight design gives the user the perfect combination of durability, comfort, convenience and portability.
Dimension: 155*77.7*13.3mm
Weight: 240±20g
Display / Touch Panel: 5.7 inch; 720*1520; 450nits10 Point Touch, Support stylus
Battery: 4000mAh; 3.8V, Charging time: 2H30minUsage time: about 14H(50% volume, 60% brightness, playing local 1080P video)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

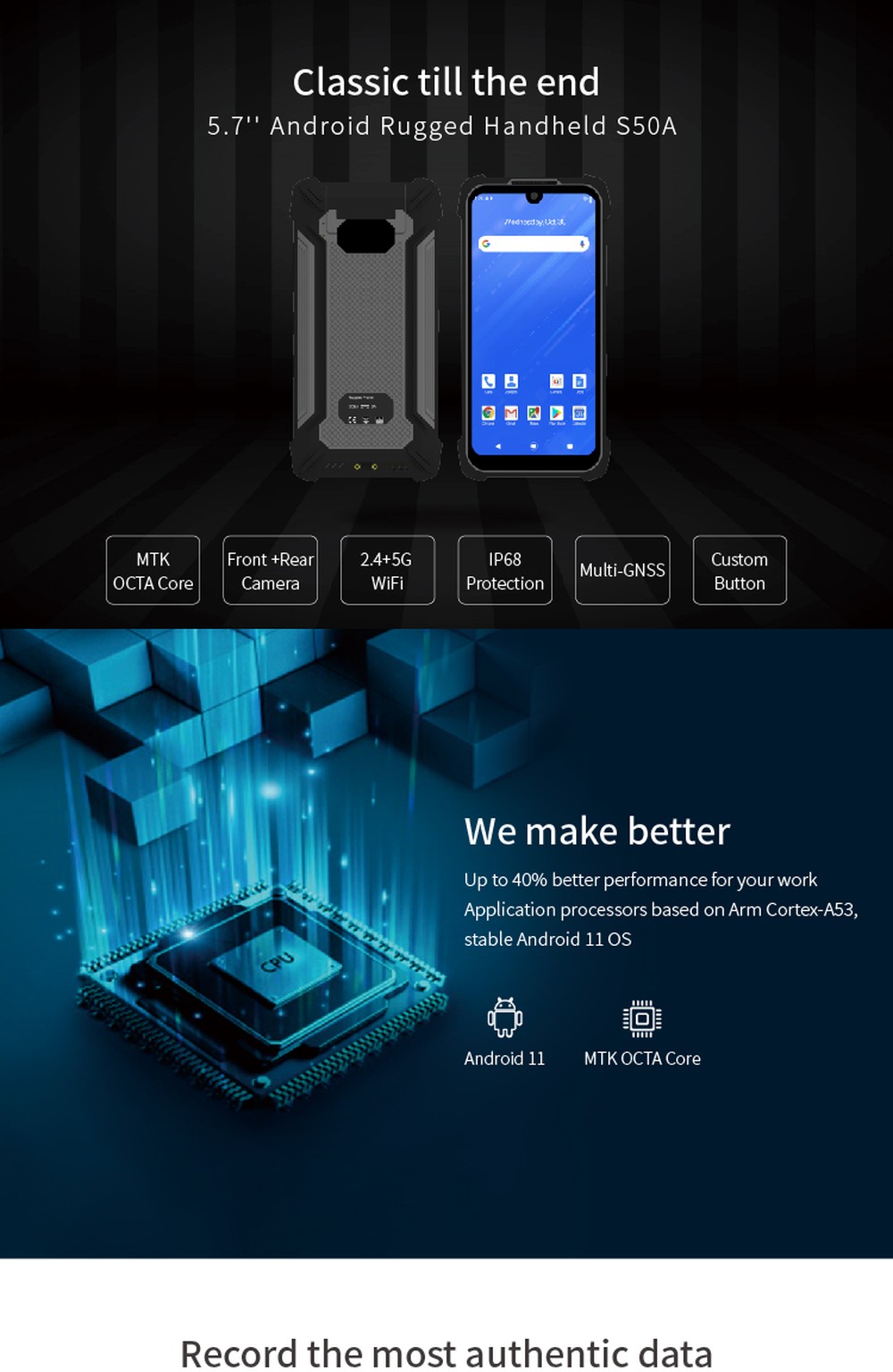

RUGGEDMASTER S50A Handheld Terminals
RUGGEDMASTER S50A combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Industrial Rugged Handheld PDA
Extremely Fast, Full-Features to Deliver the Best Service
The S50A with multiple features such as high configuration,shortcut keys, barcode scanning, long-lasting battery life, etc.The excellent performance makes it ideally deployed in diverse scenarios. S50A creates the ultimate ultra-rugged full-touch computer for all workers inside and outside the four walls-smartphone experience for maximum simplicity and the ultimate in rugged construction. Its lightweight design gives the user the perfect combination of durability, comfort, convenience and portability.
Configuration overview
Technical specifications include Dimension: 155*77.7*13.3mm. Weight: 240±20g. Display / Touch Panel: 5.7 inch; 720*1520; 450nits10 Point Touch, Support stylus. Battery: 4000mAh; 3.8V, Charging time: 2H30minUsage time: about 14H(50% volume, 60% brightness, playing local 1080P video).
Technical specifications include Power Adapter: Charger (5V 2A)Optional:(EU, US, UK, AU) Choose one of four. Speaker: 8Ω 1.0 Watt. I/O Interfaces: 1. Type-C *1; OTG2. SIM Card Slot*2 or SIM+TF Card SlotBottom pogopin*4. Buttons: V+ -, Power, SOS, Scan,Customized Button.
Technical specifications include Camera: Front: 5MP; Rear: 13MP; Flash light. Multi-Media(Hardware Decoding): 1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license). CPU: Unisoc T616 (T7250) Octa Core; 1.8GHz, Unisoc T606 Optional. Operating System: Android 13.
Technical specifications include Storage: 4GB+64GB, (8GB+128GB Optional). Operating Temp.: -25℃ to 50℃. Storage Temp.: -40℃ to 60℃. Humidity: Relative Humidity (93±3)% RH.
Technical specifications include Drop Specifications: Dropping Resistance 1.5 meters. IP Protective Level: Anti-dust & Waterproof IP65 , MIL-STD-810G, ISO-9001 , CE, FCC, 3C. SDK: Dingdata Software Development Kit. Language: Java.
Technical specifications include Environment: Android Studio or Eclipse. WWAN: 4G LTE,3G WCDMA,GSM4G Fre:FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20TDD-LTE: B38/B39/B40/B41WCDMA: B1/B2/B5/B8GSM: B2/B3/B5/B8. WIFI: 802.11a/b/g/n/ac Wireless Internet Wireless AP( Mobile AP )2.4G, 5G. Bluetooth: 5.0 Version.
Wholesale purchasing information

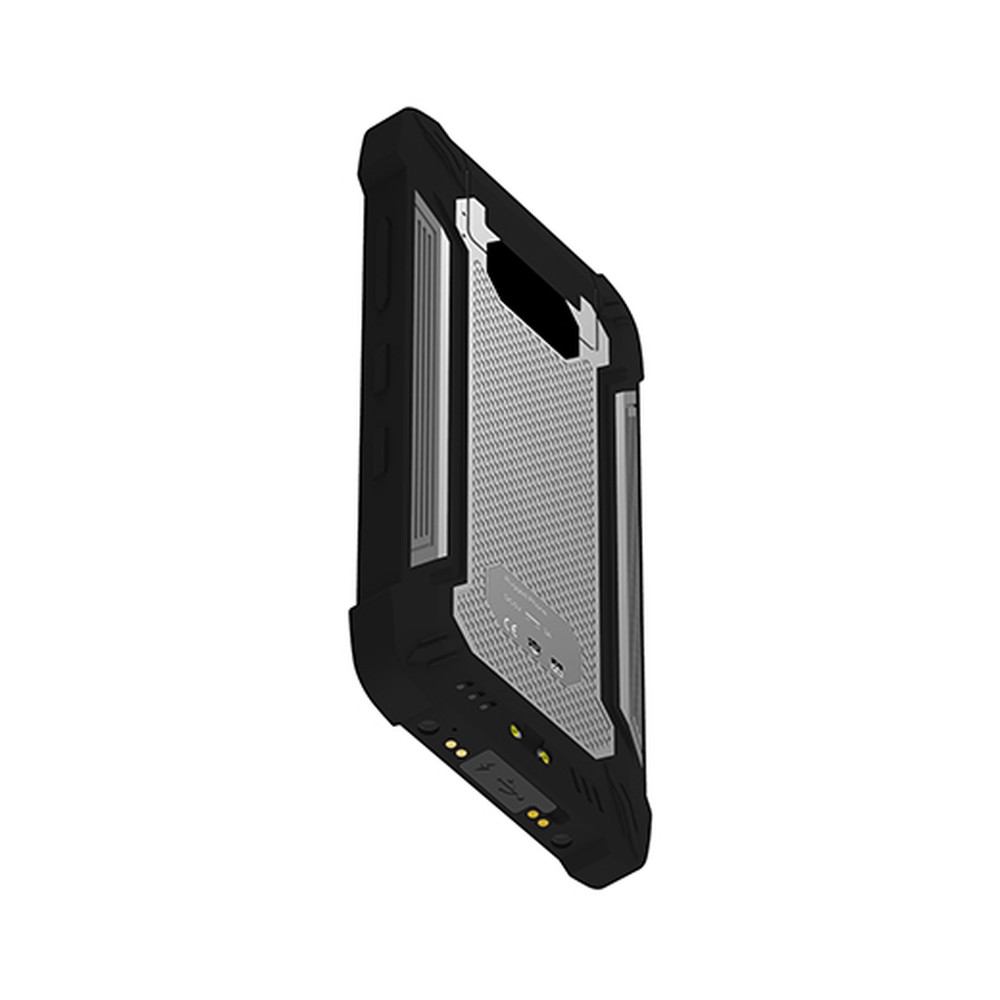

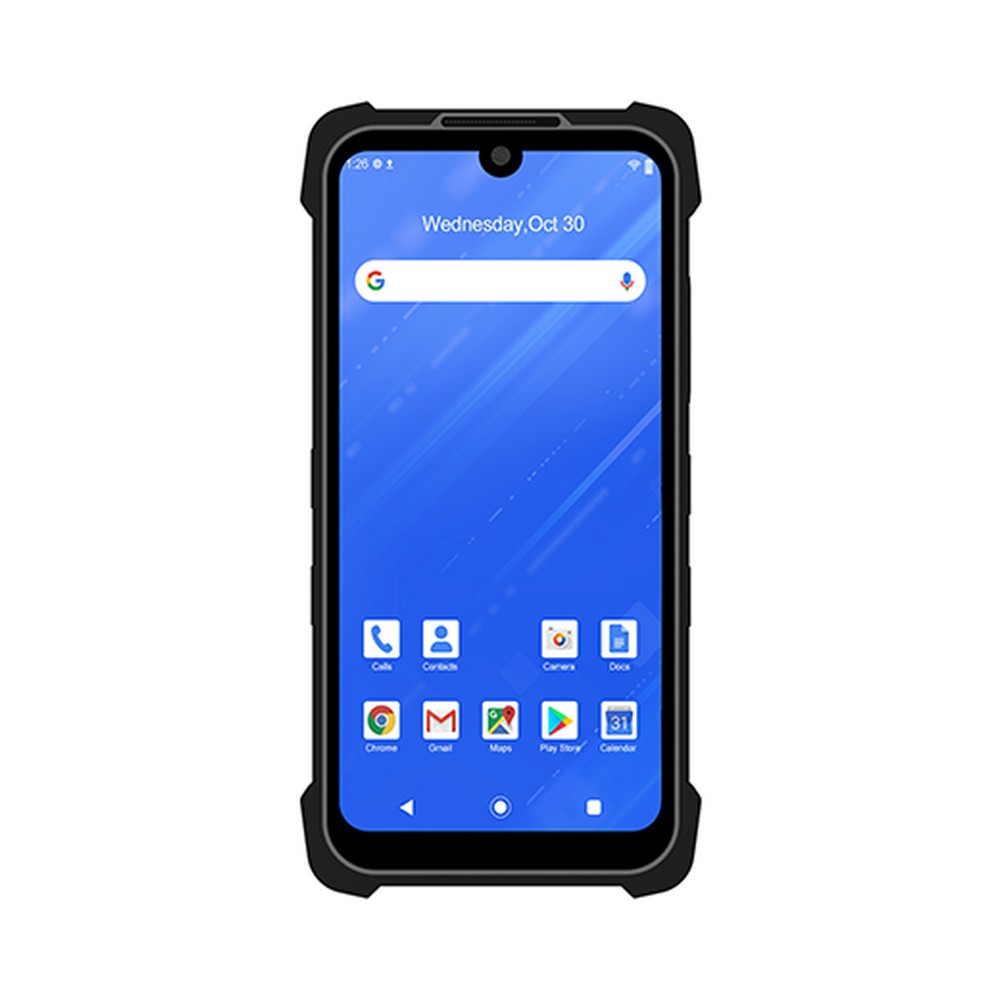

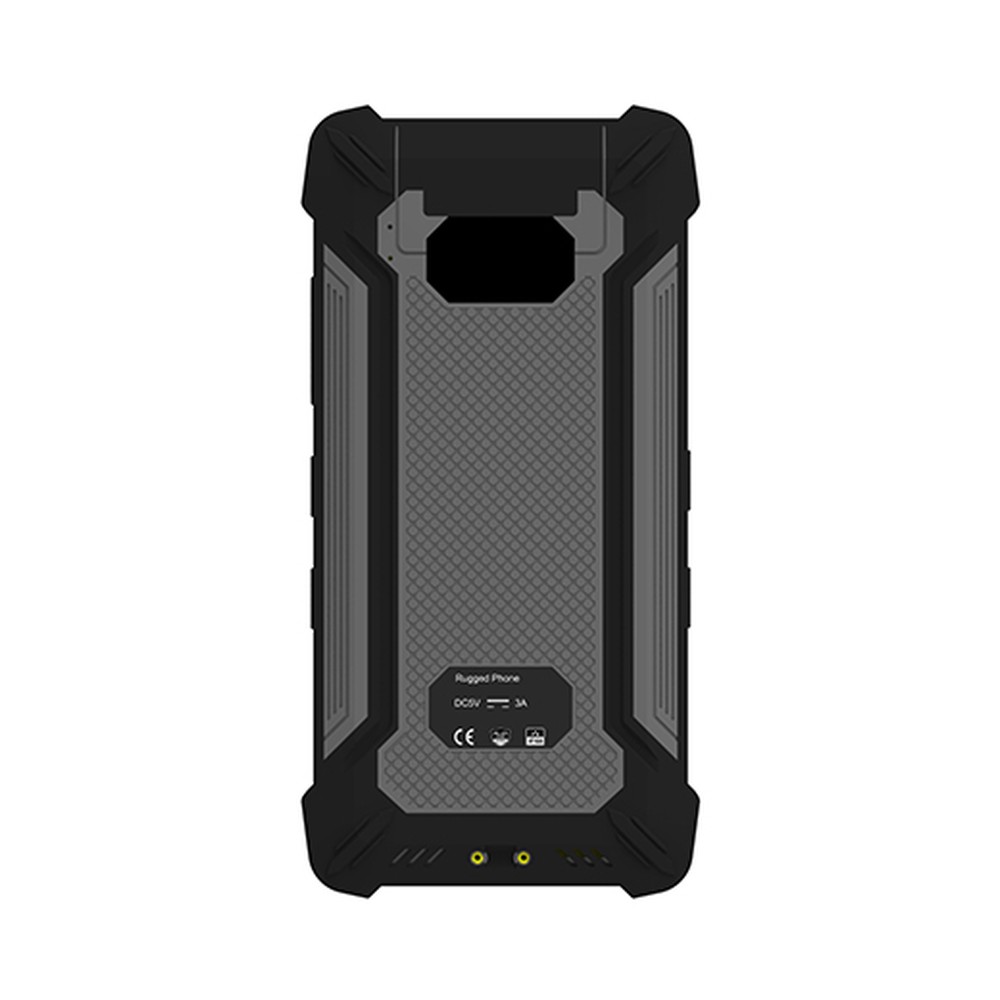

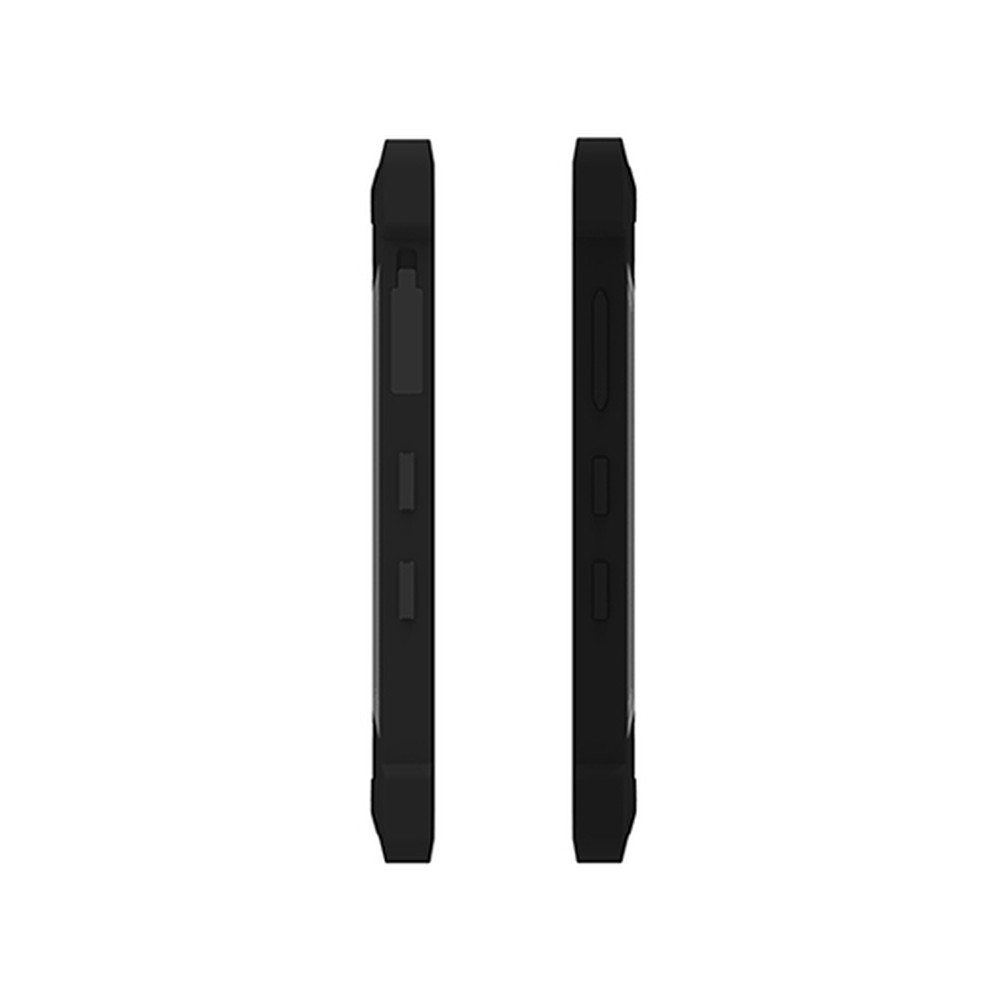

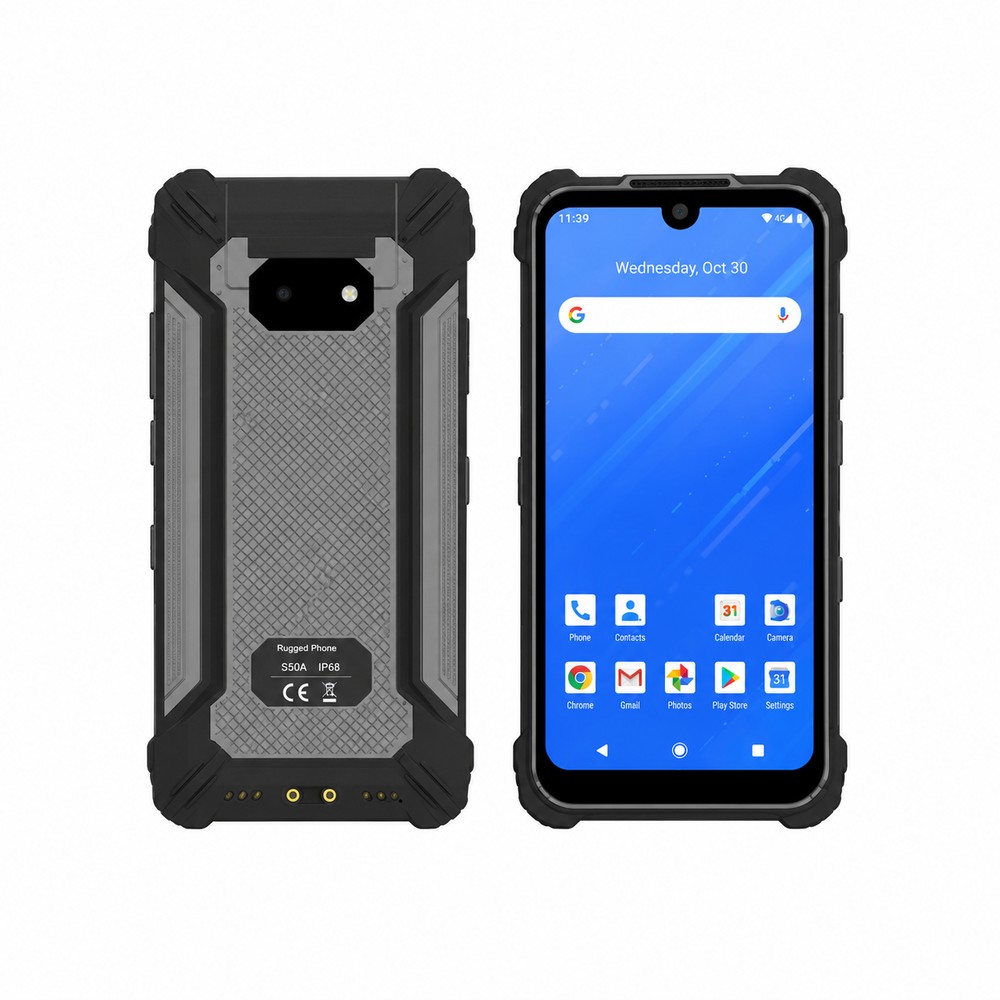

For RUGGEDMASTER S50A, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

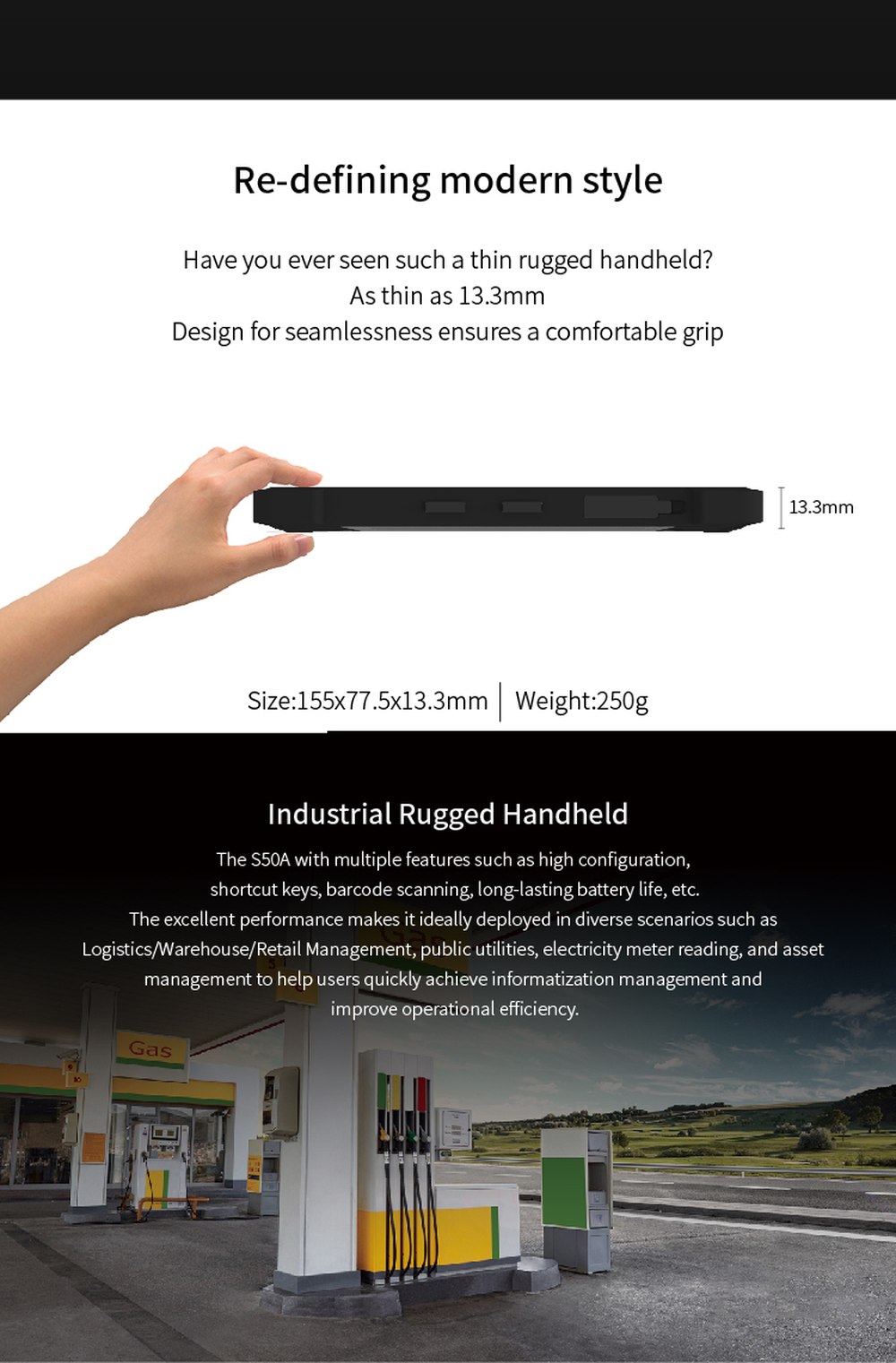

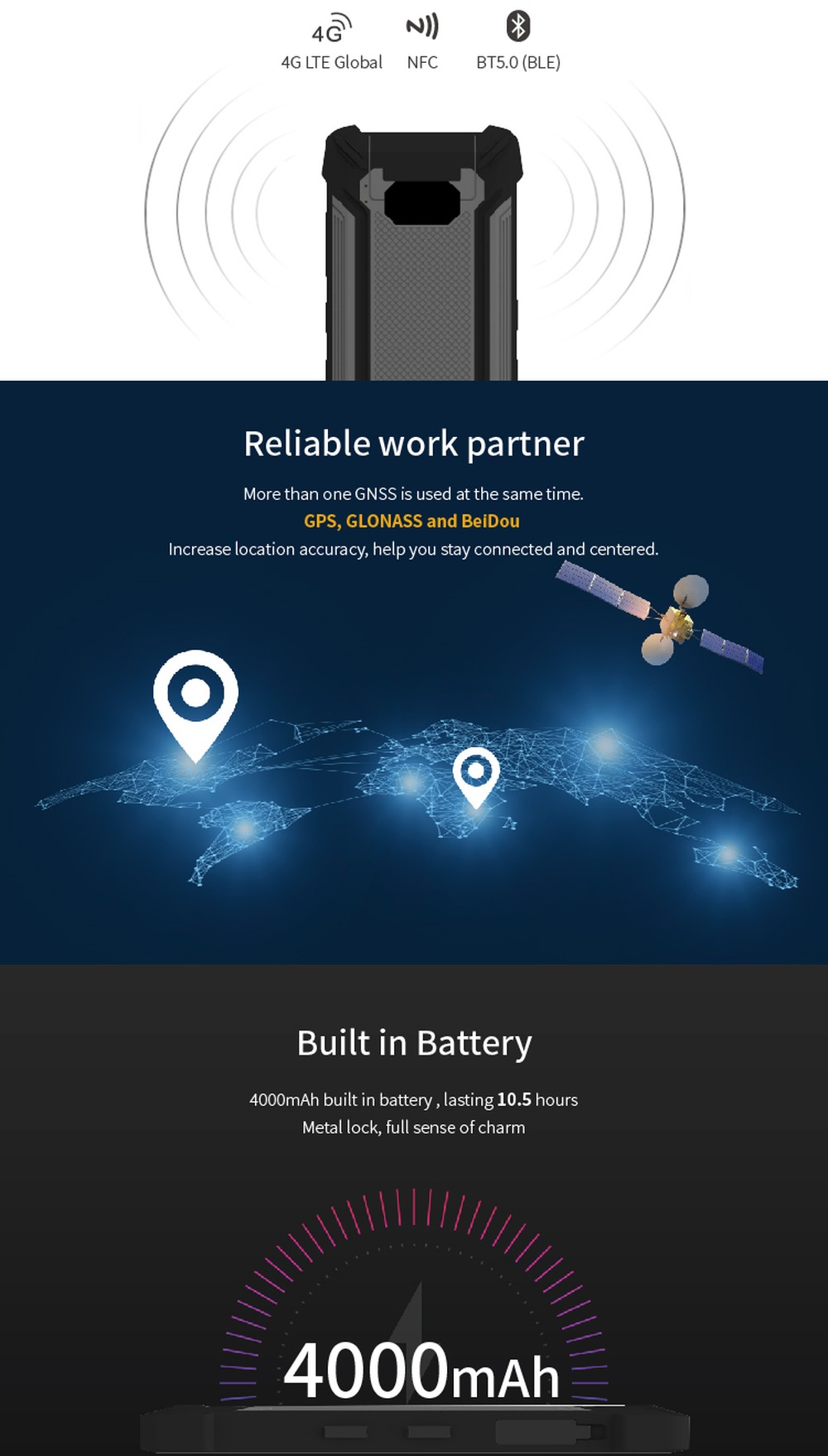

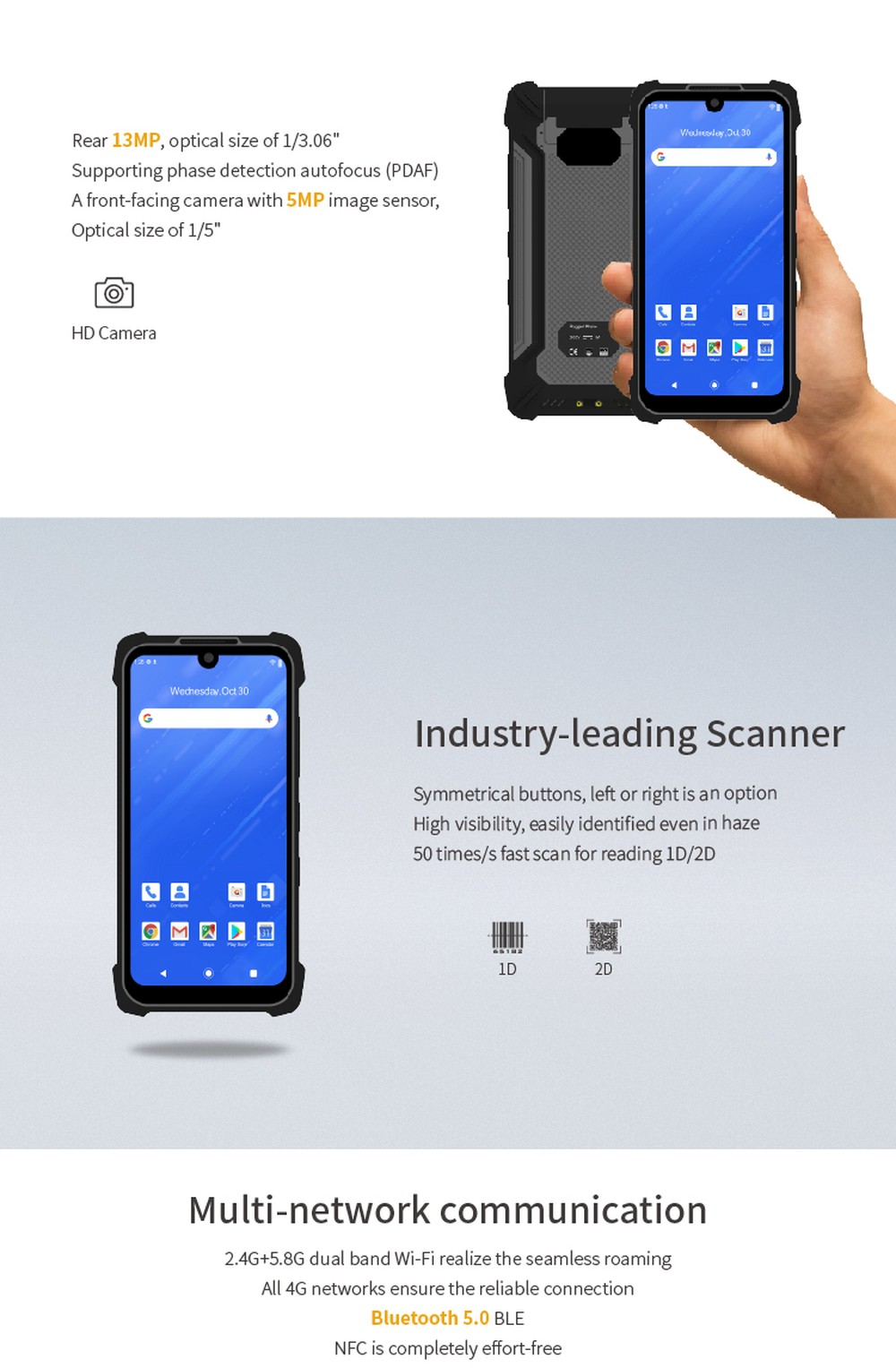

Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 155*77.7*13.3mm | |
| Weight | 240±20g | |
| Display / Touch Panel | 5.7 inch; 720*1520; 450nits10 Point Touch, Support stylus | |
| Battery | 4000mAh; 3.8V, Charging time: 2H30minUsage time: about 14H(50% volume, 60% brightness, playing local 1080P video) | |
| Power Adapter | Charger (5V 2A)Optional:(EU, US, UK, AU) Choose one of four | |
| Speaker | 8Ω 1.0 Watt | |
| I/O Interfaces | 1. Type-C *1; OTG2. SIM Card Slot*2 or SIM+TF Card SlotBottom pogopin*4 | |
| Buttons | V+ -, Power, SOS, Scan,Customized Button | |
| Camera | Front: 5MP; Rear: 13MP; Flash light | |
| Multi-Media(Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Unisoc T616 (T7250) Octa Core; 1.8GHz, Unisoc T606 Optional | |
| Operating System | Android 13 | |
| Storage | 4GB+64GB, (8GB+128GB Optional) | |
| USER ENVIRONMENT | ||
| Operating Temp. | -25℃ to 50℃ | |
| Storage Temp. | -40℃ to 60℃ | |
| Humidity | Relative Humidity (93±3)% RH | |
| Drop Specifications | Dropping Resistance 1.5 meters | |
| IP Protective Level | Anti-dust & Waterproof IP65 , MIL-STD-810G, ISO-9001 , CE, FCC, 3C | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Dingdata Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | 4G LTE,3G WCDMA,GSM4G Fre:FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20TDD-LTE: B38/B39/B40/B41WCDMA: B1/B2/B5/B8GSM: B2/B3/B5/B8 | |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP( Mobile AP )2.4G, 5G | |
| Bluetooth | 5.0 Version | |
| GPS | BDS, GPS, GLONASS | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | NLS-N1 | |
| RFID HF（NFC） | 13.56 MHz, Model: PN553 | |
| ACCESSORIES | ||
| Standard | 1xUSB Cable,1xPower Adapter,1xHand-strap | |
| Optional | Docking Charger,Leather protective case,TP protective film | |
