RUGGEDMASTER S20TWP Rugged Tablets
Type: LCD Size: 12.2 inch 16:10Resolution: 1200*1920Brightness: 650cd/㎡10 points capacity TP, G+G, Hardness over 7H, Scratch · Build in Lithium-ion polymer battery, Non-removable7.4V/700mAhRemovable Li-polyment Battery7.4V/6300mAh Support Hot Swap · Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W · Windows 11 Pro(Optional:Home/IOT) · RAM 8GB/ ROM 128GBOptional: RAM 16GB, ROM 25GGB/512GB · -30℃ to 70℃ · BT5.0 (BLE) class1 Transmited distance：10m
12.2 inch Windows OS Rugged Tablet PC Full-Features to Deliver the Best Service S20TWP equipped with built-in 860mAh/7.4V, detachable 6300mAh/7.4V polymer lithium ion battery, and the CPU is Intel® Celeron® Processor N5105, greatly improved performance. 12" Screen High – performance tablet, give you a broader view. It support for Win 11 Pro system, hot- swappable dual batteries and longer-lasting, does not affect standby when replace. More custom modules are available decide by you.
Dimension: 339.3*230.3*26 mm
Weight: 1500g
Battery: Build in Lithium-ion polymer battery, Non-removable7.4V/700mAhRemovable Li-polyment Battery7.4V/6300mAh Support Hot Swap
Power Adapter: AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approvalOptional:(EU, US, UK, AU) Choose one of four
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER S20TWP Rugged Tablets
RUGGEDMASTER S20TWP combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
12.2 inch Windows OS Rugged Tablet PC
Full-Features to Deliver the Best Service
S20TWP equipped with built-in 860mAh/7.4V, detachable 6300mAh/7.4V polymer lithium ion battery, and the CPU is Intel® Celeron® Processor N5105, greatly improved performance. 12" Screen High – performance tablet, give you a broader view. It support for Win 11 Pro system, hot- swappable dual batteries and longer-lasting, does not affect standby when replace. More custom modules are available decide by you.
Configuration overview
Technical specifications include Dimension: 339.3*230.3*26 mm. Weight: 1500g. Display / Touch Panel: Type: LCD Size: 12.2 inch 16:10Resolution: 1200*1920Brightness: 650cd/㎡10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support 930 Proactive Pen. Battery: Build in Lithium-ion polymer battery, Non-removable7.4V/700mAhRemovable Li-polyment Battery7.4V/6300mAh Support Hot Swap.
Technical specifications include Power Adapter: AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approvalOptional:(EU, US, UK, AU) Choose one of four. Speaker: 8Ω/1W Waterproof Speaker *1. I/O Interfaces: USB3.0 *1Type C (USB3.0/HDMI/Charging) *1∮3.5mm Standard earjack *1HDMI 2.0a mini *1SIM card *1TF card *1，Max: 128GBDC 19V 3.42A ∮5.5mm jack *112PIN Pogo Pin (USB/Docking charging) *1. Expansion Module (4 choice 1): RJ45 board Standard Default(10/100/1000M) Ethernet interface *1DB9 board(RS232) *1, 9-line full functionUSB2.0USB2.0 *1, Big USB.
Technical specifications include Buttons: Power *1Volume Key + *1Volume Key – *1Windows Home *1F Key *1 (Barcode Scanning, Customizable without barcode). Camera: Front 5.0MPRear 8.0MP -AF with flashlight. CPU: Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W. Operating System: Windows 11 Pro(Optional:Home/IOT).
Technical specifications include Storage: RAM 8GB/ ROM 128GBOptional: RAM 16GB, ROM 25GGB/512GB. Operating Temp.: -20℃ to 60℃. Storage Temp.: -30℃ to 70℃. Humidity: 95% Non-Condensing.
Technical specifications include Drop Specifications: MIL-STD-810G: 1.22m drop. IP Protective Level: IP65, CE-NB ,CCC,MIL-STD-810G, Battery: UN3803, MSDS, IEC62133, aviation report, marine report. WWAN: SLM750LTE FDD: B1/B3/B7/B8/B20 LTE TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, JapanOptional 750-VA, 750-VSAOptional 5G SRM825-EU:Region:Europe,SoutheastAsia5GSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N795GNSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32LTE-TDD:B34/B38/B39/B40/B41/B42WCDMA:B1/B3/B5/B8-NA*:Region:North America,South America5G SA:N2/N5/N12/N25/N41/N48/N66/N71/N77/N785G NSA:N2/N5/N12/N25/N41/N48/N66/N71/N77/N78LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71LTE-TDD:B41/B42/B43/B46/B48WCDMA:B2/B4/B5. WIFI: Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI.
Technical specifications include Bluetooth: BT5.0 (BLE) class1 Transmited distance：10m. GPS: U-BLOX M7N， Support: GPS, glonass. Barcode Scanning (optional): Honeywell N3680Optical resolution: 5milScanning speed: 50 times/sSupport coding system: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse. RFID HF/ NFC (optional): NXP300NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm.
Wholesale purchasing information
For RUGGEDMASTER S20TWP, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 339.3*230.3*26 mm | |
| Weight | 1500g | |
| Display / Touch Panel | Type: LCD Size: 12.2 inch 16:10Resolution: 1200*1920Brightness: 650cd/㎡10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support 930 Proactive Pen | |
| Battery | Build in Lithium-ion polymer battery, Non-removable7.4V/700mAhRemovable Li-polyment Battery7.4V/6300mAh Support Hot Swap | |
| Power Adapter | AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approvalOptional:(EU, US, UK, AU) Choose one of four | |
| Speaker | 8Ω/1W Waterproof Speaker *1 | |
| I/O Interfaces | USB3.0 *1Type C (USB3.0/HDMI/Charging) *1∮3.5mm Standard earjack *1HDMI 2.0a mini *1SIM card *1TF card *1，Max: 128GBDC 19V 3.42A ∮5.5mm jack *112PIN Pogo Pin (USB/Docking charging) *1 | |
| Expansion Module (4 choice 1) | RJ45 board Standard Default(10/100/1000M) Ethernet interface *1DB9 board(RS232) *1, 9-line full functionUSB2.0USB2.0 *1, Big USB | |
| Buttons | Power *1Volume Key + *1Volume Key - *1Windows Home *1F Key *1 (Barcode Scanning, Customizable without barcode) | |
| Camera | Front 5.0MPRear 8.0MP -AF with flashlight | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W | |
| Operating System | Windows 11 Pro(Optional:Home/IOT) | |
| Storage | RAM 8GB/ ROM 128GBOptional: RAM 16GB, ROM 25GGB/512GB | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 60℃ | |
| Storage Temp. | -30℃ to 70℃ | |
| Humidity | 95% Non-Condensing | |
| Drop Specifications | MIL-STD-810G: 1.22m drop | |
| IP Protective Level | IP65, CE-NB ,CCC,MIL-STD-810G, Battery: UN3803, MSDS, IEC62133, aviation report, marine report | |
| DATA COMMUNICATION | ||
| WWAN | SLM750LTE FDD: B1/B3/B7/B8/B20 LTE TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, JapanOptional 750-VA, 750-VSAOptional 5G SRM825-EU:Region:Europe,SoutheastAsia5GSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N795GNSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32LTE-TDD:B34/B38/B39/B40/B41/B42WCDMA:B1/B3/B5/B8-NA*:Region:North America,South America5G SA:N2/N5/N12/N25/N41/N48/N66/N71/N77/N785G NSA:N2/N5/N12/N25/N41/N48/N66/N71/N77/N78LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71LTE-TDD:B41/B42/B43/B46/B48WCDMA:B2/B4/B5 | |
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI | |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m | |
| GPS | U-BLOX M7N， Support: GPS, glonass | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | Honeywell N3680Optical resolution: 5milScanning speed: 50 times/sSupport coding system: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse | |
| RFID HF/ NFC (optional) | NXP300NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm | |
| Fingerprint | SPI fingerprint (power on login) | |
| ACCESSORIES | ||

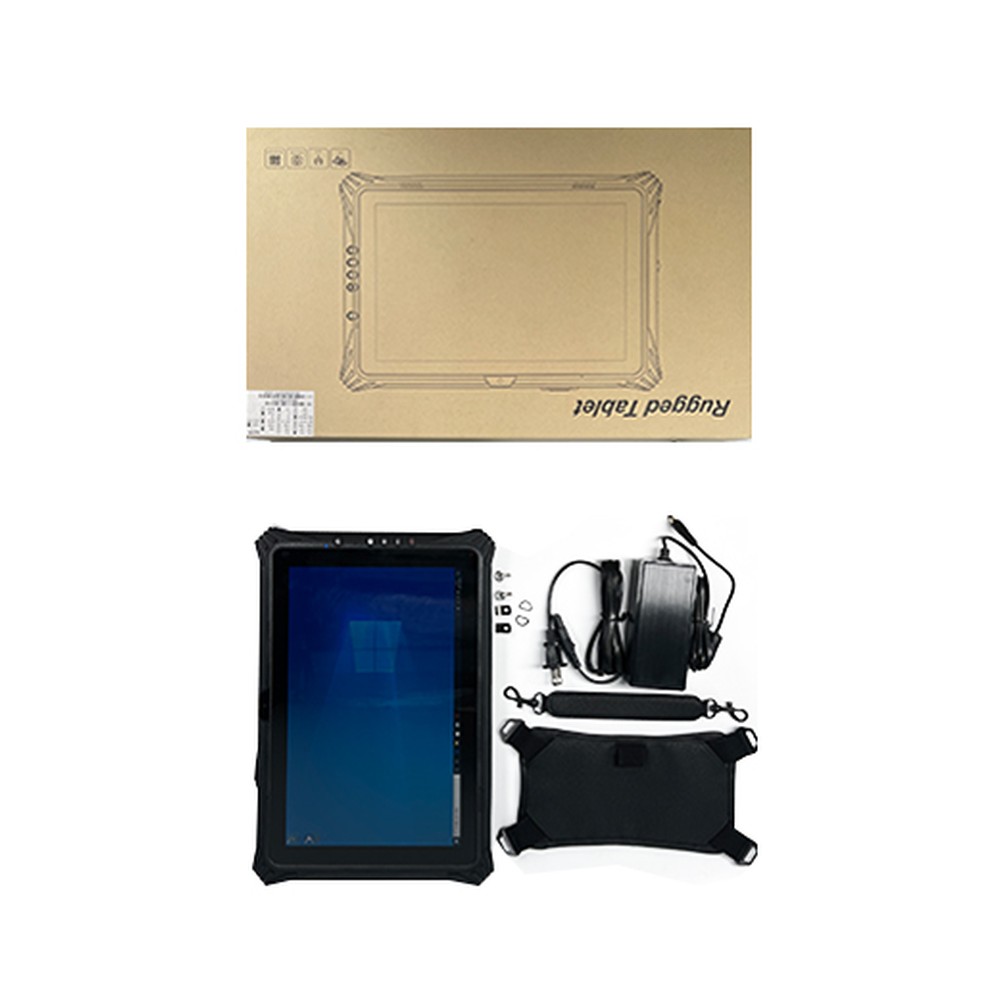

| Standard | 1xHand-strap , 1xCarry Handle strap , 1xStandard Adaptor | |
| Optional | Shoulder girdle , Active capacitive pen , Hand writing pen , Back straps , Car charger ,Vehicle bracket holder, Docking Charger , Battery Docking , Spare Replace Battery | |
