RUGGEDMASTER S10TWP Rugged Tablets
Type: FHD Size: 10.1 inch 16:10Resolution: 1200*1920Brightness: 700cd/㎡10 points capacity TP, G+G, Hardness over 7H, Scratch · Removable Li-polymer battery 7.4V/5000mAh + Built-in Li-polymer battery 7.4V/860mAhSupport Hot Swap · Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W, Intel® UHD · Windows 11 Pro(Optional:Home/IOT) · RAM 8GB DDR + ROM 128GB SSD removable(Optional: 16GB DDR and 512GB SSD) · -30℃ to 70℃ · BT5.0 (BLE) class1 Transmited distance：10m
High-Preference Windows Rugged Tablet Full-Features to Deliver the Best Service The S10TWP built-in Intel® Celeron® Processor N5105 CPU, greatly improved performance, easy to processing every task instruction. Support for Win 11 Pro system ,high compatibility, more practical. Equipped with a built-in 7.4V/700mAh, detachable 7.4V/5000mAh polymer lithium-ion battery. S10TWP support IP65 certified high protection level, in accordance with MIL-STD-810G. Support GPS, Beidou, GLONASS, more accurate positioning. At same time it support 1D/2D, NFC and other functional modules for free selection.
Dimension: 289.9*196.7*21.2mm
Weight: Net Weight :1190g (including battery&wrist strap)
Battery: Removable Li-polymer battery 7.4V/5000mAh + Built-in Li-polymer battery 7.4V/860mAhSupport Hot Swap
Power Adapter: AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approvalOptional:(EU, US, UK, AU) Choose one of four
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

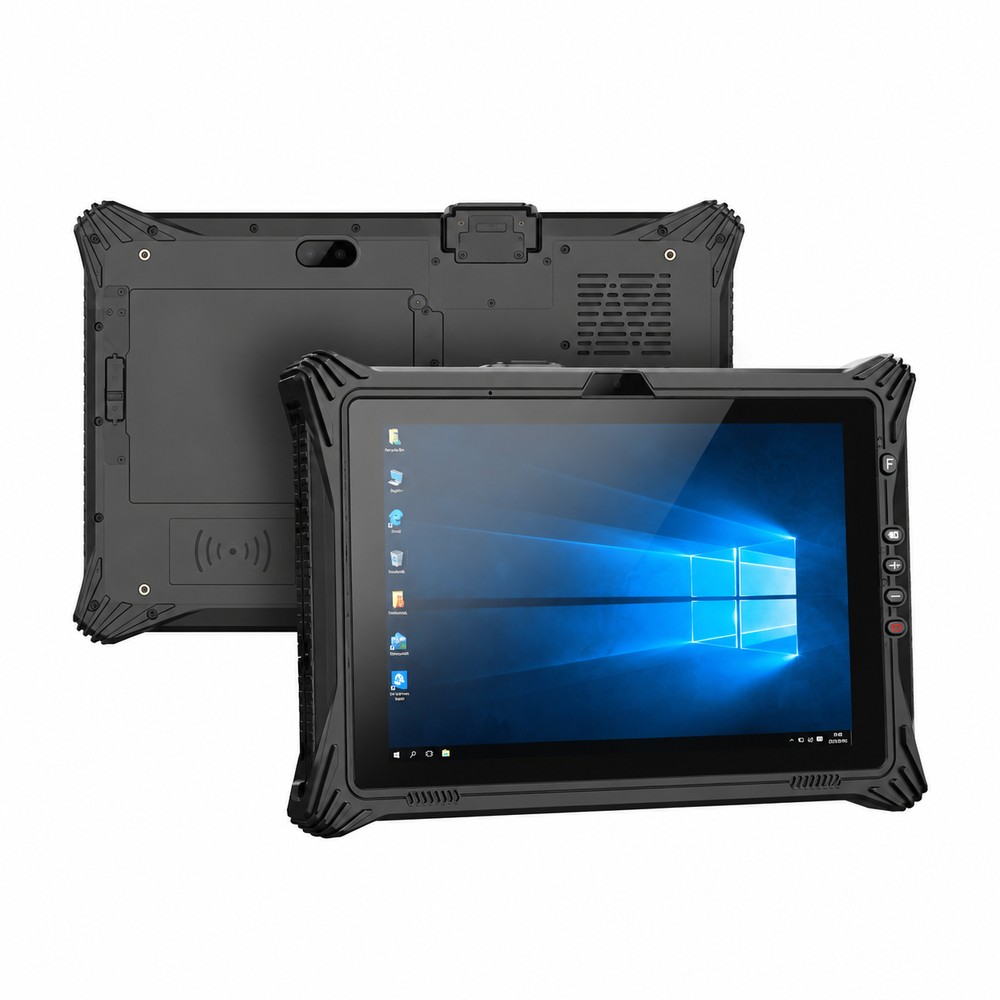

RUGGEDMASTER S10TWP Rugged Tablets
RUGGEDMASTER S10TWP combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
High-Preference Windows Rugged Tablet
Full-Features to Deliver the Best Service
The S10TWP built-in Intel® Celeron® Processor N5105 CPU, greatly improved performance, easy to processing every task instruction. Support for Win 11 Pro system ,high compatibility, more practical. Equipped with a built-in 7.4V/700mAh, detachable 7.4V/5000mAh polymer lithium-ion battery. S10TWP support IP65 certified high protection level, in accordance with MIL-STD-810G. Support GPS, Beidou, GLONASS, more accurate positioning. At same time it support 1D/2D, NFC and other functional modules for free selection.
Configuration overview
Technical specifications include Dimension: 289.9*196.7*21.2mm. Weight: Net Weight :1190g (including battery&wrist strap). Display / Touch Panel: Type: FHD Size: 10.1 inch 16:10Resolution: 1200*1920Brightness: 700cd/㎡10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support 930 Proactive Pen. Battery: Removable Li-polymer battery 7.4V/5000mAh + Built-in Li-polymer battery 7.4V/860mAhSupport Hot Swap.
Technical specifications include Power Adapter: AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approvalOptional:(EU, US, UK, AU) Choose one of four. Speaker: 8Ω/0.8W Waterproof Speaker *1. I/O Interfaces: USB3.0 *1Type C (USB3.0/HDMI/Charging) *1∮3.5mm Standard earjack *1HDMI 2.0a mini *1SIM card *1TF card *1，Max: 128GBDC 19V 3.42A ∮5.5mm jack *112PIN Pogo Pin (USB/Docking charging) *1. Extension modules(1 out of 4): Ethernet Interface: RJ45 (10/100M) x 1 (Standard)Serial port: DB9 (RS232) x 1USB2.0: Big USB 2.0 x 12D Module: Honeywell N4680, Optical resolution: 5mil/scan speed: 50 times/s.
Technical specifications include Keypad / Buttons: Power *1Volume Key + *1Volume Key – *1Windows Home *1F Key *1 (Barcode Scanning, Customizable without barcode). Camera: Front 5.0MPRear 8.0MP -AF with flashlight. CPU: Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W, Intel® UHD Graphics 620. Operating System: Windows 11 Pro(Optional:Home/IOT).
Technical specifications include Storage: RAM 8GB DDR + ROM 128GB SSD removable(Optional: 16GB DDR and 512GB SSD). Operating Temp.: -20℃ to 60℃. Storage Temp.: -30℃ to 70℃. Humidity: 5%RH to 95%RH(non-condensing).
Technical specifications include Drop Specifications: MIL-STD-810G: 1.22m drop. IP Protective Level: IP65, IEC compliance; MIL-STD-810G certified. WWAN: 4G:SLM750-VELTE FDD: B1/B3/B7/B8/B20 LTE TDD:B40 WCDMA: B1/B5/B8 GSM: 900/1800China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan. WIFI: Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI.
Technical specifications include Bluetooth: BT5.0 (BLE) class1 Transmited distance：10m. GPS: U-BLOX M7NSupport: GPS, glonass. Barcode Scanning (optional): Honeywell N4680Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse". RFID HF/ NFC (optional): NXP300NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm.
Wholesale purchasing information
For RUGGEDMASTER S10TWP, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 289.9*196.7*21.2mm | |
| Weight | Net Weight :1190g (including battery&wrist strap) | |
| Display / Touch Panel | Type: FHD Size: 10.1 inch 16:10Resolution: 1200*1920Brightness: 700cd/㎡10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support 930 Proactive Pen | |
| Battery | Removable Li-polymer battery 7.4V/5000mAh + Built-in Li-polymer battery 7.4V/860mAhSupport Hot Swap | |
| Power Adapter | AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approvalOptional:(EU, US, UK, AU) Choose one of four | |
| Speaker | 8Ω/0.8W Waterproof Speaker *1 | |
| I/O Interfaces | USB3.0 *1Type C (USB3.0/HDMI/Charging) *1∮3.5mm Standard earjack *1HDMI 2.0a mini *1SIM card *1TF card *1，Max: 128GBDC 19V 3.42A ∮5.5mm jack *112PIN Pogo Pin (USB/Docking charging) *1 | |
| Extension modules(1 out of 4) | Ethernet Interface: RJ45 (10/100M) x 1 (Standard)Serial port: DB9 (RS232) x 1USB2.0: Big USB 2.0 x 12D Module: Honeywell N4680, Optical resolution: 5mil/scan speed: 50 times/s | |
| Keypad / Buttons | Power *1Volume Key + *1Volume Key - *1Windows Home *1F Key *1 (Barcode Scanning, Customizable without barcode) | |
| Camera | Front 5.0MPRear 8.0MP -AF with flashlight | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W, Intel® UHD Graphics 620 | |
| Operating System | Windows 11 Pro(Optional:Home/IOT) | |
| Storage | RAM 8GB DDR + ROM 128GB SSD removable(Optional: 16GB DDR and 512GB SSD) | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 60℃ | |
| Storage Temp. | -30℃ to 70℃ | |
| Humidity | 5%RH to 95%RH(non-condensing) | |
| Drop Specifications | MIL-STD-810G: 1.22m drop | |
| IP Protective Level | IP65, IEC compliance; MIL-STD-810G certified | |
| DATA COMMUNICATION | ||
| WWAN | 4G:SLM750-VELTE FDD: B1/B3/B7/B8/B20 LTE TDD:B40 WCDMA: B1/B5/B8 GSM: 900/1800China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan | |
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI | |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m | |
| GPS | U-BLOX M7NSupport: GPS, glonass | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | Honeywell N4680Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse" | |
| RFID HF/ NFC (optional) | NXP300NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm | |
| Fingerprint | SPI fingerprint (power on login) | |
| ACCESSORIES | ||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable; 1xHand-strap;1xCarry handle; | |
| Optional | Shoulder girdle, Active capacitive pen, Hand writing pen, Back straps, Car charger, Vehicle bracket holder, Docking Charger, Spare Replace Battery | |
