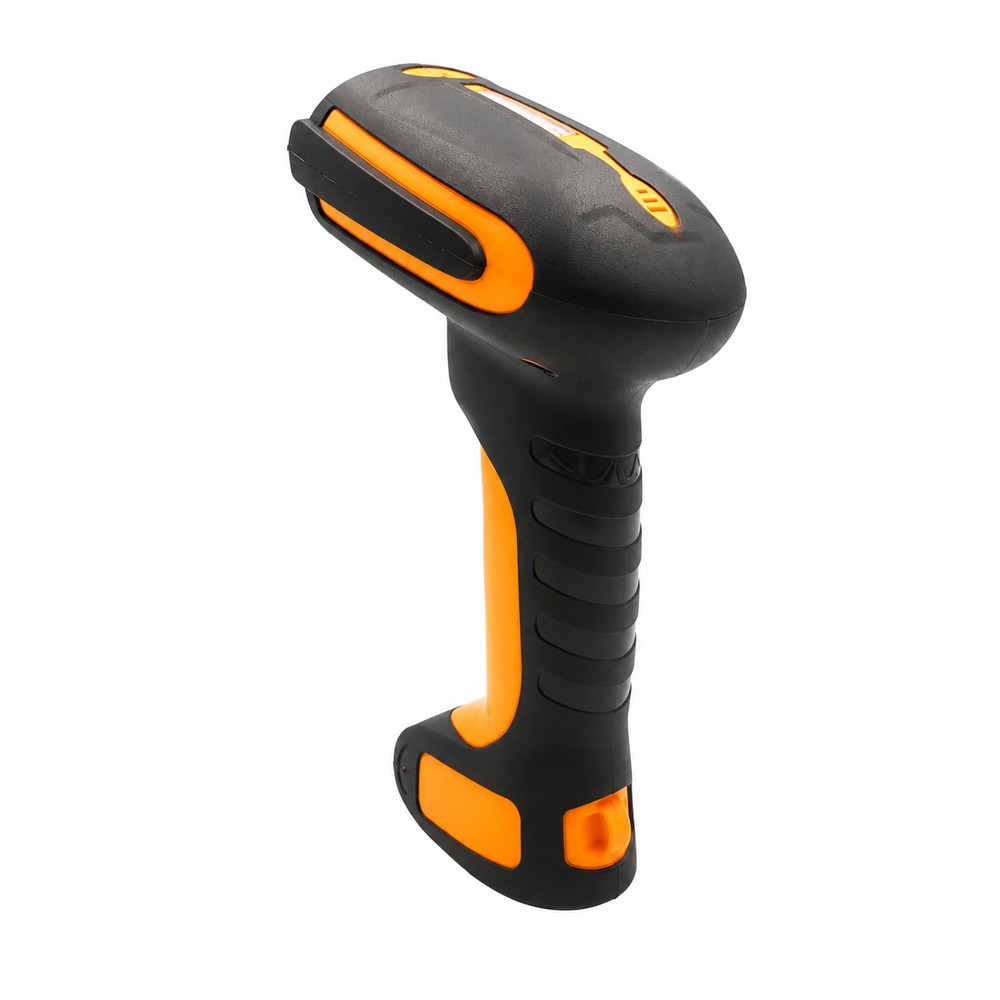

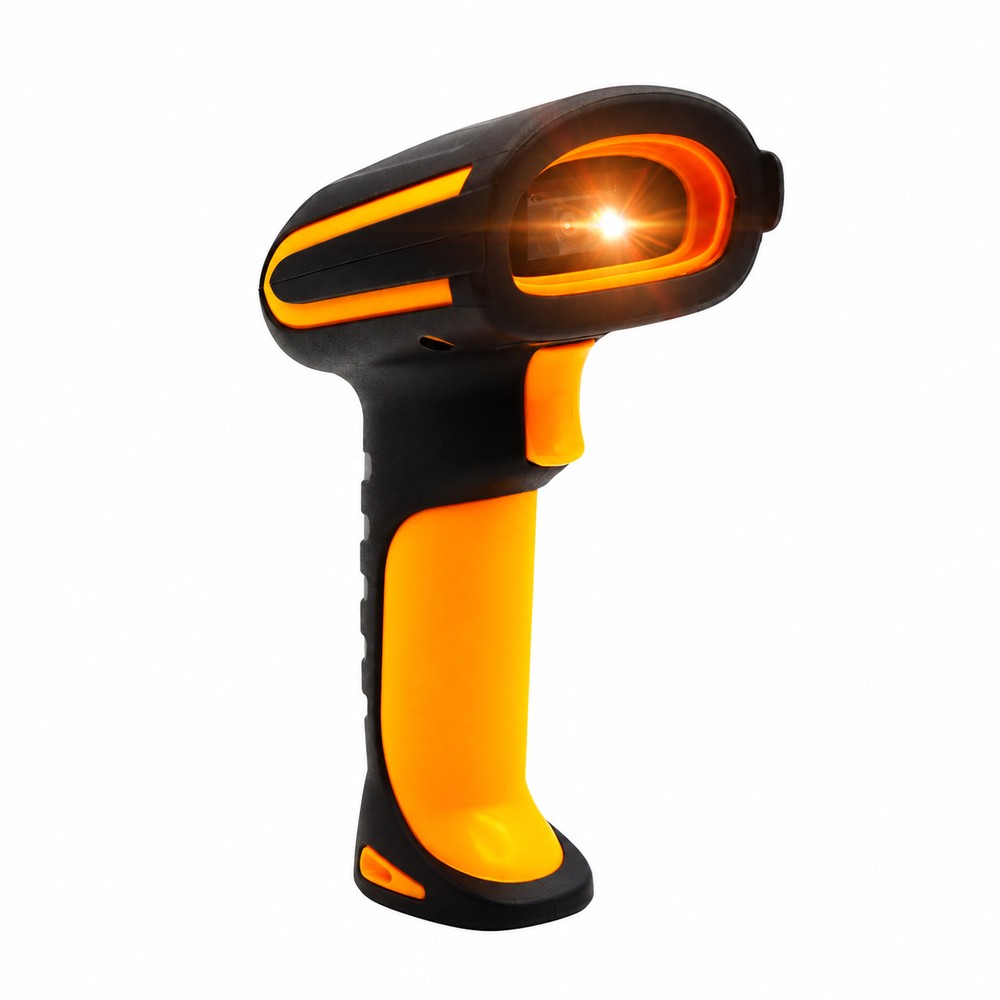

RUGGEDMASTER S-03 Barcode Scanners
real-time upload/offline storage mode · 4M ROM 20000pcs data memory · built-in 2000mah lithium battery
QS – S03 Industrial grade wireless scanner Zebra 4750 scanning head Long service life, high scanning sensitivity and easy to handle various barcodes Low power consumption + long standby time Rechargeable lithium battery + energy-saving optimized circuit, can work continuously for 10-15 hours after being fully charged and can be used for long standby scan gun .It can be set to enter the sleep state if it does not work. Offline storage function You can scan without connecting the device and the scanner will automatically record the scan.The information can be uploaded without missing information after connecting to its device and it can be guaranteed before the upgrade.It Stores 5000 barcodes IP67 protection grade Dustproof and waterproof, it can still work normally when dropped from a certain height on the concrete floor and can be used.
Data Transmission: Bluetooth 2.0+ EDR2.4G-2.5G (ISM public frequency range)
Communication Range: 30m (free space)
Support System: Android, l0S, Saipan, Windows
Status Indicator: buzzer, LED, vibrator
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER S-03 Barcode Scanners
RUGGEDMASTER S-03 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

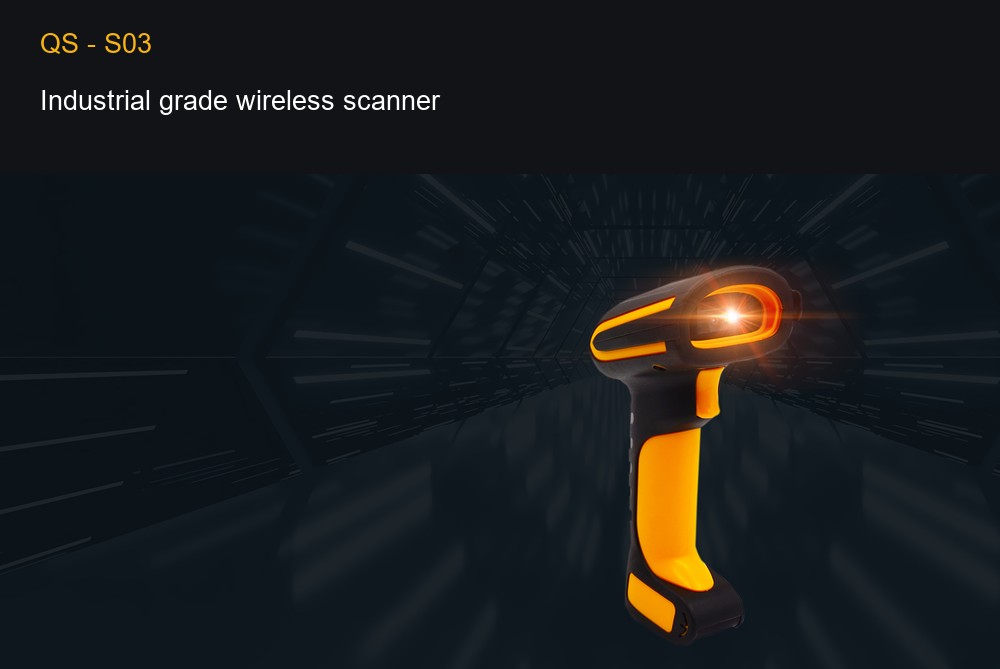

QS – S03
Industrial grade wireless scanner

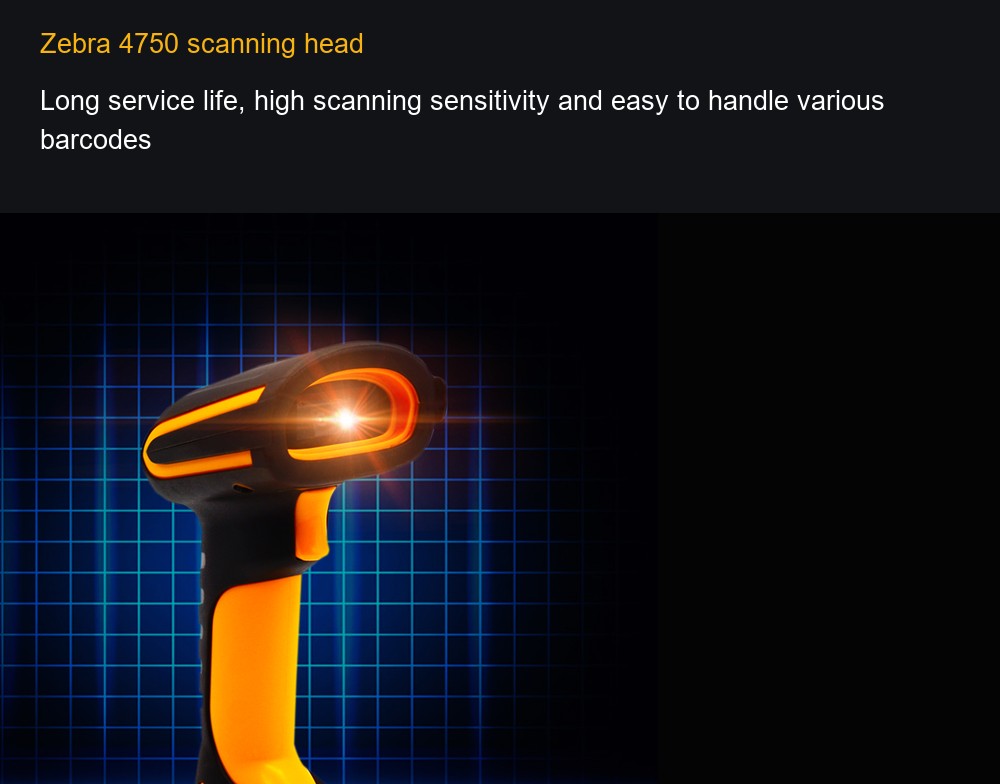

Zebra 4750 scanning head
Long service life, high scanning sensitivity and easy to handle various barcodes

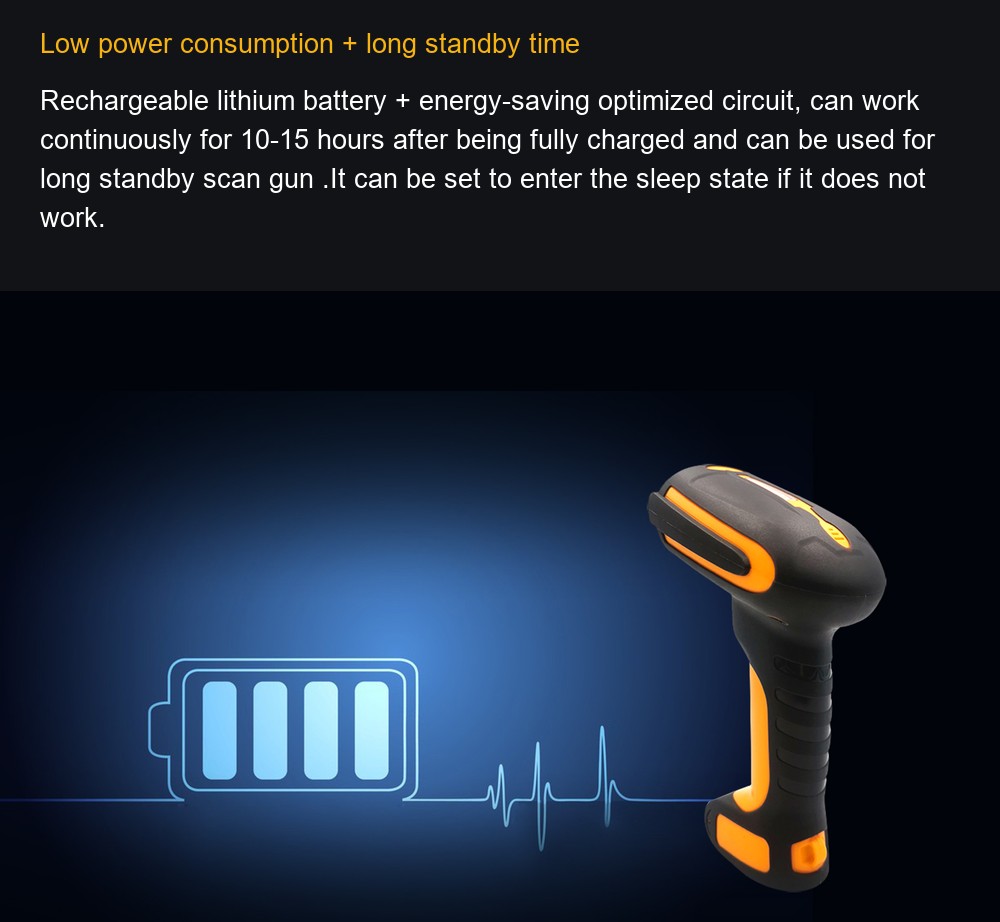

Low power consumption + long standby time
Rechargeable lithium battery + energy-saving optimized circuit, can work continuously for 10-15 hours after being fully charged and can be used for long standby scan gun .It can be set to enter the sleep state if it does not work.

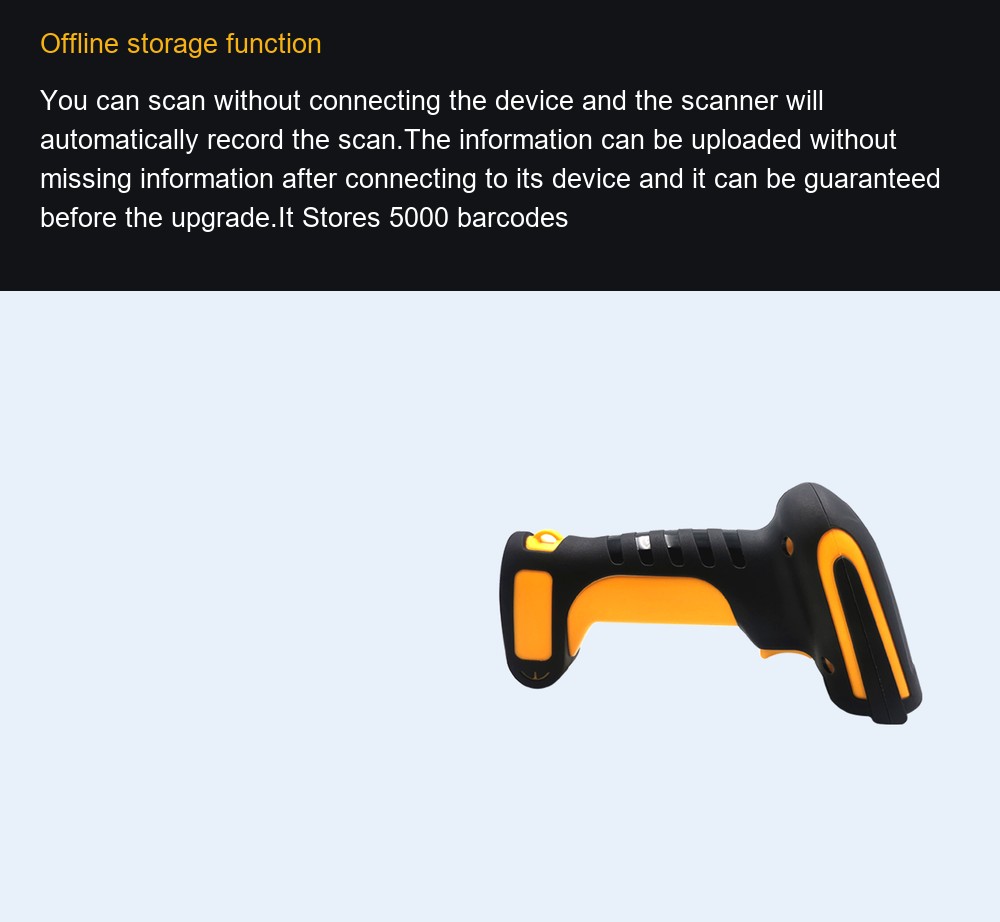

Offline storage function
You can scan without connecting the device and the scanner will automatically record the scan.The information can be uploaded without missing information after connecting to its device and it can be guaranteed before the upgrade.It Stores 5000 barcodes

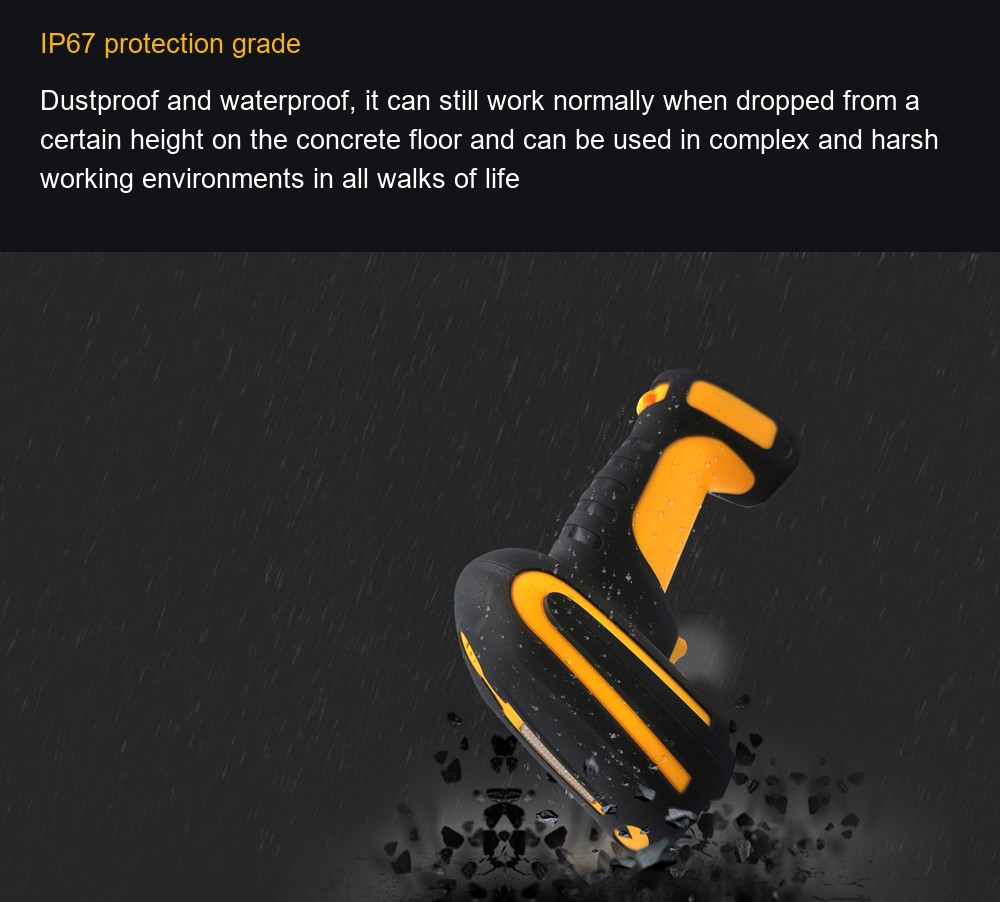

IP67 protection grade
Dustproof and waterproof, it can still work normally when dropped from a certain height on the concrete floor and can be used in complex and harsh working environments in all walks of life
Configuration overview
Technical specifications include Data Transmission: Bluetooth 2.0+ EDR2.4G-2.5G (ISM public frequency range). Communication Range: 30m (free space). Support System: Android, l0S, Saipan, Windows. Status Indicator: buzzer, LED, vibrator.
Technical specifications include Keyboard Language: English/French/ltalian/German/ Spanish/Portuguese etc.. Decoding Type: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN,code39,code 39(ASCII fll),Codle 32,trioptic 39, interleaved 2 of 5, Industrial2 of5, Matrix 25,standard 25,codabar,codabar(NW7), code 128,UCC/EAN 128, ISBT128, code 93, code11, code 11(USD-8)，MSI/Plessey, UK/Plessey, China post, GS1 DataBar,QR code, PDA417 Data Matrix ,etc. Support DPM(optional). Data Storage: real-time upload/offline storage mode. Memory: 4M ROM 20000pcs data memory.
Technical specifications include Environment: storage temperature -20C-70°C，humidity 0-95%(no condensation). Protocol: SPP/HID/BLE. Weight: 465g. Size: 180mm*110mm* 80mm.
Technical specifications include Battery: built-in 2000mah lithium battery.
Wholesale purchasing information
For RUGGEDMASTER S-03, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Data Transmission | Bluetooth 2.0+ EDR2.4G-2.5G (ISM public frequency range) |
| Communication Range | 30m (free space) |
| Support System | Android, l0S, Saipan, Windows |
| Status Indicator | buzzer, LED, vibrator |
| Keyboard Language | English/French/ltalian/German/ Spanish/Portuguese etc. |
| Decoding Type | UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN,code39,code 39(ASCII fll),Codle 32,trioptic 39, interleaved 2 of 5, Industrial2 of5, Matrix 25,standard 25,codabar,codabar(NW7), code 128,UCC/EAN 128, ISBT128, code 93, code11, code 11(USD-8)，MSI/Plessey, UK/Plessey, China post, GS1 DataBar,QR code, PDA417 Data Matrix ,etc. Support DPM(optional) |
| Data Storage | real-time upload/offline storage mode |
| Memory | 4M ROM 20000pcs data memory |
| Environment | storage temperature -20C-70°C，humidity 0-95%(no condensation) |
| Protocol | SPP/HID/BLE |
| Weight | 465g |
| Size | 180mm*110mm* 80mm |
| Battery | built-in 2000mah lithium battery |
