RUGGEDMASTER RM-SC-F0C59A5688C0 Industrial Panel PCs

RUGGEDMASTER RM-SC-F0C59A5688C0 Industrial Panel PCs

RUGGEDMASTER catalog model: RM-SC-F0C59A5688C0.

RUGGEDMASTER RM-SC-F0C59A5688C0 Industrial Panel PCs combines Display: Panel | 21.5″ high-definition full view screen, Display: Resolution | 1920×1080, Display: Viewing angle | 85/85/85/85(L/R/U/D). Additional features include Display: Brightness | 300 cd/m2, Display: Contrast | 1000:1, Display: Screen scale/Display area | 16：9/ Display area : 479×261mm. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.

RUGGEDMASTER RM-SC-F0C59A5688C0 Industrial Panel PCs features

Product Introduction

Design and technical configuration

The RUGGEDMASTER RM-SC-F0C59A5688C0 Industrial Panel PCs technical information lists the following configuration details.

Display: Panel | 21.5″ high-definition full view screen. Display: Resolution | 1920×1080. Display: Viewing angle | 85/85/85/85(L/R/U/D). Display: Brightness | 300 cd/m2.

Display: Contrast | 1000:1. Display: Screen scale/Display area | 16：9/ Display area : 479×261mm. System: CPU | Rockchip RK3588 Eight core 64 bit architecture, 4 * Cortex-A76+4 * Cortex-A55. System: RAM | 4GB (8GB optional).

System: Internal memory | 64GB (128GB optional). System: Operation system | Android 12 OS. System: Touch screen | 10-Point capacitive touch. Network: WIFI | 802.11b/g/n/ac.

Network: Ethernet | 100M/1000M ethernet. Network: Bluetooth | BT 5.0. Network: 4G/5G Cellular network | Optional. Interface: Type-C | 1xType-c 3.0.

Interface: USB 2.0 | 1×USB 2.0 interface (support U disk, mouse, keyboard, printer etc). Interface: USB 3.0 | 1×USB 3.0 interface (support U disk, mouse, keyboard, printer etc). Interface: RJ45 | Ethernet interface (POE function). Interface: Earphone | 1×3.5mm headphone Interface.

Interface: HDMI IN | 1xHDMI IN. Interface: Power | DC power input (5.5×2.1). Multi-Media: Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P). Multi-Media: Audio | Support MP3, WMA, AAC and so on.

Configuration and compatibility

Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.

RUGGEDMASTER RM-SC-F0C59A5688C0 Industrial Panel PCs wholesale enquiries

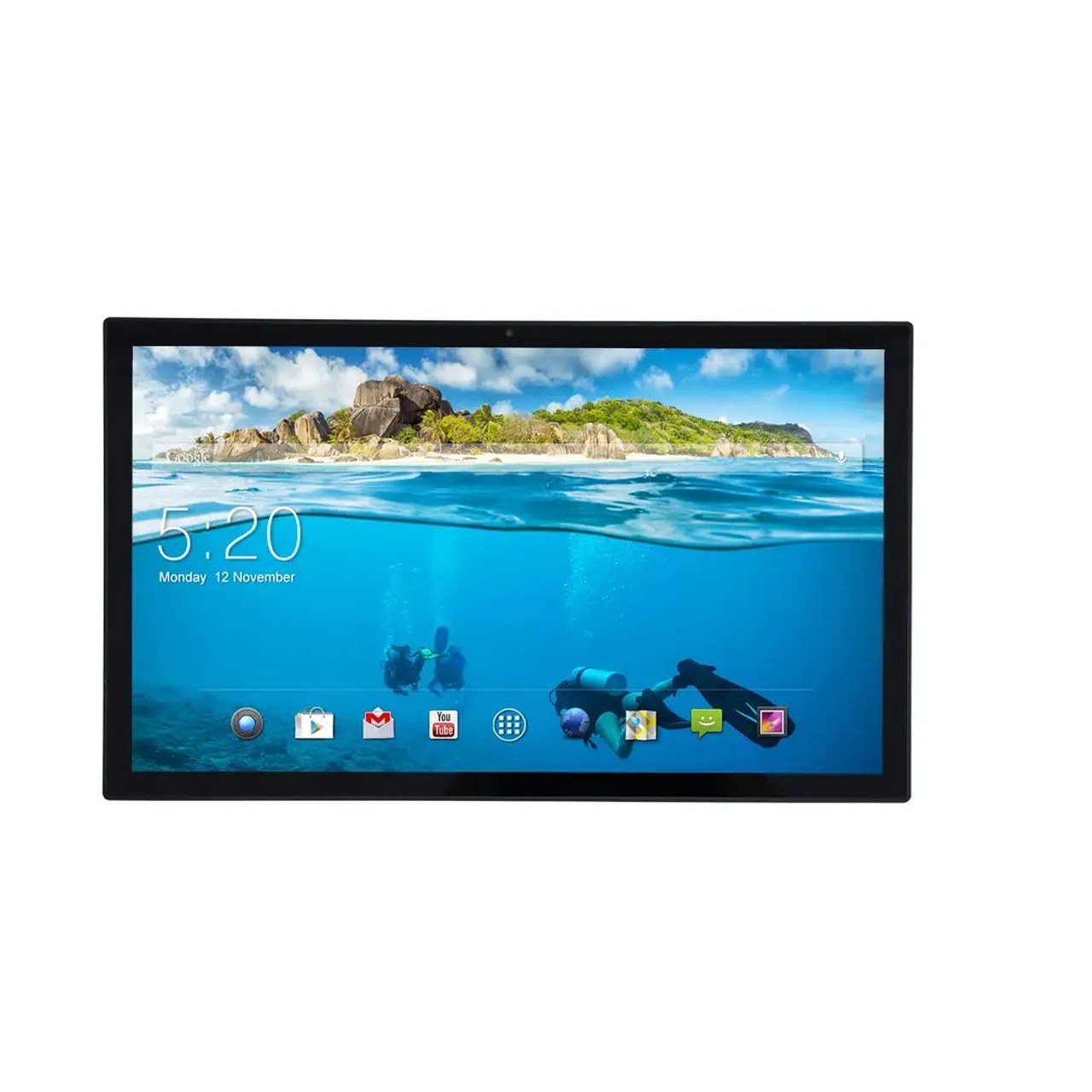

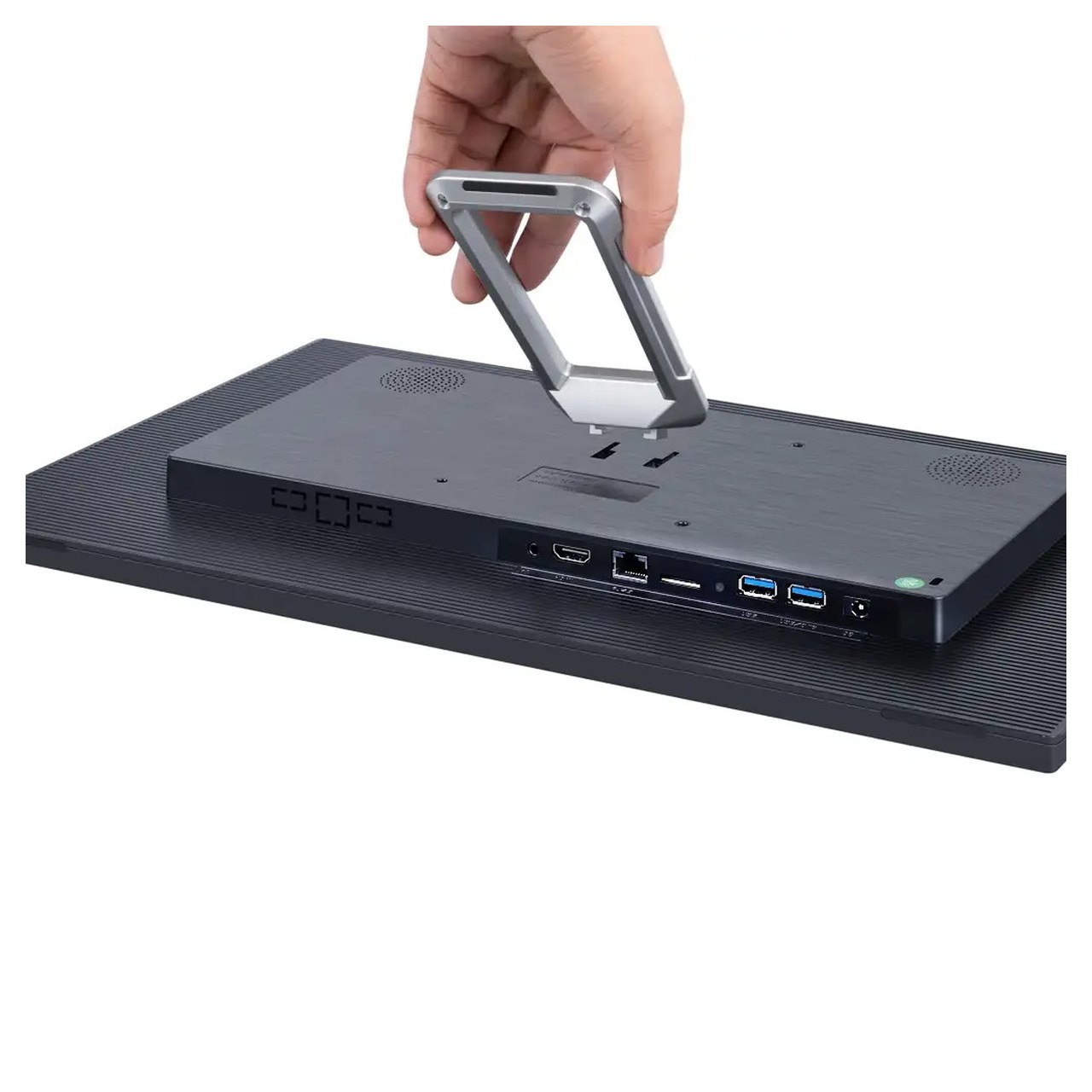

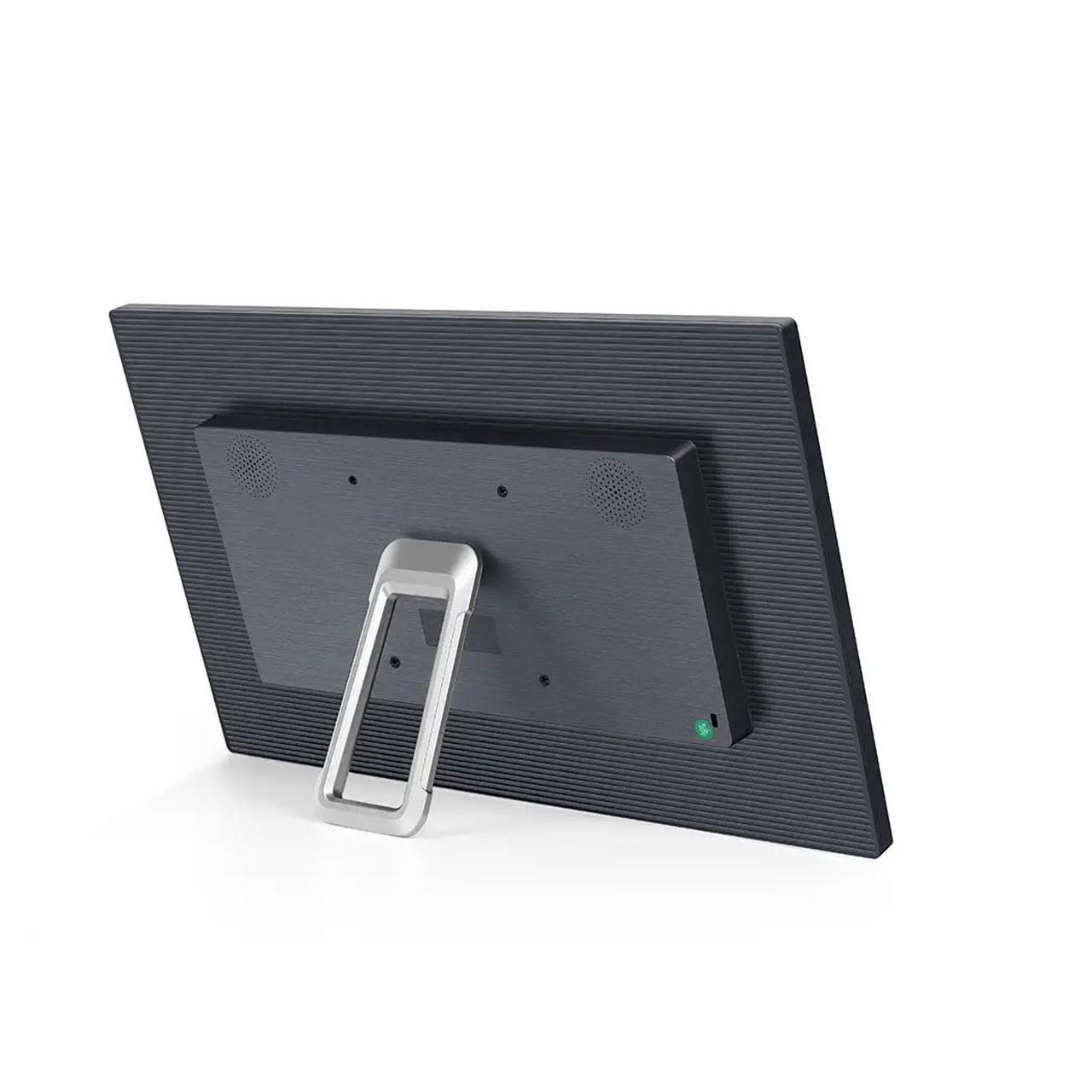

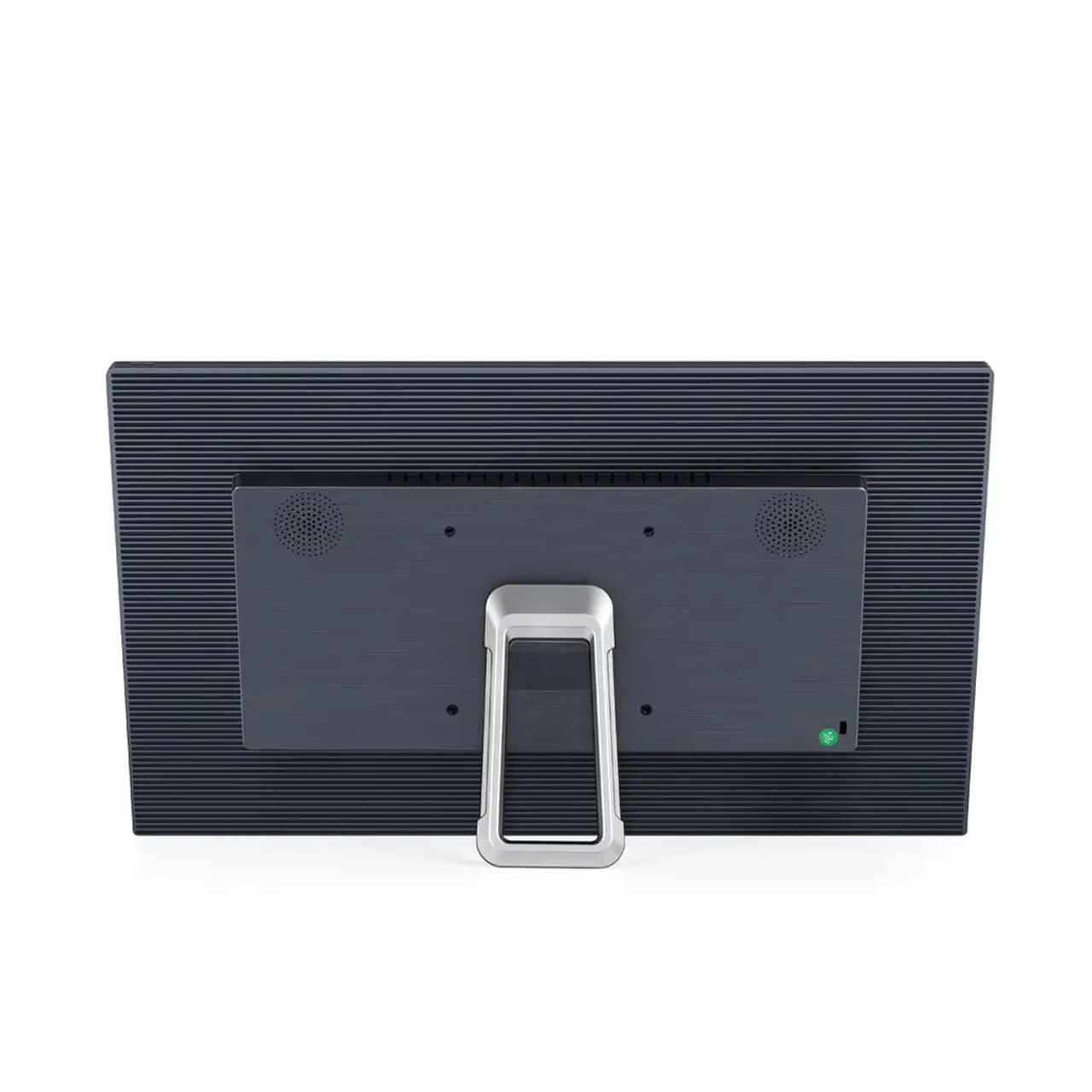

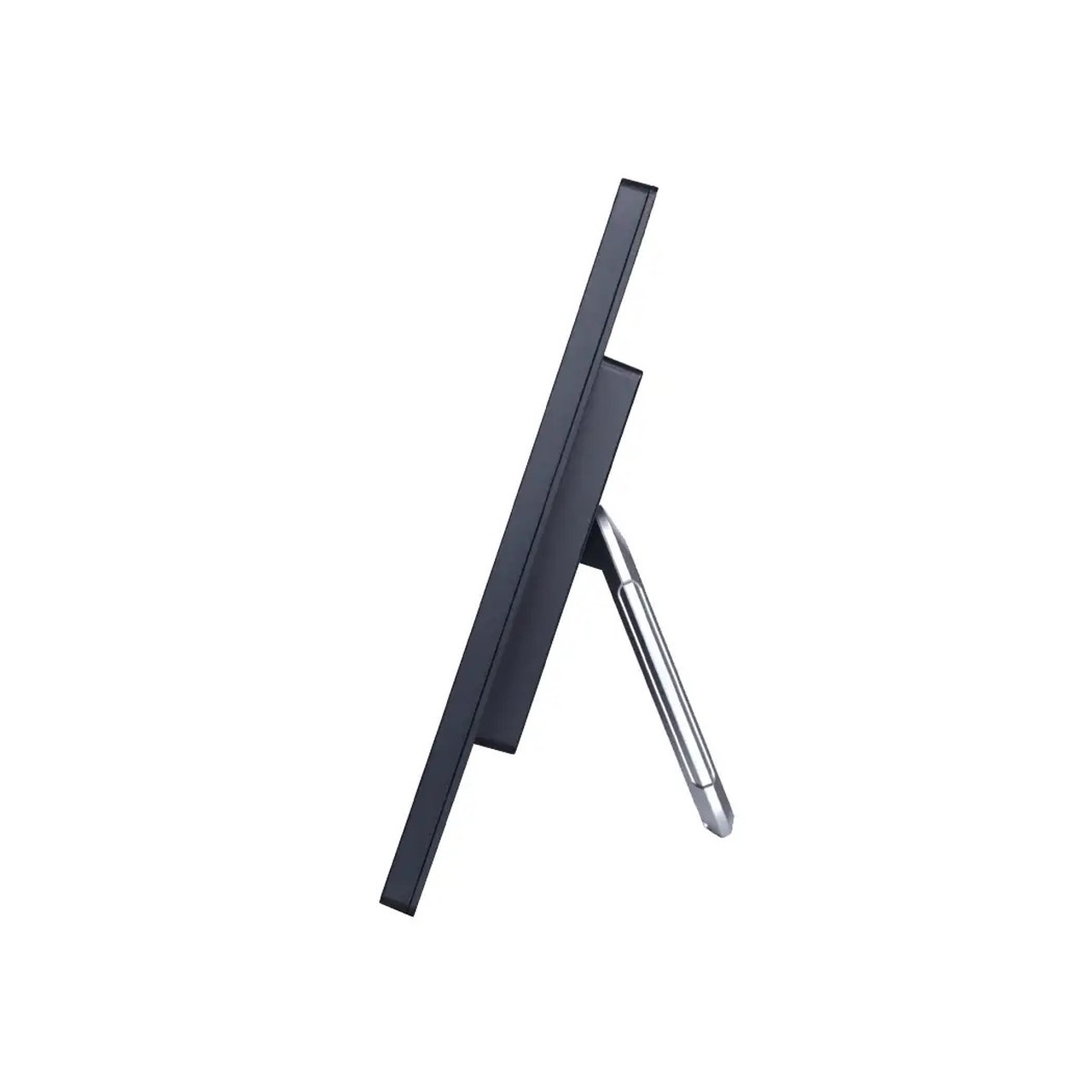

Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-F0C59A5688C0 Industrial Panel PCs. Browse our industrial panel pcs to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
