RUGGEDMASTER RM-SC-D21A903D0B27 Rugged Tablets

RUGGEDMASTER RM-SC-D21A903D0B27 Rugged Tablets

RUGGEDMASTER catalog model: RM-SC-D21A903D0B27.

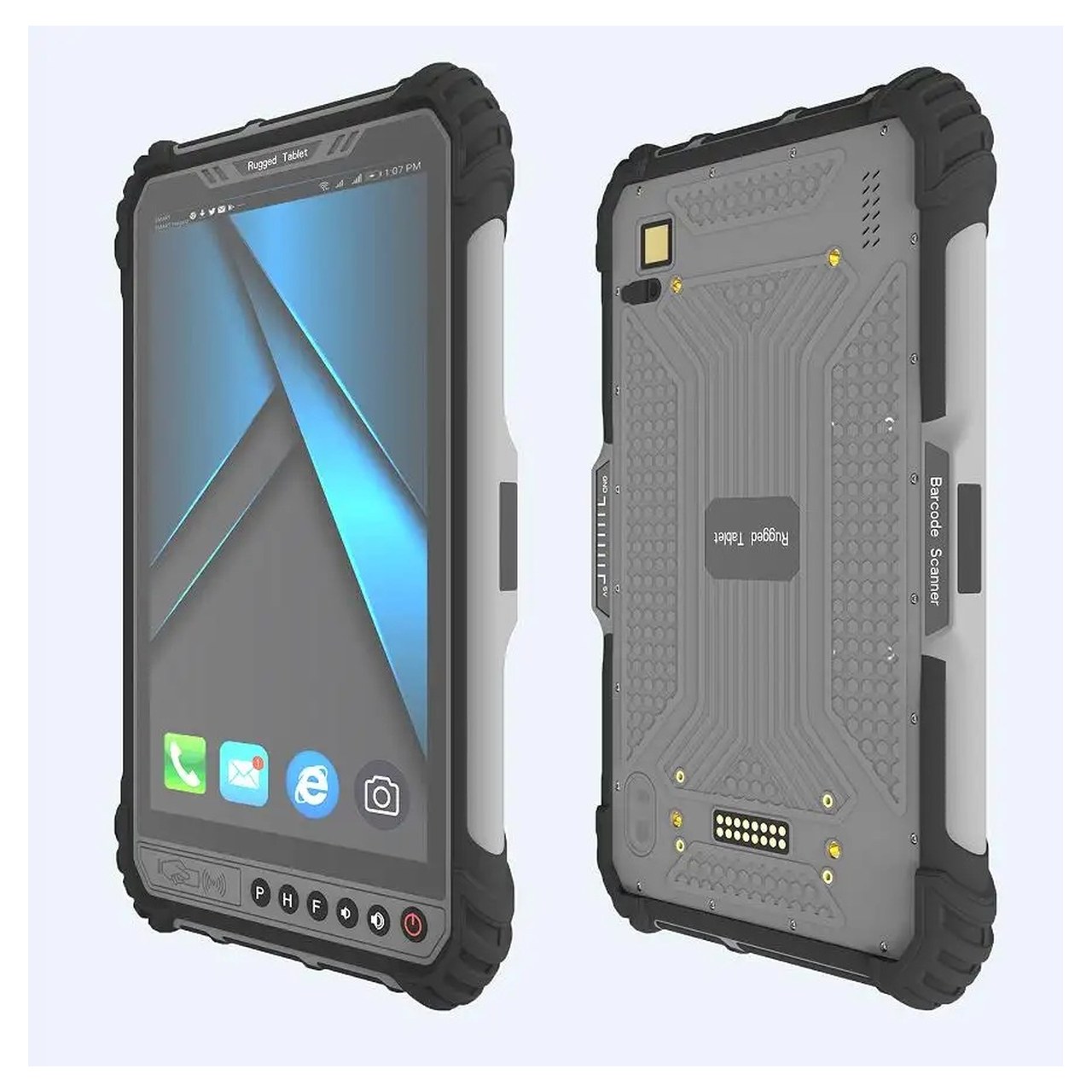

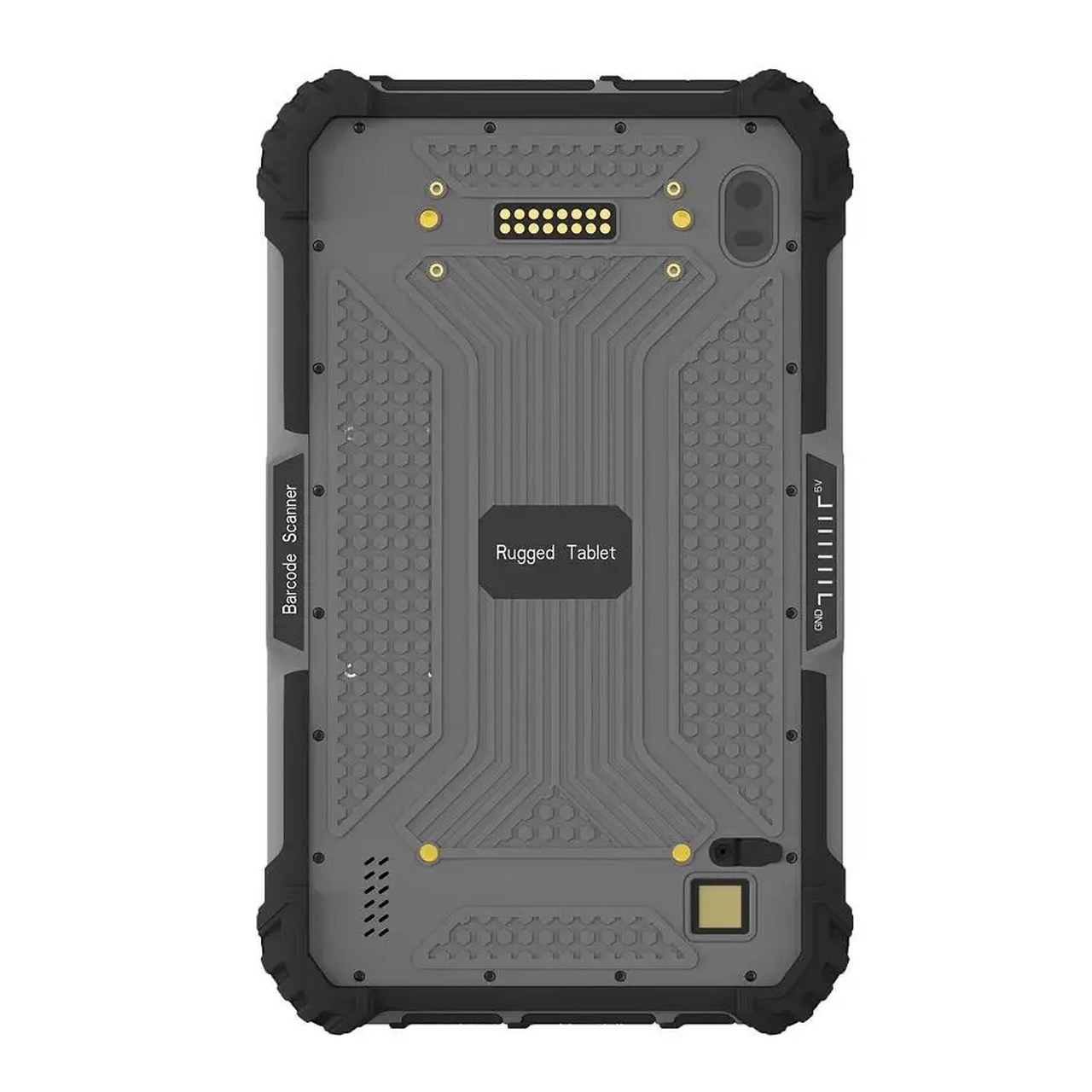

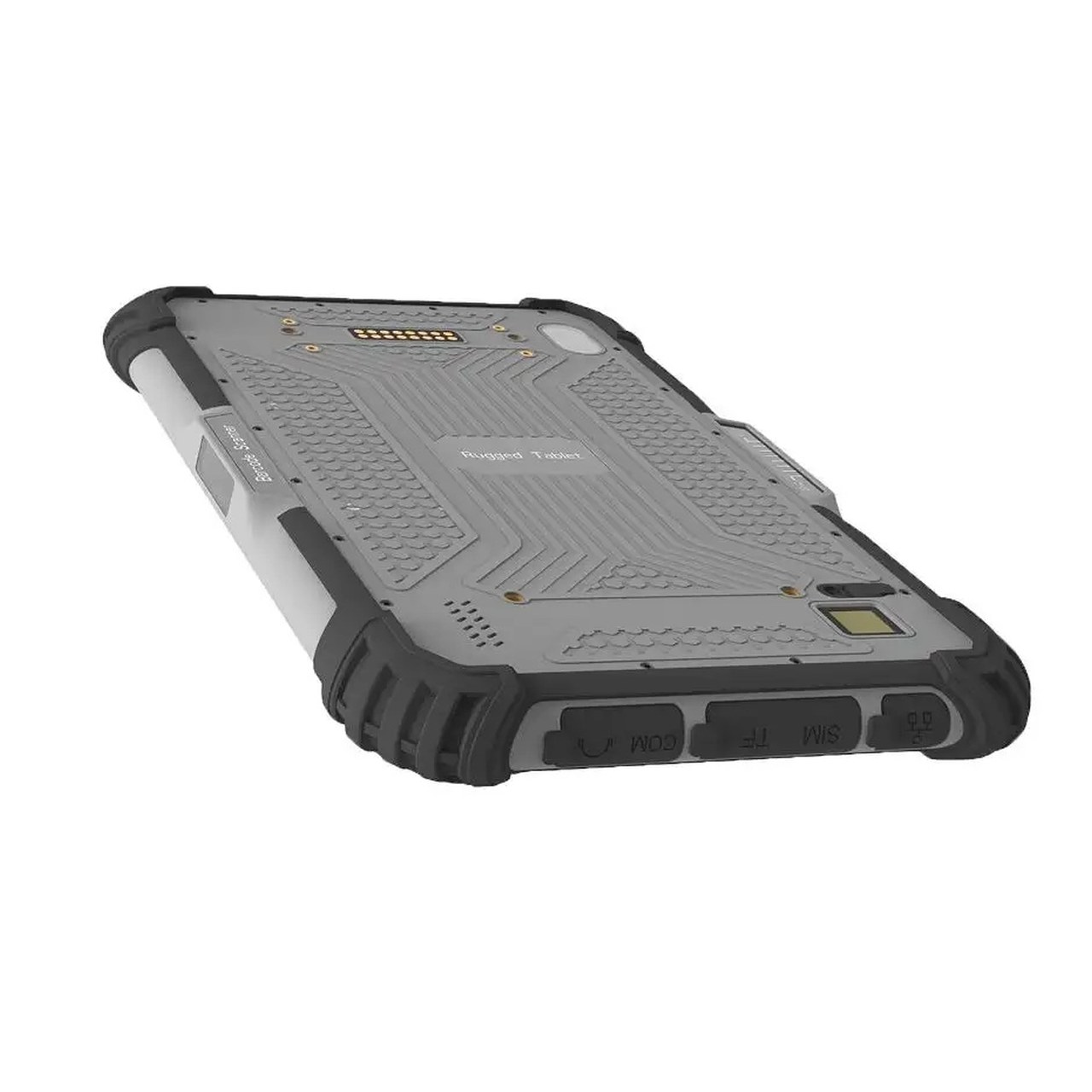

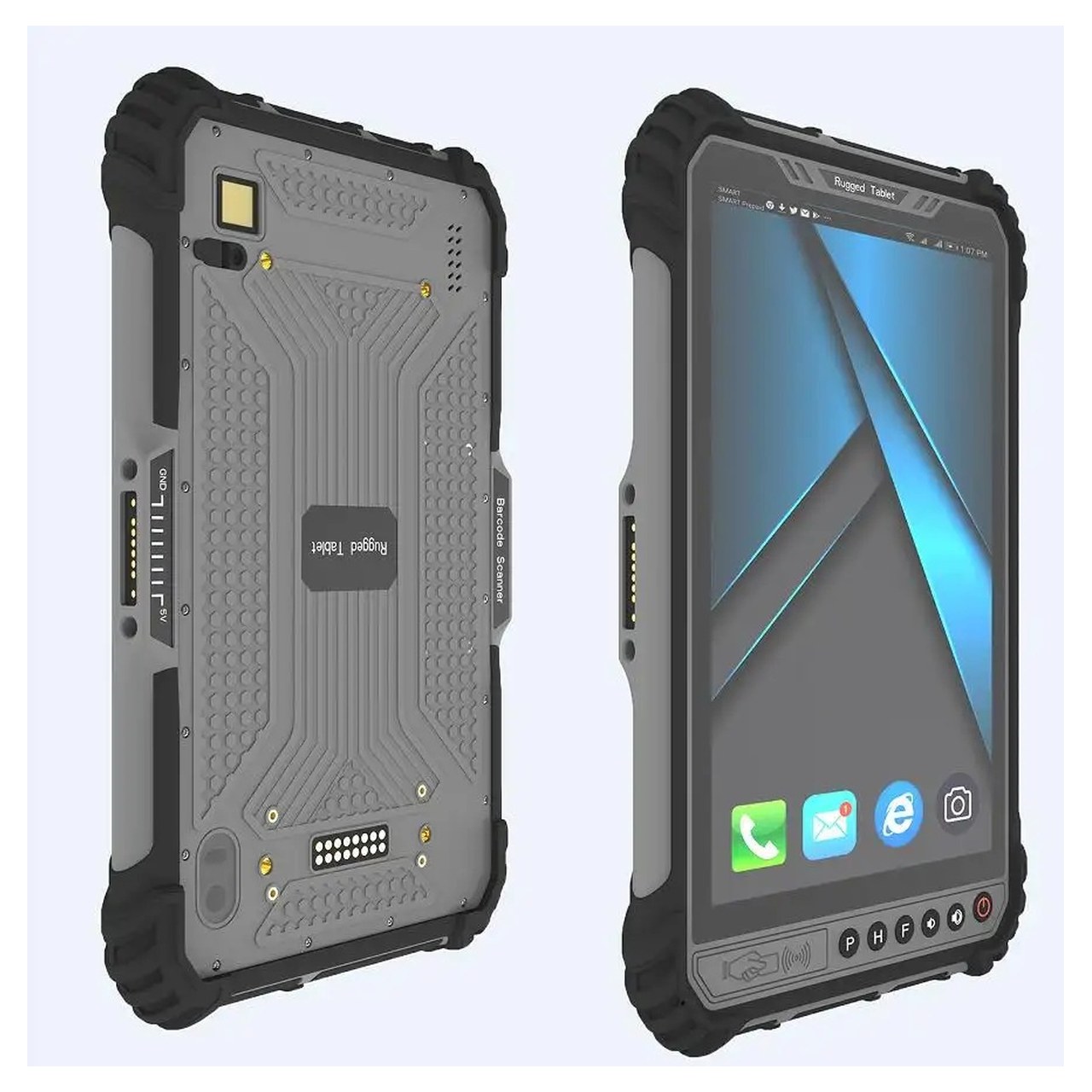

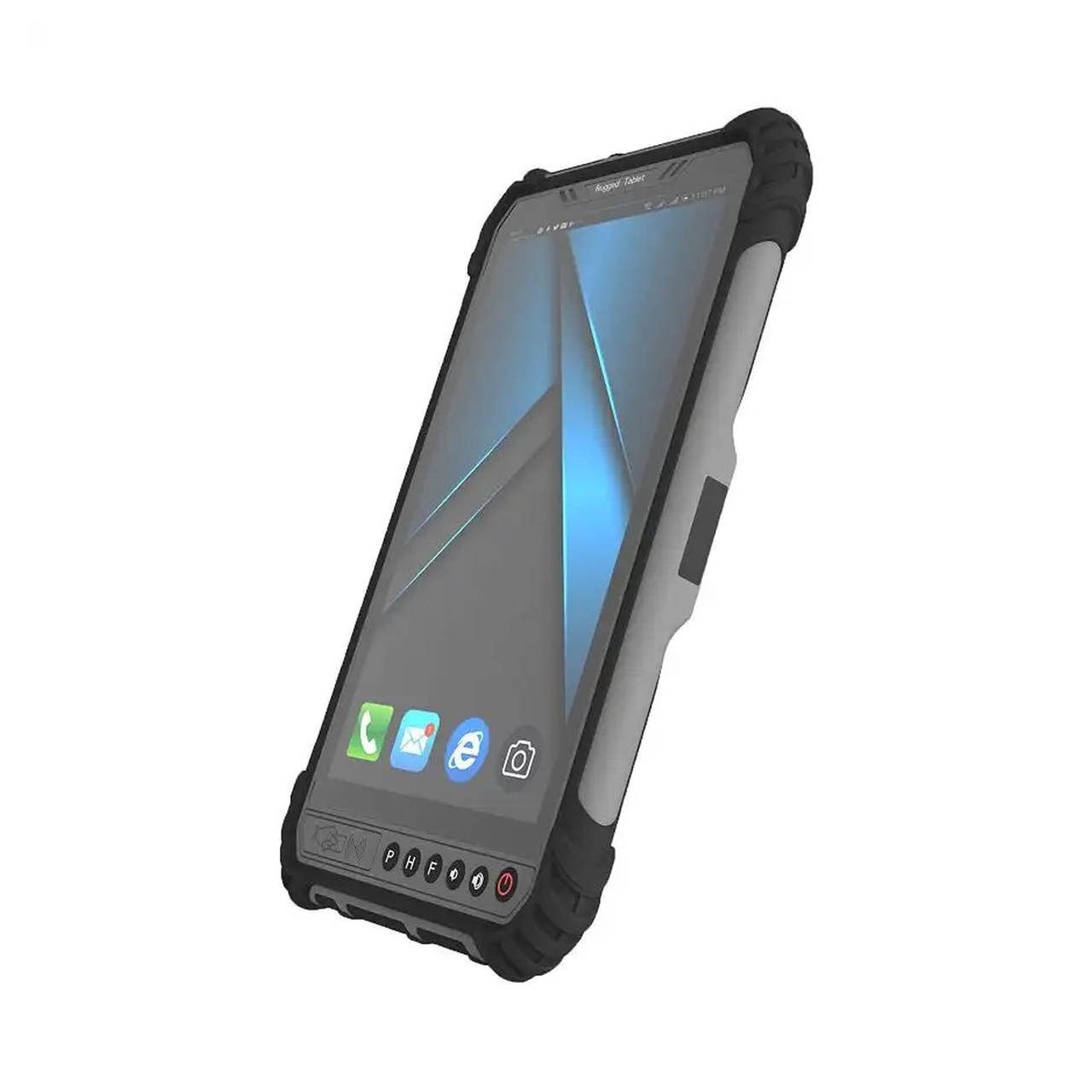

RUGGEDMASTER RM-SC-D21A903D0B27 Rugged Tablets combines Camera Front5.0M+back 21M PDAF/OTP, DC DC 5V 3A ∮3.5mm x1, Air pressure sensor Support. Additional features include Audio MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license). The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.

RUGGEDMASTER RM-SC-D21A903D0B27 Rugged Tablets features

Product Introduction

800nit 1000nit 1100nit

Camera Front5.0M+back 21M PDAF/OTP

dimension 234*144*16.8

GSM：B2/B3/B5/B8

DC DC 5V 3A ∮3.5mm x1

Air pressure sensor Support

Audio MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)

Storage temperature ’－25℃～80℃

Design and technical configuration

The RUGGEDMASTER RM-SC-D21A903D0B27 Rugged Tablets technical information lists the following configuration details.

CPU: MT6771, 8 core ARM® Cortex-A73 MPCoreTM 2.0GHz. OS: Android 11. RAM/ROM: EMCP:6GB+128GB/4GB+64GB. Camera: Front5.0M+back 21M PDAF/OTP.

GPS: Support Beidou+GPS+glonass；Capture sensitivity:-163 dBm. NFC: ISO/IEC14443，ISO/IEC15693，MIFARE，Felica，Range：3-5cm，Front. SPEAKER: 8Ω，1.5Wx1. Mic: Sensitivity：-32±2d，Impedence 2.2kΩx1 TF card TF card x1. Max 256GB.

button: Power, V+，V-，P, F, H. weight: 630g. dimension: 234*144*16.8. WIFI: 802.11a/b/g/n/ac, Wireless AP ( Mobile AP )2.4G, 5G blue tooth BT4.2, Band TDD-LTE：B34/B38/B39/B40/B41/B66 FDD-LTE：B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 WCDMA：B1/B2/B4/B5/B8 CDMA2000：BC0 TD-SCDMA：B34/B39 GSM：B2/B3/B5/B8 Type-A USB2.0 x2 Type-C charger/ data transfer x1 3.5mm ∮3.5mm x1 RS232 RS232 x1 (mini USB type).

DC: DC 5V 3A ∮3.5mm x1 Light sensor Support distence sensor Support G-SENSOR Support Gyroscope sensor Support Acceleration sensor Support Air pressure sensor Support back 16PIN USB2.0x1+UART RS232x1 Bottom 8PIN USB2.0x1+UART RS232x1x1+charger Picture BMP, JPG, GIF, PNG video MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) Audio MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) Protestion 1. production with IP65，designing with IP67 2. dropping testing 1.2 meter，six side. certification: 1. 810G testing report 2. CE, FCC. working temperature: ’－20℃～60℃. Storage temperature: ’－25℃～80℃.

battery: inner lithium Bttery capacity 3.85V / 10000mah Endurance Play video 18 hours Standby 240 hours Fingerprint 1020A” fingerprint capactiy 150pcs Response Time <1S Identification 1:N or 1:1 2D barcode NLS-N1″ Code 2D：PDF417、QR Code、Data Matrix 1D：Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey high precision GPS ZED-F9P” 10 CM Beidou、GPS、GLONASS、Galileo. UHF: EU/US standard “Power:18-26 dBm；sensitivity < -70dBm；Range：4-5.

Configuration and compatibility

Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.

RUGGEDMASTER RM-SC-D21A903D0B27 Rugged Tablets wholesale enquiries

Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-D21A903D0B27 Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
