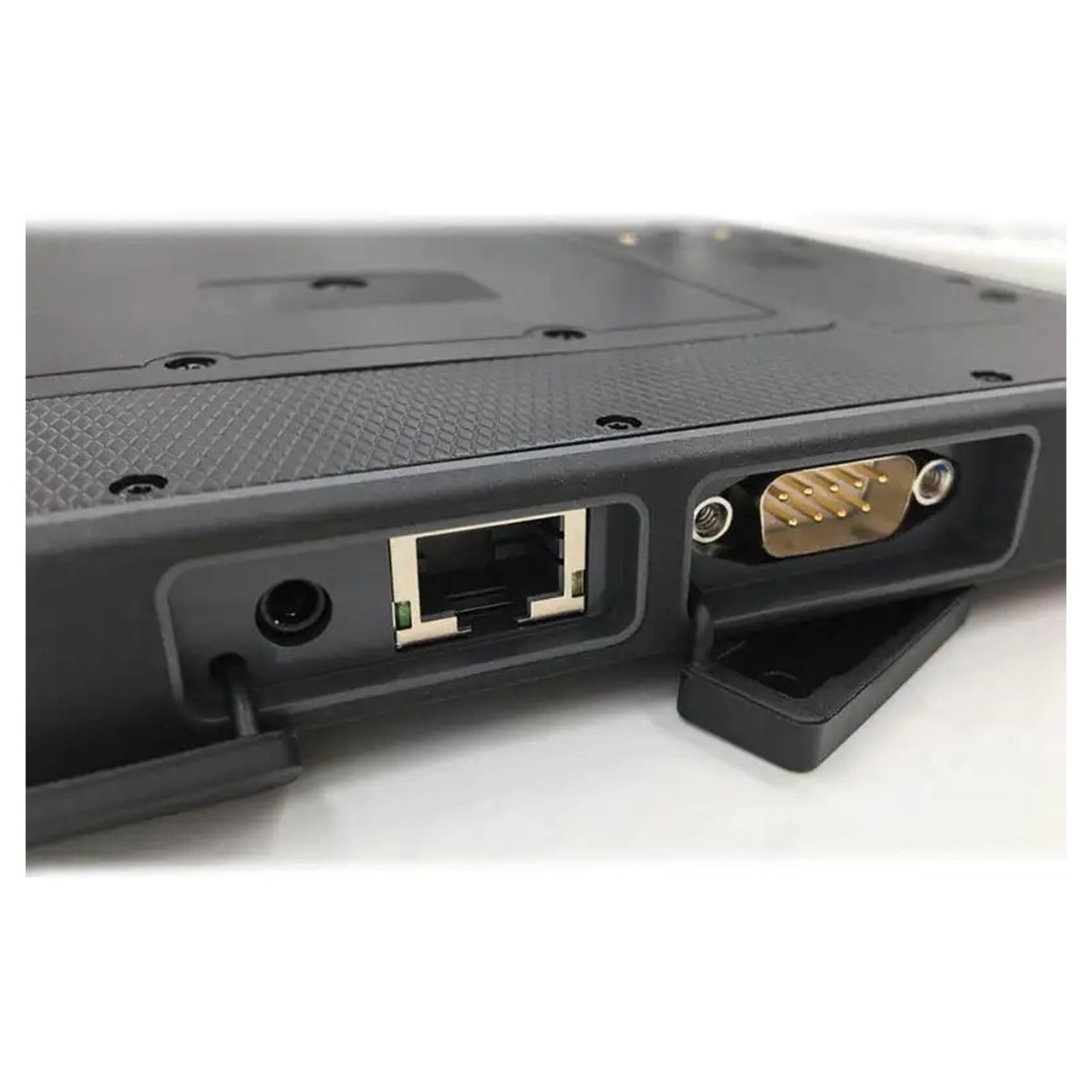

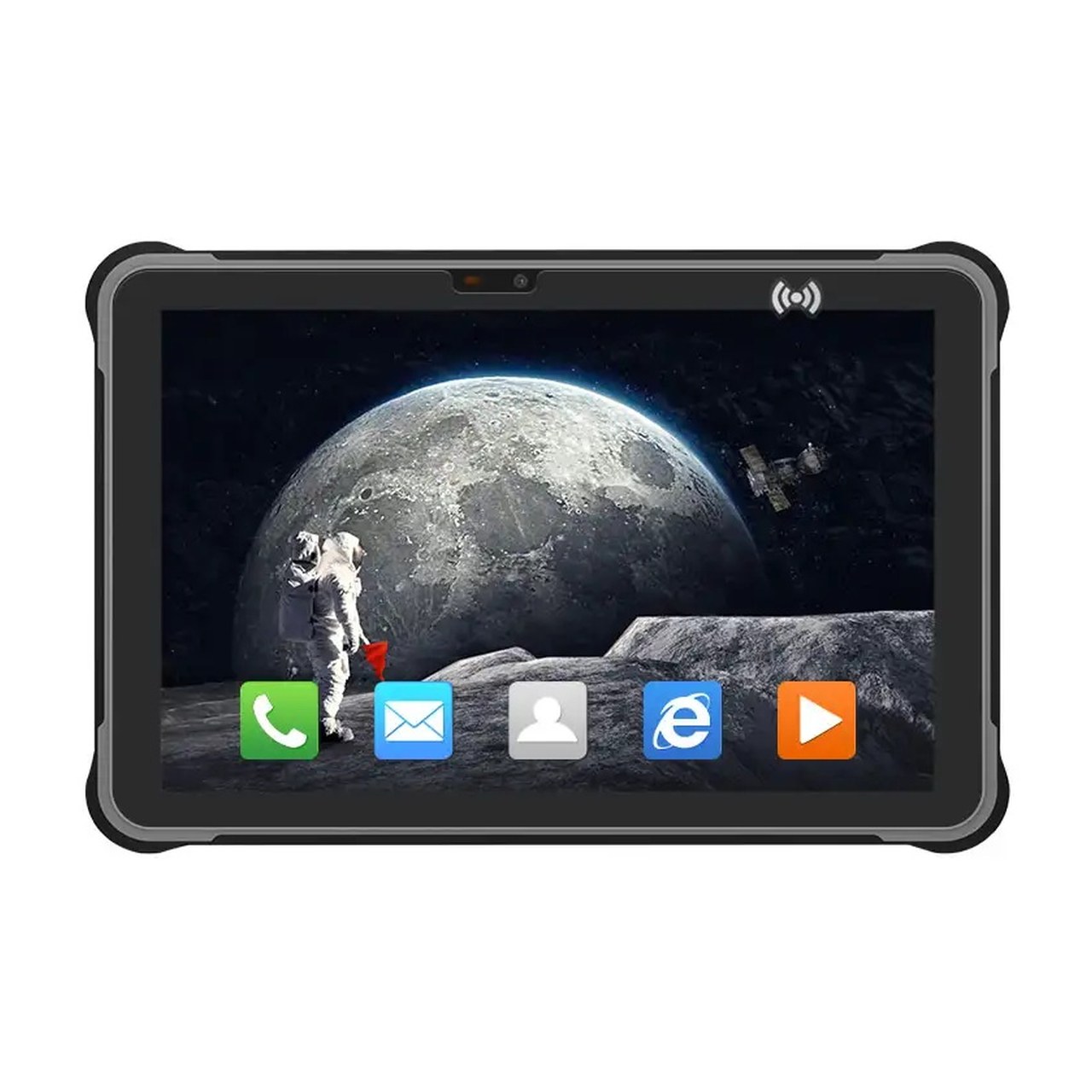

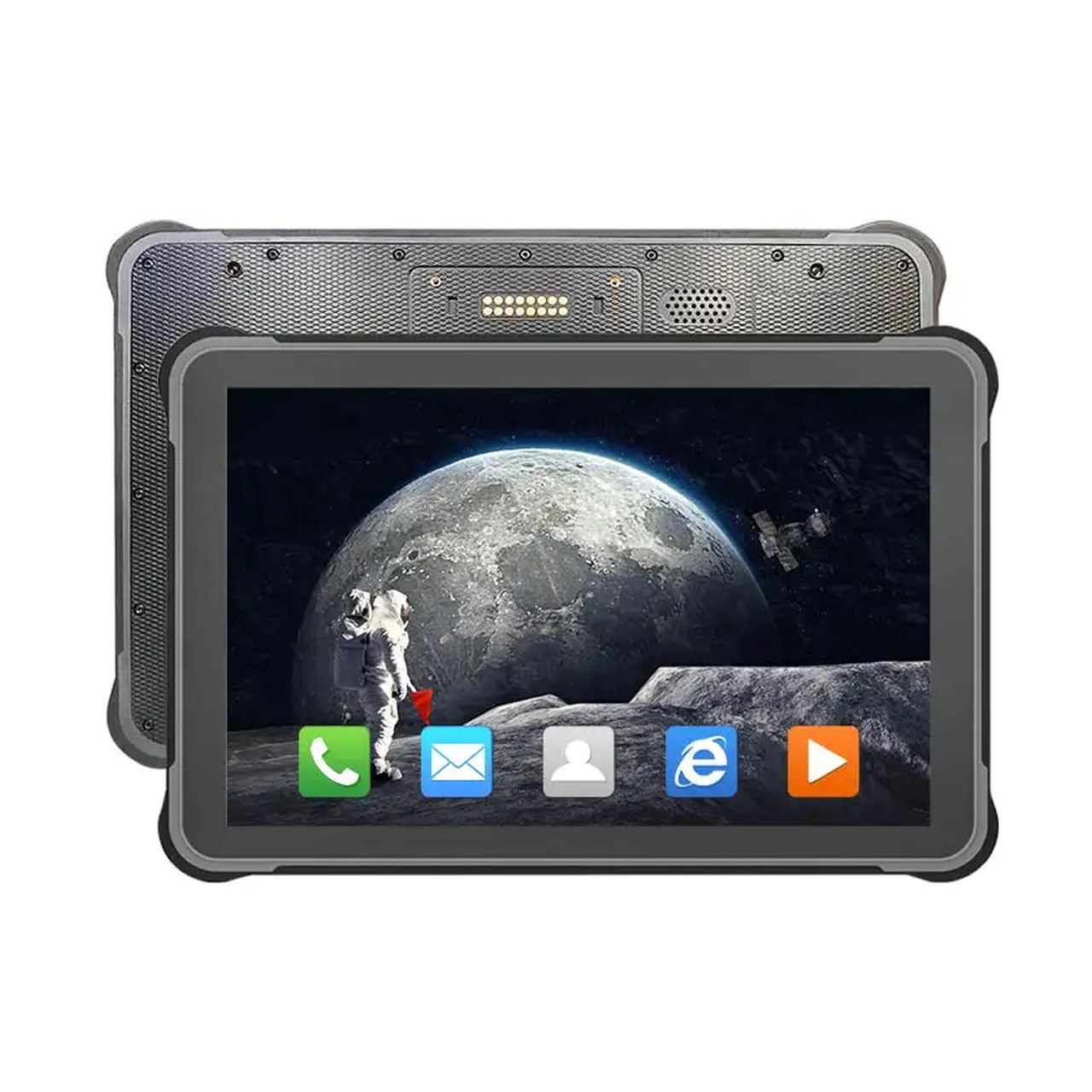

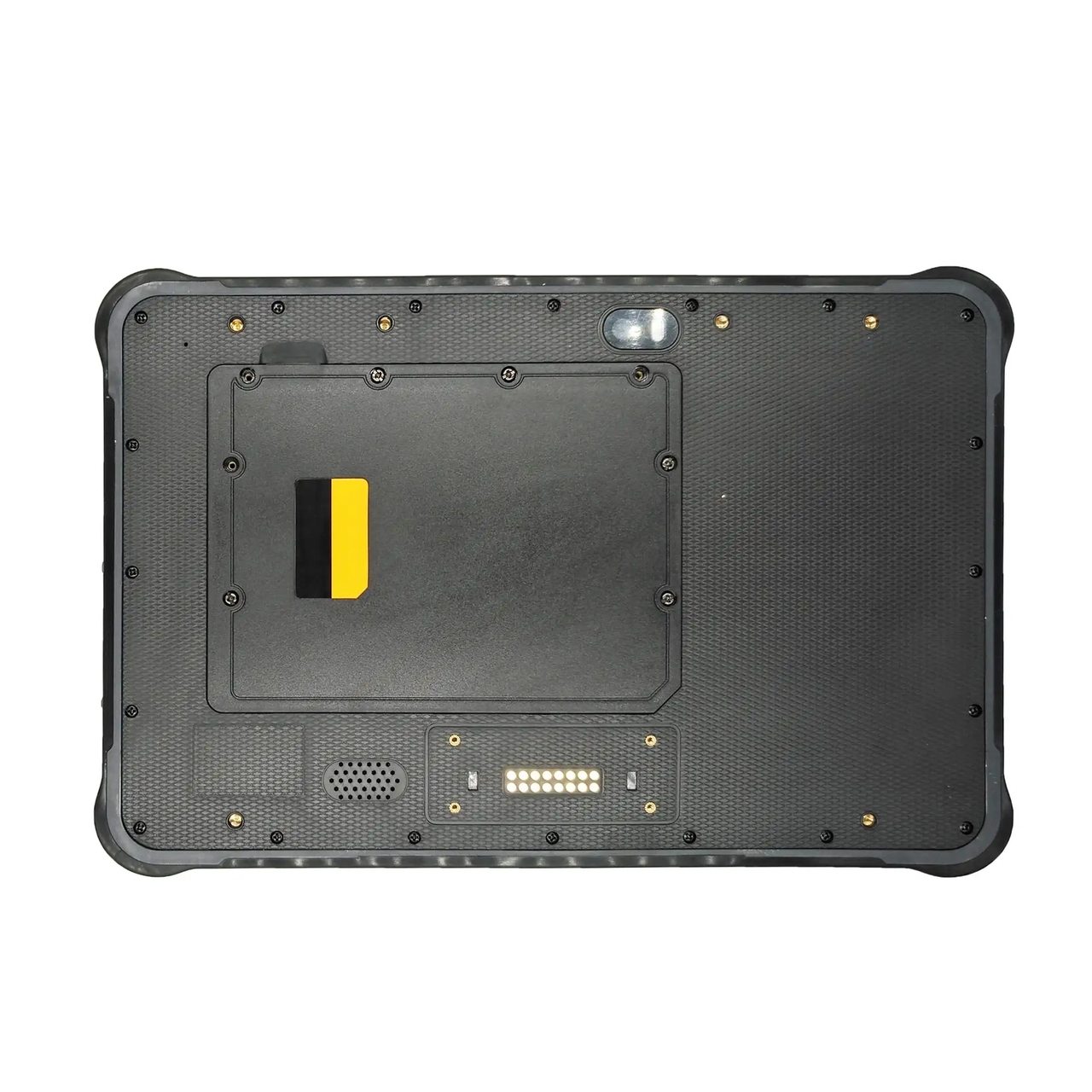

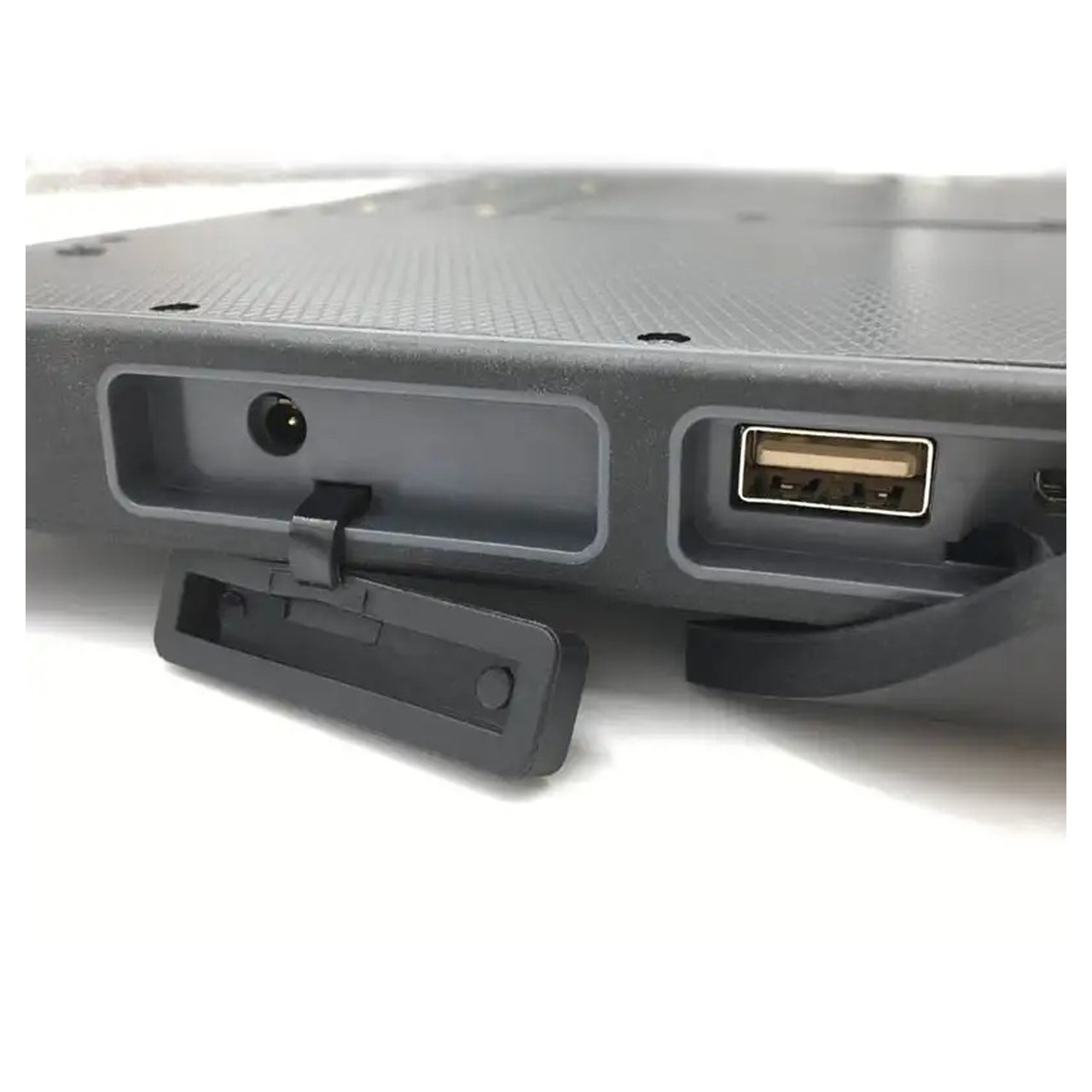

RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets combines OS: android 13 (support GMS), CPU: 8MTK MT8781/6789 Octa A76, 8 cores 2.2 GHz, RAM/ROM: 8GB/256GB OR 12GB/512GB. Additional features include LCD: 10.1 inch1920*1200；500 nits sunshine readable, Touch screen: 10 point touch, support stylus, GPS: beidou+GPS+glonass. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
OS: android 13 (support GMS)
CPU: 8MTK MT8781/6789 Octa A76, 8 cores 2.2 GHz
RAM/ROM: 8GB/256GB OR 12GB/512GB
LCD: 10.1 inch1920*1200；500 nits sunshine readable
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-AF1BF4A6A8BF.
RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets combines OS: android 13 (support GMS), CPU: 8MTK MT8781/6789 Octa A76, 8 cores 2.2 GHz, RAM/ROM: 8GB/256GB OR 12GB/512GB. Additional features include LCD: 10.1 inch1920*1200；500 nits sunshine readable, Touch screen: 10 point touch, support stylus, GPS: beidou+GPS+glonass. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets features
Product Introduction
Design and technical configuration
The RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets technical information lists the following configuration details.
OS: android 13 (support GMS). CPU: 8MTK MT8781/6789 Octa A76, 8 cores 2.2 GHz. RAM/ROM: 8GB/256GB OR 12GB/512GB. LCD: 10.1 inch1920*1200；500 nits sunshine readable.
Touch screen: 10 point touch, support stylus. Camera: 5M/13M, flash. Power: and battery 8400mAh,3.8V（12000mAh 3.8V optional） 3.5*1.35mm, 5V 3A DC in put, Support Type-c quicker charger WWAN 4G LTE, 3G WCDMA, GSM 4G Fre: FDD: B1,B2, B3,B4, B5, B7, B8, B10, B12，B13, B14, b17, B20, B23, B24, B25, B26 TDD: B38,B39,B40,B41, B66, B71 B34 WCDMA:B1,B2, B5, B8 TD-SCDMA: B34,B35, B36, B37, B38 B39, B40, B41, B42, B43 GSM/GPRS/EDGE, 850/900/1800/1900. GPS: beidou+GPS+glonass.
wifi: 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G. BLUETOOTH: 5.0 version. NFC: 13.56 MHz. SPEAKER: 1.5W.
Sensor: 1. light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor. size: 275*178*18mm. Multi-media: (Hardware decoding). Photo Viewer: BMP, JPG, GIF, PNG.
Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P). Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license). interface: 1. normal USB*1. in/out port: 2. Type-c USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. RS232*1 Pogopin definition 1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， ) VESA hole 75*75mm or 90*90mm.
casing material: ABS/PC. button: V+ -, Power, P, F, H. 2D barcode module: honeywell N4680 optional. fingerprint: module LD-8800-M optional.
Configuration and compatibility
Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.
RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets specifications
| RUGGEDMASTER catalog model | RM-SC-AF1BF4A6A8BF |
|---|---|
| RUGGEDMASTER RM-SC-AF1BF4A6A8BF Rugged Tablets technical specifications | |
| OS | android 13 (support GMS) |
| CPU | 8MTK MT8781/6789 Octa A76, 8 cores 2.2 GHz |
| RAM/ROM | 8GB/256GB OR 12GB/512GB |
| LCD | 10.1 inch1920*1200；500 nits sunshine readable |
| Touch screen | 10 point touch, support stylus |
| Camera | 5M/13M, flash |
| Power | and battery 8400mAh,3.8V（12000mAh 3.8V optional） 3.5*1.35mm, 5V 3A DC in put, Support Type-c quicker charger WWAN 4G LTE, 3G WCDMA, GSM 4G Fre: FDD: B1,B2, B3,B4, B5, B7, B8, B10, B12，B13, B14, b17, B20, B23, B24, B25, B26 TDD: B38,B39,B40,B41, B66, B71 B34 WCDMA:B1,B2, B5, B8 TD-SCDMA: B34,B35, B36, B37, B38 B39, B40, B41, B42, B43 GSM/GPRS/EDGE, 850/900/1800/1900 |
| GPS | beidou+GPS+glonass |
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G |
| BLUETOOTH | 5.0 version |
| NFC | 13.56 MHz |
| SPEAKER | 1.5W |
| Sensor | 1. light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor |
| size | 275*178*18mm |
| language | multi language |
| Multi-media | (Hardware decoding) |
| Photo Viewer | BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) |
| interface | 1. normal USB*1 |
| in/out port | 2. Type-c USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. RS232*1 Pogopin definition 1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， ) VESA hole 75*75mm or 90*90mm |
| casing material | ABS/PC |
| button | V+ -, Power, P, F, H |
| 2D barcode module | honeywell N4680 optional |
| fingerprint | module LD-8800-M optional |
| UHF | reading and write distance 1meter to 10 meter optional standard accessories 1. USB cable in gift box 2. charger( 4-in-1) 3. handstrap 4. handstring 5. white box, no logo optional accessories 1. car docking proof rate 2. extra battery 3. screen protective film 4. car holder 5. docking station 6. car charger proof rate 1. water proof IP65/IP66/IP67 2. Drapping proof 1.2 meter |
| Certification | 1. 810G 2. CE,FCC |
| Temperature | 1. storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
