RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets
OS: Windows 11 Pro | Windows 10 Pro/Iot Optional, RAM/ROM: 16GB/512GB | 8GB/256GB; 32GB/1TB Optional, LCD: 10.1 inch; 1200*1920; 450nits | SQ101D, Touch Screen: 10 Point Touch | Support stylus, GPS: BDS, GPS, GLONASS, BLUETOOTH: 5.2 Version, NFC: 13.56 MHz, Distance: 7-15mm | ISO14443; TYPE A; Mifare, High Precision GPS: Optional | UM960; TU101 Optional
RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets combines OS: Windows 11 Pro | Windows 10 Pro/Iot Optional, RAM/ROM: 16GB/512GB | 8GB/256GB; 32GB/1TB Optional, LCD: 10.1 inch; 1200*1920; 450nits | SQ101D. Additional features include Touch Screen: 10 Point Touch | Support stylus, GPS: BDS, GPS, GLONASS, BLUETOOTH: 5.2 Version. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
OS: Windows 11 Pro | Windows 10 Pro/Iot Optional
RAM/ROM: 16GB/512GB | 8GB/256GB; 32GB/1TB Optional
LCD: 10.1 inch; 1200*1920; 450nits | SQ101D
Touch Screen: 10 Point Touch | Support stylus
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets
RUGGEDMASTER catalog model: RM-SC-AEC241B42FCA.
RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets combines OS: Windows 11 Pro | Windows 10 Pro/Iot Optional, RAM/ROM: 16GB/512GB | 8GB/256GB; 32GB/1TB Optional, LCD: 10.1 inch; 1200*1920; 450nits | SQ101D. Additional features include Touch Screen: 10 Point Touch | Support stylus, GPS: BDS, GPS, GLONASS, BLUETOOTH: 5.2 Version. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets features
Product Introduction
Design and technical configuration
The RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets technical information lists the following configuration details.
OS: Windows 11 Pro | Windows 10 Pro/Iot Optional. CPU: Intel I5-1235U 10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.7GHz/power consumption 15W | I7-1255U Optional 10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W. GPU: Intel® Iris® Xe Graphics 80EU | I7: Intel® Iris® Xe Graphics 96EU. RAM/ROM: 16GB/512GB | 8GB/256GB; 32GB/1TB Optional.
LCD: 10.1 inch; 1200*1920; 450nits | SQ101D. Touch Screen: 10 Point Touch | Support stylus. Camera: Front: 5MP; Real: 8MP | 5M/13M optional. Power: 12V 4A aviation input.
WWAN: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 | EC25-AUX (5G customizable). GPS: BDS, GPS, GLONASS. WIFI: 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | Intel® Wi-Fi 6 AX201. BLUETOOTH: 5.2 Version.
NFC: 13.56 MHz, Distance: 7-15mm | ISO14443; TYPE A; Mifare. SPEAKER: 1.0 Watt. Sensor: 1. Light Sensor 2. Acceleration Sensor 3. G-Sensor. Size: 262*174*29.1mm.

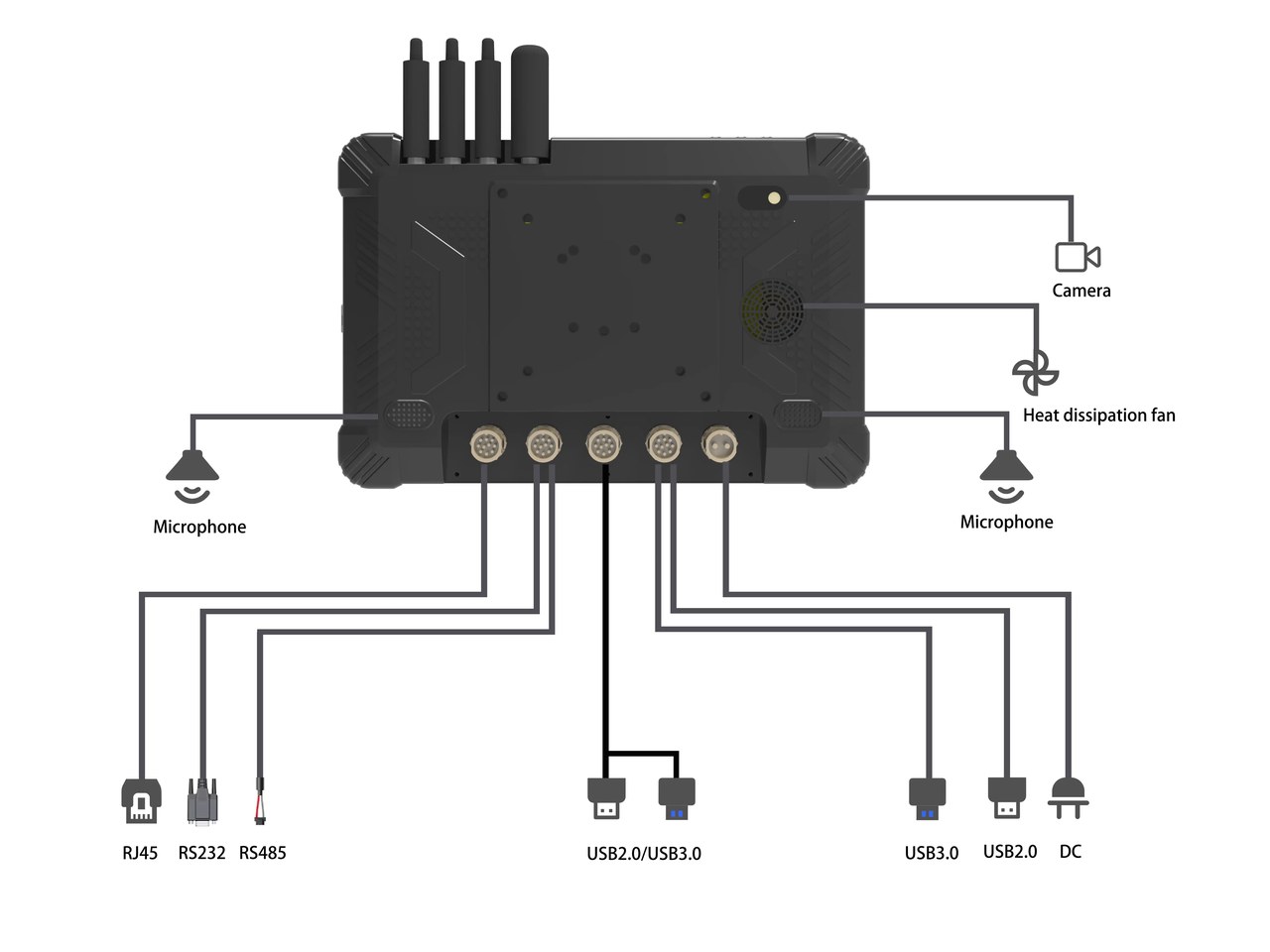

Weight: 1.1KG. Interface In/Out Port: 1. DC 12V 3A –aviation port 2. HDMI Type A x1,Audio and video output–aviation port 3. USB Type_A：USB3.2 Gen1 x2–aviation port 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging)—aviation port 5. RJ45：Support Gigabit Ethernet—aviation port 6. RS232：Standard DB9. Casing Material: ABS/PC. Button: V+ -, Power, “F” for Barcode Scan | Customized Button: P,H.
High Precision GPS: Optional | UM960; TU101 Optional. Accessories: 1. Blue Box 2. DC Charger (12V 4A) 3. Bag & Screw. Multi-Media (Hardware Decoding): 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license). Proof Degree: Anti-dust & Waterproof IP54 Dropping Resistance 1.2 meter.
RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets. Browse our vehicle tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets specifications
RUGGEDMASTER catalog model: RM-SC-AEC241B42FCA
| RUGGEDMASTER RM-SC-AEC241B42FCA Vehicle Tablets technical specifications | ||
|---|---|---|
| OS | Windows 11 Pro |
Windows 10 Pro/Iot Optional |
| CPU |
Intel I5-1235U 10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.7GHz/power consumption 15W |
I7-1255U Optional 10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W |
| GPU |
Intel® Iris® Xe Graphics 80EU |
I7: Intel® Iris® Xe Graphics 96EU |
| RAM/ROM | 16GB/512GB |
8GB/256GB; 32GB/1TB Optional |
| LCD |
10.1 inch; 1200*1920; 450nits |
SQ101D |
| Touch Screen |
10 Point Touch |
Support stylus |
| Camera |
Front: 5MP; Real: 8MP |
5M/13M optional |
| Power | 12V 4A aviation input | |
| WWAN |
FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
EC25-AUX (5G customizable) |
| GPS |
BDS, GPS, GLONASS |
|
| WIFI |
802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
Intel® Wi-Fi 6 AX201 |
| BLUETOOTH |
5.2 Version |
|
| NFC |
13.56 MHz, Distance: 7-15mm |
ISO14443; TYPE A; Mifare |
| SPEAKER |
1.0 Watt |
|
| Sensor |
1. Light Sensor 2. Acceleration Sensor 3. G-Sensor |
|
| Size | 262*174*29.1mm | |
| Weight | 1.1KG | |
| Language | Multi language | |
|
Interface In/Out Port |
1. DC 12V 3A --aviation port 2. HDMI Type A x1,Audio and video output--aviation port 3. USB Type_A：USB3.2 Gen1 x2--aviation port 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging)---aviation port 5. RJ45：Support Gigabit Ethernet---aviation port 6. RS232：Standard DB9 |
|
|
Casing Material |
ABS/PC | |
| Button |
V+ -, Power, "F" for Barcode Scan |
Customized Button: P,H |
|
High Precision GPS |
Optional |
UM960; TU101 Optional |
| Accessories |
1. Blue Box 2. DC Charger (12V 4A) 3. Bag & Screw |
|
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust & Waterproof IP54 Dropping Resistance 1.2 meter |
|
| Certification |
1. MIL-STD-810G 2. ISO 3. MSDS |
|
| Temperature |
Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 60 °C |
|
