RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets
13.3 inch LCD screen, 1920*1080, 400nits, 1000nits high brightness optional, Windows 11 pro, Android 12, Android 13, Ubantu 20.04 optional., Type-C, USB3.0-A, RJ45, Aviation port, HDMI optional, Docking station, Vehicle mounting optional, 4G LTE, 5G WWAN, WIFI, GPS, BT, Optional, 13.3 inch industrial rugged tablet had been used in large machinery, in construction site.
RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets combines 13.3 inch LCD screen, 1920*1080, 400nits, 1000nits high brightness optional, Windows 11 pro, Android 12, Android 13, Ubantu 20.04 optional., Type-C, USB3.0-A, RJ45, Aviation port, HDMI optional. Additional features include Docking station, Vehicle mounting optional, 4G LTE, 5G WWAN, WIFI, GPS, BT, Optional, 13.3 inch industrial rugged tablet had been used in large machinery, in construction site.. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
13.3 inch LCD screen, 1920*1080, 400nits, 1000nits high brightness optional
Windows 11 pro, Android 12, Android 13, Ubantu 20.04 optional.
Type-C, USB3.0-A, RJ45, Aviation port, HDMI optional
Docking station, Vehicle mounting optional
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-A939C012A03E.
RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets combines 13.3 inch LCD screen, 1920*1080, 400nits, 1000nits high brightness optional, Windows 11 pro, Android 12, Android 13, Ubantu 20.04 optional., Type-C, USB3.0-A, RJ45, Aviation port, HDMI optional. Additional features include Docking station, Vehicle mounting optional, 4G LTE, 5G WWAN, WIFI, GPS, BT, Optional, 13.3 inch industrial rugged tablet had been used in large machinery, in construction site.. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets features
Product Introduction
Summary
1. 13.3 inch LCD screen, 1920*1080, 400nits, 1000nits high brightness optional
2. Windows 11 pro, Android 12, Android 13, Ubantu 20.04 optional.
3. Type-C, USB3.0-A, RJ45, Aviation port, HDMI optional
4. Docking station, Vehicle mounting optional
5. 4G LTE, 5G WWAN, WIFI, GPS, BT, Optional
Industry Application:

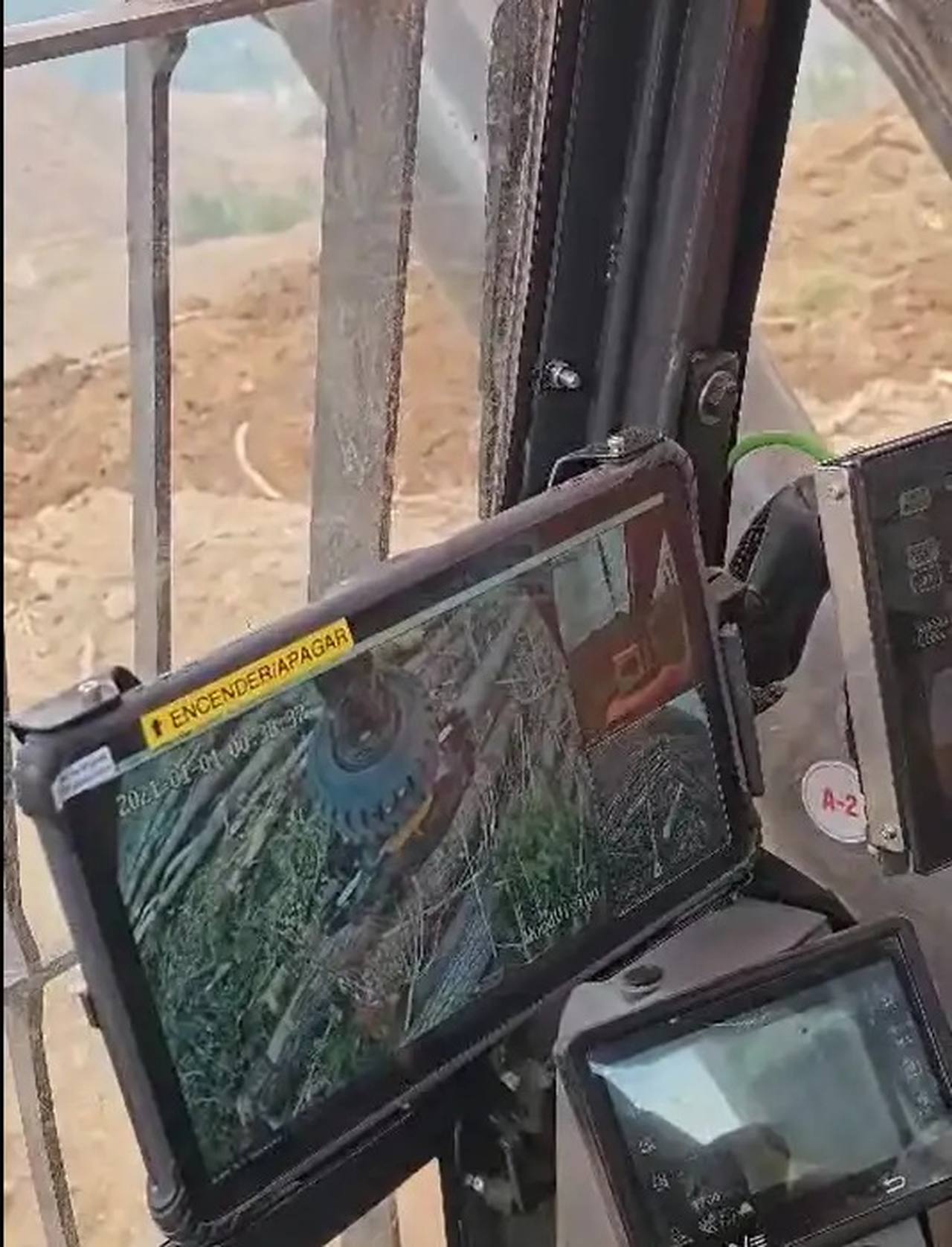

13.3 inch industrial rugged tablet had been used in large machinery, in construction site.
Design and technical configuration
The RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets technical information lists the following configuration details.
OS: Windows 10 PRO | Windows 11 optional. CPU: Intel N5100 4 cores, 4 threads/basic frequency 1.1GHz, turbo 2.8GHz/power consumption 6W. GPU: Intel® Iris® Xe Graphics 80EU | Intel® Iris® Xe Graphics 96EU. RAM/ROM: RAM：4GB/8GB(max 16) ROM: 128GB/256GB/512GB.
LCD: 10.1 inch 1920*1080 Max 450nits. TP: Supports 10 touch control Supports thin glove touch | Chip：GT9110. Camera: 5M/8M | 5M/13M optional. Battery: 6000mAh，7.6V lithium battery (45.6Wh).
Battery: DC4.0*1.7mm，12V 4A DC input | Supports Type-C 65W fast charging. LTE: 4G Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 WCDMA:B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8. GPS: baidou,GPS, glonass | Model：ZP820P. WIFI: 802.11b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5G | Model：AX201D2W，Integrated Bluetooth support WIFI 6.
Bluetooth: Version 5.2, backward compatibility | Bluetooth/WIFI 2-in-1. Speaker: 8Ω 1.5W x2. Sensor: 1. Light sensor 2. Acceleration sensor 3. Gravity sensor. Size: 330*205*19.5mm.
Weight: 1300g±100g. Multi-media: Photo Viewer | BMP, JPG, GIF, PNG. Multi-media: Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (max 1080P). Multi-media: Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license).
Interface: 1. DC 12V 3A ∮4.0mm x2 2. HDMI Type A x1,Audio and video output 3. USB Type_A：USB3.2 Gen1 x2 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging) 5. SIM/TF card slot 6. RJ45：Support Gigabit Ethernet 7. Aviation socket x2: RS232 & undefined interface (reserved) 8. Earphone：∮3.5mm headphone jack x1. Pogopin: Bottom 16PIN：USB2.0 x1+RS232 x1+charging. Button: V+ -, Power, P, F, H | P/H is a customizable function key, while F defaults to the scanning key. NFC: ISO/IEC14443，ISO/IEC15693，MIFARE | optional.
RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets specifications
RUGGEDMASTER catalog model: RM-SC-A939C012A03E
| RUGGEDMASTER RM-SC-A939C012A03E Rugged Tablets technical specifications | ||
|---|---|---|
| ITEM | DESCRIPTION | detail |
| OS |
Windows 10 PRO |
Windows 11 optional |
| CPU |
Intel N5100 4 cores, 4 threads/basic frequency 1.1GHz, turbo 2.8GHz/power consumption 6W |
|
| GPU |
Intel® Iris® Xe Graphics 80EU |
Intel® Iris® Xe Graphics 96EU |
| RAM/ROM |
RAM：4GB/8GB(max 16) ROM: 128GB/256GB/512GB |
|
| LCD |
10.1 inch 1920*1080 Max 450nits |
|
| TP |
Supports 10 touch control Supports thin glove touch |
Chip：GT9110 |
| Camera | 5M/8M |
5M/13M optional |
| Battery |
6000mAh，7.6V lithium battery (45.6Wh) |
|
| DC4.0*1.7mm，12V 4A DC input |
Supports Type-C 65W fast charging |
|
| LTE |
4G Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 WCDMA:B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8 |
|
| GPS |
baidou,GPS, glonass |
Model：ZP820P |
| WIFI |
802.11b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5G |
Model：AX201D2W，Integrated Bluetooth support WIFI 6 |
| Bluetooth |
Version 5.2, backward compatibility |
Bluetooth/WIFI 2-in-1 |
| Speaker |
8Ω 1.5W x2 |
|
| Sensor |
1. Light sensor 2. Acceleration sensor 3. Gravity sensor |
|
| Size | 330*205*19.5mm | |
| Weight | 1300g±100g | |
| Multi-media |
Photo Viewer |
BMP, JPG, GIF, PNG |
| Video Format |
MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (max 1080P) |
|
| Audio Format |
MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) |
|
| Language |
multi language |
|
| Interface |
1. DC 12V 3A ∮4.0mm x2 2. HDMI Type A x1,Audio and video output 3. USB Type_A：USB3.2 Gen1 x2 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging) 5. SIM/TF card slot 6. RJ45：Support Gigabit Ethernet 7. Aviation socket x2: RS232 & undefined interface (reserved) 8. Earphone：∮3.5mm headphone jack x1 |
|
| Pogopin |
Bottom 16PIN：USB2.0 x1+RS232 x1+charging |
|
| Button |
V+ -, Power, P, F, H |
P/H is a customizable function key, while F defaults to the scanning key |
| NFC | ISO/IEC14443，ISO/IEC15693，MIFARE | optional |
| Scanner |
honeywell N4680 |
optional |
| UHF | M500 | optional |
| Fingerprint | AFM60 | optional |
|
Customized Items |
Mobile communication: 5G |
|
| Accessories |
1. TYPE-C data cable 2. Adapter (PD protocol) 3. 12V4A DC adapter optional |
|
|
Certification Standards |
1. EU CE, US FCC 2. All materials used must comply with ROHS standards |
|
|
ESD Static Electricity Test |
Air discharge ≤ 6KV, Contact discharge ≤ 4KV |
|
|
High and Low Temperature Testing |
Operate temperature： -10℃ to 50℃ |
|
