RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets
OS: Android 14/ Linux Ubantu 20.04 Dual OS optional, CPU: RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz), RAM Memory: 16GB | 32GB/8GB optional, LCD display: 10.1 inch， resolution 1200*1920，1000 nits, battery: 8000mAh*7.6V smart battery Equel =16000mAh*3.8V, RTC battery: for saving time. Make real time, GPS: Beidou/GPS/GLONASS, NFC: support, in battery

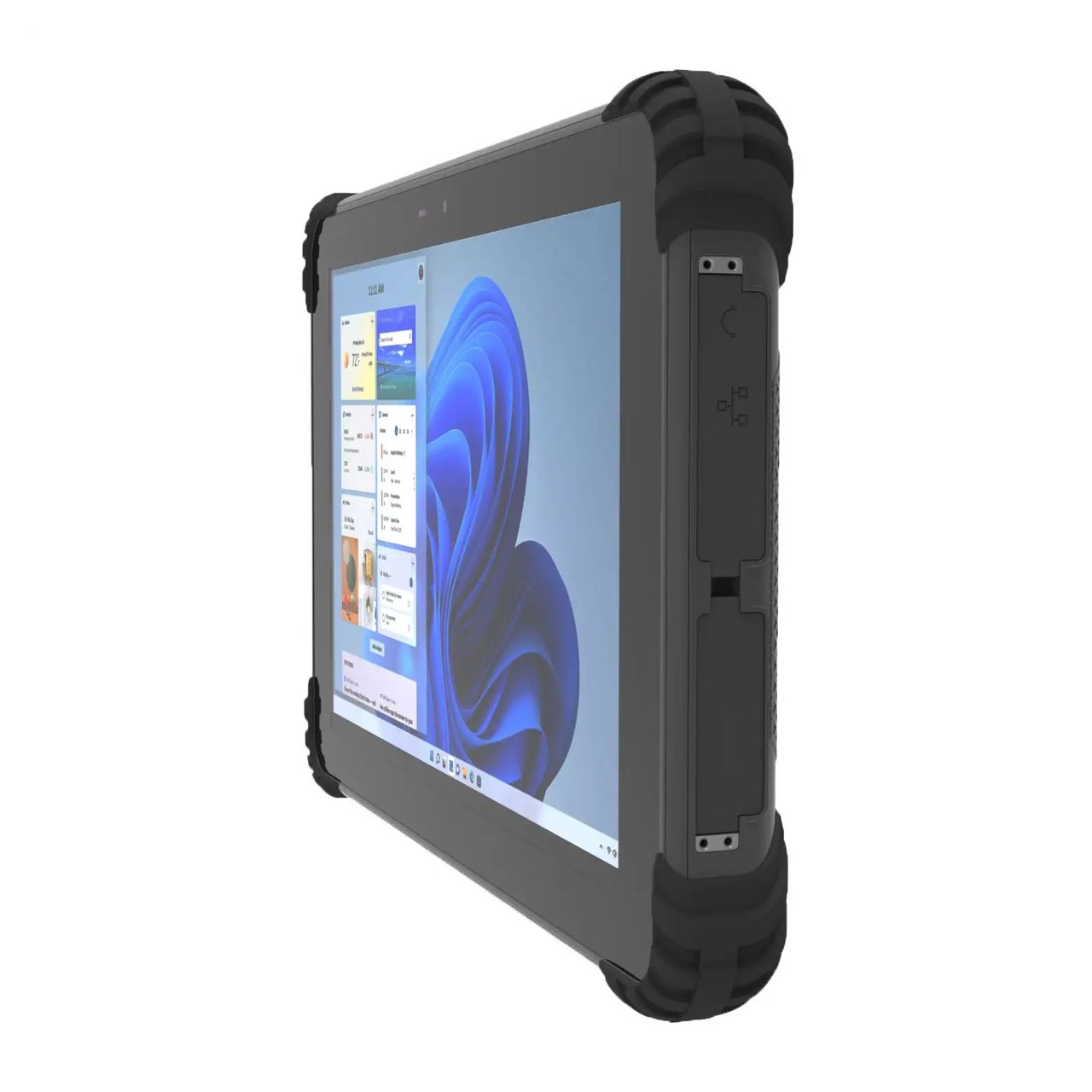

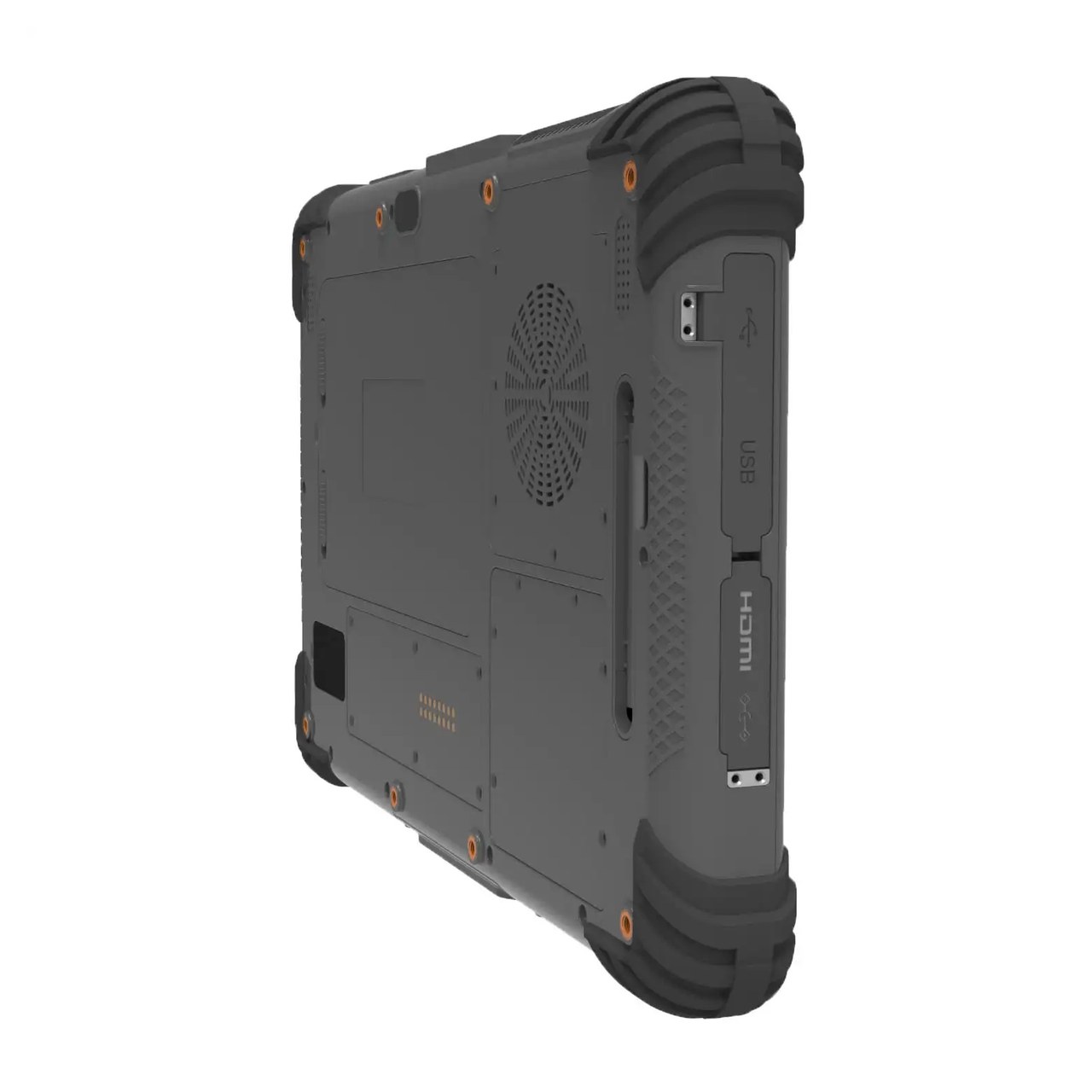

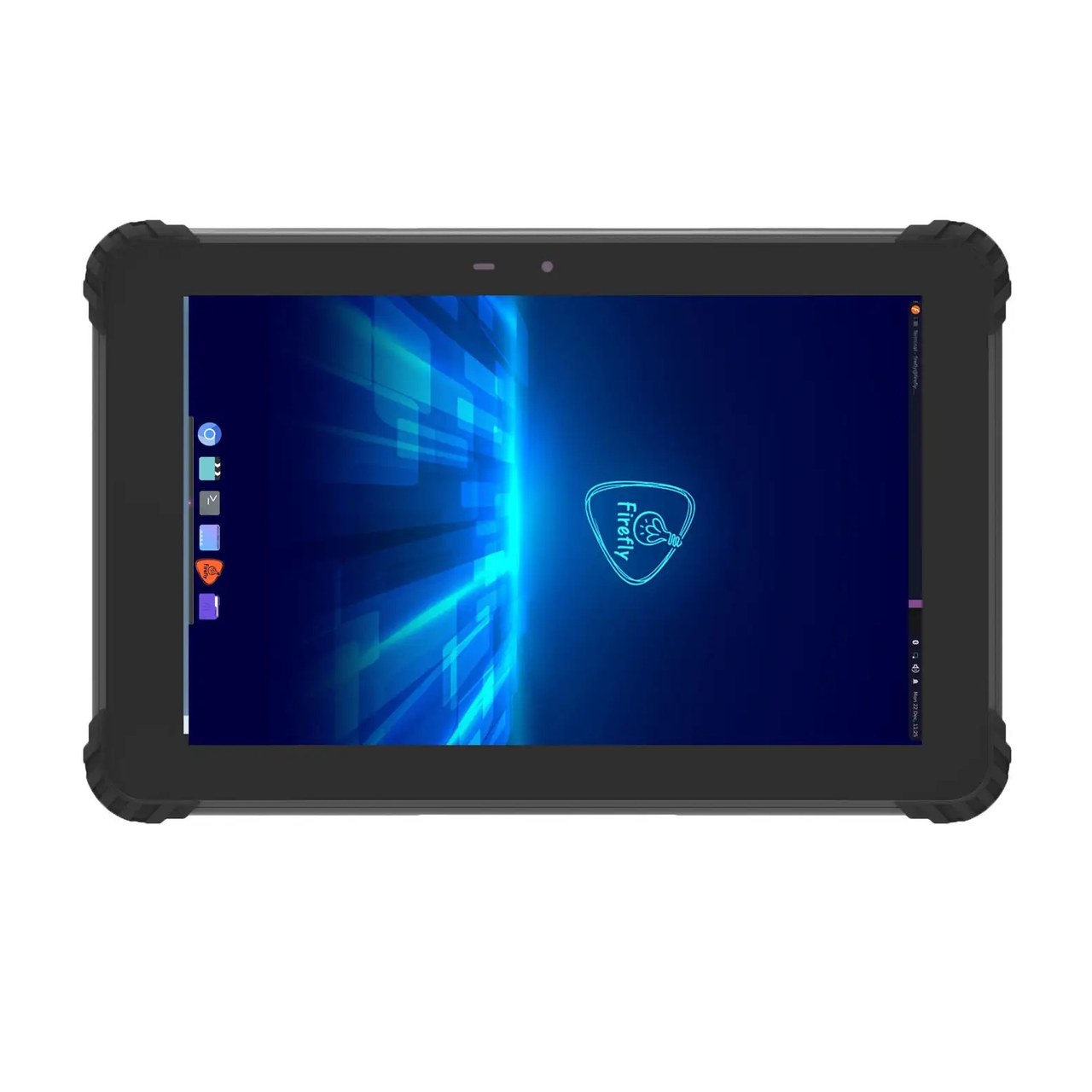

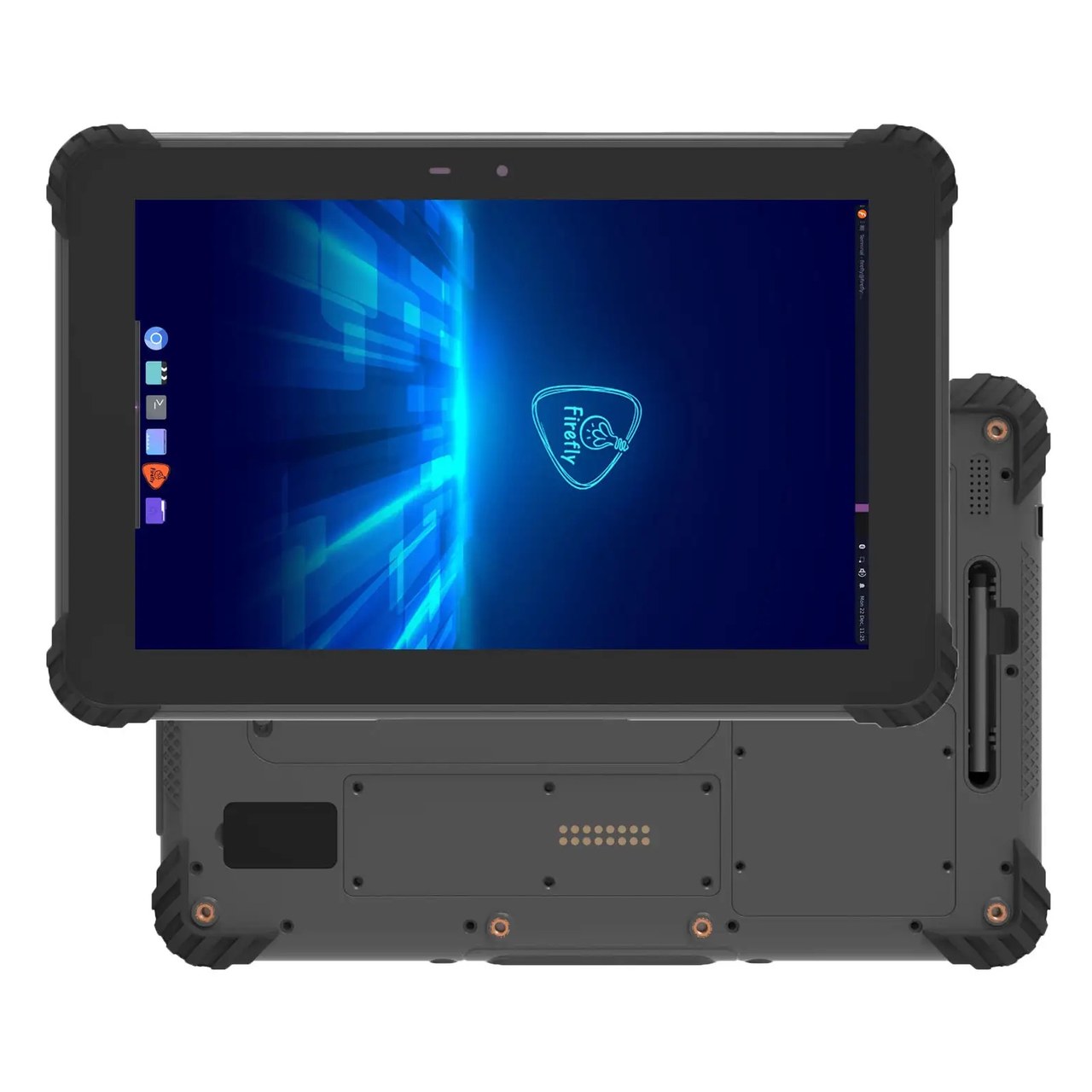

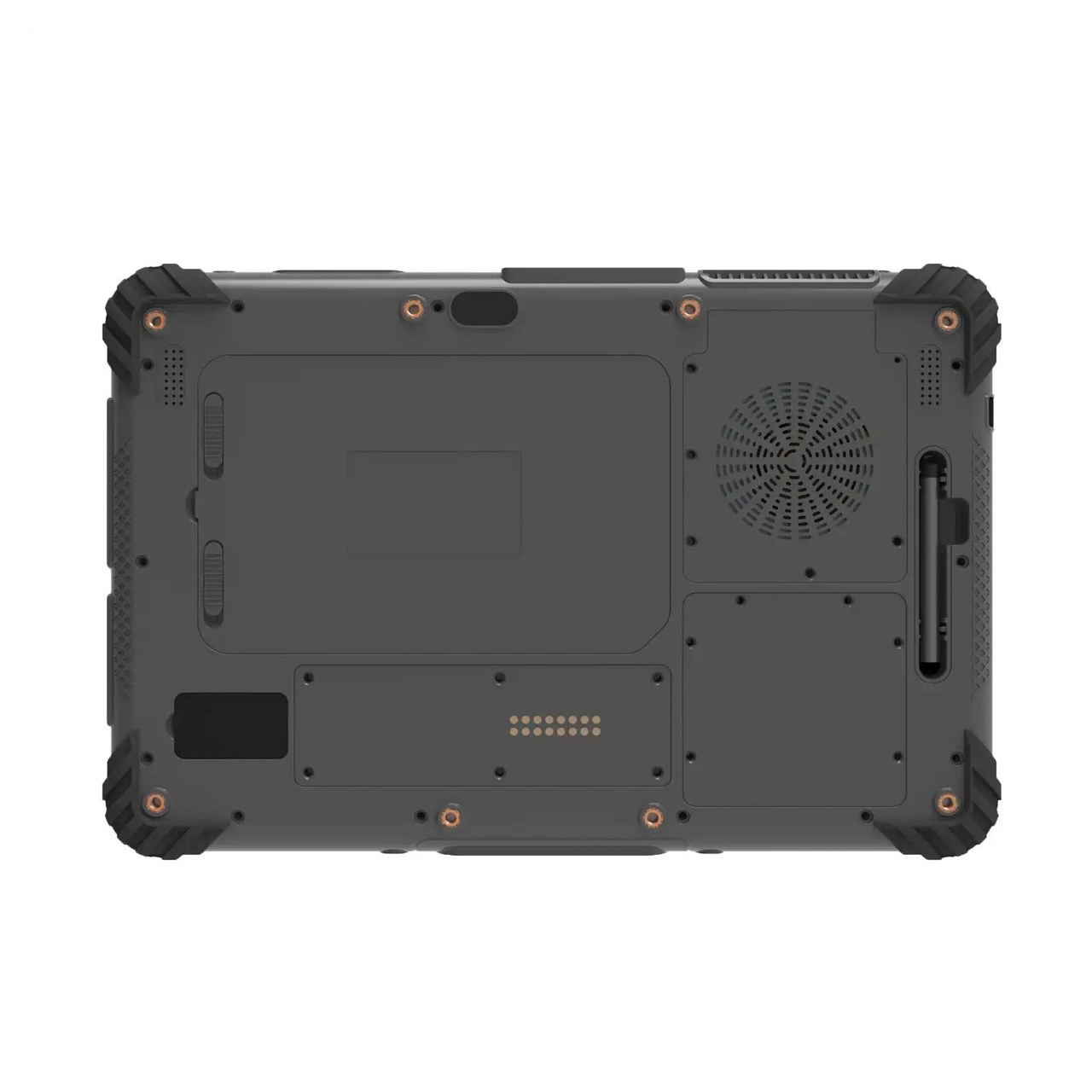

RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets combines OS: Android 14/ Linux Ubantu 20.04 Dual OS optional, CPU: RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz), RAM Memory: 16GB | 32GB/8GB optional. Additional features include LCD display: 10.1 inch， resolution 1200*1920，1000 nits, battery: 8000mAh*7.6V smart battery Equel =16000mAh*3.8V, RTC battery: for saving time. Make real time. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
OS: Android 14/ Linux Ubantu 20.04 Dual OS optional
CPU: RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz)
RAM Memory: 16GB | 32GB/8GB optional
LCD display: 10.1 inch， resolution 1200*1920，1000 nits
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-96A3AD3BAD19.
RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets combines OS: Android 14/ Linux Ubantu 20.04 Dual OS optional, CPU: RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz), RAM Memory: 16GB | 32GB/8GB optional. Additional features include LCD display: 10.1 inch， resolution 1200*1920，1000 nits, battery: 8000mAh*7.6V smart battery Equel =16000mAh*3.8V, RTC battery: for saving time. Make real time. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets features
Product Introduction
Design and technical configuration
The RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets technical information lists the following configuration details.
ITEM: SPECIFICATION | Remark. OS: Android 14/ Linux Ubantu 20.04 Dual OS optional. CPU: RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz). Ethernet LAN RJ45: 2*RJ45,1000Mbps*1, 100Mbps*1 | 1 RJ45 support POE.
RAM Memory: 16GB | 32GB/8GB optional. EMMC: 128GB. SSD: 512GB SSD | 1TB/2TB optional. SPI Nor flash: Nor flash for boot load.
LCD display: 10.1 inch， resolution 1200*1920，1000 nits. Touch panel: 10 point touch panel Panda MN228 cover glass. Camera: Front 8M/Back real 20M. battery: 8000mAh*7.6V smart battery Equel =16000mAh*3.8V.
RTC battery: for saving time. Make real time. charging: TYPE-C，fual function，support 65W DC4.0， 12V Charging. 4G: Meige 770A support calling function and Message. wifi: IEEE 802.ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.g, IEEE 802.n Support WIFI 2.4ГГц, 5ГГц support WiFi 6.0.
GPS: Beidou/GPS/GLONASS. BT: BT5.0 or above. NFC: support, in battery. Interface I/O port: 1. USB Type_c (USB 3.0) with USB OTG support (specify) full function 2. USB-A 3.0 * 2 3. Headphones jack 3.5 mm 4. HDMI（±14*4.6mm full-size）port 5. 1*SIM slot，dual SIM card 6. 1*TF slot 7. mini USB*1 for Uart Sinal 8. RJ45*2,one support POE.
Sensor: Microphone, -Light sensor, -Accelerometer, -Cameras, -Flashlight -Compass.. Finger print: support optional. Identity Module: support optional. UHF: support optional.
Configuration and compatibility
Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.
RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets specifications
RUGGEDMASTER catalog model: RM-SC-96A3AD3BAD19
| RUGGEDMASTER RM-SC-96A3AD3BAD19 Rugged Tablets technical specifications | ||
|---|---|---|
| ITEM | SPECIFICATION | Remark |
| OS |
Android 14/ Linux Ubantu 20.04 Dual OS optional |
Android 14/ Linux Ubantu 20.04 Dual OS optional |
| CPU |
RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz) |
|
|
Ethernet LAN RJ45 |
2*RJ45,1000Mbps*1, 100Mbps*1 | 1 RJ45 support POE |
| RAM Memory | 16GB | 32GB/8GB optional |
| EMMC | 128GB | |
| SSD | 512GB SSD | 1TB/2TB optional |
| SPI Nor flash | Nor flash for boot load | |
| LCD display |
10.1 inch， resolution 1200*1920，1000 nits |
|
| Touch panel |
10 point touch panel Panda MN228 cover glass |
|
| Camera |
Front 8M/Back real 20M |
|
| battery |
8000mAh*7.6V smart battery Equel =16000mAh*3.8V |
|
| RTC battery |
for saving time. Make real time |
|
| charging |
TYPE-C，fual function，support 65W DC4.0， 12V Charging |
|
| 4G |
Meige 770A support calling function and Message |
|
| wifi |
IEEE 802.ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.g, IEEE 802.n Support WIFI 2.4ГГц, 5ГГц support WiFi 6.0 |
|
| GPS | Beidou/GPS/GLONASS | |
| BT |
BT5.0 or above |
|
| NFC |
support, in battery |
|
|
Interface I/O port |
1. USB Type_c (USB 3.0) with USB OTG support (specify) full function 2. USB-A 3.0 * 2 3. Headphones jack 3.5 mm 4. HDMI（±14*4.6mm full-size）port 5. 1*SIM slot，dual SIM card 6. 1*TF slot 7. mini USB*1 for Uart Sinal 8. RJ45*2,one support POE |
|
| Sensor |
Microphone, -Light sensor, -Accelerometer, -Cameras, -Flashlight -Compass. |
|
| Finger print |
support optional |
|
|
Identity Module |
support optional |
|
| UHF |
support optional |
|
| 2D barcode |
support optional |
|
|
high precision GPS |
support optional |
|
| Stylus pen |
in the tablet |
|
| pogopin |
16*pin pogopin on the bottom |
|
| Flash light | support | |
| water proof | IP66 | |
| Temperature |
working -20 to 55 Storage: -25 to 70 |
|
| Droping proof | 1.2 meter | |
