RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets
Pogopin definition “1.12 pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input， ” casing material ABS/PC button V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3, “1. USB cable optional, OS: windows 10 home/pro/iot, CPU: intel cherry trail Z8350, RAM/ROM: 4GB/64GB, LCD: 5.5 inch1080X1920 1080X1920 IPS Screen MIPI 30Pin, Touch screen: 5 point touch,, Power and battery: battery capacity 5000mAh 3.8V 5000mah
RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets combines Pogopin definition “1.12 pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input， ” casing material ABS/PC button V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3, “1. USB cable optional, OS: windows 10 home/pro/iot. Additional features include CPU: intel cherry trail Z8350, RAM/ROM: 4GB/64GB, LCD: 5.5 inch1080X1920 1080X1920 IPS Screen MIPI 30Pin. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
Pogopin definition “1.12 pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input， ” casing material ABS/PC button V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3
“1. USB cable optional
OS: windows 10 home/pro/iot
CPU: intel cherry trail Z8350
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-77F1337528BA.
RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets combines Pogopin definition “1.12 pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input， ” casing material ABS/PC button V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3, “1. USB cable optional, OS: windows 10 home/pro/iot. Additional features include CPU: intel cherry trail Z8350, RAM/ROM: 4GB/64GB, LCD: 5.5 inch1080X1920 1080X1920 IPS Screen MIPI 30Pin. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets features
Product Introduction
ITEM DESCRIPTION detail Remark OS windows 10 home/pro/iot CPU intel cherry trail Z8350 RAM/ROM 4GB/64GB LCD 5.5 inch1080X1920 1080X1920 IPS Screen MIPI 30Pin Touch screen 5 point touch, Camera 200M+500M MIPI/5MP（OV5648） Power and battery battery capacity 5000mAh 3.8V 5000mah
———————————————————————————————————————————————– WWAN 4G LTE, 3G WCDMA, GSM “LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8” quectel EG91 GPS baidou,GPS, glonass u-blox-M8030 wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G Intel Stone Peak3165 802.11ac 1×1+BT4.0 BLUETOOTH 4.0 version NFC 13.56 MHz, distance 5cm or above support ISO14443 TYPE A standard/Mifare optional
———————————————————————————————————————————————– SPEAKER 1.0 watt Sensor “1. light sensor 2. compass 3. baroceptor” size 180*87*21.5mm weight 0.35kg “Multi-media (Hardware decoding)” Photo Viewer BMP, JPG, GIF, PNG Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) language 语言 multi language

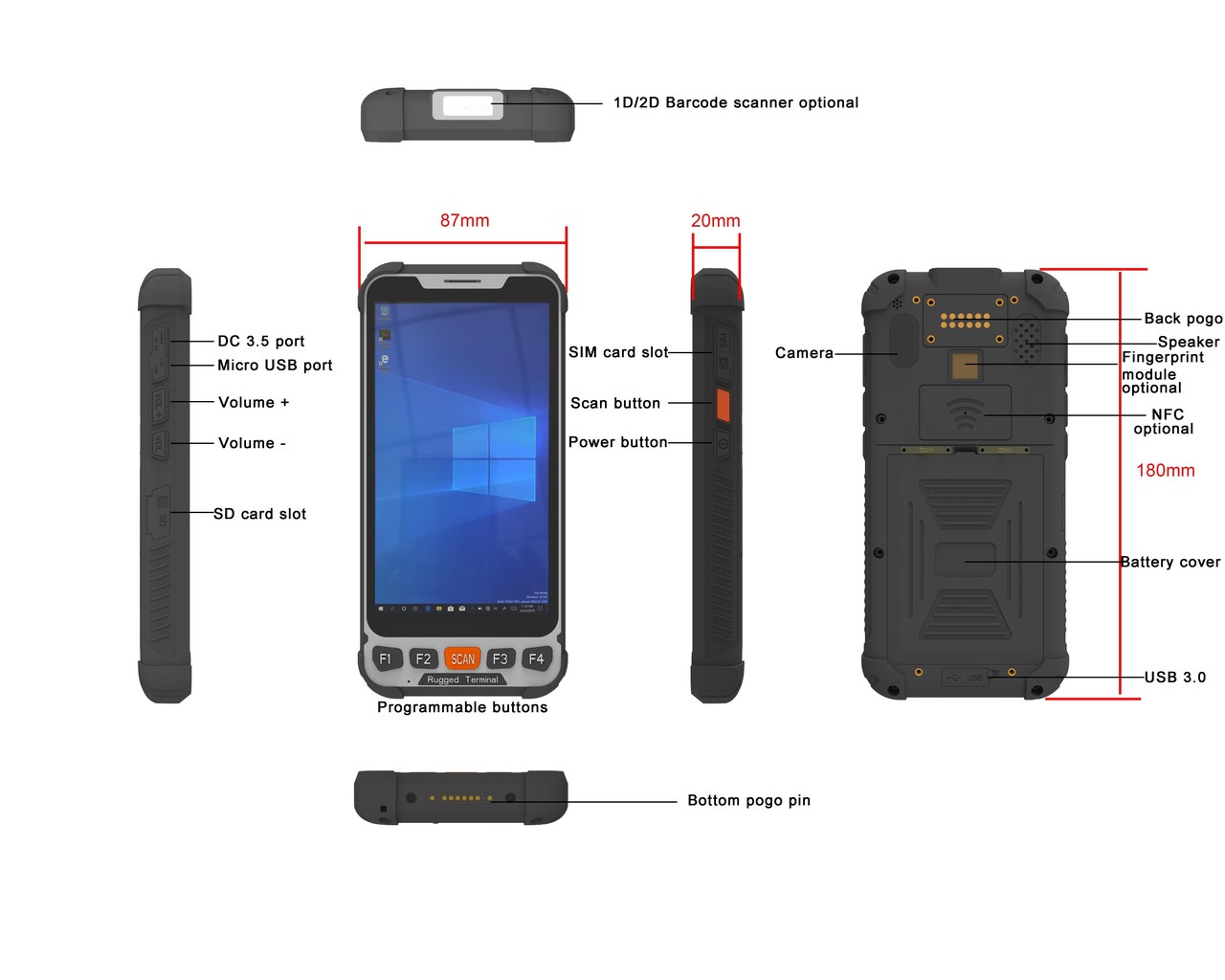

———————————————————————————————————————————————– “interface in/out port” “1.micro USB*1 otg 2. bottom pogopin*1, USB*1+RS232*1 3. back pogopin*1 USB*1+TTL*1 4. microphone 5. DC 3.5*1.35mm 6. USB 3.0 7. TF support to 128G
Pogopin definition “1.12 pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input， ” casing material ABS/PC button V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3
———————————————————————————————————————————————– 2D barcode module “honeywell N3680 RAKINDA LV3296” optional UHF M500, distance 3-6 meter optional
———————————————————————————————————————————————– accessories
“1. USB cable optional
2. charger 3. handstrap 4. car holder optional 5. docking station optional 6. car charger optional 7. white box, no logo” proof rate “1. water proof IP67 2. Drapping proof 1.2 meter” Certification “1. 810G 2. CE,FCC” Temperature “1. storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree “
RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets specifications
| RUGGEDMASTER catalog model | RM-SC-77F1337528BA |
|---|---|
| RUGGEDMASTER RM-SC-77F1337528BA Rugged Tablets technical specifications | |
| OS | windows 10 home/pro/iot |
| CPU | intel cherry trail Z8350 |
| RAM/ROM | 4GB/64GB |
| LCD | 5.5 inch1080X1920 1080X1920 IPS Screen MIPI 30Pin |
| Touch screen | 5 point touch, |
| Camera | 200M+500M MIPI/5MP（OV5648） |
| Power and battery | battery capacity 5000mAh 3.8V 5000mah |
| WWAN | 4G LTE, 3G WCDMA, GSM "LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8" quectel EG91 |
| GPS | baidou,GPS, glonass u-blox-M8030 |
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G Intel Stone Peak3165 802.11ac 1x1+BT4.0 |
| BLUETOOTH | 4.0 version |
| NFC | 13.56 MHz, distance 5cm or above support ISO14443 TYPE A standard/Mifare optional |
| SPEAKER | 1.0 watt |
| Sensor | 1. light sensor 2. compass 3. baroceptor |
| size | 180*87*21.5mm |
| weight | 0.35kg Multi-media (Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) |
| language | 语言 multi language interface in/out port" "1.micro USB*1 otg 2. bottom pogopin*1, USB*1+RS232*1 3. back pogopin*1 USB*1+TTL*1 4. microphone 5. DC 3.5*1.35mm 6. USB 3.0 7. TF support to 128G |
| Pogopin definition | 1.12 pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input， |
| casing material | ABS/PC |
| button | V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3 |
| 2D barcode module | honeywell N3680 RAKINDA LV3296" optional |
| UHF | M500, distance 3-6 meter optional accessories 1. USB cable optional 2. charger 3. handstrap 4. car holder optional 5. docking station optional 6. car charger optional 7. white box, no logo proof rate "1. water proof IP67 2. Drapping proof 1.2 meter |
| Certification | 1. 810G 2. CE,FCC |
| Temperature | 1. storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
