RUGGEDMASTER RM-SC-4748E5D50F3A Handheld Terminals

RUGGEDMASTER RM-SC-4748E5D50F3A Handheld Terminals

RUGGEDMASTER catalog model: RM-SC-4748E5D50F3A.

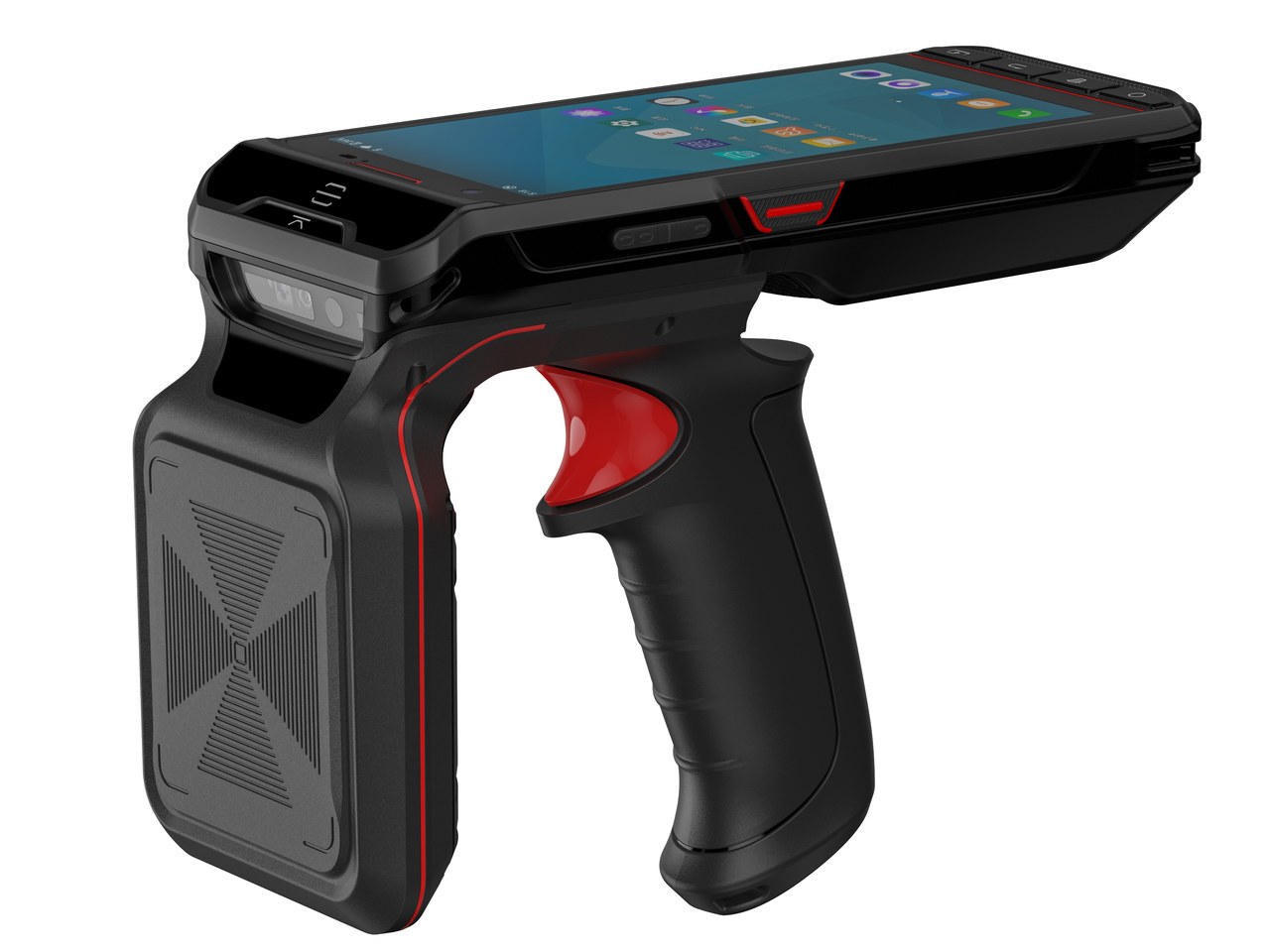

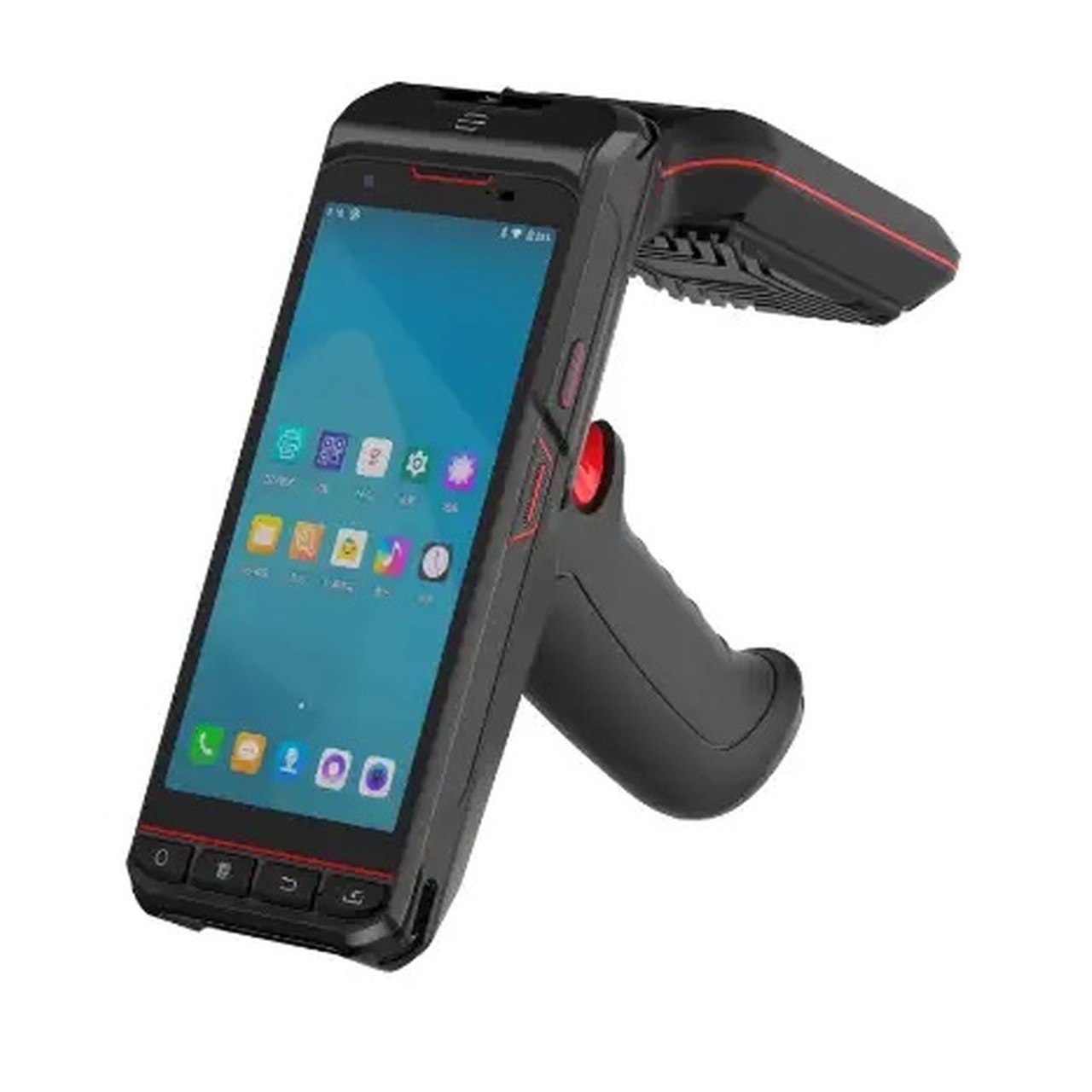

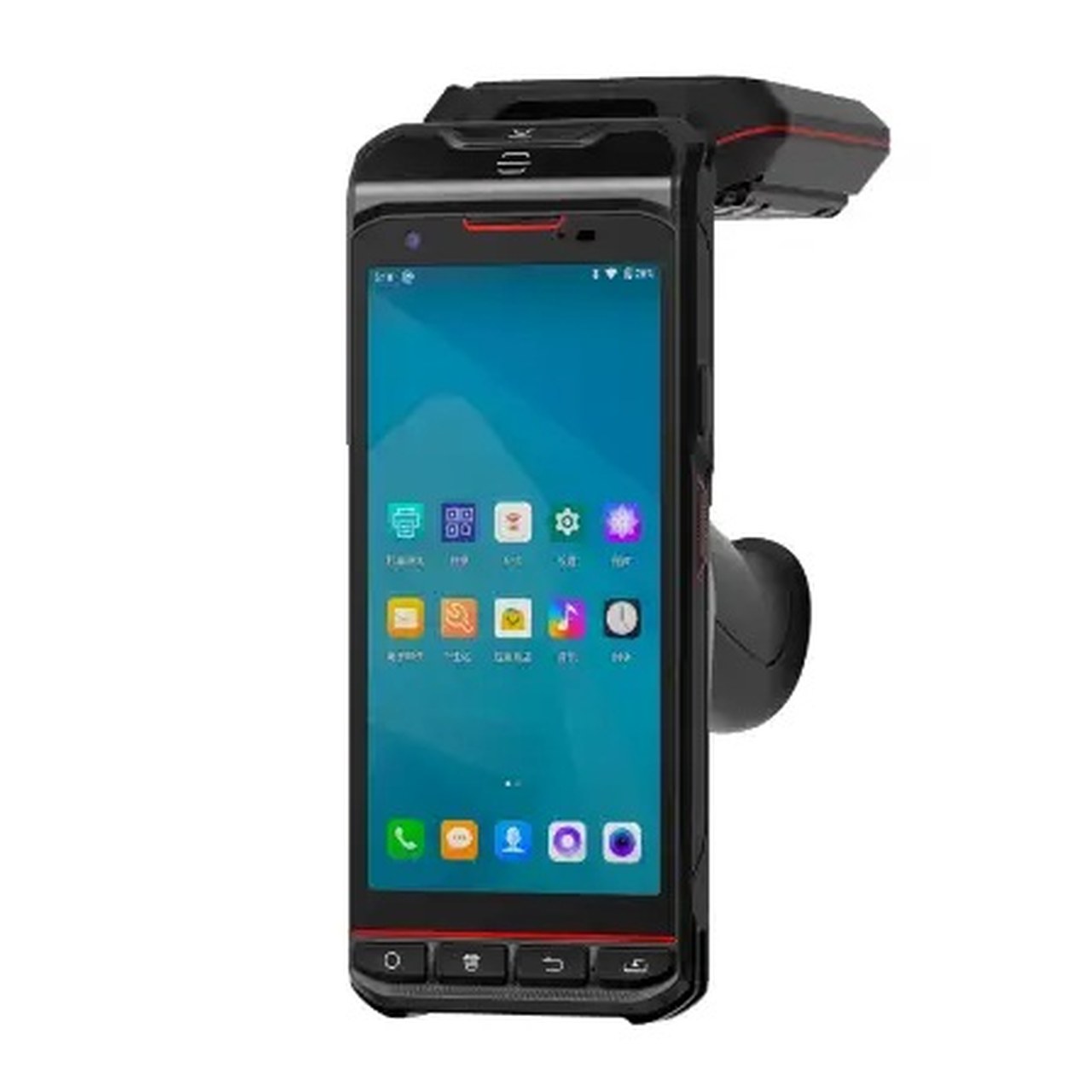

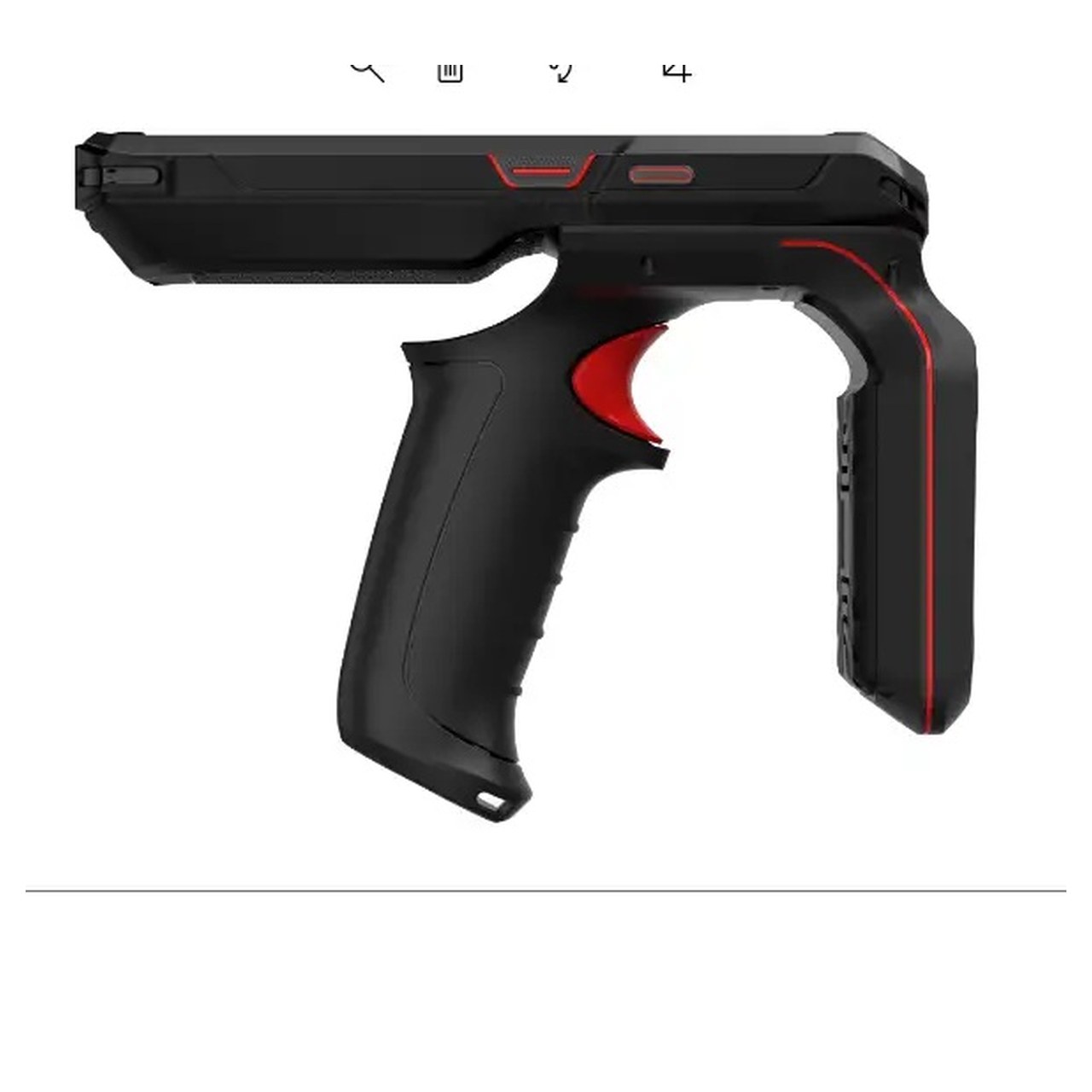

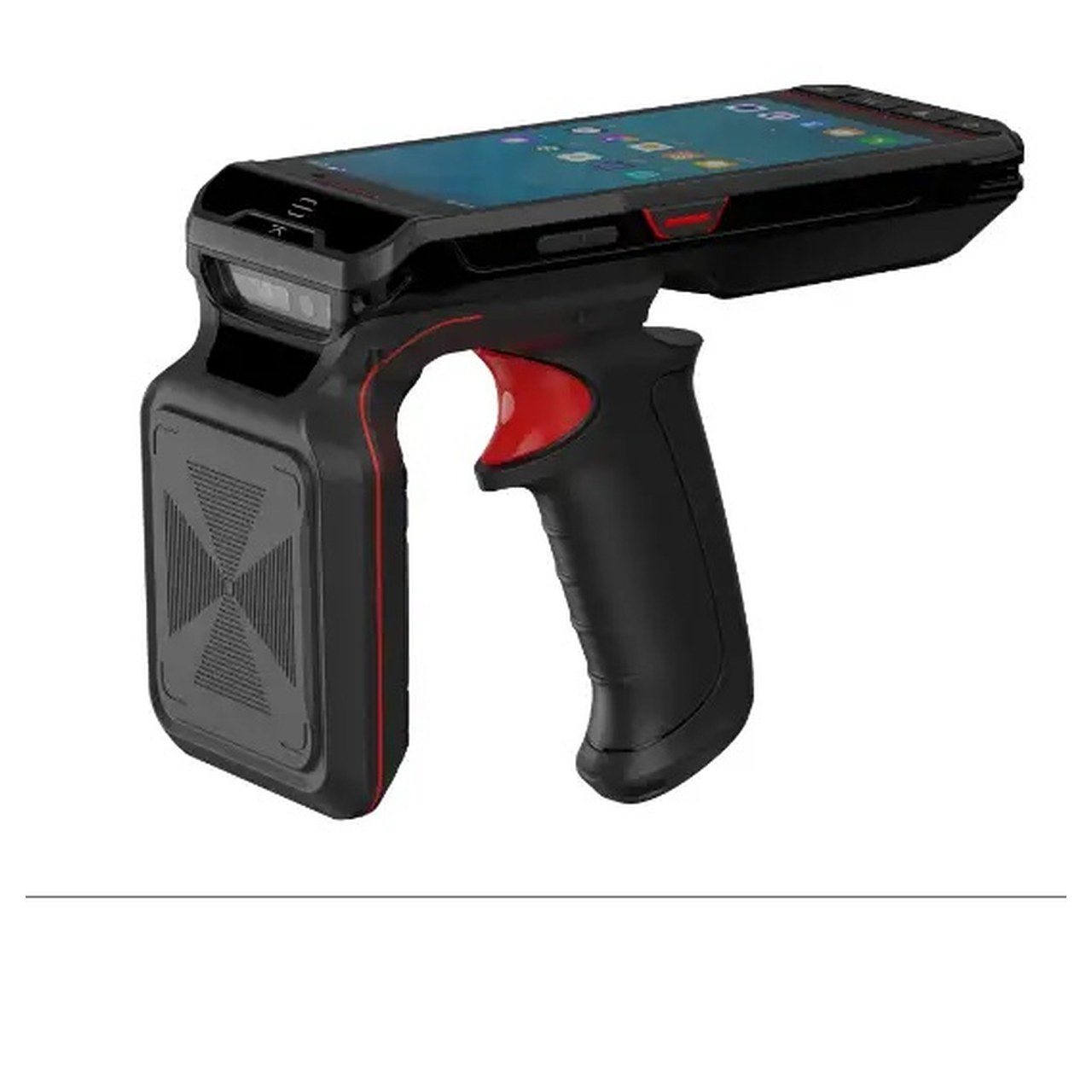

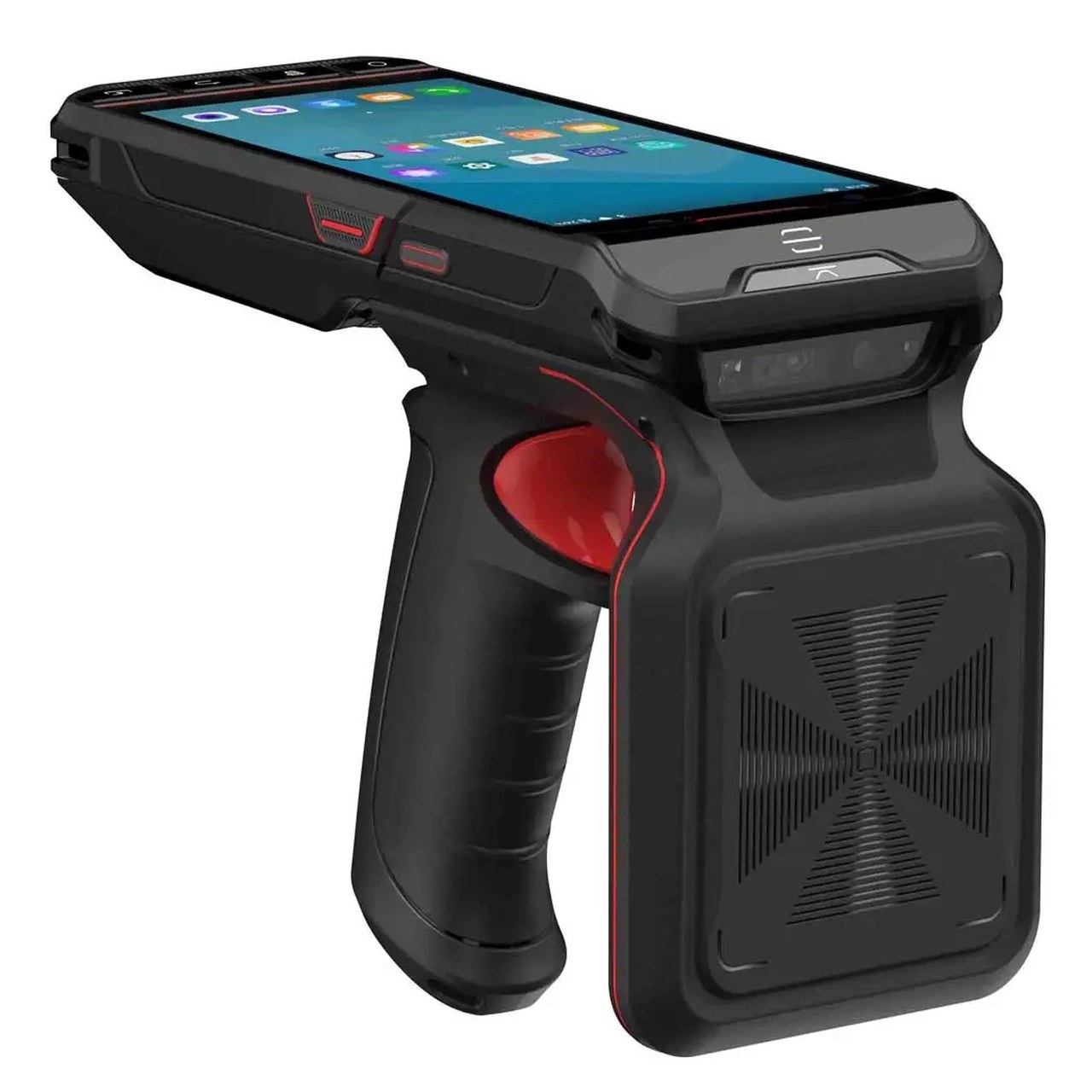

RUGGEDMASTER RM-SC-4748E5D50F3A Handheld Terminals combines CPU: MT6762 Octa core 64 bit 2.0 GHz high performance processor, RAM+ROM: 2GB+16GB / 4GB+64GB, Expand memory: Micro SD(TF) Supports up to 256GB. Additional features include Bluetooth: Support Bluetooth 5.0+BLE Transmission distance 5-10 meters, Display: 5.5 “color display with resolution 720×1440, Screen brightness: ＞500cd/m2. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.

RUGGEDMASTER RM-SC-4748E5D50F3A Handheld Terminals features

Product Introduction

Design and technical configuration

The RUGGEDMASTER RM-SC-4748E5D50F3A Handheld Terminals technical information lists the following configuration details.

CPU: MT6762 Octa core 64 bit 2.0 GHz high performance processor. RAM+ROM: 2GB+16GB / 4GB+64GB. Expand memory: Micro SD(TF) Supports up to 256GB. System: Android 10.0/ Android 13.0.

WLAN: Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol. WWAN: 2G：GSM（850/900/1800/1900MHz）. WWAN: 3G：WCDMA（850/900/1900/2100MHz）. WWAN: 4G：FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41.

Bluetooth: Support Bluetooth 5.0+BLE Transmission distance 5-10 meters. GNSS: Support Gps, Galileo, Glonass, Beidou. Dimensions: 179mm×74.5mm×150mm（Including the handle）. Weight: ＜750g (Depends on device function configuration）.

Display: 5.5 “color display with resolution 720×1440. Screen brightness: ＞500cd/m2. TP: support multi-touch. Battery capacity: Rechargeable polymer battery 7.6V 4000mAh (Equal to 3.8V 8000mAh) ,removable.

Battery capacity: Standby time >350 hours. Battery capacity: Charging time ＜3H, using standard power adapter and data cable. Expansion Card slot: NANO SIM card x1、TF card x1（Optional PSAMx2）、POGO Pinx1. Communication interface: Type-C 2.0 USB x 1, supporting OTG function.

Speaker volume: ＞92db (test distance 10cm). Audio: Speaker (mono), Microphone,Receiver. Main keys: Home key, Delete key, Back key,Confirm key. Side keys: Silicone keys: Power key, Volume +/- key, Handle scan key,Scan key ×2.

Configuration and compatibility

Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.

Preparing a deployment enquiry

To compare this handheld terminals configuration with your existing equipment, start with the tasks your team performs and the software it uses. Check the operating system and application requirements against the listed processor, memory and storage. For connected workflows, compare the specified communication methods and interfaces with your network and peripherals. If scanning or identification is part of the job, identify the barcode types or card standards required before choosing optional hardware. Review the source photos alongside the dimensions to assess handling, mounting and access to connections. Include these requirements with your requested quantity so the proposed configuration can be checked before supply. Listed options need confirmation; the gallery may illustrate several configurations.

RUGGEDMASTER RM-SC-4748E5D50F3A Handheld Terminals wholesale enquiries

Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-4748E5D50F3A Handheld Terminals. Browse our industrial handhelds to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
