Description

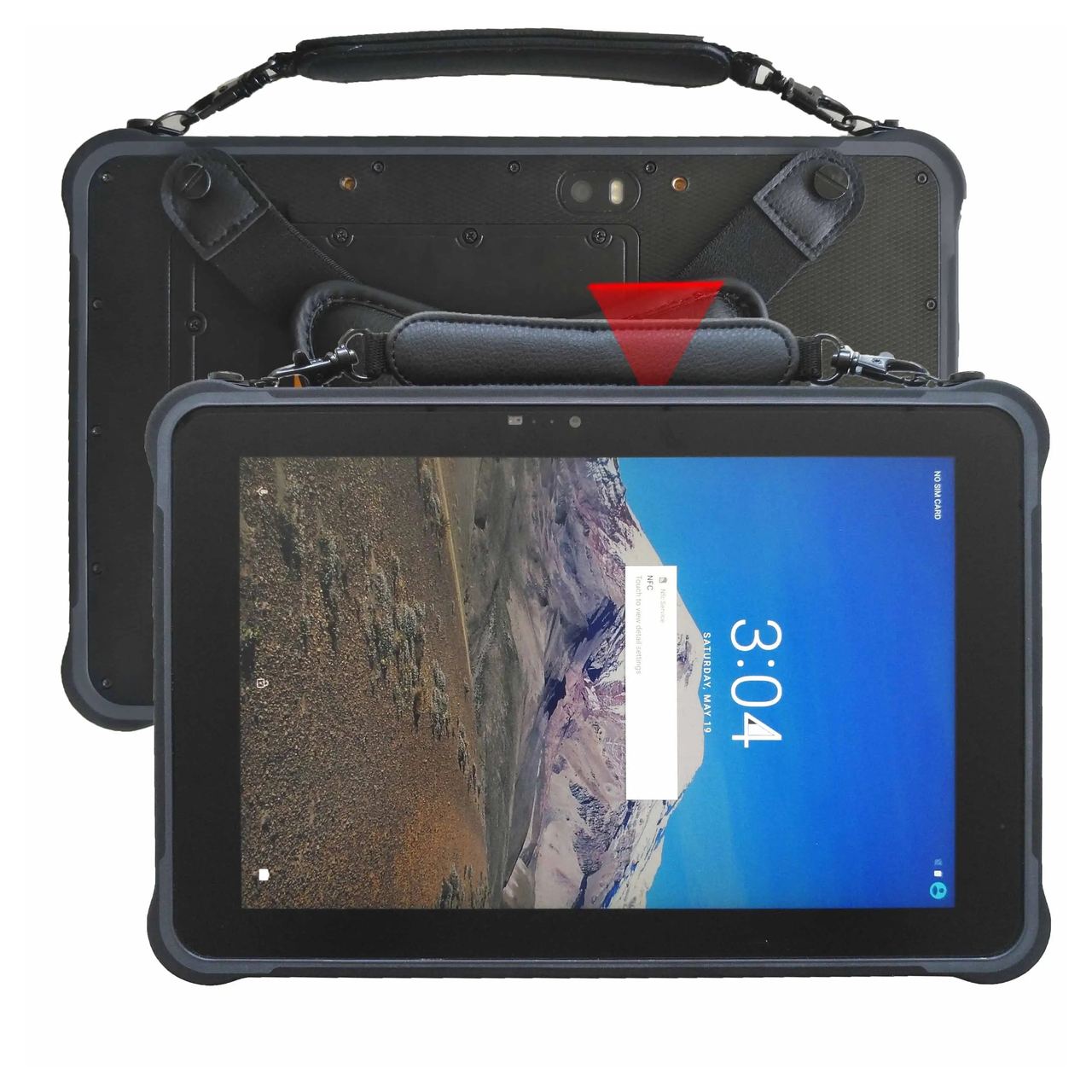

RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-421FF1E7BF80.
RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets combines OS: android 7.0, CPU: MT6735 Quad-core ARM® Cortex-A53 MPCoreTM operating at 1.3GHz Optional MT6753, Octa-core ARM® Cortex-A53 MPCoreTM operating at 1.3GHz, RAM/ROM: 3GB/32GB. Additional features include LCD: 10.1 inch1920*1200； | 500 nits sunshine readable, Touch screen: 10 point touch support tylus support thin glove touch, Power and battery: 3.5*1.35mm, 5V 3A DC in put | Magnetic charger. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets features
Product Introduction
Design and technical configuration
The RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets technical information lists the following configuration details.
OS: android 7.0. CPU: MT6735 Quad-core ARM® Cortex-A53 MPCoreTM operating at 1.3GHz Optional MT6753, Octa-core ARM® Cortex-A53 MPCoreTM operating at 1.3GHz. RAM/ROM: 3GB/32GB. LCD: 10.1 inch1920*1200； | 500 nits sunshine readable.
Touch screen: 10 point touch support tylus support thin glove touch. Camera: 5M/13M, flash. Power and battery: battery total capacity 10500mAh play video 8 hours, working 10 hours charging 4 hours. | 8400mAh,hotswap, 2100mAh backup power 3.8V 3A imput, support hotswap play video 8 hours, working 10 hours charging 4 hours.. Power and battery: 3.5*1.35mm, 5V 3A DC in put | Magnetic charger.
WWAN: 4G LTE, 3G WCDMA, GSM | 4G Fre: FDD: B1,B2, B3,B5, B7, B8, B12， B20 TDD: B38,B39,B40,B41 B34 WCDMA:B1, B8 TD-SCDMA: B34, B39 GSM/GPRS/EDGE. GPS: baidou,GPS, glonass. wifi: 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G. BLUETOOTH: 4.0 version.
NFC: 13.56 MHz, distance 5cm or above. SPEAKER: 1.5 watt. Sensor: 1. light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor. size: 275*178*18mm.
Multi-media (Hardware decoding): Photo Viewer | BMP, JPG, GIF, PNG. Multi-media (Hardware decoding): Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P). Multi-media (Hardware decoding): Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license). interface in/out port: 1. normal USB*1 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. mini HDMI 9.RS232*1.
Pogopin definition: 1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， ) VESA hole 75*75mm or 90*90mm. casing material: ABS/PC/Rubber TPU/aluminum. button: V+ -, Power, P, F, H. 2D barcode module: honeywell N3680 | optional.
RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets specifications
RUGGEDMASTER catalog model: RM-SC-421FF1E7BF80
| RUGGEDMASTER RM-SC-421FF1E7BF80 Rugged Tablets technical specifications | ||
|---|---|---|
| OS | android 7.0 | |
| CPU |
MT6735 Quad-core ARM® Cortex-A53 MPCoreTM operating at 1.3GHz Optional MT6753, Octa-core ARM® Cortex-A53 MPCoreTM operating at 1.3GHz |
|
| RAM/ROM | 3GB/32GB | |
| LCD |
10.1 inch1920*1200； |
500 nits sunshine readable |
| Touch screen |
10 point touch support tylus support thin glove touch |
|
| Camera |
5M/13M, flash |
5M/13M, flash |
| Power and battery |
battery total capacity 10500mAh play video 8 hours, working 10 hours charging 4 hours. |
8400mAh,hotswap, 2100mAh backup power 3.8V 3A imput, support hotswap play video 8 hours, working 10 hours charging 4 hours. |
| 3.5*1.35mm, 5V 3A DC in put |
Magnetic charger |
|
| WWAN |
4G LTE, 3G WCDMA, GSM |
4G Fre: FDD: B1,B2, B3,B5, B7, B8, B12， B20 TDD: B38,B39,B40,B41 B34 WCDMA:B1, B8 TD-SCDMA: B34, B39 GSM/GPRS/EDGE |
| GPS |
baidou,GPS, glonass |
|
| wifi |
802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G |
|
| BLUETOOTH |
4.0 version |
|
| NFC |
13.56 MHz, distance 5cm or above |
|
| SPEAKER |
1.5 watt |
|
| Sensor |
1. light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor |
|
| size | 275*178*18mm | |
|
Multi-media (Hardware decoding) |
Photo Viewer |
BMP, JPG, GIF, PNG |
| Video Format |
MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) |
|
| Audio Format |
MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) |
|
| language |
multi language |
|
|

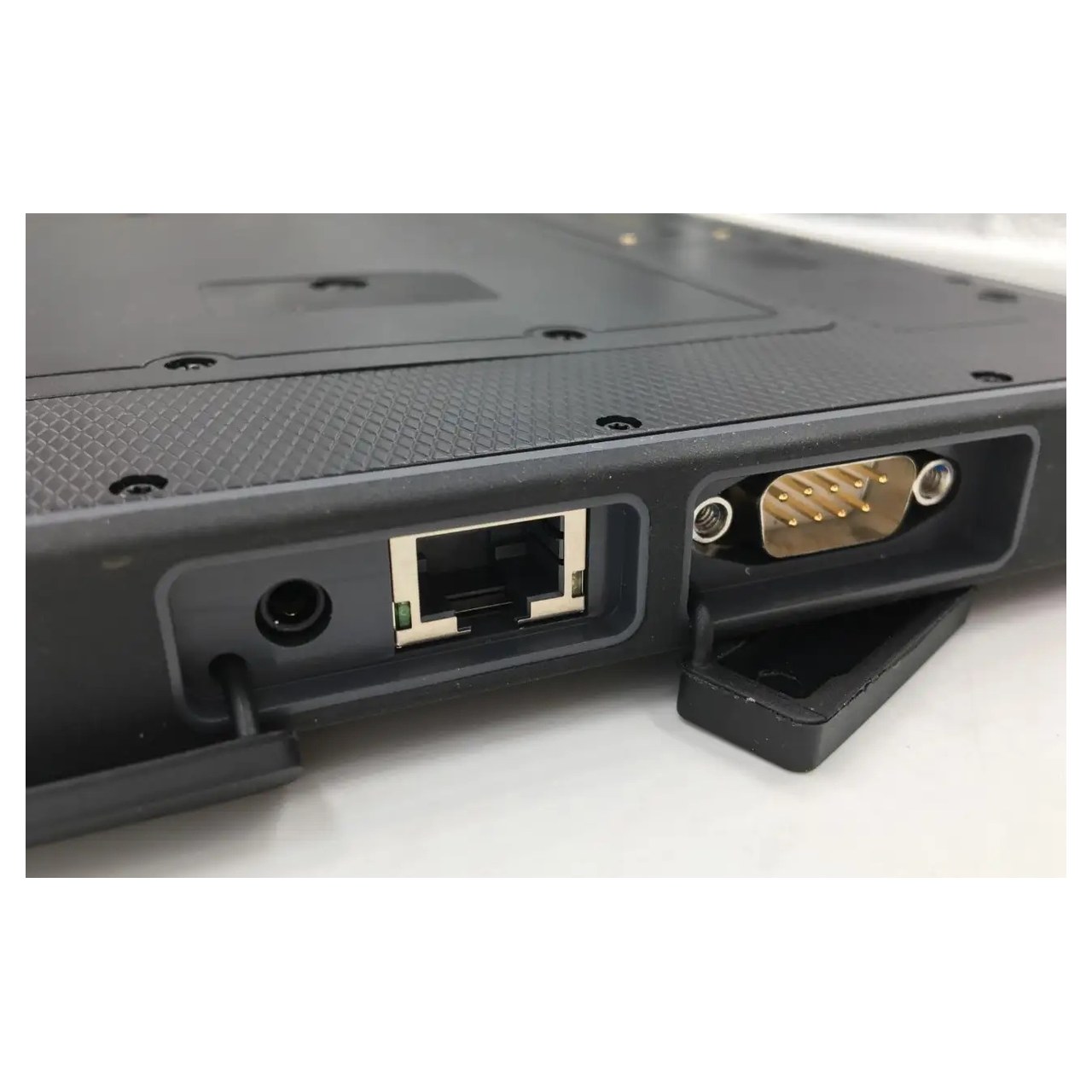

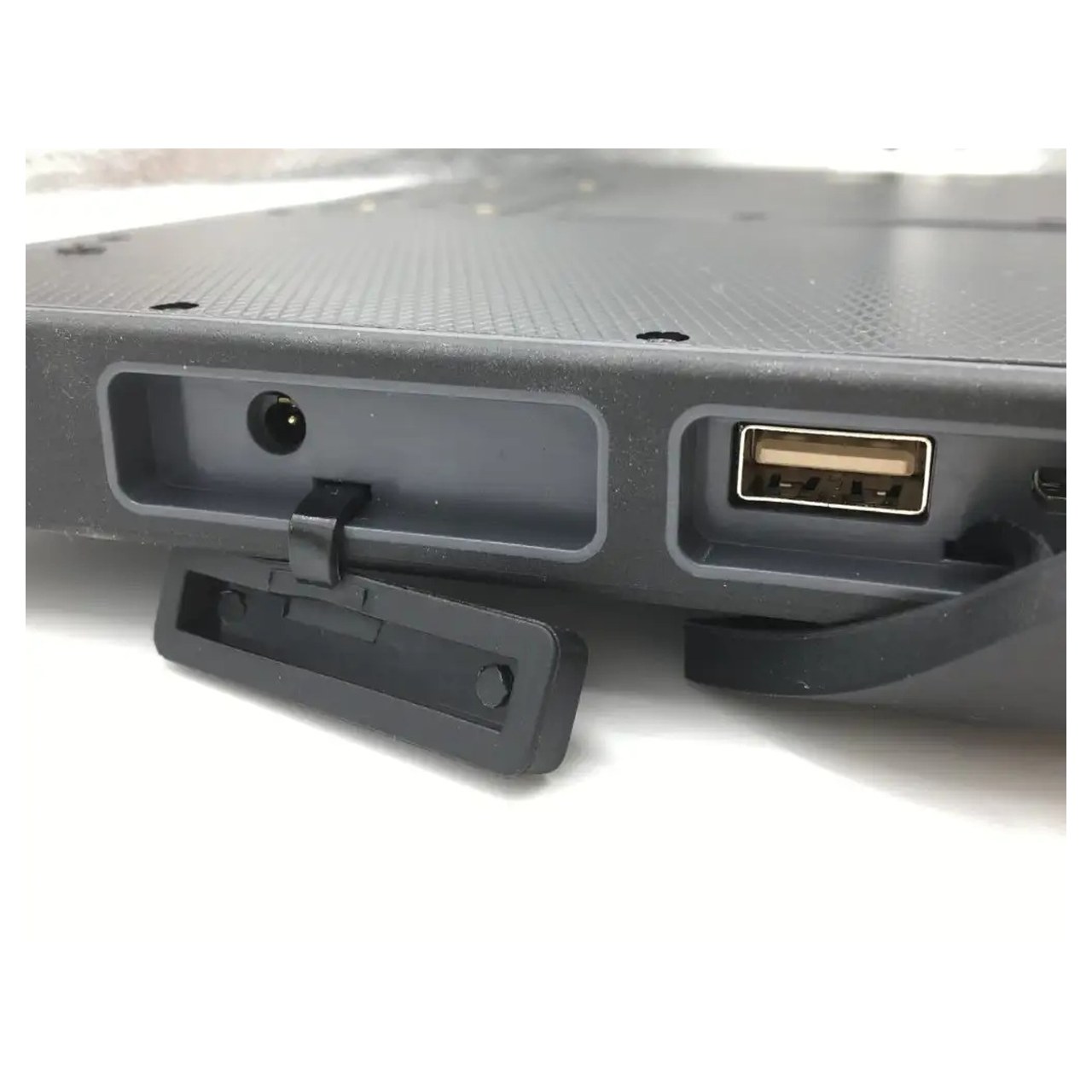

interface in/out port |
1. normal USB*1 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. mini HDMI 9.RS232*1 |
|
|

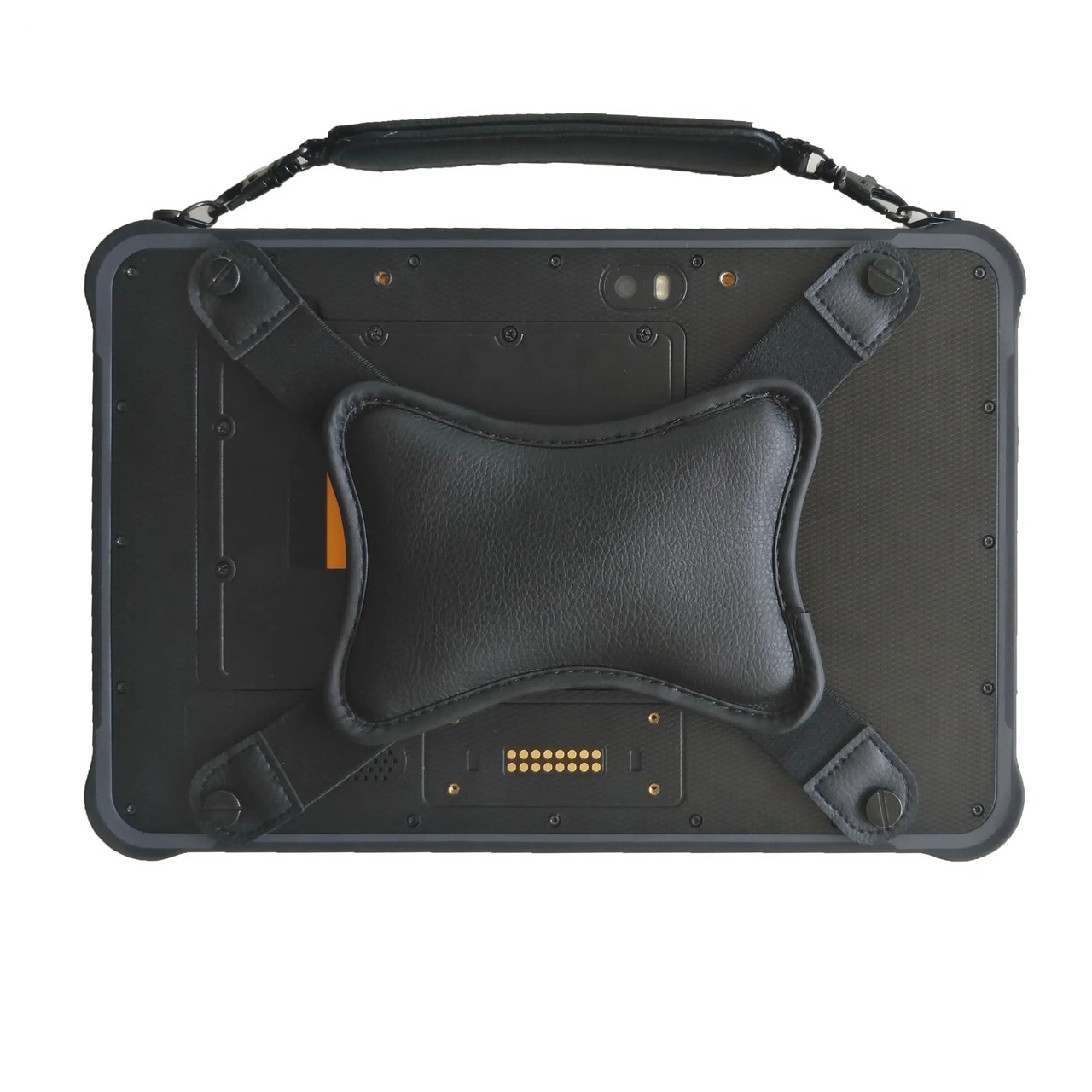

Pogopin definition |
1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， ) VESA hole 75*75mm or 90*90mm |
|
|
casing material |
ABS/PC/Rubber TPU/aluminum |
|
| button |
V+ -, Power, P, F, H |
|
|
2D barcode module |
honeywell N3680 |
optional |
|
fingerprint module |
LD-8800-M | optional |

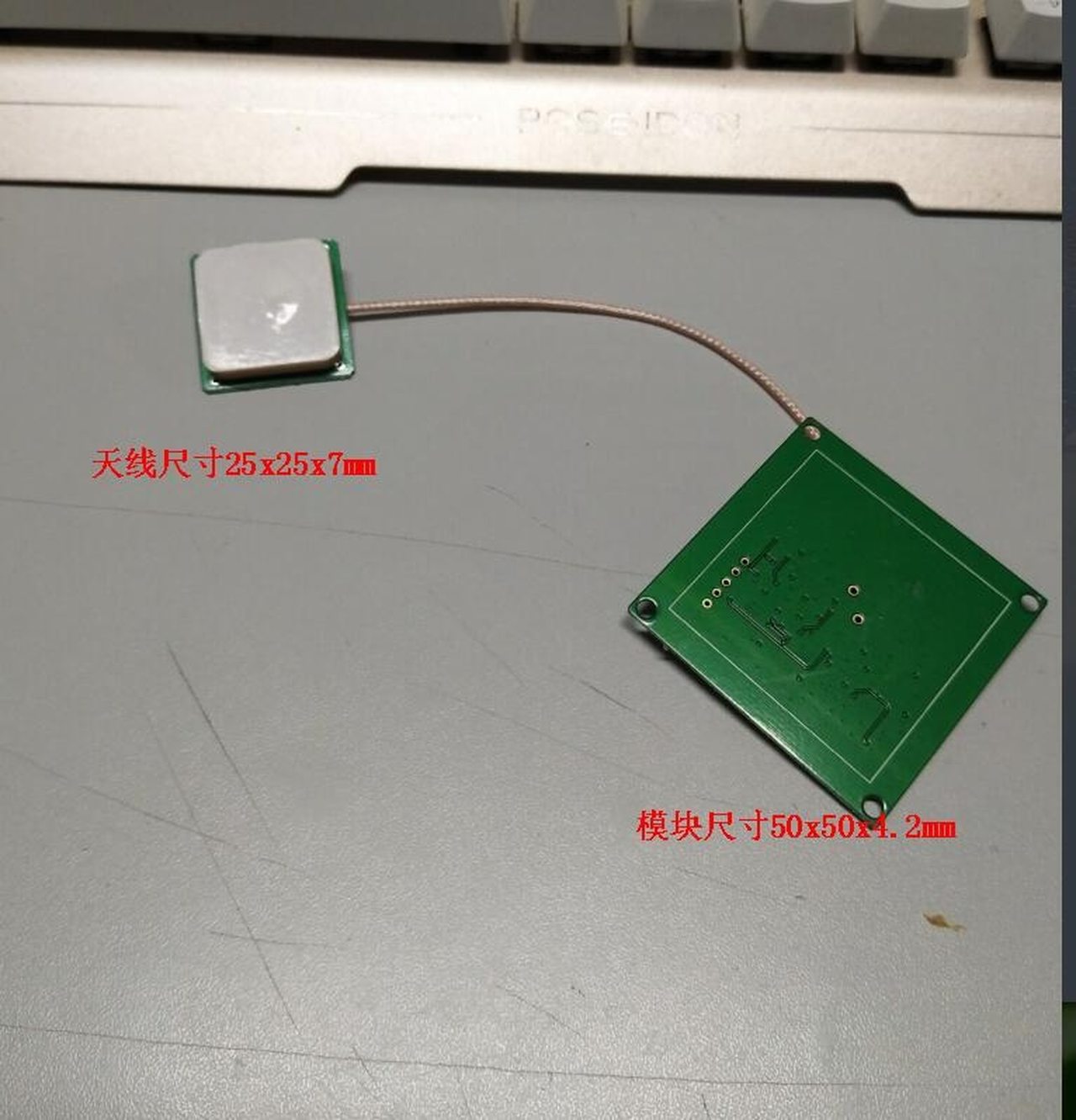

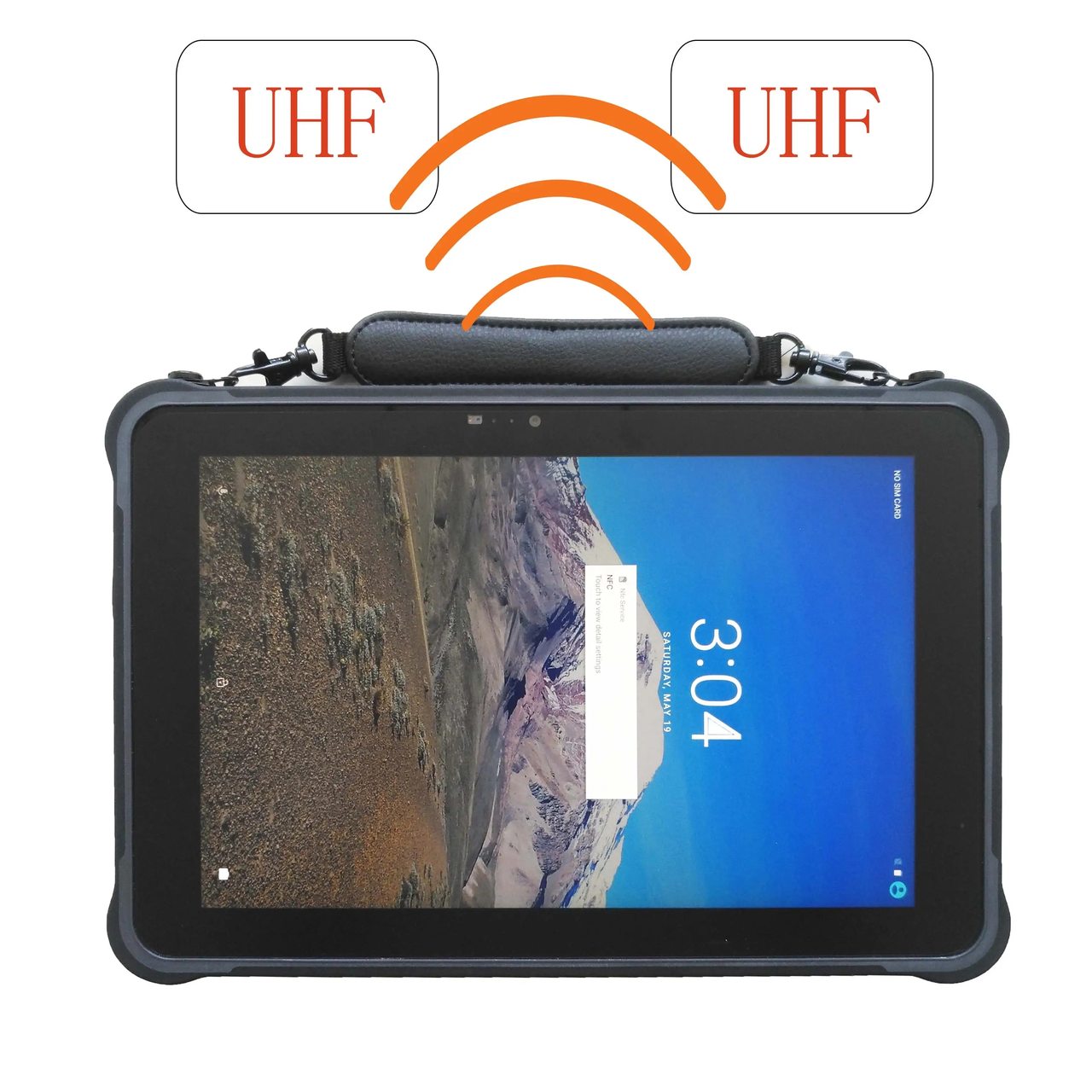

| UHF | optional | |
| accessories |
1. USB cable 2. charger 3. handstrap 4. car holder 5. docking station 6. car charger 7. white box, no logo |
|
| proof rate |
1. water proof IP65 2. Drapping proof 1.2 meter |
|
| Certification |
1. 810G 2. CE,FCC |
|
| Temperature |
1. storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
|
