RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets
OS: Android 12, CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz, RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional, LCD: 13.3 inch; 1080*1920; IPS, Touch Screen: 10 Point Touch, Power and Battery: 8000mAh / voltage 7.6Vdc (60.80Wh) | 6000mAh optional, GPS: BDS, GPS, GLONASS, BLUETOOTH: 5.0 Version | WiFi/Bluetooth 2-in-1

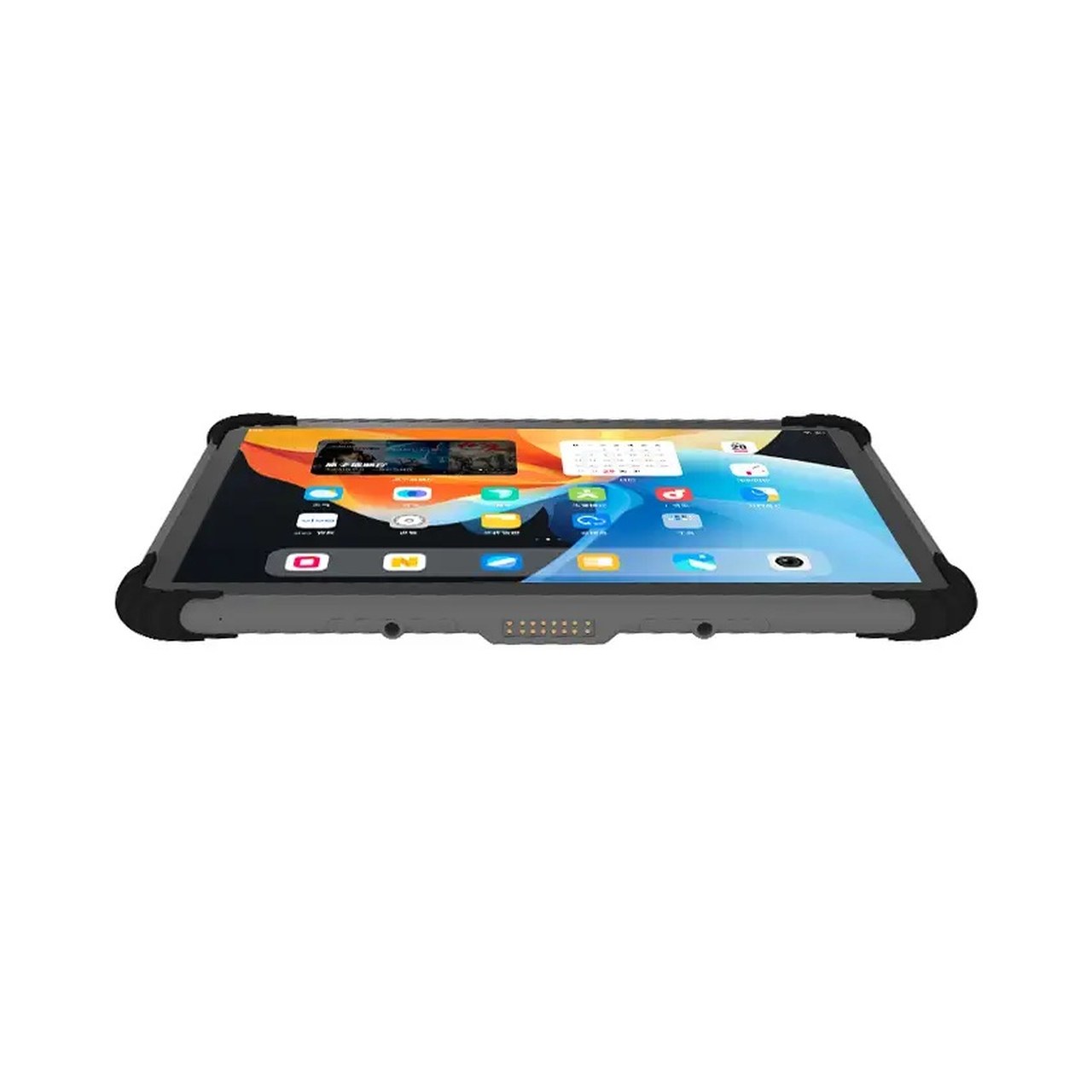

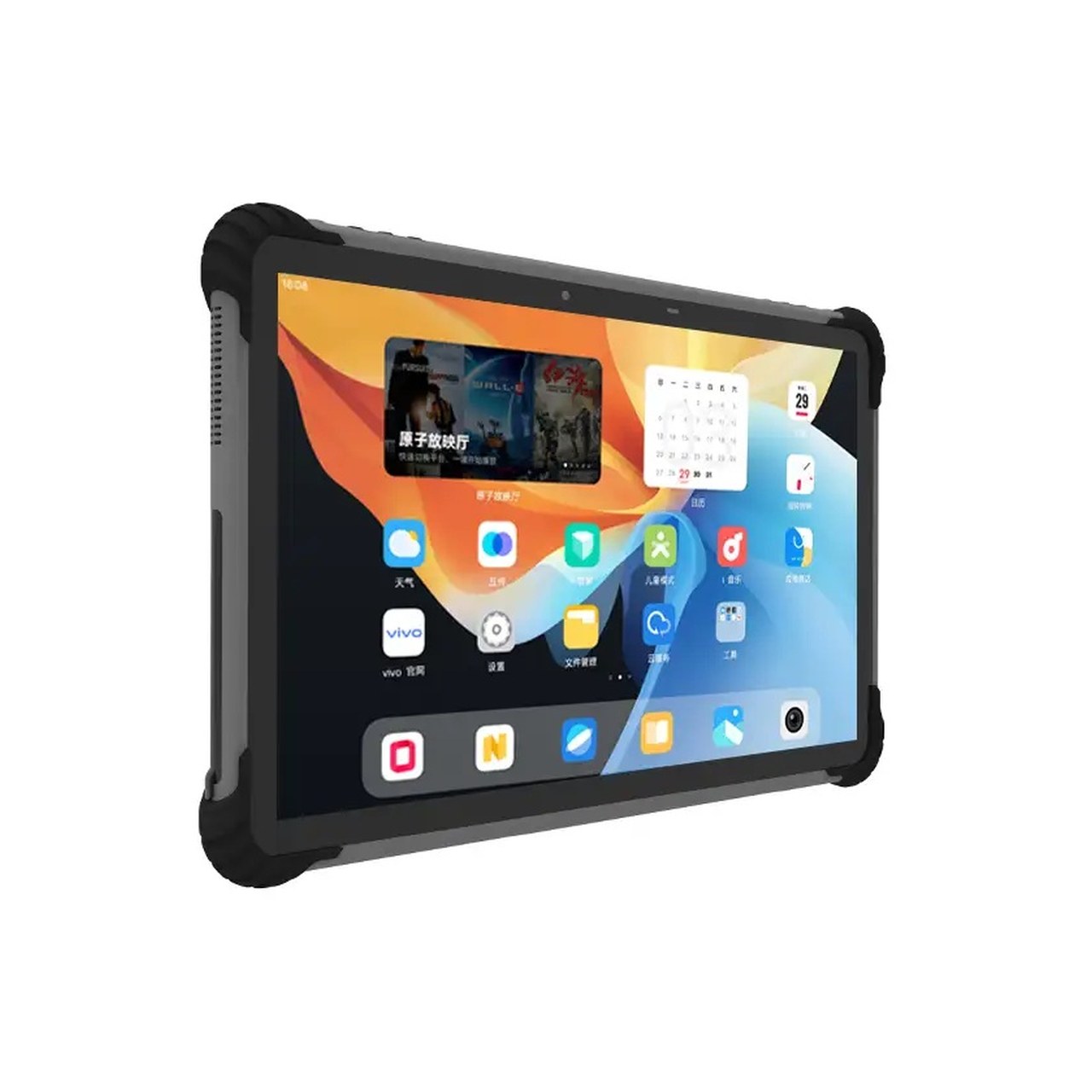

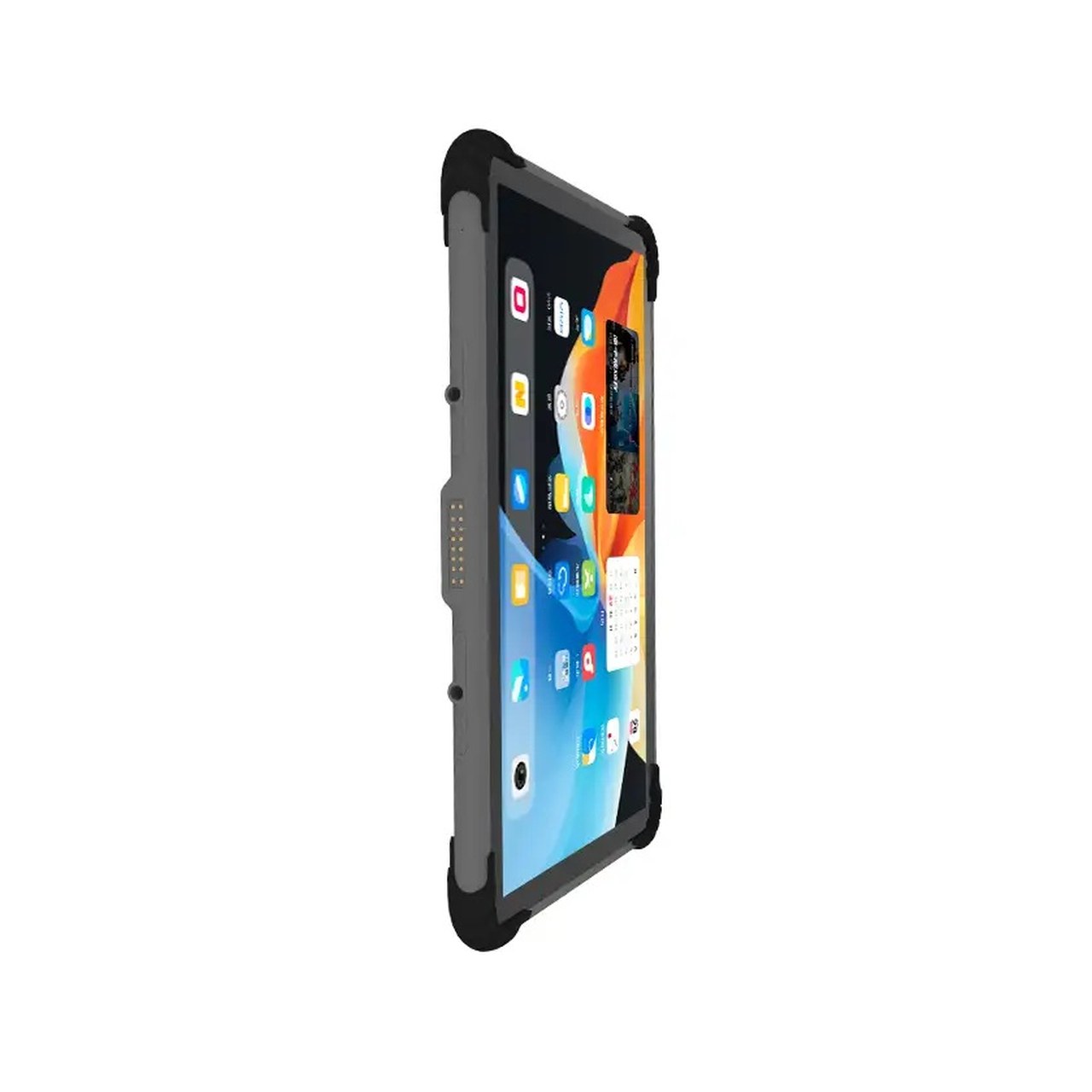

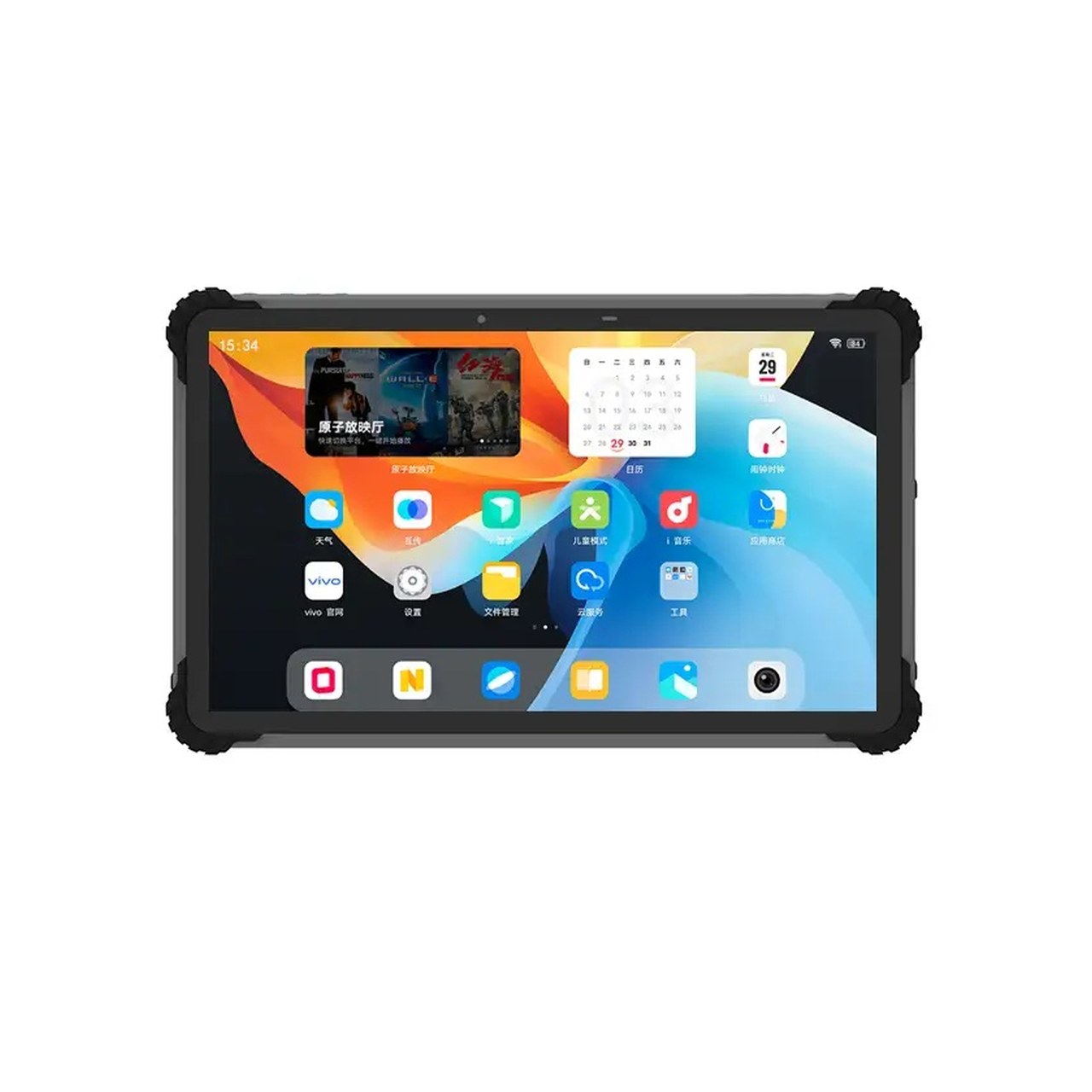

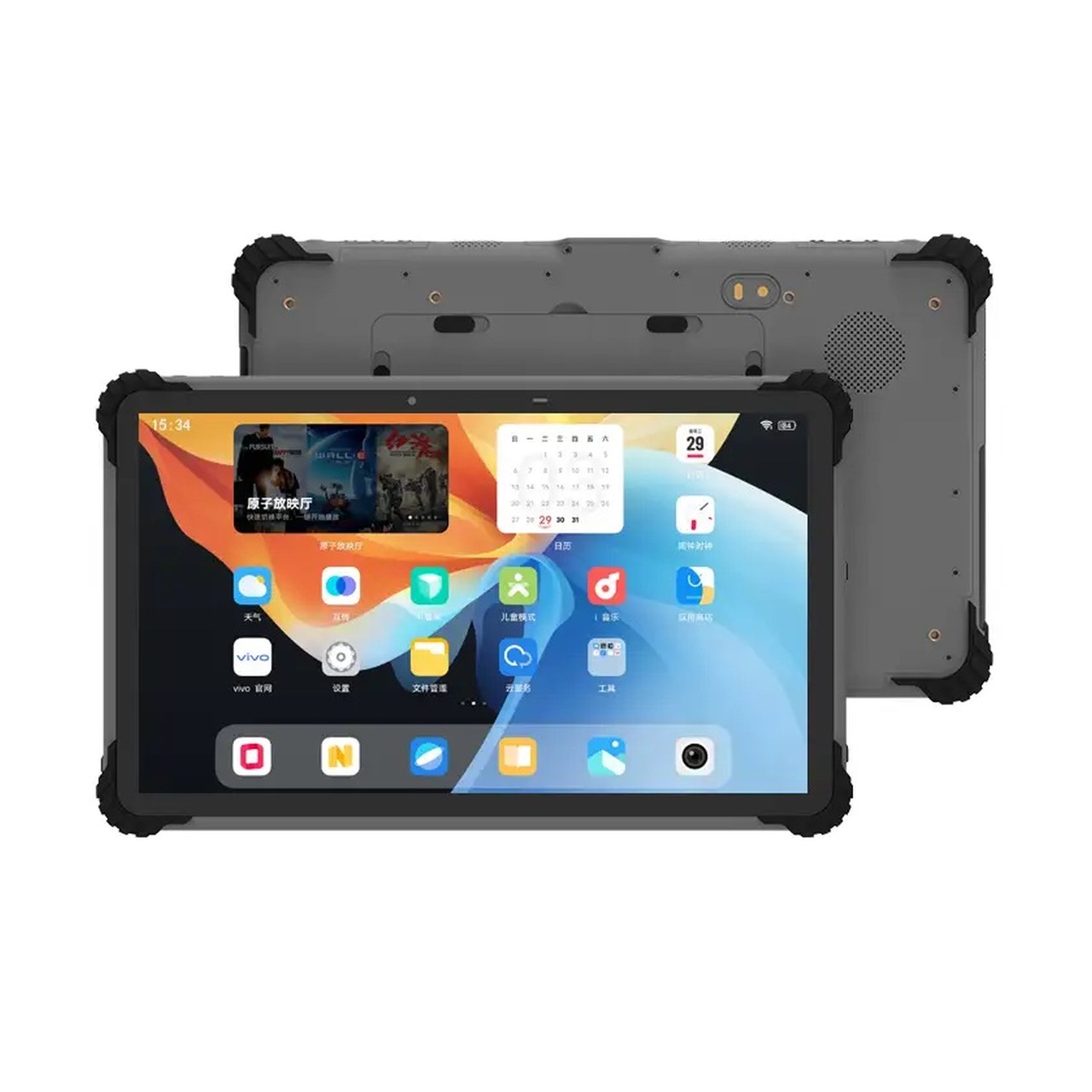

RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets combines OS: Android 12, CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz, RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional. Additional features include LCD: 13.3 inch; 1080*1920; IPS, Touch Screen: 10 Point Touch, Power and Battery: 8000mAh / voltage 7.6Vdc (60.80Wh) | 6000mAh optional. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
OS: Android 12
CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz
RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional
LCD: 13.3 inch; 1080*1920; IPS
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-304134E41D80.
RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets combines OS: Android 12, CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz, RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional. Additional features include LCD: 13.3 inch; 1080*1920; IPS, Touch Screen: 10 Point Touch, Power and Battery: 8000mAh / voltage 7.6Vdc (60.80Wh) | 6000mAh optional. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets features
Product Introduction
Design and technical configuration
The RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets technical information lists the following configuration details.
OS: Android 12. CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz. GPU: ARM Mali G610. RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional.
LCD: 13.3 inch; 1080*1920; IPS. Touch Screen: 10 Point Touch. Camera: Front: 5MP; Real: 13MP. Power and Battery: 8000mAh / voltage 7.6Vdc (60.80Wh) | 6000mAh optional.
WWAN: 4G Fre: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: B2/B3/B5/B8 | Module: SLM770A. GPS: BDS, GPS, GLONASS. WIFI: 802.11a/b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5G Support WIFI 6 | WiFi/Bluetooth 2-in-1. BLUETOOTH: 5.0 Version | WiFi/Bluetooth 2-in-1.
NFC: 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A. MIC: Sensitivity: -32±2d Output Impedance: 2.2kΩx1. SPEAKER: 8Ω 1.0 Watt *2. Sensor: 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope.
Size: 330*205*19.5mm. Weight: 1450 ± 50g (for reference only). Interface In/Out Port: 1. HDMI Type A*1 2. USB-A：USB 2.0 *1+USB 3.0 *1 3. Type-c*1 4. Anti-theft lock hole 5. Aviation interface x2: customized interface & RS232 (RS232 not fully functional, only TX RX GND) 6. Card slot: SIM card slot+TF card slot 7. Headphone Jack：∮3.5mm Standard headphone interface 8. Ethernet RJ45：10/100/1000M 9. DC power interface：DC ∮4.0mm power interface | Bottom pogopin: USB 2.0; Charging; RS232. Button: V+ -, Power, “F” for Barcode Scan | Customized Button: P, H (Default No Functionality).
1D/2D Barcode: Optional | Honeywell N4680 Optional. Accessories: 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Screw 5. Wrist strap. Multi-Media (Hardware Decoding): 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license). Proof Degree: Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter.
RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets specifications
RUGGEDMASTER catalog model: RM-SC-304134E41D80
| RUGGEDMASTER RM-SC-304134E41D80 Rugged Tablets technical specifications | ||
|---|---|---|
| ITEM | DESCRIPTION | DETAIL |
| OS | Android 12 | |
| CPU |
Rockchip RK3588 (Octa Core; 2.4GHz) |
Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz |
| GPU |
ARM Mali G610 |
|
| RAM/ROM | 8GB/256GB，16GB/256GB |
8GB/512GB, 16GB/512GB Optional |
| LCD |
13.3 inch; 1080*1920; IPS |
|
| Touch Screen |
10 Point Touch |
|
| Camera |
Front: 5MP; Real: 13MP |
|
|
Power and Battery |
8000mAh / voltage 7.6Vdc (60.80Wh) |
6000mAh optional |
| WWAN |
4G Fre: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: B2/B3/B5/B8 |
Module: SLM770A |
| GPS |
BDS, GPS, GLONASS |
|
| WIFI |
802.11a/b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5G Support WIFI 6 |
WiFi/Bluetooth 2-in-1 |
| BLUETOOTH |
5.0 Version |
|
| NFC |
13.56 MHz, Distance: 1-3cm |
ISO14443 TYPE A |
| MIC |
Sensitivity: -32±2d Output Impedance: 2.2kΩx1 |
|
| SPEAKER |
8Ω 1.0 Watt *2 |
|
| Sensor |
1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope |
|
| Size | 330*205*19.5mm | |
| Weight |
1450 ± 50g (for reference only) |
|
| Language | Multi language | |
|
Interface In/Out Port |
1. HDMI Type A*1 2. USB-A：USB 2.0 *1+USB 3.0 *1 3. Type-c*1 4. Anti-theft lock hole 5. Aviation interface x2: customized interface & RS232 (RS232 not fully functional, only TX RX GND) 6. Card slot: SIM card slot+TF card slot 7. Headphone Jack：∮3.5mm Standard headphone interface 8. Ethernet RJ45：10/100/1000M 9. DC power interface：DC ∮4.0mm power interface |
Bottom pogopin: USB 2.0; Charging; RS232 |
| Button |
V+ -, Power, "F" for Barcode Scan |
Customized Button: P, H (Default No Functionality) |
| 1D/2D Barcode | Optional |
Honeywell N4680 Optional |
| Accessories |
1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Screw 5. Wrist strap |
|
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meter |
|
| Certification |
1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C |
|
| Temperature |
Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
|
