RUGGEDMASTER catalog model: RM-SC-22E390D9742A.

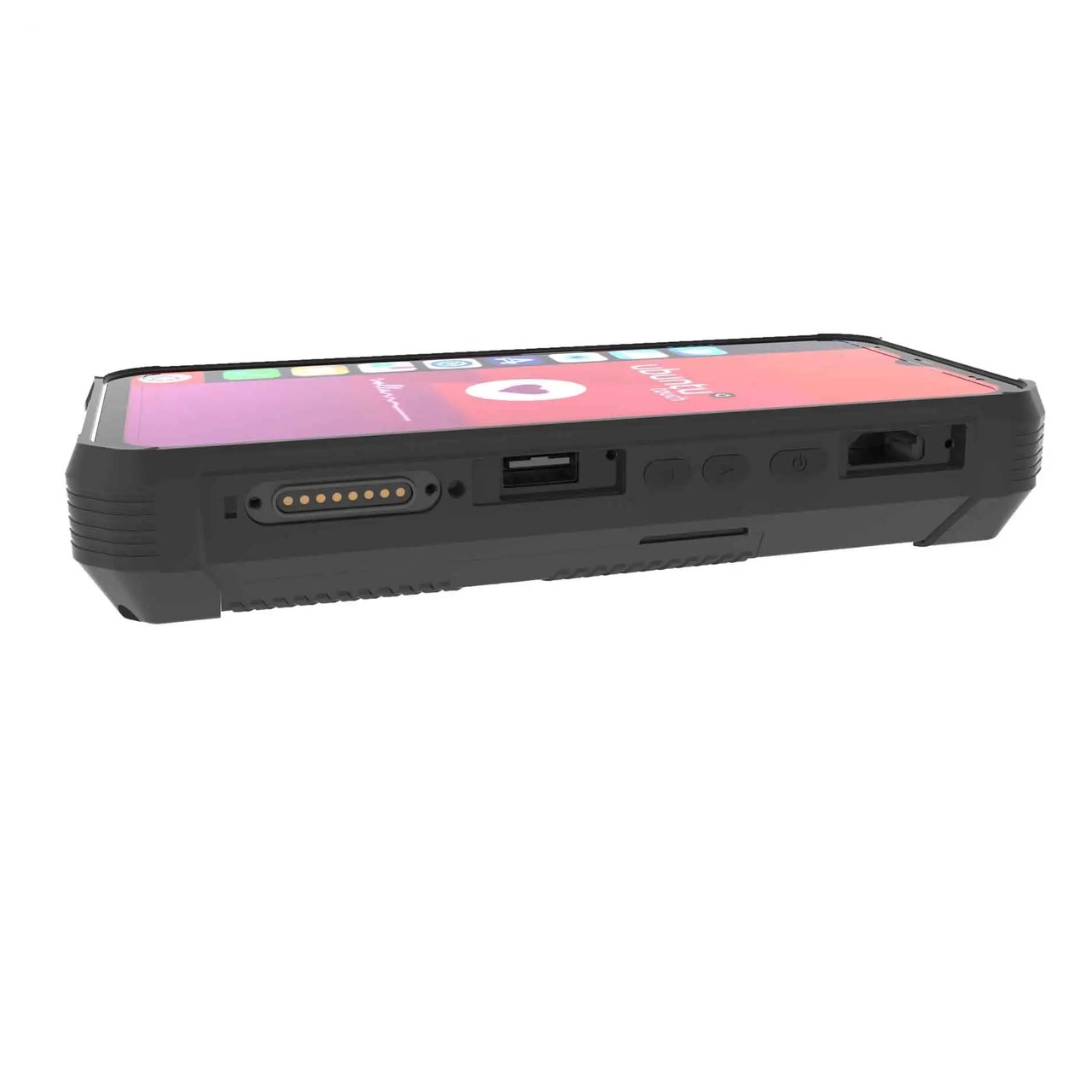

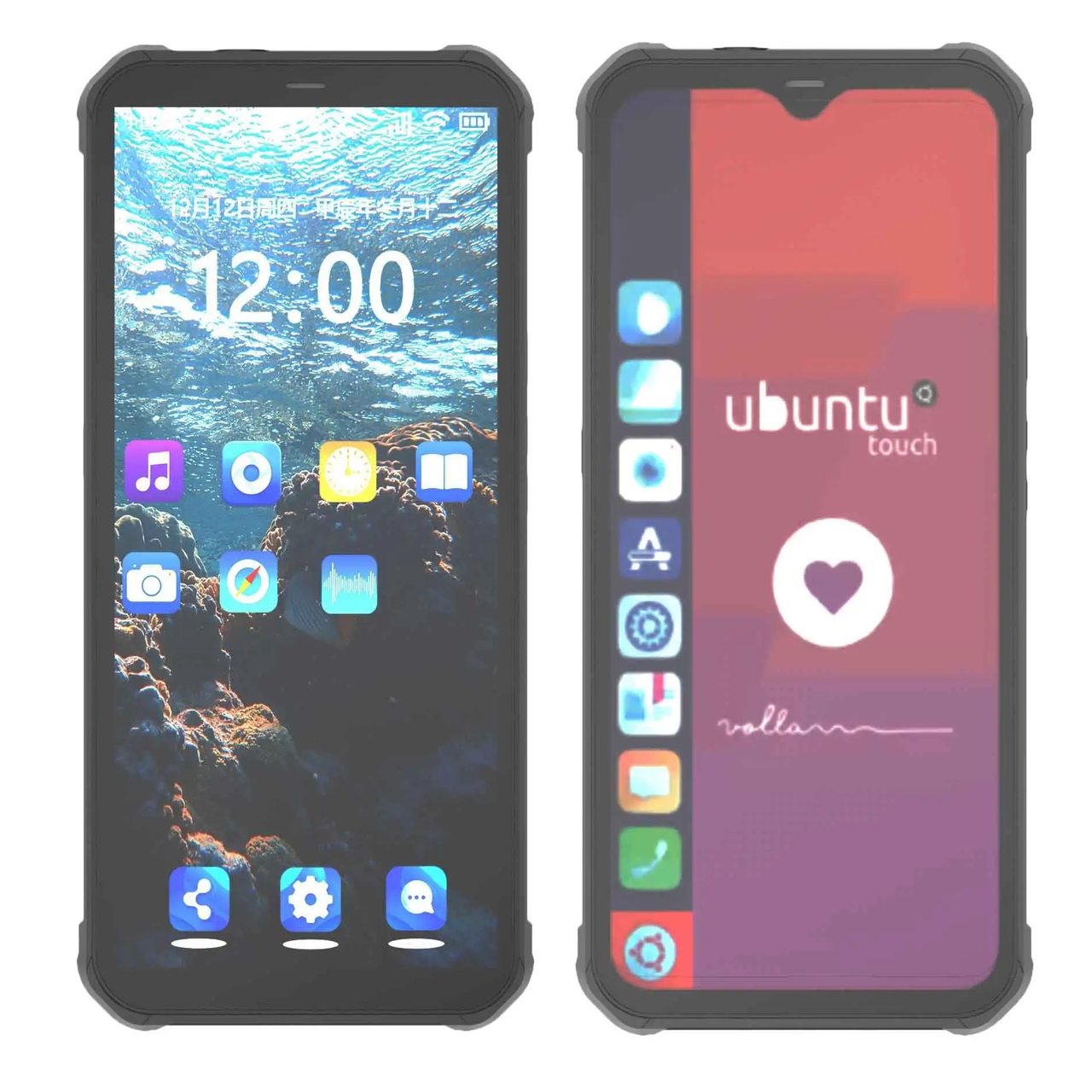

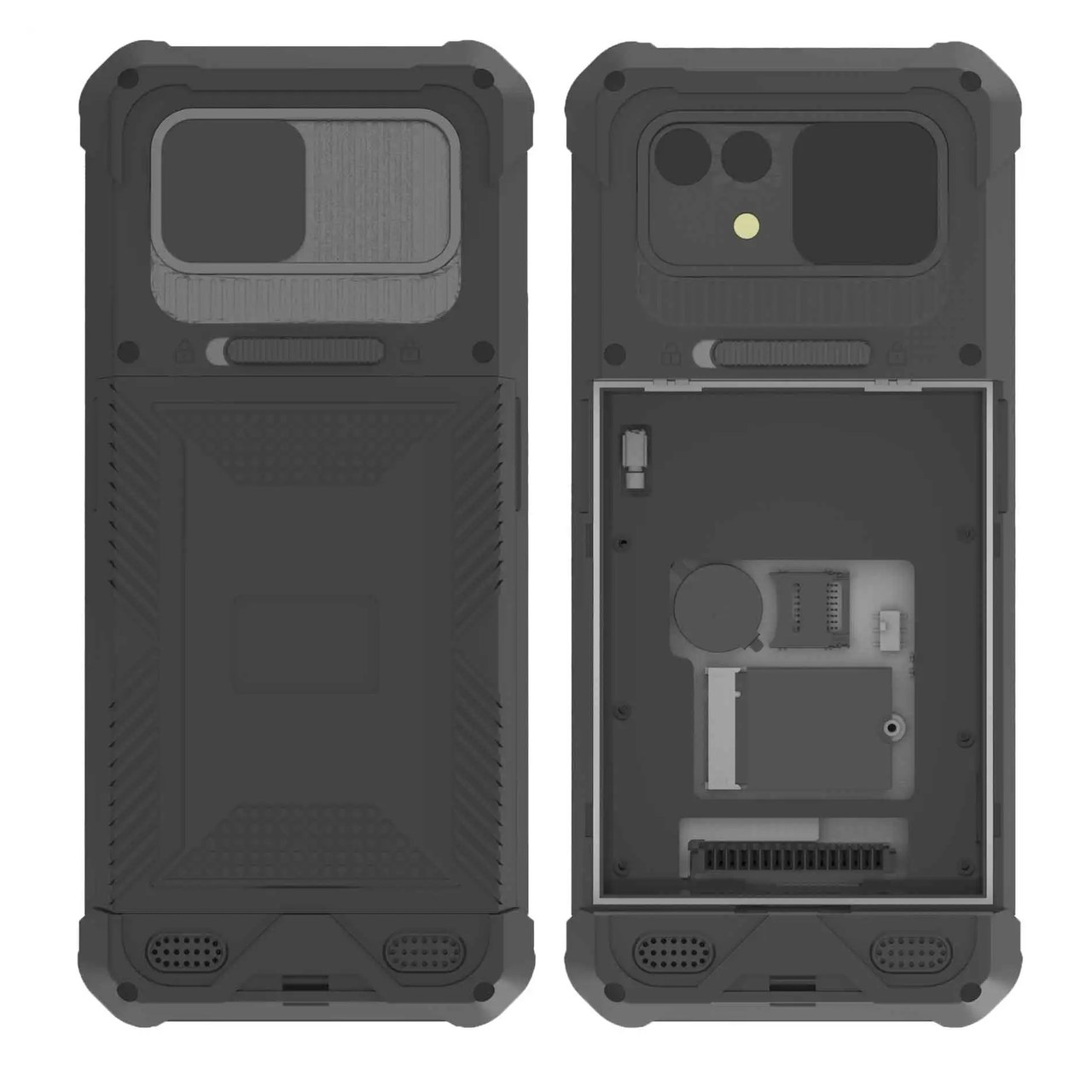

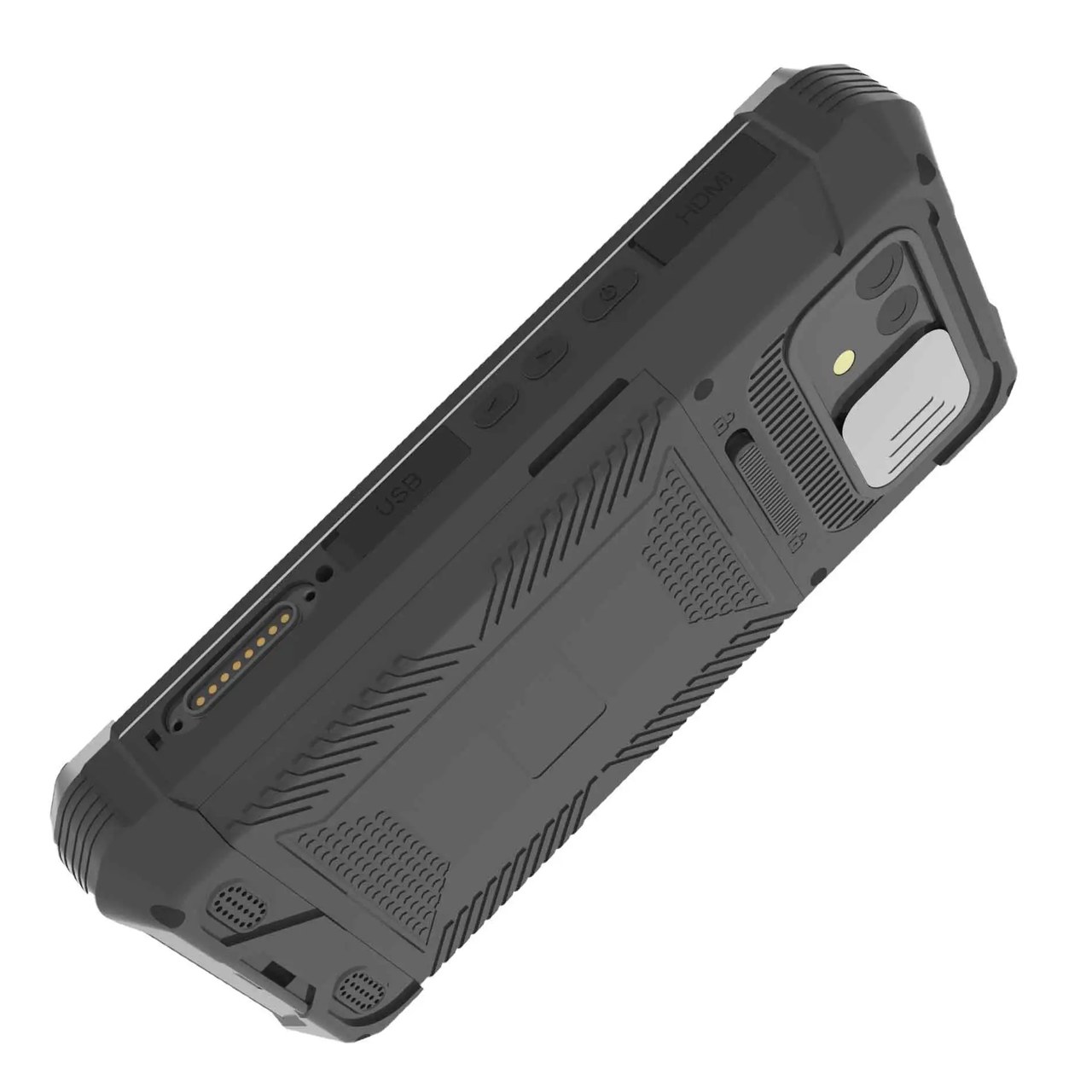

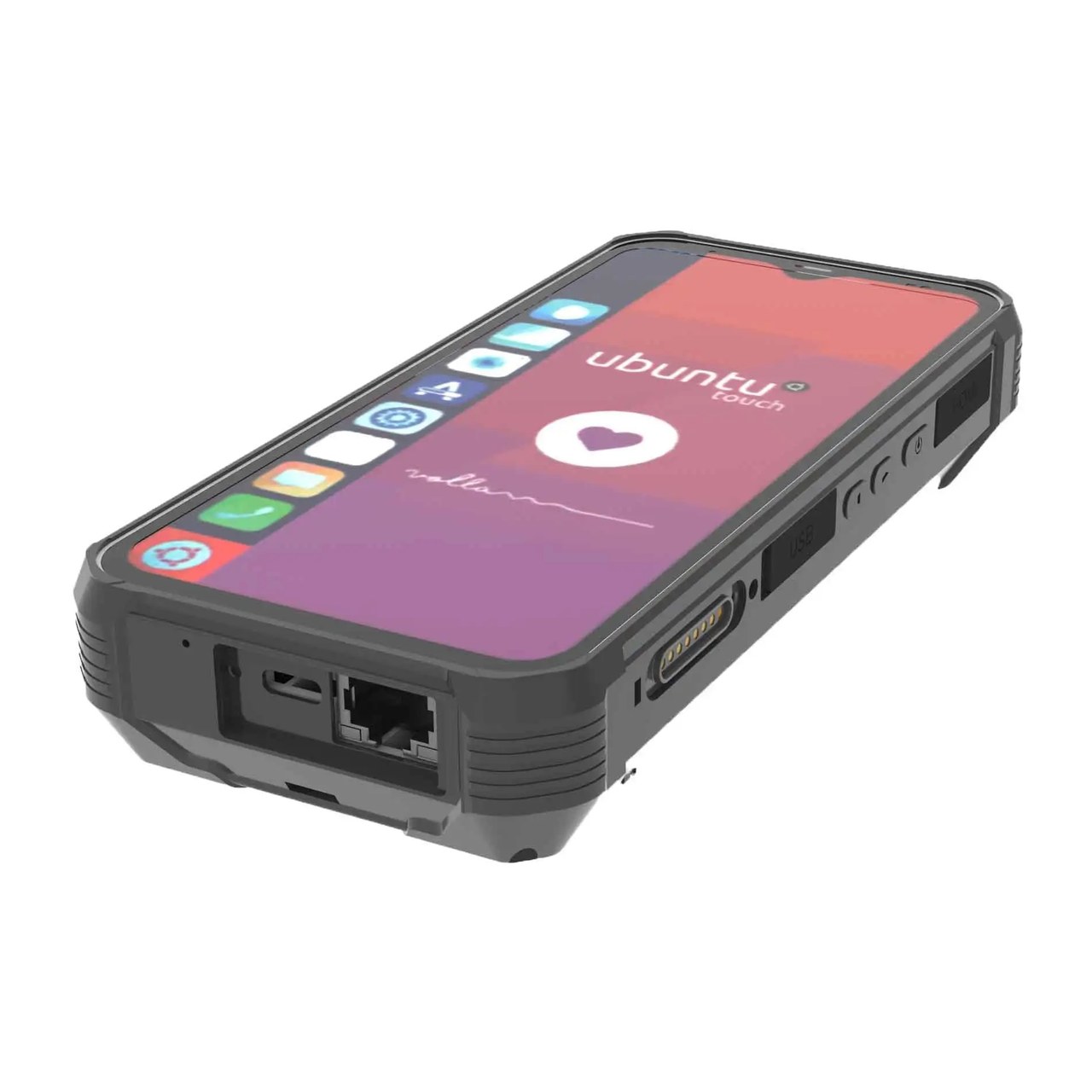

RUGGEDMASTER RM-SC-22E390D9742A Handheld Terminals combines Linux phone, ubantu phone, linux handheld terminal, ubantu handheld terminal, OS: Linux/Ubuntu 20.04 Android 14 OS | OS hardware switch, CPU: RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz). Additional features include RAM: 16GB, ROM (EMMC): 128GB, LCD: 6.5 inch, resolution: 720*1600， >800 lights brightness. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.

RUGGEDMASTER RM-SC-22E390D9742A Handheld Terminals features

Product Introduction

Linux phone, ubantu phone, linux handheld terminal, ubantu handheld terminal

Design and technical configuration

The RUGGEDMASTER RM-SC-22E390D9742A Handheld Terminals technical information lists the following configuration details.

Item: Description | remark. OS: Linux/Ubuntu 20.04 Android 14 OS | OS hardware switch. CPU: RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz). Size: 175*81*28mm，.

weight: <500g，. Nor Flash: 256MB. RAM: 16GB. ROM (EMMC): 128GB.

Storage: 512GB SSD. TF Card: max 256GB*2. LCD: 6.5 inch, resolution: 720*1600， >800 lights brightness. touch panel: 10 point touch Panda MN228 glass.

Camera: Front 8M/back 20M auto focus Low-light camera flashlight Curtain for dusty proof. Main battery: 10000mAh*3.8V smart battery removeable. RTC battery: support, (for time saving). charging: 65W full function TYPE-C charge LED icon.

wireless charging: support, it in big battery. 4G: Meige-770A module included calling function and message. wifi: IEEE 802.ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.g, IEEE 802.n Support WIFI 2.4GHz, 5GHz 支持WiFi 6.0. GPS: Beidou/GPS/GLONASS.

BT: BT5.0. NFC: Support. Speaker: 2*1W. handphone/set: support.

Configuration and compatibility

Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.

Preparing a deployment enquiry

To compare this handheld terminals configuration with your existing equipment, start with the tasks your team performs and the software it uses. Check the operating system and application requirements against the listed processor, memory and storage. For connected workflows, compare the specified communication methods and interfaces with your network and peripherals. If scanning or identification is part of the job, identify the barcode types or card standards required before choosing optional hardware. Review the source photos alongside the dimensions to assess handling, mounting and access to connections. Include these requirements with your requested quantity so the proposed configuration can be checked before supply. Listed options need confirmation; the gallery may illustrate several configurations.

RUGGEDMASTER RM-SC-22E390D9742A Handheld Terminals wholesale enquiries

Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-22E390D9742A Handheld Terminals. Browse our industrial handhelds to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
