RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets
OS: Android 12, CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz, RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional, LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen; 1000nits(1200*1920) Optional, Touch Screen: 10 Point Touch | Support stylus, GPS: BDS, GPS, GLONASS, BLUETOOTH: 5.0 Version | WiFi/Bluetooth 2-in-1, NFC: 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443A
RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets combines OS: Android 12, CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz, RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional. Additional features include LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen; 1000nits(1200*1920) Optional, Touch Screen: 10 Point Touch | Support stylus, GPS: BDS, GPS, GLONASS. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
OS: Android 12
CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz
RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional
LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen; 1000nits(1200*1920) Optional
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

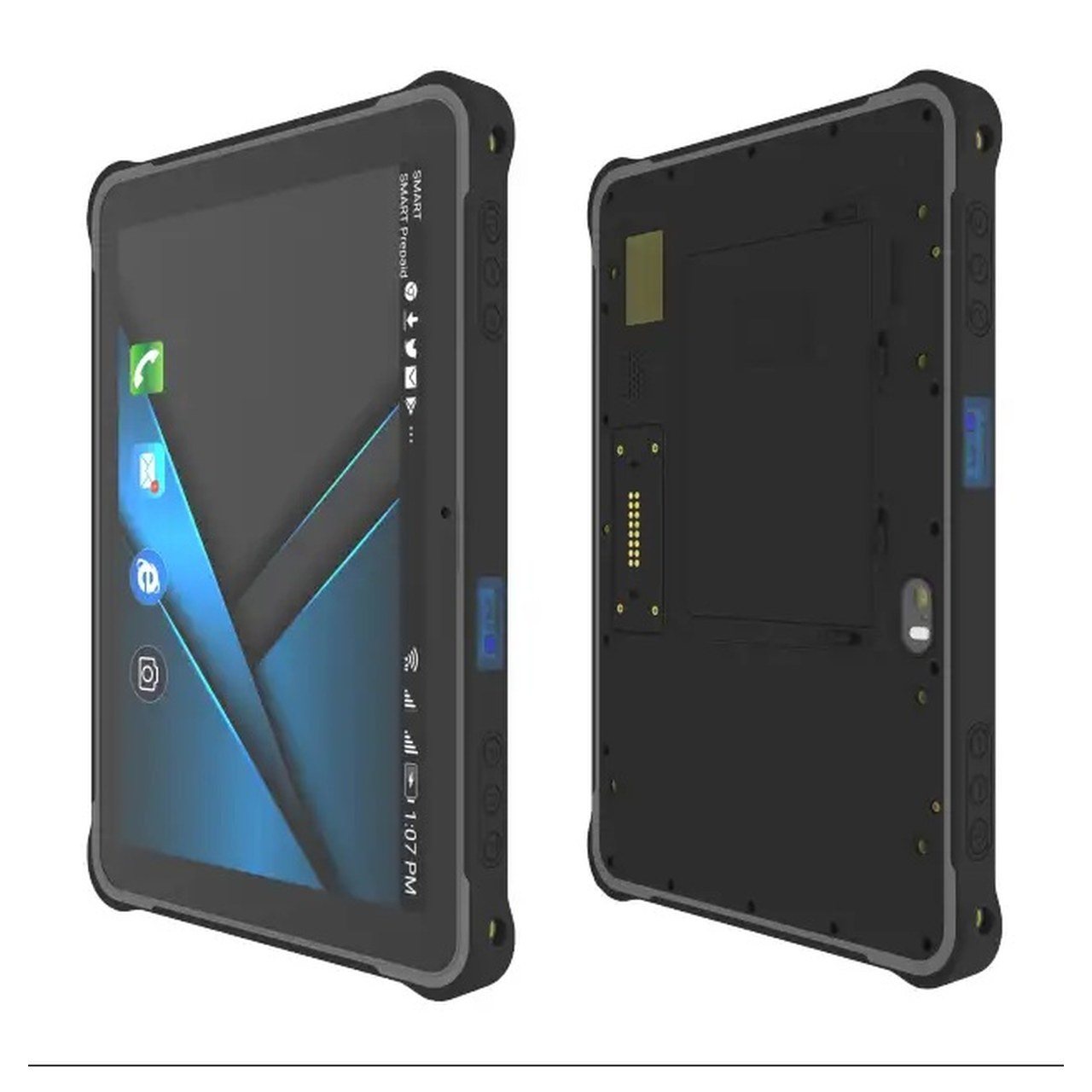

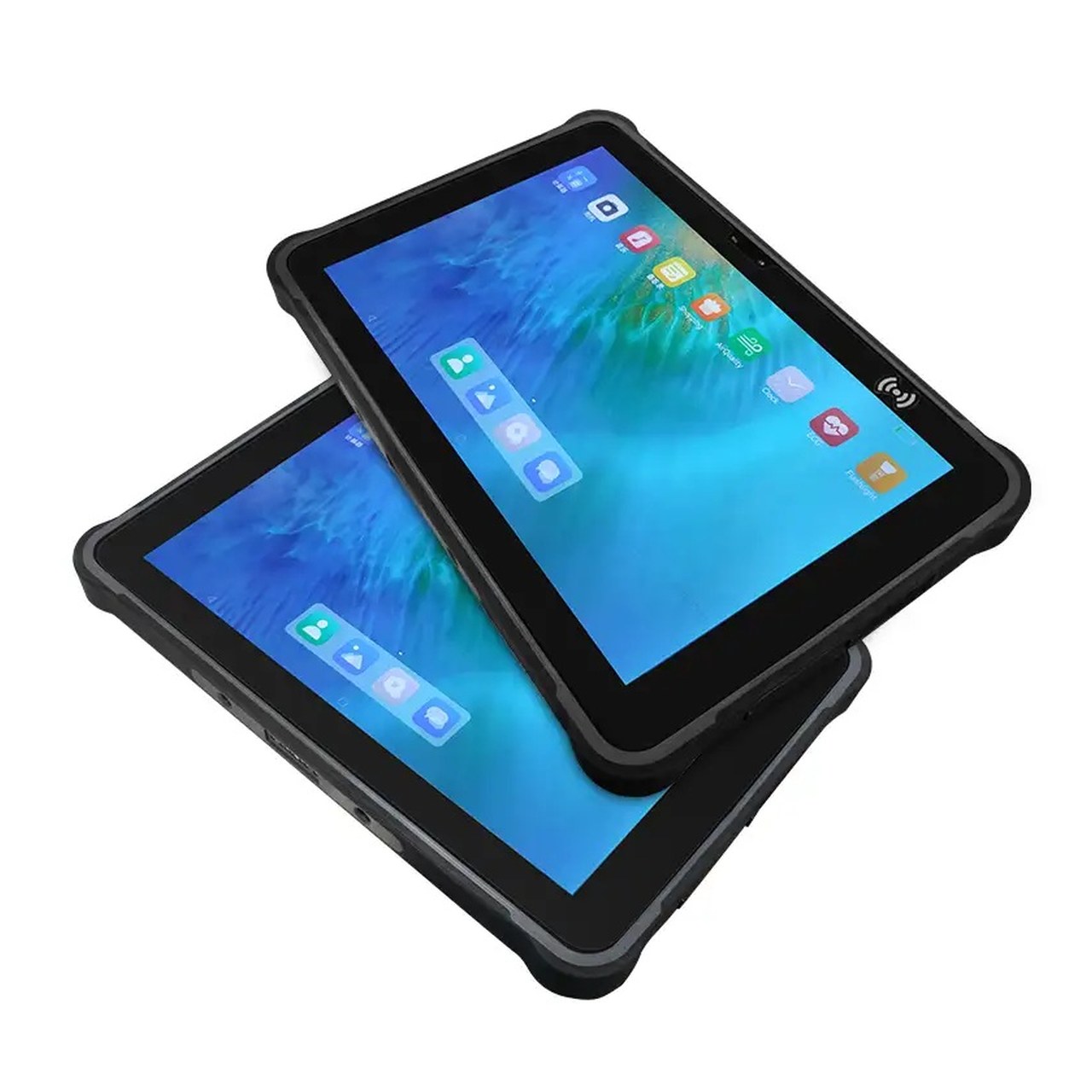

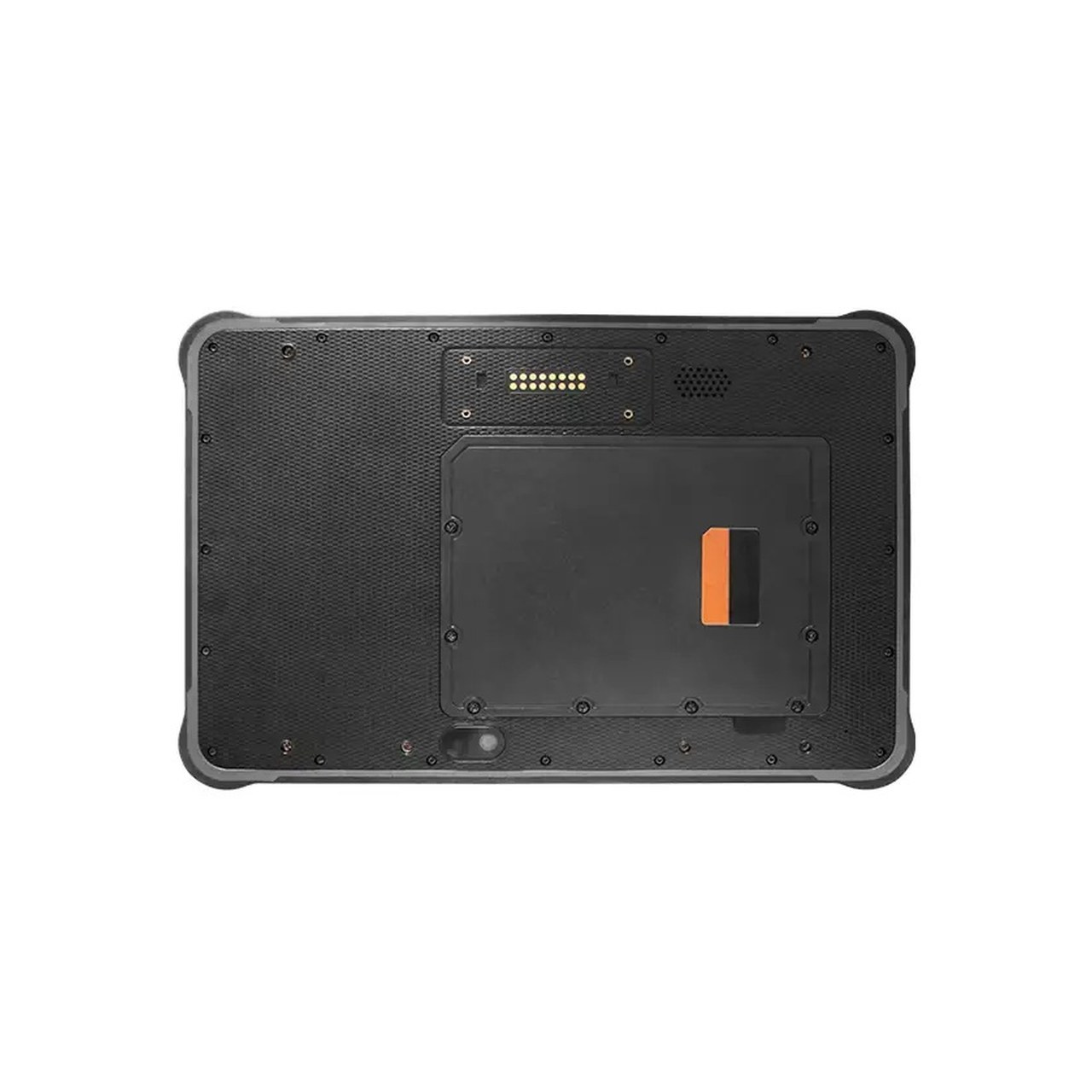

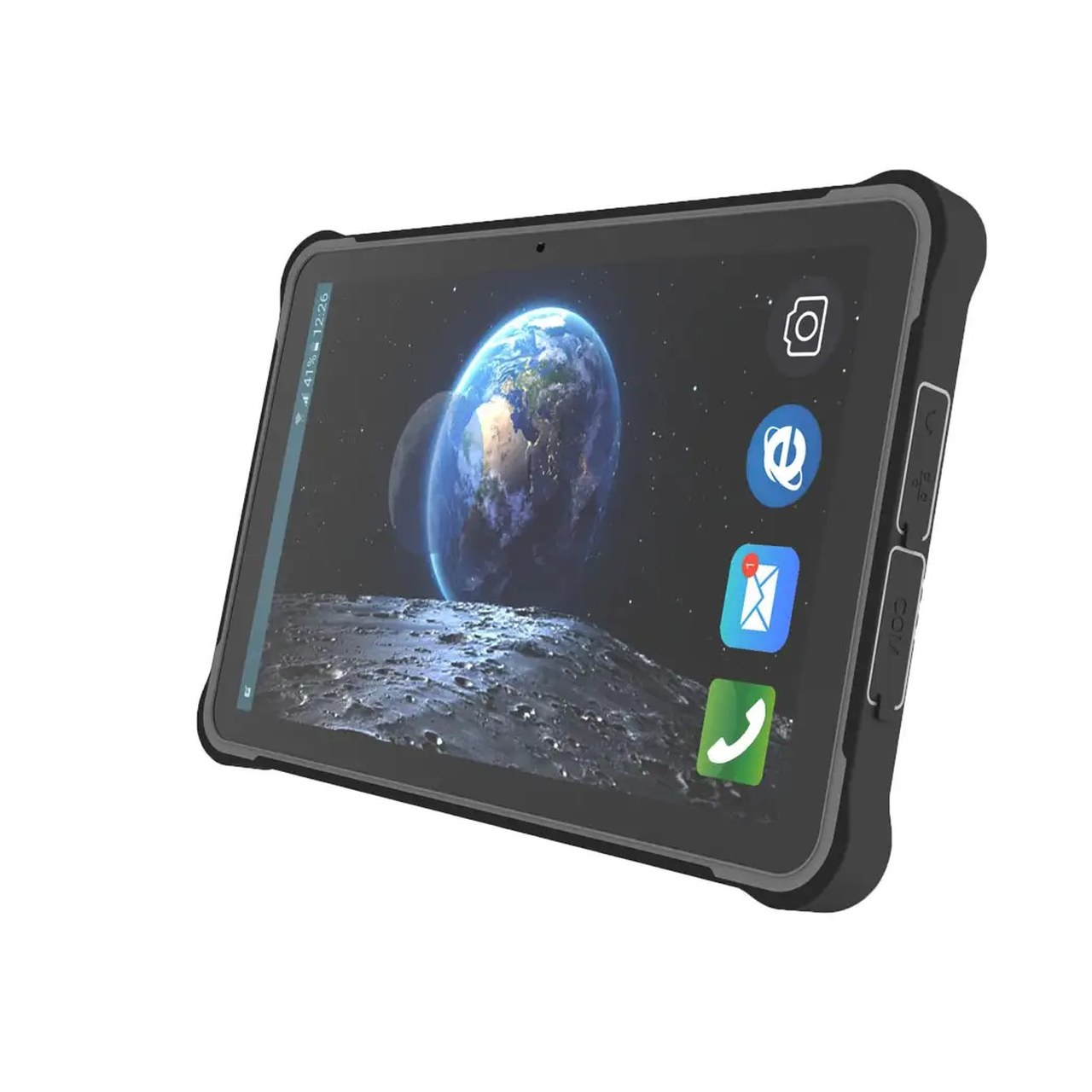

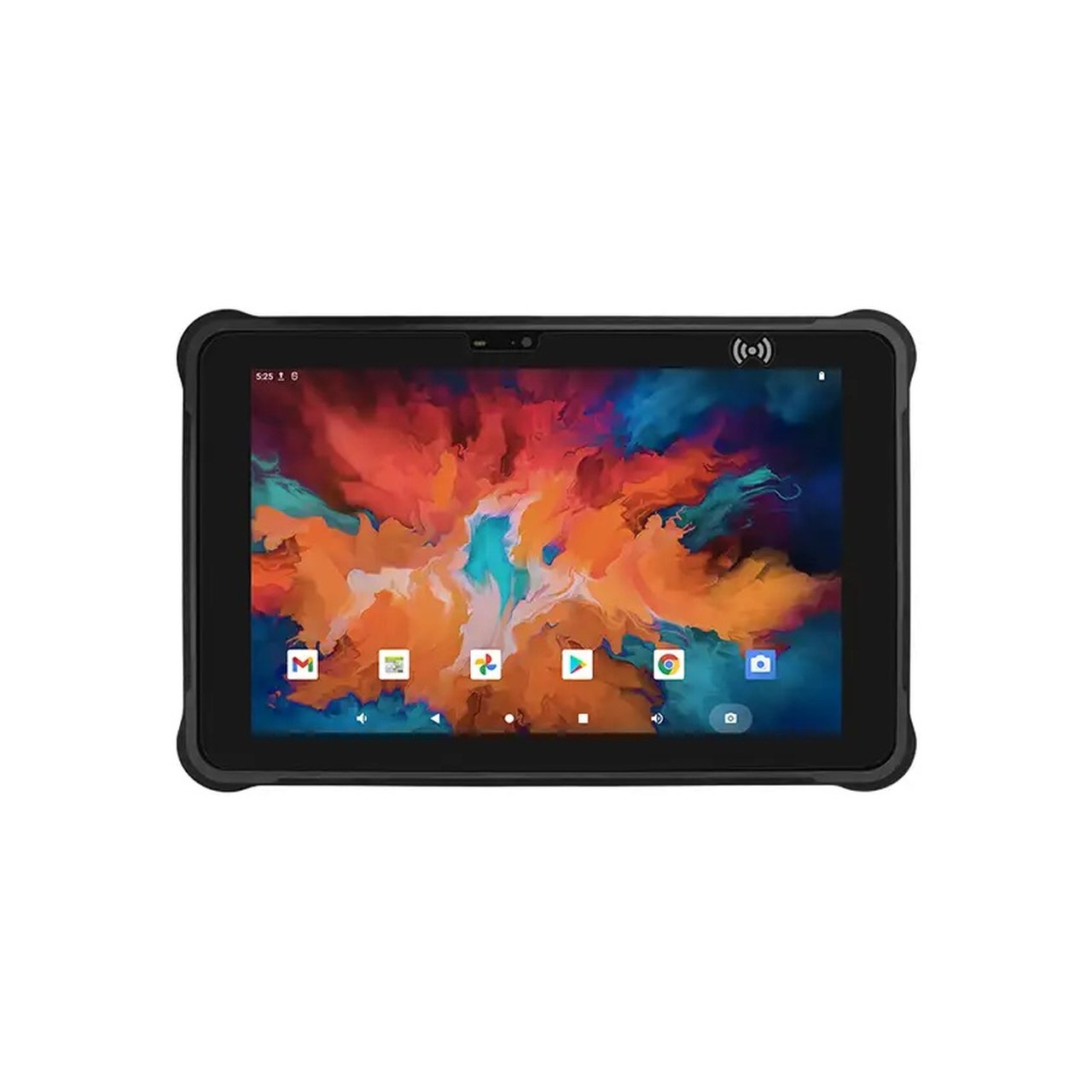

RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-22ACBD7A4A8B.
RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets combines OS: Android 12, CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz, RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional. Additional features include LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen; 1000nits(1200*1920) Optional, Touch Screen: 10 Point Touch | Support stylus, GPS: BDS, GPS, GLONASS. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets features
Product Introduction
Design and technical configuration
The RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets technical information lists the following configuration details.
OS: Android 12. CPU: Rockchip RK3588 (Octa Core; 2.4GHz) | Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz. GPU: ARM Mali G610. RAM/ROM: 8GB/256GB，16GB/256GB | 8GB/512GB, 16GB/512GB Optional.
LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen; 1000nits(1200*1920) Optional. Touch Screen: 10 Point Touch | Support stylus. Camera: Front: 5MP; Rear: 13MP | Flash light. Power and Battery: 6000mAh / voltage 7.6Vdc(45.6Wh) | Charging time: about 4 hours Usage time: 8H30min (50% volume, 60% brightness, playing local 1080P video) Standby time: about 43 days (screen off standby).
WWAN: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 | Module: SLM770A. GPS: BDS, GPS, GLONASS. WIFI: 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G; Support WiFi6 | WiFi/Bluetooth 2-in-1. BLUETOOTH: 5.0 Version | WiFi/Bluetooth 2-in-1.
NFC: 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443A. MIC: Sensitivity: -32±2d Output Impedance: 2.2kΩx1. SPEAKER: 8Ω 1.5 Watt. Sensor: 1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope.
Size: 273*172*20mm. Weight: 1150±50g. Interface In/Out Port: 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB-A：USB 2.0 *1+USB 3.0 *1 7. RJ45*1 8. RS232*1 9. HDMI*1 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232. Button: V+ -, Power, “F” for Barcode Scan | Customized Button: P,H (Default No Functionality).
1D/2D Barcode: Optional | Honeywell N4680 Optional. UHF RFID: Optional | American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M. UHF RFID: Optional | European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M. Fingerprint: Optional | AFM60 Optional.
RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets specifications
RUGGEDMASTER catalog model: RM-SC-22ACBD7A4A8B
| RUGGEDMASTER RM-SC-22ACBD7A4A8B Rugged Tablets technical specifications | ||
|---|---|---|
| OS | Android 12 | |
| CPU |
Rockchip RK3588 (Octa Core; 2.4GHz) |
Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz |
| GPU |
ARM Mali G610 |
|
| RAM/ROM | 8GB/256GB，16GB/256GB |
8GB/512GB, 16GB/512GB Optional |
| LCD |
10.1 inch; 1200*1920; 450nits |
IPS Screen; 1000nits(1200*1920) Optional |
| Touch Screen |
10 Point Touch |
Support stylus |
| Camera |
Front: 5MP; Rear: 13MP |
Flash light |
|
Power and Battery |
6000mAh / voltage 7.6Vdc(45.6Wh) |
Charging time: about 4 hours Usage time: 8H30min (50% volume, 60% brightness, playing local 1080P video) Standby time: about 43 days (screen off standby) |
| WWAN |
FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 |
Module: SLM770A |
| GPS |
BDS, GPS, GLONASS |
|
| WIFI |
802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G; Support WiFi6 |
WiFi/Bluetooth 2-in-1 |
| BLUETOOTH |
5.0 Version |
|
| NFC |
13.56 MHz, Distance: 1-3cm |
ISO/IEC 14443A |
| MIC |
Sensitivity: -32±2d Output Impedance: 2.2kΩx1 |
|
| SPEAKER |
8Ω 1.5 Watt |
|
| Sensor |
1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope |
|
| Size | 273*172*20mm | |
| Weight | 1150±50g | |
| Language |
Multi language |
|
|
Interface In/Out Port |
1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB-A：USB 2.0 *1+USB 3.0 *1 7. RJ45*1 8. RS232*1 9. HDMI*1 |
Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button |
V+ -, Power, "F" for Barcode Scan |
Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional |
Honeywell N4680 Optional |
| UHF RFID | Optional |
American standard M500 (902Mhz – 928Mhz) External: card reading distance of 3-5M |
|
European standard M500 (865MHz – 868MHz) External: Card reading distance of 3-5M |
||
| Fingerprint | Optional |
AFM60 Optional |
| Accessories |
1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Screw 5. Wrist strap |
Optional: 1. Docking Station 2. Car Holder 3. Car Docking 4. Type-C 65W fast charging charger |
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters |
|
| Certification |
1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C |
|
| Temperature |
Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
|
