Description
RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-17943B32D05A.
RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets combines DC4.0*1.7mm, 12V 3A DC in put, white box, no logo”, proof rate “1. water proof IP65. Additional features include Drapping proof 1.2 meter”. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets features
Product Introduction
DC4.0*1.7mm, 12V 3A DC in put
SPEAKER 1.5 watt
8.RS232*1″
7. white box, no logo”
proof rate “1. water proof IP65
2. Drapping proof 1.2 meter”
Design and technical configuration
The RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets technical information lists the following configuration details.
OS: linux ubantu. CPU: intel I3-8100Y/I5-8200Y/I7-8500Y optional standard one is I5-8200Y. RAM/ROM: 8GB/256GB 8GB/512GB optional, 16GB/512GB is optional. LCD: 10.1 inch1920*1200； max 500 nits sunshine readable.
Touch screen: 10 point touch support tylus support thin glove touch. Camera: 5M/13M. Power and battery: 6000mAh, 7.6V lithium battery charging 4.5H, play video 7.7H DC4.0*1.7mm, 12V 3A DC in put. WWAN: 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC “4G Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 B34 WCDMA:B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8.
GPS: baidou,GPS, glonass. wifi: 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165. BLUETOOTH: 4.2 version. NFC: 13.56 MHz, distance 5cm or above.
SPEAKER: 1.5 watt. Sensor: 1. light sensor 2. acceleration/gravity. size: 275*178*18mm Multi-media (Hardware decoding)” Photo Viewer BMP, JPG, GIF, PNG. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P).
Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license). Pogopin definition: 1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V). casing material: ABS/PC/rubber TPU/aluminum. button: V+ -, Power, P, F, H.
2D barcode module: honeywell N3680 optional. UHF: 900MHz optional. fingerprint: support optional. Front NFC: under the screen, the distance is 3-5cm, mifare one is optional optional.
Configuration and compatibility
Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.
RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets specifications
| RUGGEDMASTER catalog model | RM-SC-17943B32D05A |
|---|---|
| RUGGEDMASTER RM-SC-17943B32D05A Rugged Tablets technical specifications | |
| OS | linux ubantu |
| CPU | intel I3-8100Y/I5-8200Y/I7-8500Y optional standard one is I5-8200Y |
| RAM/ROM | 8GB/256GB 8GB/512GB optional, 16GB/512GB is optional |
| LCD | 10.1 inch1920*1200； max 500 nits sunshine readable |
| Touch screen | 10 point touch support tylus support thin glove touch |
| Camera | 5M/13M |
| Power and battery | 6000mAh, 7.6V lithium battery charging 4.5H, play video 7.7H DC4.0*1.7mm, 12V 3A DC in put |
| WWAN | 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC "4G Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 B34 WCDMA:B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8 |
| GPS | baidou,GPS, glonass |
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165 |
| BLUETOOTH | 4.2 version |
| NFC | 13.56 MHz, distance 5cm or above |
| SPEAKER | 1.5 watt |
| Sensor | 1. light sensor 2. acceleration/gravity |
| size | 275*178*18mm Multi-media (Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) |

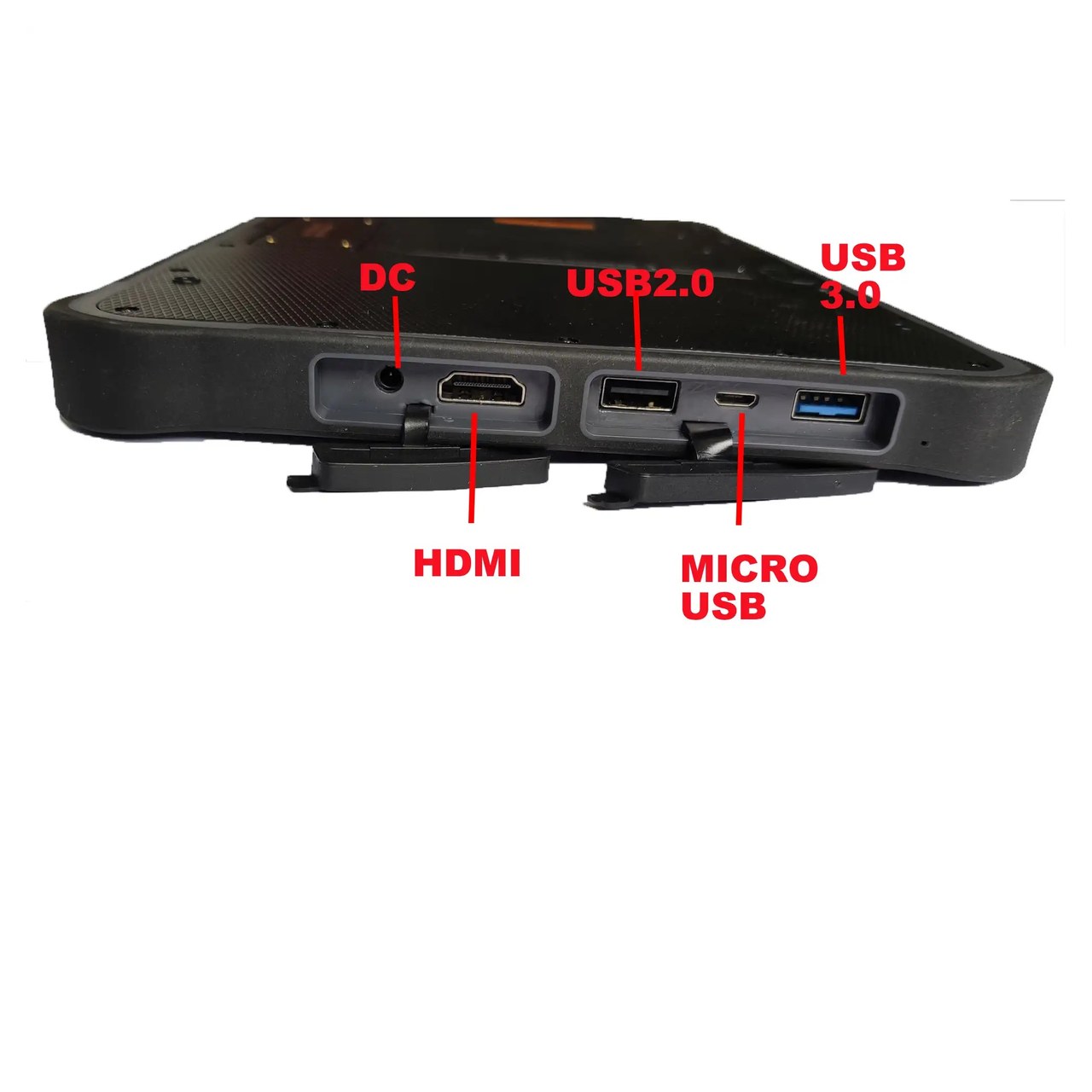

| language | 语言 multi language interface in/out port" "1.USB 3.0 *2 2. RJ45*1 3. bottom pogopin*1, USB and serial 4. back pogopin*1 5. DC*1 3.5*1.35 6. microphone+earphone 7. HDMI 8.RS232*1 |
| Pogopin definition | 1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V) |
| casing material | ABS/PC/rubber TPU/aluminum |
| button | V+ -, Power, P, F, H |
| 2D barcode module | honeywell N3680 optional |
| UHF | 900MHz optional |
| fingerprint | support optional |
| Front NFC | under the screen, the distance is 3-5cm, mifare one is optional optional |
| high precision GPS | 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional |
| accessories | 1. USB cable 2. charger 3. handstrap 4. car holder optional 5. docking station optional 6. car charger optional 7. white box, no logo proof rate "1. water proof IP65 2. Drapping proof 1.2 meter |
| Certification | 1. 810G 2. CE,FCC |
| Temperature | 1. storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
