RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets
OS: Android 16, CPU: MT6789/MT8781 | 2 × Arm Cortex-A76，Frequency up to 2.2GHz 6 × Arm Cortex-A55，Frequency up to 2.0GHz, RAM/ROM: 4GB/64GB， 6GB/128GB | 8GB/256GB, 12GB/256GB Optional, LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen, Touch Screen: 10 Point Touch | Support stylus, Power and Battery: 12000mAh; 3.8V, GPS: BDS, GPS, GLONASS, BLUETOOTH: 5.2 Version
RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets combines OS: Android 16, CPU: MT6789/MT8781 | 2 × Arm Cortex-A76，Frequency up to 2.2GHz 6 × Arm Cortex-A55，Frequency up to 2.0GHz, RAM/ROM: 4GB/64GB， 6GB/128GB | 8GB/256GB, 12GB/256GB Optional. Additional features include LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen, Touch Screen: 10 Point Touch | Support stylus, Power and Battery: 12000mAh; 3.8V. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
OS: Android 16
CPU: MT6789/MT8781 | 2 × Arm Cortex-A76，Frequency up to 2.2GHz 6 × Arm Cortex-A55，Frequency up to 2.0GHz
RAM/ROM: 4GB/64GB， 6GB/128GB | 8GB/256GB, 12GB/256GB Optional
LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

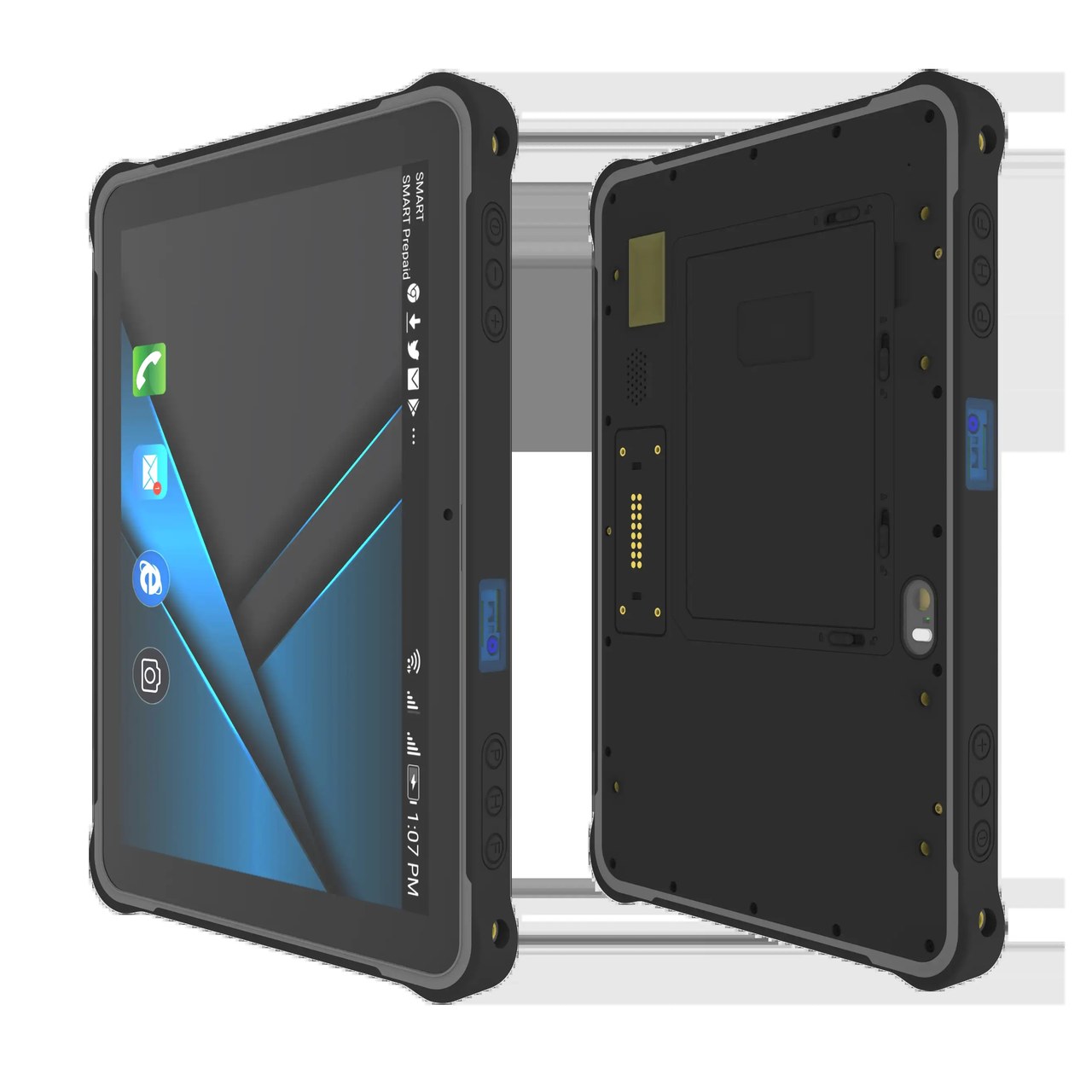

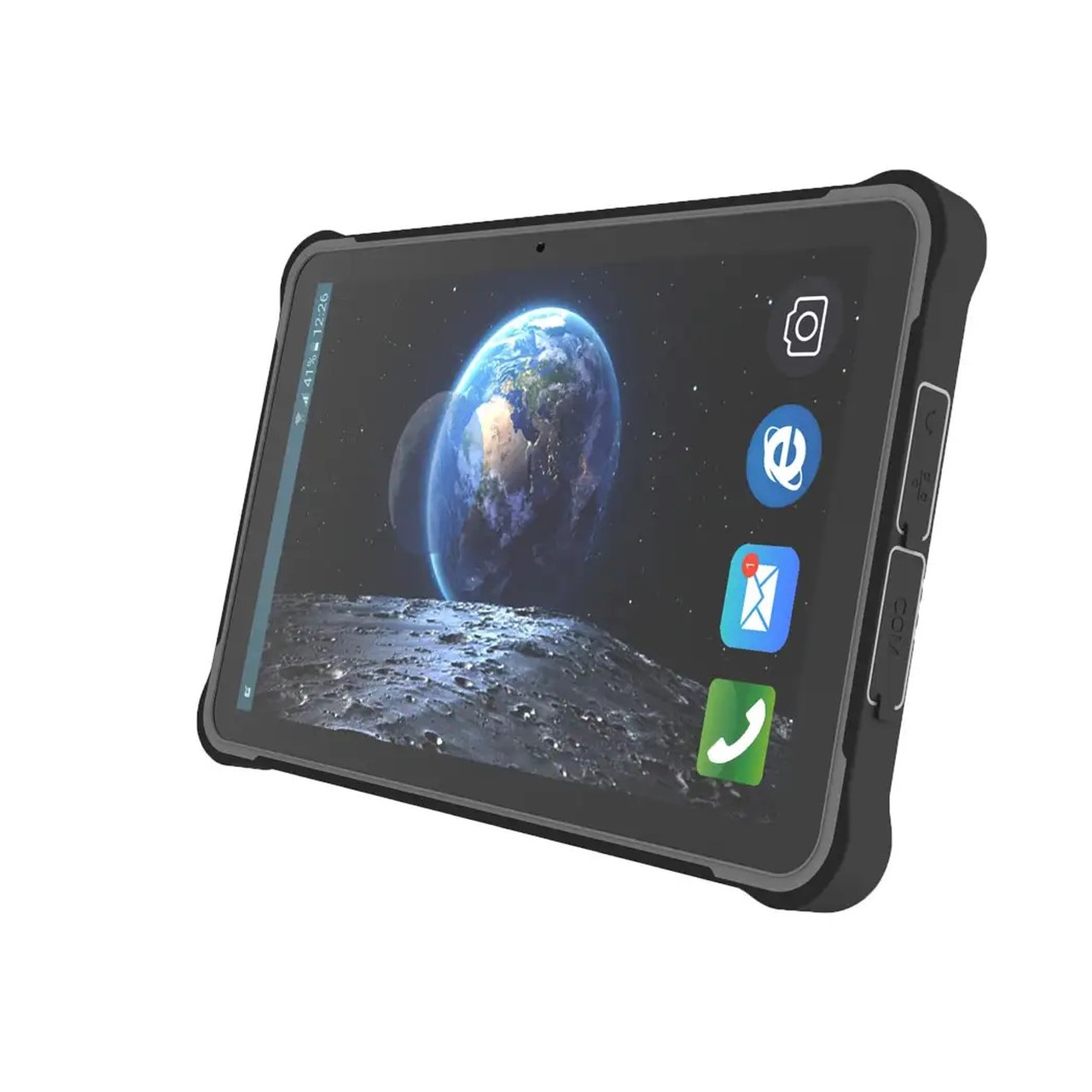

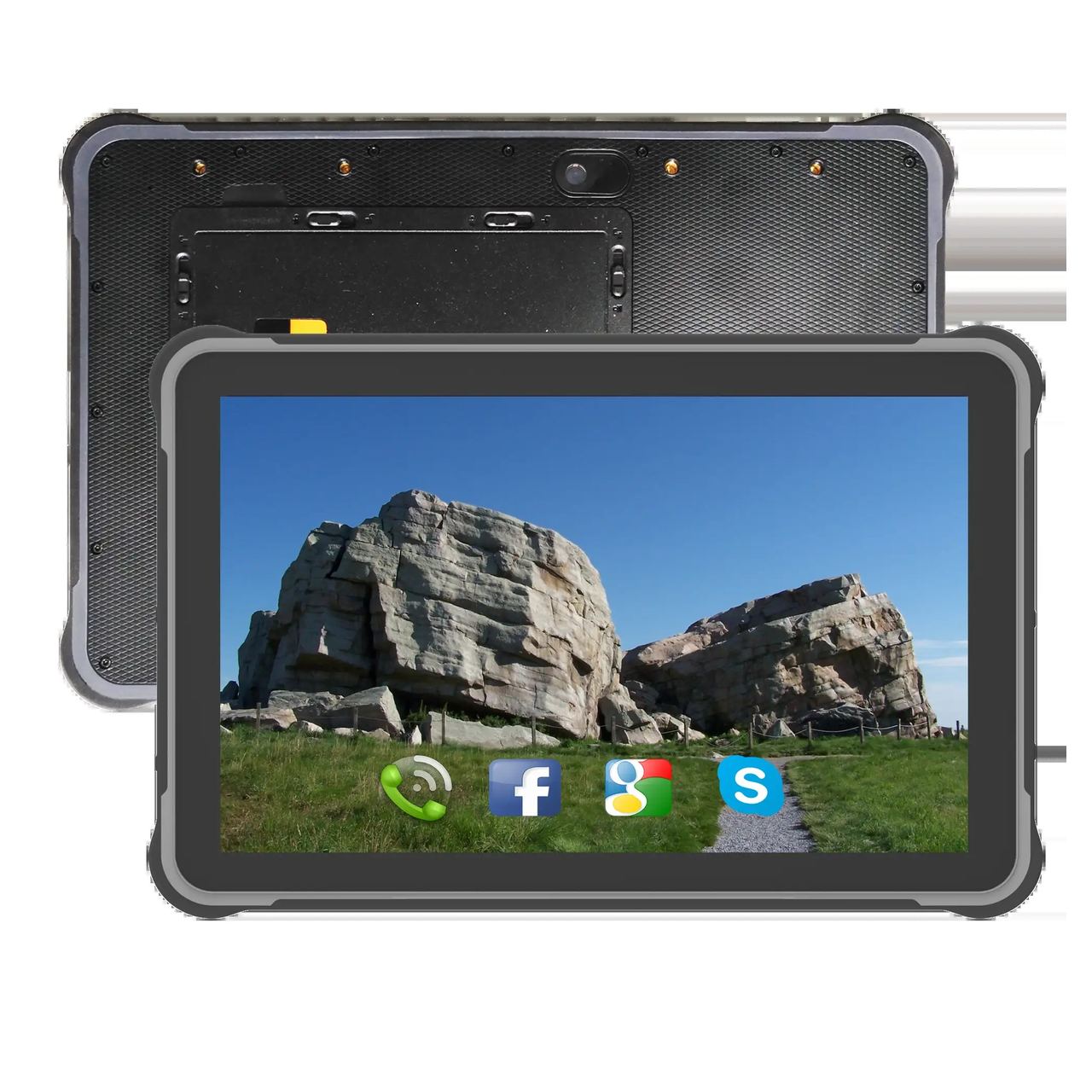

RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-122D3634AD1D.
RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets combines OS: Android 16, CPU: MT6789/MT8781 | 2 × Arm Cortex-A76，Frequency up to 2.2GHz 6 × Arm Cortex-A55，Frequency up to 2.0GHz, RAM/ROM: 4GB/64GB， 6GB/128GB | 8GB/256GB, 12GB/256GB Optional. Additional features include LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen, Touch Screen: 10 Point Touch | Support stylus, Power and Battery: 12000mAh; 3.8V. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets features
Product Introduction
Design and technical configuration
The RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets technical information lists the following configuration details.
OS: Android 16. CPU: MT6789/MT8781 | 2 × Arm Cortex-A76，Frequency up to 2.2GHz 6 × Arm Cortex-A55，Frequency up to 2.0GHz. RAM/ROM: 4GB/64GB， 6GB/128GB | 8GB/256GB, 12GB/256GB Optional. LCD: 10.1 inch; 1200*1920; 450nits | IPS Screen.
Touch Screen: 10 Point Touch | Support stylus. Camera: Front: 5MP; Real: 13MP; Flash light | 8M+16M optional. Power and Battery: 12000mAh; 3.8V. WWAN: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 TDD_LTE: B34/B38/B39/B40/B41/B66 WCDMA: 850/900/1900/2100 CDMA2000: BC0 TD-SCDMA: B34/B39 GSM: 850/900/1800/1900.
GPS: BDS, GPS, GLONASS. WIFI: 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G | MT6631N/B. BLUETOOTH: 5.2 Version. NFC: 13.56 MHz, Distance: 7-15mm | ISO14443 TYPE A; Mifare.
SPEAKER: 1.5 Watt. Sensor: 1. Light Sensor 2. Geomagnetic Sensor 3. Barometric Sensor 4. G-Sensor 5. Acceleration Sensor 6. Gyroscope. Size: 273*172*20mm. Weight: 1.1KG.

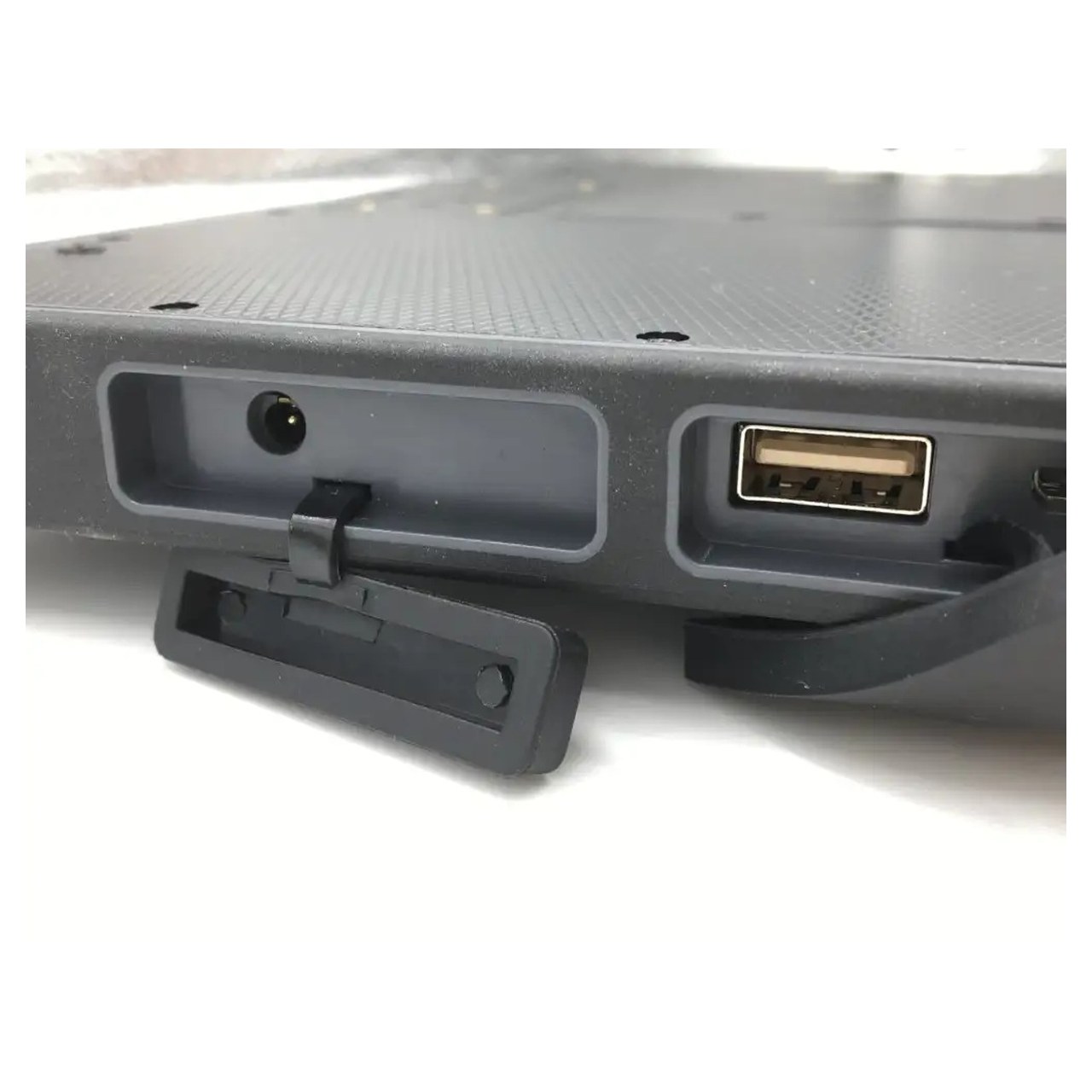

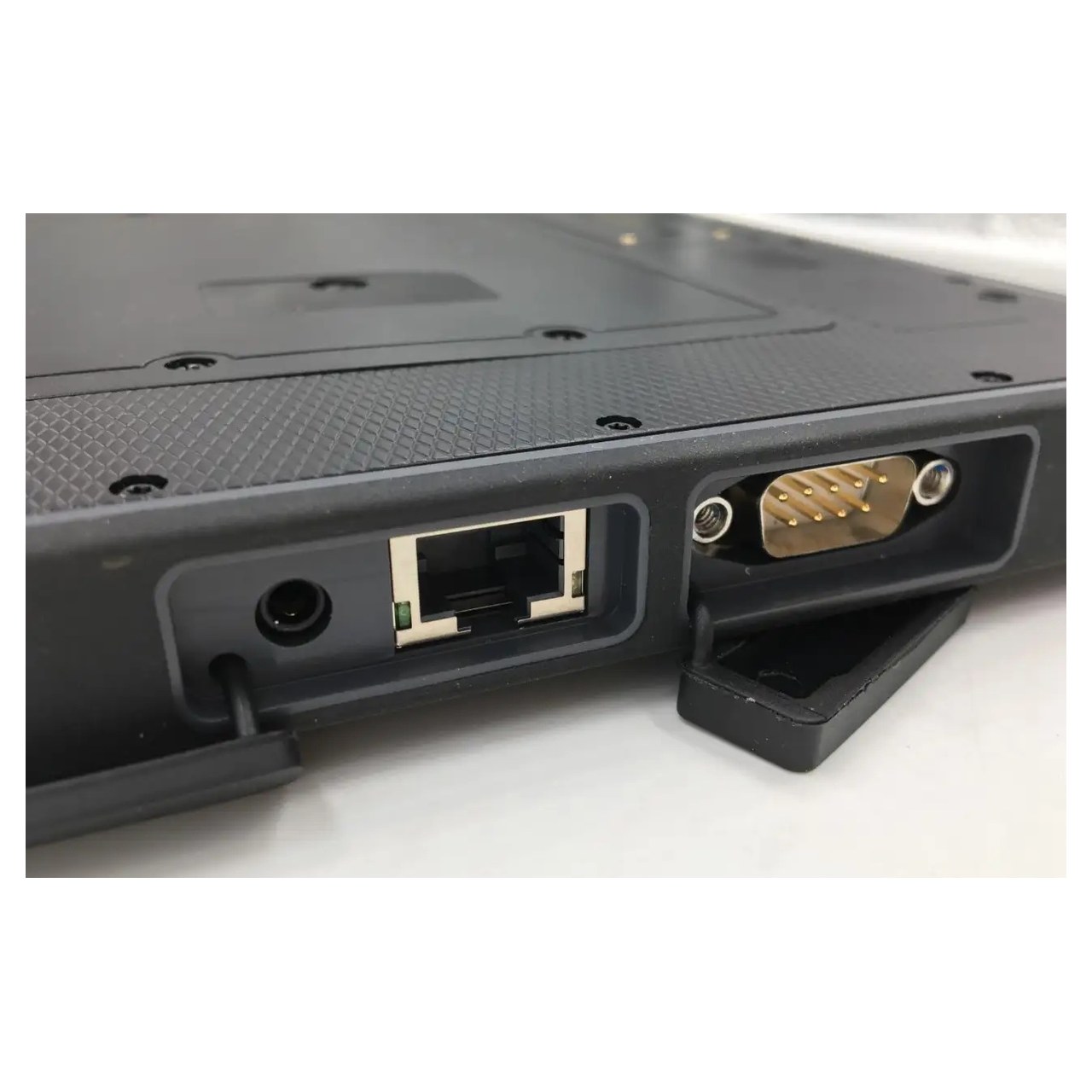

Interface In/Out Port: 1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*12mm 6. USB 2.0 *1 7. RJ45*1 8. RS232*1 | Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232. Casing Material: ABS/PC. Button: V+ -, Power, “F” for Barcode Scan | Customized Button: P,H. 1D/2D Barcode: Optional | Honeywell N4680 Optional.
UHF RFID: Optional | M500, Distance: 3-6M; built-in or external Optional. Fingerprint: Optional | AFM60 Optional. High Precision GPS: Optional | UM960 Optional. Accessories: 1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Bag & Screw 5. Wrist strap | Optional: 1. Docking Station 2. Car Holder 3. Car Docking.
Configuration and compatibility
Check the listed dimensions, power requirements and connection interfaces before selecting this model. Optional functions remain separate from the standard configuration. Where the specifications list more than one memory capacity, colour or operating system, confirm the required configuration in your enquiry. The product is presented as one model, with its technical information and photos together for comparison.
RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets specifications
RUGGEDMASTER catalog model: RM-SC-122D3634AD1D
| RUGGEDMASTER RM-SC-122D3634AD1D Rugged Tablets technical specifications | ||
|---|---|---|
| OS | Android 16 | |
| CPU | MT6789/MT8781 |
2 × Arm Cortex-A76，Frequency up to 2.2GHz 6 × Arm Cortex-A55，Frequency up to 2.0GHz |
| RAM/ROM |
4GB/64GB， 6GB/128GB |
8GB/256GB, 12GB/256GB Optional |
| LCD |
10.1 inch; 1200*1920; 450nits |
IPS Screen |
| Touch Screen |
10 Point Touch |
Support stylus |
| Camera |
Front: 5MP; Real: 13MP; Flash light |
8M+16M optional |
|
Power and Battery |
12000mAh; 3.8V | |
| WWAN |
FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 TDD_LTE: B34/B38/B39/B40/B41/B66 WCDMA: 850/900/1900/2100 CDMA2000: BC0 TD-SCDMA: B34/B39 GSM: 850/900/1800/1900 |
|
| GPS |
BDS, GPS, GLONASS |
|
| WIFI |
802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
MT6631N/B |
| BLUETOOTH |
5.2 Version |
|
| NFC |
13.56 MHz, Distance: 7-15mm |
ISO14443 TYPE A; Mifare |
| SPEAKER |
1.5 Watt |
|
| Sensor |
1. Light Sensor 2. Geomagnetic Sensor 3. Barometric Sensor 4. G-Sensor 5. Acceleration Sensor 6. Gyroscope |
|
| Size | 273*172*20mm | |
| Weight | 1.1KG | |
| Language | Multi language | |
|
Interface In/Out Port |
1. Type-C *1; OTG 2. SIM Card Slot*1 3. TF Card Slot*1 4. Earphone*1 5. DC*1; 3.5*12mm 6. USB 2.0 *1 7. RJ45*1 8. RS232*1 |
Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
|
Casing Material |
ABS/PC | |
| Button |
V+ -, Power, "F" for Barcode Scan |
Customized Button: P,H |
| 1D/2D Barcode | Optional |
Honeywell N4680 Optional |
| UHF RFID | Optional |
M500, Distance: 3-6M; built-in or external Optional |
| Fingerprint | Optional |
AFM60 Optional |
|
High Precision GPS |
Optional |
UM960 Optional |
| Accessories |
1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Bag & Screw 5. Wrist strap |
Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust & Waterproof IP65-IP67 Dropping Resistance 1.2 meter |
|
| Certification |
1. MIL-STD-810G 2. ISO 3. MSDS 4. CE, FCC, 3C |
|
| Temperature |
Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
|
