RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets
10.1 inch windows 11 pro, 450nits LCD, 1000nits brightness optional, i7-1255U, RAM/ROM 32GB/1TB, RJ45, Aviation port, Type-C, USB3.0-A, DC4.0, removeable battery, 8000mAh*7.6V = 16000mAh*3.8v, handstrap and string., dual OS optional, switch by one button, OS Windows 11 Pro Windows 10 Pro/Iot Optional

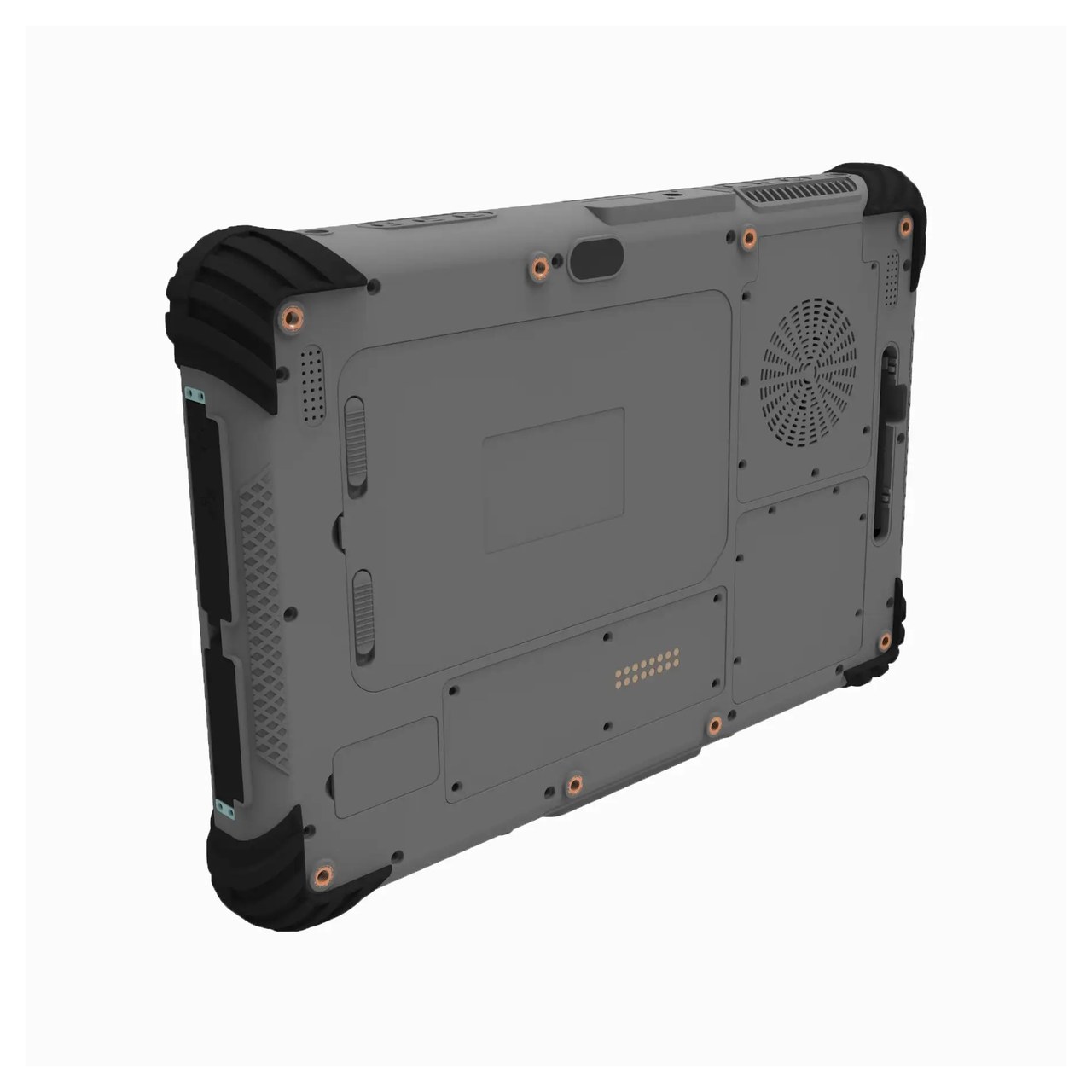

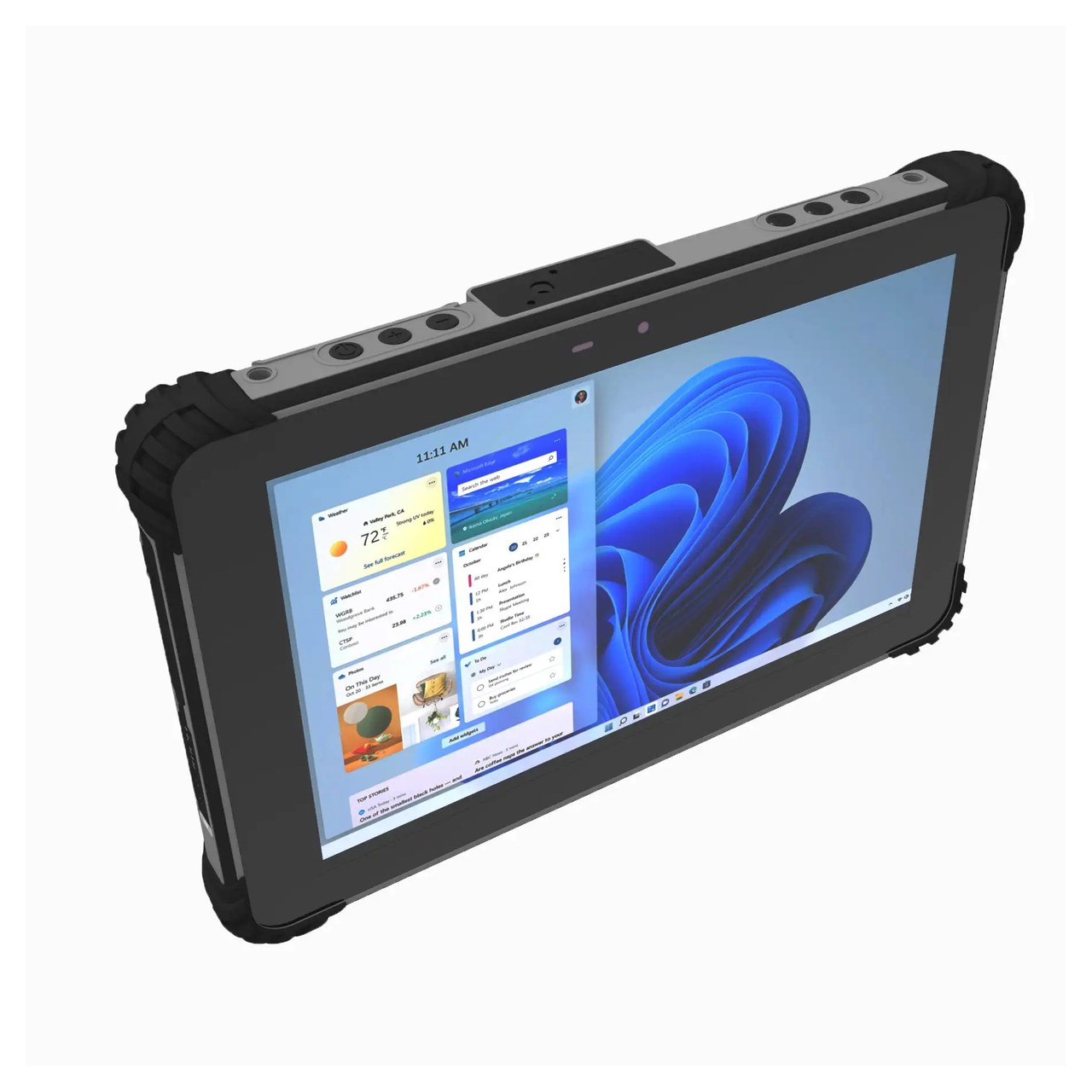

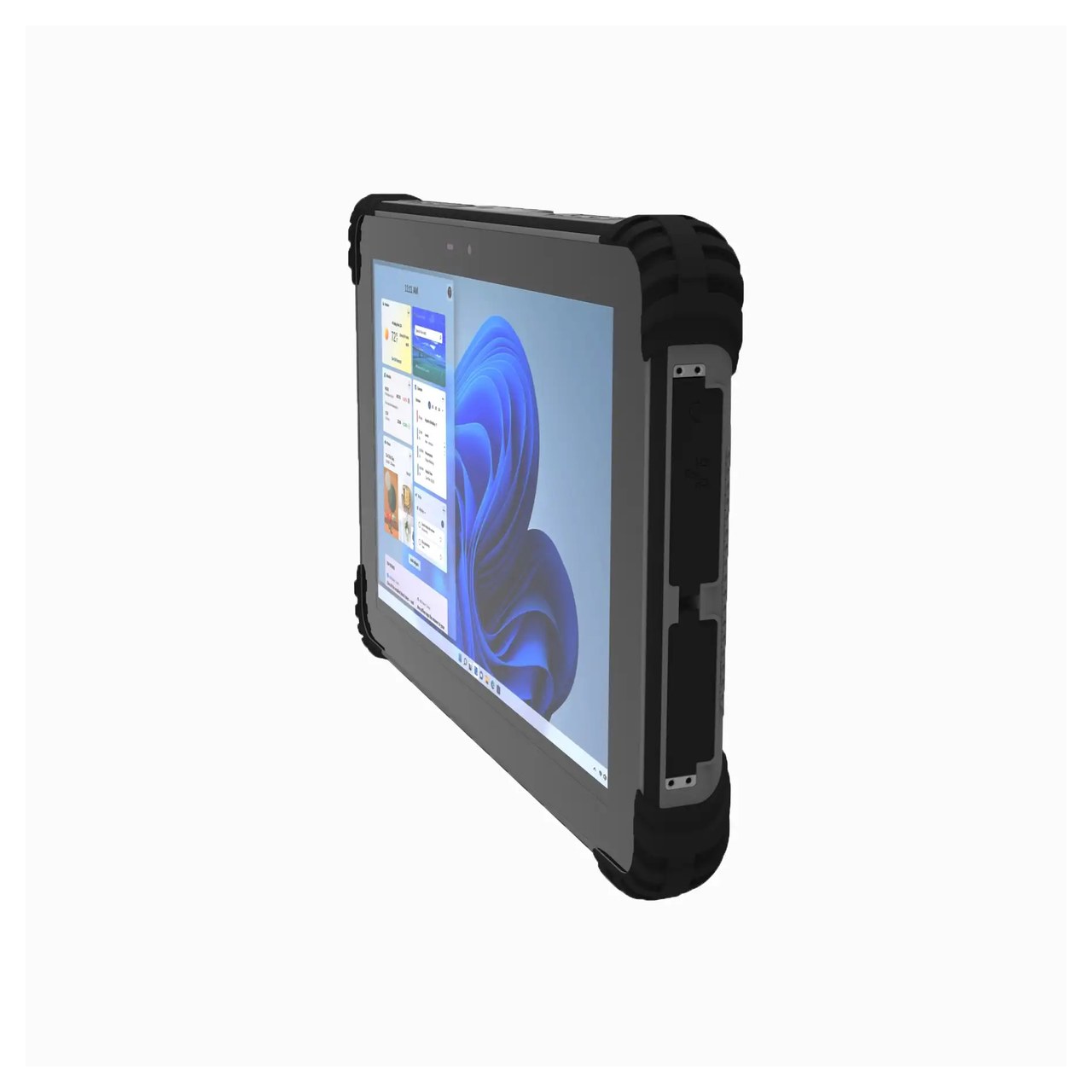

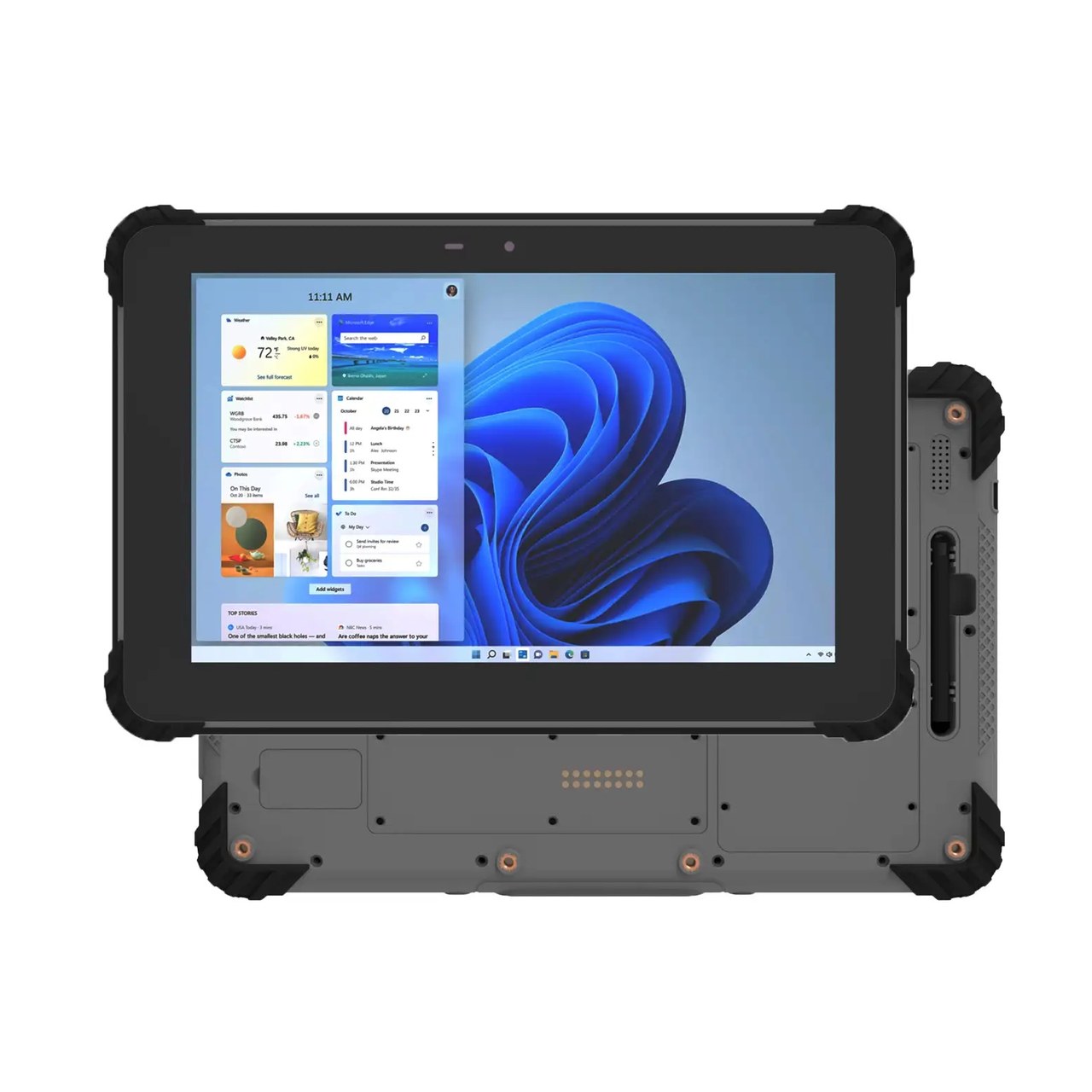

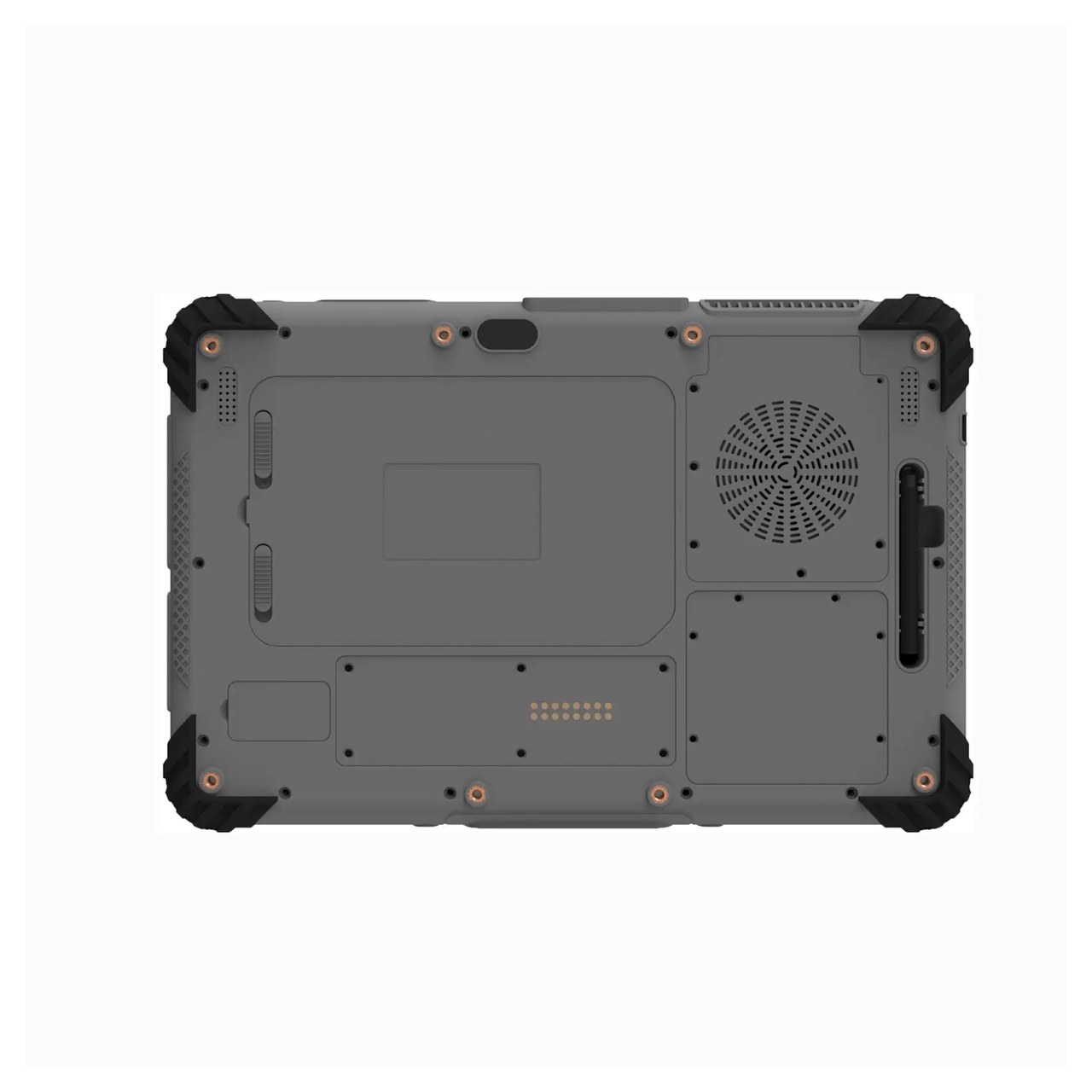

RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets combines 10.1 inch windows 11 pro, 450nits LCD, 1000nits brightness optional, i7-1255U, RAM/ROM 32GB/1TB, RJ45, Aviation port, Type-C, USB3.0-A, DC4.0. Additional features include removeable battery, 8000mAh*7.6V = 16000mAh*3.8v, handstrap and string., dual OS optional, switch by one button. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
10.1 inch windows 11 pro, 450nits LCD, 1000nits brightness optional
i7-1255U, RAM/ROM 32GB/1TB
RJ45, Aviation port, Type-C, USB3.0-A, DC4.0
removeable battery, 8000mAh*7.6V = 16000mAh*3.8v
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets
RUGGEDMASTER catalog model: RM-SC-0F717C7660E6.
RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets combines 10.1 inch windows 11 pro, 450nits LCD, 1000nits brightness optional, i7-1255U, RAM/ROM 32GB/1TB, RJ45, Aviation port, Type-C, USB3.0-A, DC4.0. Additional features include removeable battery, 8000mAh*7.6V = 16000mAh*3.8v, handstrap and string., dual OS optional, switch by one button. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets features
Product Introduction
Summary
1. 10.1 inch windows 11 pro, 450nits LCD, 1000nits brightness optional
2. i7-1255U, RAM/ROM 32GB/1TB
3. 4G LTE/WIFI/GPS/BT/NFC
4. RJ45, Aviation port, Type-C, USB3.0-A, DC4.0
5. removeable battery, 8000mAh*7.6V = 16000mAh*3.8v
6. Removeable pen
7. handstrap and string.
8. docking station
9. dual OS optional, switch by one button
Specification
OS Windows 11 Pro Windows 10 Pro/Iot Optional
Design and technical configuration
The RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets technical information lists the following configuration details.
OS: Windows 11 Pro Windows 10 Pro/Iot Optional. CPU: Intel I5-1235U 10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.7GHz/power consumption 15W” “I7-1255U Optional 10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W. GPU: Intel® Iris® Xe Graphics 80EU I7: Intel® Iris® Xe Graphics 96EU. RAM/ROM: 16GB/512GB 8GB/256GB; 32GB/1TB Optional.
LCD: 10.1 inch; 1200*1920; 450nits SQ101D. Touch Screen: 10 Point Touch Support stylus. Camera: Front: 5MP; Real: 8MP 5M/13M optional. Power: 8000mAh，7.6V lithium battery (45.6Wh) “Charging：2.5H (fast charging) Discharge：8H (playing video) DC4.0, 12V 4A DC input Supports Type-C 65W fast charging.
WWAN: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8″ “EC25-AUX (5G customizable). GPS: BDS, GPS, GLONASS. WIFI: 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G” Intel® Wi-Fi 6 AX201. BLUETOOTH: 5.2 Version.
NFC: 13.56 MHz, Distance: 7-15mm ISO14443; TYPE A; Mifare. SPEAKER: 1.5 Watt. Sensor: 1. Light Sensor 2. Acceleration Sensor 3. G-Sensor Size. Weight: 1.2KG.
Casing Material: ABS/PC. Button: V+ -, Power, “F” for Barcode Scan Customized Button: P,H. 1D/2D Barcode: Optional Honeywell N4680 Optional. UHF RFID: Optional M500, Distance: 3M; external.
Fingerprint: Optional AMF60 Optional. High Precision GPS: Optional UM960; TU101 Optional. Accessories: 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Bag & Screw 5. Wrist strap” “Optional: 1. Docking Station 2. Car Holder 3. Car Docking Multi-Media (Hardware Decoding)” “1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license). Proof Degree: Anti-dust & Waterproof IP65-67 Dropping Resistance 1.2 meter.
RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets. Browse our rugged tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details.
RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets specifications
| RUGGEDMASTER catalog model | RM-SC-0F717C7660E6 |
|---|---|
| RUGGEDMASTER RM-SC-0F717C7660E6 Rugged Tablets technical specifications | |
| OS | Windows 11 Pro Windows 10 Pro/Iot Optional |
| CPU | Intel I5-1235U 10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.7GHz/power consumption 15W" "I7-1255U Optional 10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W |
| GPU | Intel® Iris® Xe Graphics 80EU I7: Intel® Iris® Xe Graphics 96EU |
| RAM/ROM | 16GB/512GB 8GB/256GB; 32GB/1TB Optional |
| LCD | 10.1 inch; 1200*1920; 450nits SQ101D |
| Touch Screen | 10 Point Touch Support stylus |
| Camera | Front: 5MP; Real: 8MP 5M/13M optional |
| Power | 8000mAh，7.6V lithium battery (45.6Wh) "Charging：2.5H (fast charging) Discharge：8H (playing video) DC4.0, 12V 4A DC input Supports Type-C 65W fast charging |
| WWAN | FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8" "EC25-AUX (5G customizable) |
| GPS | BDS, GPS, GLONASS |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G" Intel® Wi-Fi 6 AX201 |
| BLUETOOTH | 5.2 Version |
| NFC | 13.56 MHz, Distance: 7-15mm ISO14443; TYPE A; Mifare |
| SPEAKER | 1.5 Watt |
| Sensor | 1. Light Sensor 2. Acceleration Sensor 3. G-Sensor Size |
| Weight | 1.2KG |
| Language | Multi language Interface In/Out Port" "1. DC 12V 3A ∮4.0mm 2. HDMI Type A x1,Audio and video output 3. USB Type_A：USB3.2 Gen1 x2 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging) 5. Earphone：∮3.5mm headphone jack x1 6. RJ45：Support Gigabit Ethernet 7. RS232：Standard DB9" "Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Casing Material | ABS/PC |
| Button | V+ -, Power, "F" for Barcode Scan Customized Button: P,H |
| 1D/2D Barcode | Optional Honeywell N4680 Optional |
| UHF RFID | Optional M500, Distance: 3M; external |
| Fingerprint | Optional AMF60 Optional |
| High Precision GPS | Optional UM960; TU101 Optional |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Bag & Screw 5. Wrist strap" "Optional: 1. Docking Station 2. Car Holder 3. Car Docking Multi-Media (Hardware Decoding)" "1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
| Proof Degree | Anti-dust & Waterproof IP65-67 Dropping Resistance 1.2 meter |
| Certification | 1. MIL-STD-810G 2. ISO 3. MSDS |
| Temperature | Storate Temperature: -25 °C to 80 °C |
| Operation Temperature | -20 °C to 60 °C |
