RUGGEDMASTER RG760 Rugged Phones

RUGGEDMASTER RG760 Rugged Phones overview

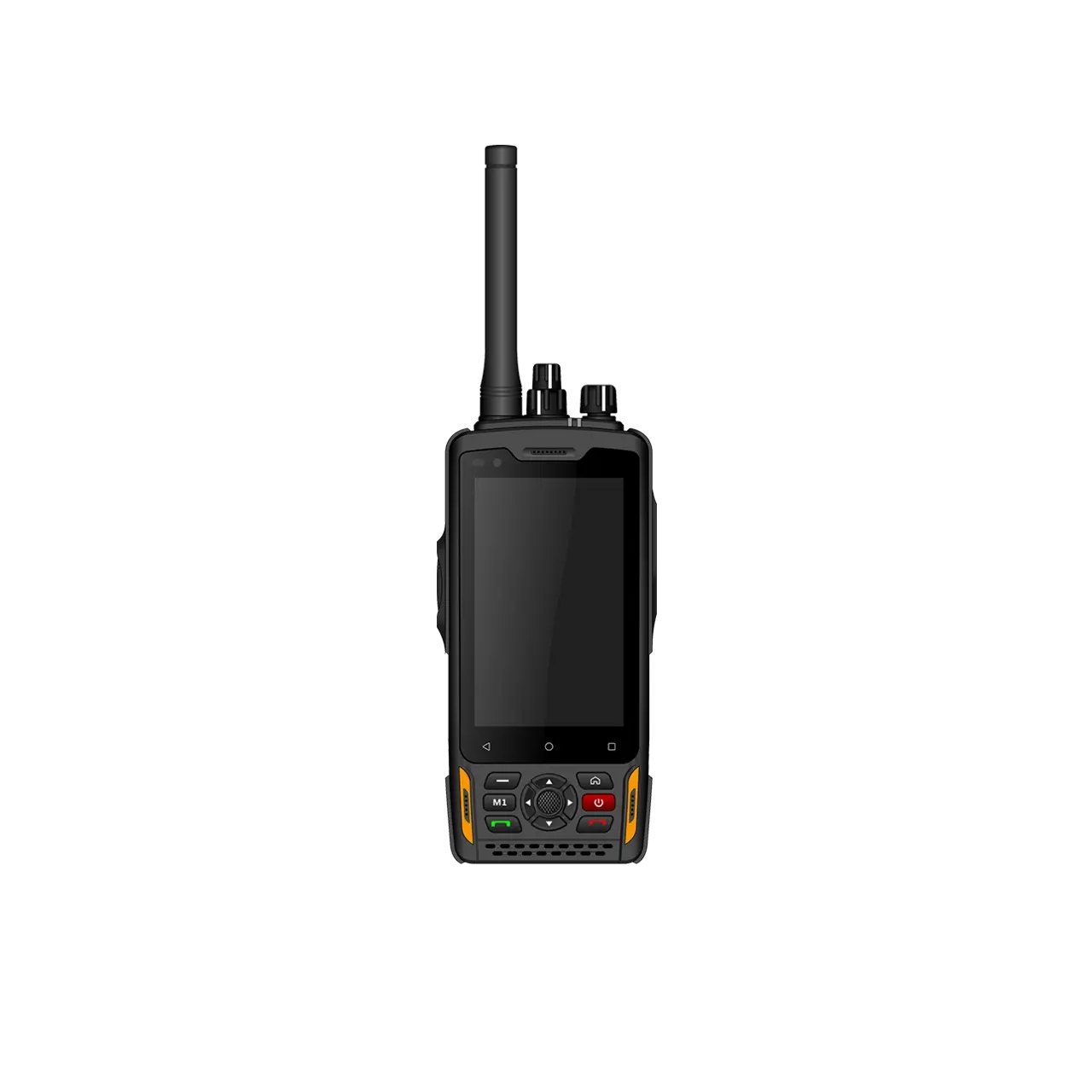

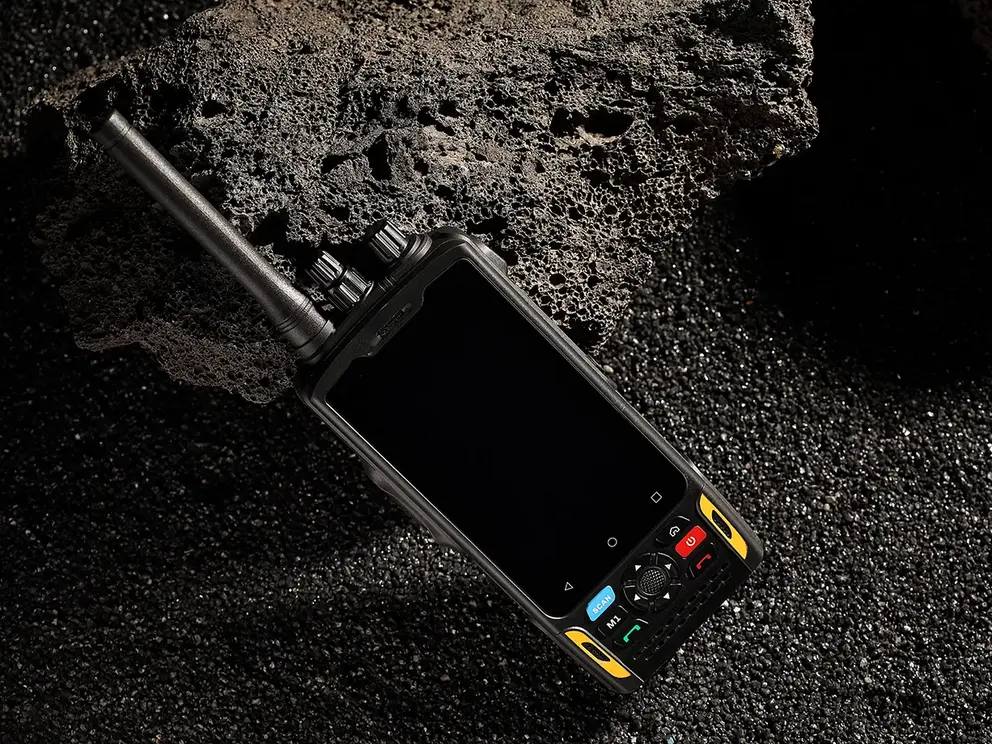

RUGGEDMASTER RG760 Rugged Phones — Introducing the RG760, the world’s first PTX-ready smartphone featuring private and public LTE for high-speed wireless communication, even in the most remote areas, thank to private LTE Band 31. Built to IP68 standards, it safeguards against harsh conditions so your workers can make unrestricted calls wherever they are.

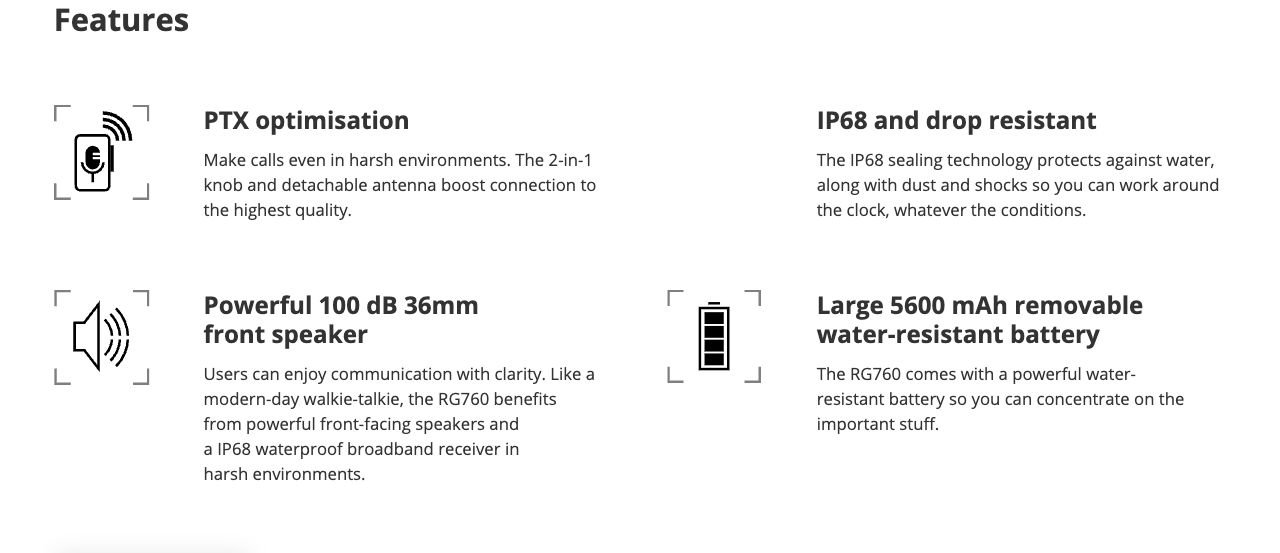

RG760 features

PTX optimisation

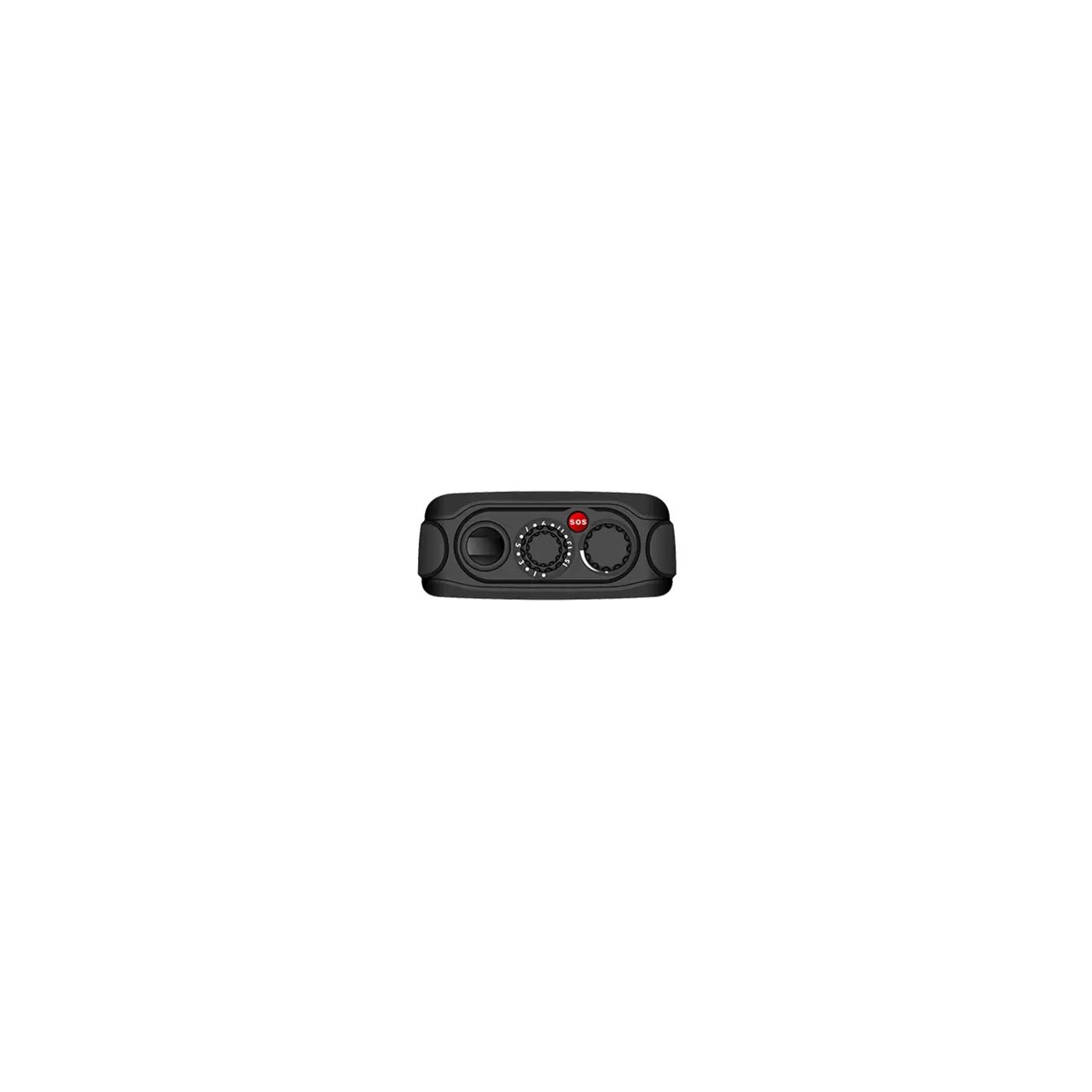

Make calls even in harsh environments. The 2-in-1 knob and detachable antenna boost connection to the highest quality.

IP68 and drop resistant

The IP68 sealing technology protects against water, along with dust and shocks so you can work around the clock, whatever the conditions.

Powerful 100 dB 36mm front speaker

Users can enjoy communication with clarity. Like a modern-day walkie-talkie, the RG760 benefits from powerful front-facing speakers and a IP68 waterproof broadband receiver in harsh environments.

Large 5600 mAh removable water-resistant battery

The RG760 comes with a powerful water-resistant battery so you can concentrate on the important stuff.

Platform and interfaces

• Operating system — Android™ 7.1.2 (Nougat)
• Display — 4.0-inch WVGA / 640 x 1136 pixels / 5 point capacitive touch / Corning® Gorilla® Glass
• Battery — 5600 mAh
• Capacity — 32GB (supports microSD up to 128GB)
• Color — black
• Memory — 3 GB RAM
• Size and weight — 157 x 72.5 x 28 mm, 404 g
• CPU — Qualcomm® Snapdragon™ 625 (MSM8953)
• Camera — Rear: 13MP (AF) / Front: 5MP (FF)
• Cellular and wireless — FDD-LTE Band 31 (private network)
• — Then choose region:
• — EU version: FDD-LTE Bands 1, 3, 5, 7, 8, 20, 28 – TDD-LTE Bands 38, 39, 40, 41 （100MHz：2555~2655MHz） – TD-SCDMA Bands 34, 39
• — US version: FDD-LTE Bands 2, 4, 5, 7, 12, 13 (or 14), 17, 25, 26 – TDD-LTE Bands 38, 41
• — All: GSM/GPRS/EDGE 850, 900, 1800, 1900MHz – WCDMA/HSPA+ Bands 1, 2, 5, 8 – CDMA 1x/EVDO: BC0/BC1 / GPRS/SMS/MMS support / Bluetooth® 4.1 Low Energy / IEEE 802.11 b/g/n/r/ac with hotspot / NFC
• Location — GPS, A-GPS, GLONASS, BeiDou / Wi-Fi® / Cellular

Selection and deployment

RUGGEDMASTER RG760 Rugged Phones should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.

For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.

Explore related rugged phones or request a wholesale quote. See the manufacturer product reference for the source information.
