RUGGEDMASTER RG540 Rugged Phones
Qualcomm® Processor, Professional MCX, 6" FHD Display, CBRS and international certificates
The RG540 is RUGGEDMASTER's rugged smartphone for Mission Critical Communication (MCX and MCV). Its 6" display and 5G connectivity makes it perfect for remote maintenance in industrial environment.
Qualcomm® Processor
Professional MCX
6" FHD Display
CBRS and international certificates
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

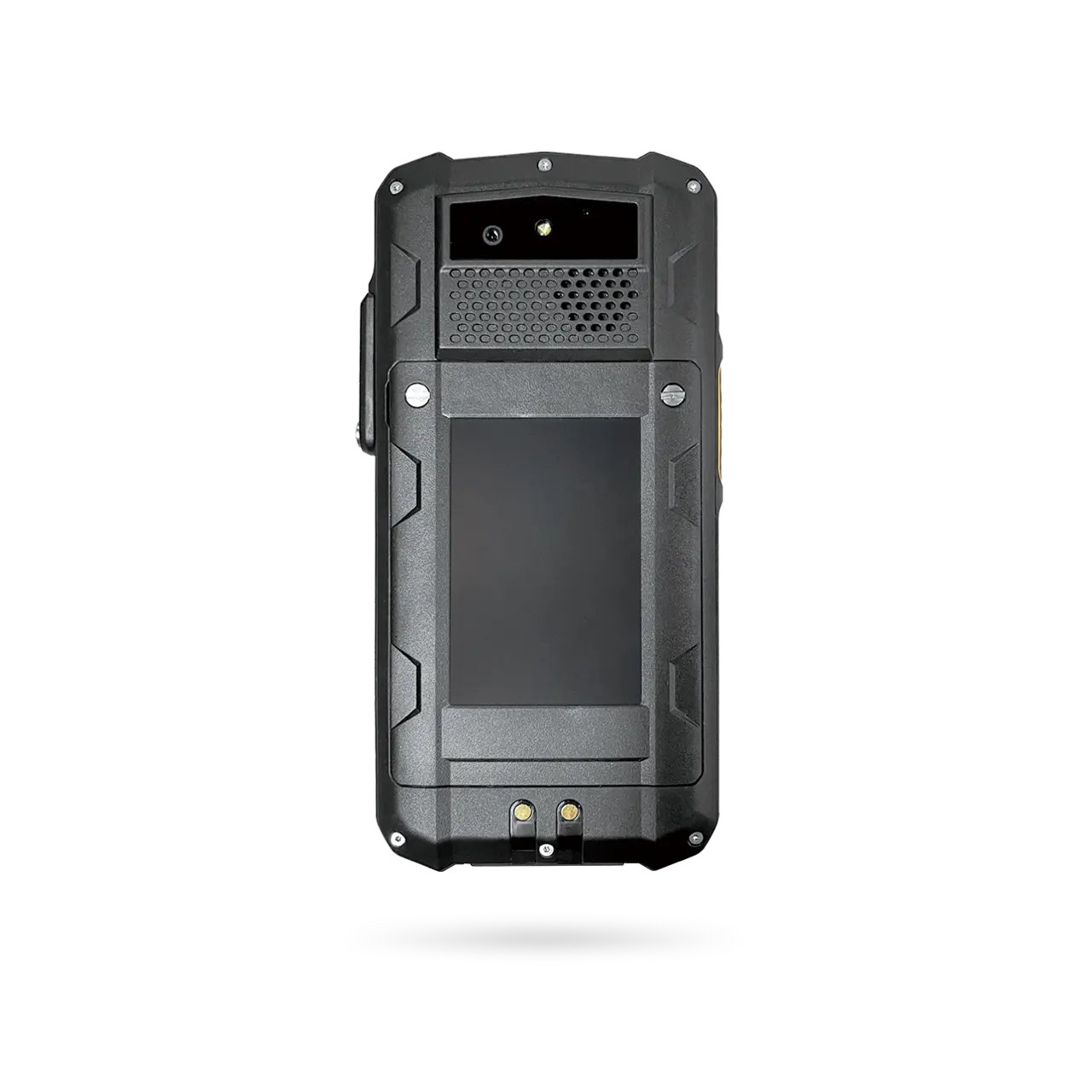

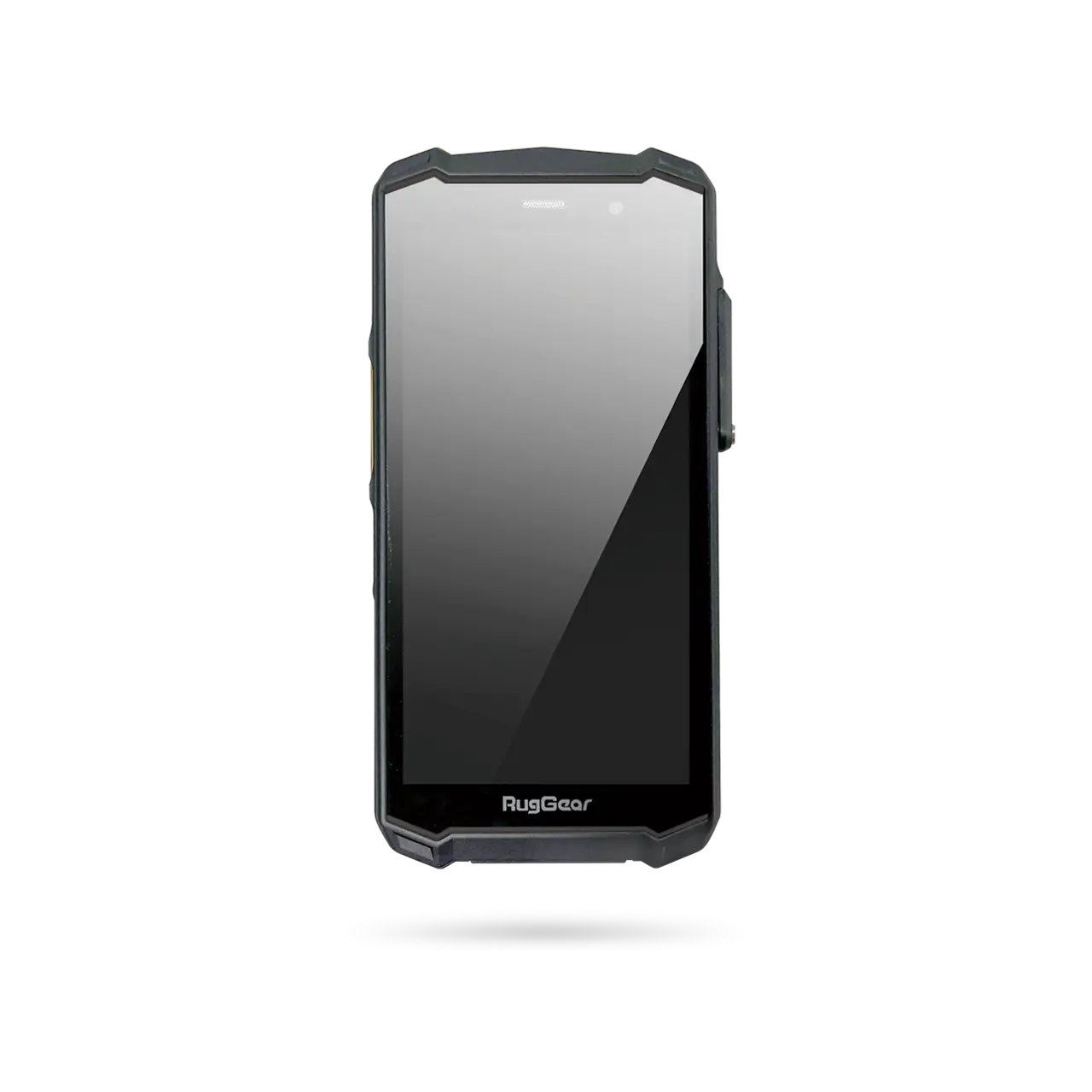

RUGGEDMASTER RG540 Rugged Phones overview
RUGGEDMASTER RG540 Rugged Phones — The RG540 is RUGGEDMASTER's rugged smartphone for Mission Critical Communication (MCX and MCV). Its 6" display and 5G connectivity makes it perfect for remote maintenance in industrial environment.

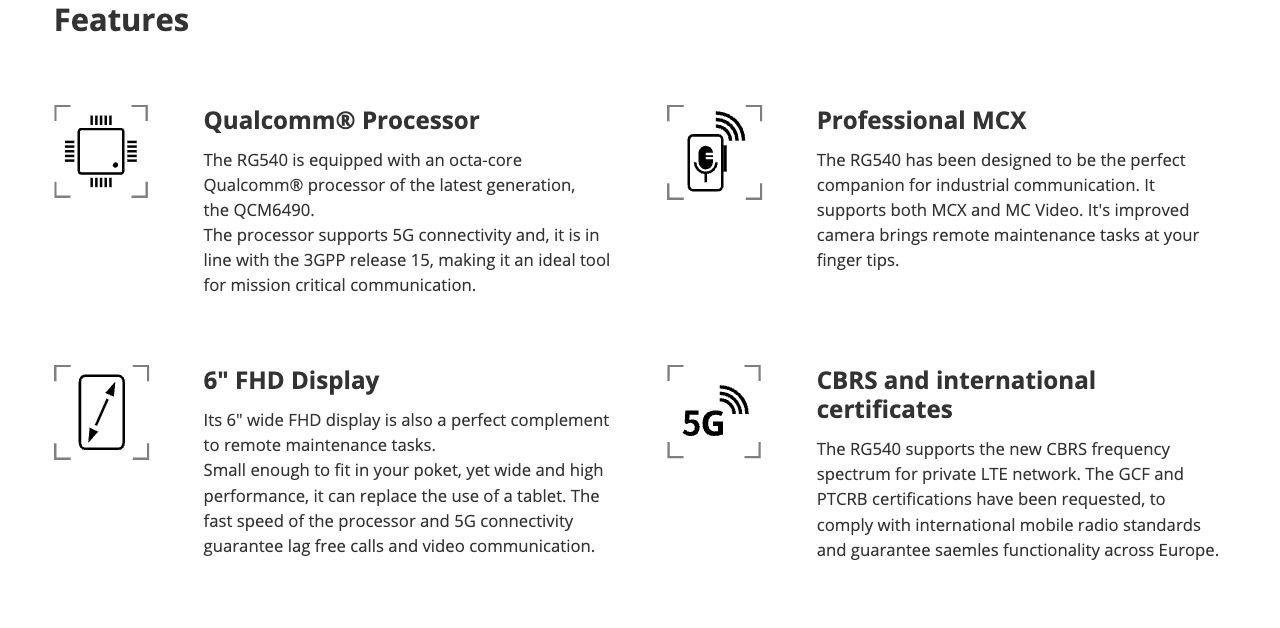

RG540 features
Qualcomm® Processor
The RG540 is equipped with an octa-core Qualcomm® processor of the latest generation, the QCM6490. The processor supports 5G connectivity and, it is in line with the 3GPP release 15, making it an ideal tool for mission critical communication.
Professional MCX
The RG540 has been designed to be the perfect companion for industrial communication. It supports both MCX and MC Video. It's improved camera brings remote maintenance tasks at your finger tips.
6" FHD Display
Its 6" wide FHD display is also a perfect complement to remote maintenance tasks. Small enough to fit in your poket, yet wide and high performance, it can replace the use of a tablet. The fast speed of the processor and 5G connectivity guarantee lag free calls and video communication.
CBRS and international certificates
The RG540 supports the new CBRS frequency spectrum for private LTE network. The GCF and PTCRB certifications have been requested, to comply with international mobile radio standards and guarantee saemles functionality across Europe.
Platform and interfaces
- Operating system — Android™ 12, with GMS (supports patch updates and major version upgrade)
- Display — 6.0-inch FHD / 1080 x 2160 pixels；Corning® Gorilla® Glass，Wet & Glove operation
- Capacity — 128 GB (supports MicroSD up to 512 GB)
- Battery — 4400 mAh, Removable
- Color — Black + Yellow
- Memory — 8 GB
- Size and weight — 180 X 84.5 x 19.5 mm, 420 g
- CPU — QCM6490, Octa-Core 2.7 GHz
- Camera — Rear 48 MP（PDAF) / Front: 5 MP (FF)
- Cellular and wireless — GSM: 850/900/1800/1900 MHz
- — WCDMA: B1/2/4/5/8
- — TDD-LTE: B34/B38/39/40/41(full)/42/43/48
- — FDD-LTE: B1/2/3/4/5/7/8/12/17/20/25/26/28/29/30/66/68/71
- — 5G NR: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n20 / n25 / n28 / n38 / n30/ n40/ n41 / n48/ n66 / n71 / n77 / n78 / n79
- — VoNR, VoLTE, Vi-LTE and VoWiFi support
Selection and deployment
RUGGEDMASTER RG540 Rugged Phones should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.
For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.
Explore related rugged phones or request a wholesale quote. See the manufacturer product reference for the source information.
RUGGEDMASTER RG540 Rugged Phones Specs
|
Operating system |
Android™ 12, with GMS (supports patch updates and major version upgrade) |
|---|---|
|
Display |
6.0-inch FHD / 1080 x 2160 pixels；Corning® Gorilla® Glass，Wet & Glove operation |
|
Capacity |
128 GB (supports MicroSD up to 512 GB) |
|
Battery |
4400 mAh, Removable |
|
Color |
Black + Yellow |
|---|---|
|
Memory |
8 GB |
|
Size and weight |
180 X 84.5 x 19.5 mm, 420 g |
|
CPU |
QCM6490, Octa-Core 2.7 GHz |
|
Camera |
Rear 48 MP（PDAF) / Front: 5 MP (FF) |
|
Cellular and wireless |
GSM: 850/900/1800/1900 MHz |
|
|
WCDMA: B1/2/4/5/8 |
|
|
TDD-LTE: B34/B38/39/40/41(full)/42/43/48 |
|
|
FDD-LTE: B1/2/3/4/5/7/8/12/17/20/25/26/28/29/30/66/68/71 |
|
|
5G NR: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n20 / n25 / n28 / n38 / n30/ n40/ n41 / n48/ n66 / n71 / n77 / n78 / n79 |
|
|
VoNR, VoLTE, Vi-LTE and VoWiFi support |
|
|
CBRS Band , EmBMS support |
|
Audio |
2W Φ32 loud speaker，≥103 db Dual MIC noise reduction |
|
Bluetooth® |
V 5.2 |
|
Wi-Fi® |
802.11 a/b/g/n/ac/ax/e/k/r/v, supports Wi-Fi 6, seamless roaming |
|
Location |
GPS (A-GPS), GLONASS (A-GLONASS), Galilleo, Beidou |
|
NFC |
supported |
|
I/O Ports |

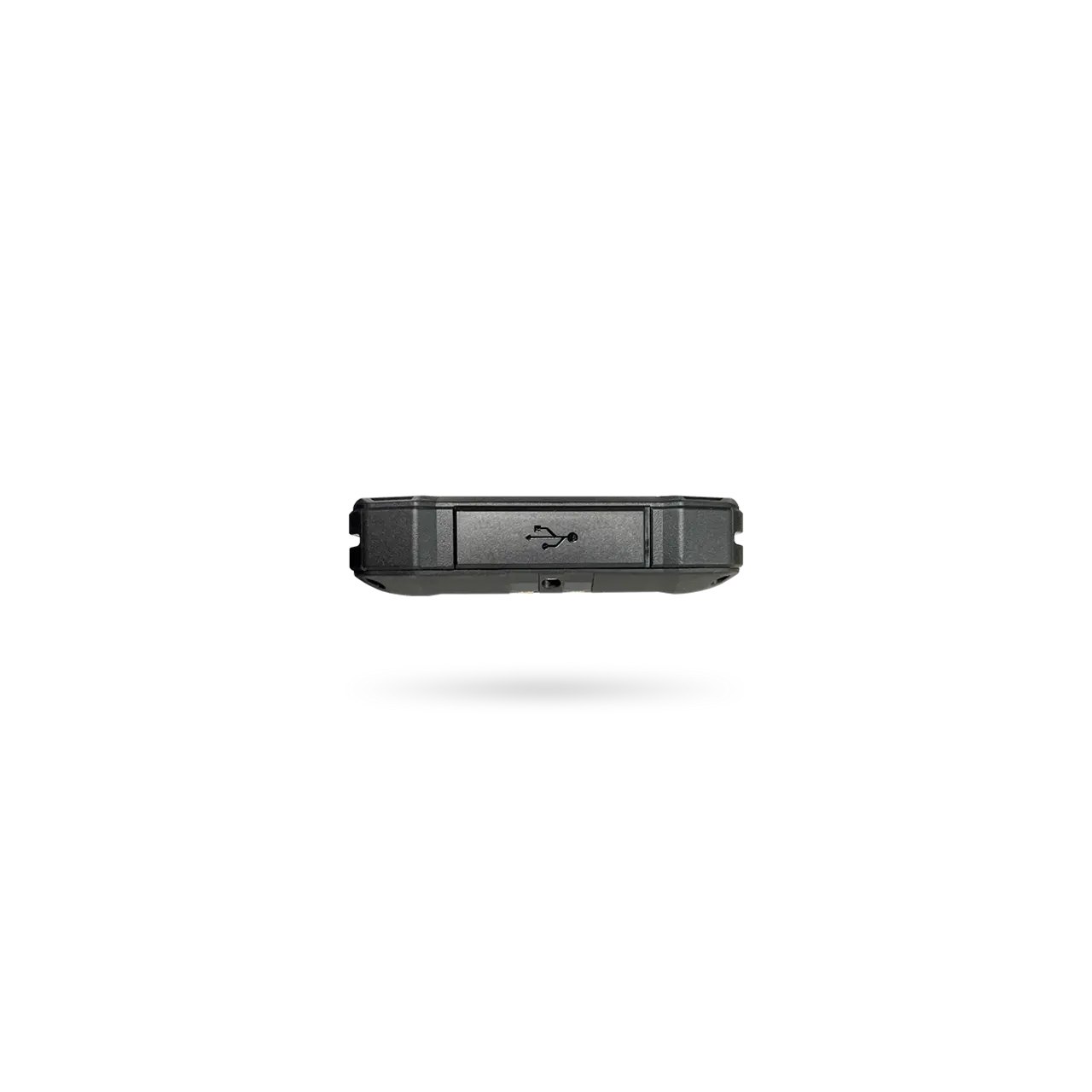

USB-C (USB3.1) / 16-pin interface |
|
Playback |
Audio: MP3, PCM, AAC/AAC+/eAAC+, WMA, FLAC, ALAC, Vorbis, AIFF, APE Video: H.264, MPEG-2 (non-secure only), VP9 (8-bit and 10-bit), HEVC (8-bit and 10-bit), HEIF/HEIC |
|
Sensors |
P/L sensor, Accel, Gyro，E-compass, Barometer |
|
Apps included |
Google apps, LWP (Lone Worker Protection )，customkey |
|
SIM card |
Nano SIM + eSIM |
|
Accessories（Optional) |
Desktop Charger, 16-pin PTT headset / RSM, Belt clip |
