RUGGEDMASTER RG230 Walkie Talkies

RUGGEDMASTER RG230 Walkie Talkies overview

RUGGEDMASTER RG230 Walkie Talkies — The RG230 is an LTE device designed to enable smooth and reliable fleet communication via 2G, 3G and 4G networks. Real time information can be obtained at any time and its convenient keypad operation avoids excessive distractions allowing for safe driving. Its car mount has a 180° free flip to help find the perfect angle view for the driver.

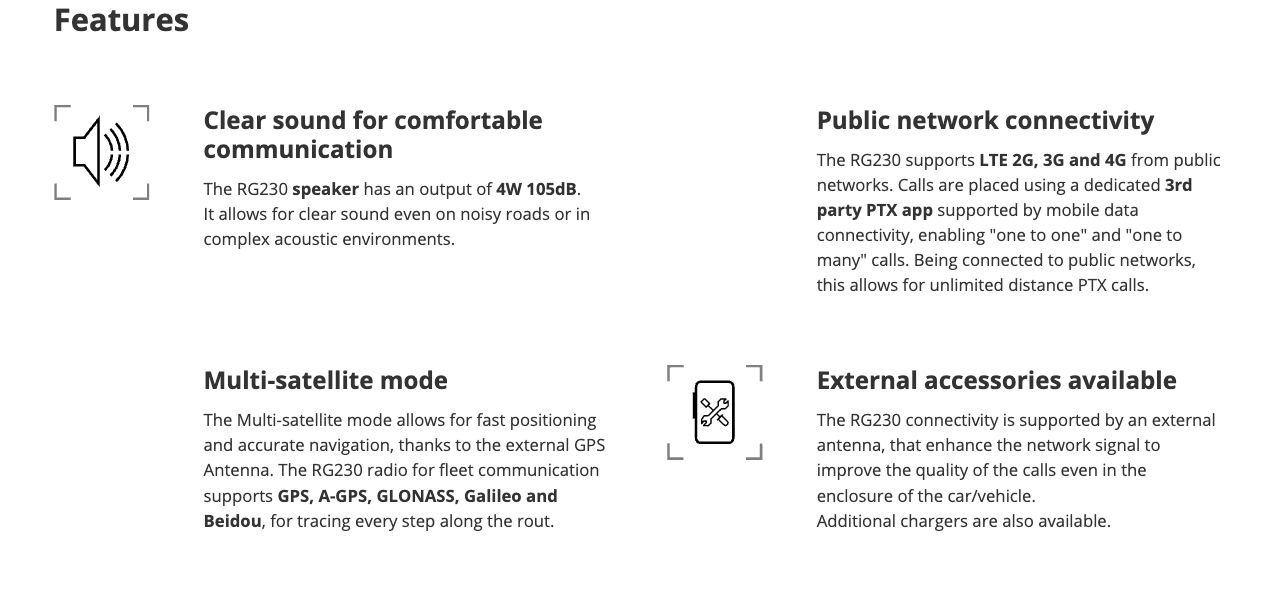

RG230 features

Clear sound for comfortable communication

The RG230 speaker has an output of 4W 105dB . It allows for clear sound even on noisy roads or in complex acoustic environments.

Public network connectivity

The RG230 supports LTE 2G, 3G and 4G from public networks. Calls are placed using a dedicated 3rd party PTX app supported by mobile data connectivity, enabling "one to one" and "one to many" calls. Being connected to public networks, this allows for unlimited distance PTX calls.

Multi-satellite mode

The Multi-satellite mode allows for fast positioning and accurate navigation, thanks to the external GPS Antenna. The RG230 radio for fleet communication supports GPS, A-GPS, GLONASS, Galileo and Beidou , for tracing every step along the rout.

External accessories available

The RG230 connectivity is supported by an external antenna, that enhance the network signal to improve the quality of the calls even in the enclosure of the car/vehicle. Additional chargers are also available.

Platform and interfaces

• Operating system — RG-OS 11 GO
• Display — 3.5-inch Touch Screen
• Capacity — 32 GB Supports microSD card expansion up to 256 GB
• Power supply — by cable/car charger/adaptor
• Random access memory — 2 GB
• Height and weight — 170 x 80 x 85 mm, 380 g
• CPU — MT8766 ARM Cortex-A53 4×2.0 GHz
• Camera — N/A
• Cellular and wireless — FDD-LTE：B1/3/5/7/8/20/28A/28B
• — TDD-LTE：B38/39/40/41（2535～2655MHZ，120M）
• — WCDMA: B1/2/5/8
• — GSM/GPRS/EDGE：B2/3/5/8
• Audio — 4W
• Bluetooth® — 5.0
• Wi-Fi® — 2.4 GHz +5 GHz

Selection and deployment

RUGGEDMASTER RG230 Walkie Talkies should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.

For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.
