RUGGEDMASTER R5 Wearable RFID Readers
2000 mAh (removable) · Bluetooth Low Energy (BLE) 5.0 · -40 °C to +70 °C · IP65
Robust RFID Reading and WritingBring the High Level of Flexibility to UsersFeaturesWearable and DetachableSDK: Support Android/iOS2000mAh Removable BatteryFunctionsUHF RFID (Impinj E710/R2000 Chip)Bluetooth Low Energy (BLE) 5.0
Android / iOS SDK: 2000mAh Removable Battery
IP65 & 1.5m / 5ft. Drop: Various Wearable Options
Self-Developed Module Based on Impinj E Series chips: Impinj Gen2X for Enhanced UHF Performance
Dimensions: 108 mm × 78 mm × 18 mm
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER R5 Wearable RFID Readers
RUGGEDMASTER R5 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Robust RFID Reading and WritingBring the High Level of Flexibility to UsersFeaturesWearable and DetachableSDK: Support Android/iOS2000mAh Removable BatteryFunctionsUHF RFID (Impinj E710/R2000 Chip)Bluetooth Low Energy (BLE) 5.0
Configuration overview
Technical specifications include Android / iOS SDK: 2000mAh Removable Battery. IP65 & 1.5m / 5ft. Drop: Various Wearable Options. Self-Developed Module Based on Impinj E Series chips: Impinj Gen2X for Enhanced UHF Performance. Dimensions: 108 mm × 78 mm × 18 mm.
Technical specifications include Weight: 200 g / 7.05 oz.. Battery: 2000 mAh (removable). Keypad: ON/OFF, SCAN. Indicator LED: Red indicator will be ON when chargingGreen indicator will be ON when device has been fully chargedBlue indicator will be ON when battery is higher than 20%Blue indicator will flash when battery is lower than 20%Bluetooth is not paired when bluetooth indicator is OFFBluetooth is paired when bluetooth indicator is ON.
Technical specifications include Port: USB Type C. Charging Current: 5 V / 1.5 A. Charging Duration: 2 hours. Bluetooth: Bluetooth Low Energy (BLE) 5.0.
Technical specifications include USB Type C: USB connection to realize data transfer. SDK: Android / iOS SDK Supported. Operating Temp.: -20 °C to +50 °C. Storage Temp.: -40 °C to +70 °C.
Technical specifications include Humidity: 5% RH – 95% RH non condensing. Drop Specification: 1.5 m dropping on concrete. Sealing: IP65. Engine: Based on Impinj E Series chips.
Technical specifications include Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz. Impinj Gen2X: Supported. Protocol: EPC C1 GEN2 / ISO18000-6C. Antenna: Circular Polarized Antenna.
Wholesale purchasing information
For RUGGEDMASTER R5, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

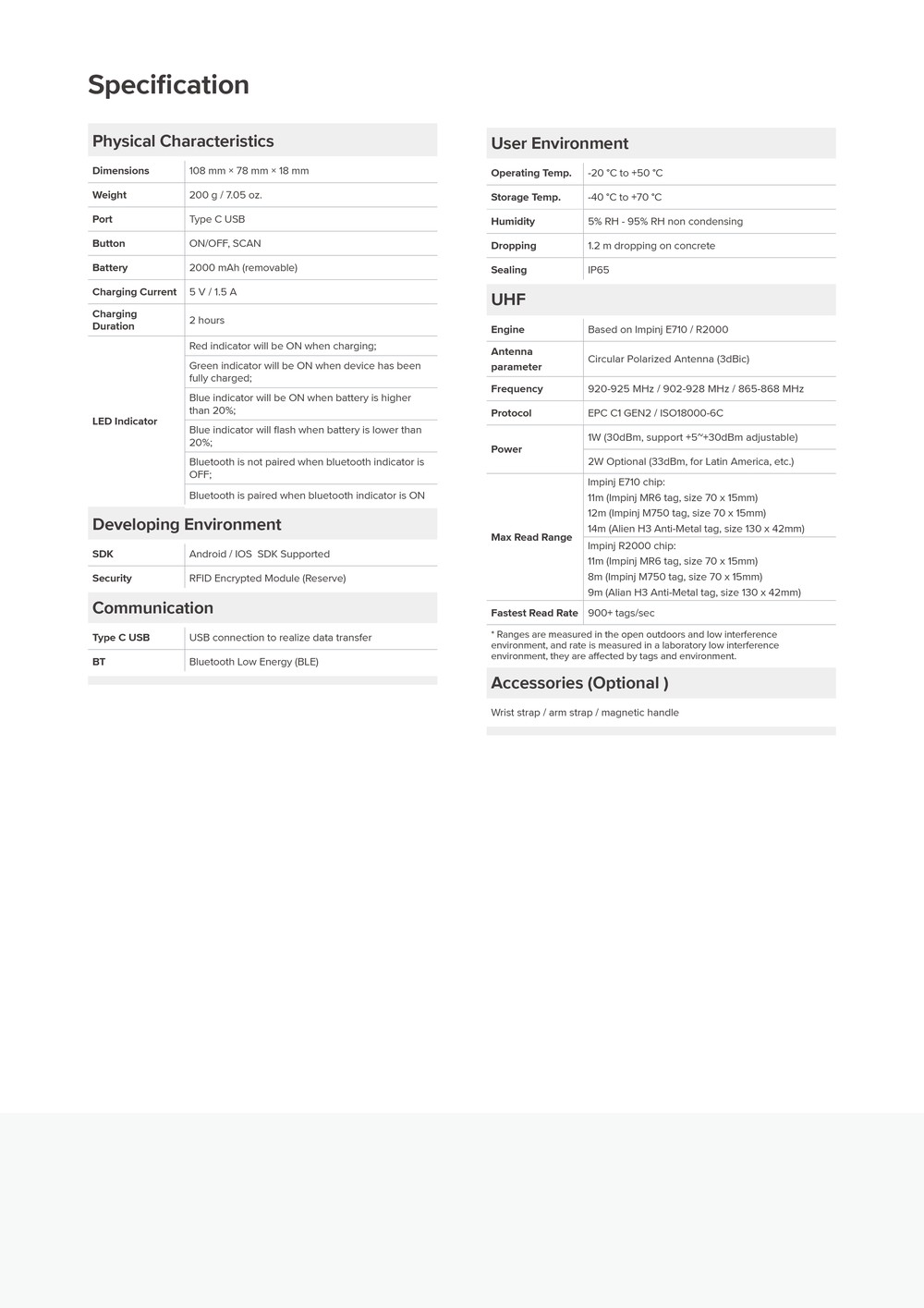

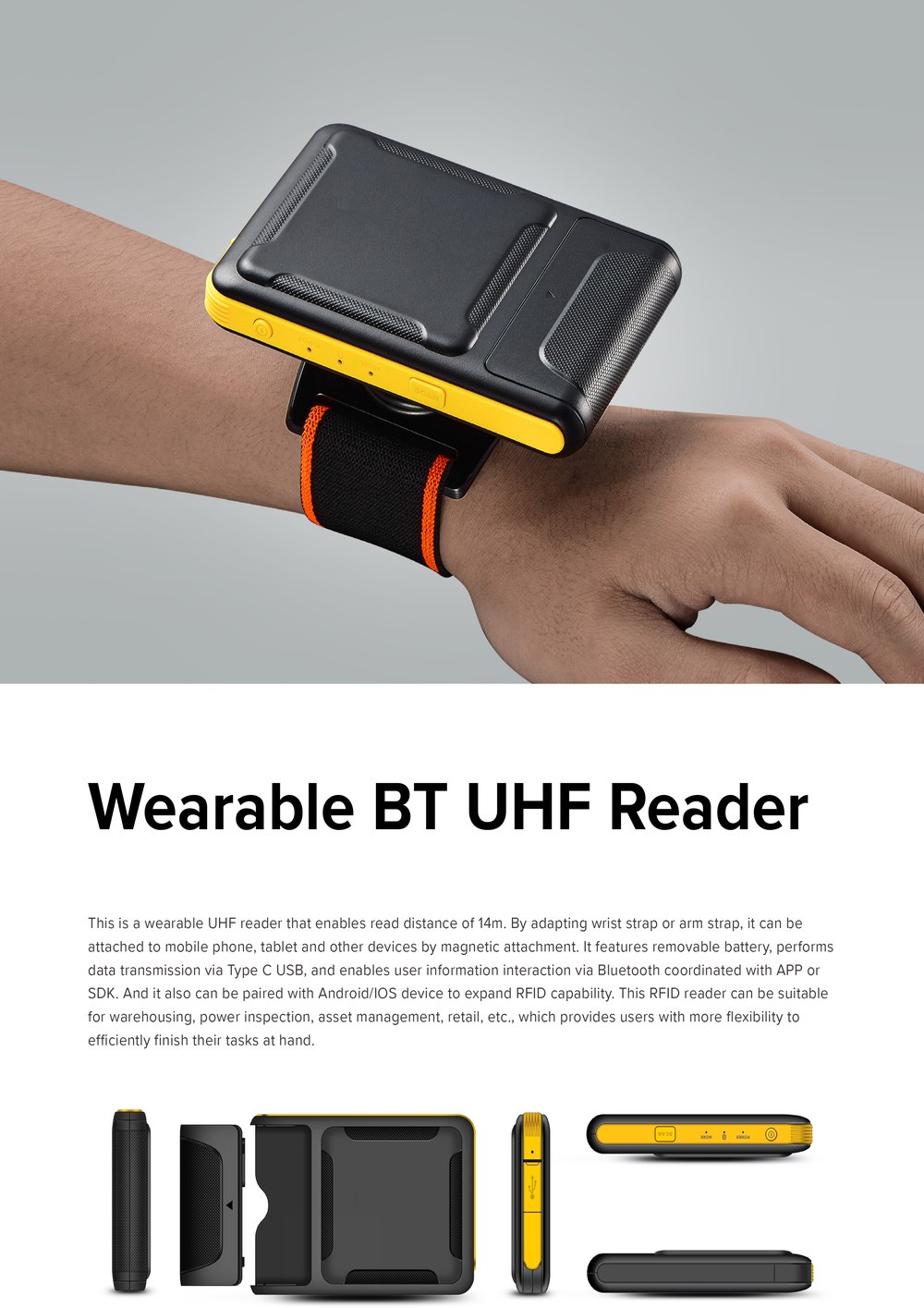

Manufacturer feature details
| Android / iOS SDK | 2000mAh Removable Battery |
| IP65 & 1.5m / 5ft. Drop | Various Wearable Options |
| Self-Developed Module Based on Impinj E Series chips | Impinj Gen2X for Enhanced UHF Performance |
| Dimensions | 108 mm × 78 mm × 18 mm |
| Weight | 200 g / 7.05 oz. |
| Battery | 2000 mAh (removable) |
| Keypad | ON/OFF, SCAN |
| Indicator LED | Red indicator will be ON when chargingGreen indicator will be ON when device has been fully chargedBlue indicator will be ON when battery is higher than 20%Blue indicator will flash when battery is lower than 20%Bluetooth is not paired when bluetooth indicator is OFFBluetooth is paired when bluetooth indicator is ON |
| Port | USB Type C |
| Charging Current | 5 V / 1.5 A |
| Charging Duration | 2 hours |
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 |
| USB Type C | USB connection to realize data transfer |
| SDK | Android / iOS SDK Supported |
| Operating Temp. | -20 °C to +50 °C |
| Storage Temp. | -40 °C to +70 °C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | 1.5 m dropping on concrete |
| Sealing | IP65 |
| Engine | Based on Impinj E Series chips |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Impinj Gen2X | Supported |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular Polarized Antenna |
| Power | 1W (30dBm, support +5~+30dBm adjustable)2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate | 900+ tags/sec |
| Max Read Range | 11m (Impinj MR6 tag, size 70 x 15mm)12m (Impinj M750 tag, size 70 x 15mm)14m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Note | * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. |
| Accessories | Wrist strap, arm strap, magnetic handle |
