RUGGEDMASTER R40H Mobile Computers
4.0" FHD(480*800), 300nits sunlight readable display5-point capacitive touchscreen · AC adapter: 100-240V, 50Hz-60Hz, 10WBattery Li-Ion, 3.8V, 4500mAh, 16 hours · MT6765 octa-core · Android 15/GMS · RAM 4GB/ ROM 64GB · -20℃ to 60℃ · Bluetooth® V5.0
Retail/Warehouse Dedicated Rugged Terminal PDA Full-Features to Deliver the Best Service R40H is equipped with a MTK OCTA Core 64 bit 2.0 GHz high performance processor so that you can enjoy an uninterrupted preference. It features Android latest 11 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.1D/2D scanning engine with millisecond response speed can accurately identify various complex barcodes. With NFC module，it supports muti scene use，and the card reading distance is 3cm-5cm. It come with all of the features you'd expect.A massive 4500mAh Removable battery keeps your handheld going longer without constant charging. Detachable design means that your needs for all-day work will no longer be interrupted.
Dimension: 162.4*72.8*19.4 mm
Weight: 250g
Display / Touch Panel: 4.0" FHD(480*800), 300nits sunlight readable display5-point capacitive touchscreen
Battery: AC adapter: 100-240V, 50Hz-60Hz, 10WBattery Li-Ion, 3.8V, 4500mAh, 16 hours
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

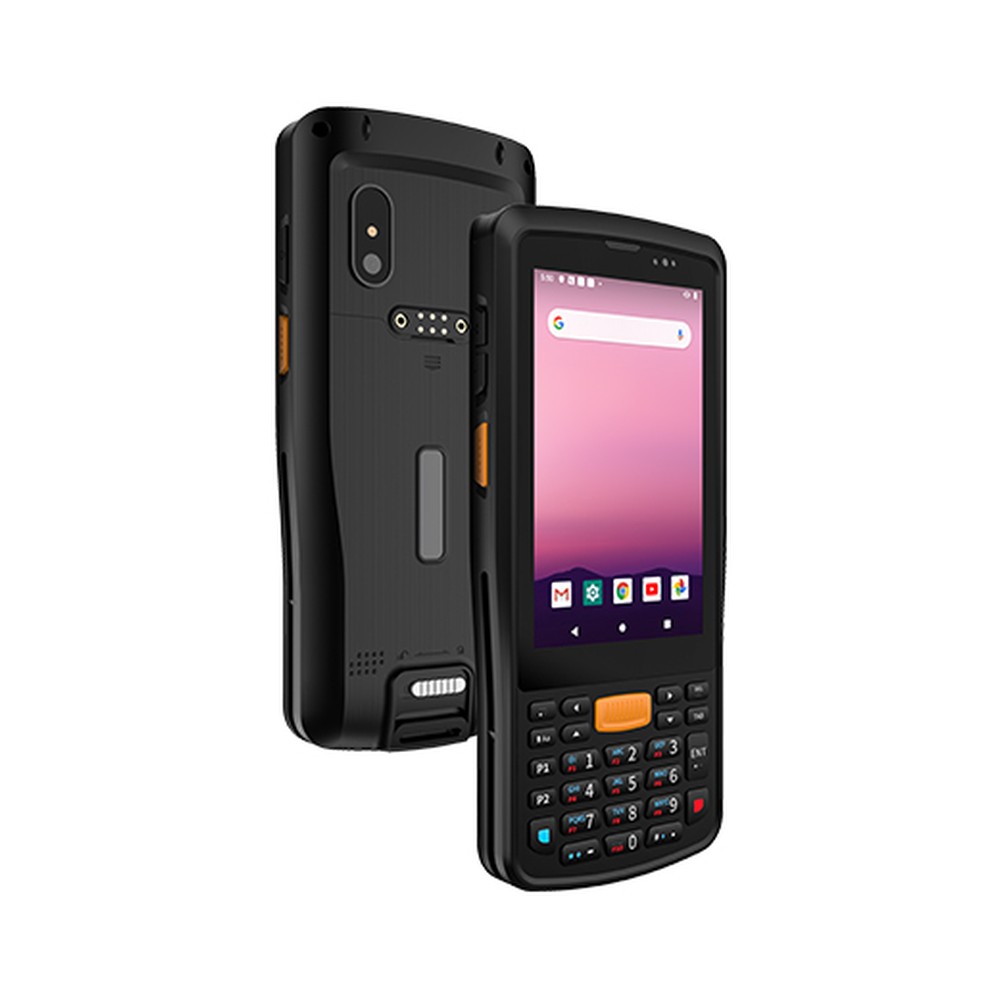

RUGGEDMASTER R40H Mobile Computers
RUGGEDMASTER R40H combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Retail/Warehouse Dedicated Rugged Terminal PDA
Full-Features to Deliver the Best Service
R40H is equipped with a MTK OCTA Core 64 bit 2.0 GHz high performance processor so that you can enjoy an uninterrupted preference. It features Android latest 11 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.1D/2D scanning engine with millisecond response speed can accurately identify various complex barcodes. With NFC module，it supports muti scene use，and the card reading distance is 3cm-5cm. It come with all of the features you'd expect.A massive 4500mAh Removable battery keeps your handheld going longer without constant charging. Detachable design means that your needs for all-day work will no longer be interrupted.
Configuration overview
Technical specifications include Dimension: 162.4*72.8*19.4 mm. Weight: 250g. Display / Touch Panel: 4.0" FHD(480*800), 300nits sunlight readable display5-point capacitive touchscreen. Battery: AC adapter: 100-240V, 50Hz-60Hz, 10WBattery Li-Ion, 3.8V, 4500mAh, 16 hours.
Technical specifications include Power Adapter: AC100V ~ 240V、50Hz/60Hz output DC 5V/2AOptional:(EU, US, UK, AU) Choose one of four. Audio: Integrated microphoneIntegrated 0.8W speakerIntegrated receiverClass k audio amplifier. I/O Interfaces: USB2.0(micro USB) x12 of 3 card slot (Nano Sim+Micro SD or Nano Sim+Nano Sim)2pin POGOPin1 x16pin POGOPin2 x1. Buttons: Physical digital function buttons.
Technical specifications include Keypad: 5 buttons(1 user-definable key). Camera: Integrated 13.0 MP rear camera. CPU: MT6765 octa-core. Operating System: Android 15/GMS.
Technical specifications include Storage: RAM 4GB/ ROM 64GB. Operating Temp.: -10℃ to 50℃. Storage Temp.: -20℃ to 60℃. Humidity: 95%, no condensation.
Technical specifications include Drop Specifications: 1.2m drop resistance. IP Protective Level: IP65 certified, MIL-STD-810G certified. SDK: Software Development Kit. Language: Java.
Technical specifications include Environment: Android Studio or Eclipse. WWAN: Integrated 4G LTE multi-carrier mobile broadband LTE-FDD(B1/2/3/4/5/7/8/13/17/20/28A/28B) LTE-TDD(B38/39/40/41) WCDMA(B1/2/5/8) GSM(B2/3/5/8). WIFI: Intel® Wi-Fi 5（802.11 ac）. Bluetooth: Bluetooth® V5.0.
Wholesale purchasing information
For RUGGEDMASTER R40H, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

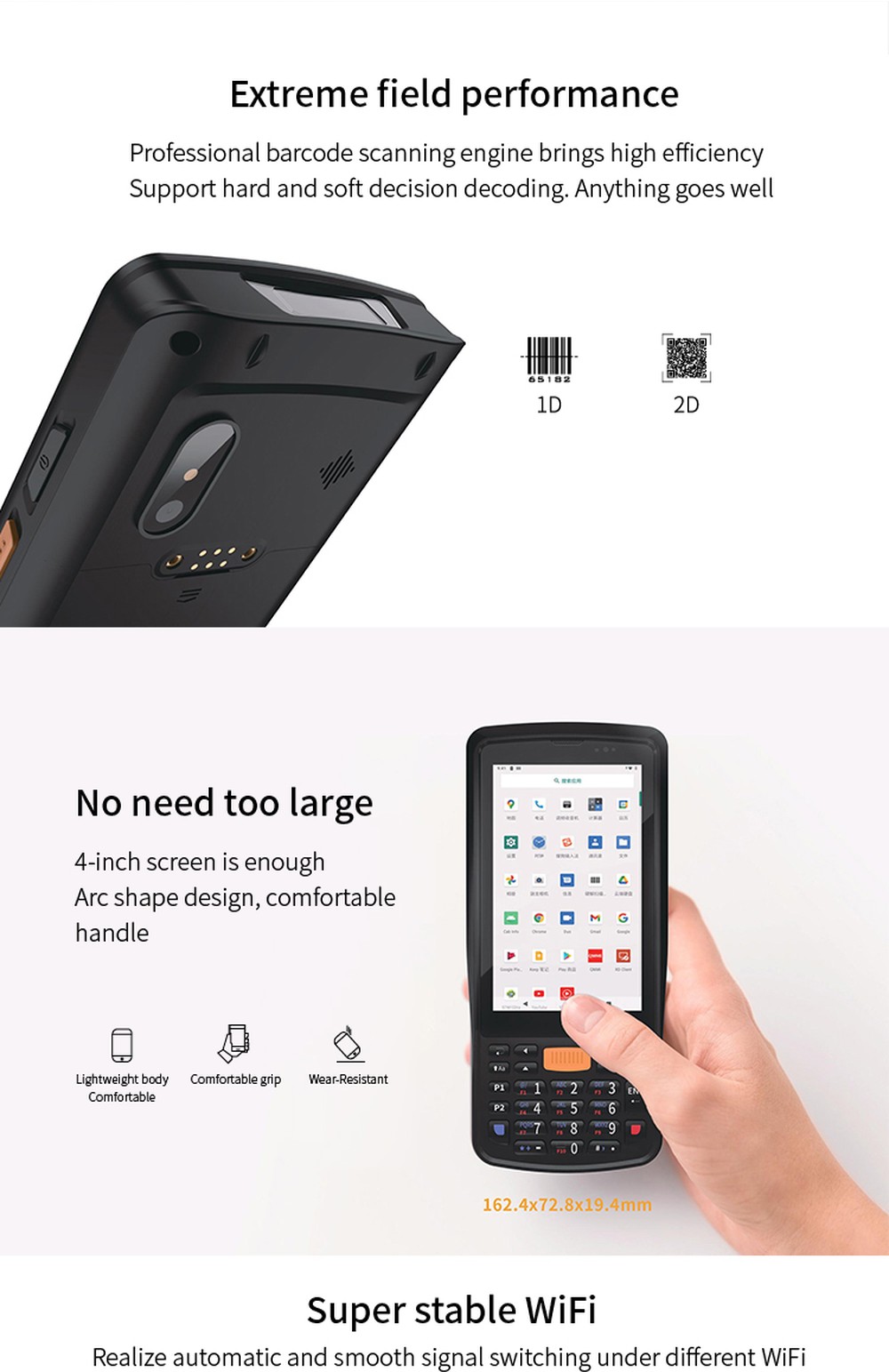

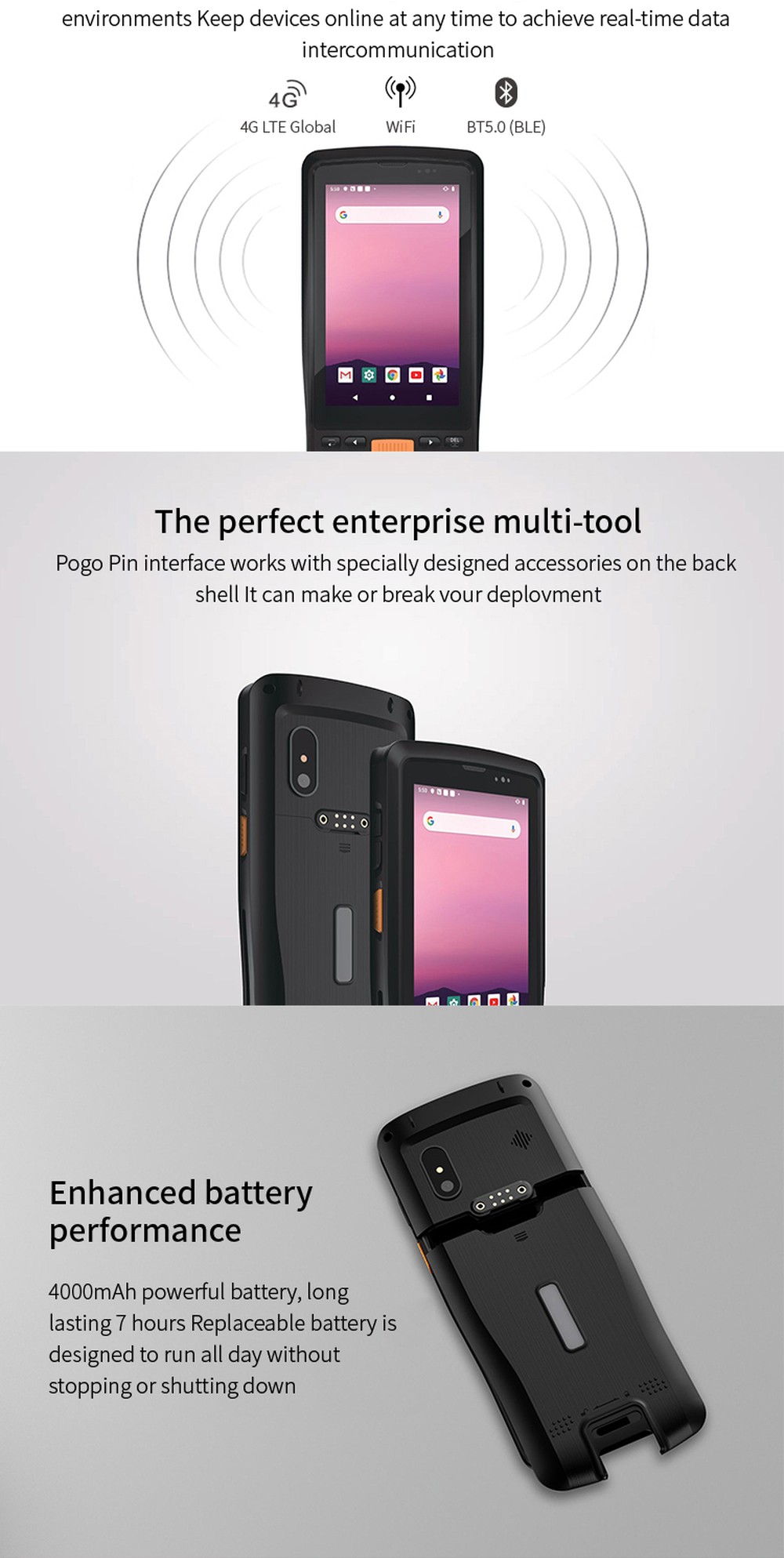

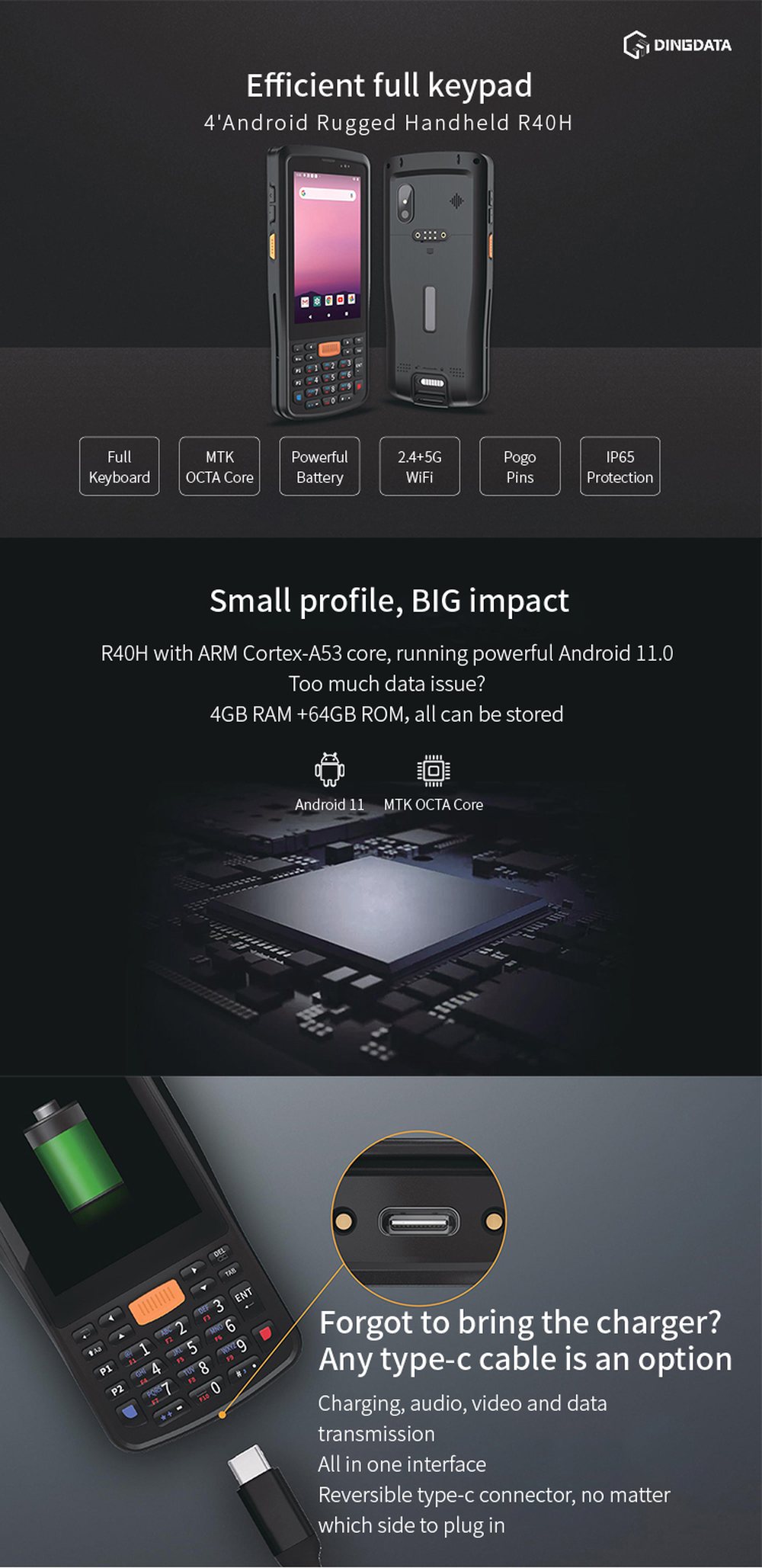

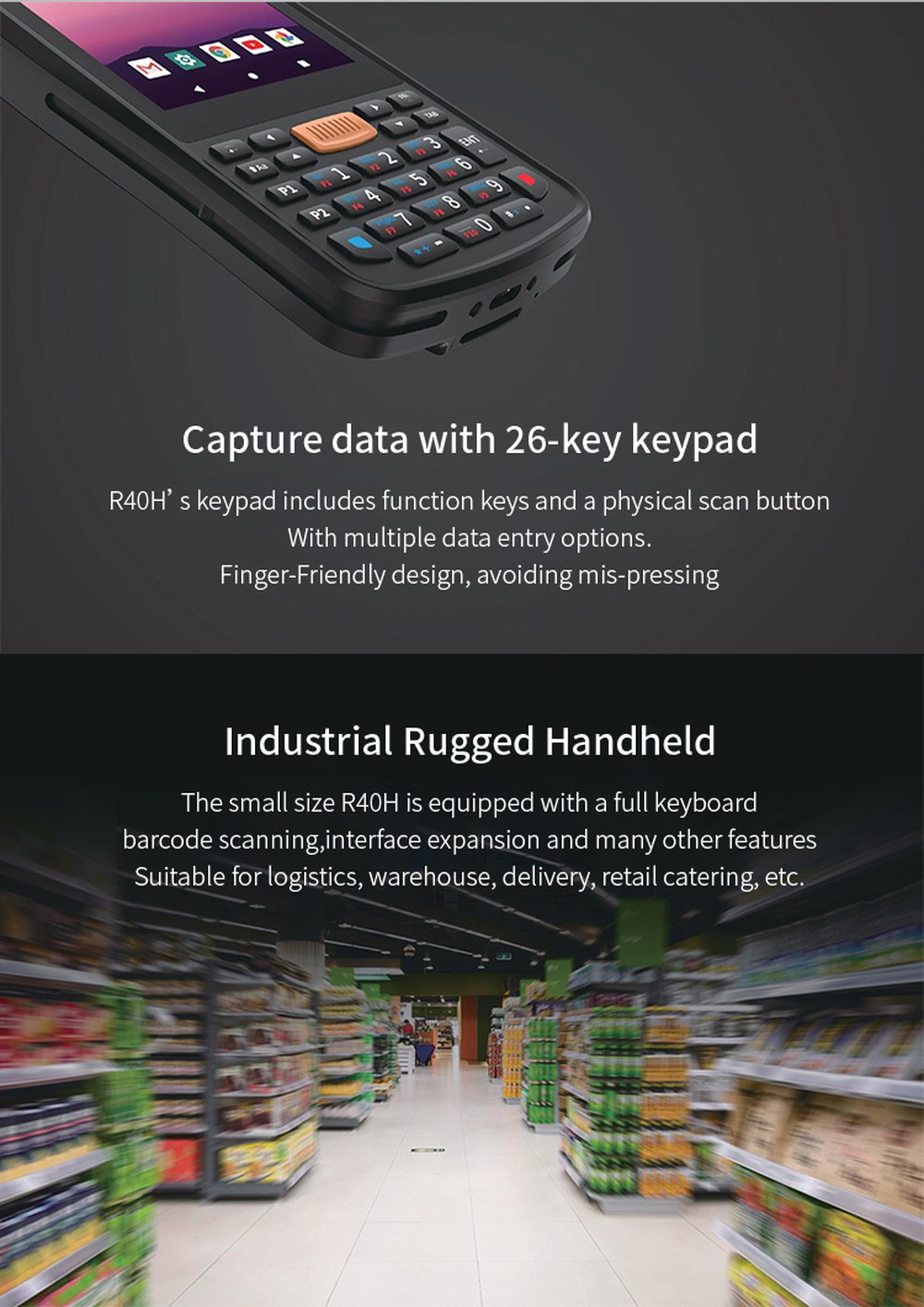

Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 162.4*72.8*19.4 mm | |
| Weight | 250g | |
| Display / Touch Panel | 4.0" FHD(480*800), 300nits sunlight readable display5-point capacitive touchscreen | |
| Battery | AC adapter: 100-240V, 50Hz-60Hz, 10WBattery Li-Ion, 3.8V, 4500mAh, 16 hours | |
| Power Adapter | AC100V ~ 240V、50Hz/60Hz output DC 5V/2AOptional:(EU, US, UK, AU) Choose one of four | |
| Audio | Integrated microphoneIntegrated 0.8W speakerIntegrated receiverClass k audio amplifier | |
| I/O Interfaces | USB2.0(micro USB) x12 of 3 card slot (Nano Sim+Micro SD or Nano Sim+Nano Sim)2pin POGOPin1 x16pin POGOPin2 x1 | |
| Buttons | Physical digital function buttons | |
| Keypad | 5 buttons(1 user-definable key) | |
| Camera | Integrated 13.0 MP rear camera | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | MT6765 octa-core | |
| Operating System | Android 15/GMS | |
| Storage | RAM 4GB/ ROM 64GB | |
| USER ENVIRONMENT | ||
| Operating Temp. | -10℃ to 50℃ | |
| Storage Temp. | -20℃ to 60℃ | |
| Humidity | 95%, no condensation | |
| Drop Specifications | 1.2m drop resistance | |
| IP Protective Level | IP65 certified, MIL-STD-810G certified | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | Integrated 4G LTE multi-carrier mobile broadband LTE-FDD(B1/2/3/4/5/7/8/13/17/20/28A/28B) LTE-TDD(B38/39/40/41) WCDMA(B1/2/5/8) GSM(B2/3/5/8) | |
| WIFI | Intel® Wi-Fi 5（802.11 ac） | |
| Bluetooth | Bluetooth® V5.0 | |
| GPS | Integrated GPS, Beidou and Glonass module | |
| DATA CAPTUER | ||
| Barcode Scanning | Zebra SE4710Optical resolution: 5milscan speed: 50 times /sCode system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | |
| RFID HF（NFC） | NFC 13.56MHz support ISO/IEC under 14443A/14443B/15693/18092/mifare protocols | |
| ACCESSORIES | ||
| Standard | 1xHand-strap, 1xThree-in-one Adaptor | |
| Optional | Car mount, Replace Spare Battery, Leather protective case, Scan Pistol Grip, Docking Charger | |
