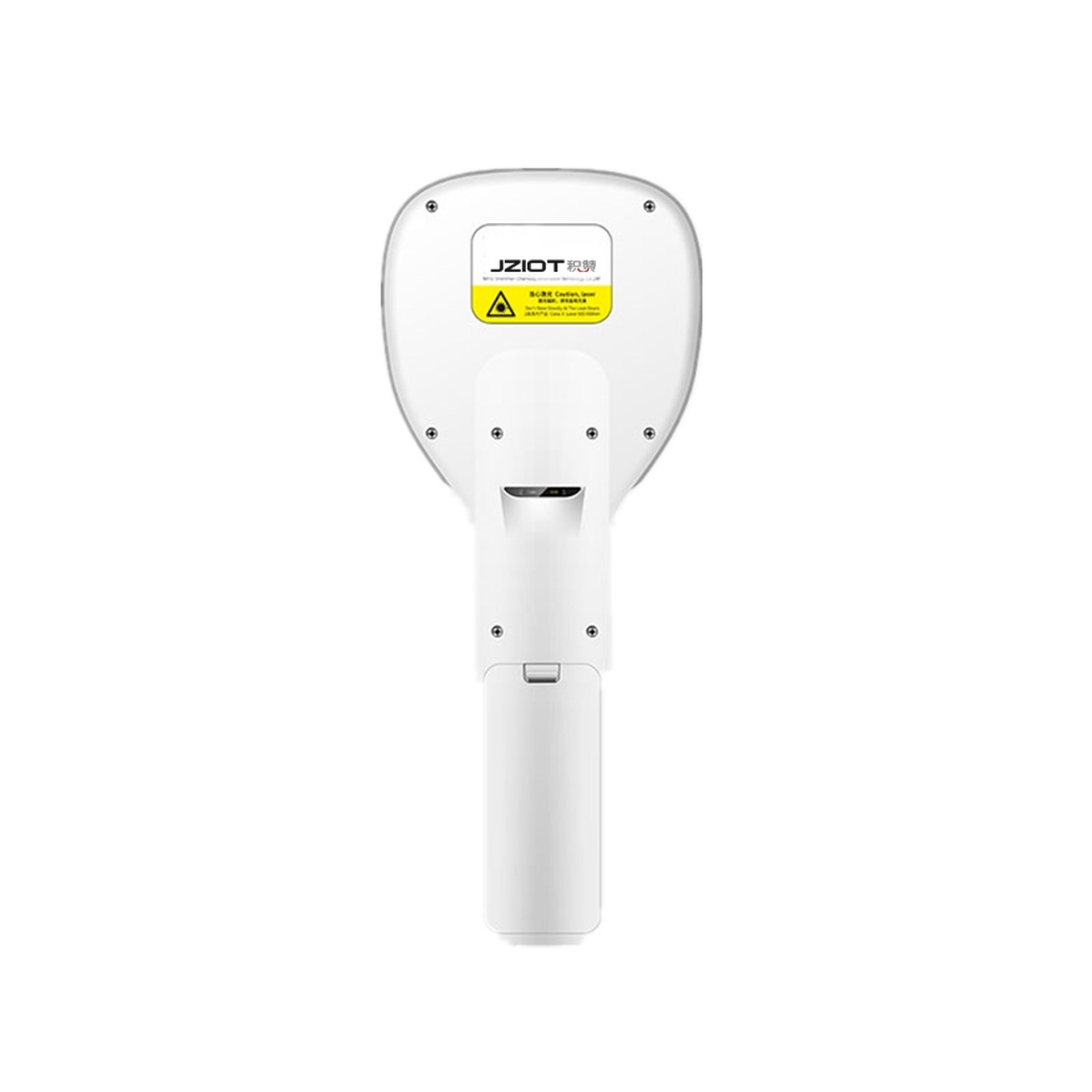

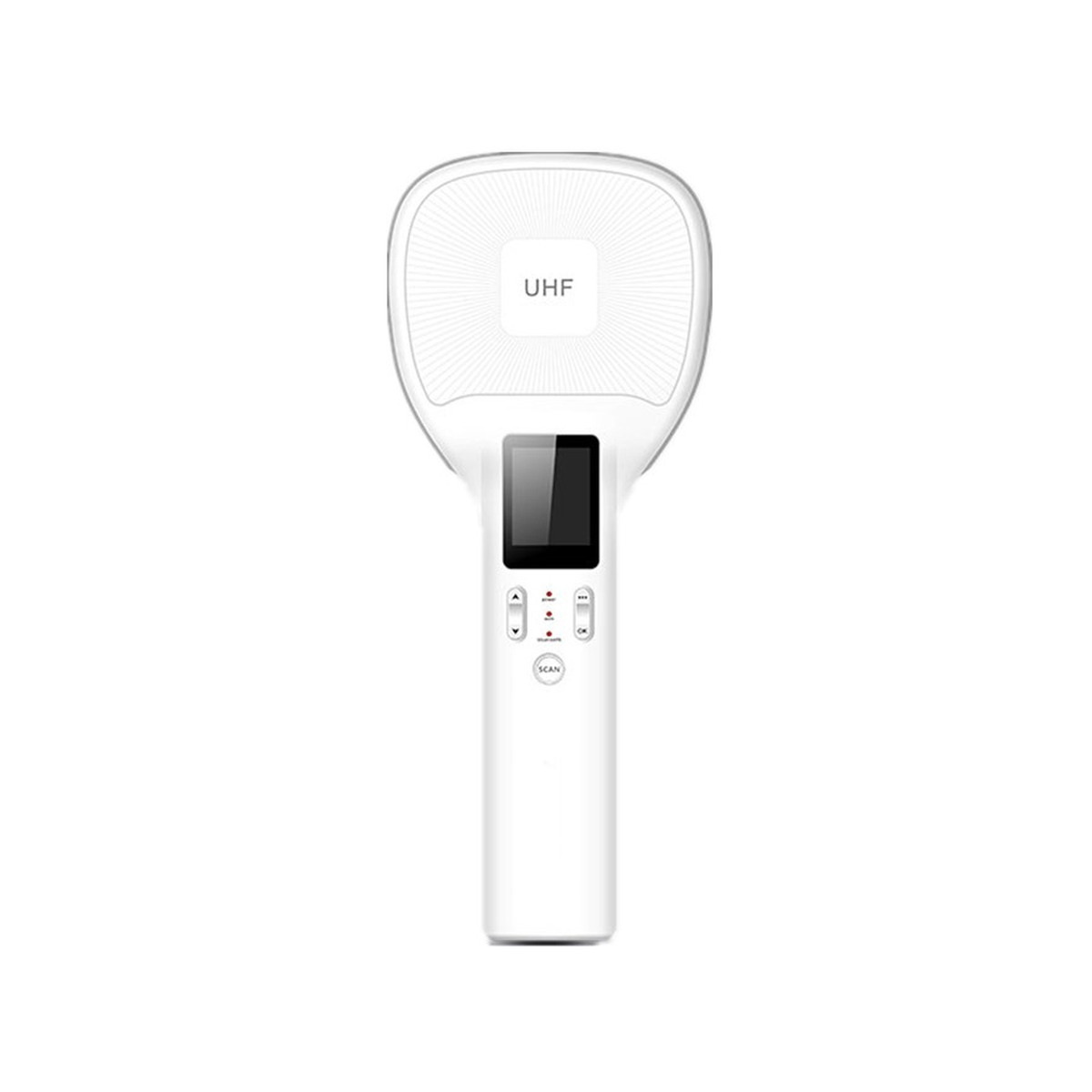

RUGGEDMASTER R20 Handheld RFID Readers

Wholesale RUGGEDMASTER R20 Handheld RFID Readers for bulk orders at RuggedMaster. Impinj R2000 Chip Comfortable in Hand

RUGGEDMASTER R20 Product Features

Impinj R2000 Chip

Comfortable in Hand

1.77" Screen

Powerful Battery

Bluetooth 4.0, BLE

Barcode Scanning

Superior UHF reading and writing

RUGGEDMASTER R20 Technical Overview

Dimensions: 282×117.5x32mm / 11.10×4.63×1.26in

Weight: 334g/11.78oz (with battery)

Display: 1.77 inch, 128X160

Power: Battery specification: 5200mAh 4.35VStandby: over 70 hours (keeping bluetooth connected)Continuous use: up to 6 hours (UHF reading)Charging time: 3-4 hours (with standard adaptor and USB cable)

Buzzer: Support

Interfaces: Micro-USB

Indicator LED: Power, Work, Bluetooth

Size of adapted phone: Width 68~80 mm, thickness ≤ 10 mm

Product Material: Plastic

Colour: White

Operating Temp.: -20℃~+50℃

Storage Temp.: -40℃~+70℃

Humidity: 5%RH – 95%RH non condensing

Drop Specification: Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification: 1000 x 0.5m/1.64ft falls at room temperature

ESD: ±15KV air discharge, ±8KV conductive discharge

SDK: Android / IOS

Language: Java / Objective-C

Tool: Android Studio / Xcode

MCU: Cortex-M372MHz

Storage: 50000 tags

Bluetooth: Bluetooth 4.0, BLE

Engine: CM2000-1 module based on Impinj Indy R2000

Frequency: 920-925MHz/902-928MHz/865-868MHz

Antenna: Linear Polarized antenna (4dBi)

Power: 1W (30dBm, support +5~+30dBm adjustable)

R/W ranges: >28m(indoors);>12m(open outdoors)

Reading rate: >200tags/s

Note: *Ranges and rates depend on tags and environment

1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Imager Scanner: SE2707

2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note: *This function is optional

RUGGEDMASTER R20 Wholesale Selection

Select RUGGEDMASTER R20 by reviewing the configuration, dimensions and manufacturer details above. For bulk orders, provide the complete model name, intended application, required quantity and delivery destination. Keep optional configurations separate in your purchasing request so they can be checked against the listed technical information.

Compare the operating system, data capture functions and connectivity shown in the Specs tab with the requirements of your existing workflow. Check the stated interface, power supply and physical dimensions before planning installation or daily use. Where several configurations are listed, confirm the required configuration in your inquiry. Product images can show different views and example applications of the same model.

For deployment across a team or multiple locations, record the configuration required at each location and the intended working environment. Review the documented environmental limits, scanning requirements and supported connections when those fields are supplied. Optional functions listed by the manufacturer should be confirmed for the equipment you order. Use the full model name and requested quantity when preparing your wholesale inquiry.
