RUGGEDMASTER R14M Rugged Laptops
) 14’’ FHD 1000 Nits Sunlight-Readable Display, Intel Core Ultra 7 16C22T 4.8GHz Processor, IP65 Waterproof/MIL-STD-810H Certified, Windows 11 Pro Operating System, 32GB DDR5+256GB NVMe SSD, Built-in UB M8 GNSS Module, Hot-swap Double Batteries Design, Dual RJ45 +RS232 Ports

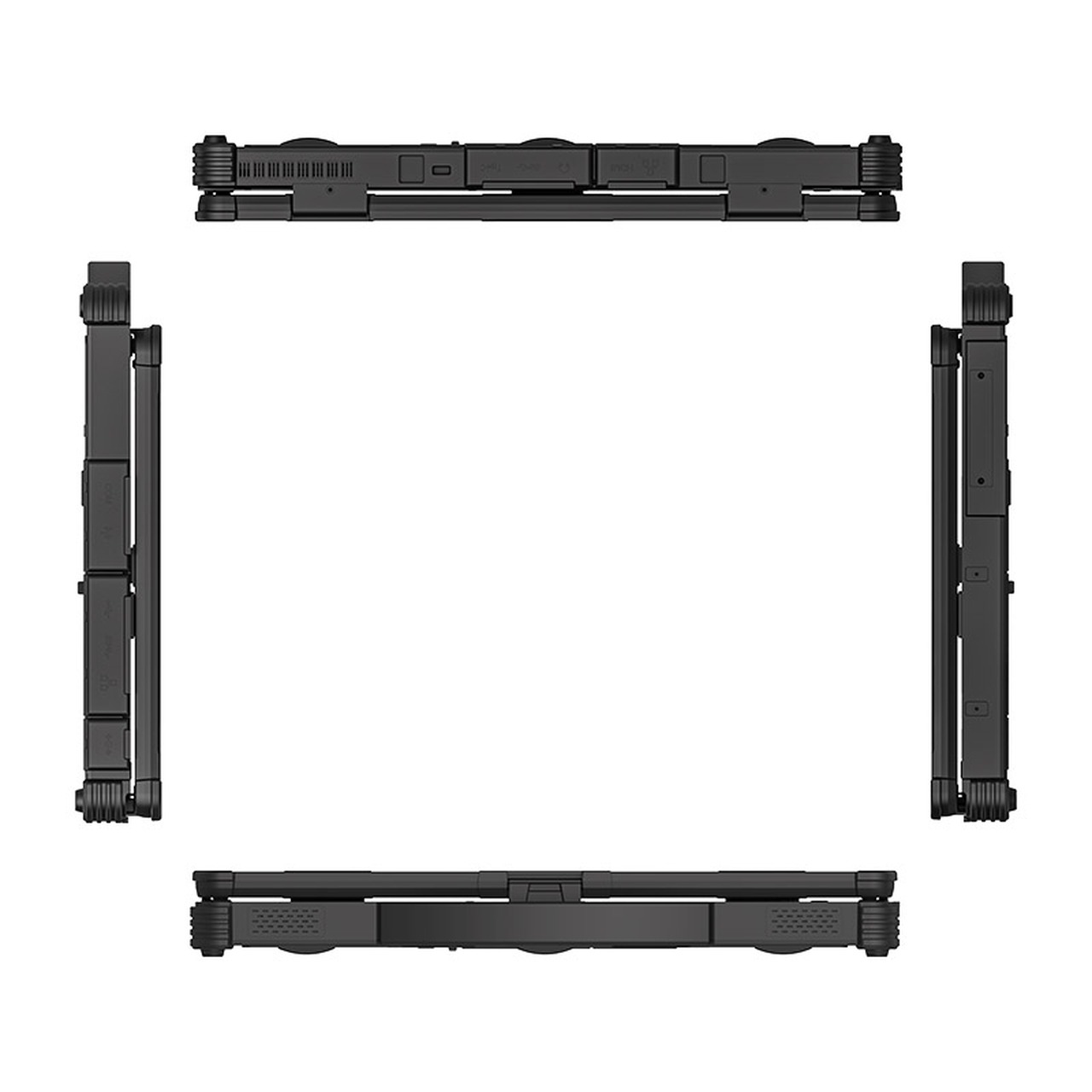

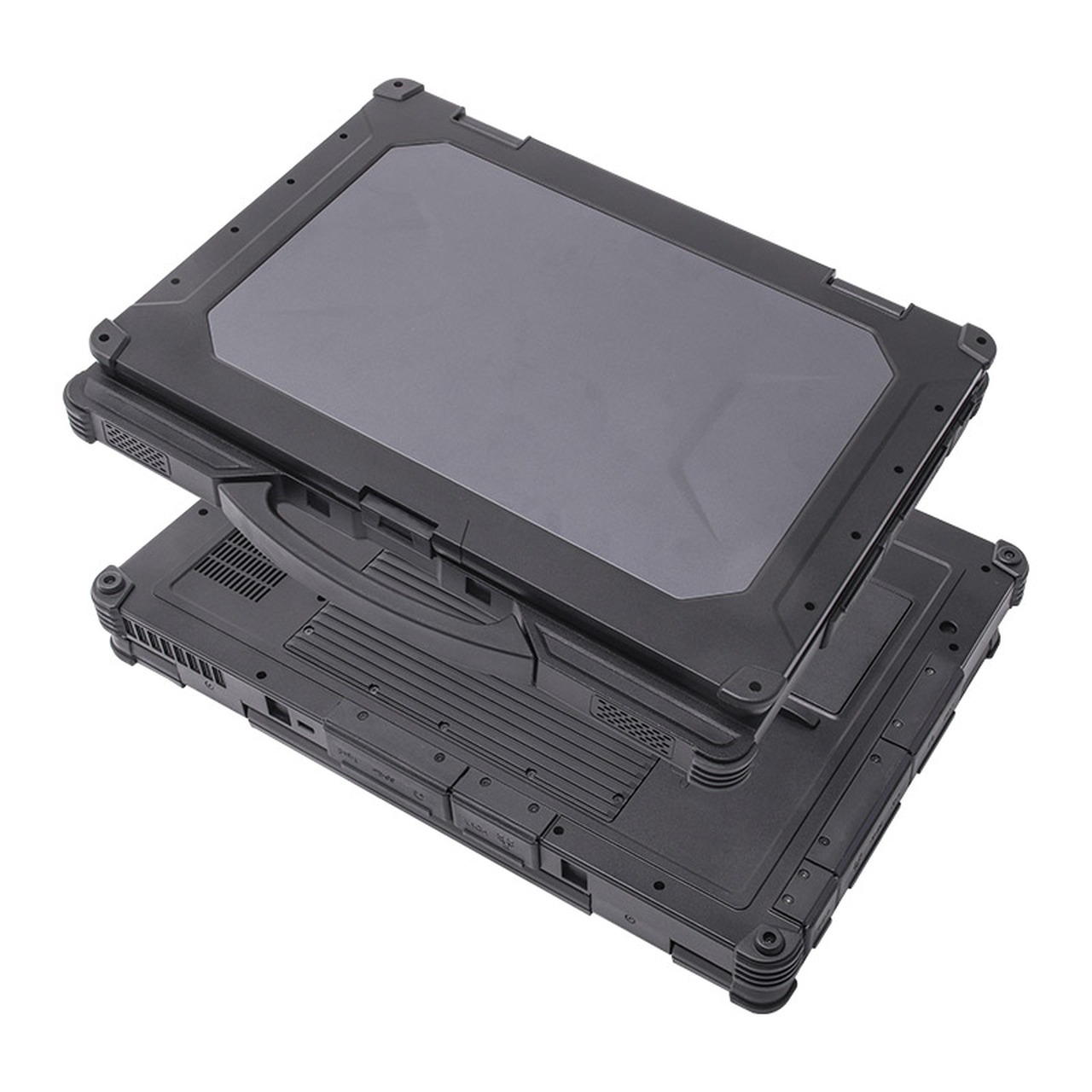

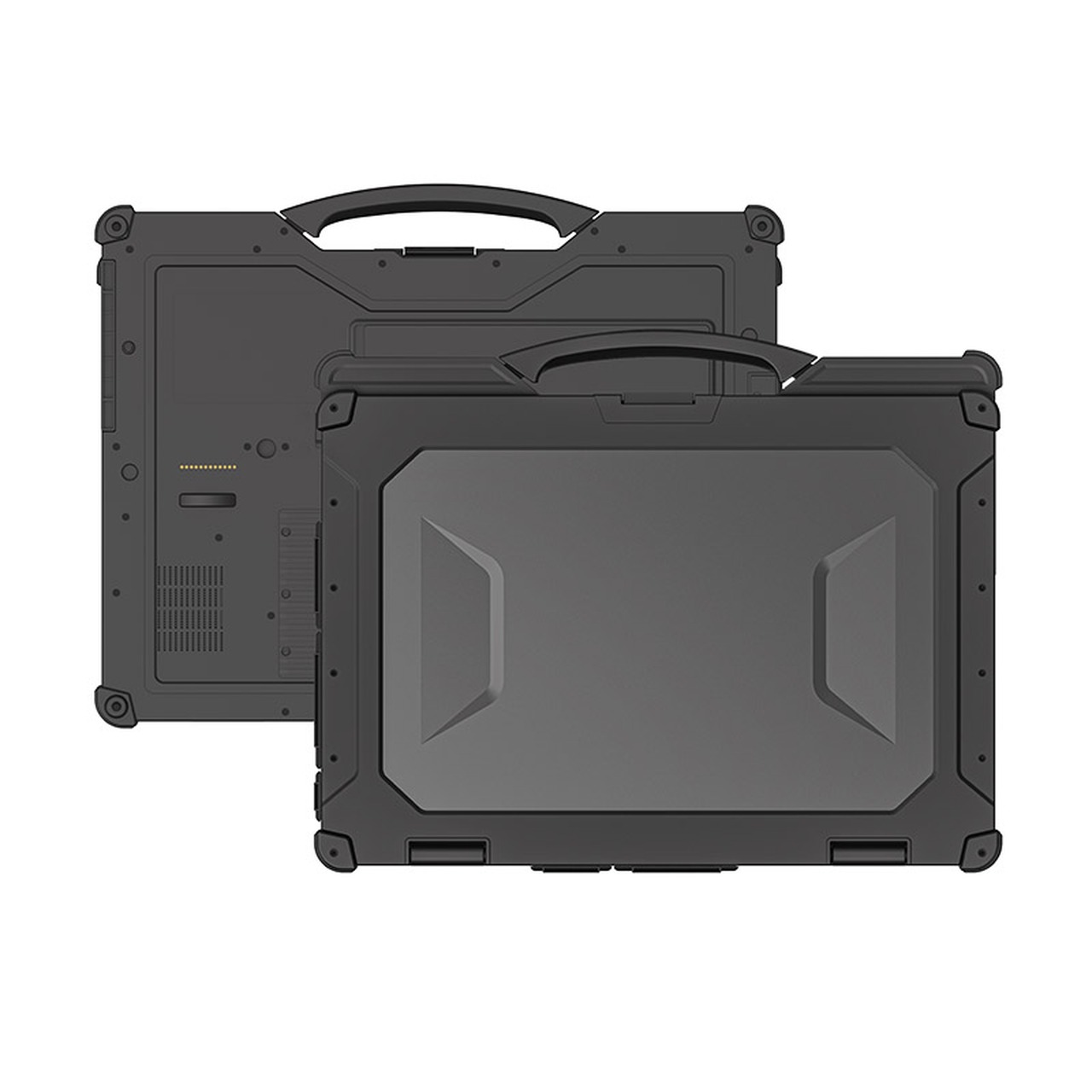

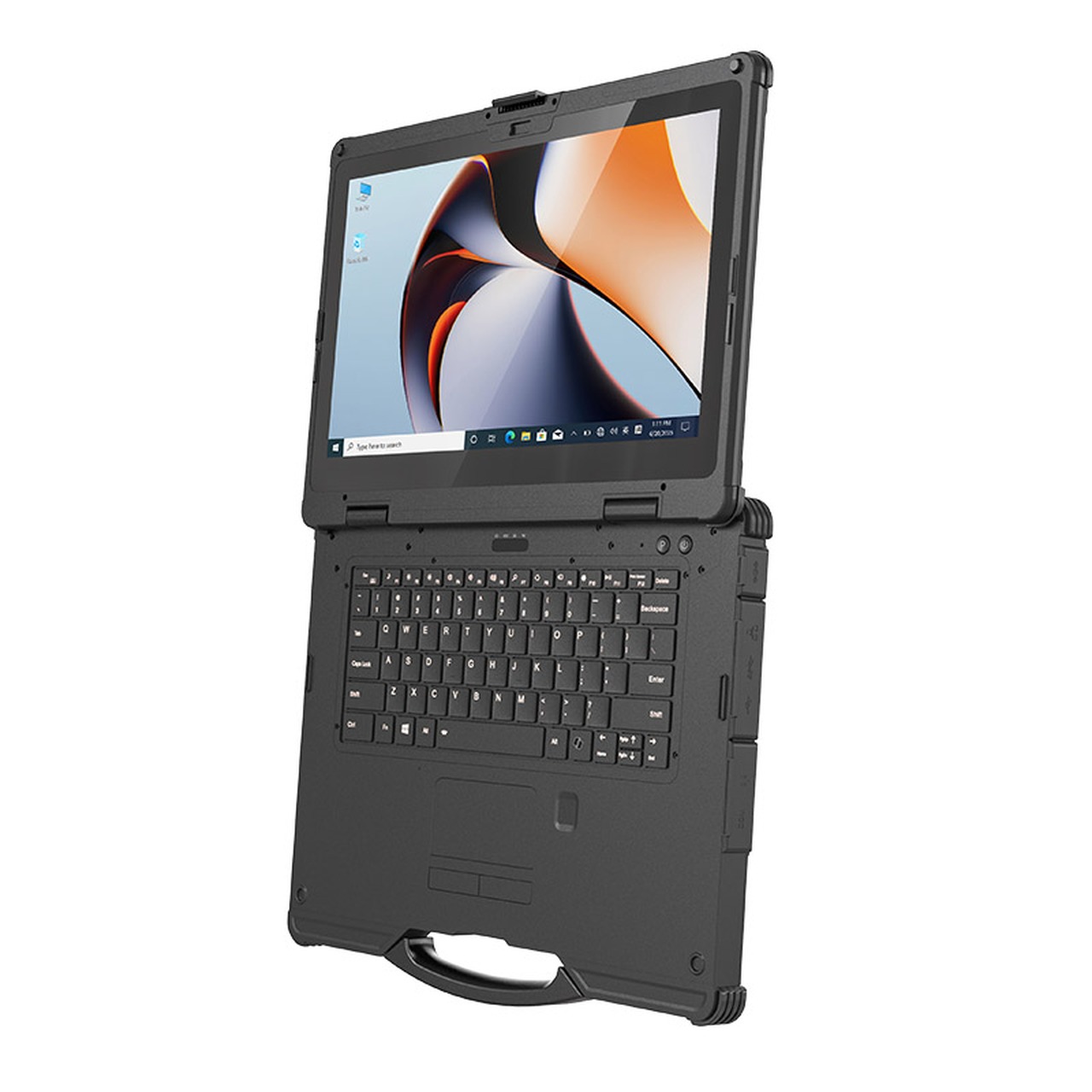

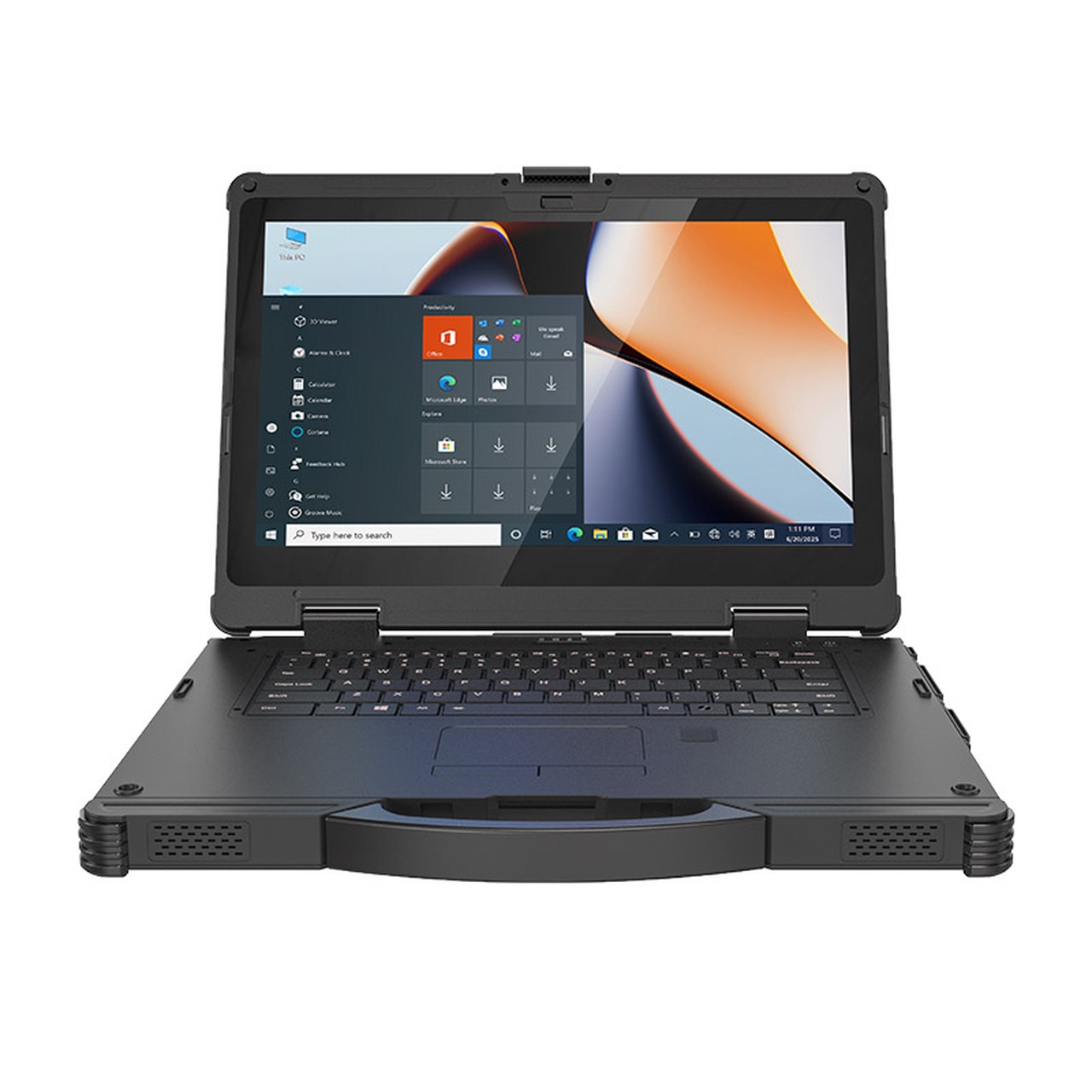

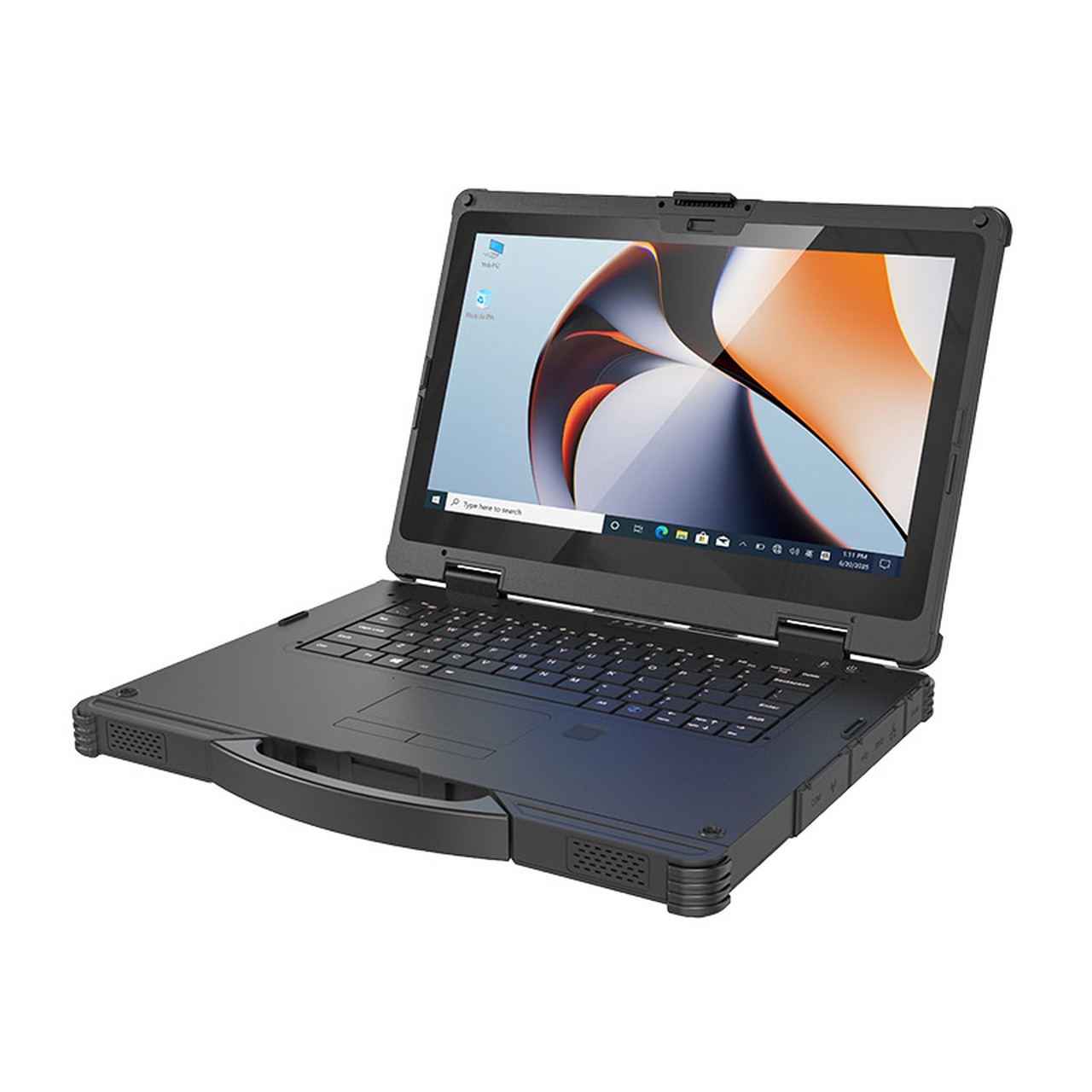

RUGGEDMASTER R14M combines ) 14’’ FHD 1000 Nits Sunlight-Readable Display, Intel Core Ultra 7 16C22T 4.8GHz Processor, IP65 Waterproof/MIL-STD-810H Certified. Additional features include Windows 11 Pro Operating System, 32GB DDR5+256GB NVMe SSD, Built-in UB M8 GNSS Module. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
) 14’’ FHD 1000 Nits Sunlight-Readable Display
Intel Core Ultra 7 16C22T 4.8GHz Processor
IP65 Waterproof/MIL-STD-810H Certified
Windows 11 Pro Operating System
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER R14M Rugged Laptops
RUGGEDMASTER R14M combines ) 14’’ FHD 1000 Nits Sunlight-Readable Display, Intel Core Ultra 7 16C22T 4.8GHz Processor, IP65 Waterproof/MIL-STD-810H Certified. Additional features include Windows 11 Pro Operating System, 32GB DDR5+256GB NVMe SSD, Built-in UB M8 GNSS Module. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER R14M features
14 Inch IP65 Waterproof Intel Core i7 32GB RAM Industrial Windows Rugged Laptop Computer
High-Performance Processor:Windows 11 Pro ( Win 11 Home or Win 10 IOT optional) . Intel Core Ultra 7 processor 155H 16C22T, 4.80 GHz; GPU: Intel Arc graphics (Ultra 5 optional).
Large capacity: The laptop has 32GB DDR5 (16GB optional)+256GB SSD (M.2 2280 SSD& NVme adaptive, 512GB optional), support TF up to 1TB maximally. Plenty of space to store the photos, e-books, songs and movies you need, so you don’t have to worry about space capacity.
Network and connectivity: Support IEEE802.11a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax, support wifi 6. In addition, it is equipped with BT V5.1.
IPS Screen:14 inch 16:9 FHD IPS display screen, 1920*1080px,1000cd/㎡ (Touch Screen optional), clear and sharp, saturated and bright, every eye is a gorgeous visual feast. Providing you with an optimal viewing experience. Perfect for streaming TV, videos, movies, online reading, gaming, etc.
1,300 mAh Battery: Built-in 11.1V/1300mAh (removable 11.4V/4700mAh li-polymer battery optional) , you can watch, read and play games anytime, anywhere.
Design and technical configuration
The RUGGEDMASTER R14M technical information lists the following configuration details.
Operation System: Windows 11 Pro ( Win 11 Home or Win 10 IOT optional). Dimension: 363.2*287.4*42.1mm. Net Weight: 2.9kg (include battery). Material: ABS+PC.
Color: Black. Screen: 14 inch 16:9 FHD IPS display screen, 1920*1080px,1000cd/㎡ (Touch Screen optional). Processor: Intel Core Ultra 7 processor 155H 16C22T, 4.80 GHz; GPU: Intel Arc graphics (Ultra 5 optional). RAM: 32GB DDR5 (16GB optional).
ROM: 256GB SSD (M.2 2280 SSD& NVme adaptive, 512GB optional), support TF up to 1TB maximally. Camera: 5MP front camera. Battery: Built-in 11.1V/1300mAh (removable 11.4V/4700mAh li-polymer battery optional). HALL Sensor: Support.
Speaker: 4Ω/3W *2. Keyboard: US keyboard with backlight. LED Indicator: Blue. TPM: TPM 2.0.
Fingerprint Unlock: SPI. USB Ports: *3 (USB3.2*1, USB3.0*1, USB2.0*1). Mini HD-MI V2.0a: *1. USB Type-C Port: *1, support thunderbolt 4.
3.5mm Audio Jack: *1. Left Expansion Dock: M.2-2280 PCIE*1, can connect SSD (M.2 E-KEY interface*1 optional). TF Card slot: *1. RS232: *1.
RUGGEDMASTER R14M wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER R14M. Browse our rugged laptops to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details. The original product information provides the technical reference.
RUGGEDMASTER R14M specifications
| RUGGEDMASTER R14M technical specifications | |
|---|---|
| Model No. | RUGGEDMASTER R14M |
| Product Name | 14 inch windows rugged laptop |
| Operation System | Windows 11 Pro ( Win 11 Home or Win 10 IOT optional) |
| Dimension | 363.2*287.4*42.1mm |
| Net Weight | 2.9kg (include battery) |
| Material | ABS+PC |
| Color | Black |
| Screen | 14 inch 16:9 FHD IPS display screen, 1920*1080px,1000cd/㎡ (Touch Screen optional) |
| Processor | Intel Core Ultra 7 processor 155H 16C22T, 4.80 GHz; GPU: Intel Arc graphics (Ultra 5 optional) |
| RAM | 32GB DDR5 (16GB optional) |
| ROM | 256GB SSD (M.2 2280 SSD& NVme adaptive, 512GB optional), support TF up to 1TB maximally |
| Camera | 5MP front camera |
| Battery | Built-in 11.1V/1300mAh (removable 11.4V/4700mAh li-polymer battery optional) |
| HALL Sensor | Support |
| Speaker | 4Ω/3W *2 |
| Keyboard | US keyboard with backlight |
| LED Indicator | Blue |
| TPM | TPM 2.0 |
| Fingerprint Unlock | SPI |
| USB Ports | *3 (USB3.2*1, USB3.0*1, USB2.0*1) |
| Mini HD-MI V2.0a | *1 |
| USB Type-C Port | *1, support thunderbolt 4 |
| 3.5mm Audio Jack | *1 |
| Left Expansion Dock | M.2-2280 PCIE*1, can connect SSD (M.2 E-KEY interface*1 optional) |
| TF Card slot | *1 |
| RS232 | *1 |
| Kensington Lock Slot | *1 |
| RJ45 Port(1000M) | *2 |
| SIM Slot | Optional |
| Pogo Pin | Optional |
| WiFi | IEEE802.11a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax, support wifi 6 |
| BT | V5.1(BLE), transmission distance ~10 meters |
| GNSS | Built-in UB M8 module, support GPS/GLONASS |
| 2G/3G/4G/5G Module | Optional |
| NFC | Optional (NXP300) |
| Waterproof Grade | IP65 / MIL-STD-810H |
| Anti-shock Grade | 1.2 meters |
| Working Temperature | -20 °C to 60 °C |
| Storage Temperature | -30 °C to 70 °C |
| Power Adapter (19V/3.78A) | *1 |
| User Manual | *1 |
| Battery | Optional |
| Four-charging dock | Optional |
